ASUS GeForce RTX 2080 Ti ROG MATRIX
Grafikkort, PCI-Express 3.0, 11GB GDDR6, 1350/1800MHz, Turing
ASUS GeForce RTX 2080 Ti ROG MATRIX
Infinity Loop Cooling
The Matrix name is reserved for exceptional products that leap forward, exceeding innovation and performance expectations. The ROG Matrix GeForce RTX™2080 Ti is the latest graphics card to earn this pedigree by introducing Infinity Loop, a unique all-in-one closed-loop cooling system. Each card has been binned and tuned to deliver the best out-of-the-box Turing™experience, raising the bar for graphics horsepower in small chassis and air-cooled builds.
With pump, tubing, and radiator integrated seamlessly under the shroud, the Matrix is cooler and quieter than air-cooled cards while taking up the same amount of space. An oversized heat spreader covers the GPU die and RAM to ensure the most critical components are kept cool. To top it all off, we included three of our industry-leading Axial-tech fans to push cool air through the radiator while simultaneously cooling the VRMs.

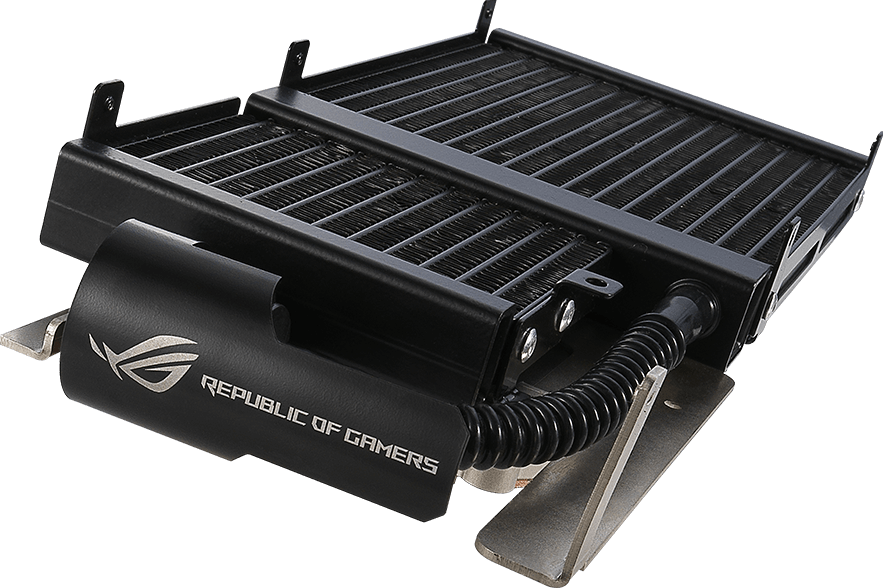

Infinity Loop Cooling
Loop de loop
The Matrix's internal closed-loop water cooling system is the first of its kind. Combining the performance of an external closed-loop hybrid with the minimal footprint of a standard air-cooled card introduced many design challenges, such as miniaturizing a water pump to squeeze between the shroud and PCB. The effort paid off by delivering headroom to propel the Matrix's clock speeds to a new level of performance for builds without custom water loops.

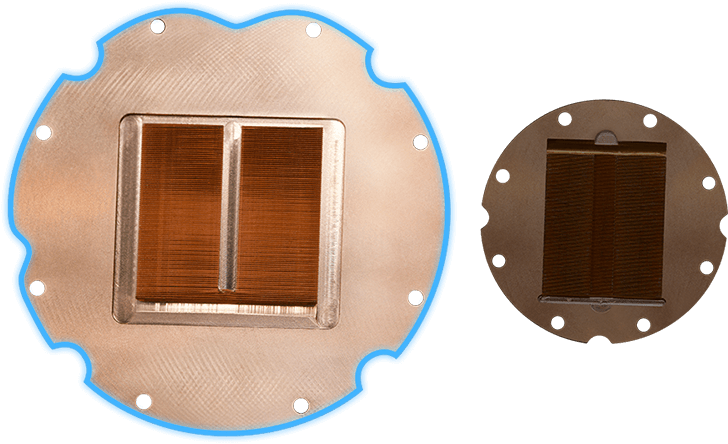

Extra-large Heat Spreader
Super size me
A large-scale, micro-finned heat spreader covers the GPU die and GDDR6 memory, facilitating higher clock speeds by keeping temperatures under tight control.
Better, faster, stronger
Current hybrid designs typically utilize a single fan to cool the VRM and memory. The ROG Matrix GeForce RTX™2080 Ti blows those cards out of the water with three powerful Axial-tech fans. These fans, newly designed for the latest generation of top-end ROG graphics cards, feature a smaller hub for longer blades, a barrier ring to increase downward air pressure, and IP5X dust resistance for a longer lifespan.
A key benefit of liquid-cooling is low noise level, and the ROG Matrix GeForce RTX™2080 Ti has been designed with that goal in mind. The Axial-tech fans cooling the radiator can spin down to a complete standstill when the GPU core temperature remains below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.
Raw performance isn't worth much without a solid platform that opens up its true potential. Carefully constructed using precision-manufacturing processes, fortified with structural reinforcements, and backed by gargantuan power design, the ROG Matrix GeForce RTX™ 2080 Ti has the credentials to push the Turing™ architecture to its very limits.
Precision automated manufacturing
The ROG Matrix GeForce RTX™2080 Ti is produced using Auto-Extreme Technology, an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

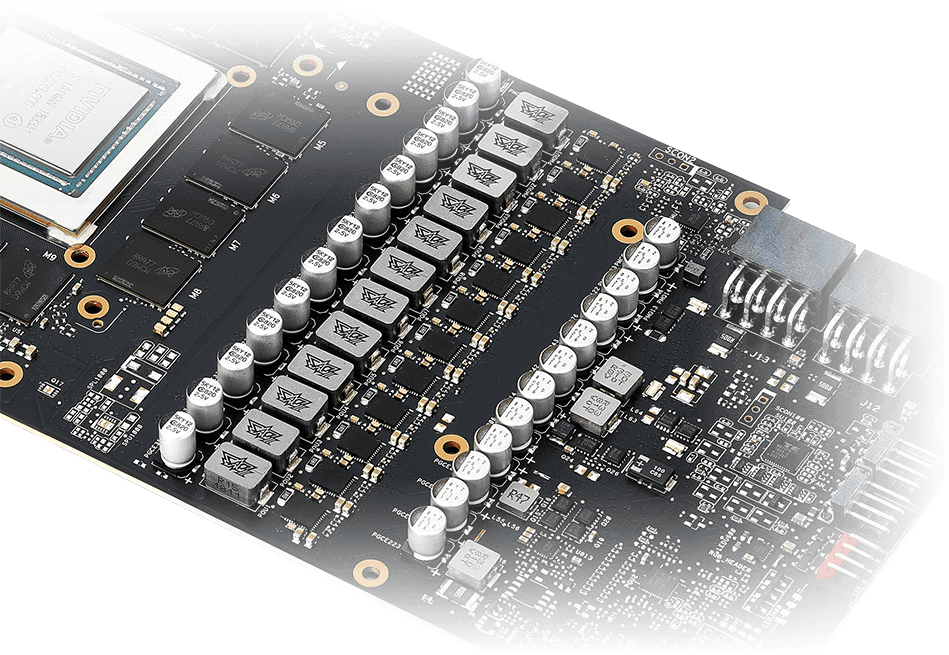

Super Alloy Power II
Premium power components
To deal with varying game and application workloads, the Turing™architecture can change speeds in an instant, necessitating a power delivery circuit with the reserves to handle the onslaught when you dial up the clock. The ROG Matrix GeForce RTX™features a 16 + 3 phase VRM that pairs premium capacitors, DrMOS power stages, and alloy-core chokes capable of pushing performance well beyond the redline.

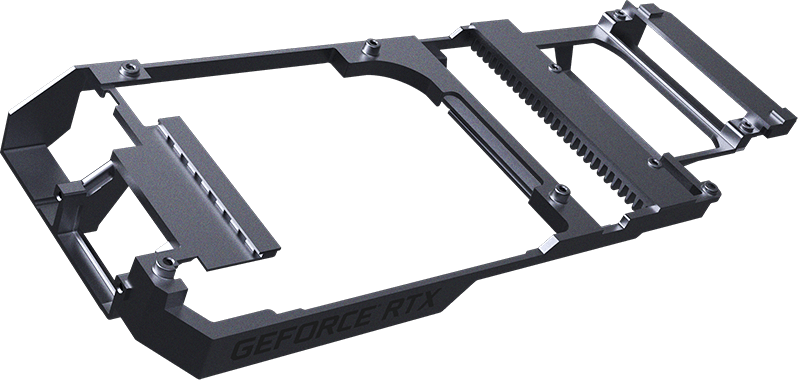

The radiator and pump aren't light-weight additions to the ROG Matrix GeForce RTX™2080 Ti, so our engineers have boosted the card's structural integrity by outfitting it with a metal brace that prevents excessive torsion and lateral bending of the PCB and protects the VRM solution with an overhead bar.
Hardware isn't the only area where research and development is being applied to take things to the next level. The ROG team has been building up the GPU Tweak II software utility to offer unique features along with the standard monitoring, tweaking, and tuning you would expect. Like all of our premium graphics cards, the ROG Matrix GeForce RTX™2080 Ti is bundled with XSplit streaming software and wtfast's Gamers Private Network to make sure that your online experience is the best it can be.

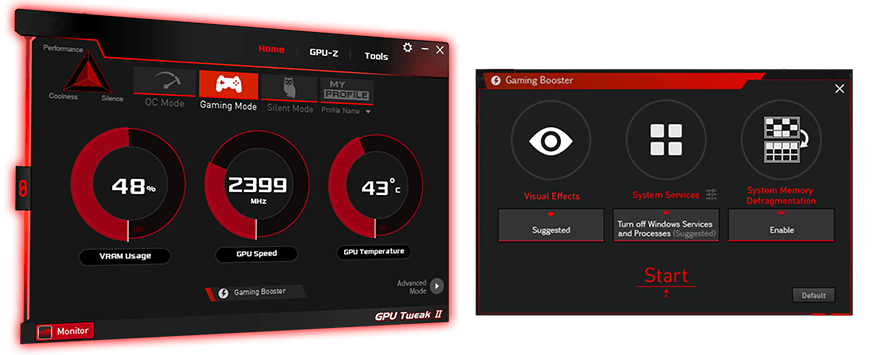

GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Enthusiasts know that clock speeds and dB levels aren't the whole story; design details are what push a product from being just a top performer to an historical milestone. From advanced lighting control with Aura Sync, to smart fan headers with FanConnect II, the ROG Matrix GeForce RTX™ 2080 Ti is packed with premium features that ensure an exceptional experience in every regard.
ASUS FanConnect II
Smarter fan speed
ASUS FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. Connected fans react to GPU and CPU temperatures, so that your system is optimally cooled no matter what you do
Outshine the competition
The ROG Matrix GeForce RTX™2080 Ti features Aura RGB lighting on both the shroud and backplate. Get Aura Sync software to connect your compatible products for a completely customized gaming setup.
|Producentens garanti (måneder)||36|
|Bus Type||PCI Express 3.0 x16|
|Grafik engine||NVIDIA GeForce RTX 2080 Ti|
|Kerne clock||1350 MHz|
|Boost Clock||1815 MHz|
|Maksimum opløsning||7680 x 4320|
|Maks. antal understøttede monitorer||4|
|Interfacer||2 x DisplayPort
2 x HDMI
|API-understøttet||DirectX 12, OpenGL 4.5|
|Egenskaber||Dual Bios, NVIDIA GameWorks, NVIDIA VRWorks, NVIDIA NVLink-teknologi, ASUS FanConnect II, ASUS AURA SYNC support, Real-Time Ray Tracing, NVIDIA Turing GPU-arkitektur, NVIDIA G-Sync HDR ready, 0dB Technology, aksiale blæsere, HDCP|
|Effektiv clock hastighed||14800 MHz|
|Påkrævet strømforsyning||650 W|
|Yderligere krav||2 x 8 pin PCI Express strømstikforbindelse|
|Udstyr inkluderet||ROG-berøringsfastgørelse, ROG Sticker|
|Med software||Displaydrivere, ASUS GPU Tweak II, XSplit Gamecaster 2 (1 års Premium licens), WTFast Gamers Private Network (6 måneders Premium license)|
|Overensstemmelsesstandarder||DisplayPort 1.4, HDCP 2.2|
