Produktoplysninger
In Win A1 Mini ITX
The modern Scandinavian style design is complemented with tempered glass and brushed aluminium. The A1 white presents a stunning and sleek appearance; the black version demonstrates a simple and modern vibe.
Squaring Infinite Possibilities

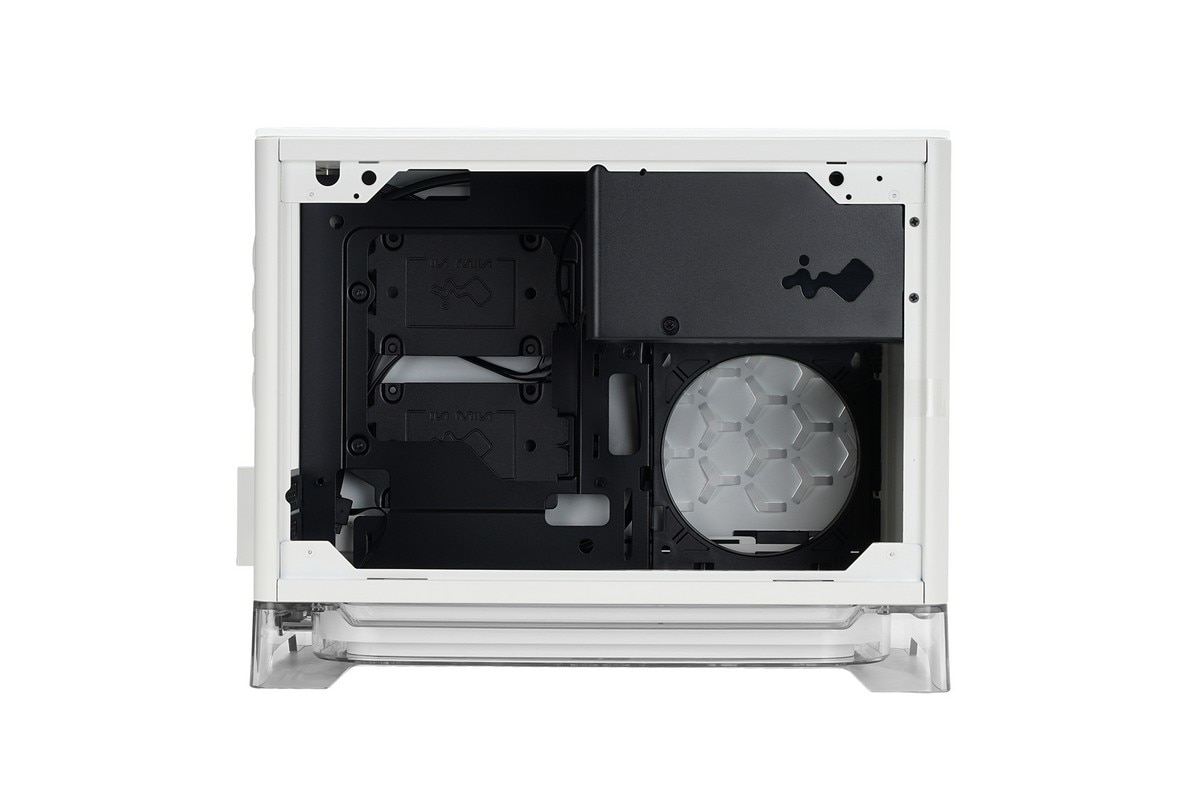

The square structure provides a hassle-free installation, and the capacity to house powerful hardware in its Mini-ITX form. The A1 supports a CPU heatsink height up to 160mm and accommodates up to 320mm length graphics cards.

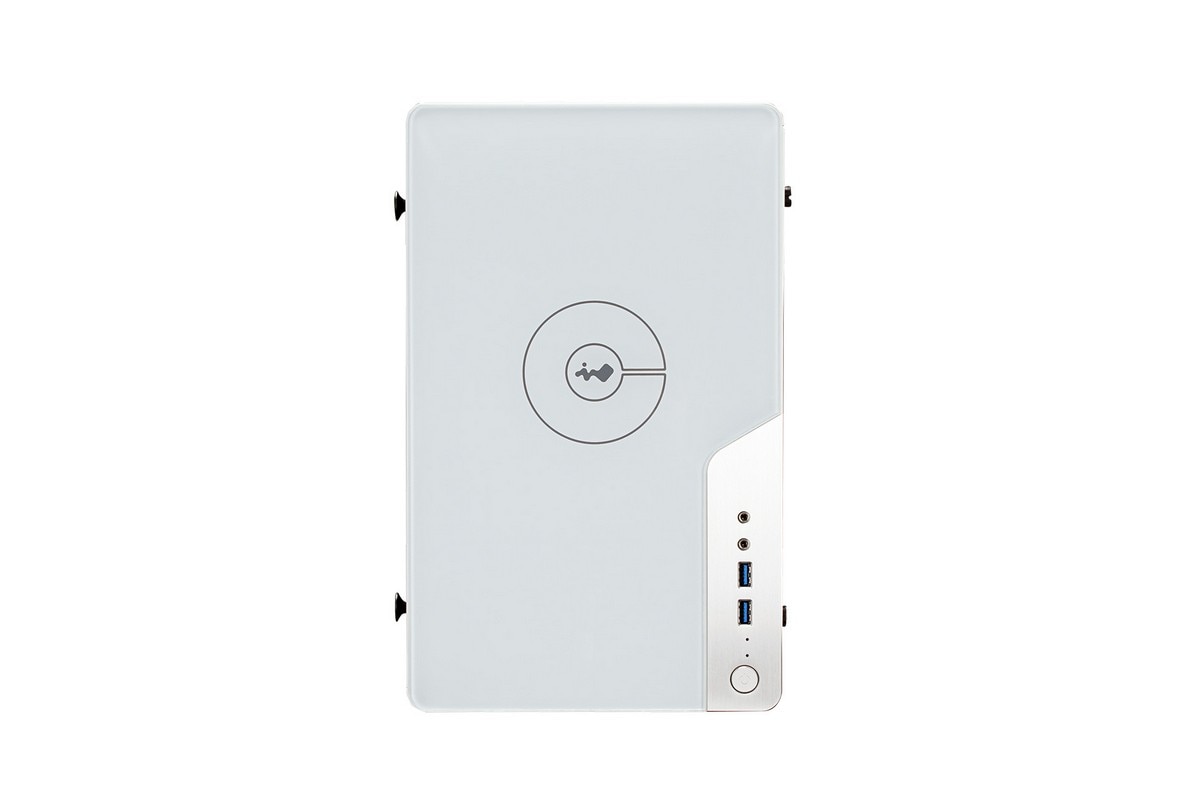

Wireless Charging Station
Take charge of your mobile devices with the all new wireless charging feature! Simply place your Qi enabled devices in the designated charging area on top. In Win’s included PSU offers continuous power even when your PC is off. Charge anytime without being wired!

User Friendly Design

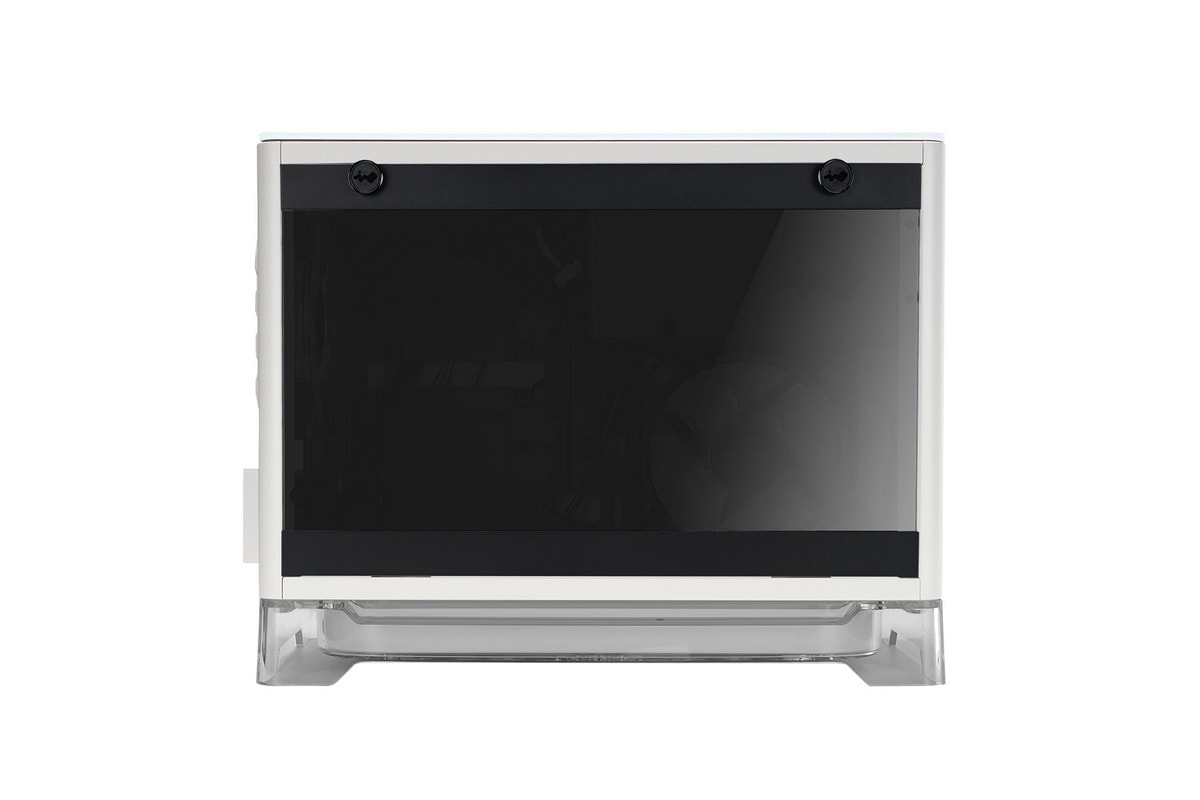

The 3mm tempered glass side panel can be easily removed with its tool-less design by pulling the tabs and lifting up.

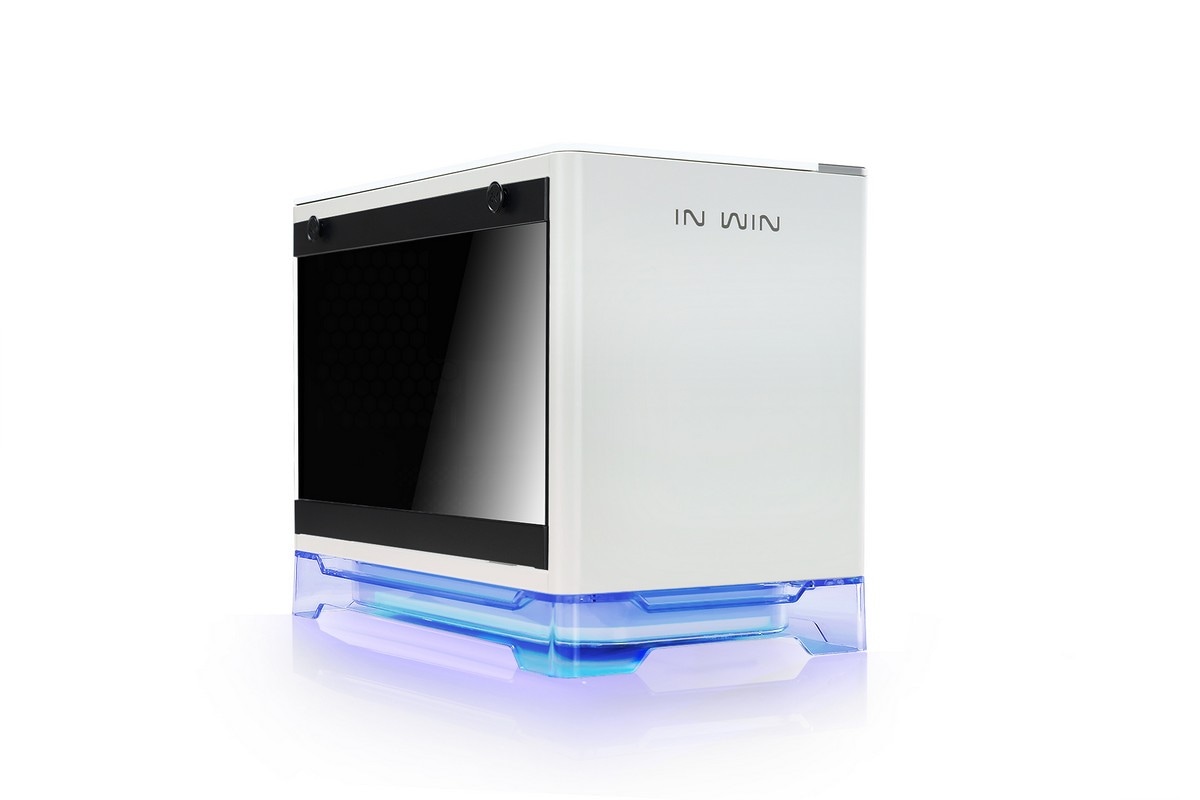

Floating in A1r
The bottom RGB effect reflects through the tinted transparent stand, creating the illusion of floating! Floating powered by RGB.

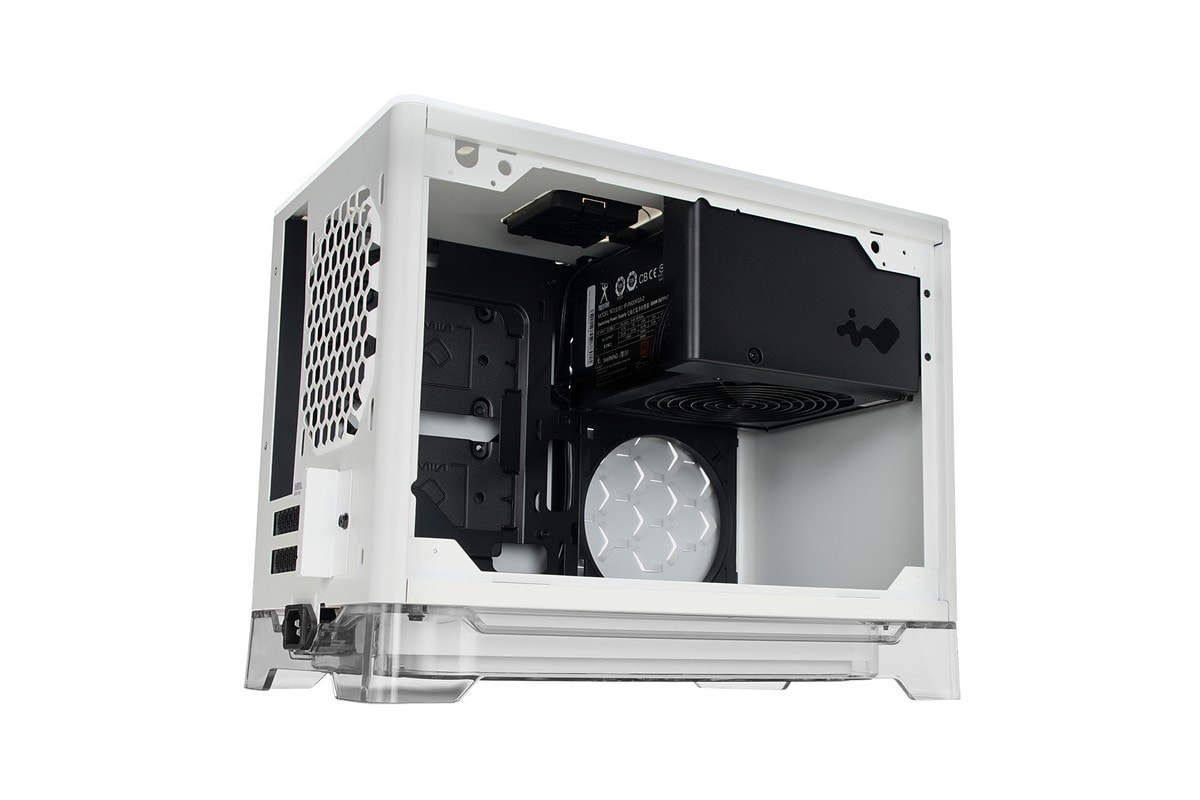

In Win 600W PSU
The In Win 600W PSU has an 80 PLUS Bronze certification. The PSU is prebuilt within the A1 with the cables already managed and is accommodated with two GPU connectors (PCI-E 6+2-pin) for high-end graphics cards. Top PSU chamber makes the system cleaner, and creates an ideal climate for the motherboard and graphics cards.

Tekniske detaljer
Producentens garanti (måneder) | 24 |
---|---|
Model | Minitower |
Max størrelse på bundkort | Mini ITX |
Understøttede motherboards | Mini-ITX |
Antal interne bays | 2 |
Produktmateriale | Hærdet glas, SECC metal |
Farve | Hvid |
Kølesystem | Side: 120 mm blæserstativ x 1 Bagside: 120 mm blæserstativ x 1 / 1 x 120 mm blæser eller 1 x 120 mm radiator understøttet Nederst: 120 mm blæserstativ x 2 |
Maks. højde for CPU-køler | 160 mm |
Maks. længde for videokort | 300 mm |
Egenskaber, systemkabinet | Understøtter 120 mm radiator bagtil |
Udvidelses-båse | 2 (total) / 2 (fri) x intern - 2.5" |
---|---|
Ekspansionsåbninger | 2 |
Interface | 2 x USB 3.0 1 x hovedtelefoner - mini-jack 1 x mikrofon - mini-jack |
Overensstemmelsesstandarder | RoHS |
---|
Strømenhed | Strømforsyning |
---|---|
Antal installeret | 1 |
Maks. antal understøttet | 1 |
Strømforsyning | 600 Watt |
Bredde | 21 cm |
---|---|
Dybde | 35.55 cm |
Højde | 27.3 cm |
Vægt | 6 kg |
Bredde ved forsendelse | 29.5 cm |
---|---|
Dybde ved forsendelse | 41.4 cm |
Højde ved forsendelse | 34.4 cm |
Vægt ved forsendelse | 6.9 kg |
Service & Support | Begrænset garanti - 2 år |
---|
