ASUS Pro WS X570-ACE, S-AM4

Bundkort, ATX, X570, DDR4, 3xPCIe 4.0 x16, SLI/CFX, 2x M.2, USB 3.2

Varenummer: 1132529 / Producentens varenr: PRO WS X570-ACE

More pictures from ASUS Pro WS X570-ACE, S-AM4

2.699,-
Fri fragt
4 stk. på lager (leveringstid 2-5 arbejdsdage)
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
Retningslinjer for produktanmeldelser
AnandTech

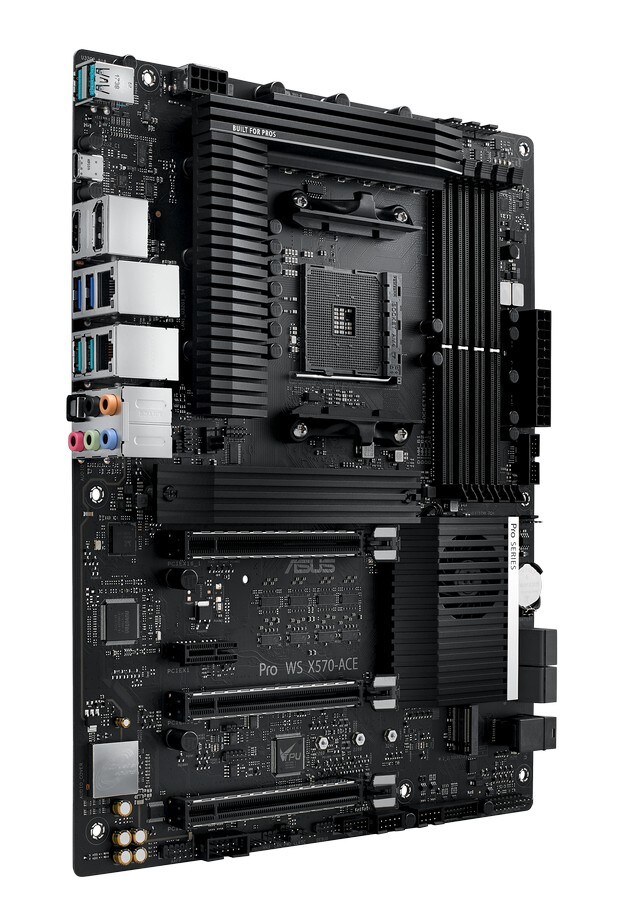

ASUS Pro WS X570-ACE

AMD AM4 X570 ATX arbejdsstation bundkort med 3 PCIe 4.0 x16, Dual Realtek og Intel Gigabit LAN, DDR4 ECC-hukommelsesstøtte, dual M.2, U.2, og ASUS Control Center

  • 3 PCIe 4.0 x16 slots med optimeret banearrangement af 3-vejs x8/x8/x8 til at accelerere en stadigt mere mangfoldig mængde af arbejdsopgaver
  • Pålidelig og lydhør ECC-hukommelse egnet til missionskritiske opgaver
  • ASUS Control Center: Et softwareværktøj udstyret med dual GbE LAN for out-of-band styring til centraliseret og omkostningsbesparende IT-management
  • Ultrahurtig opbevaring: Op til 64bps dual M.2, U.2, plus op til 10 Gbps bagpanel USB 3.2 Gen 1 med type-A og type-C porte
  • Ultraeffektiv VRM-heatsink: Finneareal-design i metal maksimerer overfladeareal til varmeafledning for at muliggøre uhindret ydeevne

Pro

WORKSTATION MOTHERBOARD

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.


Multi-GPU support

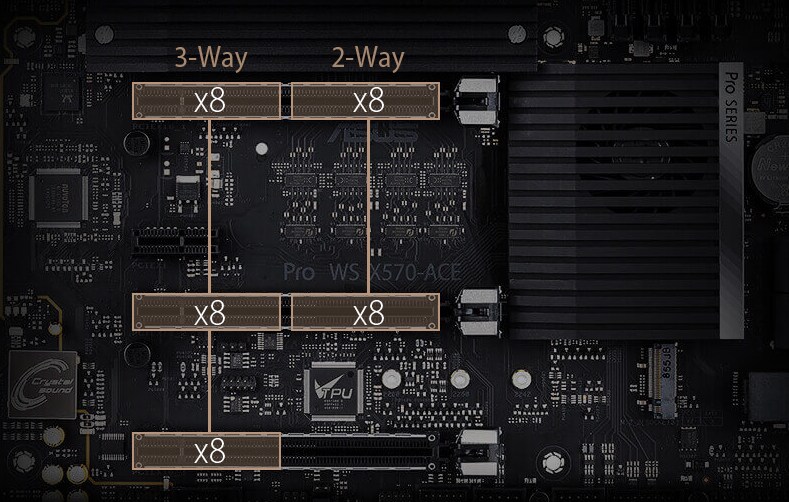

Fully loaded takes on new meaning when you have up to 24 PCI Express® lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.

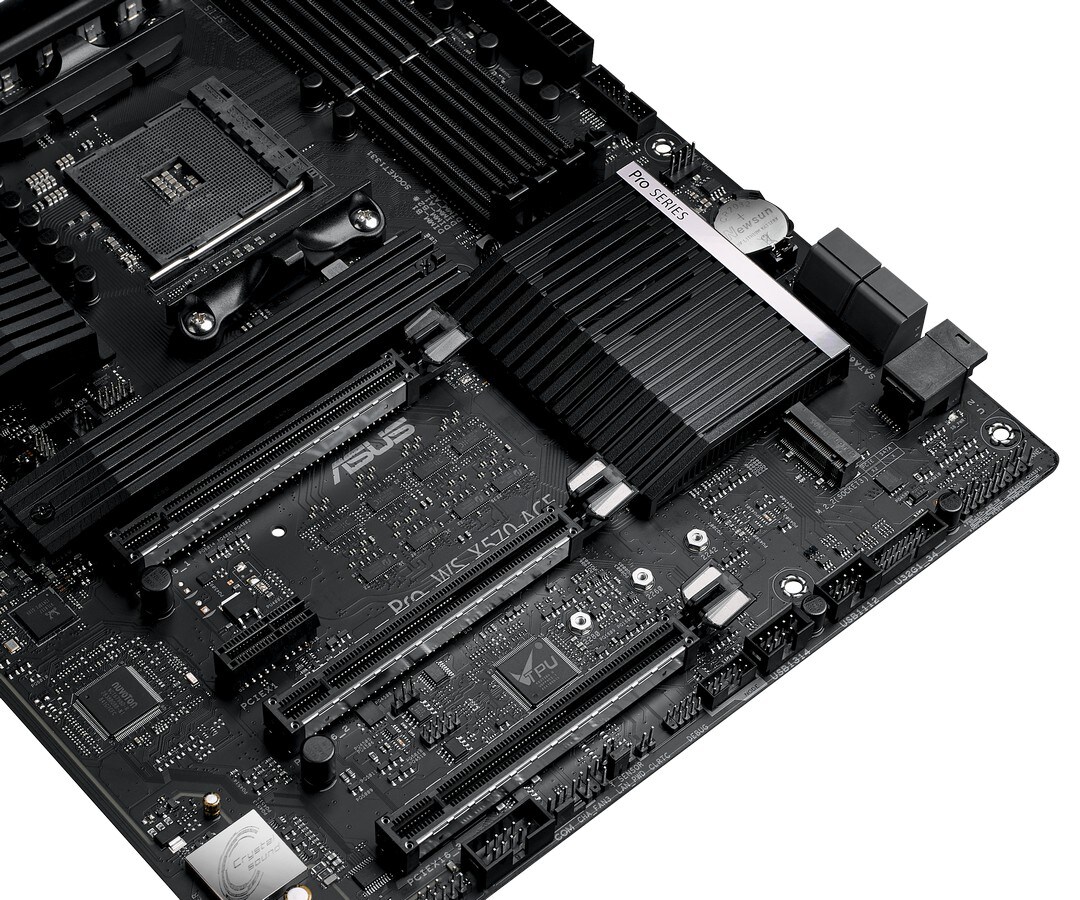

M.2 Heatsink

Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C for optimal storage performance and improved SSD longevity.

Active PCH heatsink

With double the bandwidth via PCIe 4.0, the X570 platform poses greater thermal challenges than its X470 predecessor. The Active PCH heatsink has a dedicated fan to efficiently combat temperature-induced throttling that can slow performance during sustained transfers.

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype AMD X570
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR4
Understøttet RAM-integritetskon ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALCS1200A
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Intel I211-AT / Realtek RTL8117
Netværks interfaces 2 x Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU); PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics))
1 x PCIe 4.0 x16 (x8-modus)
1 x PCIe 4.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
PCIe 3.0 -stikforbindelser: 1 x U.2
Interface 2 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
Interne interfaces 4 x USB 2.0 - intern stik
1 x SPDIF ud - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber Flersproget BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 6,0 support, SMBIOS 3,2 support
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS Fan Xpert 4, ASUS SafeSlot, ASUS 5X Protection III, M.2 kølelegeme, ASUS OptiMem, Armoury Crate, ASUS Node, PowIRstage IR3555 MOSFETs, ProCool II Power Connector
Diverse
Udstyr inkluderet 1 x M.2 skrue, I/O-bagdække, ASUS VGA Holder
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, ASUS Control Center
Overensstemmelsesstandarder Plug and Play
Bredde 30.5 cm
Dybde 24.4 cm
