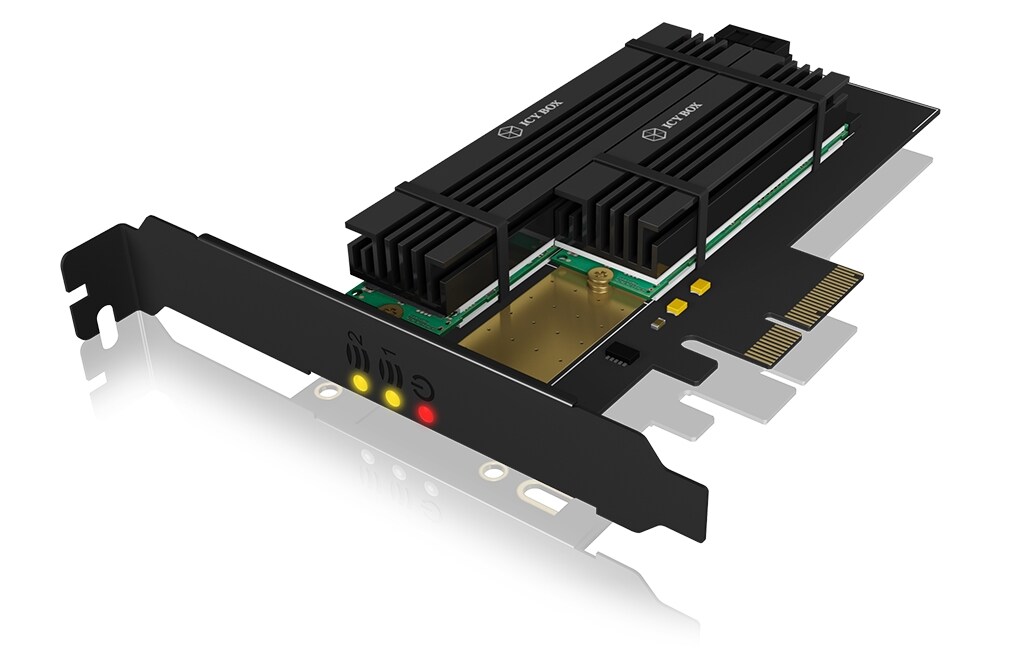

ICY BOX PCIe extension card

for 2x M.2 SSDs incl. heat sinks

Varenummer: 1133800 / Producentens varenr: IB-PCI215M2-HSL

More pictures from ICY BOX PCIe extension card

199,-
+ fragt fra 59,-
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
40 stk. på lager (leveringstid 2-3 arbejdsdage)
Retningslinjer for produktanmeldelser

ICY BOX
IB-PCI215M2-HSL

PCIe extension card for 2x M.2 SSDs incl. heat sinks


Features

  • 1x M.2 B-Key for M.2 SATA (AHCI) SSD with B-Key or B+M-Key
  • SATA III data transfer rate up to 6 Gbit/s
  • 1x M.2 M-Key for M.2 PCIe (NVMe) SSD
  • PCIe 3.0 x4 data transfer rate up to 32 Gbit/s
  • Optional profile bracket sizes 80 and 120 mm
  • Supports M.2 SSD sizes of 22x30/42/60/80/110 mm
  • Including heat sinks for each one 2280 and 22110 M.2 SSD

Storage extension à la carte

The PCIe expansion card offer the possibility to easily add all possible types of M.2 SSDs. Whether via SATA or PCIe, AHCI or NVMe. With a free PCIe slot there are no more limits.

M.2 in all shapes and colours

The IB-PCI215M2-HSL allows you to upgrade your system with up to two SSDs of your choice. Whether particularly large or particularly powerful, every M.2 SSD gets a place here and is used in the best possible way.

Many possibilities thanks to high flexibility

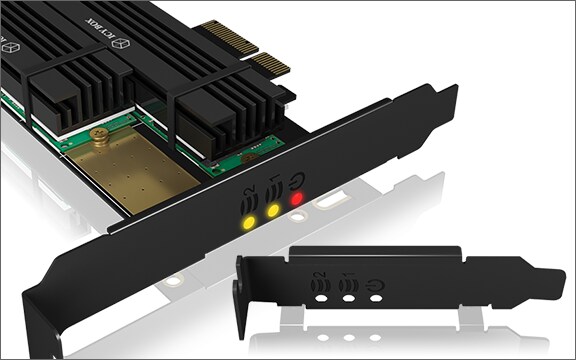

You want to integrate one or two M.2 SSDs into your system, but you have unusual requirements? No problem! Thanks to the modular slot brackets in half and full profile, the IB-PCI215M2-HSL can be used everywhere. Small and large systems can only benefit here.

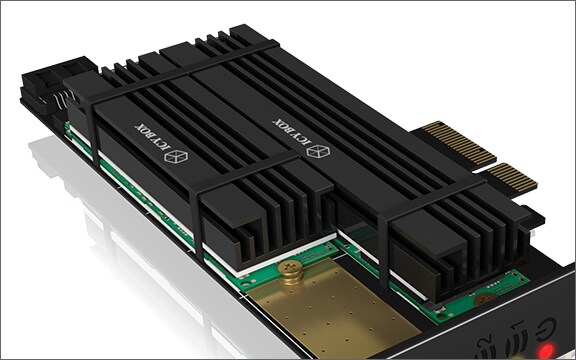

Keeps a cool head at all times

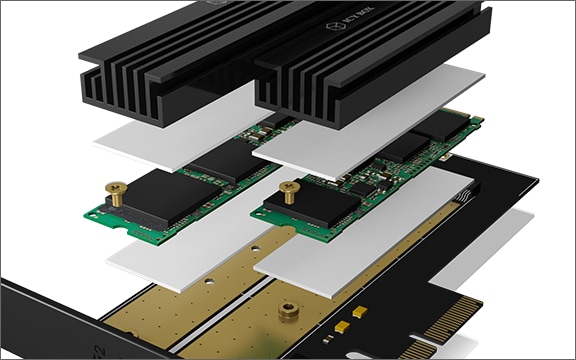

We have also thought about cooling. Thanks to the passive heat sinks supplied, even the fastest memory cards keep a cool head. One heat sink each for 80 mm and one for 110 mm long, as well as adaptable heat conduction pads for single-sided and double-sided memory modules are included in our package.

Generelt
Producentens garanti (måneder) 24
Enhedstype Interfaceadapter - indstikskort
Harddiskens formfaktorkompatibilitet M.2
Host Bus PCIe 3.0 x4
Produktmateriale Plastik, metal
Farve Sort, antracit (sort)
Controller for lagring
Interface M.2 Card
Dataoverførselshastighed 32 Gbit/s
Understøttede enheder Solid state drev
Maks. antal lagerenheder 2
Ekspansion / Konnektivitet
Interface 1 x M.2 Card - M.2 B+M Key (intern)
1 x M.2 Card - M.2 B Key (intern)
Tilslutninger 1 x PCIe 3.0 x4
Diverse
Udstyr inkluderet Skruer, bøjle i halv højde, fuldprofilsbøjle, kølelegeme, 3 x heat conducting pads (70 mm), 3 x heat conducting pads (100 mm), 4 x silicone rings
Egenskaber LED indikator, passivt kølet
Mål og vægt
Bredde 28 cm
Dybde 6.8 cm
Højde 0.5 cm
Vægt 32 g
Mål & vægt (forsendelse)
Bredde ved forsendelse 15.5 cm
Dybde ved forsendelse 20.5 cm
Højde ved forsendelse 2.8 cm
Vægt ved forsendelse 253 g
