Seasonic Core GM 650 650W PSU

ATX 12V, 80 PLUS Gold, Modular, 4x 6+2pin PCIe, 1x CPU, 6x SATA

Varenummer: 1136568 / Producentens varenr: CORE-GM-650

More pictures from Seasonic Core GM 650 650W PSU

Effektkapacitet:
650 W
749,-
+ fragt fra 59,-
Bestillingsvare. Bestilles ved ordre. Leveringstid 1-2 uger.
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
Retningslinjer for produktanmeldelser

Seasonic Core GM

The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.

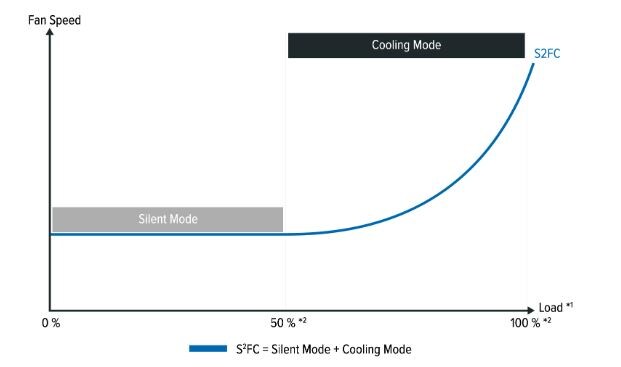

S2FC - Smart and silent fan control

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

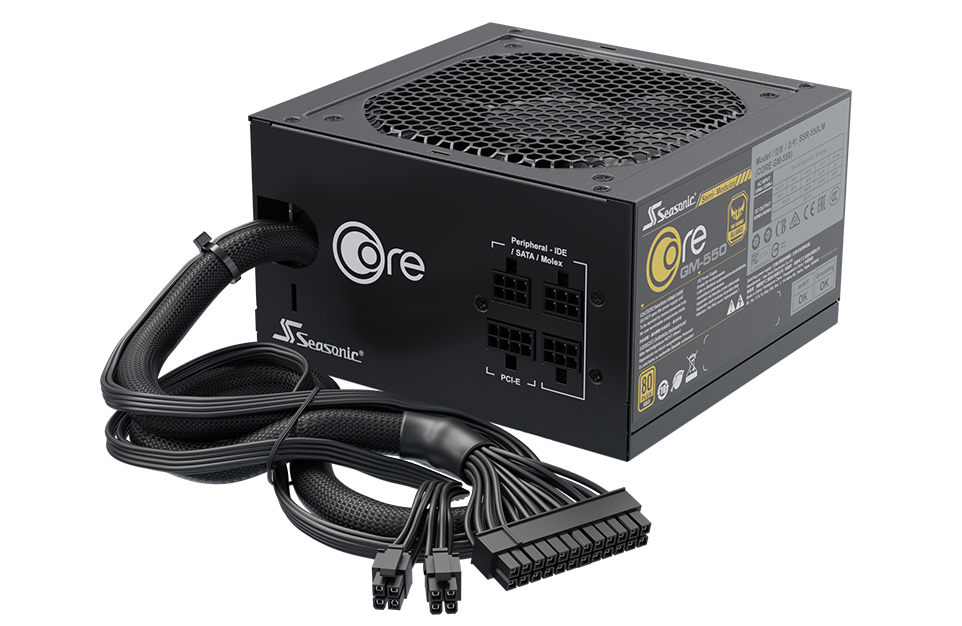

Semi-modular cables

Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.

80 PLUS GOLD

The CORE GM Series achieves 80 PLUS®Gold certification with its 90 % efficiency at 50 % system load.

Generelt
Producentens garanti (måneder) 60
Enhedstype Strømforsyning - intern
Specifikationsoverensstemmelse ATX12V / EPS12V
PSU formfaktor ATX
Strømenhed
Indgangspænding AC 100-240 V
Nødvendig frekvens 50 - 60 Hz
Detaljer om strømudgangskonnektorer 1 x strøm 24 pin ATX med aftagelig 4 pin sektion
1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
6 x 15 pin Serial ATA strøm
3 x 4-PIN intern strøm
Udgangspænding +3.3, +5, ±12 V
Strømkapacitet 650 Watt
Output Current +5V - 20 A
+3.3V - 20 A
+12V - 54 A
-12V - 0.3 A
+5VSB - 3 A
Effektivitet 90%
Modulær Kabel Administration Ja
80 PLUS certificering 80 PLUS Gold
Diverse
MTBF (forventet tid mellem fejl) 100,000 timer
Kølesystem 120 mm ventilator
Egenskaber Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, DC-DC teknologi, blæserhastighedsstyring, hylsterlejekøleblæser, semi-modulær, Seasonic S2FC fan Control
Overensstemmelsesstandarder TUV, BSMI, CB, CCC, FCC, RoHS, WEEE, cTUVus, REACH, Energy-Related Products (ErP) Lot 7
Miljømæssige standarder
ENERGY STAR Ja
Producentgaranti
Service & Support Begrænset garanti - 7 år
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Mål og vægt
Bredde 15 cm
Dybde 14 cm
Højde 8.6 cm
