MSI Creator TRX40, Socket-sTRX4

Bundkort, EATX, TRX40, DDR4, 4x PCIe-x16, 3x M.2, SLI/CFX

Varenummer: 1146965 / Producentens varenr: CREATOR TRX40

More pictures from MSI Creator TRX40, Socket-sTRX4

6.587,-
Fri fragt
Ikke på lager. 2 stk. forventes klar til levering 3.maj.2021 (usikker dato)
Retningslinjer for produktanmeldelser
oc3dtest Product test Product test

MSI Creator TRX40

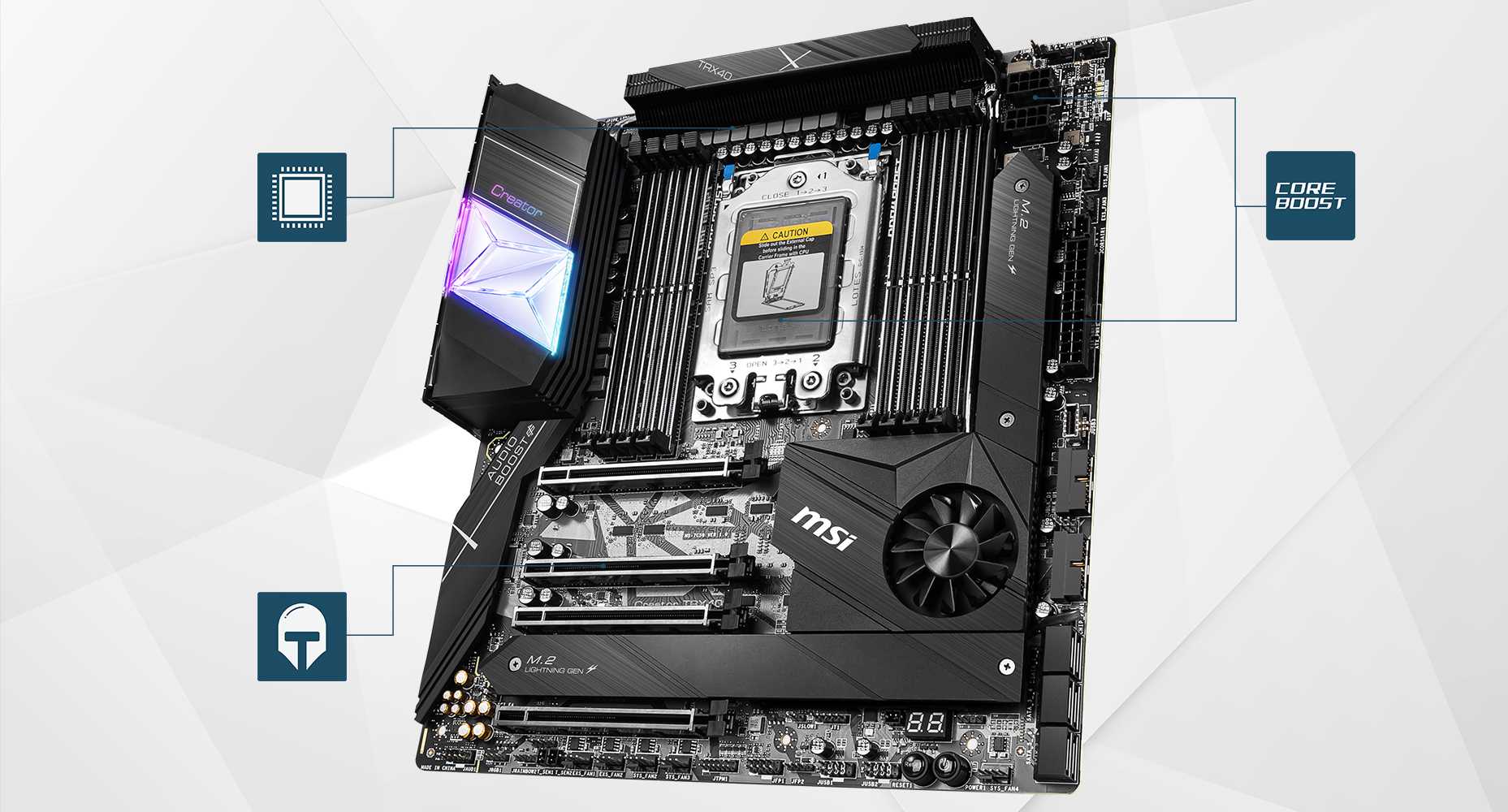

Digital Power
Highest quality components with 16 phases 70A digital power and power stage make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Core Boost Technology
Combining double 8 pin power connectors and premium layout design, the Creator is ready for unleashing the maximum performance.

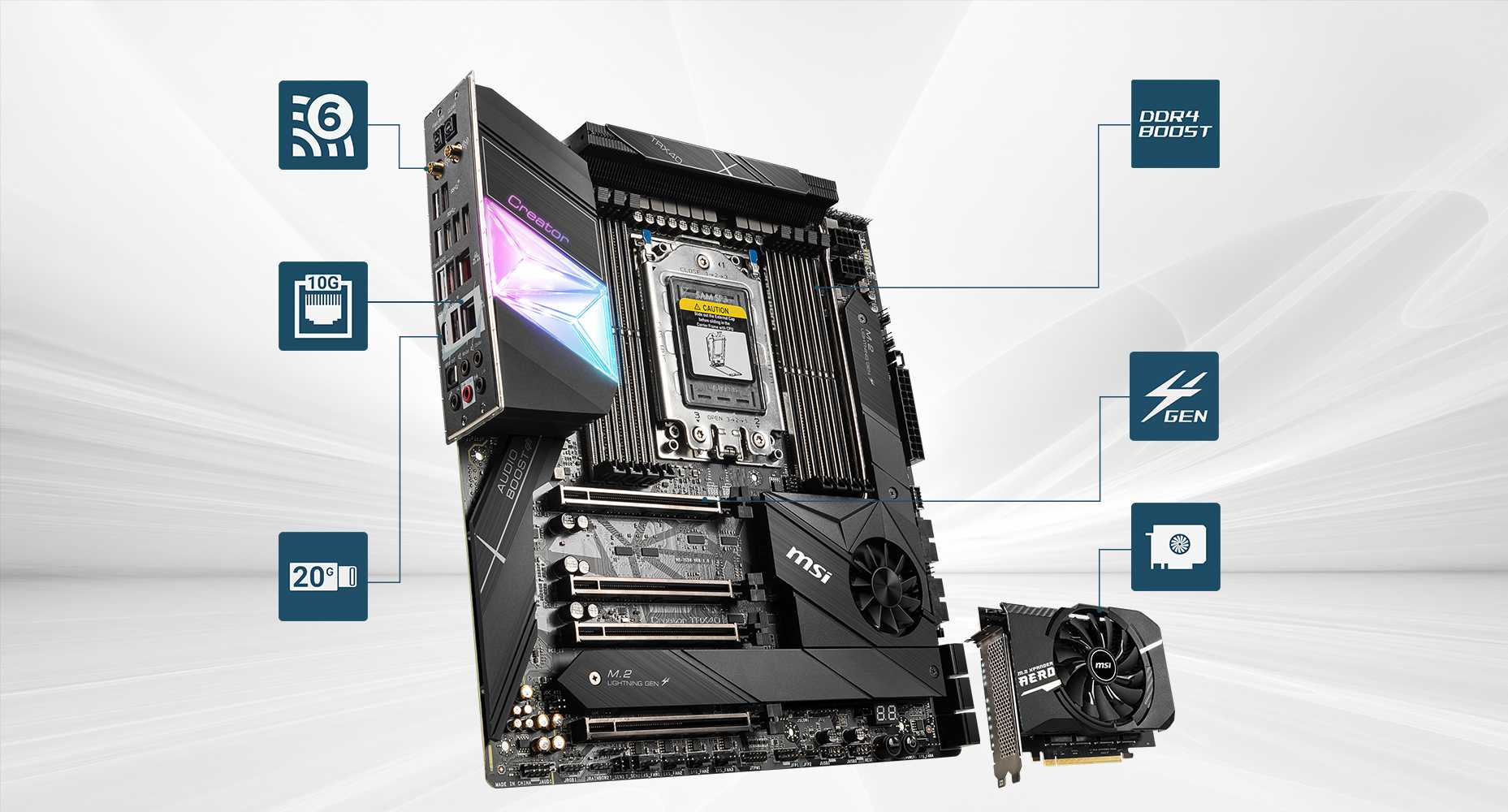

Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

10G Super LAN
Next level network speed, secure networking with fastest data throughput to improve efficiency.

Lightning USB 20G
Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.

DDR4 Boost with Steel Armor
The Fully isolated and shielded DIMM slots to deliver pure data signals for the best performance.

Lightning Gen 4 Solution
The Lightning Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

M.2 XPANDER-AERO GEN4
Offers four extra Lightning Gen 4 M.2 Gen 4 x4 slots and features graphics card level thermal design to increase your storage capacity.

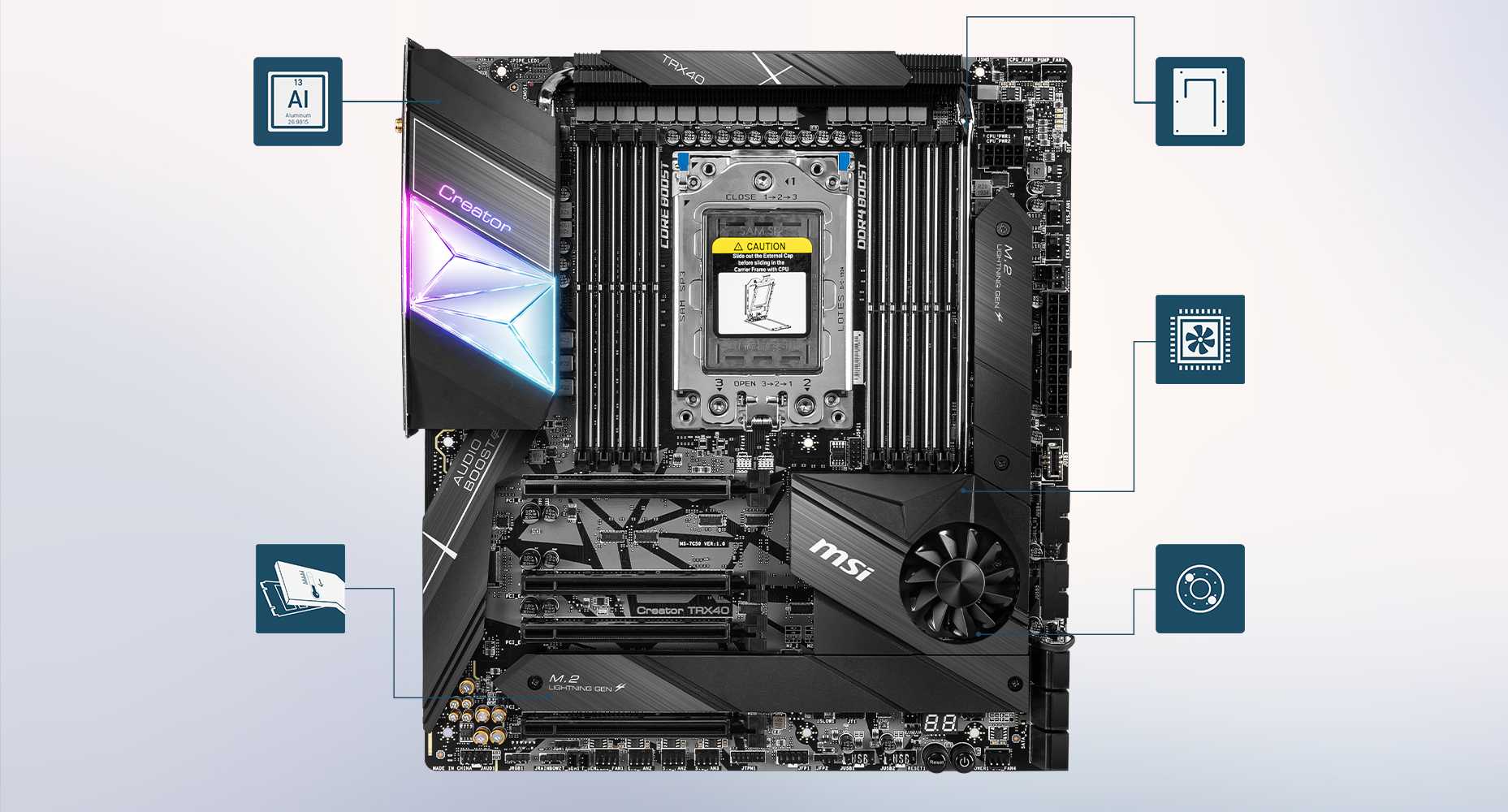

All Aluminum Design
All-metal extended heatsink cover ensures even high-end processors to run in full speed.

M.2 Shield Frozr
Exclusive Dual side M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Extended Heat-Pipe
Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink.

Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation.

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.

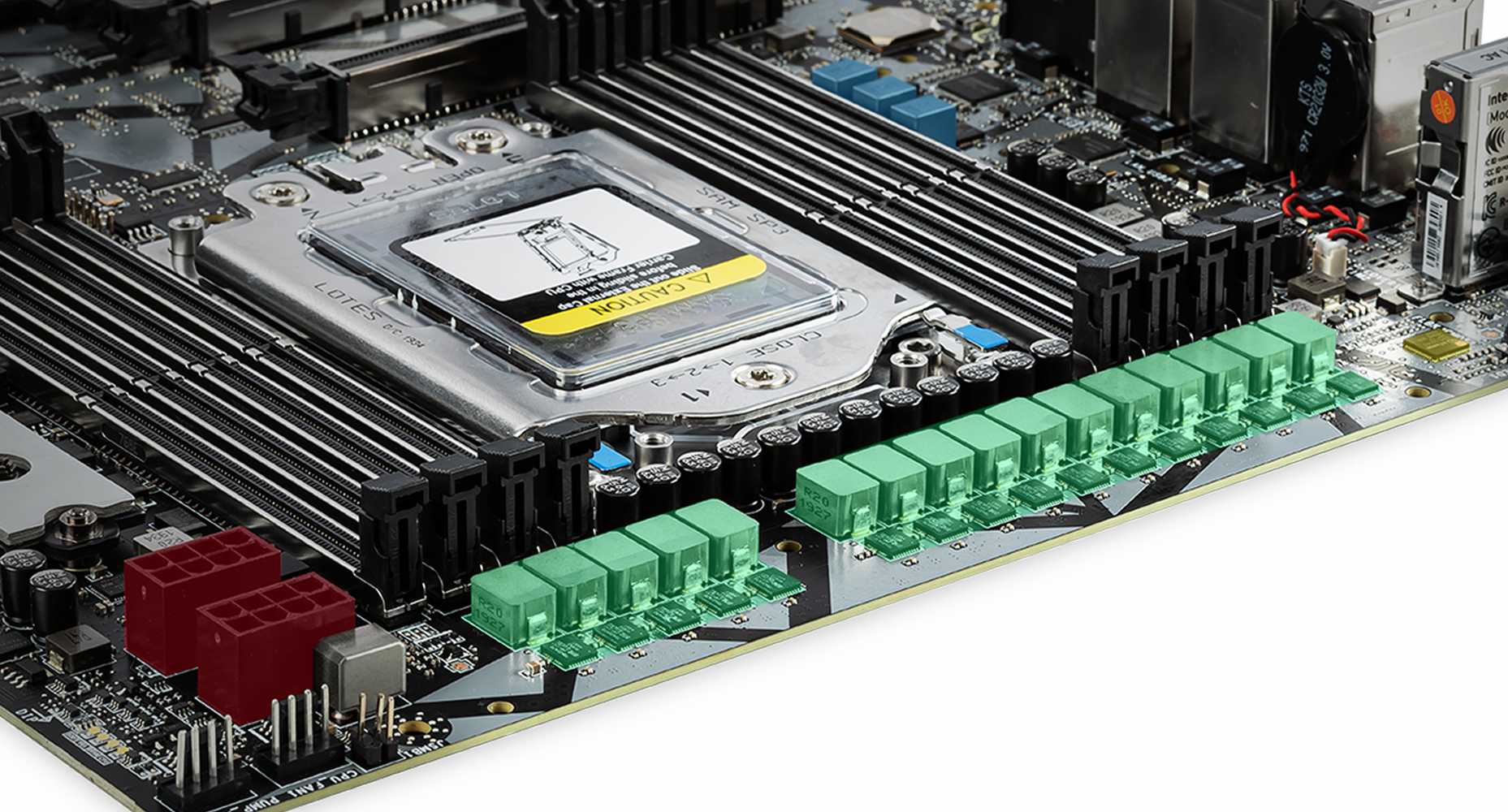

16+3 Phases Digital Power With All Aluminum Design

Providing a stable and reliable condition for designer is the most important thing. Creator TRX40 features incredible direct 16 phases 70A digital power to CPU for the heavy workload. Combining premium PCB design with Extended Heatsink Design to provide your system the best performance stably.

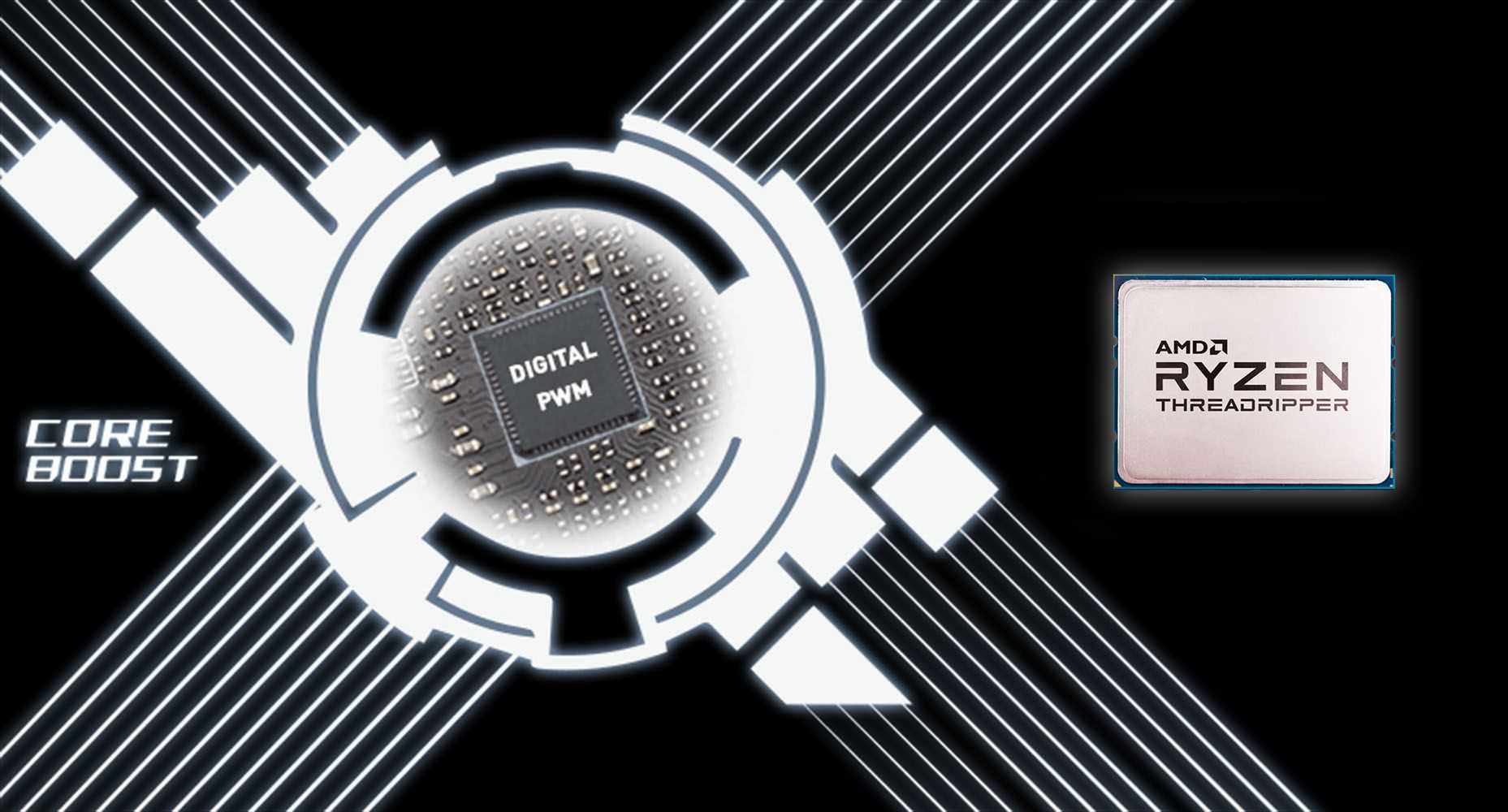

Core Boost

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

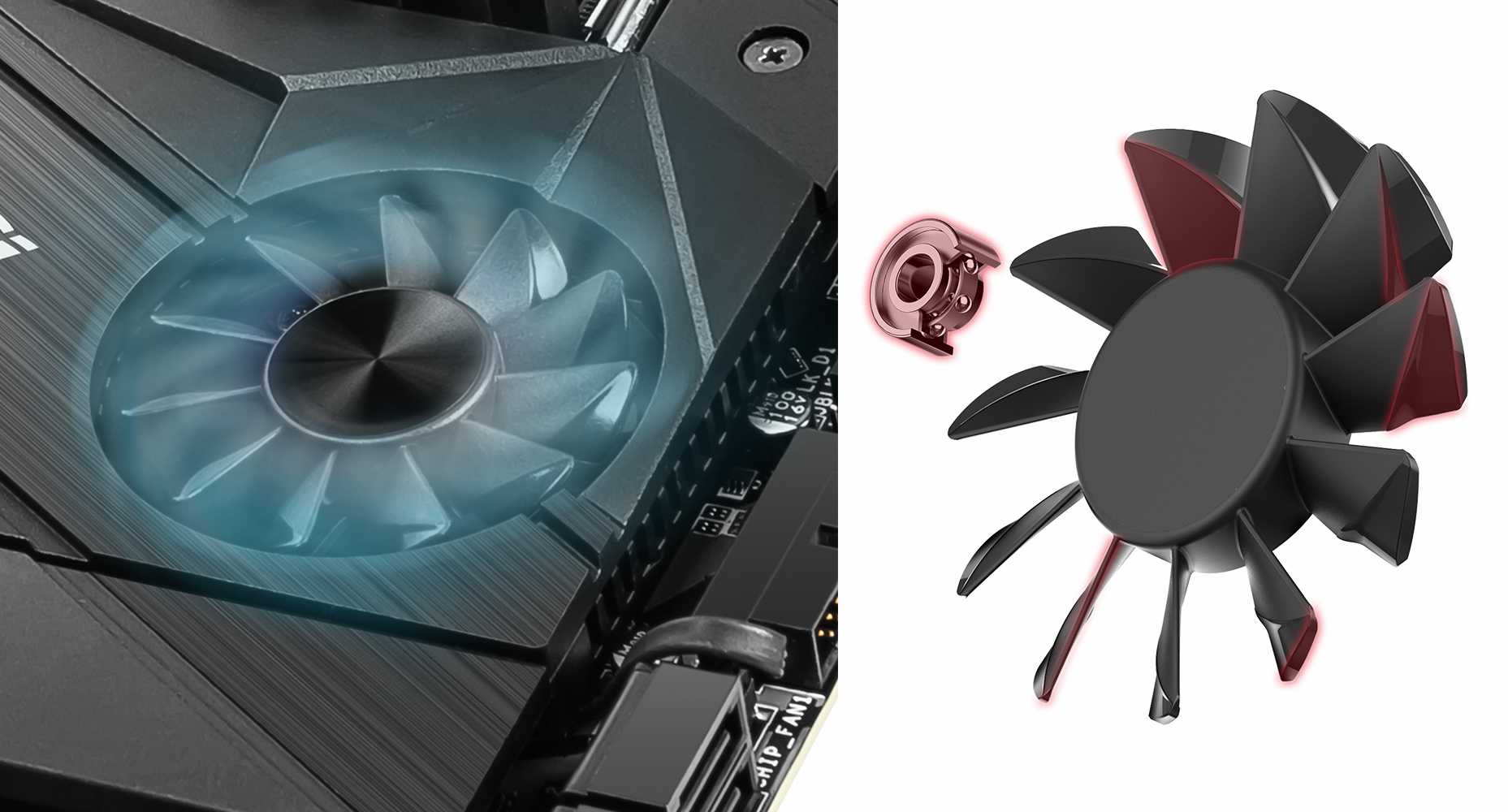

Frozr Heatsink

Higher performance generates more heat, especially for the latest Gen4 bandwidth. MSI motherboards feature the patented fan design to ensure the best performance for content creators and prosumers.
Propeller Blade Technology
Double Ball Bearings
Zero Frozr & Smart Fan Control

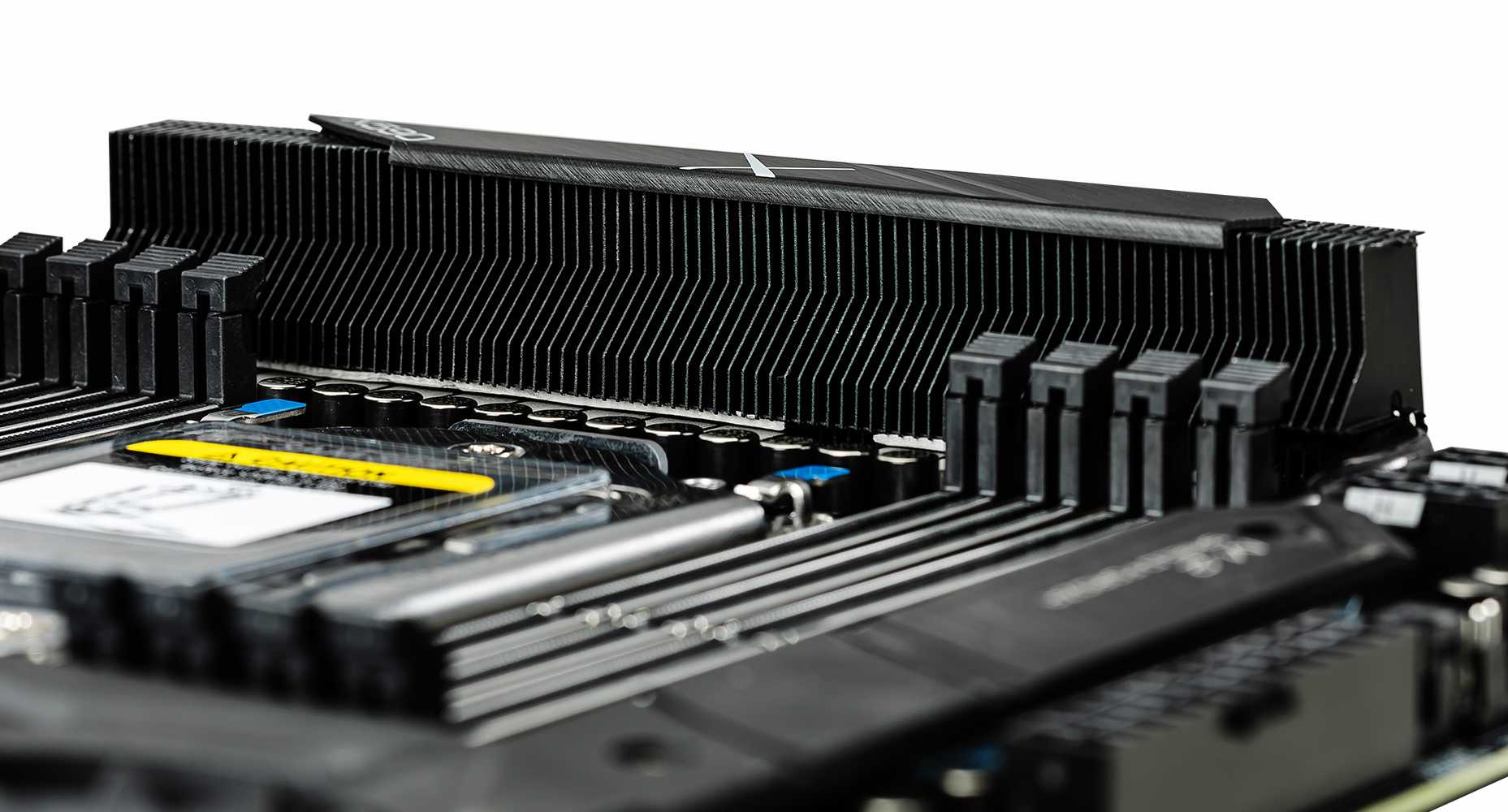

Stacked Fin Array

To maximize the heat dissipation effect, the Stacked Fin Array offers steady aircurrent and enlarge the radiating area. This design increases the heat conducting efficiency.

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - udvidet ATX
Chipsættype AMD TRX40
Processor-socket Socket sTRX4
Max antal processorer 1
Kompatible processorer Ryzen ThreadRipper (understøtter 3. Generation Ryzen ThreadRipper)
Understøttet RAM
Maks. størrelse 256 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC, ECC
Registreret eller buffer Ikke bufferet
Egenskaber Quad kanal hukommelses arkitektur, A-XMP support
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1220 / Realtek ALC4050H
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Intel I211-AT / Aquantia AQC107 / Intel AX200
Netværks interfaces Bluetooth, 10 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
8 x DIMM 288-pins
4 x PCIe 4.0 x16 (x16/x8/x16/x8 mode)
Grænseflade (lagring) SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 3 x M.2
Interface 1 x USB-C Gen2x2
4 x USB 3.2 Gen 1
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x LAN (Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
5 x USB 3.2 Gen 2
Interne interfaces 4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2 - intern stik
1 x audio - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-egenskaber M-Flash, MSI ClickBIOS 5
Hardware egenskaber NVIDIA 3-way SLI Technology Support, AMD 3-vejs CrossFireX teknologisupport, OC Genie 4, Clear CMOS Button, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Audio Boost 4, M.2 Shield FROZR, præmonteret I/O-skjold, Nahimic 3 Sound Technology, MSI Core Boost, AMD StoreMI technology, Extended Heatsink Design, Zero Frozr-teknologi, AMD Turbo USB 3.2 Gen 2, Secure Erase+, 16 Phase CPU Power Design, Frozr Heatsink Design
Diverse
Udstyr inkluderet MSI M.2 XPANDER-AERO GEN4
Medfølgende ledninger 4 x Seriel ATA kabel
Bredde 30.4 cm
Dybde 27.7 cm
