MSI TRX40 PRO WIFI, Socket-sTRX4
Bundkort, ATX, TRX40, DDR4, 4x PCIe-x16, 2x M.2, SLI/CFX
MSI TRX40 PRO WIFI
Core Boost Technology
Combining double 8 pin power connectors and premium layout design, the Creator is ready for unleashing the maximum performance.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Highest quality components with 12 phases 90A digital power and Power stage make sure your system runs smoothly under the most extreme conditions.
Latest Wi-Fi 6 Solution
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
Lightning USB 20G
Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
M.2 XPANDER-Z GEN4
Offers two extra Lightning Gen 4 M.2 Gen 4 x4 slots and features graphics card level thermal design to increase your storage capacity.
Lightning Gen 4 Solution
The Lightning Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
All Aluminum Design
All-metal extended heatsink cover ensures even high-end processors to run in full speed.
M.2 Shield Frozr
Build-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Zero Frozr Technology
AI tuning system that auto-adjust fan speed by chipset temperature, even eliminates fan noise by stopping the fans in low-load situation.

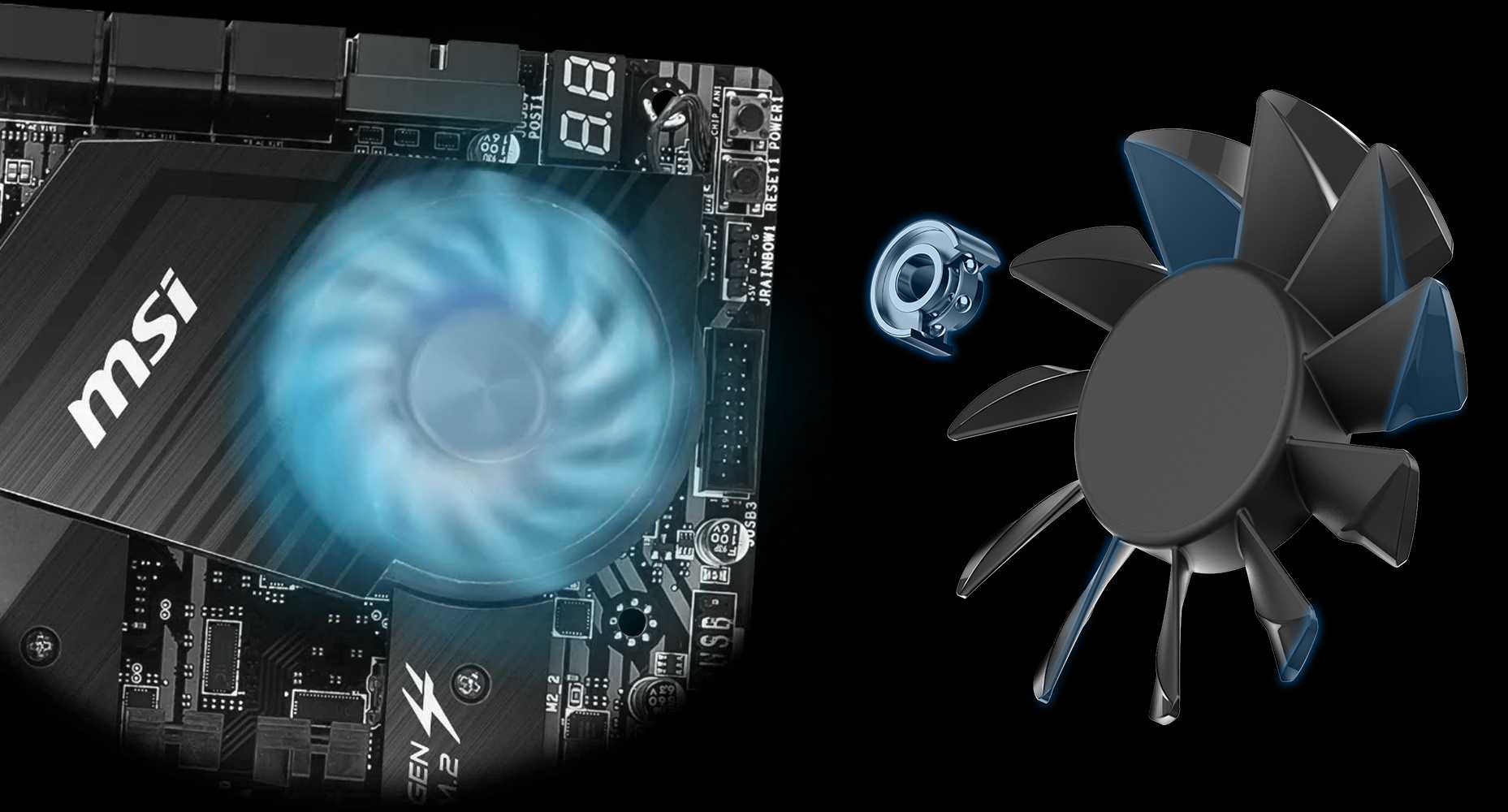

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

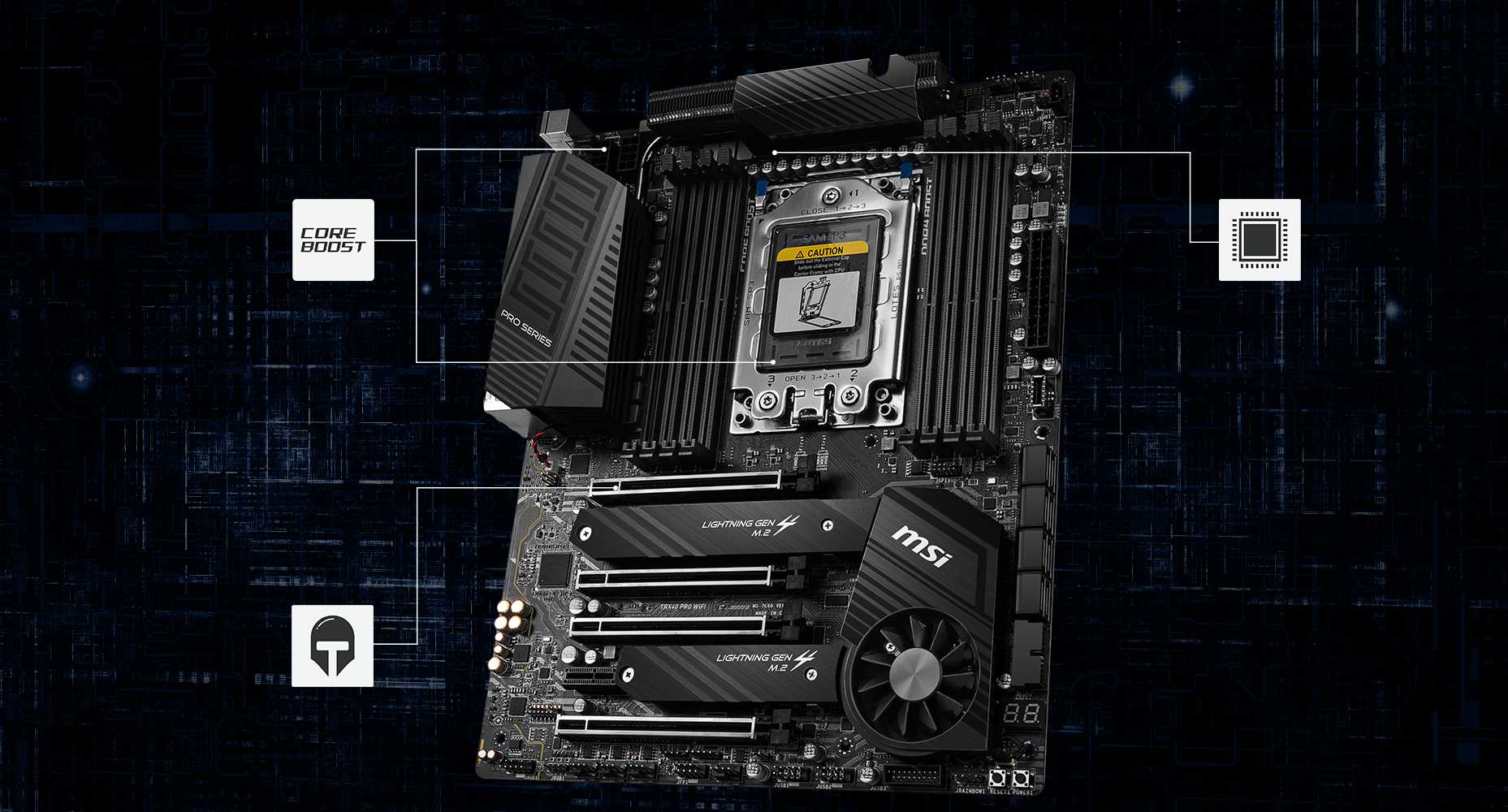

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

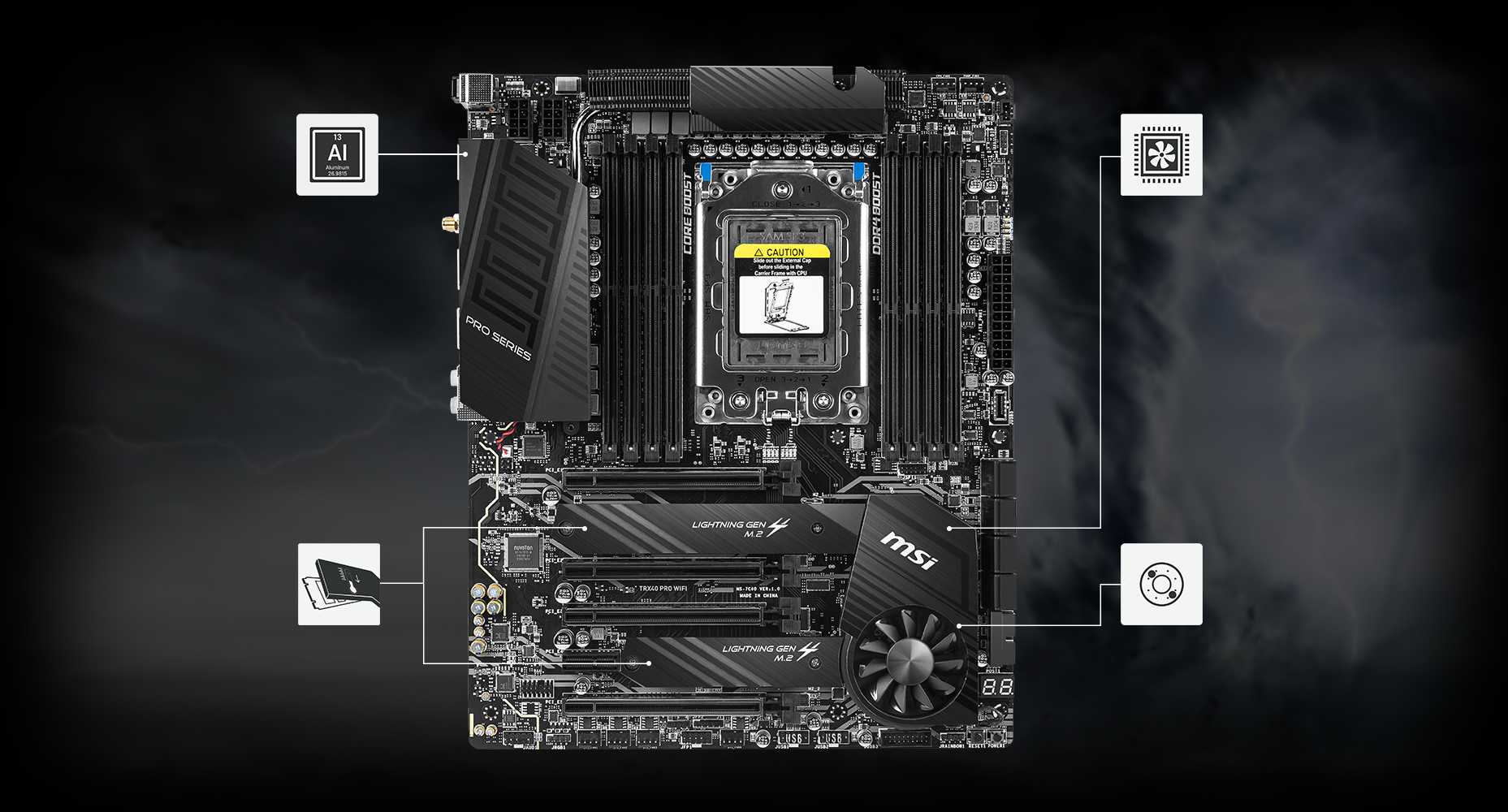

Higher performance generates more heat, especially for the latest Gen4 bandwidth. MSI motherboards feature the patented fan design to ensure the best performance for content creators and prosumers.
- Propeller Blade Technology
- Double Ball Bearings
- Zero Frozr & Smart Fan Control

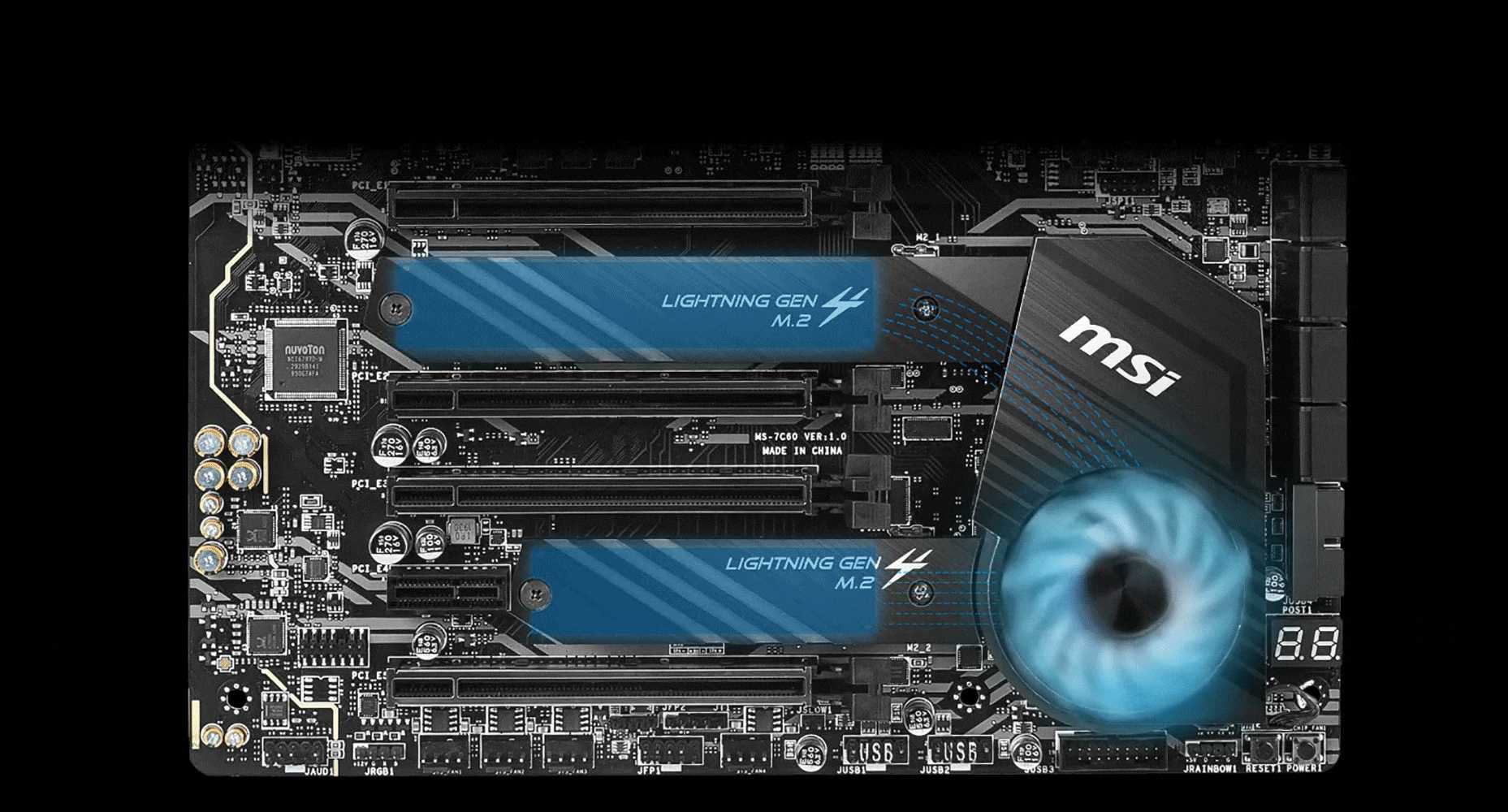

Better Airflow Benefits More Than Chipset Thermal
World’s fastest SSDs can start to lower performance when getting hot. The airflow from Frozr Heatsink Design also benefits M.2 cooling to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

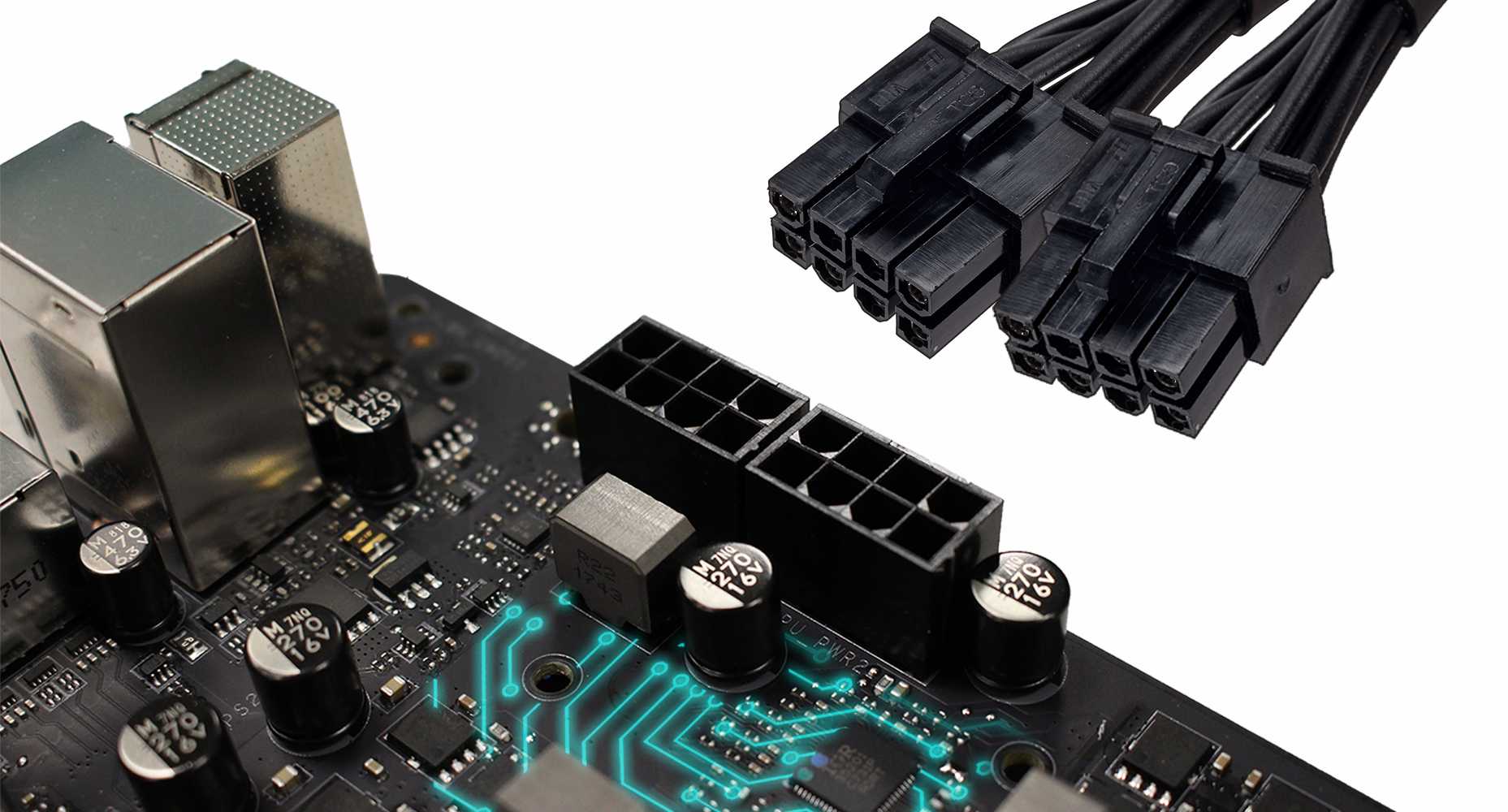

Double Power Connectors
Double 8-pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.

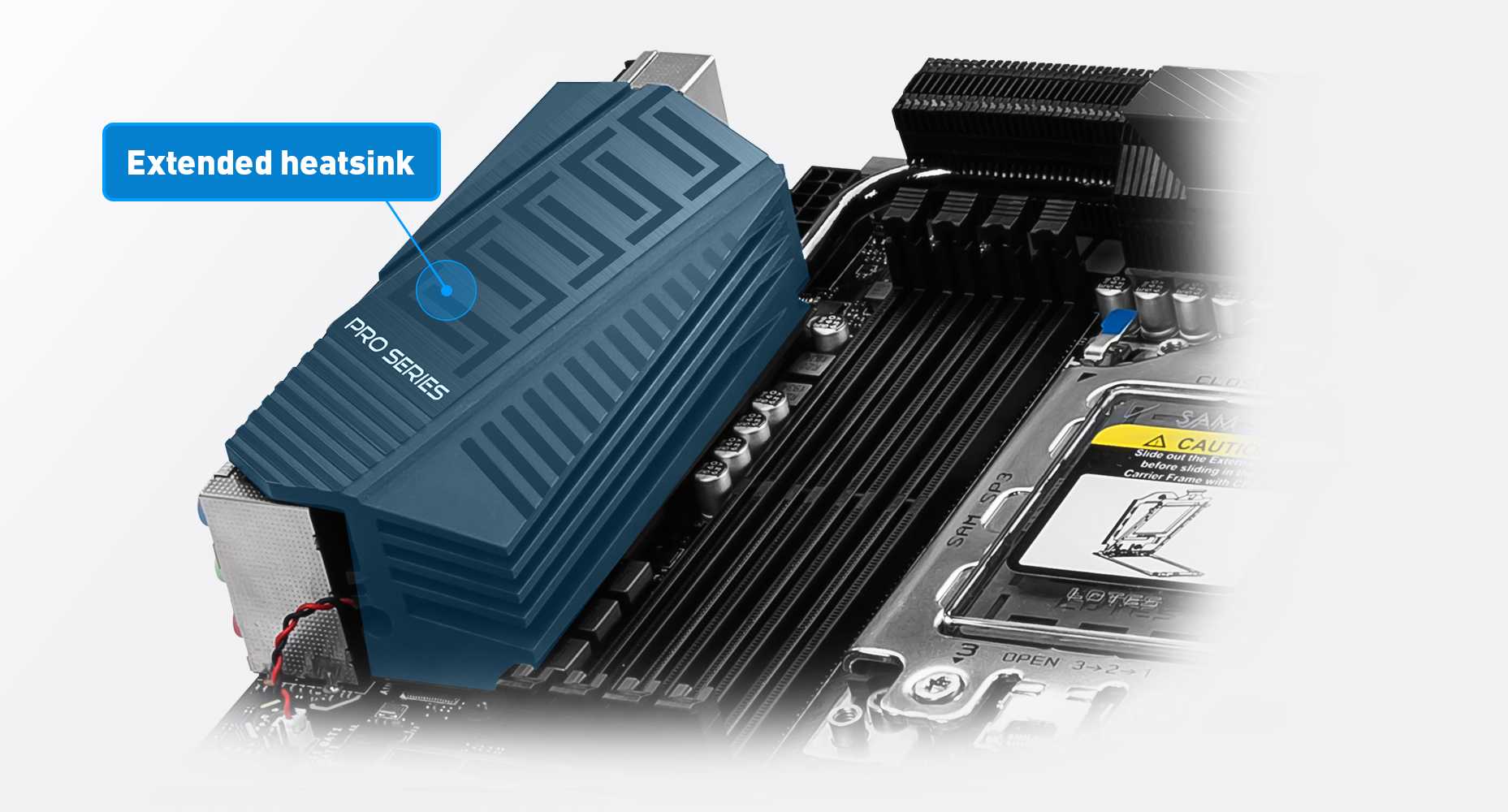

All-metal extended heatsink enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.

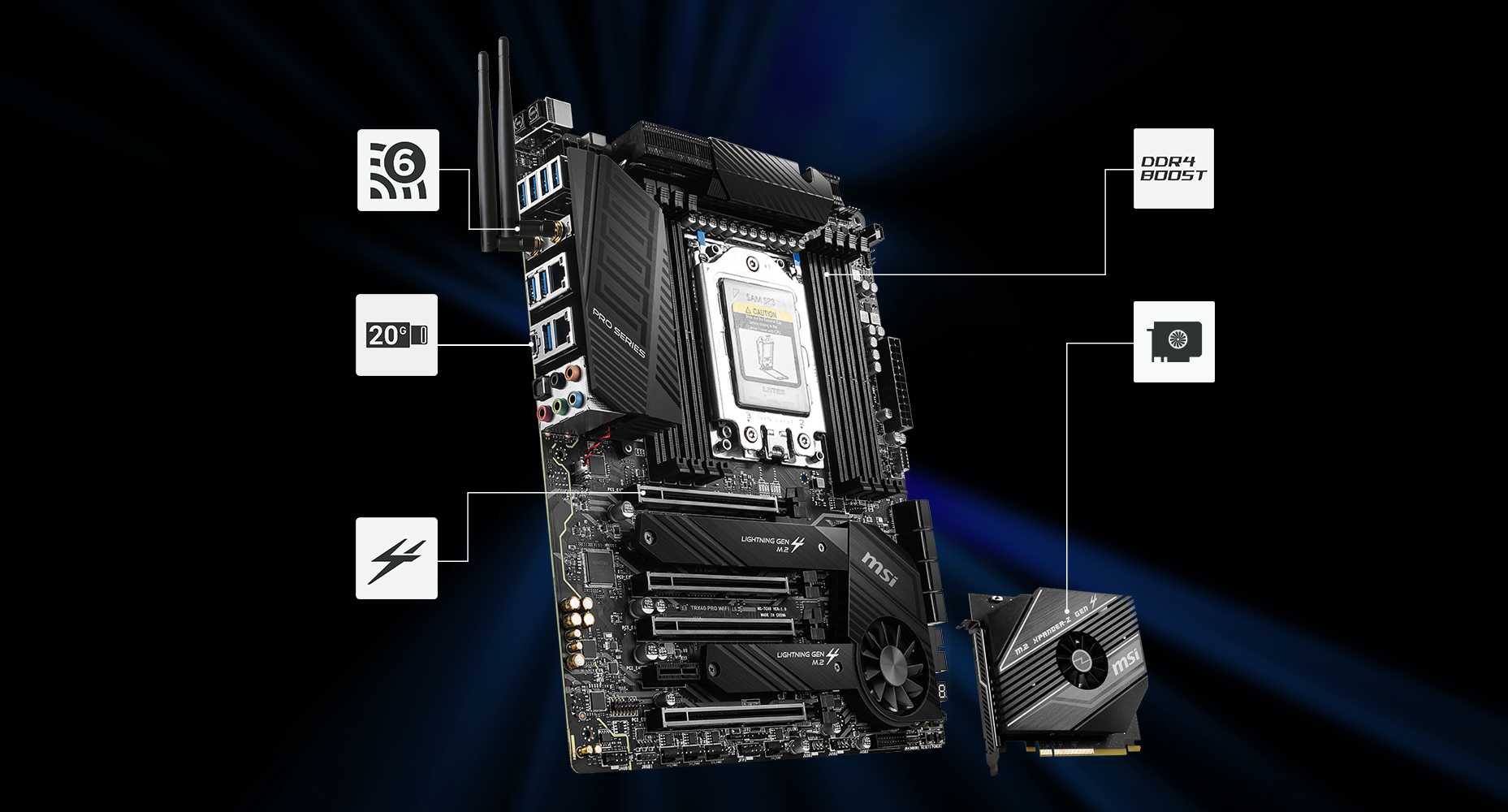

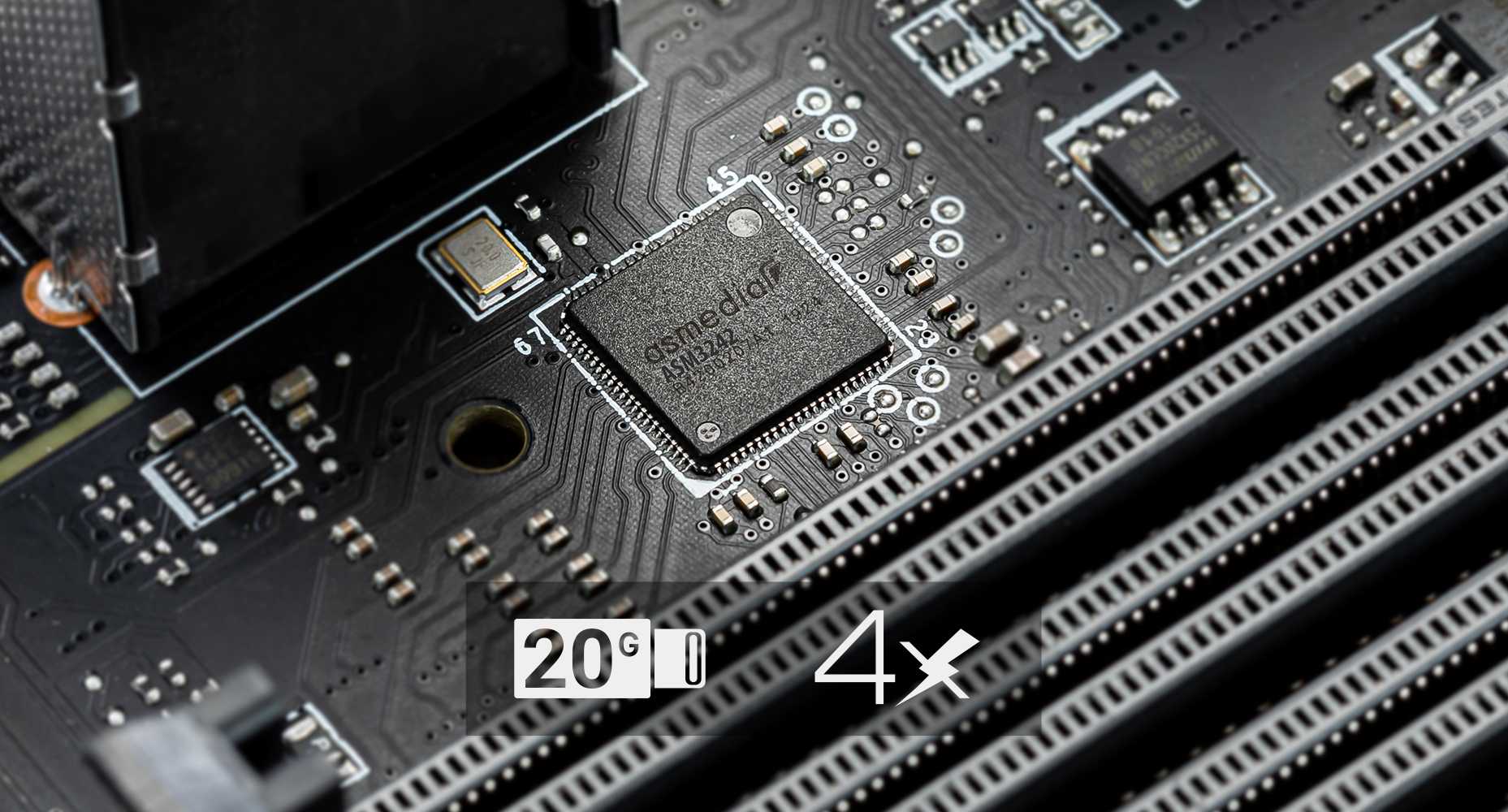

4X Faster Lightning USB 20G
Large data and files transfer is always troublesome for designers, editors, animators and other prosumers. The transmission speed of the latest USB 3.2 Gen2x2 is 4 times faster than USB 3.2 Gen1 solution. Powered by ASMedia 3242 chip, TRX40 PRO WIFI provides stable high speed transmission to save time on backup and other essential data transfer processes.

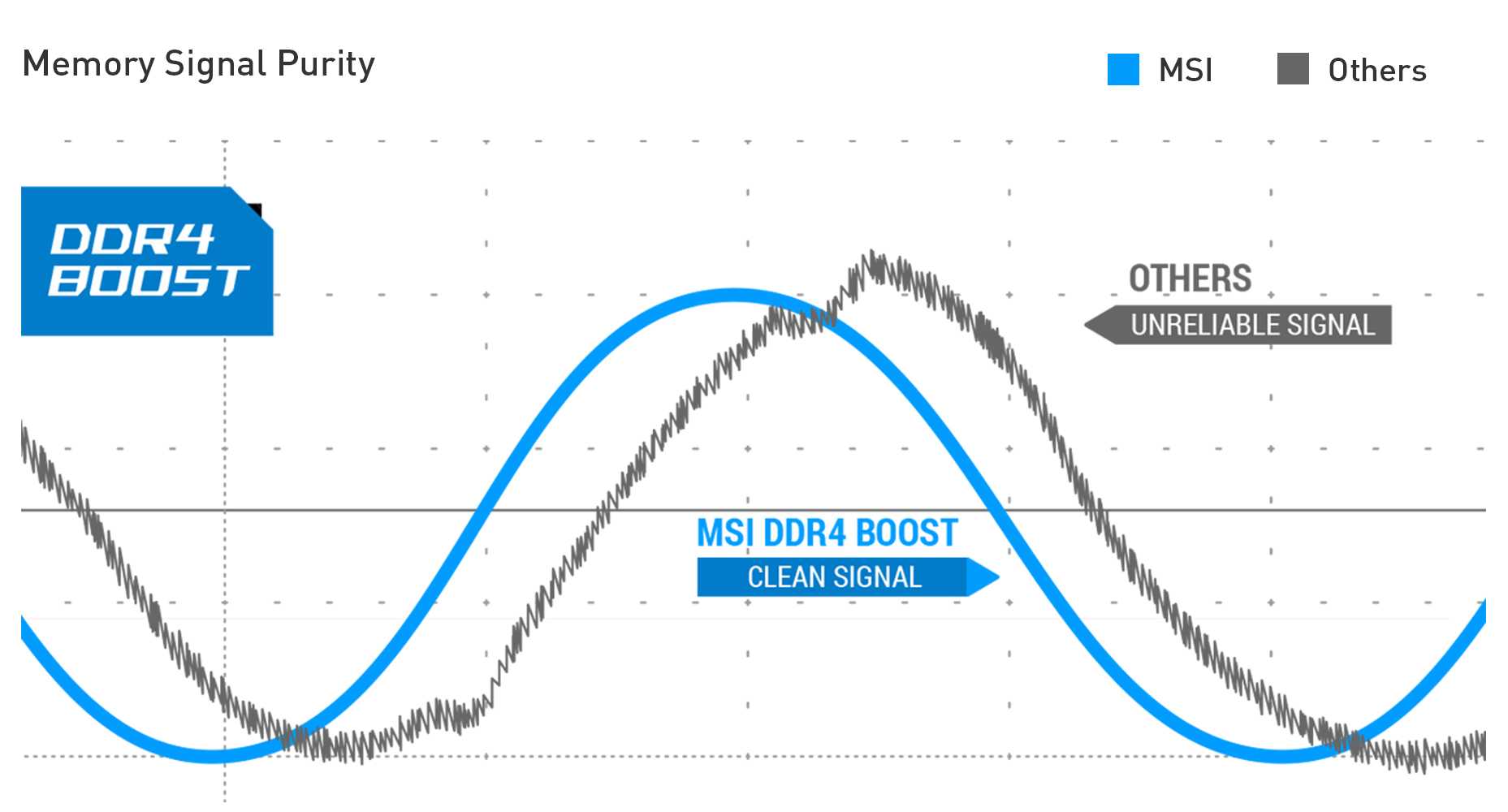

Unmatched Memory Performance
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

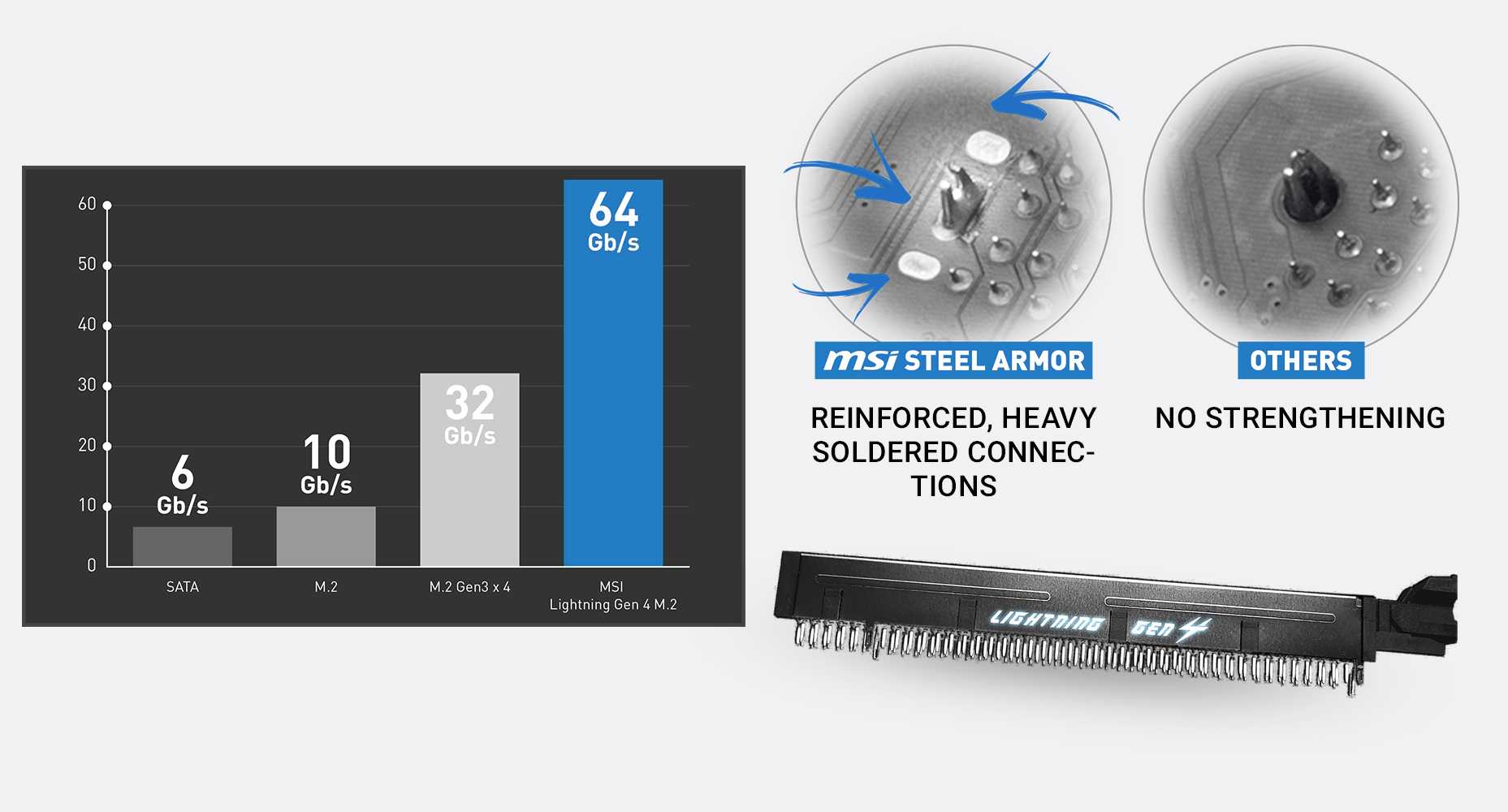

Lightning Gen 4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

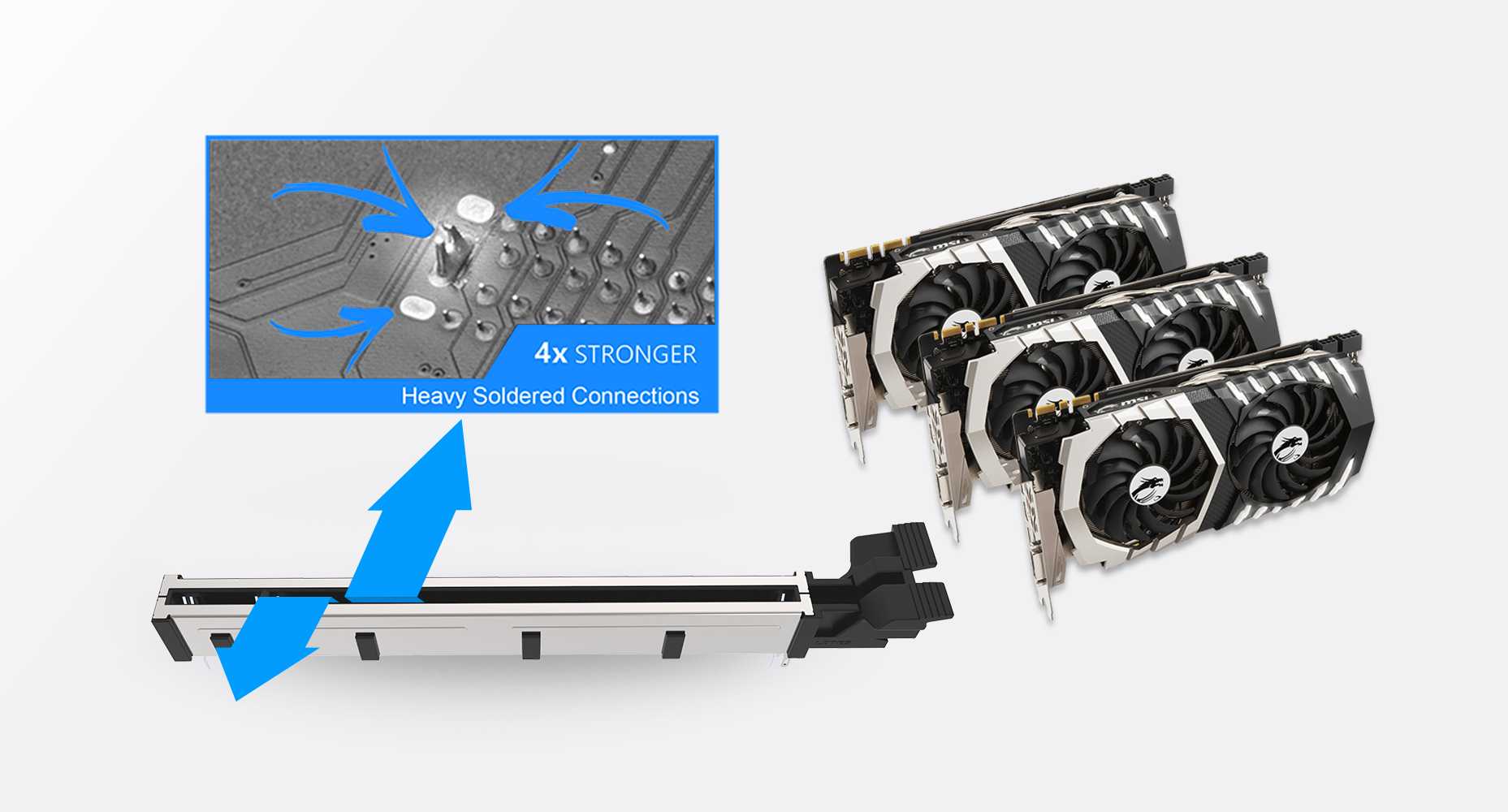

Multiple GPU Supports and Steel Armor
TRX40 PRO WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA®SLI™or AMD®CrossFire™setup
Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
WiFi 6 & Bluetooth
Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
Audio Boost 4
Audio Boost 4 lets you enjoy the purest sound quality in both stereo and surround sound. A dedicated Hi-Def ALC1220 audio processor delivers 32-bit/120dB HIFI sound quality, to make sure you experience studio grade audio quality. For sound designer, there is no distortion cause you are using the widespread high quality audio chipset.
|Producentens garanti (måneder)||36|
|Produkttype||Bundkort - ATX|
|Max antal processorer||1|
|Kompatible processorer||Ryzen ThreadRipper (supports 3rd Generation Ryzen ThreadRipper)|
|Maks. størrelse||256 GB|
|Bus Clock||2400 MHz, 2133 MHz, 2666 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.)|
|Understøttet RAM-integritetskon||Ikke-ECC, ECC|
|Registreret eller buffer||Ikke bufferet|
|Egenskaber||Intel Extreme Memory Profiles (XMP), quad kanal hukommelses arkitektur, A-XMP support|
|Type||HD Audio (8-kanaler)|
|Audio codec||Realtek ALC1220|
|Overensstemmelsesstandarder||High Definition Audio|
|Netværk controller||2 x Intel I211-AT / Intel AX200|
|Netværks interfaces||Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac/ax|
|Ekspansionsåbninger||1 x CPU
8 x DIMM 288-pins
4 x PCIe 4.0 x16 (x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1
|Grænseflade (lagring)||SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2
|Interface||1 x USB-C Gen2x2
4 x USB 3.2 Gen 1
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
2 x LAN (Gigabit Ethernet)
3 x USB 3.2 Gen 2
|Interne interfaces||4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen2 - intern stik
1 x audio - intern stik
|Strømkontakter||24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser|
|BIOS-egenskaber||M-Flash, MSI ClickBIOS 5|
|Hardware egenskaber||NVIDIA 3-way SLI Technology Support, AMD 3-vejs CrossFireX teknologisupport, Clear CMOS Button, Debug LED, MSI Steel Armor, MSI Audio Boost 4, M.2 Shield FROZR, Nahimic 3 Sound Technology, MSI Core Boost, AMD StoreMI technology, Extended Heatsink Design, Zero Frozr-teknologi, AMD Turbo USB 3.2 Gen 2, Secure Erase+, Frozr Heatsink Design, 12+3 Phase Power Design|
|Udstyr inkluderet||I/O-bagdække, MSI M.2 Xpander-Z Gen4 kort|
|Medfølgende ledninger||2 x Seriel ATA kabel|
|Med software||Drivers & Utilities|
