ASUS PRIME Z490-P bundkort

LGA1200, ATX, Z490, DDR4, 2x M.2

Varenummer: 1158099 / Producentens varenr: PRIME Z490-P

More pictures from ASUS PRIME Z490-P bundkort

1.690,-
Fri fragt
100+ stk. på lager (leveringstid 2-3 arbejdsdage)
30 dages åbent køb
Fri retur
Fri fragt over 1000,-
Retningslinjer for produktanmeldelser

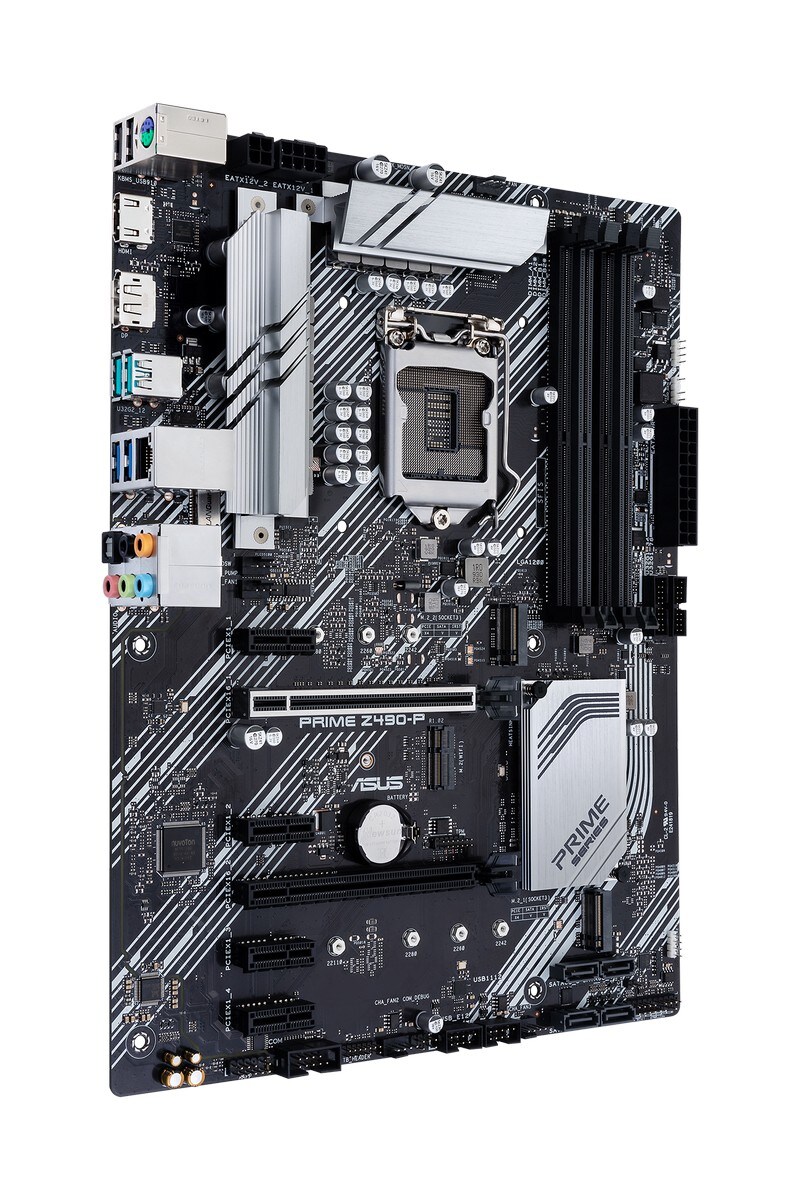

ASUS PRIME Z490-P

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Thunderbolt™ 3 support

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z490 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.


Cool to the Core

Prime Z490 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

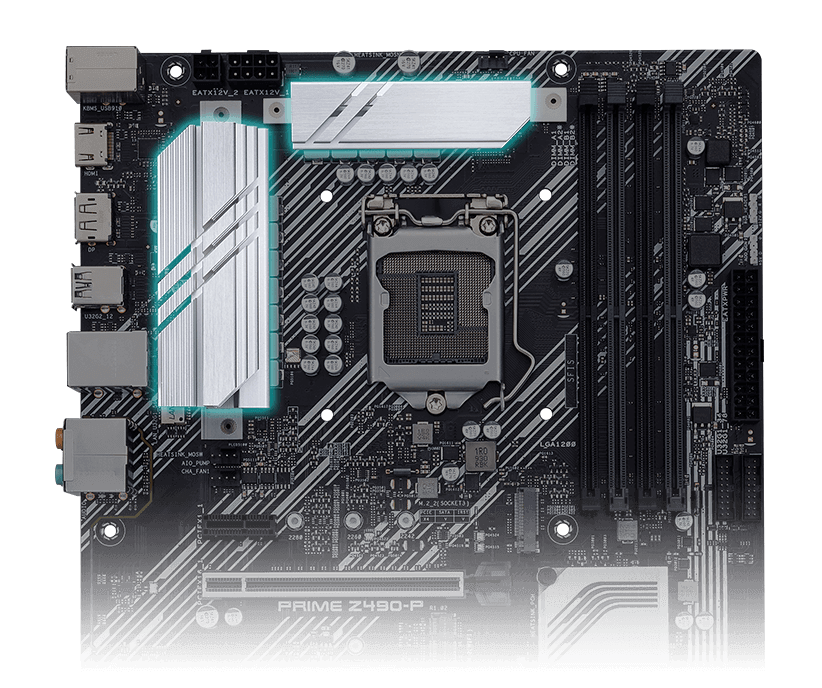

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Build on a Solid Foundation

Prime Z490 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel®Core™ processors. A Z490 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

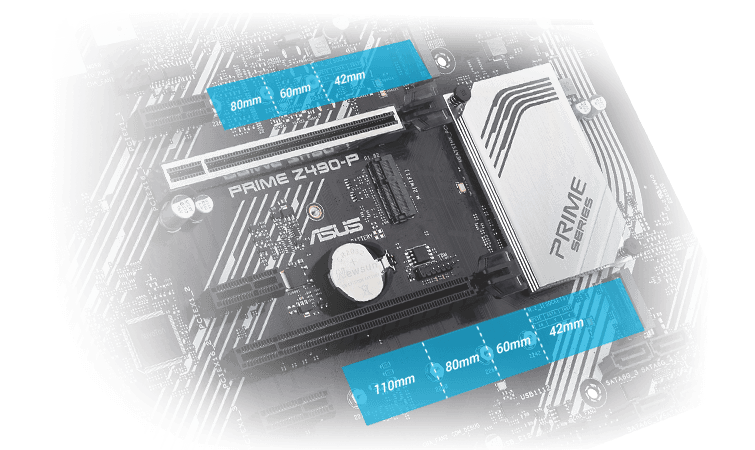

Dual M.2 (up to 32 Gbps)

Dual M.2 slots support data-transfer speeds of up to 32 Gbps via x4 PCI Express®3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

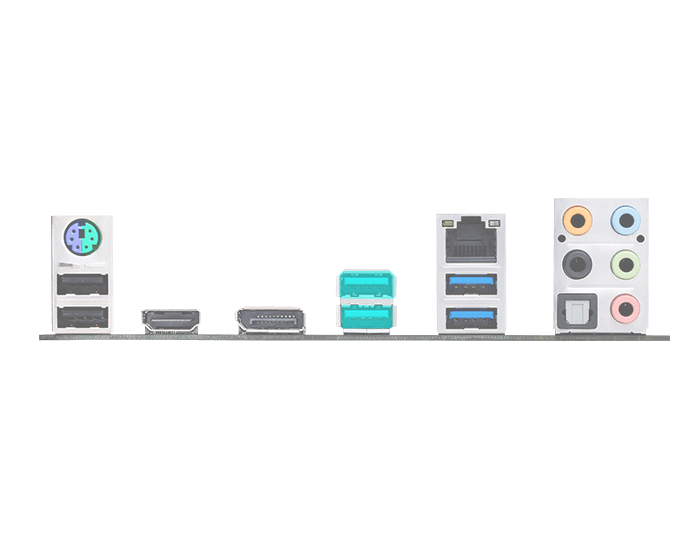

USB 3.2 Gen 2 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z490
Processor-socket LGA1200 sokkel
Max antal processorer 1
Kompatible processorer (supports 10th Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC887
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Realtek RTL8111H
Netværks interfaces Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4-modus)
4 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x PS/2-tastatur/mus
2 x USB 2.0
1 x DisplayPort
1 x HDMI
Interne interfaces 4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
1 x seriel - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber ASUS Quiet Thermal Solution, UEFI BIOS
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX-teknologisupport, Preboot eXecution Environment (PXE), LANGuard, 6 Layer PCB, ASUS Overvoltage Protection, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, ASUS SafeSlot Core+, 10+1 DrMOS power stages
Diverse
Udstyr inkluderet I/O- bagvæg, 2 x M.2 skruer
Medfølgende ledninger 2 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, WinRAR
Bredde 30.5 cm
Dybde 23.4 cm
