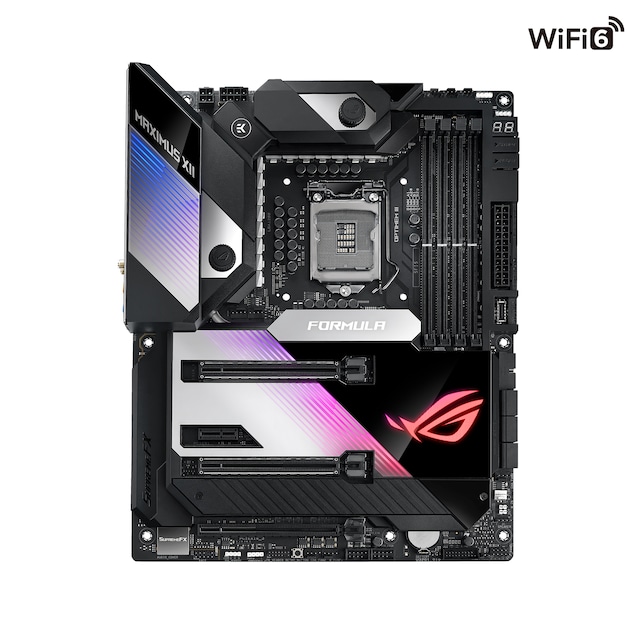

ASUS ROG MAXIMUS XII FORMULA bundkort

LGA1200, ATX, Z490, DDR4, 3x M.2, WiFi 6

Varenummer: 1158106 / Producentens varenr: ROG MAXIMUS XII FORMULA

More pictures from ASUS ROG MAXIMUS XII FORMULA bundkort

4.590,-
Fri fragt
21 stk. på lager (leveringstid 2-3 arbejdsdage)
30 dages åbent køb
Fri retur
Fri fragt over 1000,-
Retningslinjer for produktanmeldelser

ASUS ROG MAXIMUS XII FORMULA

  • LGA1200 socket for 10th-gen Intel Core desktop processors
  • AI Enhancements: AI Overclocking, AI Cooling and AI Networking (from Game First VI)
  • Robust power delivery: Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors
  • Improved Cooling: OptiMem III, CrossChill EK III with 16 teamed power stages, U‑shaped heatpipe, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate
  • Next-gen Connectivity: Intel Wi-Fi 6, 10 GbE Ethernet and Intel® 2.5 Gb Ethernet, three M.2 slots
  • Leading Customization Options: 2" LiveDash OLED, 2X addressable header + 2X 4-pin RGB header

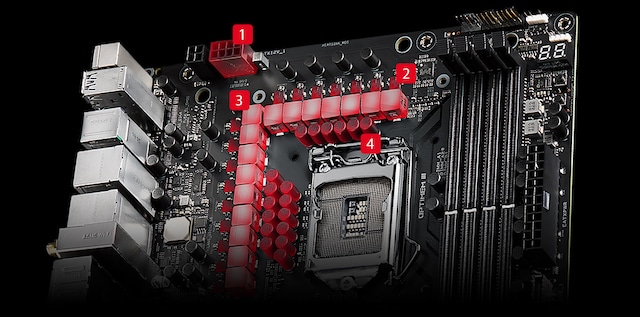

Power Delivery Enhancements

Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

1. 8-pin ProCool II power connector: Ensures a snug and reliable connection to the EPS 12V power lines.

2. 70 A power stage: The VRM has 16 power stages, each rated to handle 70 amps.

3. MicroFine alloy chokes: Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

4. 10K Japanese-made black metallic capacitors: Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

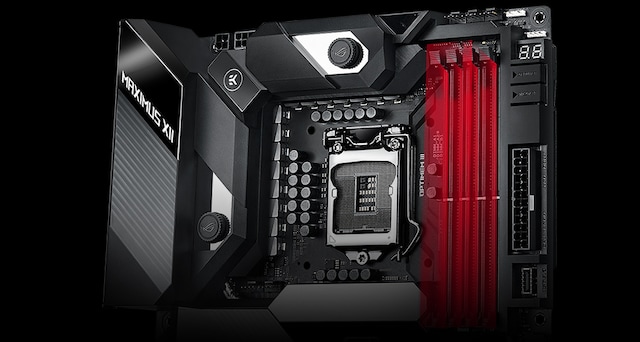

OPTIMEM III

Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade off frequency for capacity. Stack Maximus XII Formula with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

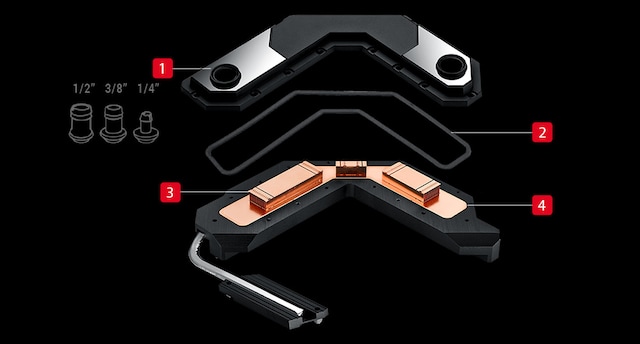

CrossChill EK III

CrossChill EK III lets you cool with air and water. The redesigned copper cooling channel is wider to provide up to 37.2°C-lower MOSFET temperatures on water, while the standard G1/4" threaded fittings allow it to fit existing setups for efficient, quiet cooling with minimum effort.

1. G1/4" threaded design

2. Watertight rubber gasket

3. Copper water channel

4. Multitude of radiating fan

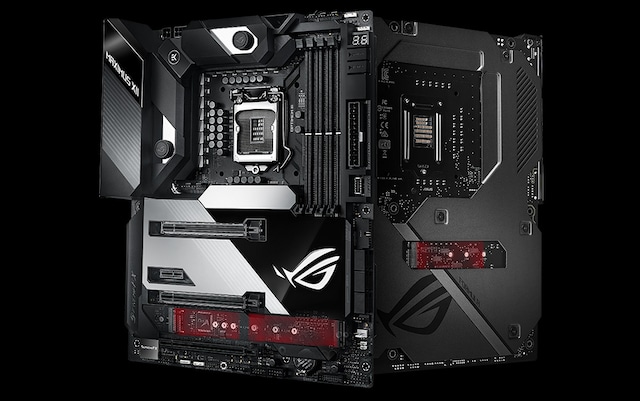

Storage

Three M.2 slots are wired directly to the PCH. One slot supports both SATA and PCIe 3.0 x4 modes, while the other two supports PCIe 3.0 x4 for NVMe. Additional Intel® Optane™ memory recognizes, remembers, and speeds up access to most frequently used files, applications, and games for faster, more responsive performance.

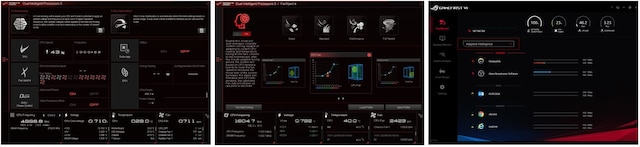

Intelligent Motherboard

Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.

1. AI Overclocking: Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

2. AI Cooling: AI Cooling automatically manages and controls motherboard-connected fans, ensuring the most efficient settings depending on the current system load and temperature.

3. AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

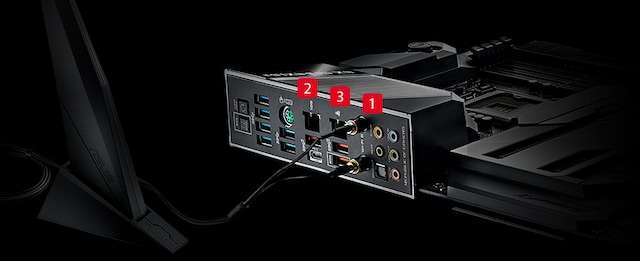

Networking

The beefed-up bandwidth doesn't stop with the Z490 platform. We also equipped Maximus XII Formula with multiple networking technologies, so you can push throughput to the limits.

1. Wi-Fi 6 (AX201): Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.

2. 10 Gbps onboard Ethernet: Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before.

3. Intel 2.5G Ethernet: Onboard Intel 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.


Cooler by design

Enjoy comprehensive control over fans and water pumps, via either Fan Expert 4 or our UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

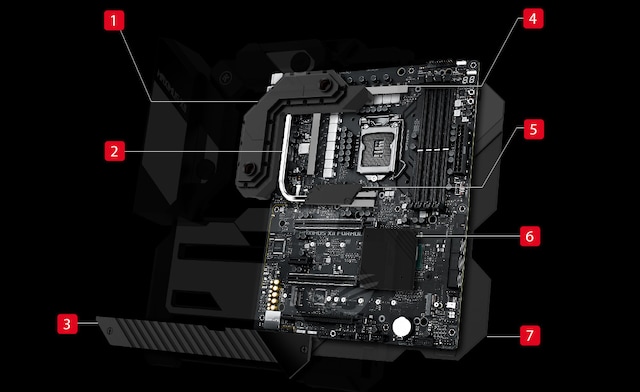

Cooling heatsink

1. CrossChill hybrid thermal design: Engineered with a copper cooling channel that's incredibly effective at removing heat.

2. Large‑diameter heatpipe: The U-shaped design provides rapid and even heat transfer from the VRM to the extended VRM heatsink.

3. M.2 heatsink: The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

4. High-conductivity thermal pad: The high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

5. Extended VRM heatsink: The extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high power consumption.

6. Chipset heatsink: A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

7. Solid steel backplate: An electro-galvanized, cold-rolled coil construction backplate resists bending, and helps draw heat away from the VRM.


Audio

ROG Maximus XII Formula’s SupremeFX audio features a dedicated card to limit signal interference, and packs the SupremeFX S1220 codec, ESS® ES9023P DAC and premium capacitors for enthusiast-grade audio performance.

1. ESS®ESS® ES9023P: creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output

2. S1220 Codec: 10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs

3. Switching MOSFETS: Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs

4. Nichicon® CAPS: Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z490
Processor-socket LGA1200 sokkel
Max antal processorer 1
Kompatible processorer (supports 10th Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec SupremeFX (S1220)
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Intel I225-V / AQtion AQC107 / Intel AX201
Netværks interfaces 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 3.0 x16 (dual x8 mode; single kort: x16 mode)
1 x PCIe 3.0 x16 (x4 tilstand (autosluk hvis M.2 er optaget))
1 x PCIe 3.0 x1 (autosluk hvis M.2 er optaget)
Grænseflade (lagring) SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
PCIe 3.0 -stikforbindelser: 2 x M.2
Interface 1 x LAN (2.5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
1 x PS/2-tastatur/mus
1 x USB-C Gen2
1 x TOSLINK
6 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen2 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x højttaler - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber ASUS Quiet Thermal Solution, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Extreme Hukommelses Profil (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, SupremeFX Shielding teknologi, AMD 3-vejs CrossFireX teknologisupport, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, Mem TweakIt, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, Crosschill EK III, ASUS 2" LiveDash, FlexKey-knap, ASUS ProCool II, GameFirst VI
Diverse
Udstyr inkluderet Ekstern antenne, ROG-blæsermærkater, 2 x M.2 skruer, RGB (RGBW) LED strip-forlængerkabel, ROG stor mærkat, ROG-takkekort, RGB Addressable LED-forlængerkabel, ROG key chain
Medfølgende ledninger 6 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year license)
Bredde 30.5 cm
Dybde 24.4 cm
Producentgaranti
Service & Support Begrænset garanti - 3 år
