NZXT AM4 N7 B550 Sort bundkort

AM4, ATX, DDR4, PCIe 4.0, WiFi

Varenummer: 1183122 / Producentens varenr: N7-B55XT-B1

More pictures from NZXT AM4 N7 B550 Sort bundkort

1.779,-
Fri fragt
Ikke på lager. 7 stk. forventes klar til levering 18.jun.2021 (usikker dato)
Average rating (1 reviews)
Retningslinjer for produktanmeldelser

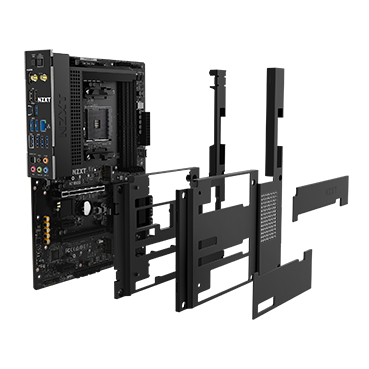

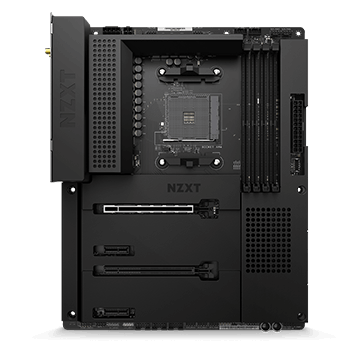

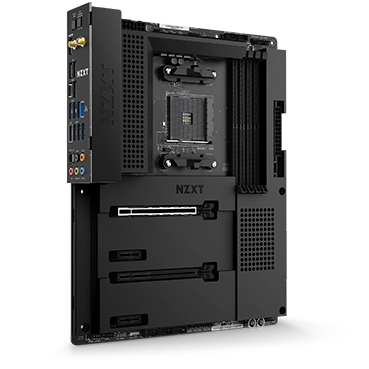

NZXT AM4 N7 B550

Designed around AMD’s B550 chipset, the N7 B550 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6E connectivity, integrated fan controller, front panel USB 3.2 Gen 2 Type-C, RGB accesories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components. ABOUT

Smart Controls

The N/ B550 includes key features from our RGB and Fan Controller, allowing intuitive control of four RBG lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufactorers are supported.

Stunng Craftsmanship

The metal cover is available in white or black for a seamless look that blends into the background of any NZXT H Series case for a clean aesthetic.

Building made easier

The N7 B550 includes a front panel USB 3.2 Gen  2 Type-C, WiFi 6 connectivity, and utilizes all PCI express lanes available from the CPU and chipset. The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.

Generelt
Producentens garanti (måneder) 24
Produkttype Bundkort - ATX
Chipsættype AMD B550
Processor-socket Socket AM4
Max antal processorer 1
Kompatible processorer Ryzen
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR4
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1220
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Realtek RTL8125BG / Intel AX210
Netværks interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 4.0 x16 (dobbelt x16, x4 tilstand; enkeltkort: x16 tilstand)
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E-åbning)
Grænseflade (lagring) SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
PCIe 4.0 -stikforbindelser: 1 x M.2
Interface 1 x LAN (2.5Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
4 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x USB-C Gen2
2 x USB 2.0
1 x HDMI
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x TOSLINK
Interne interfaces 4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
6 x USB 2.0 - intern stik
1 x USB-C Gen2 - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber 15µ Gold Contact, AMD CrossFireX-teknologisupport, Gold Plated Audio Hardware, Nichicon Fine Gold Series Audio Capacitors, TI NE5532 Premium Headset Amplifier
Diverse
Udstyr inkluderet Ekstern antenne, 2 x M.2 skruer
Medfølgende ledninger 4 x Seriel ATA kabel
Overensstemmelsesstandarder FCC, EuP Ready, ErP Ready, HDCP 2.3
Producentgaranti
Service & Support Begrænset garanti - 3 år
