Yamaha RX-A8A AVENTAGE
11.2-Channel AV Receiver with 8K HDMI and MusicCast
Home cinema, perfected. The A8A is the top of the AVENTAGE line, making it the best of the best. Experience room-filling sound and crystal-clear picture with this innovative AV receiver.
- 11.2-channel 150-Watt powerful surround sound with Zone 2/3/4
- 4K120 and 8K60 HDMI and HDR10+ (with future update) with HDCP 2.3 and eARC (7 in/3 out)
- Dolby Atmos®with Dolby Atmos Height Virtualization and DTS:X®with CINEMA DSP HD3
- Dual ESS SABRE ES9026PRO Ultra DACs for the ultimate high-performance conversion
- YPAO™- R.S.C. with 3D, multipoint measurement, precision EQ and low frequency mode
- Surround:AI™technology automatically optimizes the sound and effects in real-time
- ALLM, VRR, QFT, QMS (with future update) and Dolby Vision™, Hybrid-Log Gamma and BT.2020
- AURO-3D (with future update)
- Wi-Fi, Bluetooth®, MusicCast multi-room audio, AirPlay 2 and Spotify Connect
- Voice Control with Amazon Alexa, Siri®(via AirPlay 2) and Google Assistant
- Pandora, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz, Amazon Music HD
- 3rd-party control driver-capable, easy IP set-up and remote IP control
- Phono input
The Benchmark for AV Receivers
AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.
Artificial intelligence (AI) technology built into the DSP analyzes the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI instantaneously analyzes scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time. Imagine having a Yamaha sound engineer listening right next to you, tuning the best sound live and specifically for you. AI technology creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible. Qualcomm® QCS407 with 64-bit high precision processing delivers precise surround sound.
Cinema DSP HD3 for Movie, Music and Games
This Yamaha flagship 3D sound field playback technology was created by combining actual measured sound field data with cutting edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes theater sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. By using front, center and surround speakers to create a rear virtual speaker, CINEMA DSP HD3 playback of up to 11.1 channels is possible* even with a 7.1-channel speaker configuration.
*Requires connection to a front presence speaker.
Dolby Atmos® and Dolby Atmos Height Virtualization
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

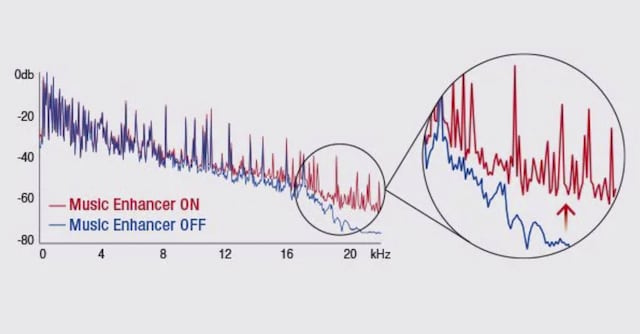

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
HIGH QUALITY PARTS

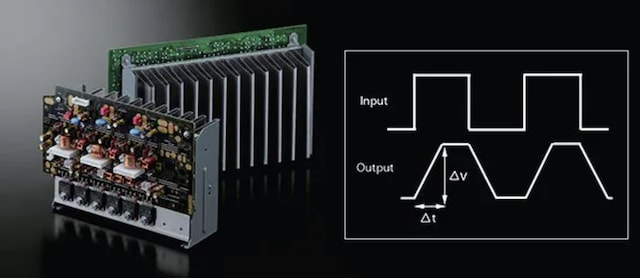

High Slew Rate Amplifier
The slew rate measures how quickly an amplifier can respond to a rapid change of input level, which contributes to delivering a precise signal transmission and is especially effective with high resolution audio signals. This newly designed circuit achieves both a high slew rate and stable signal transmission, allowing it to handle each audio signal with precision and accuracy.
High-Quality Digital Components

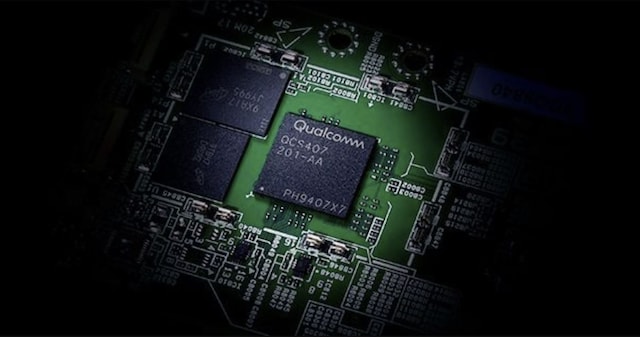

The Qualcomm® QCS407 is designed to provide truly superior audio performance, with support for Dolby Atmos and DTS:X immersive home audio, as well as a dedicated high-performance audio DSP.
Incorporating the SABRE ES9007S Premier Audio DAC from ESS Technology to achieve an exceptional signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.

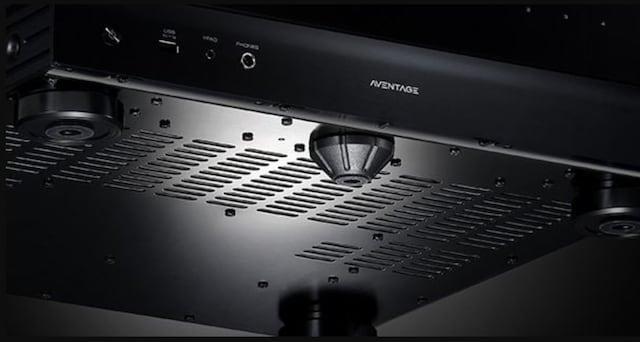

Anti-Resonance Technology Wedge
The newly designed Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the front-and-center of the chassis unit base. It dampens much more vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers — providing dynamic sound and focused, accurate reproduction.

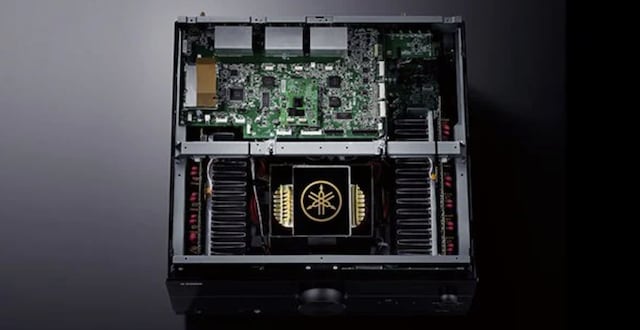

Newly Designed Mechanical Structure
The highly logical and symmetrical internal layout of parts and totally renewed circuit boards are designed to keep the signal paths on each board as short as possible. The new H-cross frame improves rigidity of the receiver body and sound stability, allowing for clearer, sharper and more transparent reproduction. Also the newly redesigned mechanical structure contributes to avoiding the transition of vibration from the transformer to the amplifier circuit. Sound noises are reduced to improve clarity.
|Producentens garanti (måneder)||24|
|Fås i farverne||Sort|
|Opløsning||8K - 60 fps|
|HDR-teknologi||Dolby Vision, Hybrid Log-Gamma (HLG), HDR 10+|
|Afkodere||Dolby Surround, DTS-ES Matrix 6.1, DTS-ES 6.1 Discrete, DTS 96/24, Dolby Digital, DTS-decorder, DTS Express, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-HD High Resolution, Dolby Atmos, DTS:X, DTS Neural:X|
|Funktioner||Digital afspiller, AV netværk modtager, phono preamplifier, Bluetooth-audiomodtager|
|Kilde||Netværk, USB-vært, Bluetooth|
|Audioformater||WAV, WMA, AAC, AIFF, PCM, MP3, FLAC, DSD, ALAC|
|Audio D/A omsætter||32 bit/384 kHz|
|Bluetooth audiocodec||SBC, AAC|
|Surround Sound-effekter||Virtual CINEMA DSP, SILENT CINEMA DSP, Virtual Presence Speaker, CINEMA DSP HD3, Virtual Surround-baghøjttaler, Auro 3D, Dolby Atmos Height Virtualization Technology|
|Digital Sound Processor (DSP)||Ja|
|Antal forhåndsindstillede DSP'er||24|
|Surround-system klasse||11.2 kanal|
|Audiospecifikationer||Forstærker - Respons-båndbredde - 10 - 100000 Hz - SNR - 110 dB -THD - 0.05%|
|Antal udgangskanaler||11 kanaler|
|Outputstrøm (per kanal)||150 Watt|
|Forstærkerudgangsdetaljer||150 Watt - 8 Ohm - 20 - 20000 Hz -THD 0.06% - 2 kanaler
185 Watt - 8 Ohm - ved 1 kHz -THD 0.9% - 1 kanaler
220 Watt - 8 Ohm - ved 1 kHz -THD 10% - 1 kanaler
|Maksimal sampling rate understøttet||11,2 MHz (DSD)|
|Digitalt indholdsbeskyttelse||HDCP 2.3|
|Egenskaber||Med dobbeltforstærker, Voice Control, komprimeret musik forstærker, web-styring, fire-zone kapacitet, smartphone-fjernstyret, YPAO with R.S.C. (Reflected Sound Control), YPAO multipunkt-måling, x.v.Color, YPAO Volume, MusicCast-system, BT.2020 Support, Enhanced Audio Return Channel (eARC), Apple AirPlay 2 support, Surround:AI|
|HDMI Pass-Through||Op til 8K|
|Video Konvertering/Scalering||Analog til HDMI op konvertering, HDMI til HDMI scalering|
|Type||- digital radiotuner|
|Interface||Ethernet, Fast Ethernet, Wi-Fi, Bluetooth|
|Antal inkluderede batterier||2|
|Antal påkrævede batterier||2|
|Stikforbindelser||Hovedtelefoner (telefon stereo 6,3 mm) - front
USB (4-PIN USB, type A) - front
7 x HDMI-indgang (19-pin HDMI, type A) - bagside
HDMI-eARC (19-pin HDMI, type A) - bagside
2 x HDMI-udgang (19-pin HDMI, type A) - bagside
Phono input (RCA phono x 2) - bagside
5 x lydindgang (RCA phono x 2) - bagside
3 x SPDIF-indgang (TOS-tilslutning) - bagside
2 x SPDIF-indgang (RCA) - bagside
2 x udgående linie for lyd (multizone) (RCA phono x 2) - bagside
11.2 kanal audio line-out (RCA x 13) - bagside
Balanceret lydindgang (XLR x 2) - bagside
Fjernstyringskontrol input - bagside
Fjernstyringskontrol output - bagside
13 x udgang for højttalere (bananstik/spade x 2) - bagside
Komponentvideoindgang (RCA x 3) - bagside
2 x komposit videoindgang (RCA) - bagside
Balanceret lydudgang (XLR x 2) - bagside
2 x trigger (udløser) - bagside
LAN (RJ-45) - bagside
|Internet of Things (IoT) kompatibel||Ja|
|Kommunikationstype||Produkt til produkt|
|Intelligent assistent||Alexa-klar, Google Assistant-klar, Siri-klar|
|Udstyr inkluderet||Fjernstyring, mikrofon med atomatisk kallibrering|
|Bluetooth-profiler||Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP)|
|Strømforbrug ved drift||600 Watt|
|Strømforbrugs-stand by||0.4 Watt|
