MSI PRO DP21 11MA

Varenummer: 1197924 / Producentens varenr: PRO DP21 11MA-092EU

More pictures from

MSI PRO DP21 11M Mini Desktop

READY FOR VARIOUS SCENARIOS

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

TINY YET POWERFUL

Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.

SUPPORT UP TO 4K RESOLUTION

PRO DP21 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

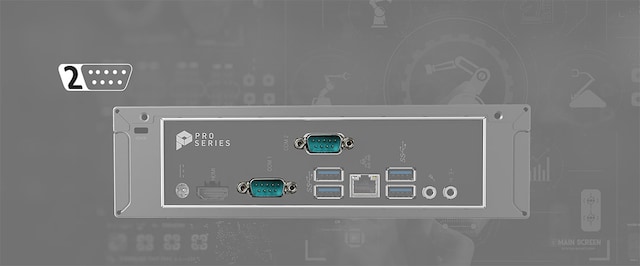

2 COM PORTS DESIGN

With multiple COM and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more. Its COM ports can also communicate with the programmable logic controllers (PLCs) or with other modules such as operator/HMI, motor controllers, a robot or vision system in the intelligent factory.

FW TPM SUPPORT

FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

WI-FI 6 TECHNOLOGY

Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

-3X Faster Processor
-75% Latency
-Up to 2.4 Gbps

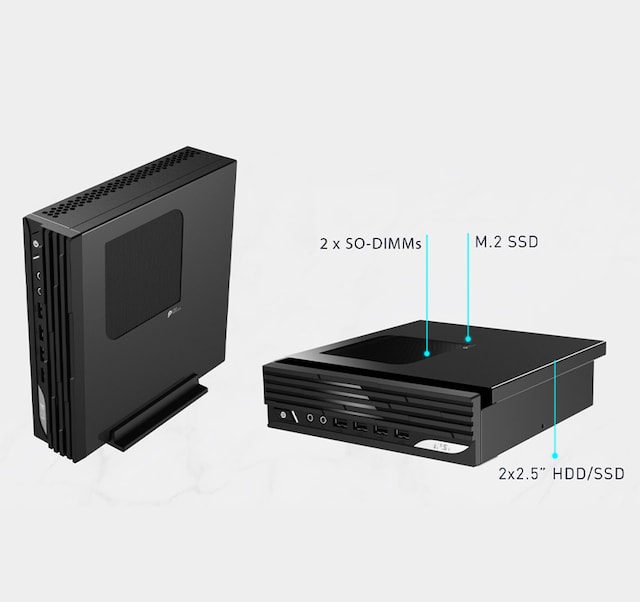

EASY MAINTENANCE

Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers. Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading.

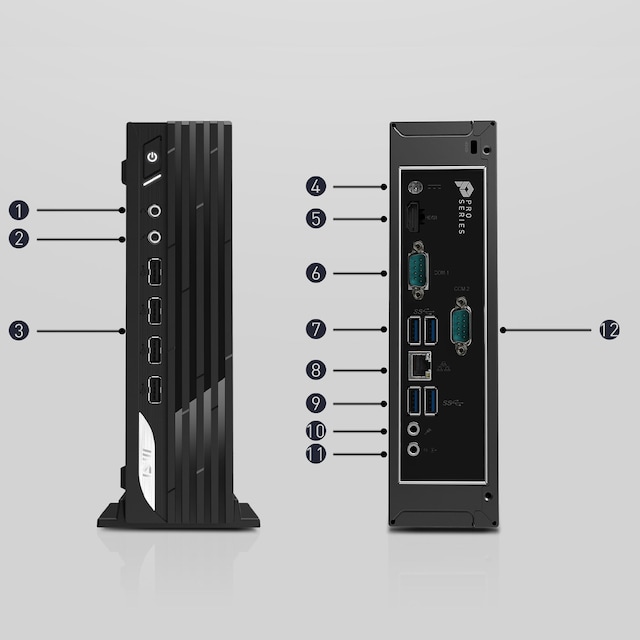

VARIOUS IO PORTS

With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devises to make you work more efficiently.

FRONT :
1. 1x Headphone-out
2. 1x Mic-in
3. 4x USB 2.0 Type A

Rear :
4. 1x DC Jack
5. 1x HDMI out
6. 1x COM Port
7. 2x USB 3.2 Gen1 Type A
8. 1x RJ45
9. 2x USB 3.2 Gen1 Type A
10. 1x Mic-in
11. 1x Line-out
12. 1x COM Port

Generelt
Producentens garanti (måneder) 24
Type Personal computer
Produktmodel Lille formfaktor
Embedded Security Firmware Trusted Platform Module (TPM) solution
Farve Sort
EAN 4719072892722
Processor / Chipset
CPU Intel Core i5 (11. Gen) 11400
Clock-frekvens 2.6 GHz
Max Turbo Speed 4.4 GHz
Antal kerner 6 kerner
Antal CPU'er 1
Maks. antal CPU'er 1
CPU Socket LGA1200 sokkel
Chipsættype Intel H510
Motherboardnavn MSI MS-B0A41
Cachehukommelse
Installeret størrelse 12 MB
Cache pr. processor 12 MB
RAM
Installeret størrelse 8 GB / 64 GB (maks.)
Teknologi DDR4 SDRAM
Effektiv hukommelseshastighed 3200 MHz
Vurderet hukommelseshastighed 3200 MHz
Model SO DIMM 260-PIN
Holdere 2 (Total) / 1 (ubrugt)
Konfigureringsegenskaber 1 x 8 GB
Harddisk
Type SSD - M.2 2280
Kapacitet 1 x 256 GB
Grænsefladetype PCI Express 3.0 x4
Egenskaber NVM Express (NVMe)
Controller for lagring
Type 1 x SATA
Optisk lagring
Type Intet optisk drev
Monitor
Monitortype Ingen.
Grafik controller
Grafik-processor Intel UHD Graphics 730
Video-interfaces HDMI, DisplayPort
Lydudgang
Lydudgangsmodus 5.1 kanal surround
Overensstemmelsesstandarder High Definition Audio
Netværk
Ethernet Controller Realtek RTL8111H
Trådløs LAN understøttelse Ja
Trådløs NIC Intel Wi-Fi 6 AX 201
Dataforbindelsesprotokol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2
Egenskaber Dobbelt strøm (2x2)
Ekspansion / Konnektivitet
Båse 2 (total) / 2 (fri) x intern 2.5"
Holdere 1 (total) / 0 (fri) x M.2 Card
Interface 1 x hovedtelefoner (1 foran)
2 x mikrofon (1 front, 1 bag)
4 x USB 2.0 (4 foran)
4 x USB 3.2 Gen 1
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x seriel
1 x audio linje-ud
1 x DisplayPort
Diverse
Tyveri/Indtrængningsbeskyttelse Sikkerhedslåseåbning (kabellåse solgt separat)
Sikkerhedsåbningstype Kensington-sikkerhedsåbning
VESA-monteringsinterface 100 x 100 mm
Overensstemmelsesstandarder FCC Klasse B-certificeret, BSMI, CB, UL/cUL
Effekt
Enhedstype Strømforsyningsadapter
Strømforsyning 120 Watt
Operativsystem / Programmer
Med OS Windows 11 Home
Producentgaranti
Service & Support Begrænset garanti - 2 år
Mål og vægt
Bredde 20.4 cm
Dybde 20.8 cm
Højde 5.48 cm
Vægt 1.27 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse 27.1 cm
Dybde ved forsendelse 38.2 cm
Højde ved forsendelse 12.2 cm
Vægt ved forsendelse 2.75 kg
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 35 °C
Fugtighedsgrad ved brug 0 - 85%
