ASUS ROG STRIX Z690-G GAMING WIFI Bundkort

Varenummer: 1198160 / Producentens varenr: ROG STRIX Z690-G GAMING WIFI

More pictures from

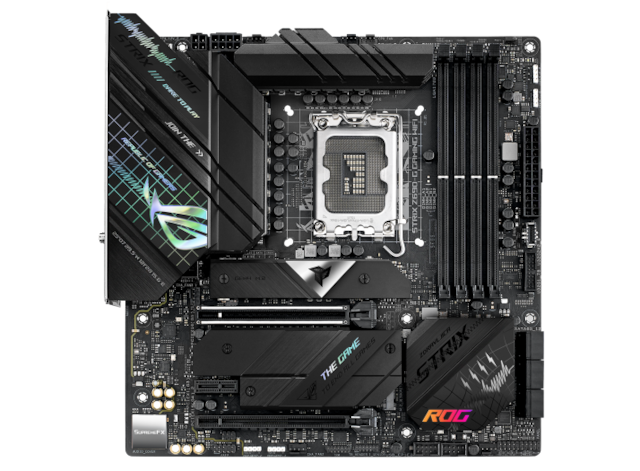

ASUS ROG STRIX Z690-G GAMING WIFI, LGA1700 Motherboard

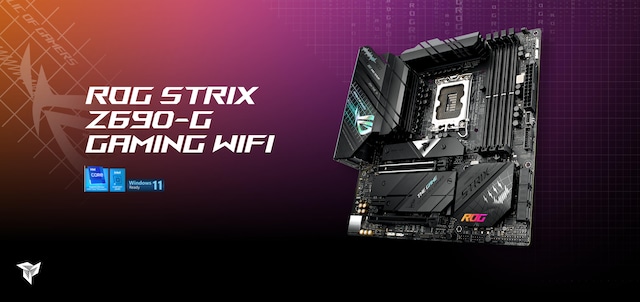

ROG STRIX Z690-G GAMING WIFI
ROG Strix Z690-G Gaming WiFi is the premiere choice for enthusiasts who enjoy building compact mATX setups. Premium-grade power delivery, cooling, and the latest networking standards have been packed in to ride alongside DDR5 and PCIe 5.0, unleashing the full force of 12th Gen Intel® Core™ processors. And layered on top, there’s a stack of ASUS-exclusive intelligent controls to optimize every aspect of system performance.

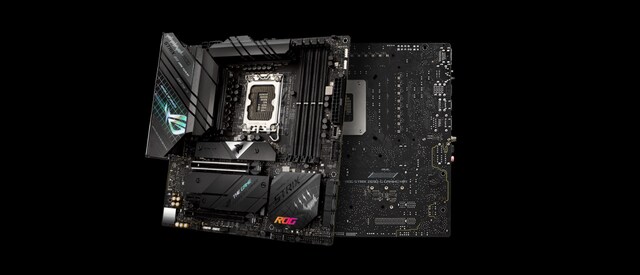

ALL-ROUND PERFORMANCE - ROG Strix Z690-G Gaming WiFi provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancelation ensures crystal-clear in-game communication. ROG Strix Z690-G Gaming WiFi is armed with all the essentials required to create a gaming PC with top-tier performance.

LEADING CONNECTIVITIY - ROG Strix Z690-G Gaming WiFi features an innovative design that delivers diverse and wickedly fast connectivity options for supersmooth online experiences and ultrafast data transfers. And alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

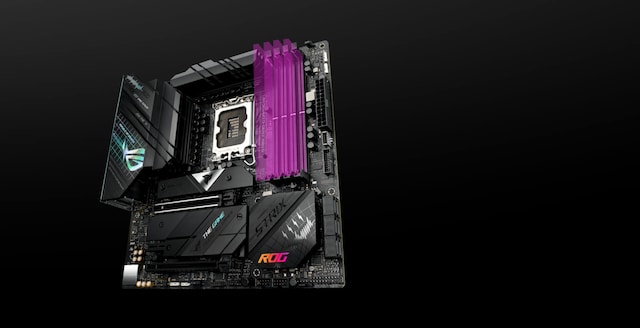

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
• Optimal Power Solution: 14+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates for two M.2 slots
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - micro-ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
EAN 4711081455417
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec SupremeFX (ALC4080)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound
LAN
Netværks interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x audio linje-ind - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding teknologi, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, M.2 kølelegeme, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, FlexKey-knap, ASUS ProCool II, Savitech SV3H712 forstærker, M.2 Q-Latch, SafeDIMM, 14+1 DrMOS strømstadier, Windows 11 kompatibel
Diverse
Udstyr inkluderet Kabelbånd, STRIX-mærkater, ROG-takkekort, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, 1 x M.2 gummipakke, M.2 Q-Latch
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 dages prøvetid), ASUS AURA Creator, MyAsus
Bredde 24.4 cm
Dybde 24.4 cm
