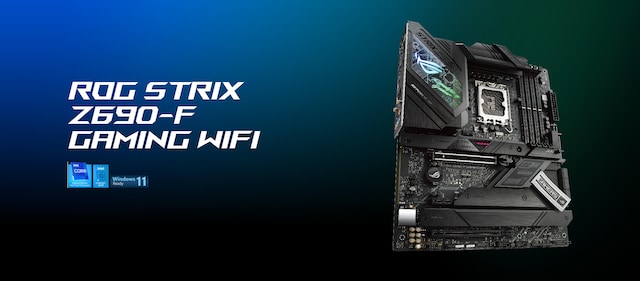

ASUS ROG STRIX Z690-F GAMING WIFI Bundkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0 x16, 4x m.2, 7xUSB 3.2, WIFI 6E, BT

Of ASUS
Varenummer: 1198161 / Producentens varenr: 90MB18M0-M0EAY0

Høydepunkter

  • LGA 1700 til 12. generation af Intel CPU!
  • PCIe 5.0 og DDR5 understøttelse
  • WiFi 6 og Intel 2.5G Ethernet
  • Fire M.2 spor!

More pictures from ASUS ROG STRIX Z690-F GAMING WIFI Bundkort

(9)
Se alt fra ASUS
2.894,-
Fri fragt
66 stk. på lager

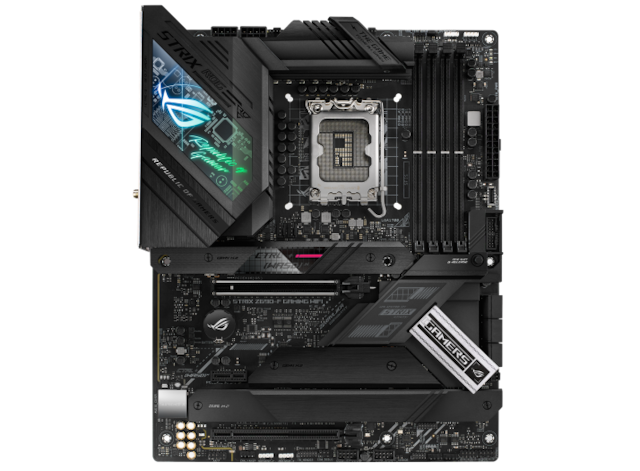

ASUS ROG STRIX Z690-F GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

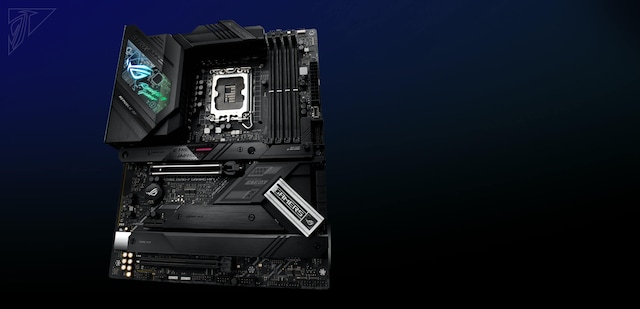

ALL-AROUND PERFORMANCE - ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
EAN 4711081441762
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec SupremeFX (ALC4080)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound
LAN
Netværks interfaces 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-modus)
1 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x audio linje-ind - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding teknologi, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey-knap, ASUS ProCool II, GameFirst VI, Savitech SV3H712 forstærker, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM
Diverse
Udstyr inkluderet STRIX-mærkater, ROG-takkekort, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, M.2 Q-Latch, 2 x M.2 gummipakke
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 dages prøvetid), MemTest86, ASUS AURA Creator
Bredde 30.5 cm
Dybde 24.4 cm
Producentgaranti
Service & Support Begrænset garanti - 3 år
