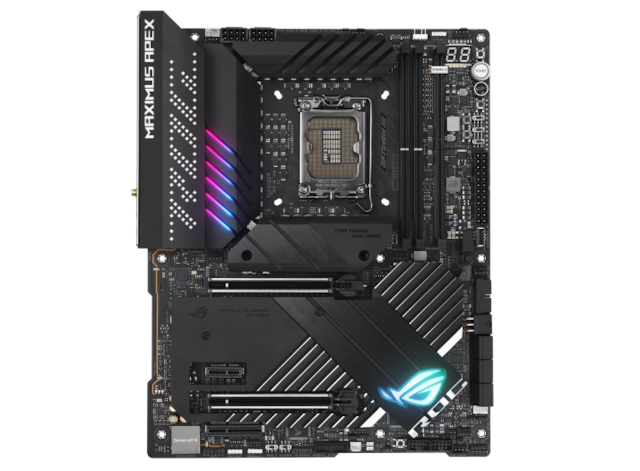

ASUS ROG MAXIMUS Z690 APEX, LGA1700 bundkort

Bundkort, ATX, DDR5, 2 x PCIe 5.0 x16, 5x m.2, 10xUSB 3.2, WIFI 6E, Bluetooth v5

Varenummer: 1198168 / Producentens varenr: ROG MAXIMUS Z690 APEX

More pictures from ASUS ROG MAXIMUS Z690 APEX, LGA1700 bundkort

5.289,-
Fri fragt
18 stk. på lager (leveringstid 2-3 arbejdsdage)
Retningslinjer for produktanmeldelser

ASUS ROG MAXIMUS Z690 APEX, LGA1700 Motherboard


• Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 24+0 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, dual M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
• High Performance Networking: Onboard Wi-Fi 6E, Intel® 2.5Gb Ethernet, and ASUS LANGuard.
• Fastest Gaming Connectivity: PCIe® 5.0, PCIE 5.0 M.2 card with Gen 5 M.2, USB 3.2 Gen 2x2 front-panel connector
• Industry Leading Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier for high-fidelity audio
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and ROG graphics card holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
EAN 4711081468509
Understøttet RAM
Maks. størrelse 64 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-kanaler)
Audio codec SupremeFX (ALC4080)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound
LAN
Netværks interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
2 x DIMM 288-pins
2 x PCIe 5.0 x16 (dual x8 mode; single kort: x16 mode)
1 x PCIe 3.0 x1
1 x PCIe 3.0 x4
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x PS/2-tastatur
1 x PS/2-mus
5 x USB 3.2 Gen 2
1 x audio linje-ind - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 3.2 Gen 1
1 x USB-C Gen2x2
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 6-pins ATX12V stikforbindelse, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber BIOS FlashBack, UEFI BIOS, Dual BIOS, ASUS EZ Flash 3, MemTest86
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding teknologi, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 kølelegeme, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, DIY Friendly Design, FlexKey-knap, ASUS ProCool II, GameFirst VI, Savitech SV3H712 forstærker, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, ReTry-knap, PCIe Slot Q-Release, CPU Socket-håndtagsbeskytter, Quick Charge 4+, 24+0 strømstadier, Auto-Extreme Technology
Diverse
Udstyr inkluderet ROG-blæsermærkater, RGB (RGBW) LED strip-forlængerkabel, ROG VGA holder, ROG-takkekort, ROG DIMM.2 ekspansionskort med kølelegeme, Q-Connector, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, ARGB LED strip-forlængerkabel, 3 i 1 termistor-kabelpakke, ROG True Voltician, PCIe 5.0 M.2 Card, 2 x M.2 Q-Latch
Medfølgende ledninger 6 x Seriel ATA kabel
Med software Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 års licens), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 års 'licens), Sonic Suite Companion, MyAsus, ROG True Voltician
Bredde 30.5 cm
Dybde 24.4 cm
