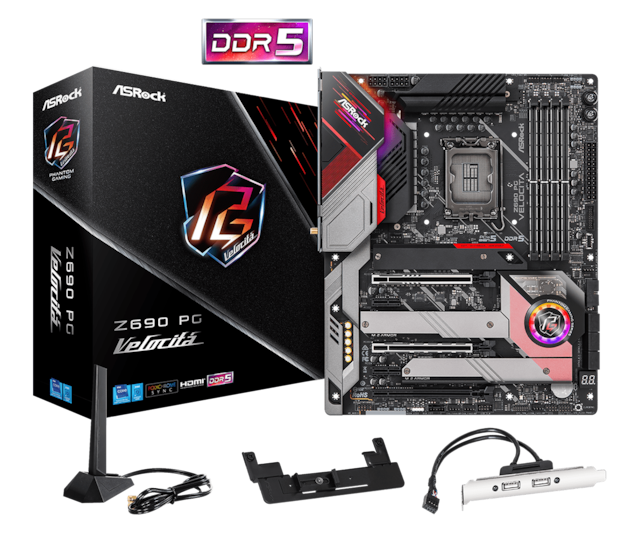

ASRock Z690 PG Velocita bundkort, LGA1700

Bundkort, ATX, DDR5, 1x PCIe 5.0 x16, 2x m.2, 10xUSB 3.2,WiFi 6E, Bluetooth

Varenummer: 1202016 / Producentens varenr: Z690 PG Velocita

More pictures from ASRock Z690 PG Velocita bundkort, LGA1700

7.727,-
Fri fragt
Ikke på lager. 5 stk. forventes klar til levering 2.feb.2022 (usikker dato)
Retningslinjer for produktanmeldelser

ASRock Z690 PG Velocita Motherboard, LGA1700


  • Understøtter 12. generations Intel® Core™-processorer (LGA1700)
  • 17 Fase SPS Dr.MOS Power Design
  • Understøtter DDR5 6400MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Indstillinger for grafikoutput: HDMI, DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 6 SATA3
  • 1 Blazing M.2 (PCIe Gen5 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4)
  • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 1 USB 3.2 Gen2x2 Front Type-C
  • 2 USB 3.2 Gen2 (Bag Type A+C)
  • 10 USB 3.2 Gen1 (6 Bag, 4 Front)
  • Killer E3100 2.5G LAN, Intel® Gigabit LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
  • Lightning gaming-porte
  • ASRock grafikkortholder
Generelt
Producentens garanti (måneder) 24
Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core)
EAN 4710483936104
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 6400 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1220
Overensstemmelsesstandarder High Definition Audio, Premium Blu-ray audiosupport
LAN
Netværk controller Intel I219V / Killer E3100G
Netværks interfaces Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x2-modus)
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Interface 1 x HDMI
1 x DisplayPort
1 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x LAN (2.5Gigabit Ethernet)
1 x LAN (Gigabit Ethernet)
6 x USB 3.2 Gen 1
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x TOSLINK
Interne interfaces 2 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber ASRock Instant Flash, 15µ Gold Contact, AMD CrossFireX-teknologisupport, ASRock Internet Flash, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Easy Driver Installer, 8 Layer PCB, Clear CMOS Button, Direct Drive Technology, ASRock Full Spike Protection, Debug LED, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, XXL Aluminum Alloy Heatsink, Killer DoubleShot Pro, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium 60A Power Choke, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, Intel Turbo Boost Max Technology 3.0, 17 Phase Power Design, ASRock Full Coverage M.2 Heatsink, Intel Hybrid Technology, ASRock Hyper BCLK Engine V
Diverse
Udstyr inkluderet 3 x M.2 skruer, 3 x standoff til M.2 sokkel, grafikkortholder, trådløs dongle USB-bøjle, 1 x 3010 køleblæser med bøjle- og skruepakke, 1 x 4010 køleblæserbøjle- og skruepakke, ASRock WiFi 2,4/5/6 GHz antenne
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, Killer Control Center
Overensstemmelsesstandarder FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, CEC Tier II
Bredde 30.5 cm
Dybde 24.4 cm
