Akasa OTTO SC12 120mm ventilator

0-2000 RPM, 95,68 CFM, 4 Pin PWM

Varenummer: 1206356 / Producentens varenr: AK-FN109

More pictures from Akasa OTTO SC12 120mm ventilator

220,-
+ fragt fra 59,-
Ikke på lager. 8 stk. Ubekræftet 14.dec.2022 fra producenten.

Akasa OTTO SC12 120mm fan

Elite Pressure Optimised Cooling Fan

  • Advanced auto industry structure design
  • P68 rated rotor technology
  • Advanced blade technology
  • Intelligent PWM speed control
  • Easy to clean
  • Rubber mounting pins

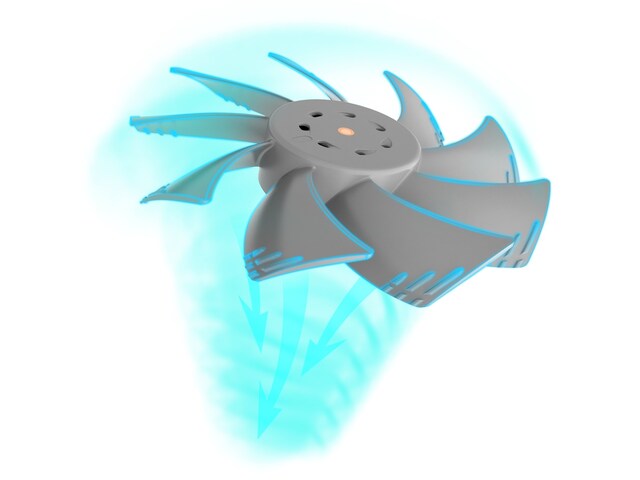

Advanced Blade Design

Advanced sickle-flow design provides focused hi-static pressure, releasing strong and concentrated streams of air, making it perfect for heatsinks and radiators. As well as heavy duty applications.

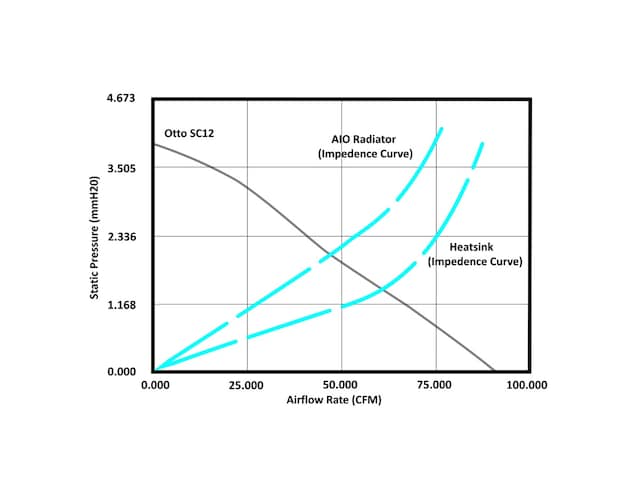

Perfectly Fine-Tuned P-Q Curve

Otto SC12 has been carefully fine-tuned for optimising static pressure in the intersection relative to the radiator and heatsink applications in order to maximise the overall performance of the fan.

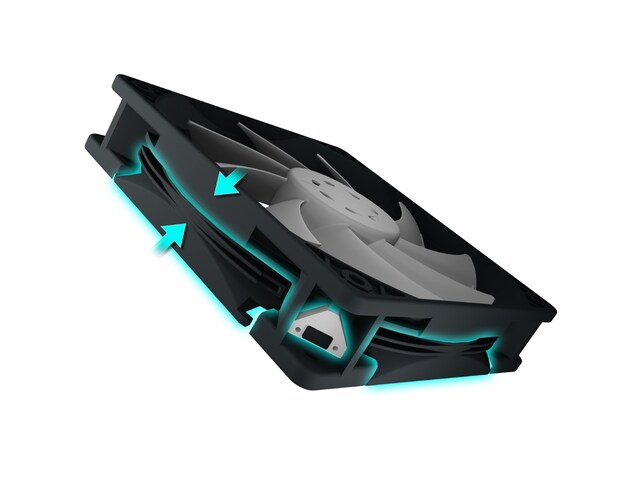

Advanced Auto Industry Structure Design

Patented spring-like anti-vibration structure ensures minimum vibration noise output. Coupled with fibre-glass reinforced polymer able to perform in most demanding surroundings.

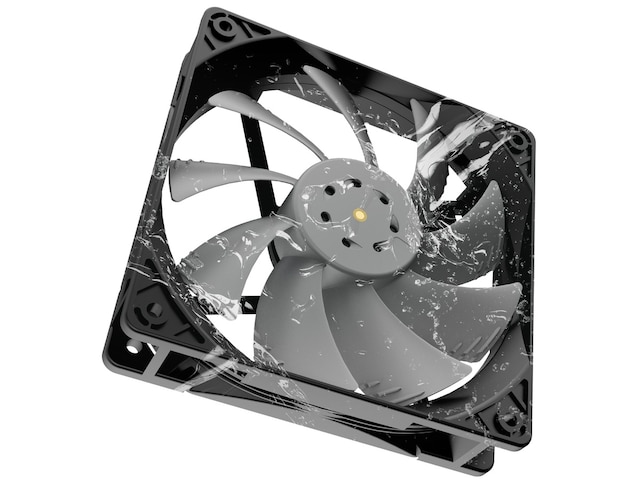

Water and Dust Proof for Heavy Duty Applications

Superstrong materials and water resistance make Otto fan incredibly durable. IP68 rated rotor able to withstand dirt, dust, sand and water.

Intelligent PWM Speed Control

Intelligent PWM speed control ranging from 0-2000 RPM, ensures efficient and silent cooling delivery during higher and lower loads. Connected via a 4-pin connector.

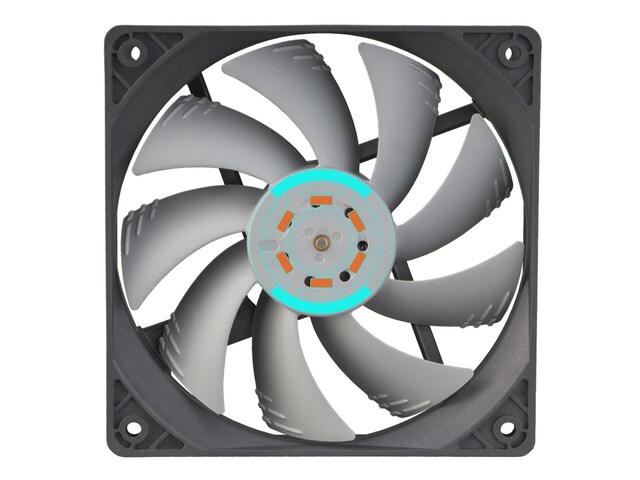

Ingenious Rotor Technology

Three phase motor provides smoother shifts between the slots, this lowers unnecessary vibrations combined with unmatched energy efficiency.

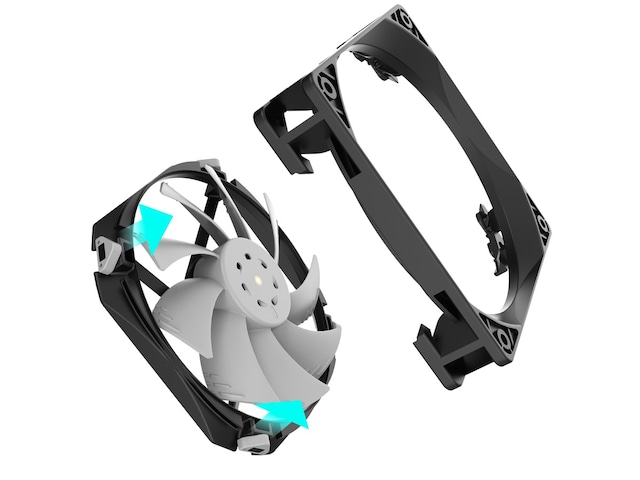

Easy To Clean

Detachable frame provides convenient cleaning access without the need to remove whole frame.

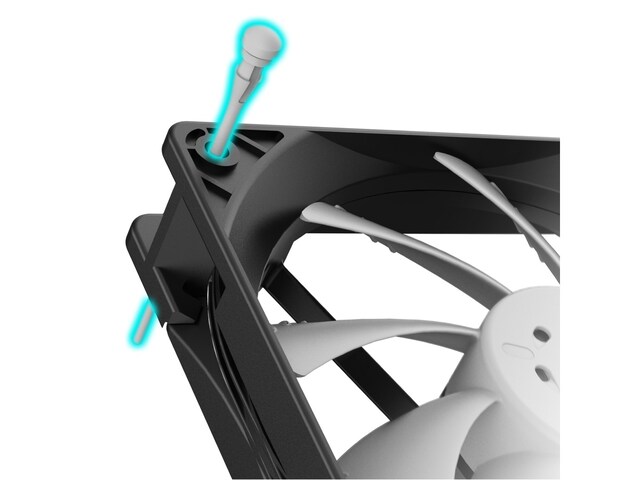

Rubber Mounting Pins

Rubber case fan mounts; eliminate vibration and resonance given off by fans by isolating them from the case.

Generelt
Producentens garanti (måneder) 12
Produkttype Indsats med blæser
Pakke Indhold 4 x gummipin
Bredde 12 cm
Dybde 12 cm
Højde 2.5 cm
Farve Grå
EAN 4710679551272
Varmeafleder & blæser
Blæser diameter 120 mm
Blæser-højde 25 mm
Blæser med kugleleje Dobbelt kugleleje
Omdrejningshastighed 0 - 2000 rpm
Luftstrøm 95.68 cfm
Lufttryk 3.84 mm
Støjniveau 7.1 - 30.2 dBA
Stik 4-pins blæser-stikforbindelse
Rated Voltage 12 V
Rated Strøm 0.21 A
Egenskaber Tre-fasemotor, intelligent PWM-blæserkontrol, trykoptimeret blæser, avanceret autoindustri-strukturdesign, avanceret klingeteknologi
Diverse
MTBF (forventet tid mellem fejl) 80,000 time(r)
Egenskaber Vandafvisende, støvresistent
Overensstemmelsesstandarder IP68
Producentgaranti
Service & Support Begrænset garanti: - 2 år
