ATEN UC2324 USB to RS-232 hub 4P

ATEN UC2324 USB to RS-232 hub 4P

Varenummer: 447607 / Producentens varenr: UC2324

More pictures from ATEN UC2324 USB to RS-232 hub 4P

499,-
+ fragt fra 59,-
Bestillingsvare. Bestilles ved ordre. Leveringstid 3-4 uger.
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
Average rating (3 reviews)
Retningslinjer for produktanmeldelser
Fullwidth media container description

UC2324

4-Port USB-to -Serial RS-232 Hub

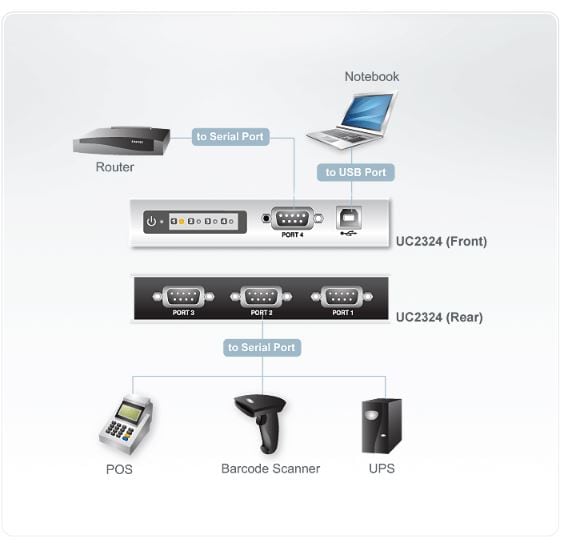

The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

Features:

  • Easy way to add 4 RS-232 serial ports
  • Fully compliant with USB 1.1; USB 2.0 compatible
  • Supports RS-232 serial interface
  • Supports automatic handshake mode
  • Up to 115.2 Kbps data transfer rate for each serial port
  • Dual data buffers for each upstream and downstream data transfer
  • No IRQ, DMA, I/O address resources required
  • Supports hot-swapping and plug-and-play
  • Built-in 16KV ESD protection
  • Supports both bus power and external power
  • Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
  • OS support - Windows 2000/2003/XP/NT
Fullwidth media container description

Package Contents:

  • 1x USB-to-Serial Hub
  • 1x USB Cable
  • 1x Installation Disk
  • 1x User Instructions
Generelt
Producentens garanti (måneder) 24
Enhedstype Seriel adapter
Model Ekstern
Grænseflade (bus) type USB
Netværk
Porte RS-232 x 4
Forbindelsesteknologi Kabling
Dataforbindelsesprotokol RS-232
Dataoverførselshastighed 115.2 Kbps
Statusindikatorer Portstatus, strøm
Ekspansion / Konnektivitet
Interface 4 x RS-232 - 9-pin D-Sub (DB-9)
Tilslutninger 1 x USB - 4 pin USB Type B
Diverse
Works with Windows Vista Programmer og enheder, der bærer logoet "Works with Windows Vista", blev testet for basal kompatibilitet med PC'er.
Medfølgende programmer / Systemkrav
OS nødvendig Linux, Microsoft Windows, Microsoft Windows Vista
Mål og vægt
Bredde 12.5 cm
Dybde 8.2 cm
Højde 2.5 cm
Vægt 320 g
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Fugtighedsgrad ved brug 0 - 80%
