| Model | H310N |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331803728 |
| Processor-socket | LGA1151 Socket |
|---|---|
| Chipsættype | Intel H310 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Model | Mini ITX |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM Slots | 2 DIMM slots |
| Kommentarer om kompatible processorer | Understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Kompatible processorer | Core i5, Core i7, Core i3, Pentium, Celeron |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 2133 MHz, 2400 MHz, 2666 MHz |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | UEFI BIOS, DMI 2.7 support, WfM 2.0 understøttet, ACPI 5.0 support, SMBIOS 2.7 support |
| Hardware egenskaber | Audio Noise Guard, AutoGreen, Ultra Durable, Glass Fabric PCB, Anti-Sulfur Design, GIGABYTE Double Locking Bracket, CEC 2019 Ready, Game Boost, Anti-Surge IC, Q-Flash, GIGABYTE Smart Fan 5, On/Off Charge |
| Hardwareovervågning | CPU kernetemperatur, Takometer til CPU-blæser, Beskyttelse mod CPU overophedning, Systemspænding, Takometer til chassis-blæser, Chassis temperatur |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
|---|---|
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB / FireWire portkonfiguration (aktiv) | 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
| USB/FireWire | USB 3.1 Gen 1 |
| Lagring | Serial ATA-600, M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 1 GB |
|---|
| Type | Lydkort |
|---|---|
| Audio codec | Realtek ALC887 |
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk | Gigabit Ethernet |
|---|---|
| Netværk controller | Realtek RTL8118 |
| Dataforbindelsesprotokol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Intel Extreme Memory Profiles (XMP), Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 2 x DIMM 288-pins, 1 x CPU, 1 x PCIe 3.0 x16 |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, SATA-600 / PCIe -stikforbindelser: 1 x M.2 |
|---|

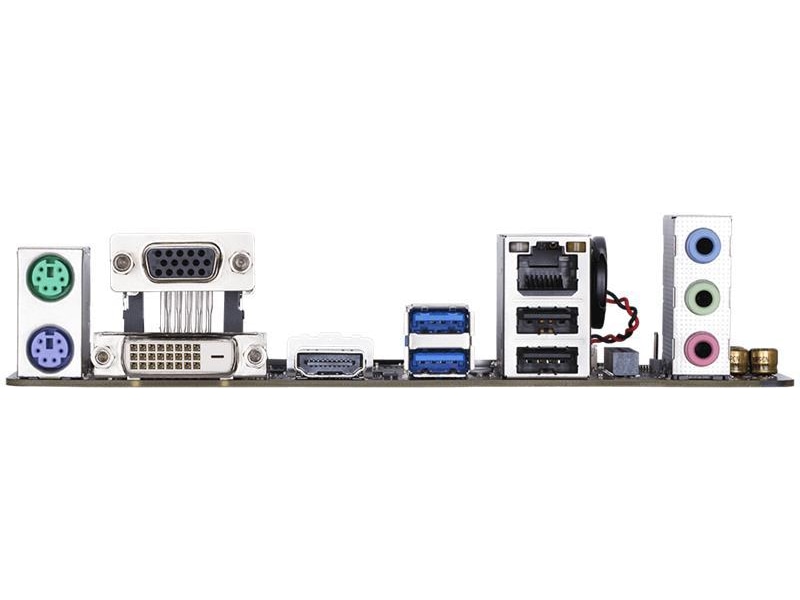

| Interface | 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x PS/2-mus, 2 x USB 2.0, 1 x DVI-D, 1 x PS/2-tastatur, 2 x USB 3.1 Gen 1, 1 x mikrofon - mini-jack, 1 x VGA, 1 x audio linje-ind - mini-jack |
|---|
| Interne interfaces | 2 x USB 2.0 - intern stik, 1 x audio - intern stik, 1 x seriel - intern stik, 1 x højttaler - intern stik, 2 x USB 3.1 Gen 1 - intern stik |
|---|
| Software inkluderet | Norton Internet Security, GIGABYTE Smart Keyboard, Xpress Install, GIGABYTE Smart Fan 5, GIGABYTE Smart HUD, GIGABYTE Smart Backup, Smart TimeLock, GIGABYTE Fast Boot, @BIOS, GIGABYTE USB Blocker, Cloud Station, GIGABYTE V-Tuner, GIGABYTE 3D OSD, EasyTune, GIGABYTE App Center |
|---|
