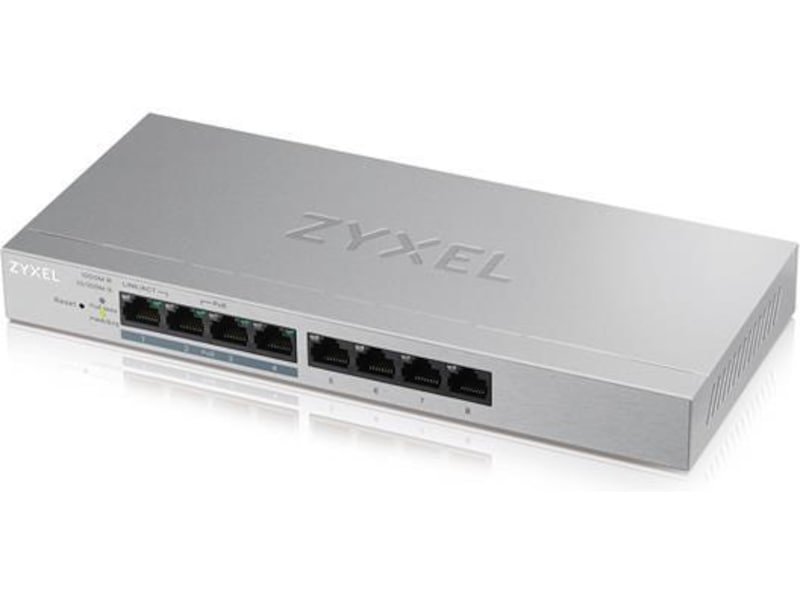

Zyxel GS1200-8HPV2 PoE+ switch

8-Port, Managed, PoE+, 60W

Varenummer: 1102990 / Producentens varenr: GS1200-8HPV2-EU0101F

More pictures from Zyxel GS1200-8HPV2 PoE+ switch

790,-
+ fragt fra 59,-
27 stk. på lager (leveringstid 2-3 arbejdsdage)
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
Retningslinjer for produktanmeldelser

Zyxel GS1200

The GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up interface. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.

Smart PoE+ 802.3af/802.3at support

The GS1200 series supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

IGMP Snooping for optimized traffic delivery

Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.

Enhanced port-based QoS for better traffic control

QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.

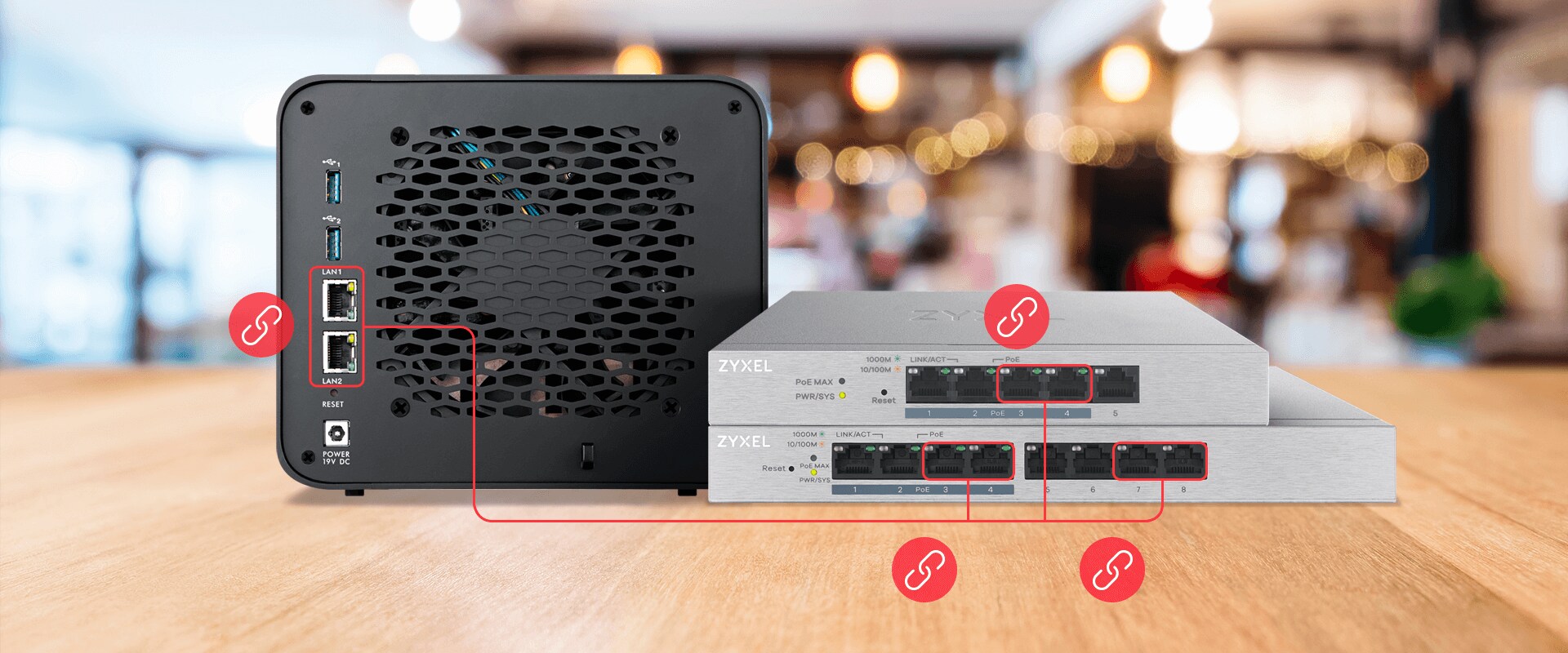

Link Aggregation increase throughput

GS1200-5HP v2/GS1200-8HP v2 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.

Generelt
Producentens garanti (måneder) 60
Enhedstype Switch - 8 porte - Administreret
Pakningstype Desktop
Undertype Gigabit Ethernet
Porte 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
PoE-budget 60 W
Præstation Omkoblingskapacitet: 16 Gbps
Kapacitet LAG-grupper: 2
Multicast-grupper: 128
MAC adresse table størrelse 4K indtastningshukommelse
Jumborammesupport 9KB
Routingprotokol IGMPv2, IGMP, IGMPv3
Protokol til fjernadministration HTTP
Egenskaber Datatransport, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, Broadcast Storm Control, firmware kan opgraderes, Quality of Service (QoS), DHCP klient, løkkeforebyggelse, 192 KB pakkebuffer, Class of Service (CoS), administrator's password, Link Aggregation, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), tilbageløkke-detektion, VLAN Tagging, portbaseret QoS
Overensstemmelsesstandarder IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Statusindikatorer Portstatus, strøm, PoE
Ekspansion / Konnektivitet
Interface 4 x 1000Base-TX RJ-45 PoE+ - 30 W
4 x 1000Base-TX RJ-45
Effekt
Strømenhed Ekstern strømforsyning
Strømforsyning 55 V - 1.3 A
Strømforbrug ved drift 72 Watt
Diverse
Udstyr inkluderet Gummifødder
Overensstemmelsesstandarder EMC, FCC, RoHS, BSMI Class B, LVD
Mål og vægt
Bredde 24 cm
Dybde 10.5 cm
Højde 2.6 cm
Vægt 584 g
Mål & vægt (forsendelse)
Bredde ved forsendelse 25.6 cm
Dybde ved forsendelse 13.2 cm
Højde ved forsendelse 7.8 cm
Vægt ved forsendelse 1.153 kg
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 10 - 90 % (ikke-kondenserende)
Min. lagertemperatur -40 °C
Maks. Opbevaringstemperatur 70 °C
Lagerfugtighedsgrad 10 - 90 % (ikke-kondenserende)
