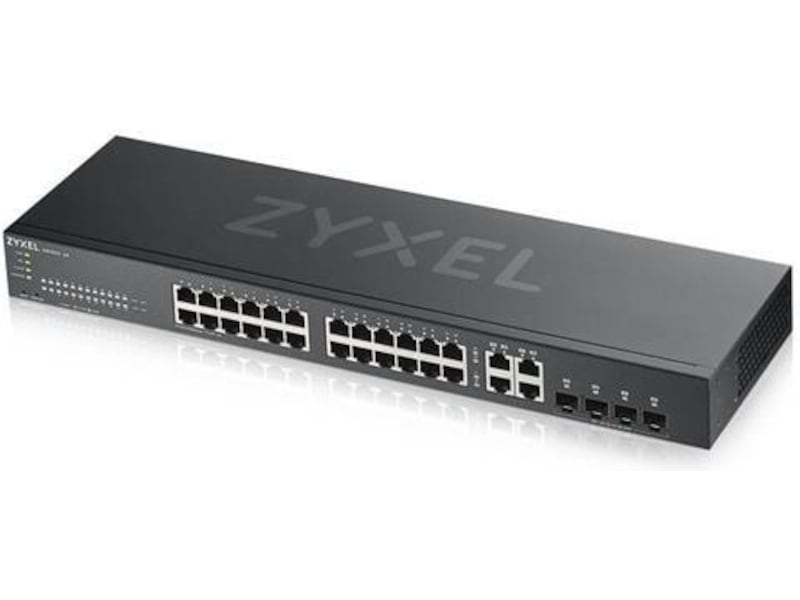

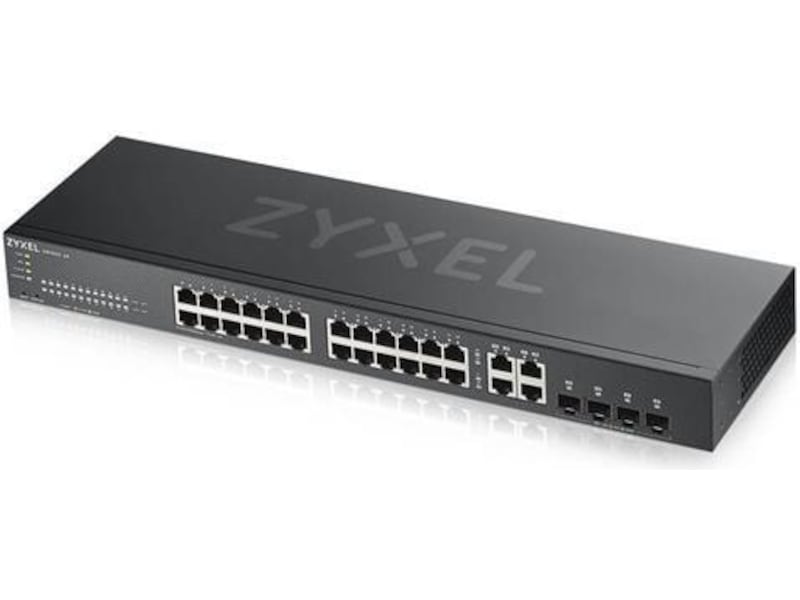

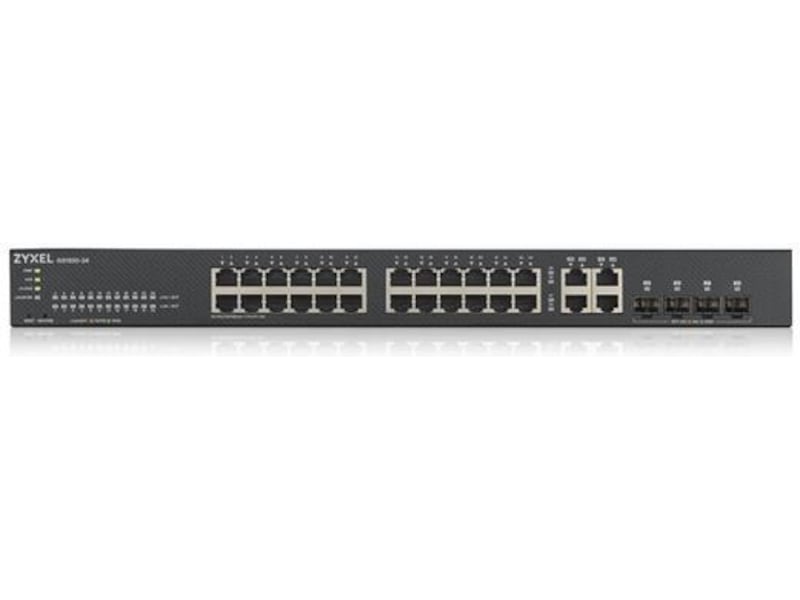

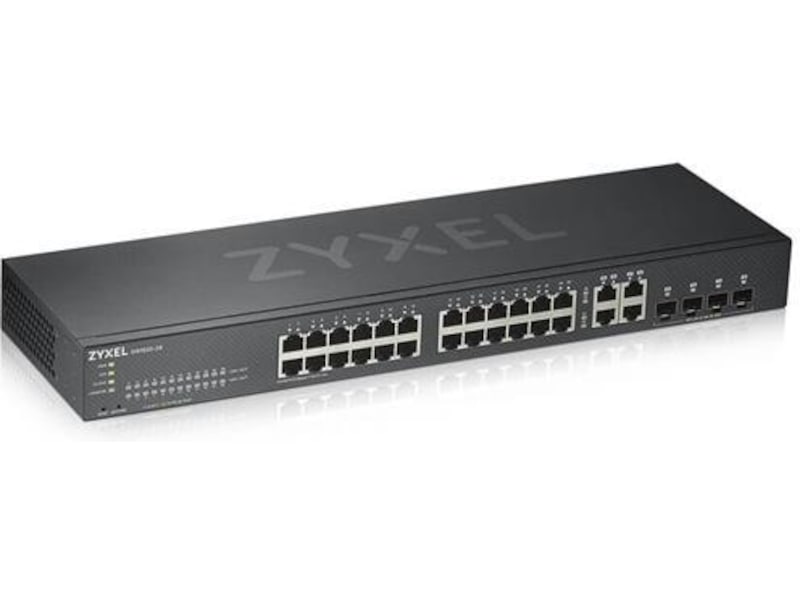

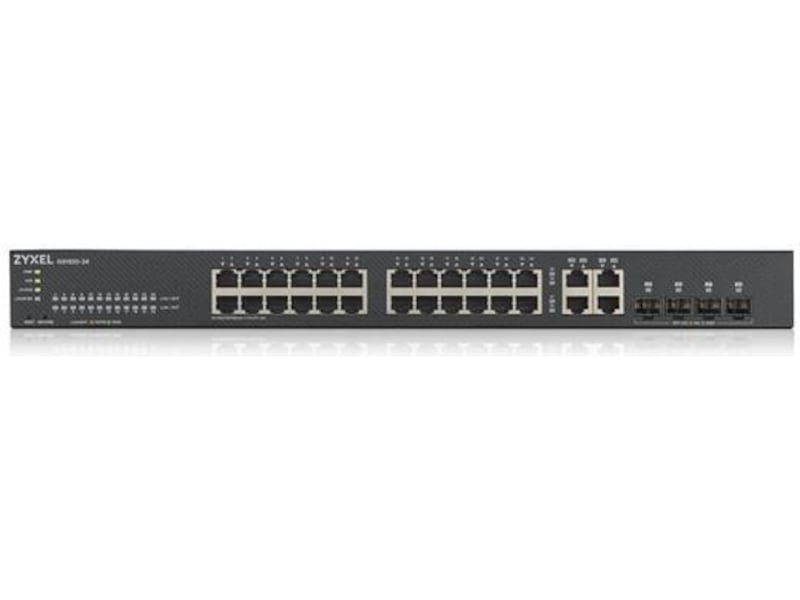

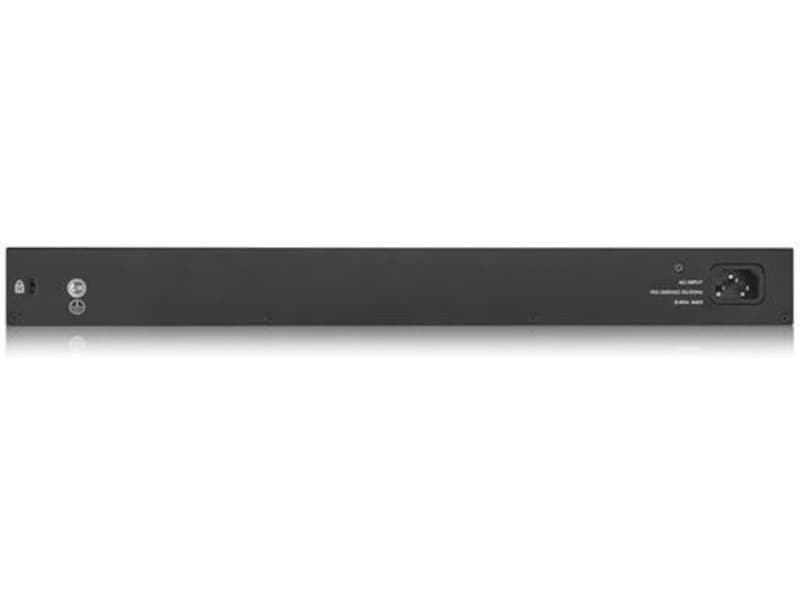

ZYXEL GS1920-24V2 Switch
24x RJ45, 4x SFP, Smart Managed, Nebula Cloud
Of
ZYXEL
Varenummer:
1104039
/ Producentens varenr:
GS1920-24V2-EU0101F
Produktoplysninger
ZYXEL GS1920-24V2, Smart Managed
A new-look smart managed switch with a refreshed design inside and out!
The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTMtechnology.
The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.

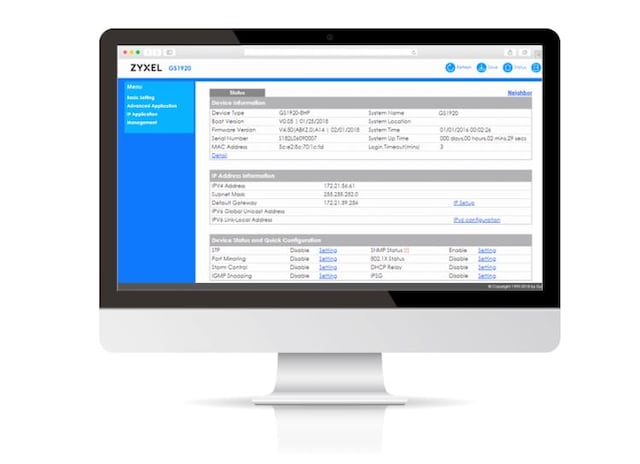

Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily
- Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
- Default consumption mode boosts efficiency by delivering the actual power required.
Tekniske detaljer
| Producentens garanti (måneder) | 60 |
|---|---|
| Enhedstype | Switch - 24 porte - smart |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 + 4 x combo Gigabit SFP |
| Præstation | Omkoblingskapacitet: 56 Gbps Videresendelseshastighed: 42 Mpps |
| Kapacitet | QoS hardware-køer pr. port: 8 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Krypterings algoritme | SSL |
| Autentificeringsmetode | RADIUS, TACACS+ |
| Egenskaber | Datatransport, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, MAC-adresse-filtrering, Broadcast Storm Control, IPv6 understøttet, IP-adresse filtrering, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, MDL snooping, blæserløs, DHCP videresendelse, Port Security, SNMP fælde, DHCP klient, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dobbelt firmware-billeder, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), IGMP proxy, 802.1x autentificering, Duplicated Address Detection, sky-administreret, DiffServ Code Point (DSCP) support, 1,5 MB pakkebuffer, ErrDisable Recovery, IGMP-filtrering, IGMP-drosling, Protokol-baseret VLANs support, CPU-beskyttelse, IP-kildebekyttelse, ARP-inspektion, Internet Control Message Protocol (ICMP), VLAN-filtrering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, portbaseret VLAN, Unknown Storm Control, MRSTP, MAC-frys |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 256 MB |
| Flashhukommelse | 32 MB |
| Interface | 28 x 1000Base-T RJ-45 4 x 1000Base-X SFP |
|---|

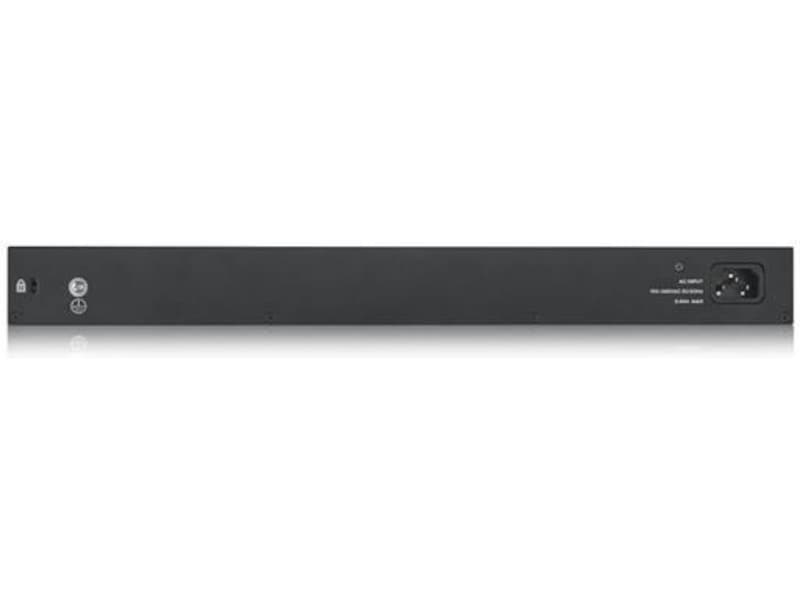

| Strømenhed | Intern strømforsyning |
|---|---|
| Nødvendig spænding | AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift | 22.5 Watt |
| Rackmonteringspakke | Inkluderet |
|---|---|
| MTBF (forventet tid mellem fejl) | 911,301 timer |
| Overensstemmelsesstandarder | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Bredde | 44.1 cm |
|---|---|
| Dybde | 13.1 cm |
| Højde | 4.4 cm |
| Vægt | 2.1 kg |
| Bredde ved forsendelse | 55.8 cm |
|---|---|
| Dybde ved forsendelse | 21.4 cm |
| Højde ved forsendelse | 7.9 cm |
| Vægt ved forsendelse | 2.91 kg |
| Service & Support | Begrænset garanti - livstid |
|---|
| Min. driftstemperatur | 0 °C |
|---|---|
| Maks. driftstemperatur | 50 °C |
| Fugtighedsgrad ved brug | 10 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 70 °C |
| Lagerfugtighedsgrad | 10 - 95 % (ikke-kondenserende) |
