| Produktlinje | Gigabyte |
|---|---|

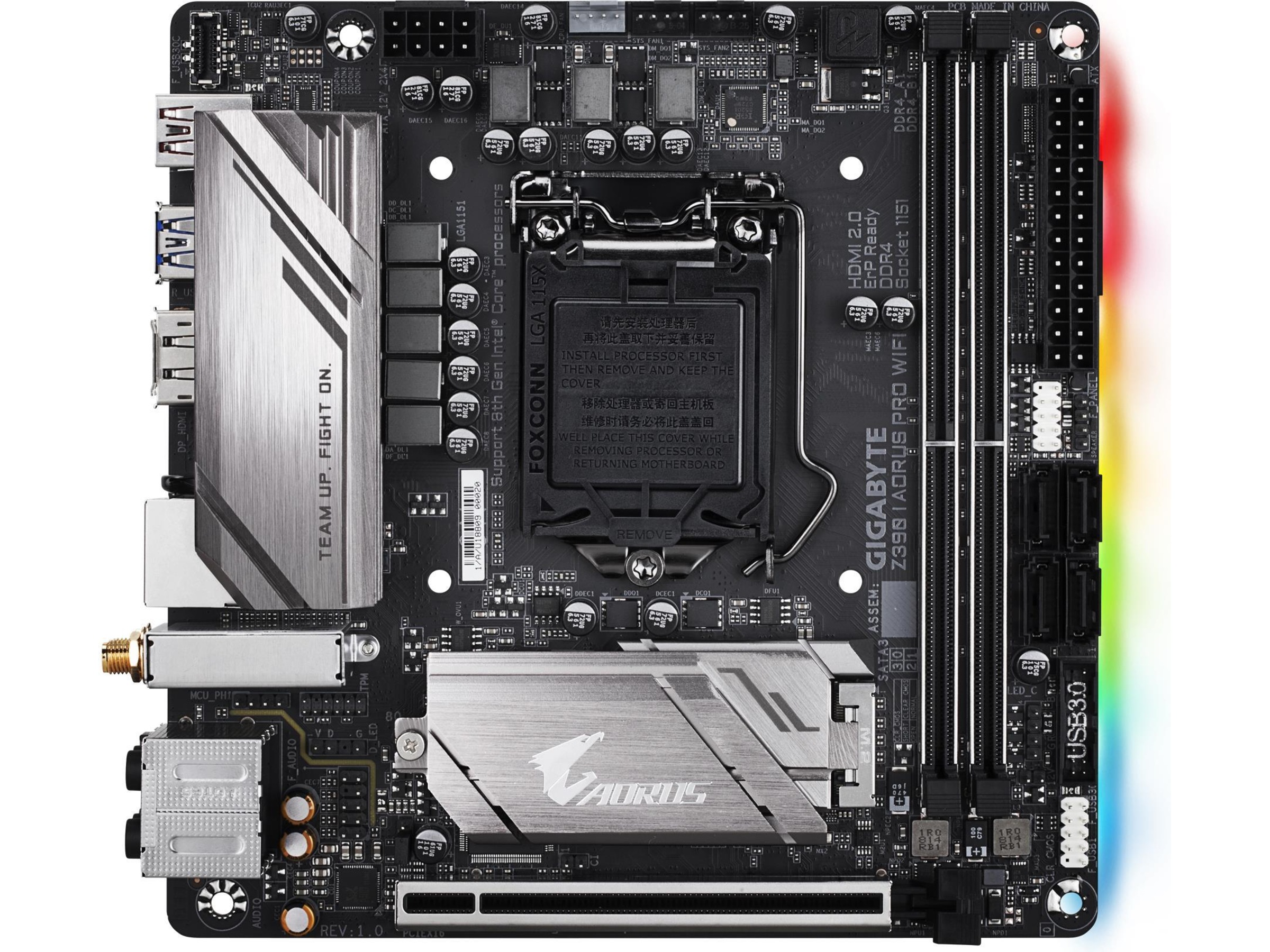

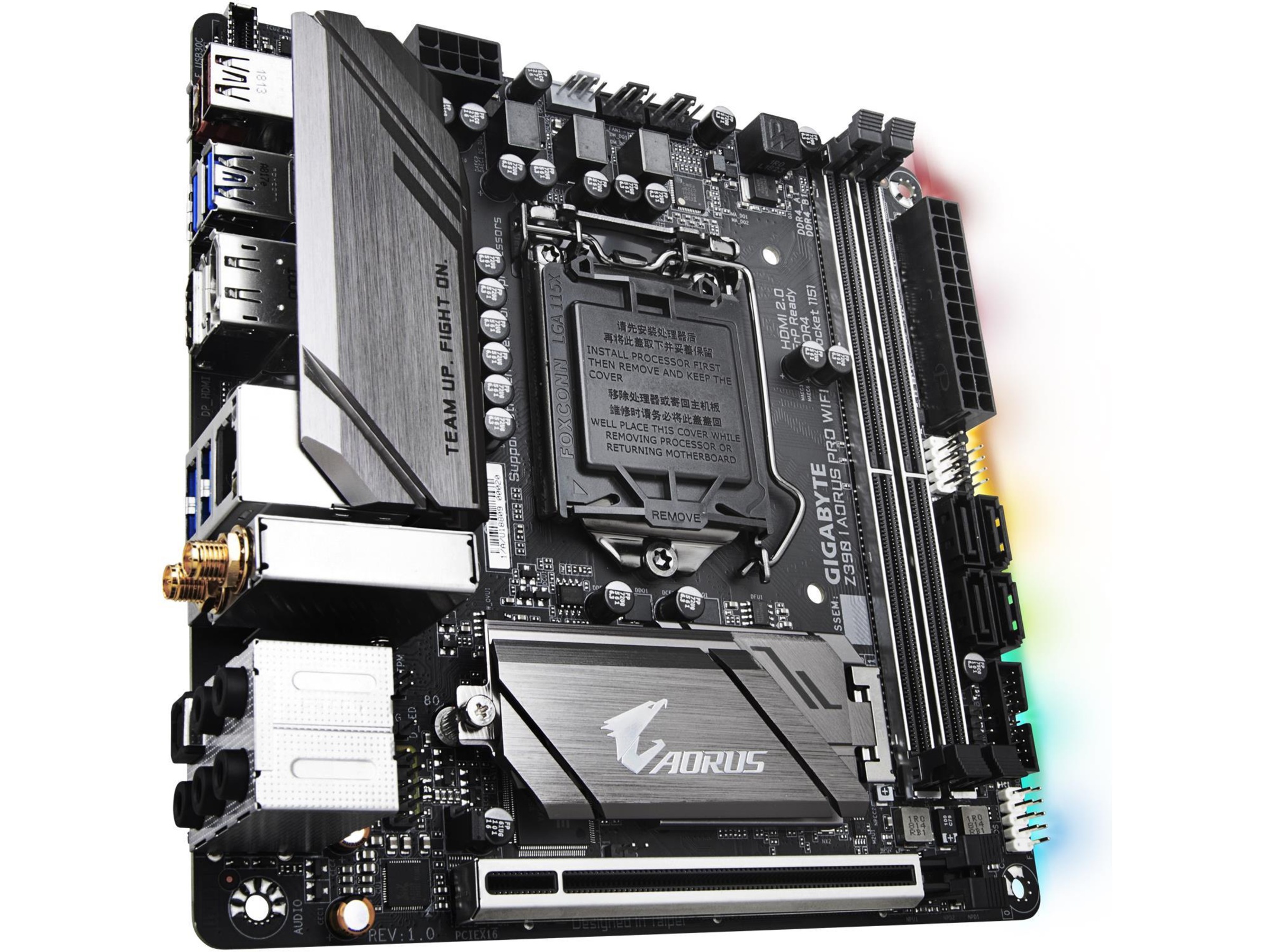

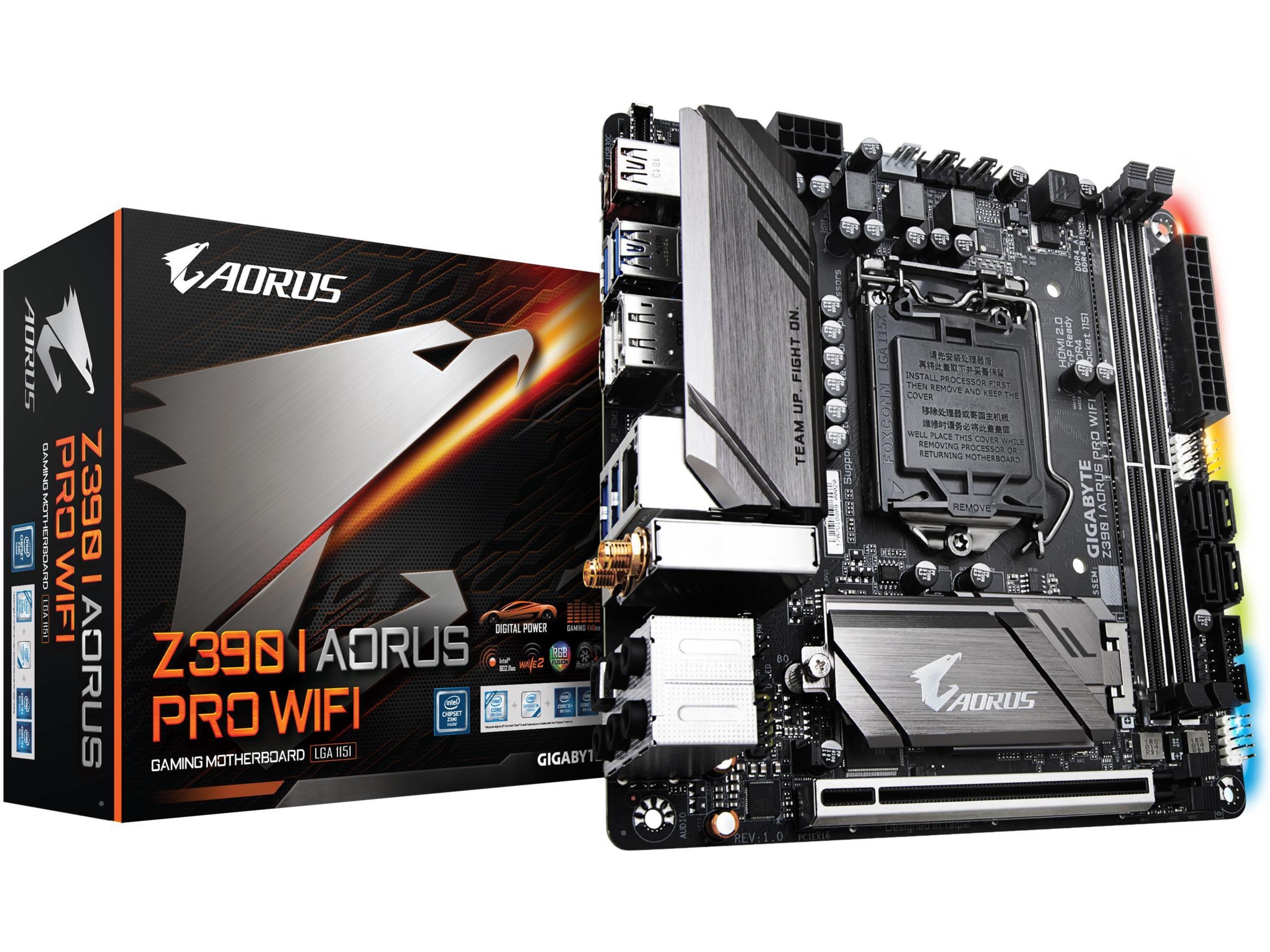

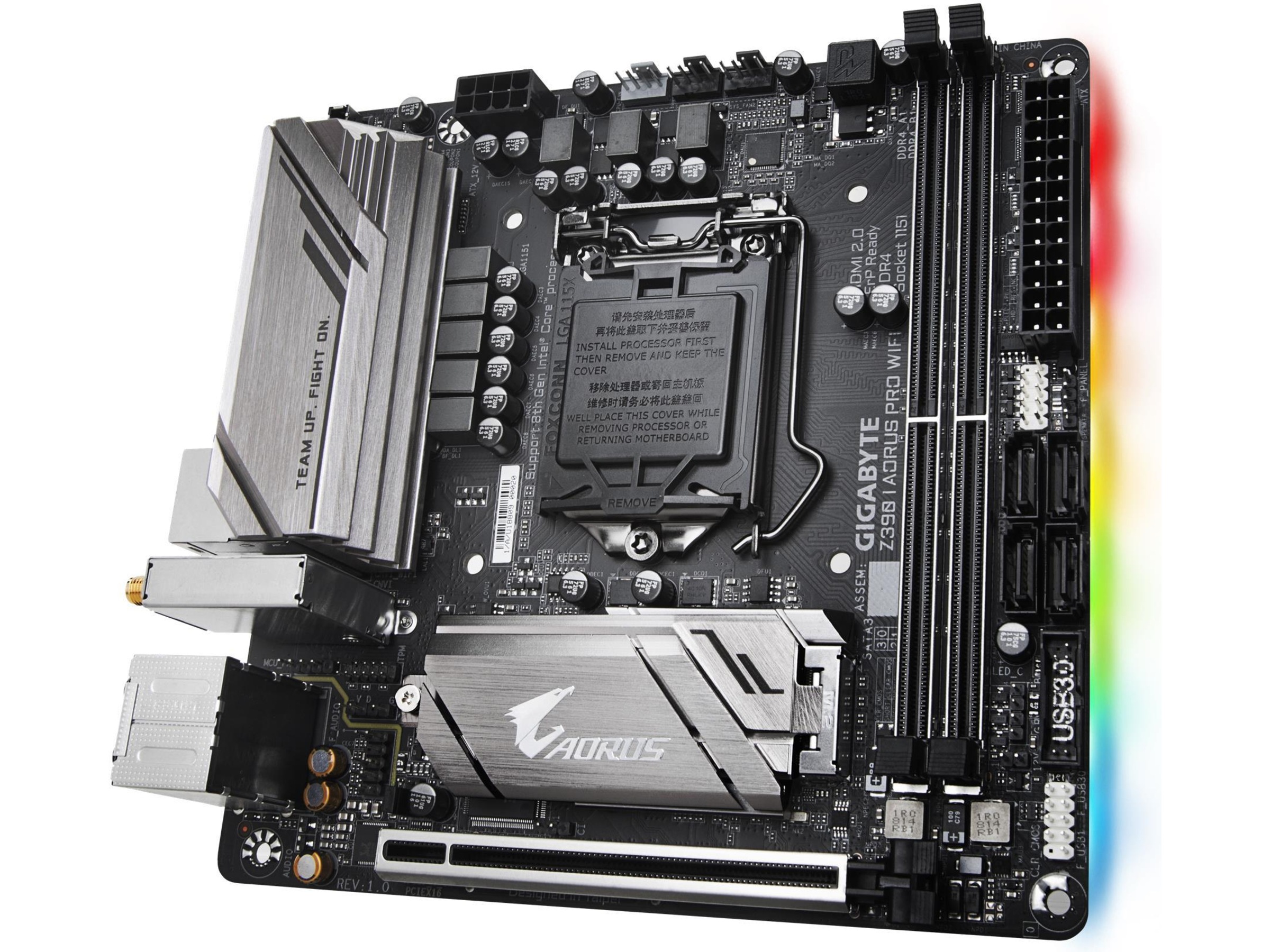

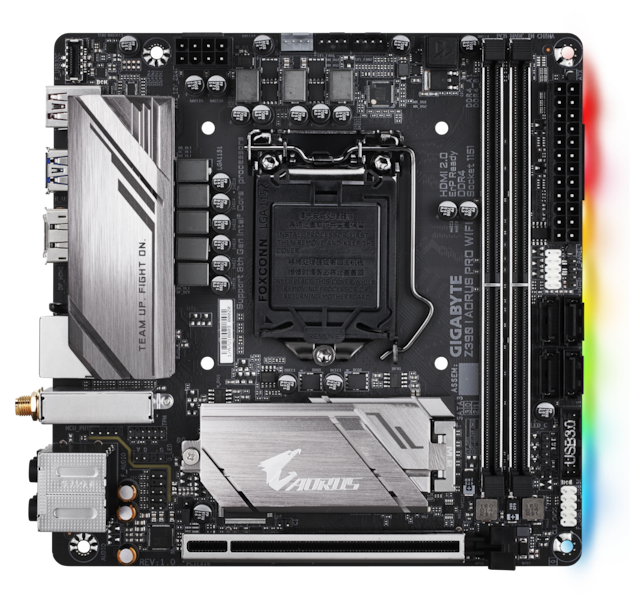

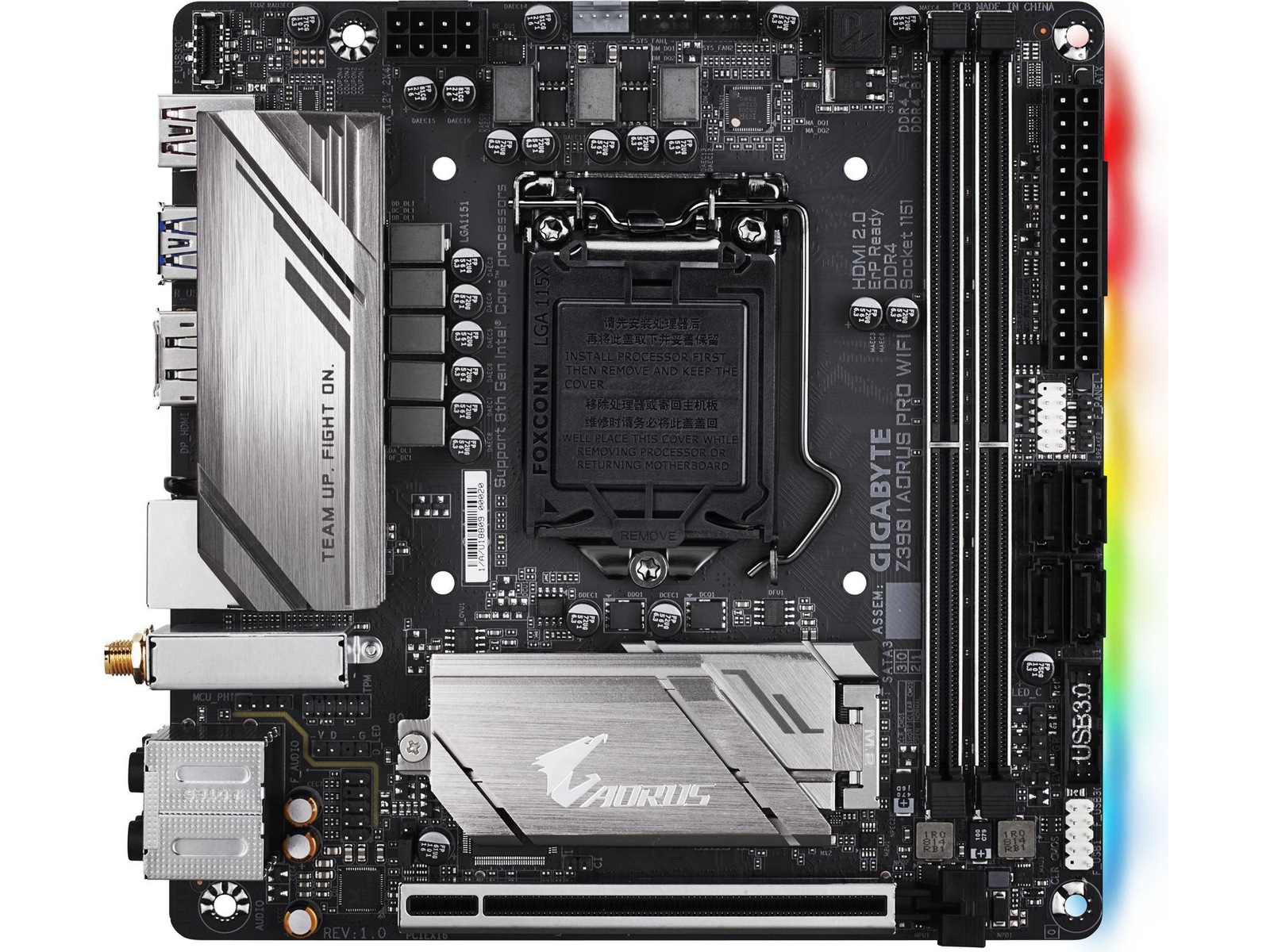

| Model | Z390 I AORUS PRO WIFI |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331804527 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
|---|---|
| Model | Mini ITX |
| Chipsættype | Intel Z390 |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM Slots | 2 DIMM slots |
| Processor-socket | LGA1151 Socket |
| Kommentarer om kompatible processorer | Understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron |
| Kompatible processorer | Pentium, Core i7, Core i3, Celeron, Core i9, Core i5 |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Understøttet RAM-integritetskon | ECC (drift i ikke-ECC tilstand), Ikke-ECC |

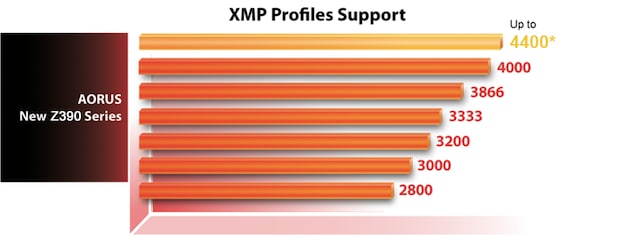

| RAM-hastighed understøttet | 4000 MHz (O.C.), 2400 MHz, 3466 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 4333 MHz (O.C.), 4133 MHz (O.C.), 3000 MHz (O.C.), 3733 MHz (O.C.), 3333 MHz (O.C.), 3800 MHz (O.C.), 2800 MHz (O.C.), 3300 MHz (O.C.), 2666 MHz, 4400 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 3666 MHz (O.C.), 2133 MHz |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardwareovervågning | CPU kernetemperatur, Systemspænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, Takometer til CPU-blæser, Chassis temperatur |
| Hardware egenskaber | GIGABYTE Smart Fan 5, Solid Pin Power Connectors, On/Off Charge, Ultra Durable Memory Armor, Intel Optane Memory Ready, AutoGreen, 6 Phase Power Design, M.2 Thermal Guard, GIGABYTE Double Locking Bracket, RGB FUSION, Ultra Durable PCIe Armor, CEC 2019 Ready, Easy RAID Installer |
| BIOS-egenskaber | UEFI BIOS, WfM 2.0 understøttet, Dual BIOS, DMI 2.7 support, ACPI 5.0 support, SMBIOS 2.7 support |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 1 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C Gen1, USB 3.1 Gen 2, USB-C Gen2, USB 3.1 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 1 GB |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Type | Lydkort |
| Audio codec | Realtek ALC1220-VB |
| Overensstemmelsesstandarder | High Definition Audio |
| Overensstemmelsesstandarder | Plug and Play |
|---|---|
| Produkttype | Bundkort |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur, Understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
|---|
| Dataforbindelsesprotokol | IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, Ethernet, IEEE 802.11a, Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ac Wave 2, Fast Ethernet |
|---|---|
| Netværk | Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2, Bluetooth |
| Ekspansionsåbninger | 1 x M.2 socket (til Intel CNVi trådløst modul), 2 x DIMM 288-pins, 1 x CPU, 1 x PCIe 3.0 x16 |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe -stikforbindelser: 2 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

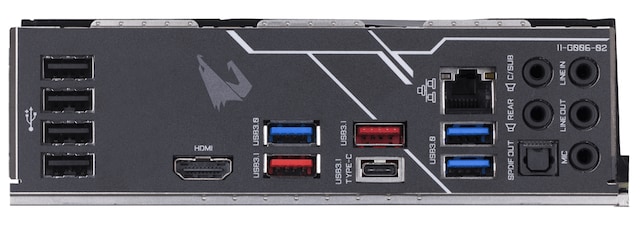

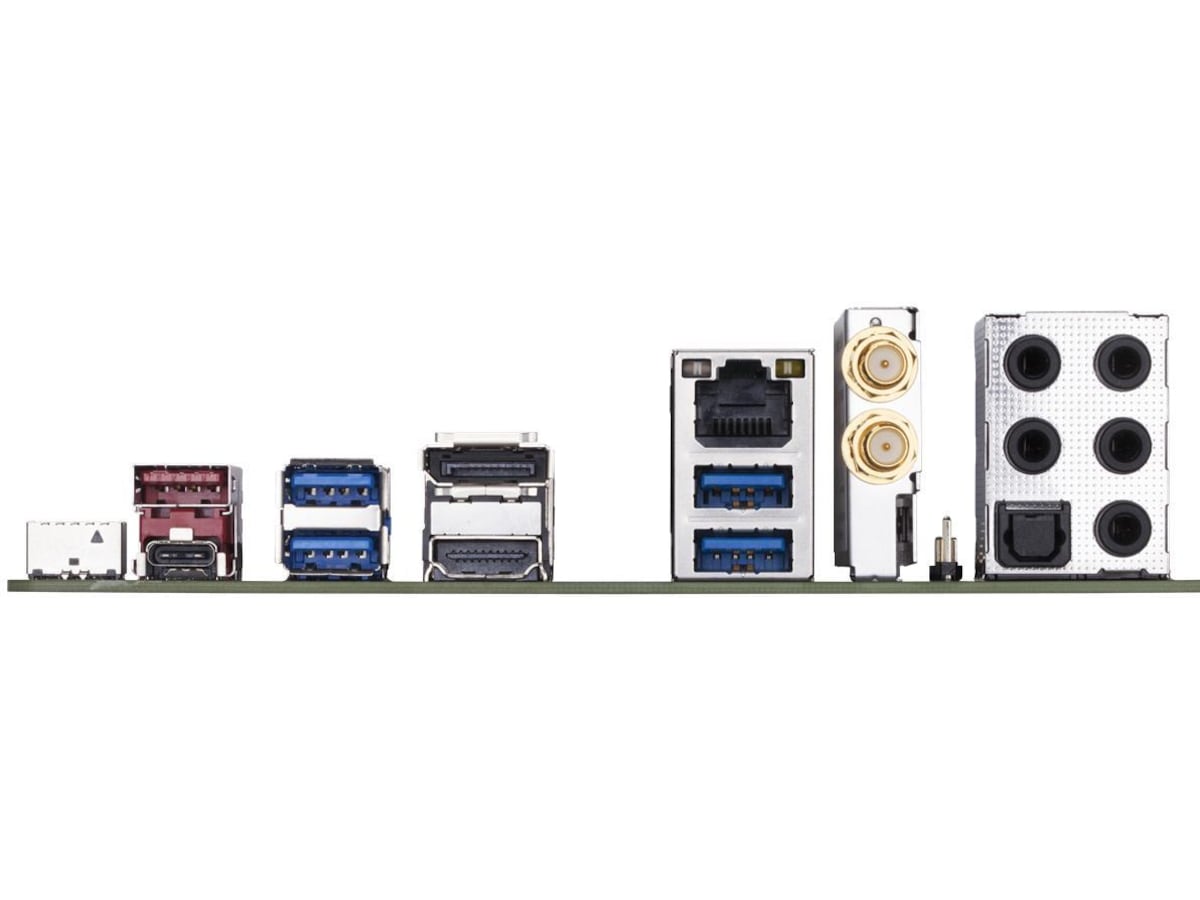

| Interface | 1 x audio linje-ind - mini-jack, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x USB-C Gen2, 1 x audio linje-ud - mini-jack, 1 x TOSLINK, 1 x HDMI, 4 x USB 3.1 Gen 1, 1 x audio linje-ud (bagtil) - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x mikrofon - mini-jack, 1 x DisplayPort, 1 x USB 3.1 Gen 2 |
|---|
| Interne interfaces | 1 x audio - intern stik, 1 x højttaler - intern stik, 1 x USB-C Gen 1 - intern stik, 2 x USB 3.1 Gen 1 - intern stik, 2 x USB 2.0 - intern stik |
|---|
| Software inkluderet | @BIOS, cFosSpeed, GIGABYTE Smart Backup, GIGABYTE Smart Survey, Norton Internet Security, GIGABYTE Smart Fan 5, GIGABYTE USB Blocker, GIGABYTE Smart Keyboard, GIGABYTE App Center, Cloud Station, EasyTune, GIGABYTE Fast Boot, GIGABYTE V-Tuner, Xpress Install, GIGABYTE 3D OSD, Smart TimeLock |
|---|
