| Produktlinje | Gigabyte |
|---|---|

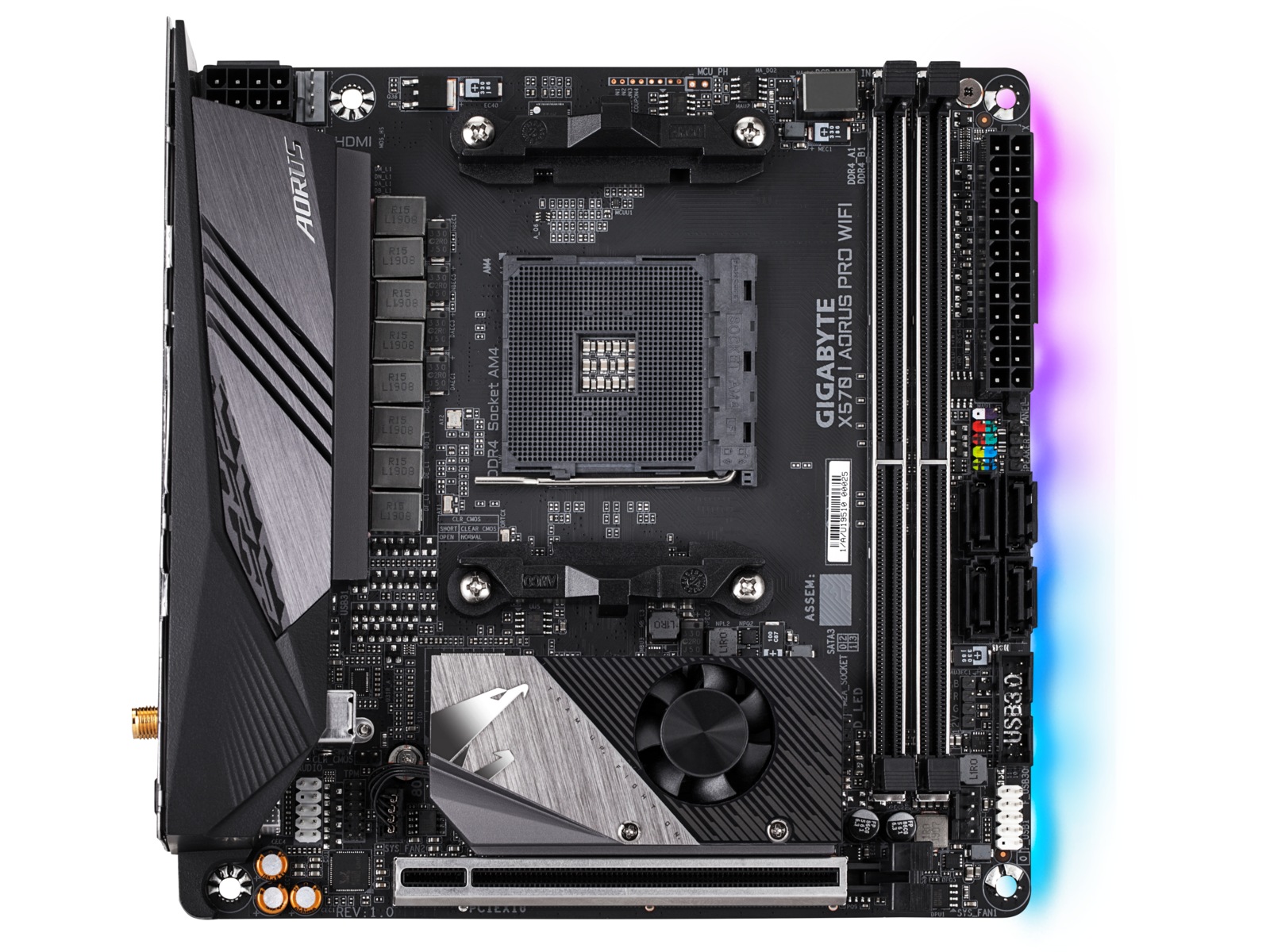

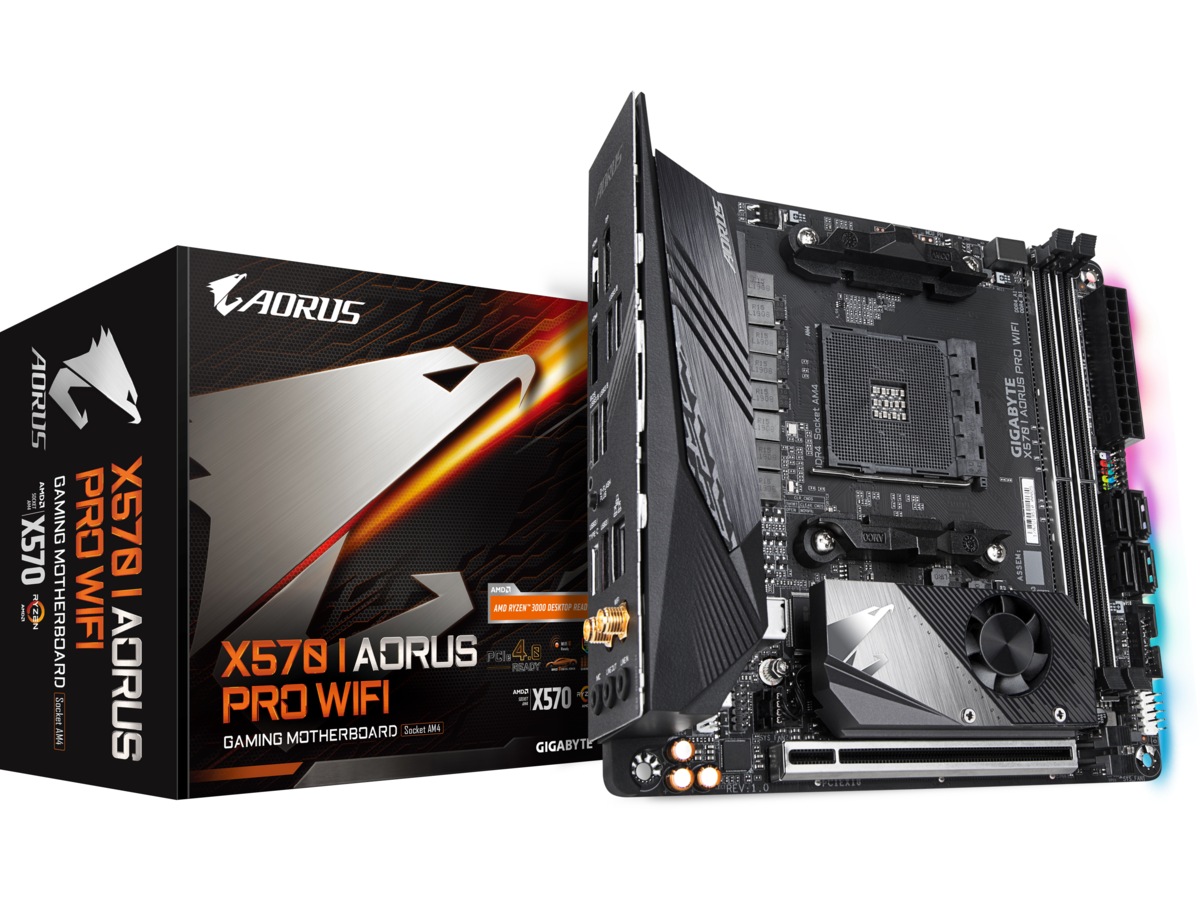

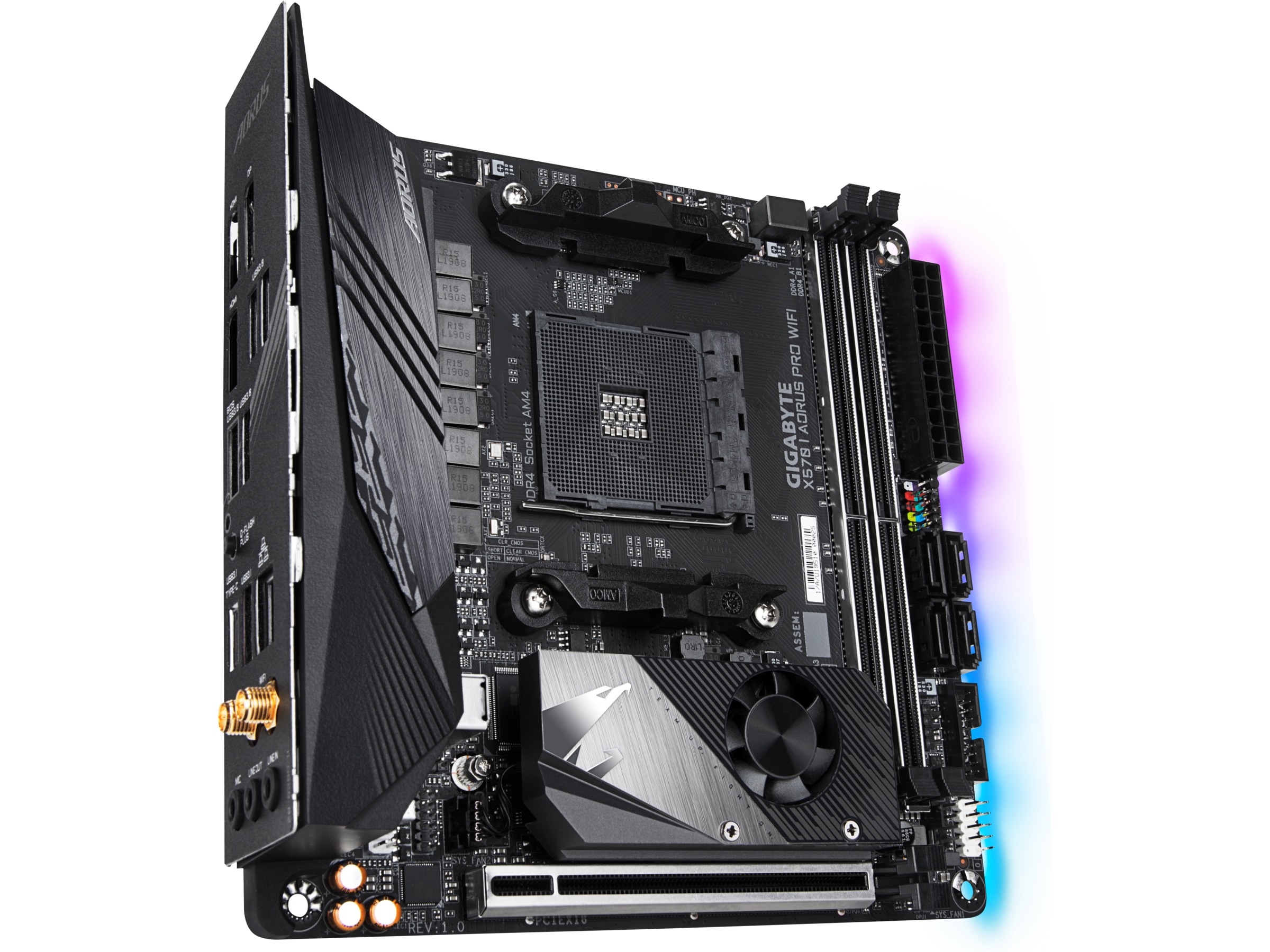

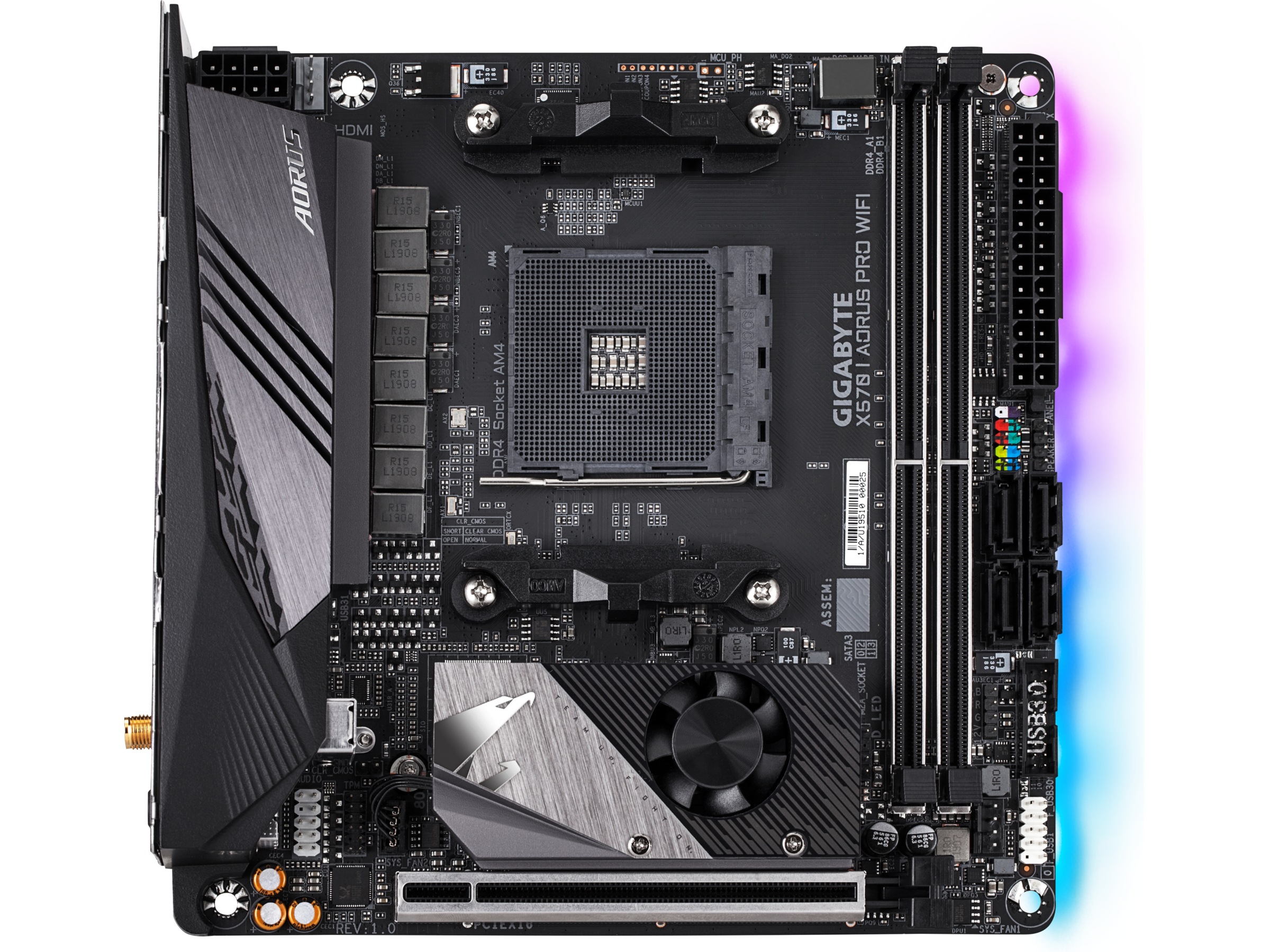

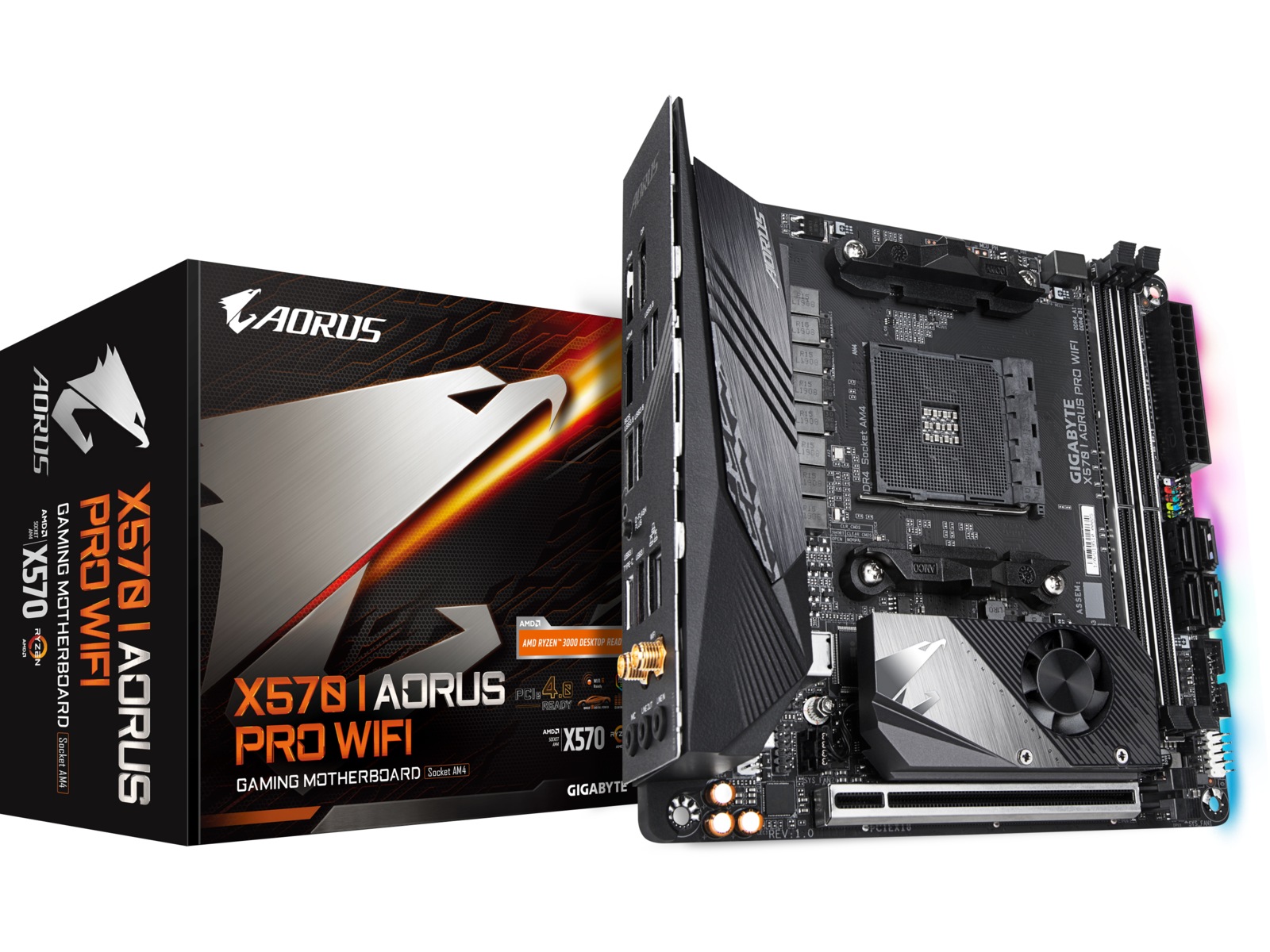

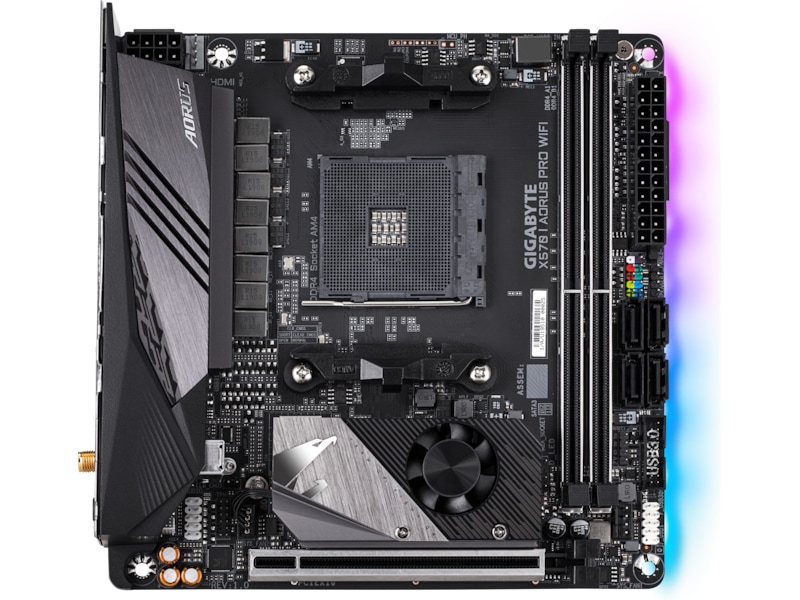

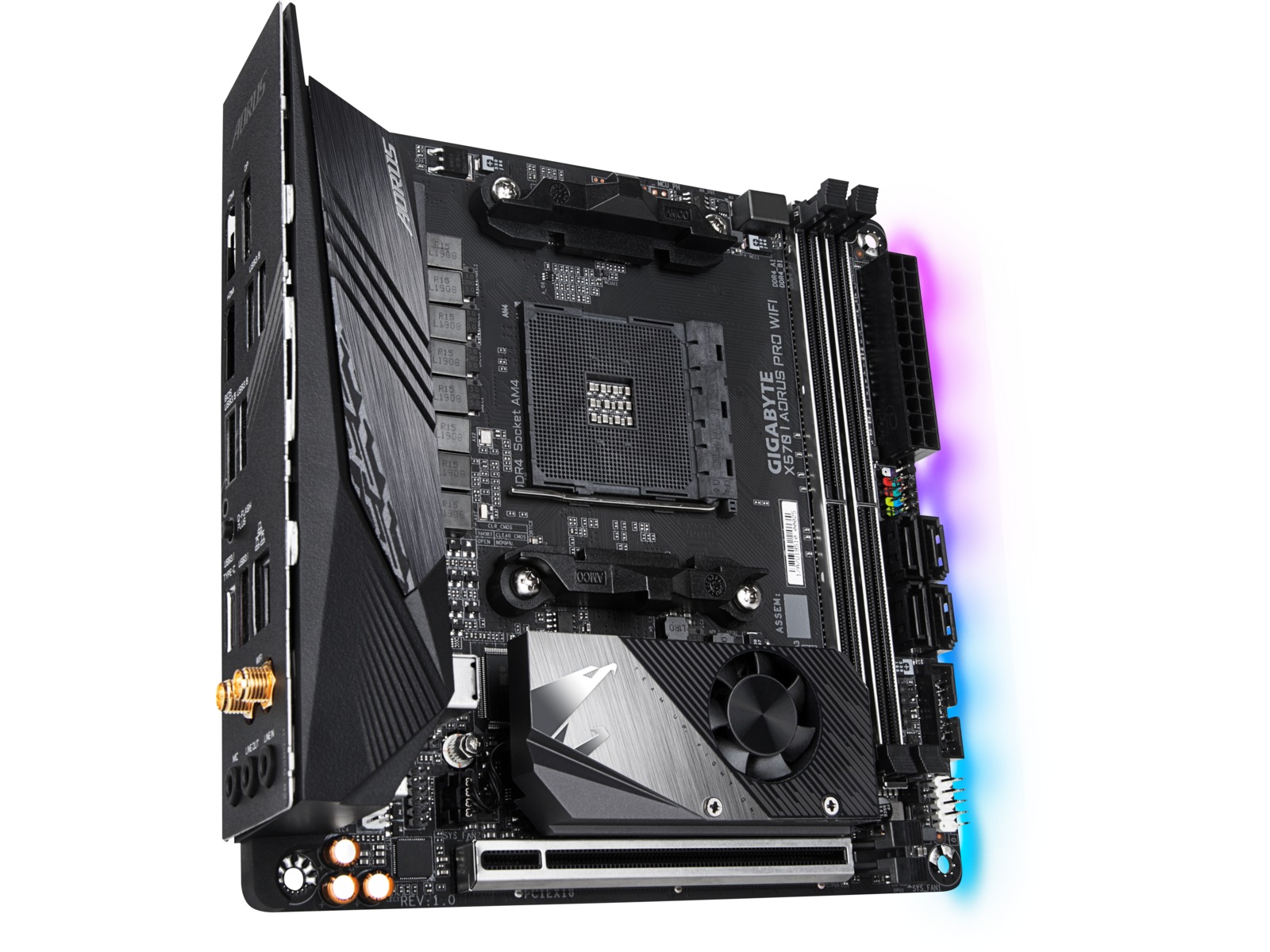

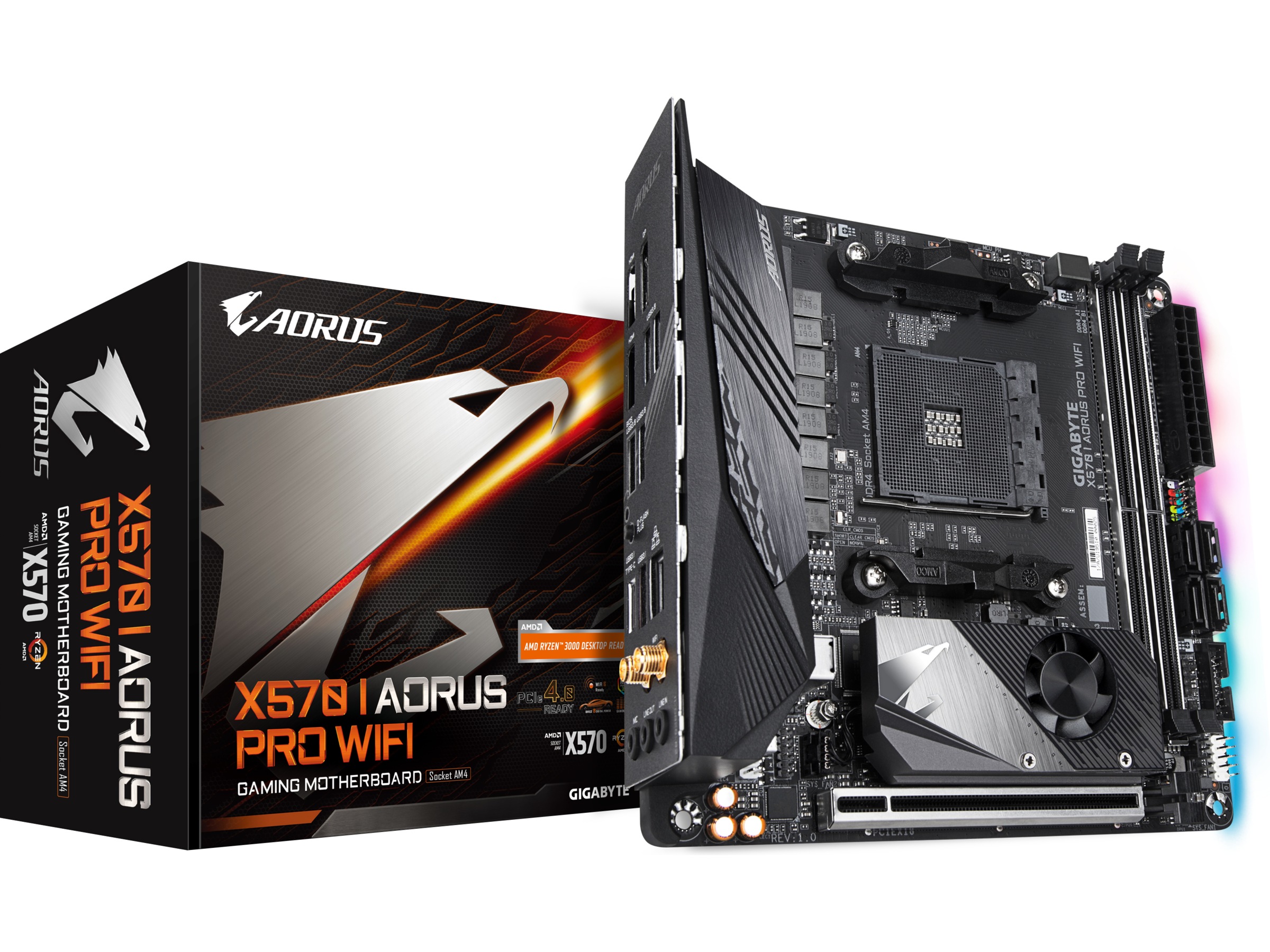

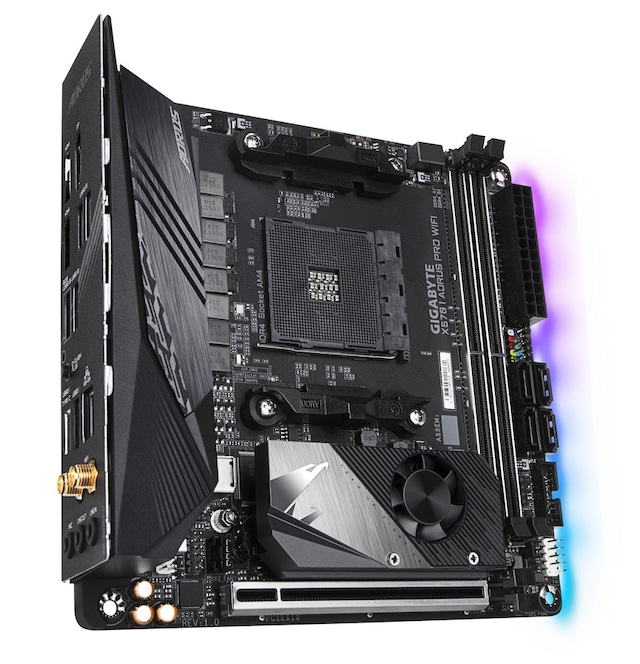

| Model | X570 I AORUS PRO WIFI |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331806408 |
| Model | Mini ITX |
|---|---|
| RAM Slots | 2 DIMM slots |
| Kommentarer om kompatible processorer | Understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics |
| Chipsættype | AMD X570 |
| Processor-socket | Socket AM4 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Kompatible processorer | Ryzen |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| RAM-hastighed understøttet | 2400 MHz, 2933 MHz, 4300 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2133 MHz, 4400 MHz (O.C.), 3400 MHz (O.C.), 3800 MHz (O.C.), 2667 MHz, 4266 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3333 MHz (O.C.), 3866 MHz (O.C.), 3733 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | DMI 2.7 support, WfM 2.0 understøttet, ACPI 5.0 support, SMBIOS 2.7 support, UEFI BIOS |
| Hardware egenskaber | Q-Flash Plus, Ultra Durable PCIe Armor, GIGABYTE Smart Fan 5, RGB FUSION 2.0, AMD StoreMI technology, On/Off Charge, 8 Phase Power Design, Solid Pin Power Connectors, Ultra Durable Memory Armor, Præmonteret I/O-skjold, M.2 Thermal Guard, GIGABYTE Double Locking Bracket, AutoGreen, Advanced Thermal Design with Extended & Multi-Layered Heatsink |

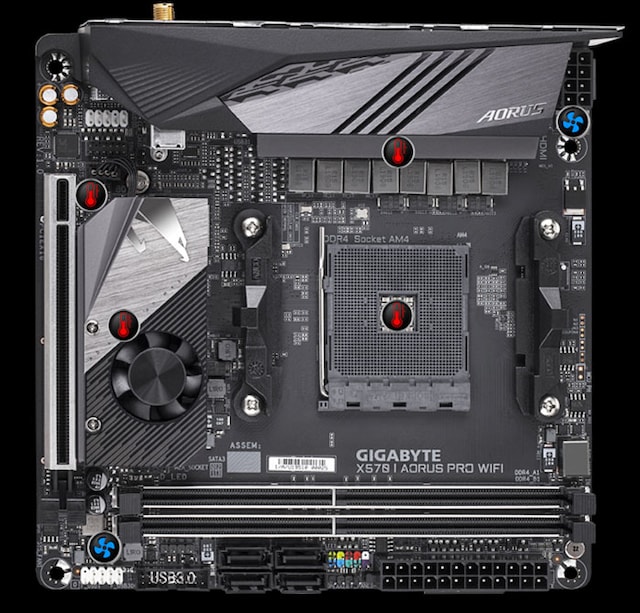

| Hardwareovervågning | Systemspænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, CPU kernetemperatur, Chassis temperatur, Takometer til CPU-blæser, CPU kerne-spænding |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 |

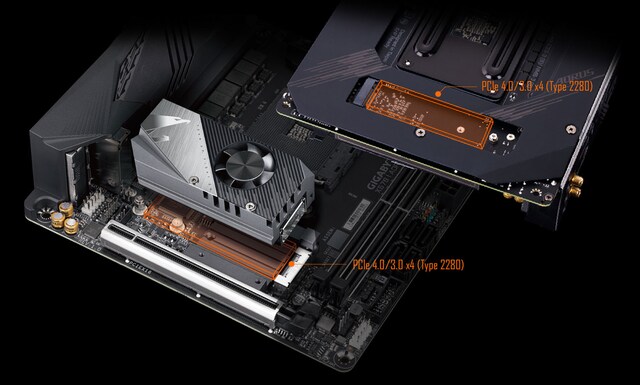

| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB/FireWire | USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 16 GB |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | Realtek ALC1220-VB |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Netværk | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
|---|---|
| Dataforbindelsesprotokol | Gigabit Ethernet, IEEE 802.11n, 802.11ax, IEEE 802.11a, Fast Ethernet, Bluetooth 5.0, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11b, Ethernet |
| Ekspansionsåbninger | 2 x DIMM 288-pins, 1 x PCIe 3.0 x16 (PCIe 4.0 x16 tilstand (med 3. Generation Ryzen CPU), PCIe 3.0 x16 tilstand (med 2. Generation Ryzen CPU), PCIe 3.0 x8 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics)), 1 x CPU, 1 x M.2 socket |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe -stikforbindelser: 1 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

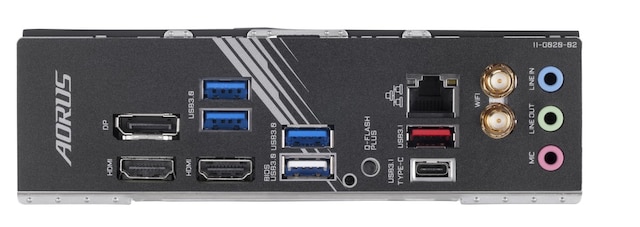

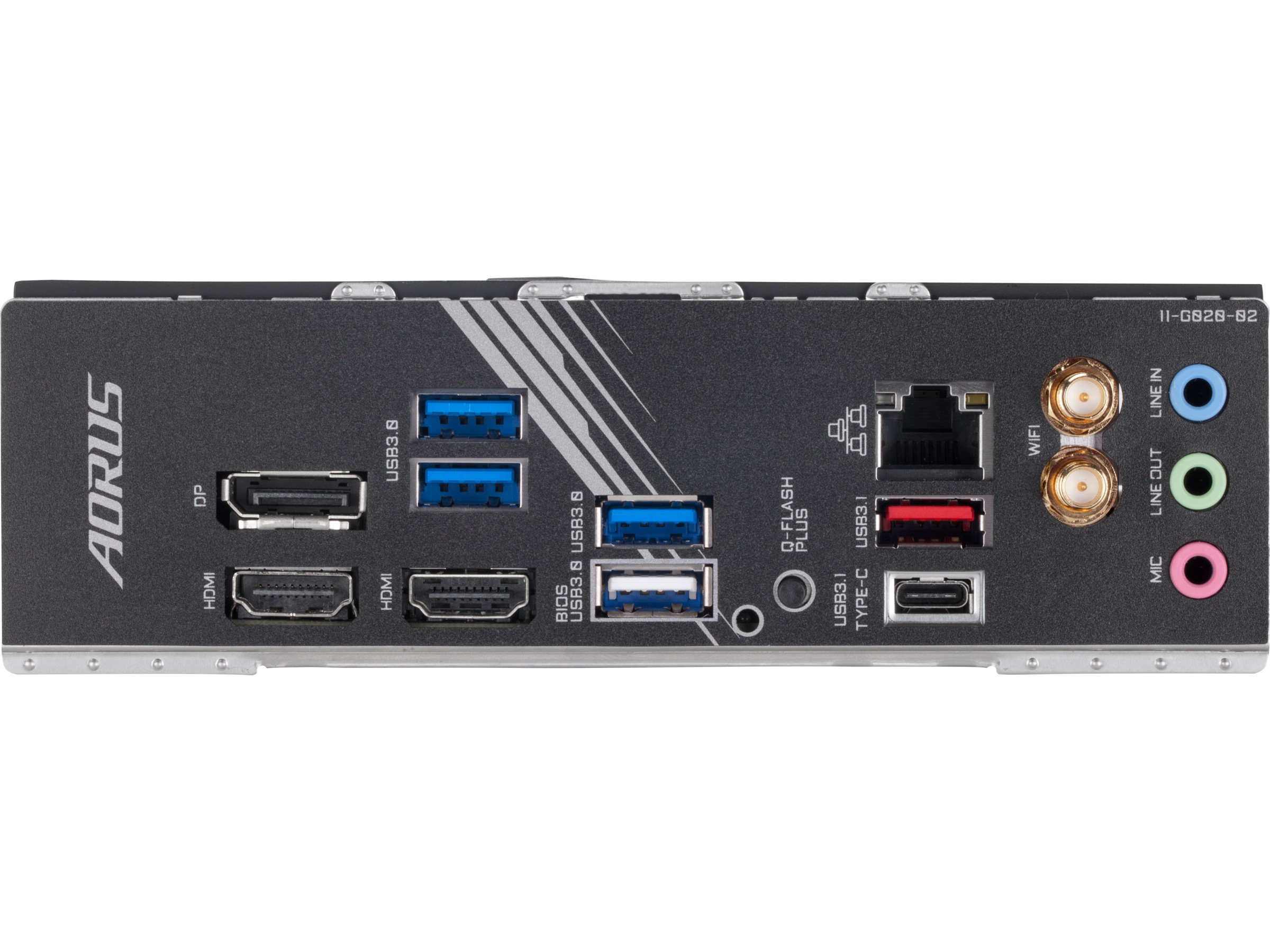

| Interface | 2 x HDMI, 1 x LAN (Gigabit Ethernet), 1 x audio linje-ud - mini-jack, 1 x audio linje-ind - mini-jack, 1 x mikrofon - mini-jack, 1 x USB-C Gen2, 1 x USB 3.2 Gen 2, 1 x DisplayPort, 4 x USB 3.2 Gen 1 |
|---|
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik, 1 x højttaler - intern stik, 2 x USB 2.0 - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | XSplit Broadcaster (1 års licens), GIGABYTE USB Blocker, GIGABYTE Smart Survey, GIGABYTE Smart Backup, GIGABYTE Smart HUD, GIGABYTE V-Tuner, cFosSpeed, Norton Internet Security, Xpress Install, GIGABYTE Fast Boot, GIGABYTE App Center, Cloud Station, Smart TimeLock, XSplit Gamecaster (1 års licens), GIGABYTE Smart Fan 5, EasyTune, @BIOS, GIGABYTE Smart Keyboard, GIGABYTE 3D OSD |
|---|
