Varenummer:
1183063
4711081147077
| Produktlinje | ASUS |
|---|---|
| Model | ProArt B550-CREATOR |
| Producentens garanti (måneder) | 36 |
| EAN | 4711081147077 |
| RAM Slots | 4 DIMM åbninger |
|---|---|
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Kommentarer om kompatible processorer | Understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series |
| Kompatible processorer | Ryzen |
| Chipsættype | AMD B550 |
| Model | ATX |
| Processor-socket | Socket AM4 |
| RAM-hastighed understøttet | 2400 MHz, 4466 MHz (O.C.), 5100 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3000 MHz, 3466 MHz (O.C.), 4866 MHz (O.C.), 4000 MHz (O.C.), 3333 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 2800 MHz, 4600 MHz (O.C.), 2666 MHz, 4800 MHz (O.C.), 3866 MHz (O.C.), 2133 MHz, 4400 MHz (O.C.) |
| Understøttet RAM-integritetskon | ECC, Ikke-ECC |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | UEFI BIOS, BIOS FlashBack |
| Hardware egenskaber | ASUS Aura Sync, ASUS Q-Design, ASUS TPU (TurboV Processing Unit), Q-DIMM, Q-Slot, ASUS EZ DIY, ESD Guards, Anti-popfunktion, ASUS Extreme Engine Digi+, ASUS Enhanced DRAM Overcurrent Protection, ASUS Overvoltage Protection, ASUS DIGI+ VRM, Armoury Crate, ASUS ProCool II, LANGuard, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, FlexKey-knap, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Audio jack detektions teknologi, ASUS 5X Protection III, Q-LED, ASUS OptiMem II, Præmonteret I/O-skjold, 5K Black Metallic Capacitors, Jack retasking, ASUS Fan Xpert 4 |
| USB / FireWire portkonfiguration (aktiv) | 2 x USB-C Gen 2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C Gen2, USB 3.2 Gen 2 |
| Egenskaber | Dobbelt kanal hukommelses arkitektur |
|---|
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | SupremeFX (S1220A) |
| Netværk | 2.5 Gigabit Ethernet |
|---|---|
| Netværk controller | 2 x Intel I225-V |
| Dataforbindelsesprotokol | 2.5 Gigabit Ethernet |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |

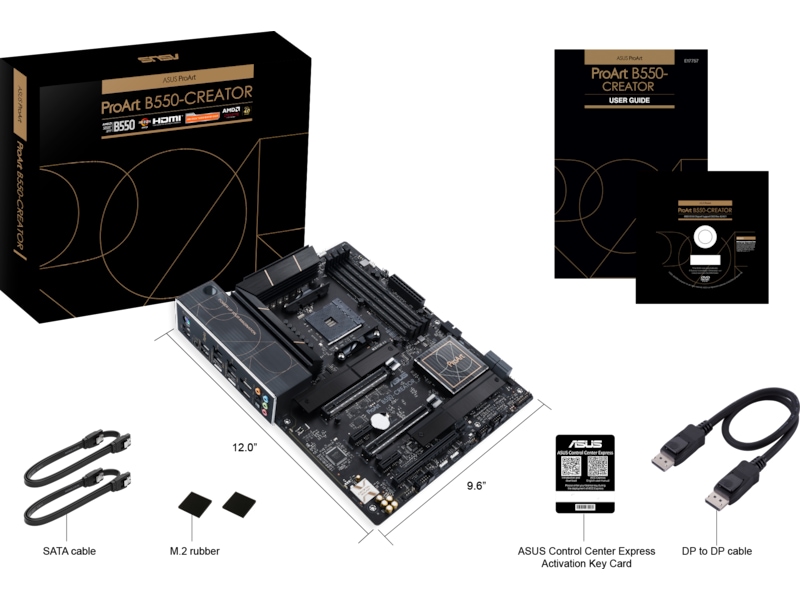

| Inkluderet tilbehør | M.2 Q-Latch, 1 x M.2 gummipakke |
| Ekspansionsåbninger | 2 x PCIe 4.0 x16 (dual x8 mode, single kort: x16 mode), 2 x PCIe 3.0 x1, 1 x CPU, 1 x PCIe 3.0 x16 (x4-modus), 4 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2, SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
|---|

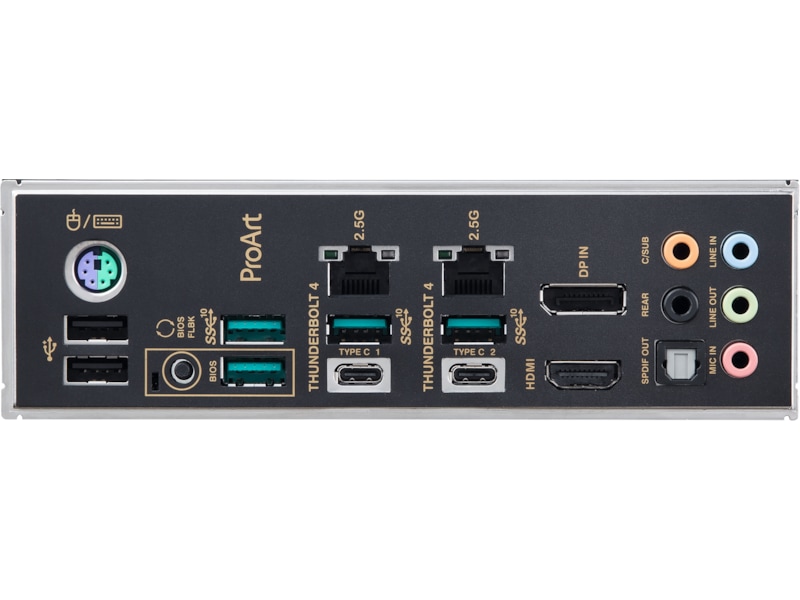

| Interface | 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x PS/2-tastatur/mus, 1 x audio linje-ud (bagtil) - mini-jack, 2 x Thunderbolt 4/USB-C Gen2, 1 x audio linje-ind - mini-jack, 2 x USB 2.0, 4 x USB 3.2 Gen 2, 1 x DisplayPort-input, 1 x mikrofon - mini-jack, 2 x LAN (2.5Gigabit Ethernet), 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x TOSLINK |
|---|
| Interne interfaces | 1 x højttaler - intern stik, 1 x USB-C Gen 1 - intern stik, 1 x seriel - intern stik, 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 2 x USB 3.2 Gen 1 - intern stik |
|---|
| Medfølgende ledninger | 1 x DisplayPort kabel, 2 x Seriel ATA kabel |
|---|
| Software inkluderet | ASUS Turbo App, Antivirus (prøveversion), ASUS Control Center Express, ASUS AURA Creator, ASUS AI Charger, ASUS AI Suite III, ASUS CPU-Z, ASUS ProArt Creator Hub, ASUS EZ Update, DAEMON Tools, WinRAR |
|---|
