TP-Link TL-SG2428P PoE+ Switch 28P

24P Gigabit, 4P Gigabit SFP, Omada Cloud Access, PoE+ 250W, ZTP

Varenummer: 1185511 / Producentens varenr: TL-SG2428P

More pictures from TP-Link TL-SG2428P PoE+ Switch 28P

2.259,-
Fri fragt
44 stk. på lager (leveringstid 2-3 arbejdsdage)

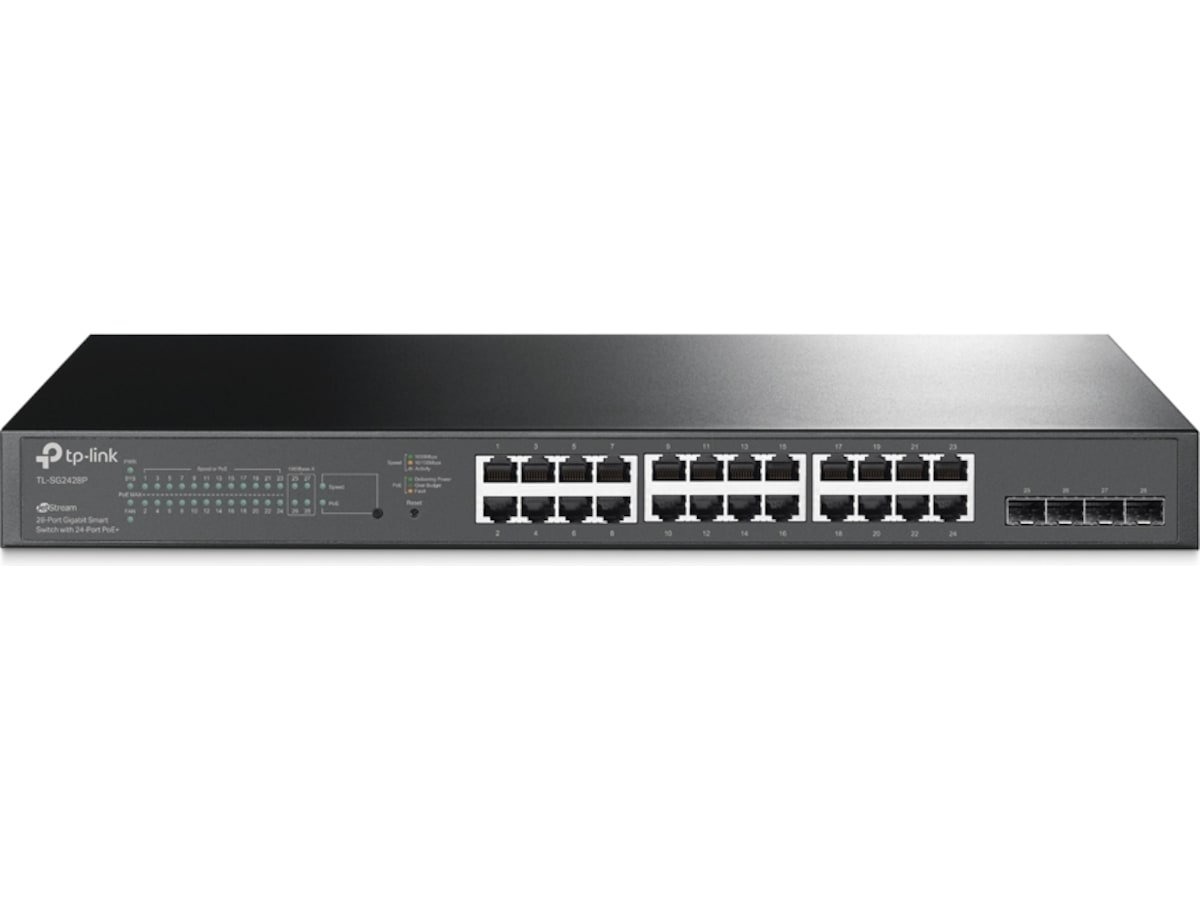

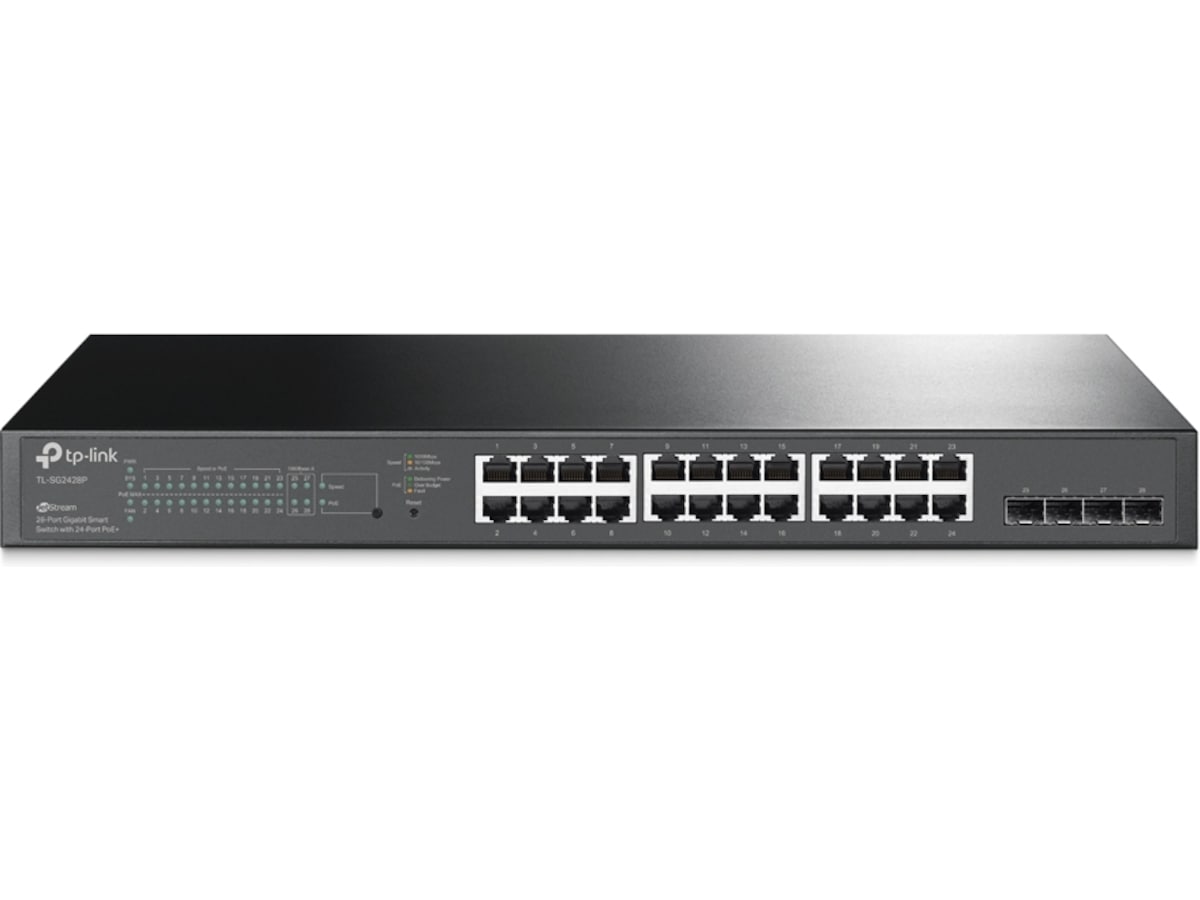

TP-Link TL-SG2428P PoE+ Switch

JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Generelt
Producentens garanti (måneder) 240
Enhedstype Switch - 24 porte - smart
Pakningstype Monterbar på stativ
Undertype Gigabit Ethernet
Porte 24 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE) PoE+
PoE-budget 250 W
Præstation Omkoblingskapacitet: 56 Gbps
Fremsendelsespræstation: 41.7 Mpps
MAC adresse table størrelse 8K indtastningshukommelse
Jumborammesupport 9KB
Routingprotokol IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Protokol til fjernadministration SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, DHCP, IPv4, IPv6
Krypterings algoritme SSL, SSL 3.0, TLS 1.2
Autentificeringsmetode Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS
Egenskaber Datatransport, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MDL snooping, båndbreddekontrol, Device Link Detection Protocol (DLDP) support, 512 KB pakkebuffer, Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), 2 blæsere, Storm Control, Bridge protocol data unit (BPDU), Link Aggregation, Authentication, Authorization and Accounting (AAA), Voice VLAN, IP/Mac/Port Binding (IPMB), Zero-touch provisioning (ZTP), Weighted Round Robin (WRR), tilbageløkke-detektion, Maximum Likelihood Detection (MLD), DSCP-prioritering
Overensstemmelsesstandarder IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
EAN 6935364030650
Ekspansion / Konnektivitet
Interface 24 x 1000Base-T RJ-45 PoE+
4 x Gigabit LAN SFP
Effekt
Strømenhed Intern strømforsyning
Nødvendig spænding AC 120/230 V (50/60 Hz)
Strømforbrug ved drift 308.6 Watt
Diverse
Udstyr inkluderet Gummifødder
Rackmonteringspakke Inkluderet
Overensstemmelsesstandarder FCC, RoHS
Mål og vægt
Bredde 44 cm
Dybde 22 cm
Højde 4.4 cm
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Fugtighedsgrad ved brug 10 - 90 % (ikke-kondenserende)
Min. lagertemperatur -40 °C
Maks. Opbevaringstemperatur 70 °C
Lagerfugtighedsgrad 5 - 90 % (ikke kondenserende)
