| Produkttype | Bundkort - ATX |
|---|---|
| Chipsættype | AMD X570 |
| Processor-socket | Socket AM4 |
| Max antal processorer | 1 |
| Kompatible processorer | Ryzen (understøtter Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| EAN | 4719072868772 |
| Maks. størrelse | 128 GB |
|---|---|
| Teknologi | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz, 5100 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Registreret eller buffer | Ikke bufferet |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, A-XMP support |
| Type | HD Audio (8-kanaler) |
|---|---|
| Audio codec | Realtek ALC4080 |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk controller | Realtek RTL8125B / RTL8111H |
|---|---|
| Netværks interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ekspansionsåbninger | 1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 (PCIe 4.0 x16 tilstand (Ryzen 5000 Series/3000 Series CPU'er)) 1 x PCIe 4.0 x16 (x4-modus) 2 x PCIe 3.0 x1 |
|---|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 |

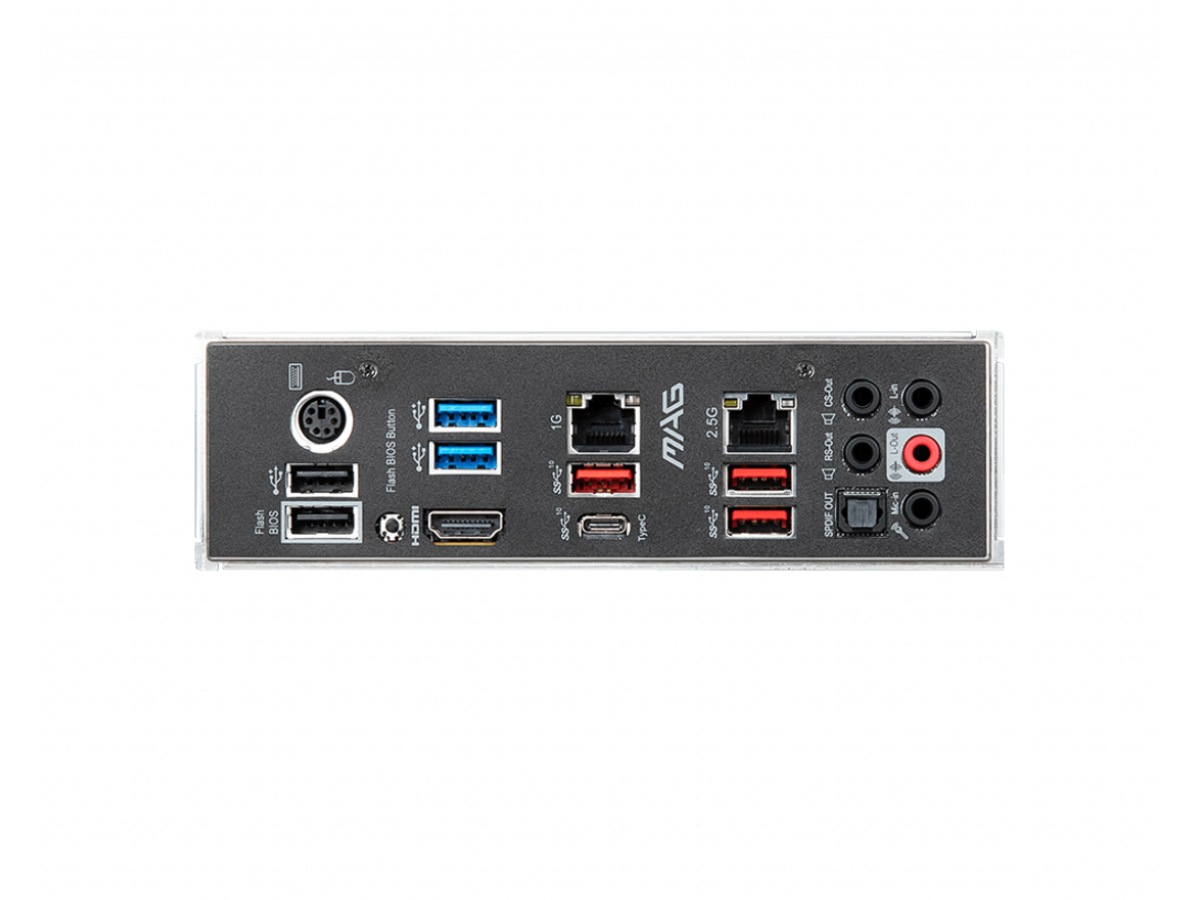

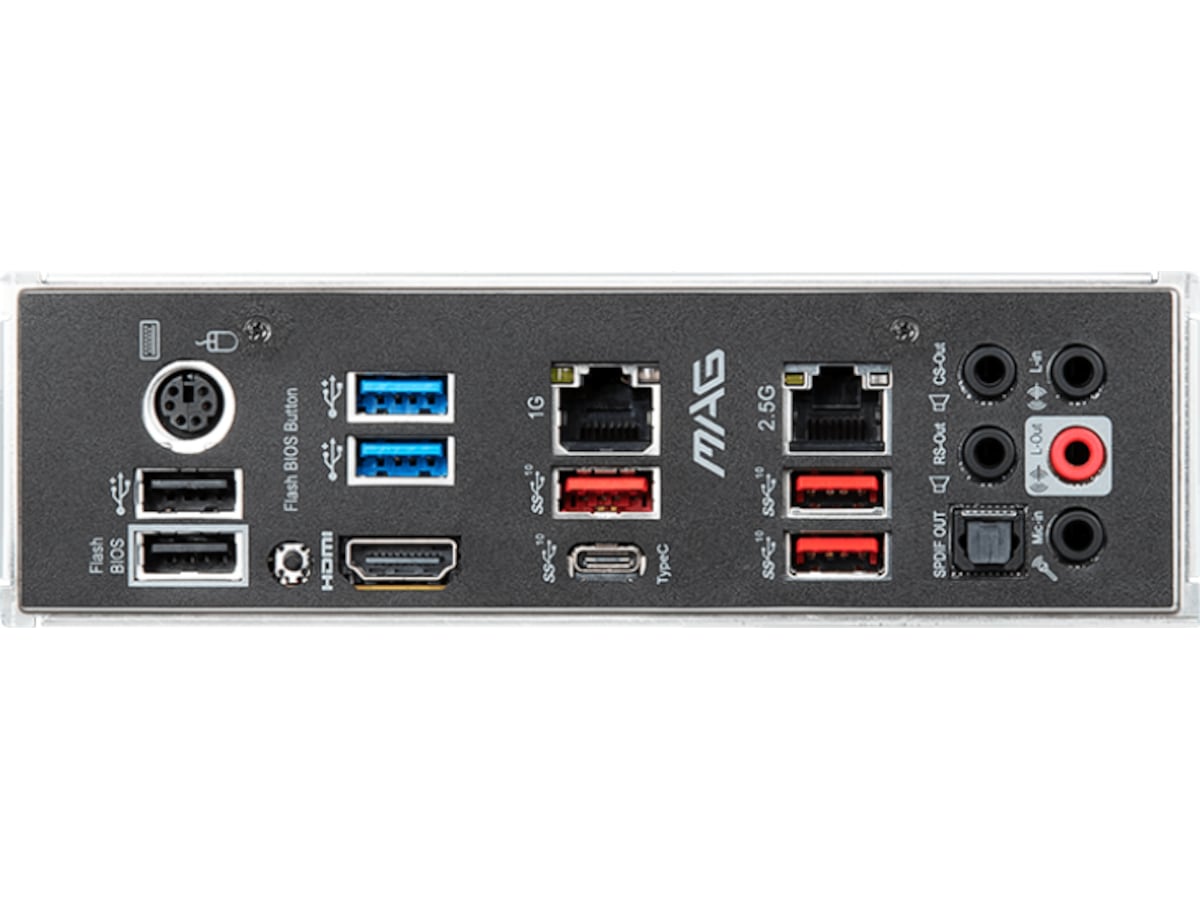

| Interface | 1 x LAN (2.5Gigabit Ethernet) 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x TOSLINK 2 x USB 3.2 Gen 1 3 x USB 3.2 Gen 2 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x USB-C Gen2 1 x PS/2-tastatur/mus 2 x USB 2.0 1 x HDMI 1 x LAN (Gigabit Ethernet) |
| Interne interfaces | 4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x seriel - intern stik 1 x USB-C Gen2 1 x audio - intern stik |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber | MSI ClickBIOS 5 |
|---|---|
| Hardware egenskaber | 12+2 Phase Power Design, AMD CrossFireX-teknologisupport, 6 Layer PCB, MSI Mystic Light, Game Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Audio Boost 5 |
| Udstyr inkluderet | Etuiskilt, 3 x M.2 skruer, 3 x standoff til M.2 sokkel, USB-drev, MAG-mærkater |
|---|---|
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Med software | Drivers & Utilities |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
