Denne vare findes ikke længere i vores sortiment. Brug søgefunktionen øverst på siden.
Varenummer: 1198163 / Producentens varenr: 90MB18J0-M0EAY0

More pictures from

Vortez approved

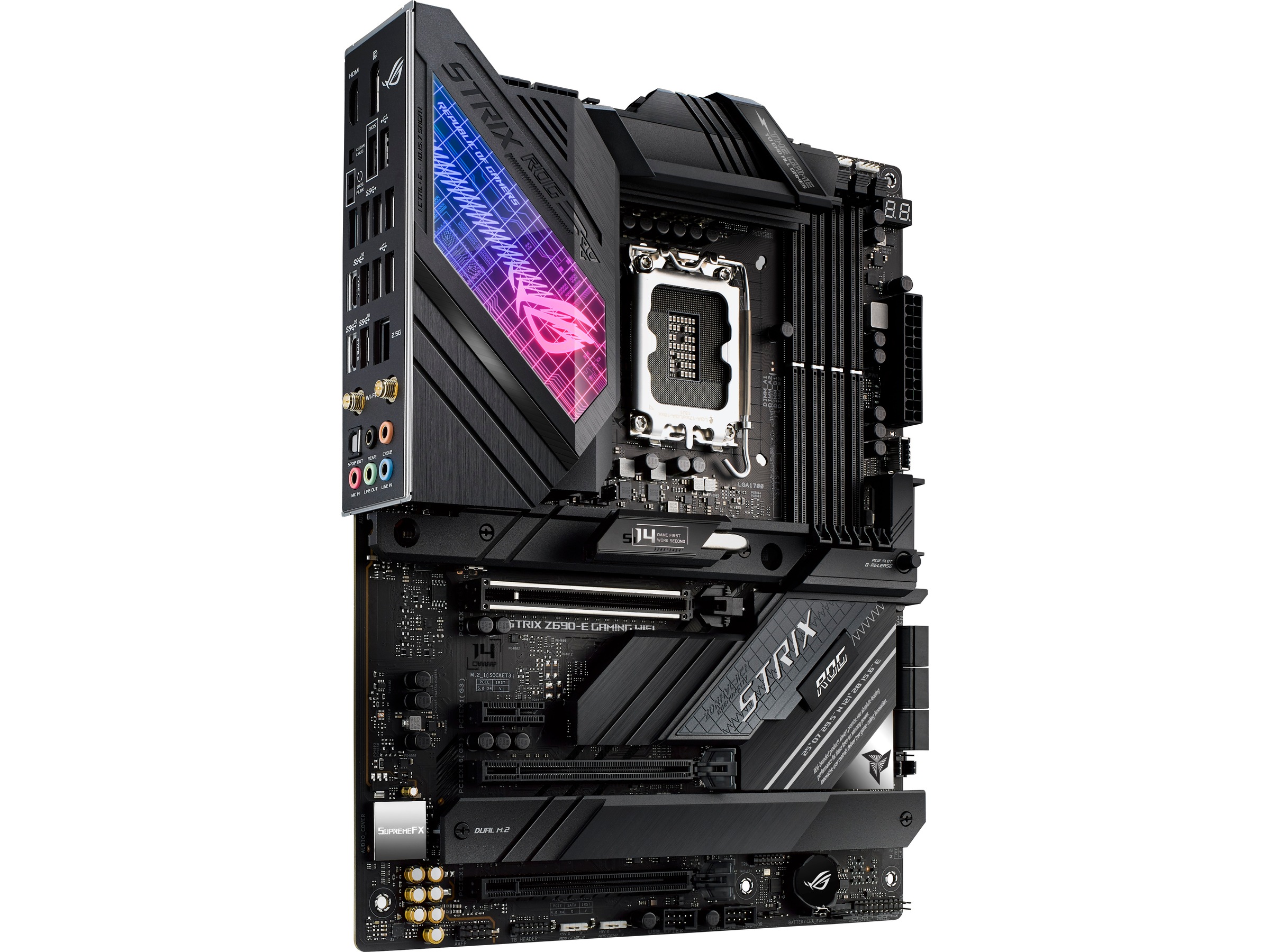

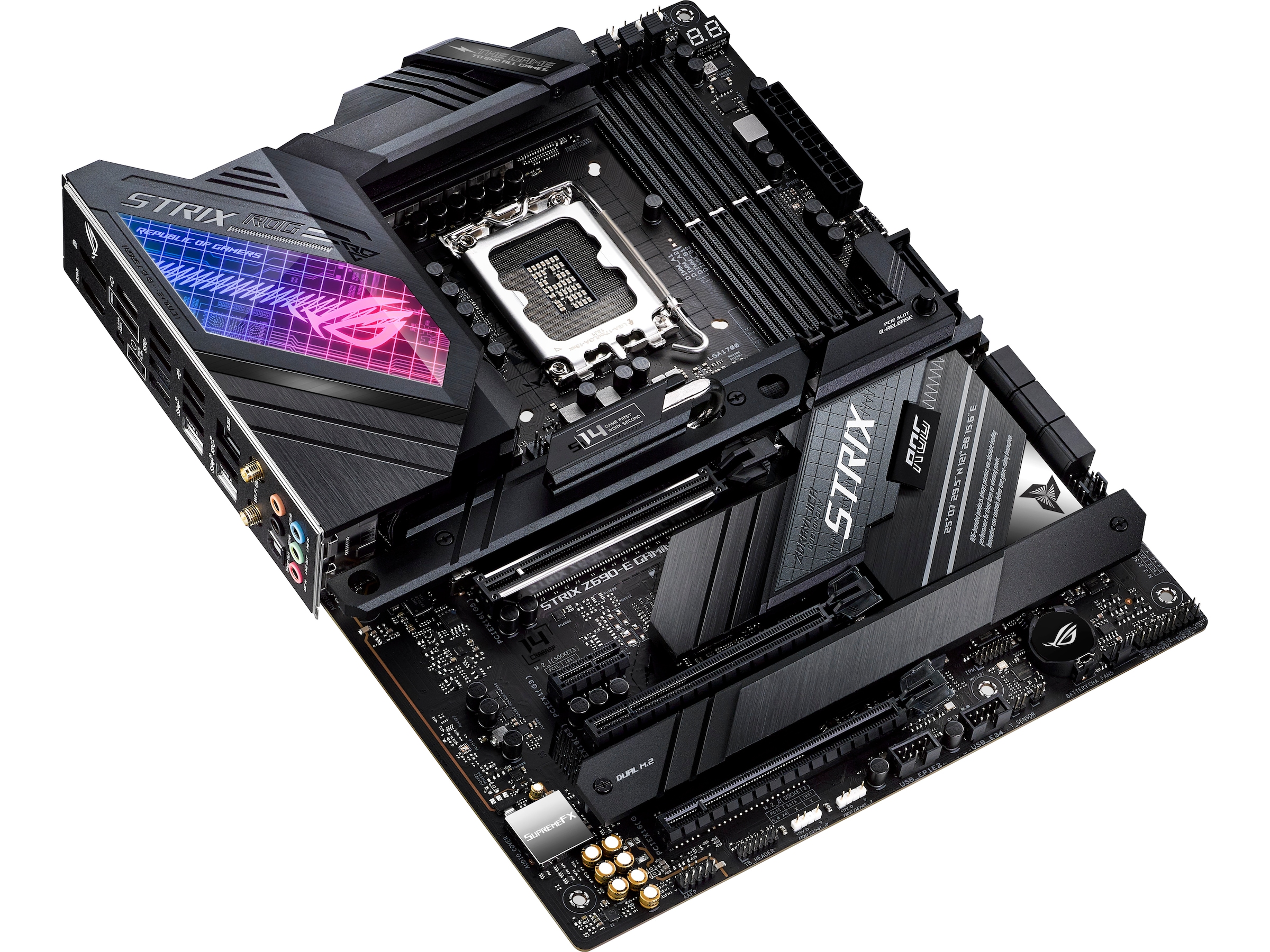

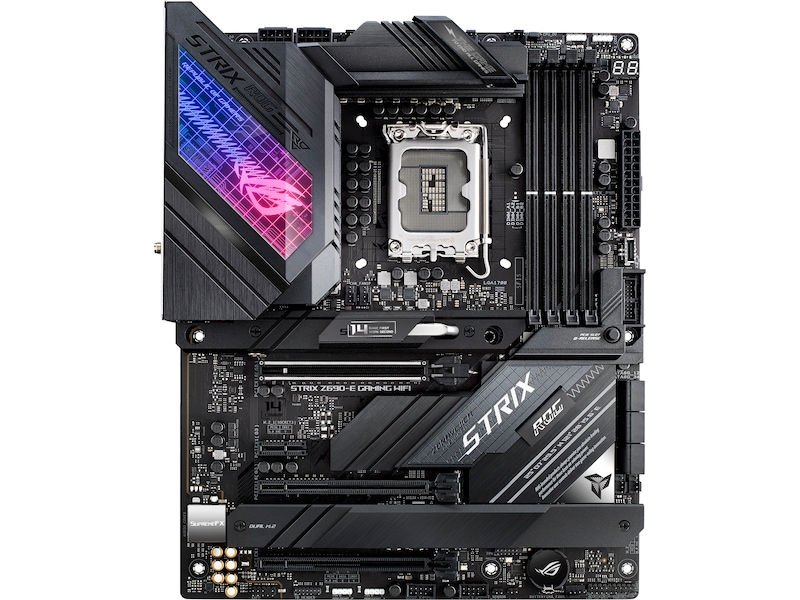

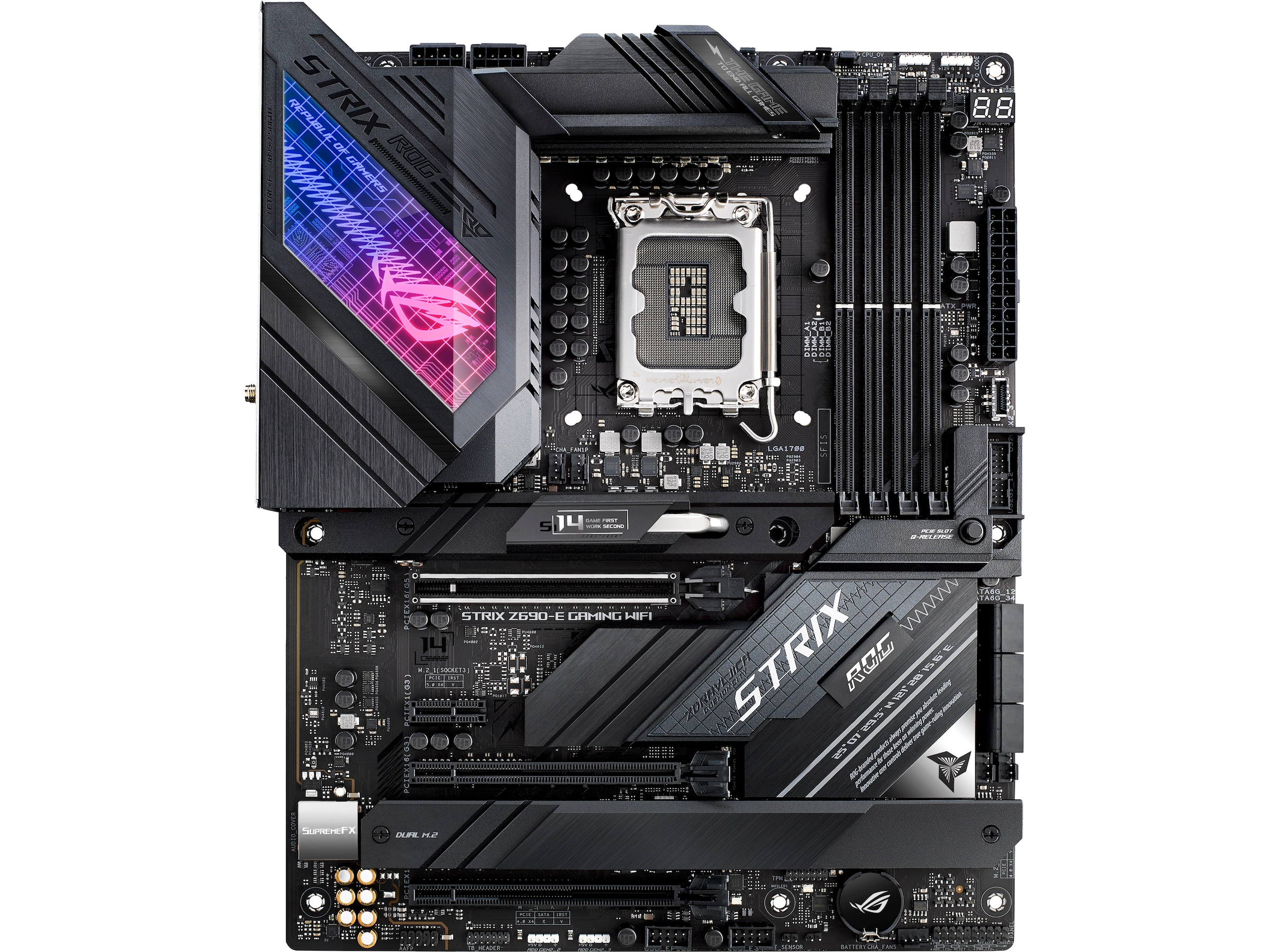

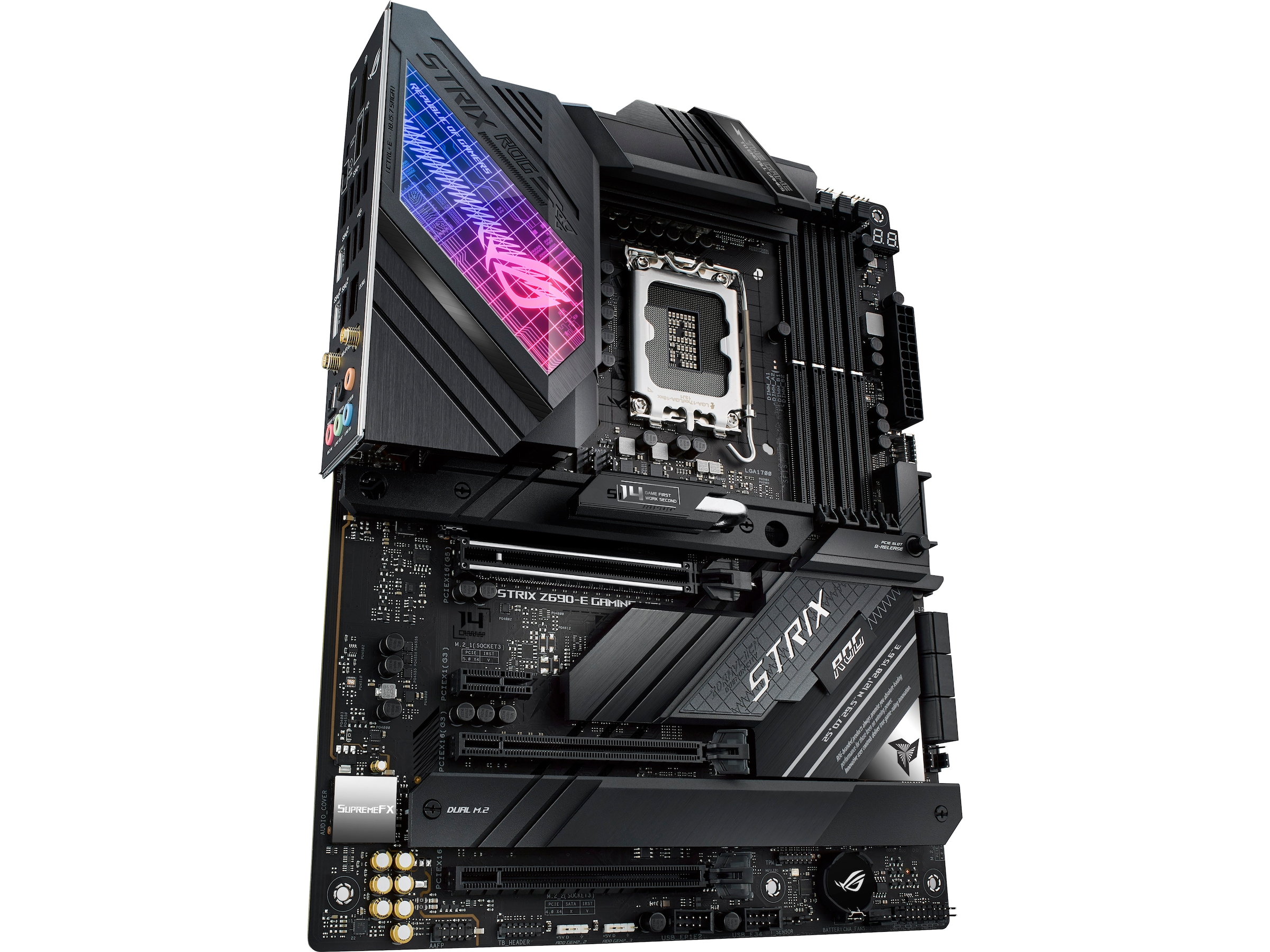

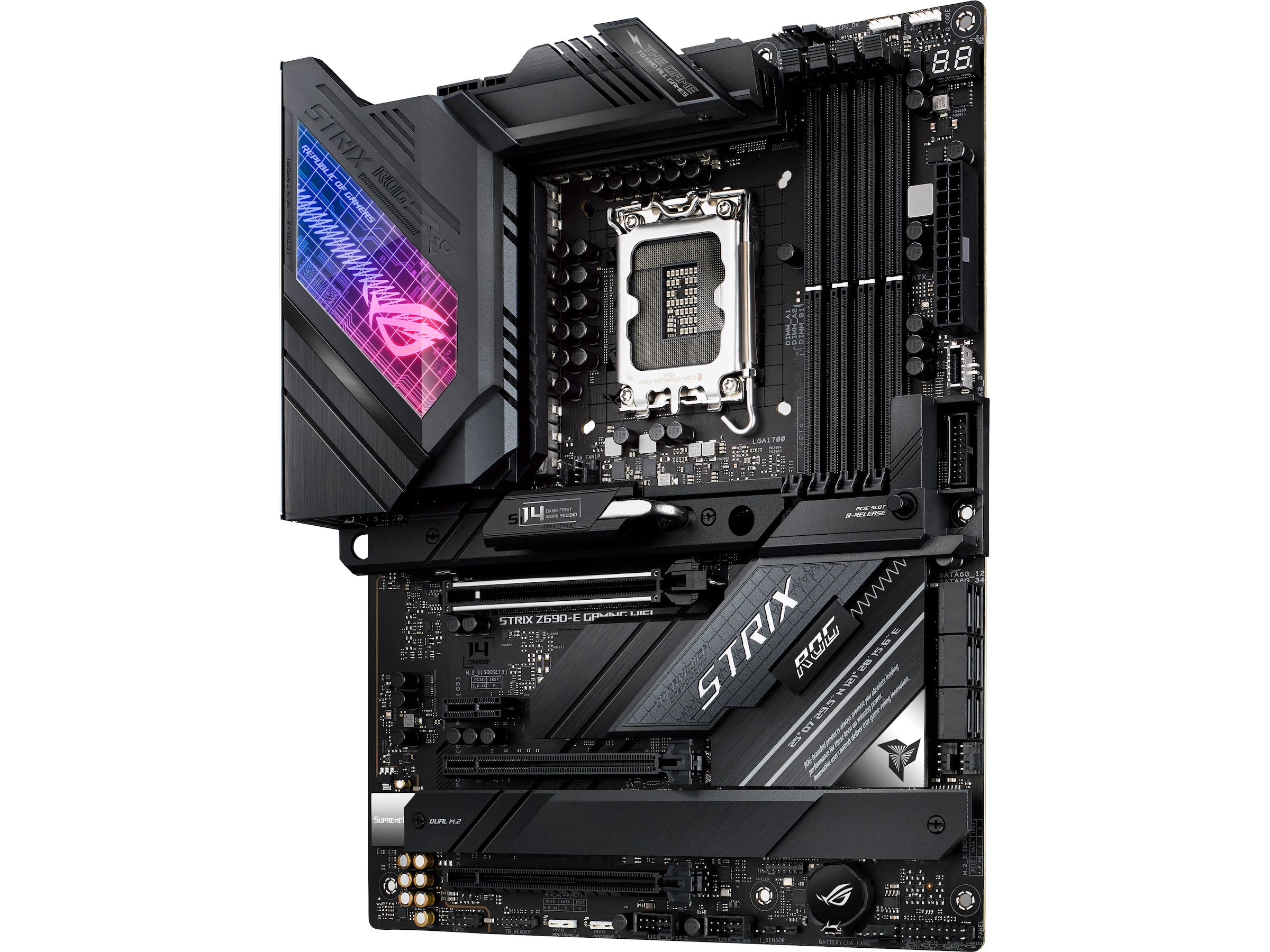

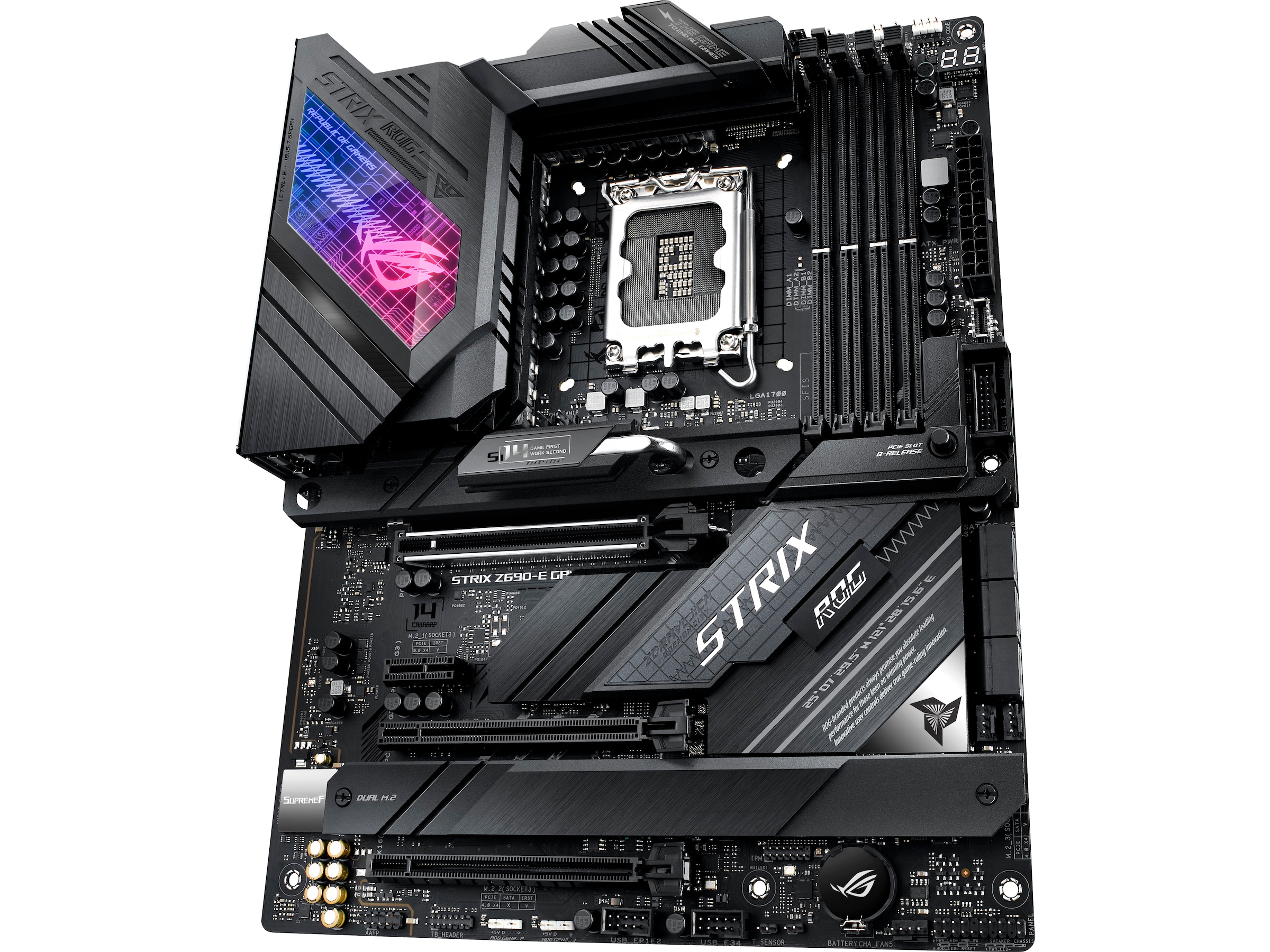

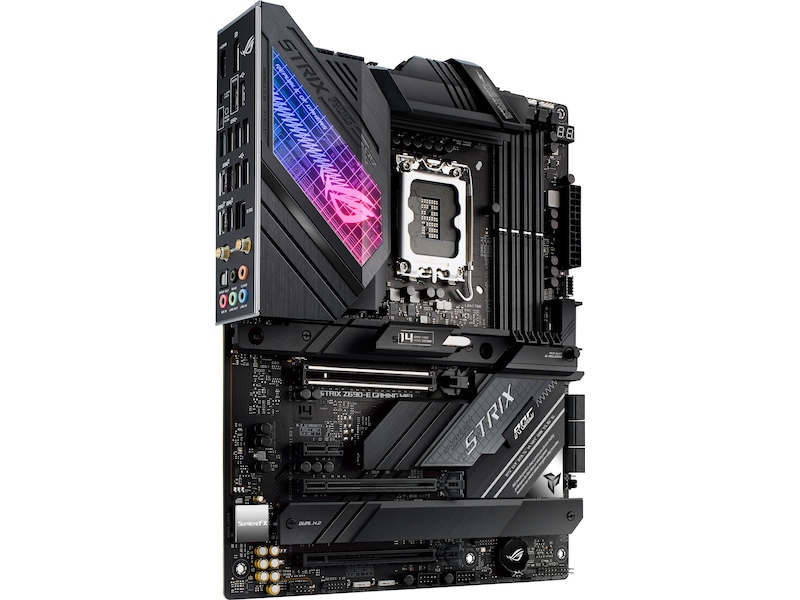

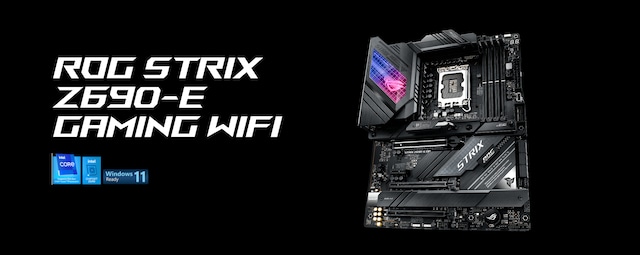

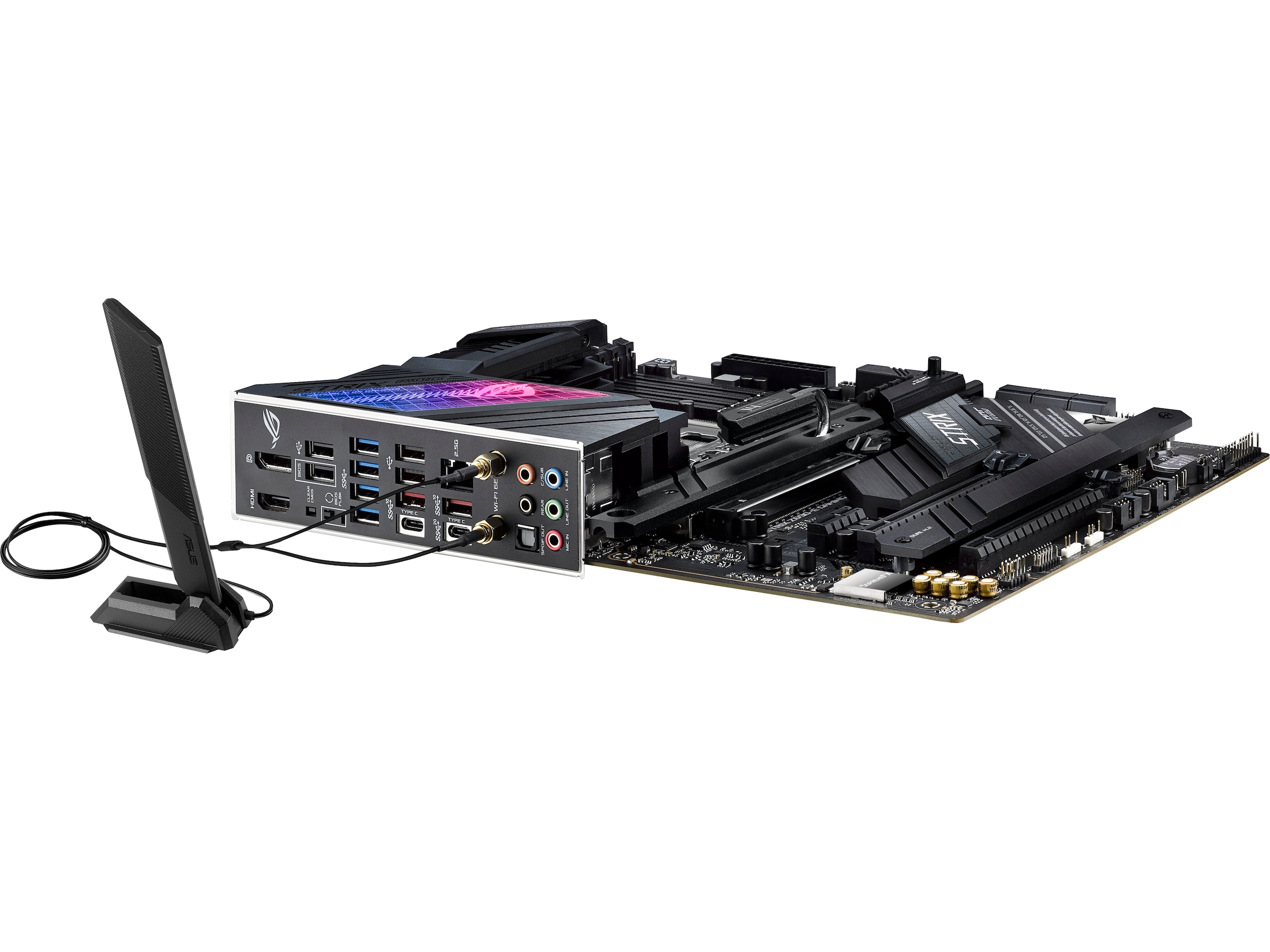

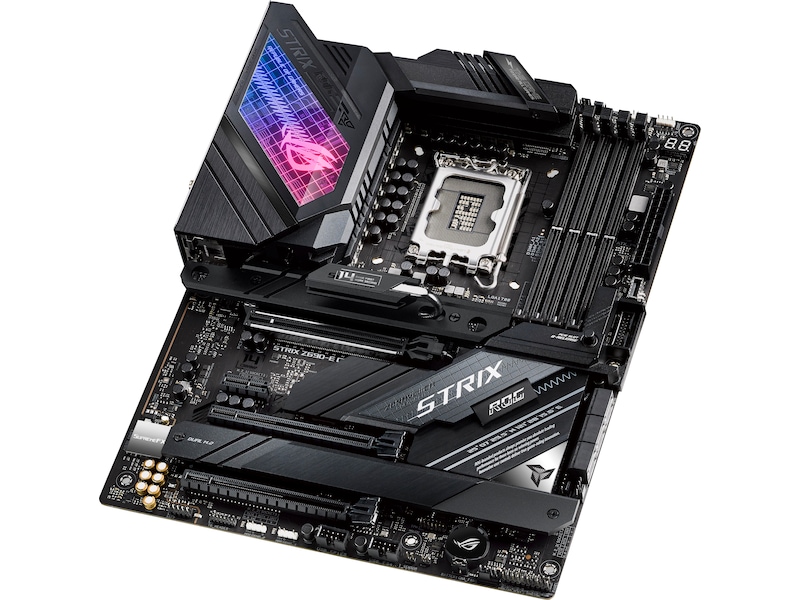

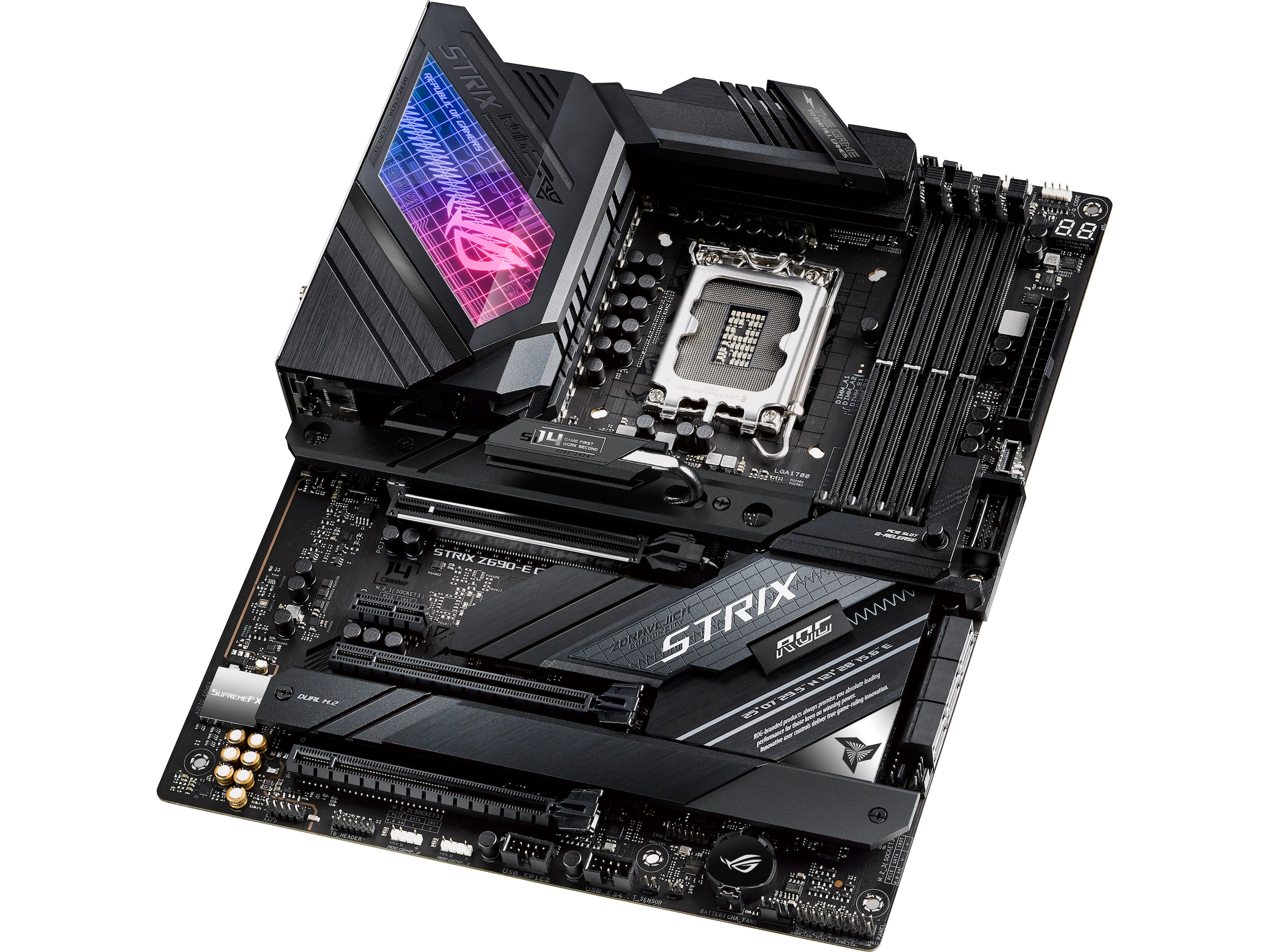

ASUS ROG STRIX Z690-E GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

ALL-ROUND PERFORMANCE
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Generelt
Produktlinje ASUS
Model ROG STRIX Z690-E GAMING WIFI
Producentens garanti (måneder) 36
EAN 4711081494638
Mainboard
Chipsættype Intel Z690
Kommentarer om kompatible processorer Understøtter 12. Generation Intel Core / Pentium Gold / Celeron
Understøttet RAM (registreret eller buffered) Ikke bufferet
Understøttet RAM-teknologi DDR5 SDRAM
Processor-socket LGA1700 sokkel
RAM Slots 4 DIMM åbninger
Model ATX
Understøttet RAM-integritetskon Ikke-ECC
RAM-hastighed understøttet 5200 MHz (O.C.), 6400 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5000 MHz (O.C.), 5800 MHz (O.C.), 5400 MHz (O.C.)
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber MemTest86, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Hardware egenskaber ASUS SafeSlot, 18+1 Phase Power Design, ASUS DIGI+ VRM, Intel Turbo Boost Max Technology 3.0, SafeDIMM, CrashFree BIOS 3, Jack retasking, SupremeFX Shielding teknologi, Q-DIMM, FlexKey-knap, ASUS HYDRANODE, ASUS TPU (TurboV Processing Unit), Sonic Studio III, Q-Slot, M.2 Q-Latch, M.2 kølelegeme, Preboot eXecution Environment (PXE), Audio jack detektions teknologi, ASUS EZ DIY, DIY Friendly Design, Windows 11 kompatibel, ASUS EPU (Energy Processing Unit), Gold Plated Audio Hardware, Intel Turbo Boost Technology 2.0, LANGuard, Q-LED, ASUS OptiMem II, Clear CMOS Button, Savitech SV3H712 forstærker, ASUS Q-Design, ASUS Aura Sync, Præmonteret I/O-skjold, ASUS ProCool II, ASUS Extreme Engine Digi+
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), Vågn på PME
Interfaces
RAID-egenskaber Intel Rapid Storage Technology
USB / FireWire portkonfiguration (aktiv) 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagringsporte 4 x SATA-600 (RAID), 2 x SATA-600, 3 x M.2
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB/FireWire USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2, USB-C Gen 2x2
Lagring M.2 åbning, Serial ATA-600 (RAID), Serial ATA-600
RAM
Egenskaber Dobbelt kanal hukommelses arkitektur
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Audio codec SupremeFX (ALC4080)
Audio High Definition Audio (8 kanaler)
Type Lydkort
Overensstemmelsesstandarder DTS Sound Unbound, High Definition Audio
Kabeloplysninger
Medfølgende ledninger 4 x Seriel ATA kabel
Diverse
Produkttype Bundkort

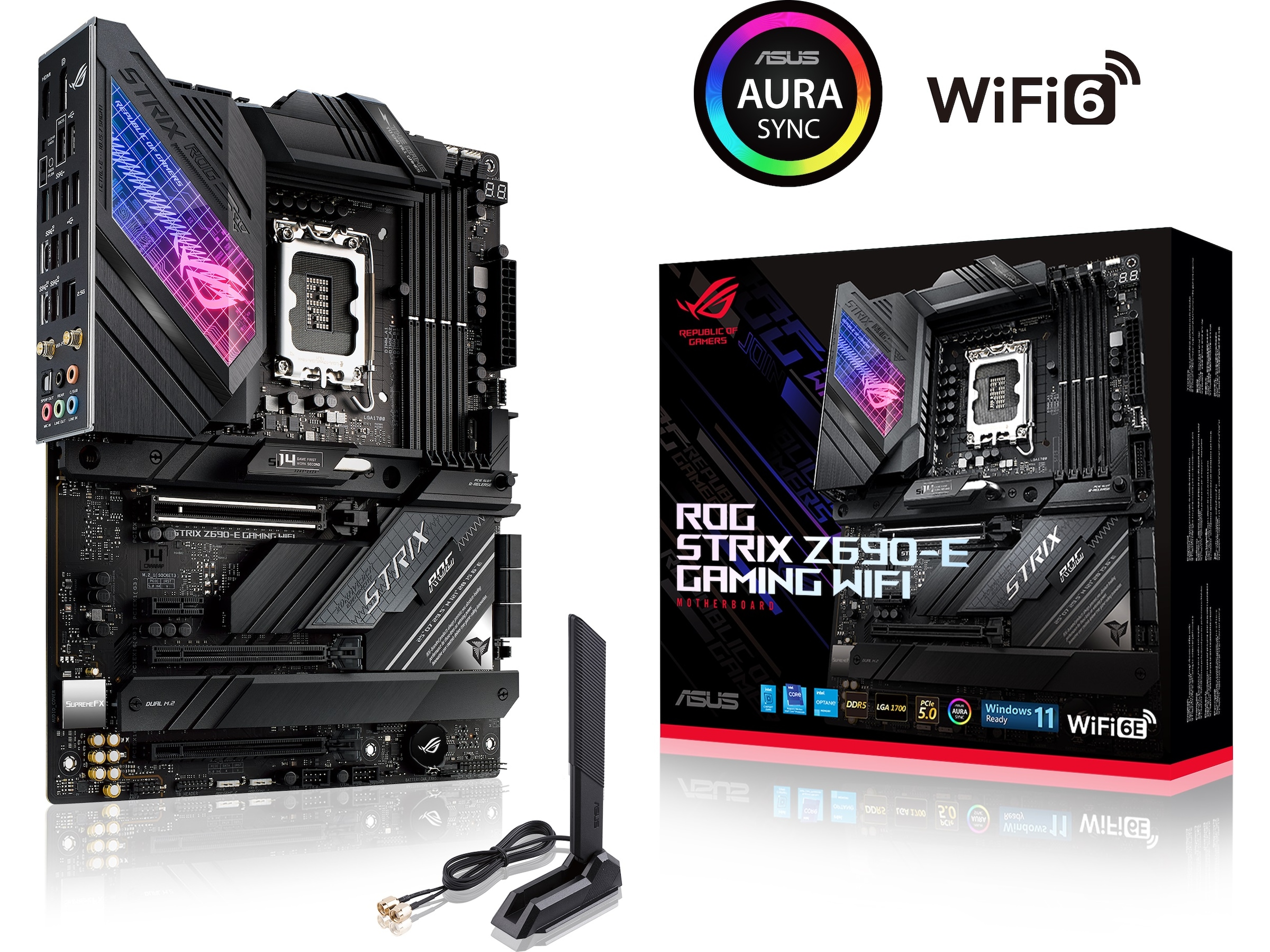

Inkluderet tilbehør ROG HYPER M.2 CARD, Kabelbånd, 2 x M.2 skruer, ROG-takkekort, ROG VGA holder, M.2 Q-Latch, ASUS Wi-Fi bevægende antenne, 1 x M.2 gummipakke, STRIX-mærkater, ROG-nøglekæde
Netværk
Dataforbindelsesprotokol 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11az (Wi-Fi 6E), IEEE 802.11ac, IEEE 802.11b, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, IEEE 802.11n, IEEE 802.11a
Netværk 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az
Udvidelsesåbninger
Ekspansionsåbninger 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4-modus), 1 x PCIe 3.0 x1, 4 x DIMM 288-pins, 1 x PCIe 4.0 x16 (x4-modus), 1 x CPU
Grænseflade (lagring)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA, PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Interface leveret

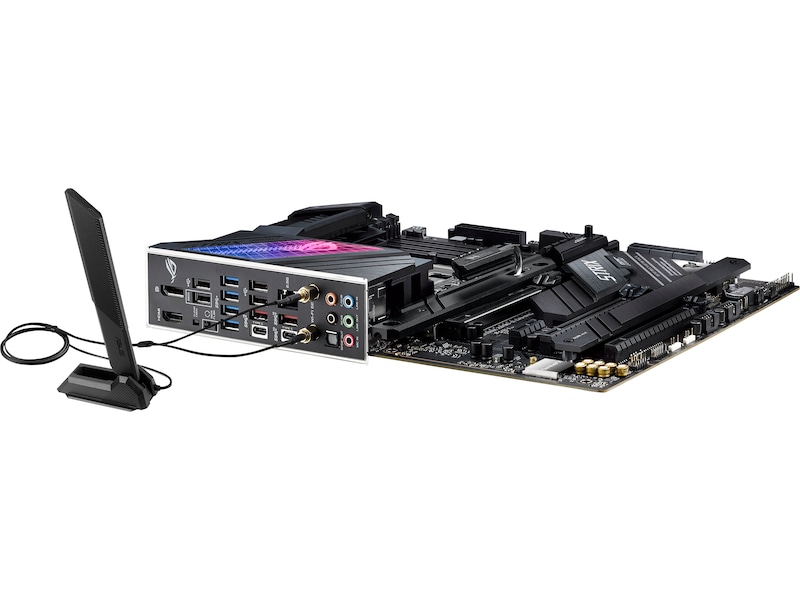

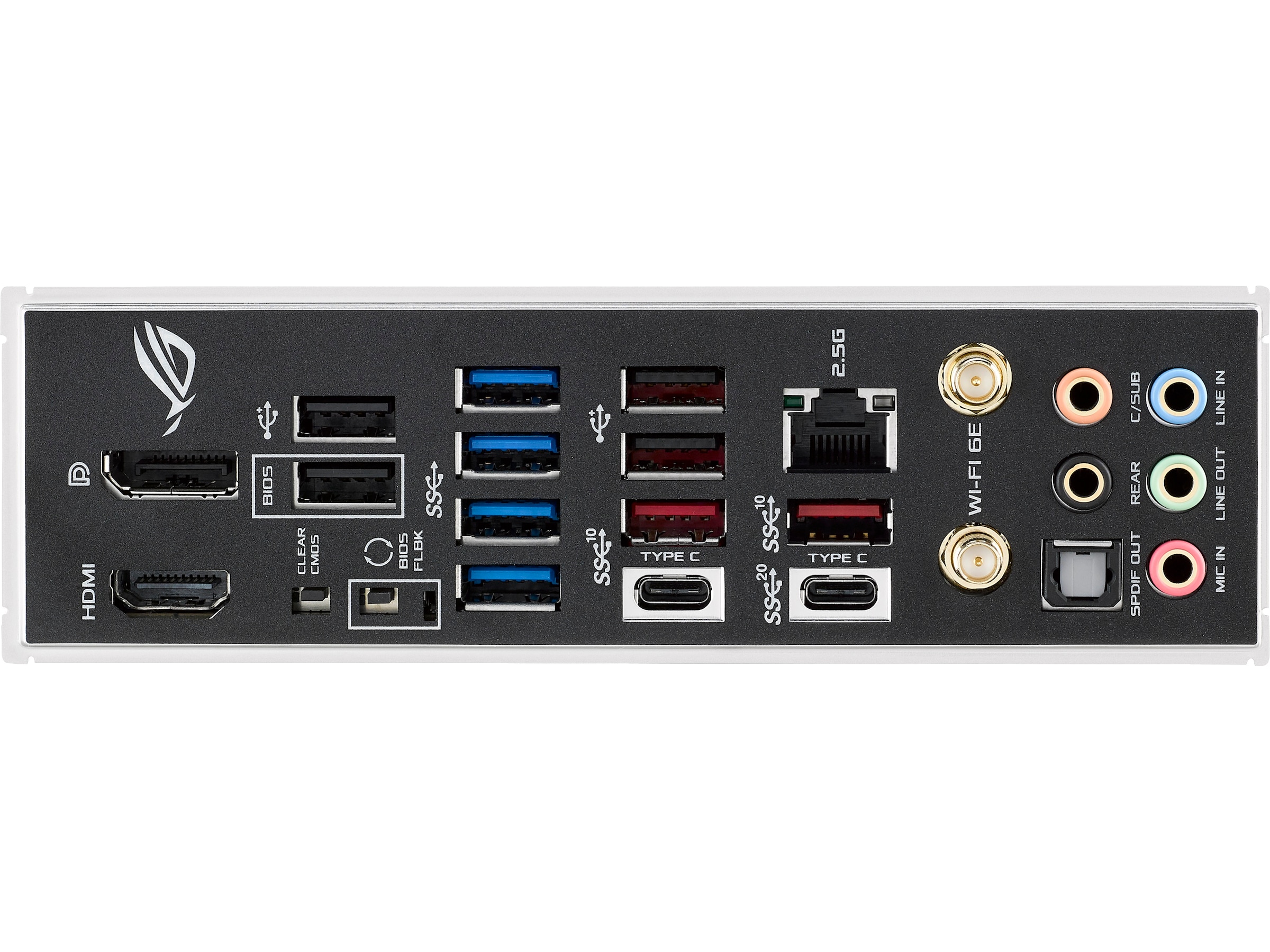

Interface 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x USB-C Gen2, 1 x audio linje-ud - mini-jack, 1 x TOSLINK, 1 x HDMI, 1 x USB-C Gen2x2, 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x mikrofon - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack, 1 x DisplayPort, 1 x audio linje-ind - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 2 x USB 3.2 Gen 2
Interne interfaces
Interne interfaces 1 x Thunderbolt - intern stik, 1 x USB-C Gen 2x2 - intern stik, 1 x audio - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik
Programmer
Software inkluderet ASUS AI Suite III, Antivirus, MyAsus, Drivers & Utilities, WinRAR, ASUS AURA Creator, AIDA64 Extreme (60 dages prøvetid), Sonic Studio Virtual Mixer, ROG GameFirst VI, ROG CPU-Z, ASUS Turbo App

ASUS ROG STRIX Z690-E GAMING WIFI Bundkort

Of ASUS
Varenummer: 1198163 / Producentens varenr: 90MB18J0-M0EAY0
