ASUS ROG STRIX Z690-E GAMING WIFI Bundkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0 x16, 5x m.2, 8xUSB 3.2, WIFI 6E, BT

Varenummer: 1198163 / Producentens varenr: ROG STRIX Z690-E GAMING WIFI

More pictures from ASUS ROG STRIX Z690-E GAMING WIFI Bundkort

4.349,-
Fri fragt
8 stk. på lager
Vortez approved

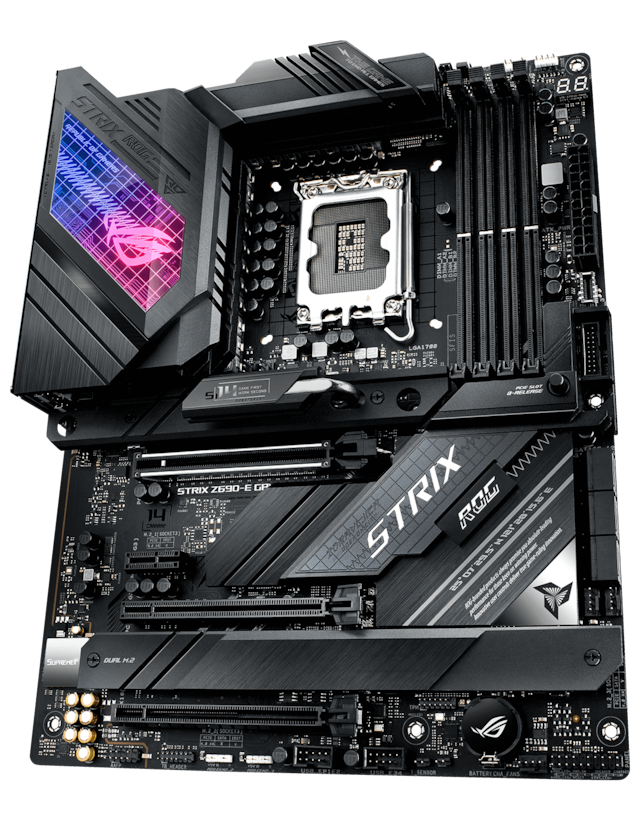

ASUS ROG STRIX Z690-E GAMING WIFI, LGA1700 Motherboard


ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

ALL-ROUND PERFORMANCE
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
EAN 4711081494638
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Audio
Type HD Audio (8-kanaler)
Audio codec SupremeFX (ALC4080)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound
LAN
Netværks interfaces 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax/az
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x audio linje-ind - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding teknologi, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS SafeSlot, Sonic Studio III, M.2 kølelegeme, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey-knap, ASUS ProCool II, 18+1 Phase Power Design, Savitech SV3H712 forstærker, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, Windows 11 kompatibel
Diverse
Udstyr inkluderet Kabelbånd, 2 x M.2 skruer, ROG VGA holder, STRIX-mærkater, ROG-takkekort, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, 1 x M.2 gummipakke, M.2 Q-Latch, ROG HYPER M.2 CARD
Medfølgende ledninger 4 x Seriel ATA kabel
Med software Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 dages prøvetid), ASUS AURA Creator, MyAsus
Bredde 30.5 cm
Dybde 24.4 cm
