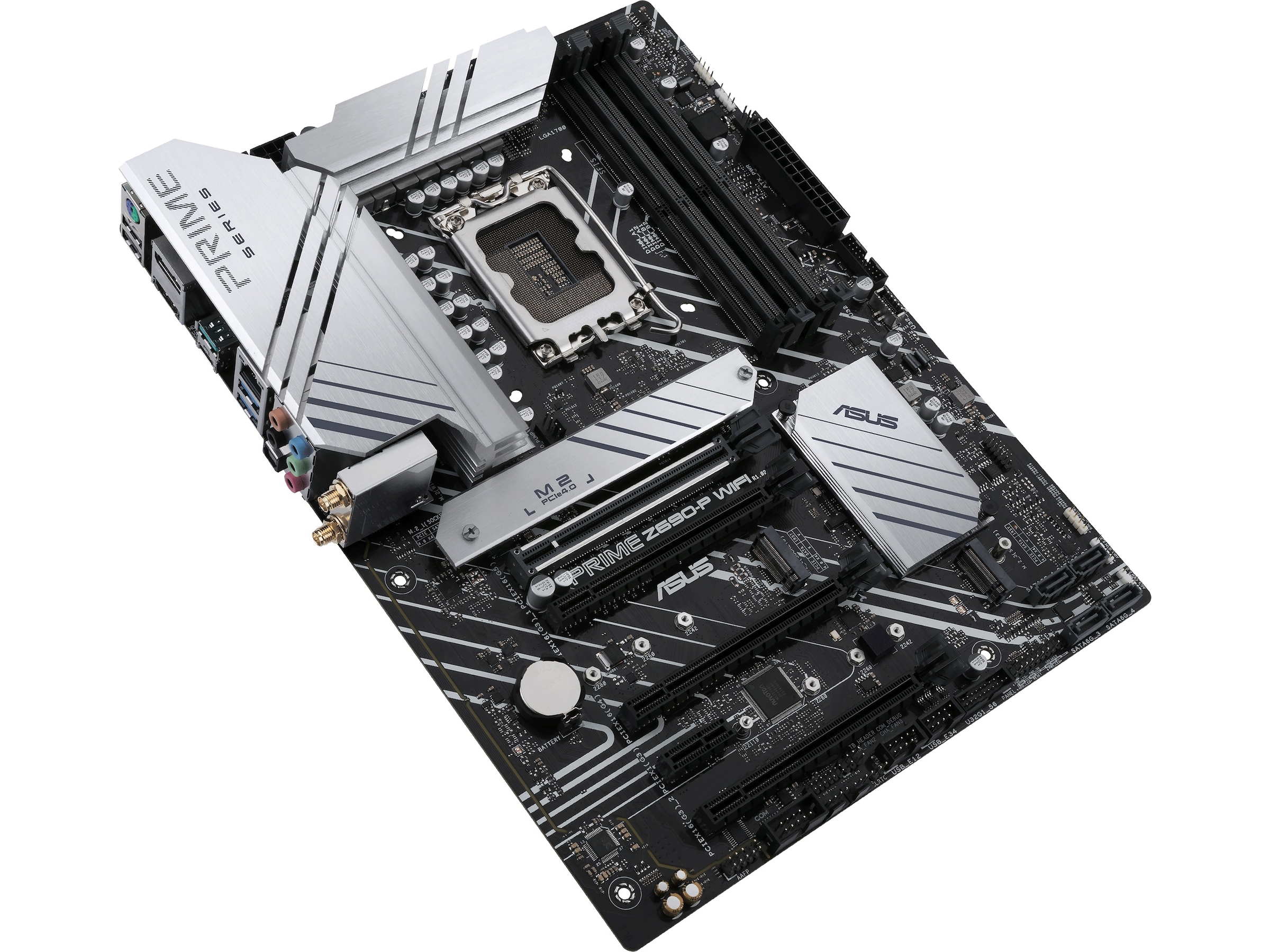

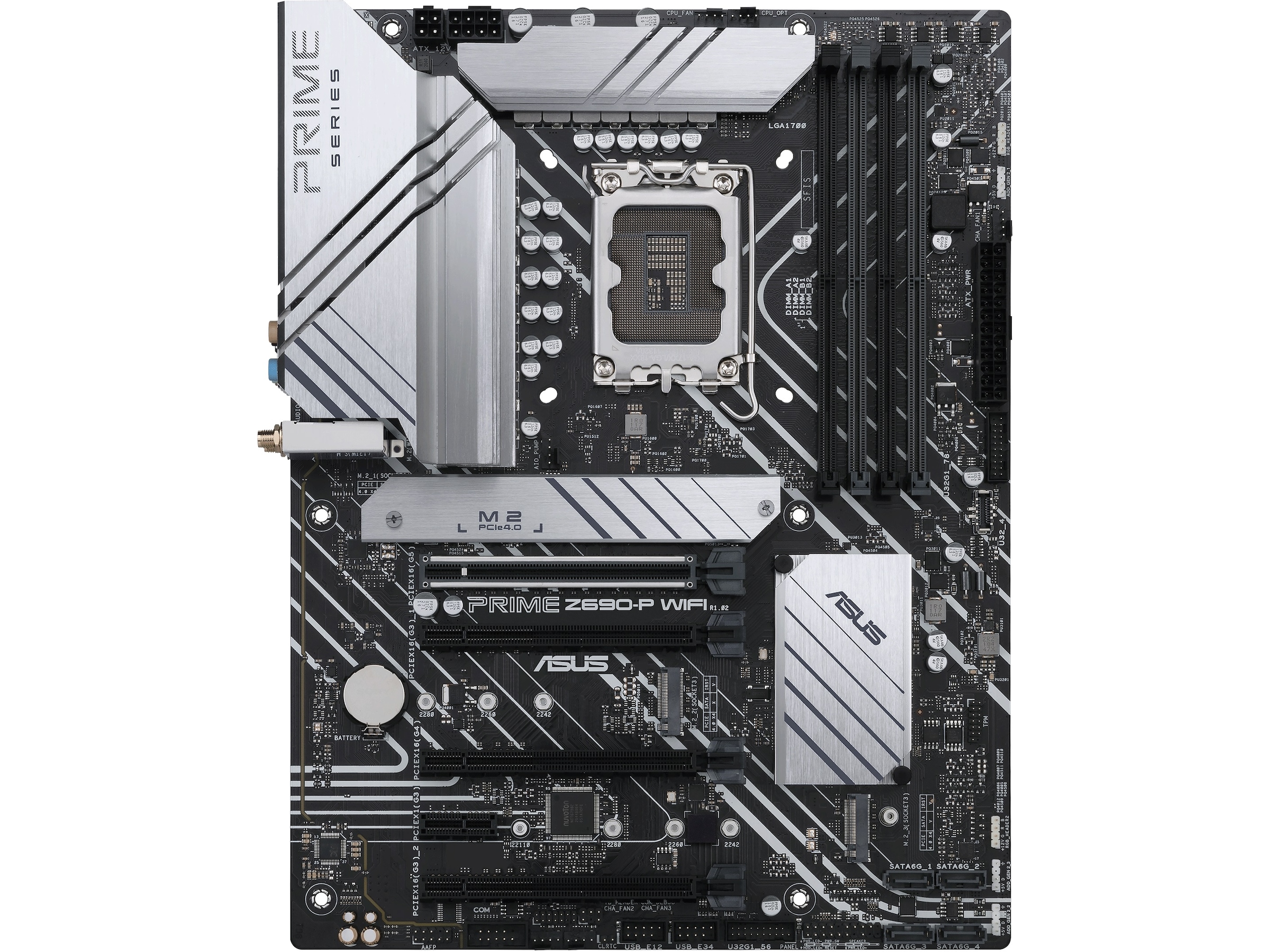

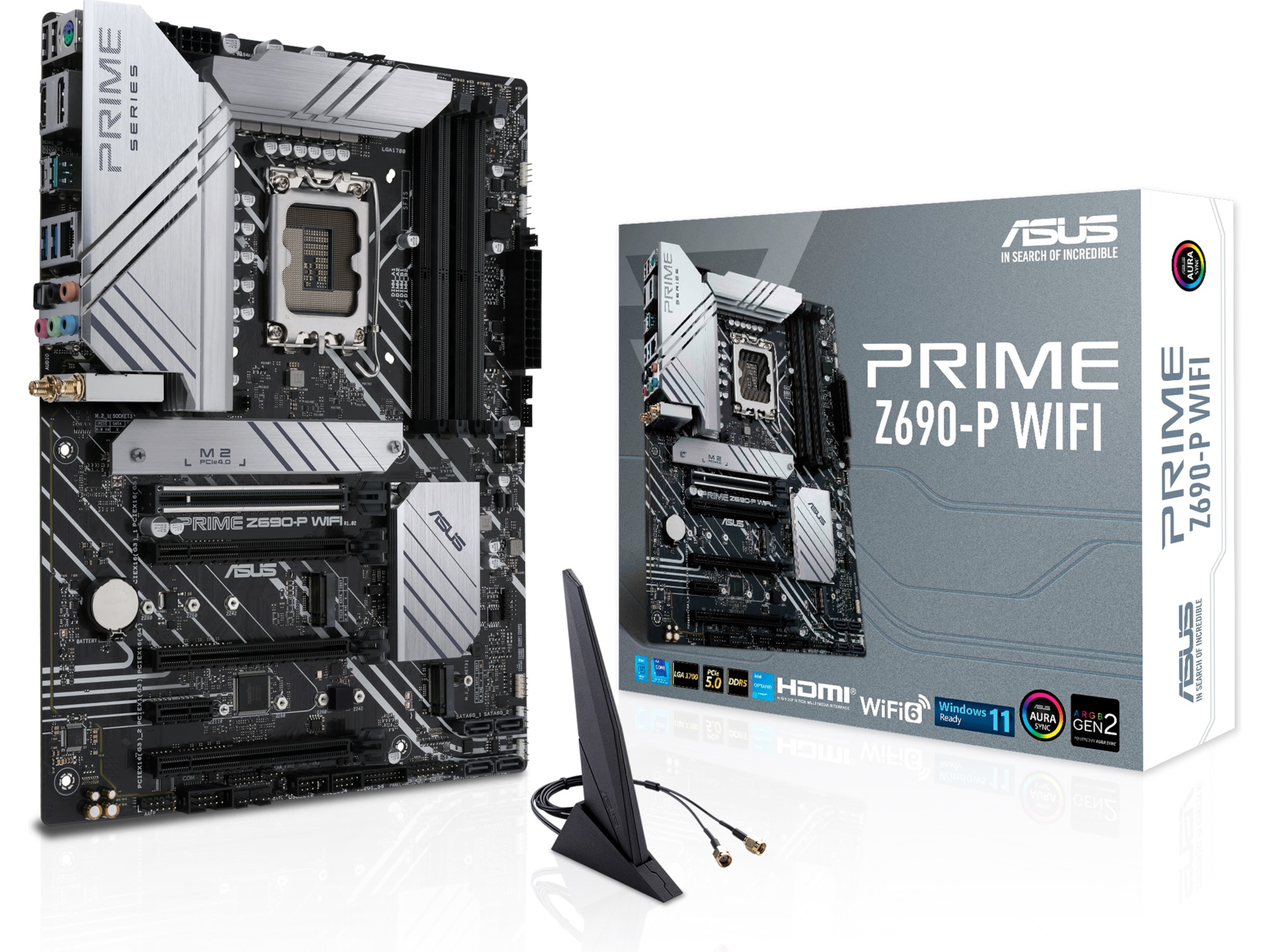

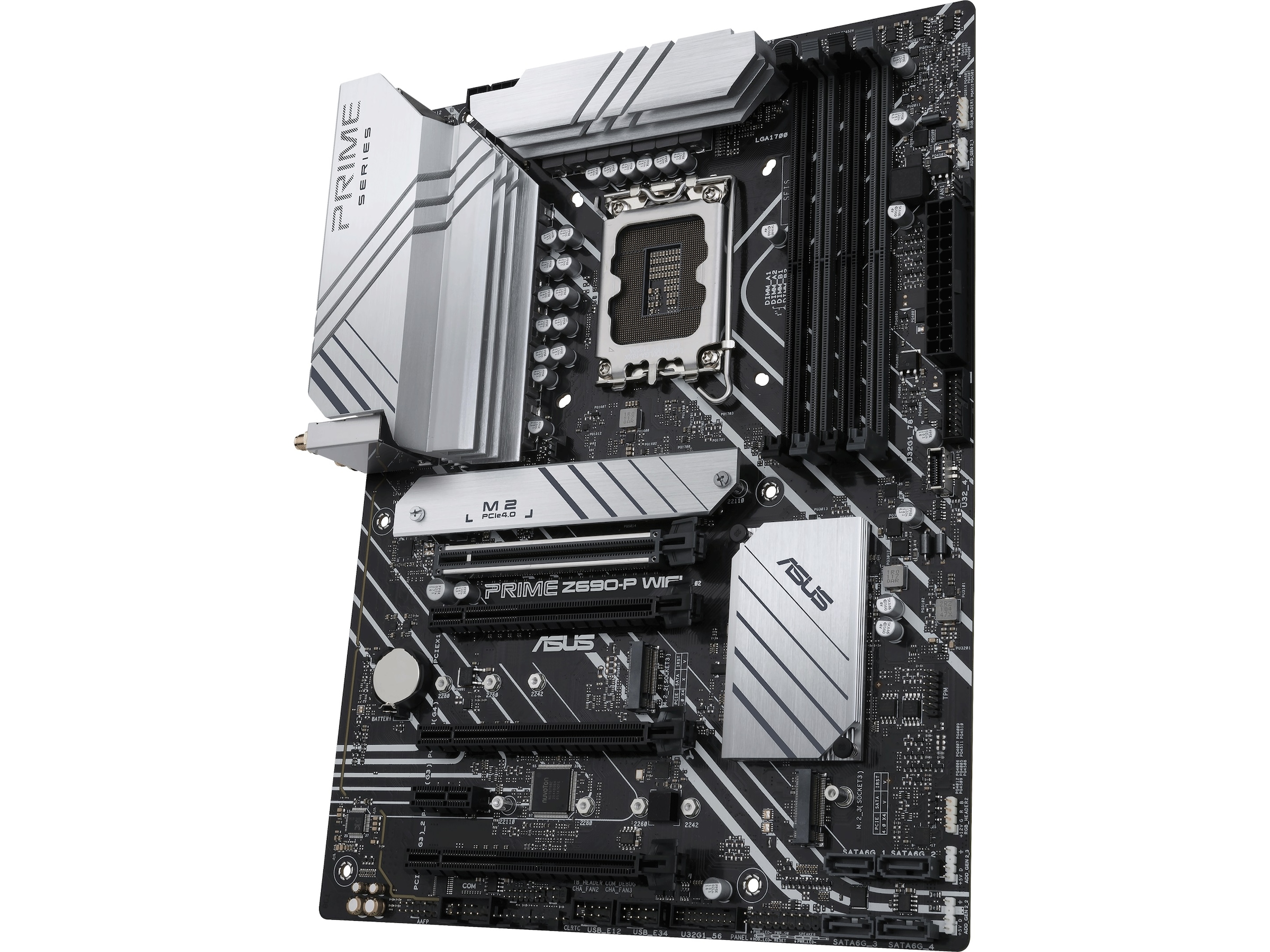

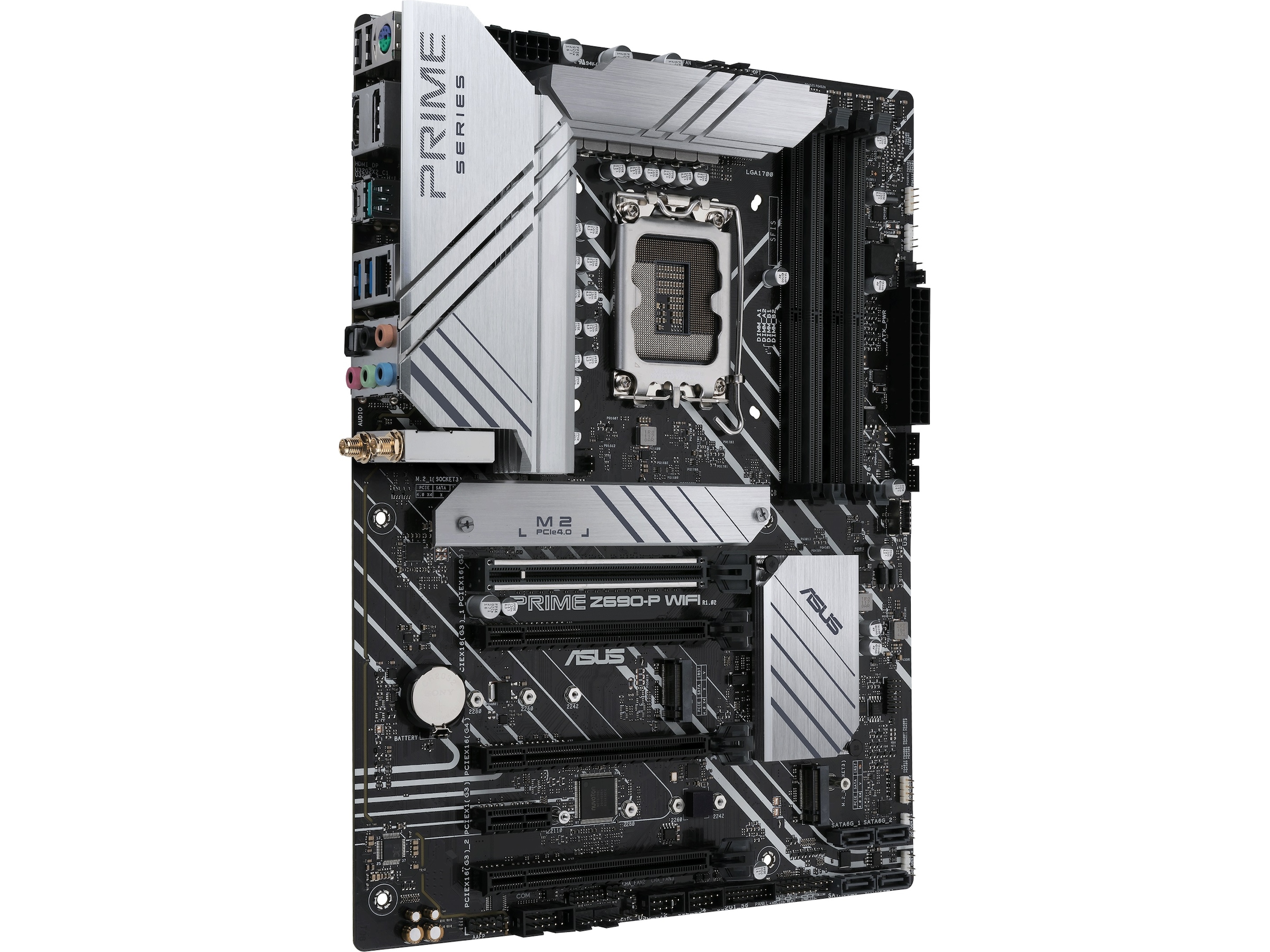

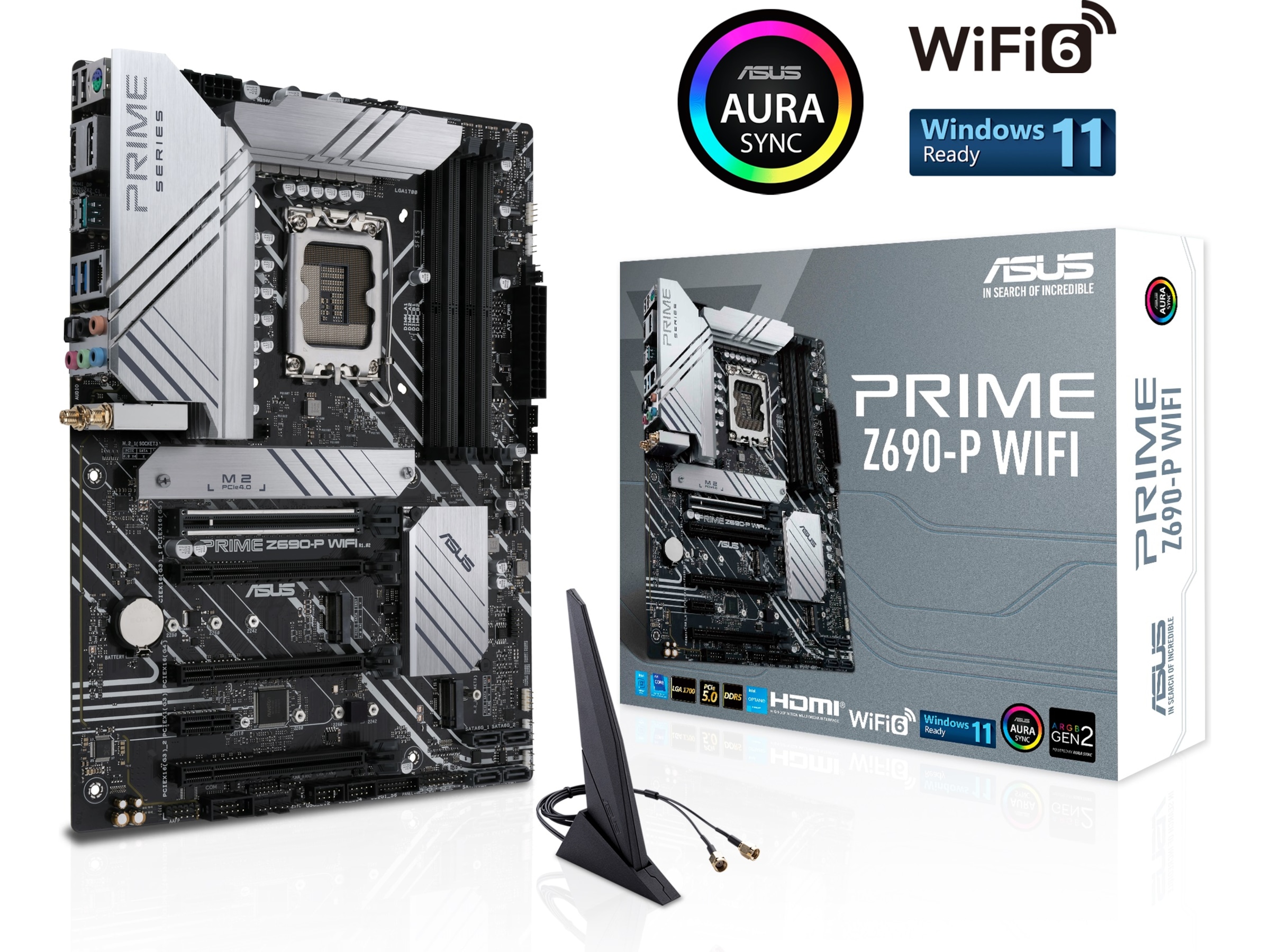

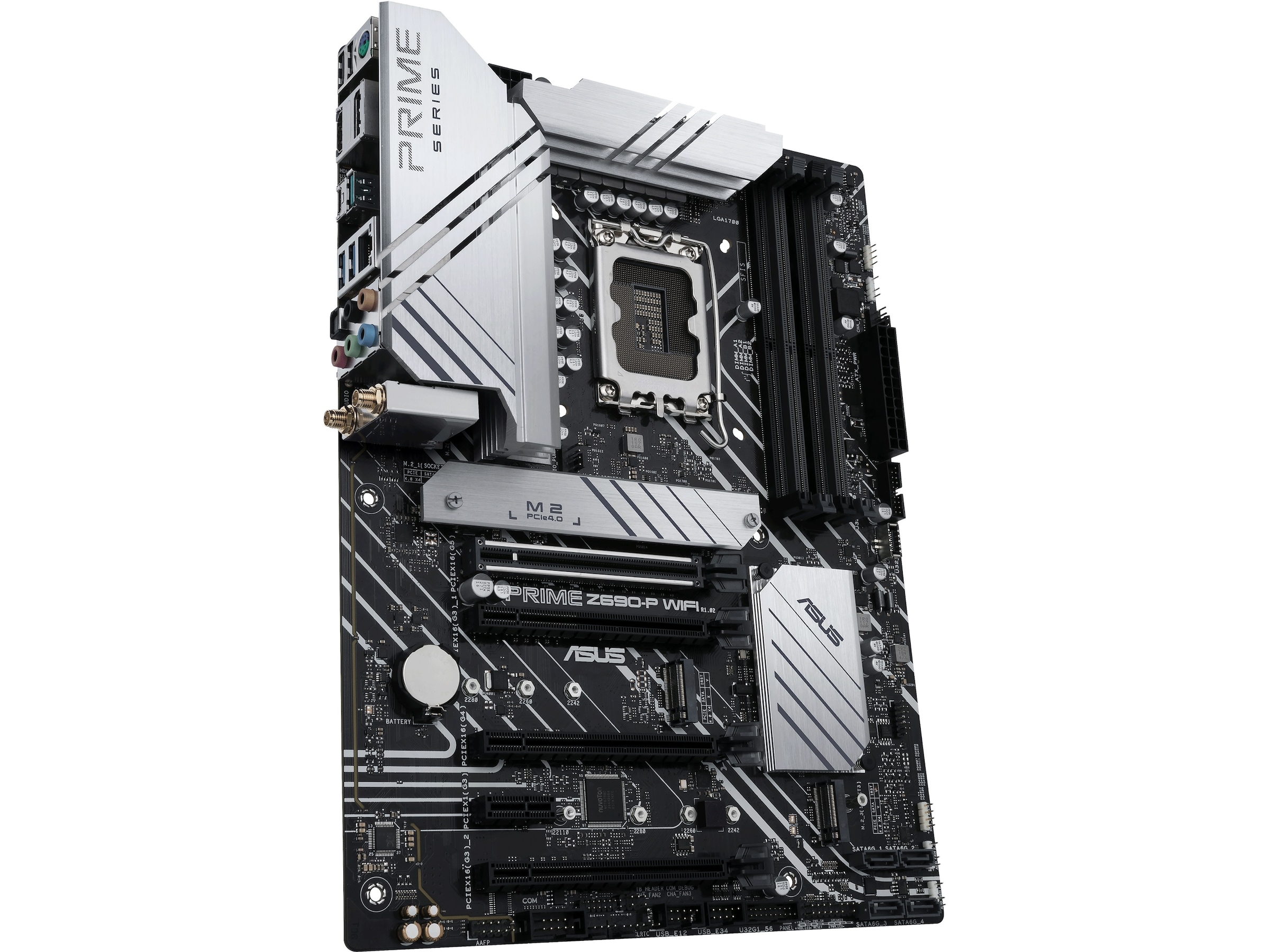

ASUS PRIME Z690-P WIFI, LGA1700 Motherboard

PRIME SERIES
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-P WIFI offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

DDR5 Performance Enhancement
Prime Z690-P WIFI enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-P WIFI leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-P WIFI includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
• Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Generelt
Produktlinje ASUS
Model PRIME Z690-P WIFI
Producentens garanti (måneder) 36
EAN 4711081469612
Mainboard
Chipsættype Intel Z690
Model ATX
Processor-socket LGA1700 sokkel
Understøttet RAM-integritetskon Ikke-ECC
RAM Slots 4 DIMM åbninger
Kommentarer om kompatible processorer Understøtter 12. Generation Intel Core / Pentium Gold / Celeron
Understøttet RAM (registreret eller buffered) Ikke bufferet
Understøttet RAM-teknologi DDR5 SDRAM
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
RAM-hastighed understøttet 6000 MHz (O.C.), 4800 MHz, 5000 MHz (O.C.), 5800 MHz (O.C.), 5200 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.)
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber ASUS EZ Flash 3, UEFI BIOS
Hardware egenskaber Q-DIMM, ASUS Overvoltage Protection, ASUS OptiMem II, Intel Turbo Boost Technology 2.0, ASUS TurboV EVO, Q-LED Core, ASUS 5X Protection III, M.2 kølelegeme, Armoury Crate, ASUS ProCool, ASUS Q-Design, Intel Optane Memory Ready, CrashFree BIOS 3, Intel Turbo Boost Max Technology 3.0, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 4, ASUS Aura Sync, ASUS EZ DIY, Preboot eXecution Environment (PXE), Q-Slot, LANGuard, ASUS SafeSlot, 14+1 DrMOS strømstadier
Sov/ Vågn Vågn på PME, Aktivering af LAN (wake on LAN = WOL)
Interfaces
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-egenskaber Intel Rapid Storage Technology
Lagringsporte 4 x SATA-600 (RAID), 3 x M.2
USB / FireWire portkonfiguration (aktiv) 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB/FireWire USB-C Gen 2x2, USB 3.2 Gen 2, USB-C Gen1, USB 3.2 Gen 1
Lagring Serial ATA-600 (RAID), M.2 åbning
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Type Lydkort
Overensstemmelsesstandarder High Definition Audio
Audio High Definition Audio (8 kanaler)
Kabeloplysninger
Medfølgende ledninger 2 x Seriel ATA kabel
Diverse
Produkttype Bundkort

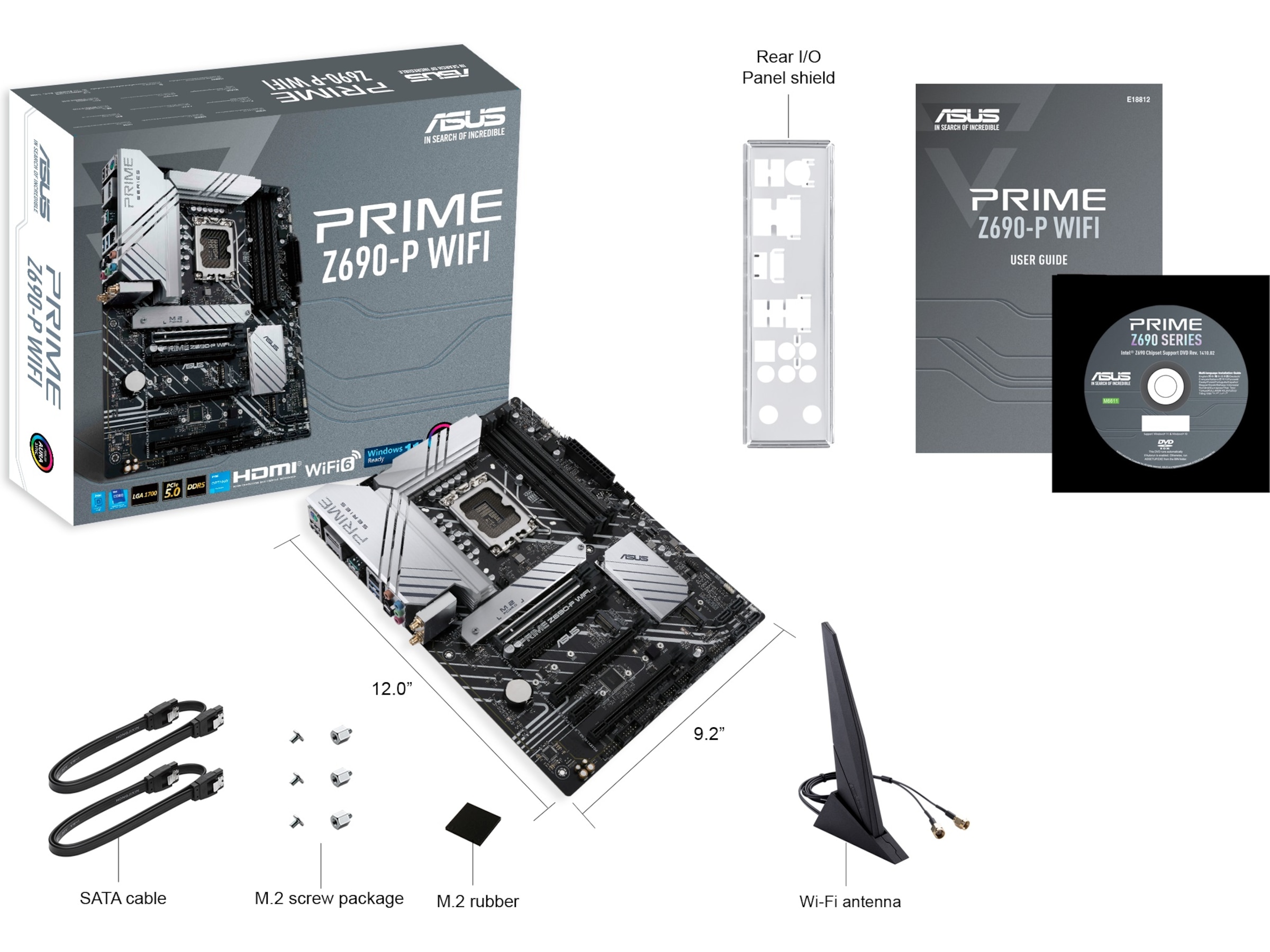

Inkluderet tilbehør 2 x M.2 skruer, I/O- bagvæg, 1 x M.2 gummipakke
RAM
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Netværk
Dataforbindelsesprotokol IEEE 802.11a, IEEE 802.11g, Bluetooth 5.2, IEEE 802.11b, 802.11ax, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet
Netværk 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Udvidelsesåbninger
Ekspansionsåbninger 1 x CPU, 1 x PCIe 5.0 x16, 4 x DIMM 288-pins, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 (x4-modus), 2 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring)
Grænseflade (lagring) SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 5
Interface leveret

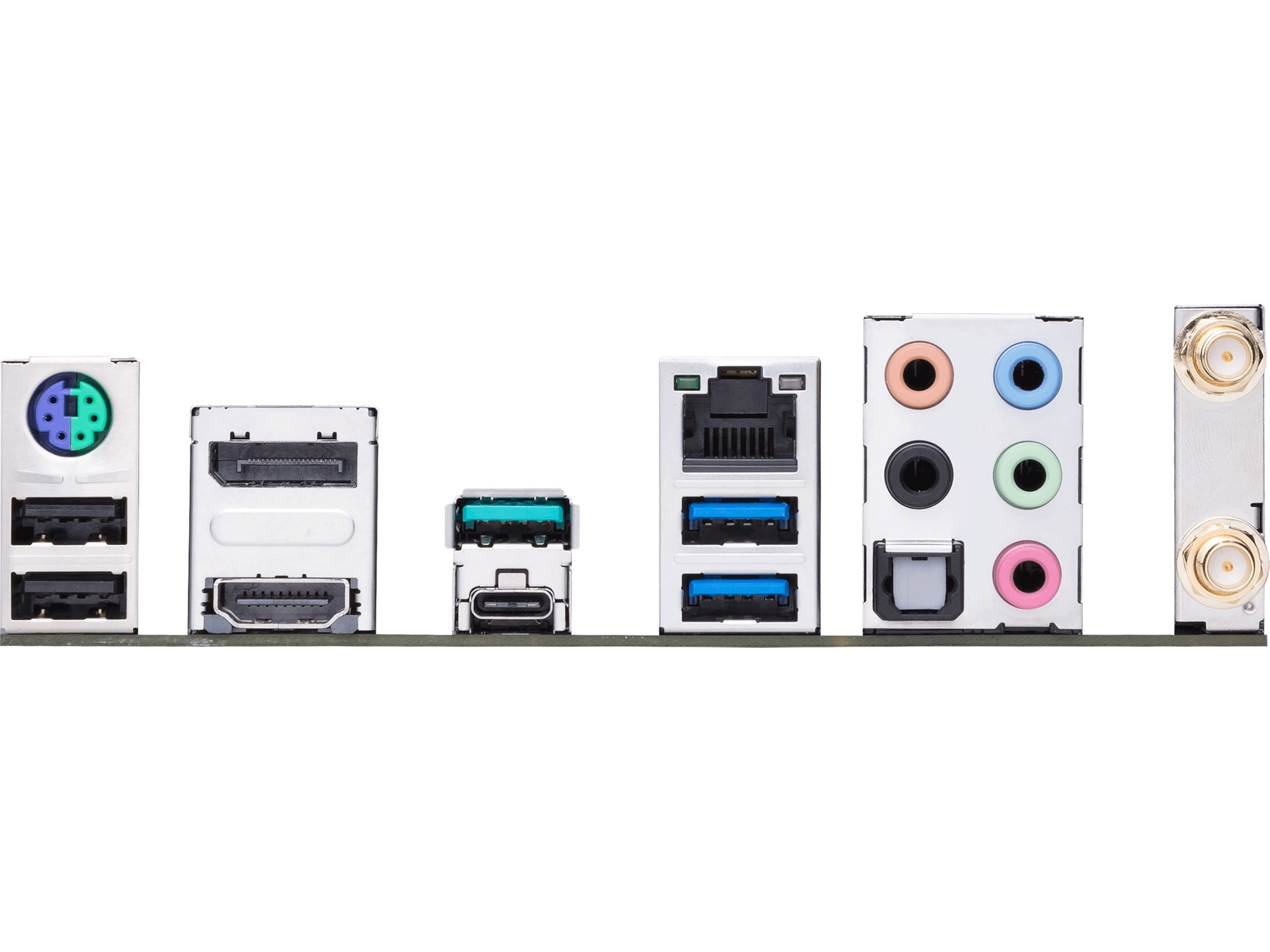

Interface 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C Gen2x2, 1 x HDMI, 1 x USB 3.2 Gen 2, 1 x DisplayPort, 1 x audio linje-ind - mini-jack, 1 x TOSLINK, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x mikrofon - mini-jack, 2 x USB 2.0, 1 x audio linje-ud (bagtil) - mini-jack, 1 x PS/2-tastatur/mus, 1 x audio linje-ud - mini-jack, 2 x USB 3.2 Gen 1
Interne interfaces
Interne interfaces 1 x Thunderbolt - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x USB-C Gen 1 - intern stik, 1 x SPI - intern stik, 1 x seriel - intern stik, 4 x USB 2.0 - intern stik, 1 x audio - intern stik
Programmer
Software inkluderet Norton AntiVirus (Trial), ASUS CPU-Z, WinRAR, ASUS AI Suite III, ASUS TurboV EVO Utility, Drivers & Utilities
