Denne vare findes ikke længere i vores sortiment. Brug søgefunktionen øverst på siden.
Varenummer: 1198170 / Producentens varenr: 90MB18P0-M0EAY0

More pictures from

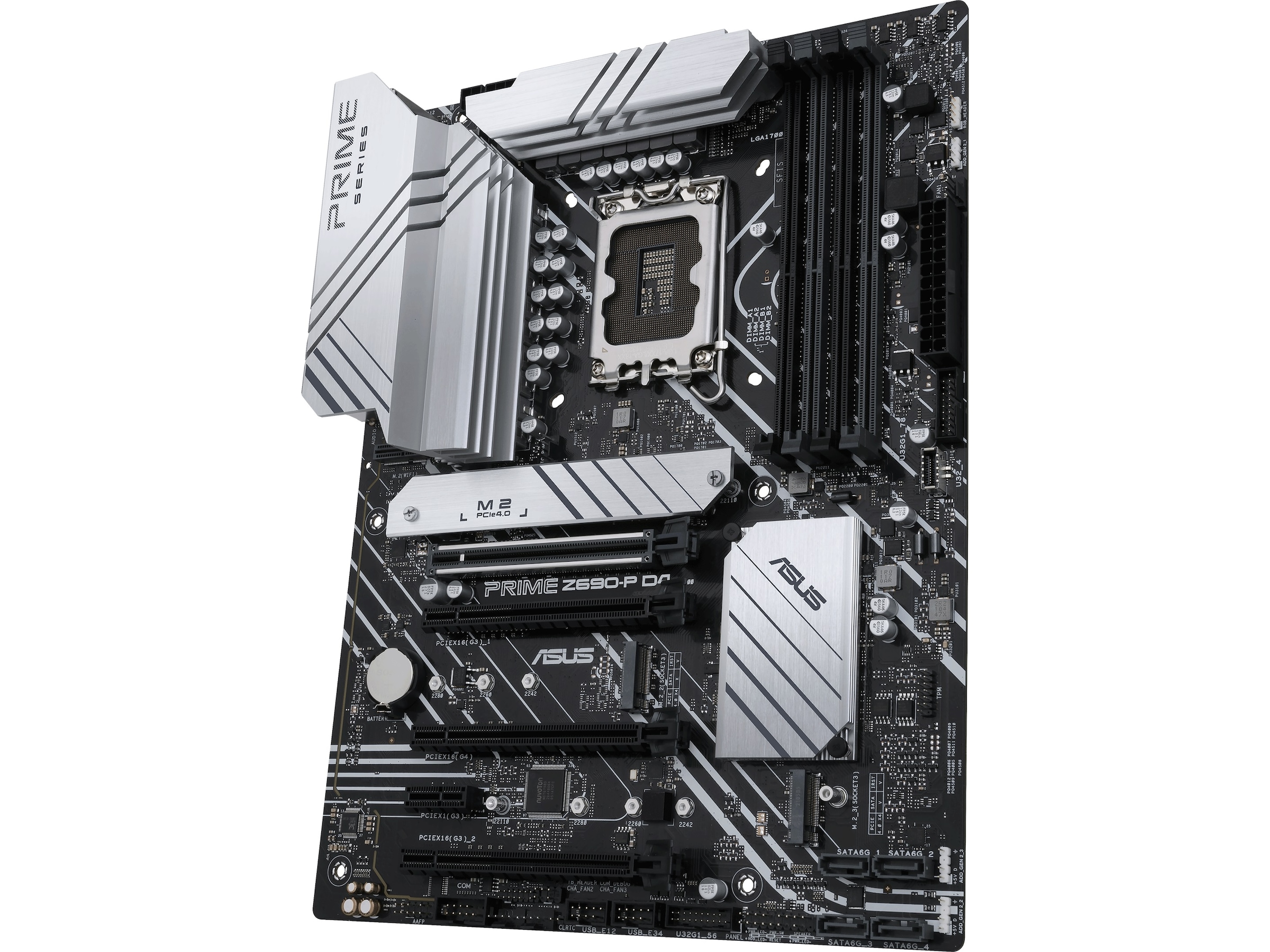

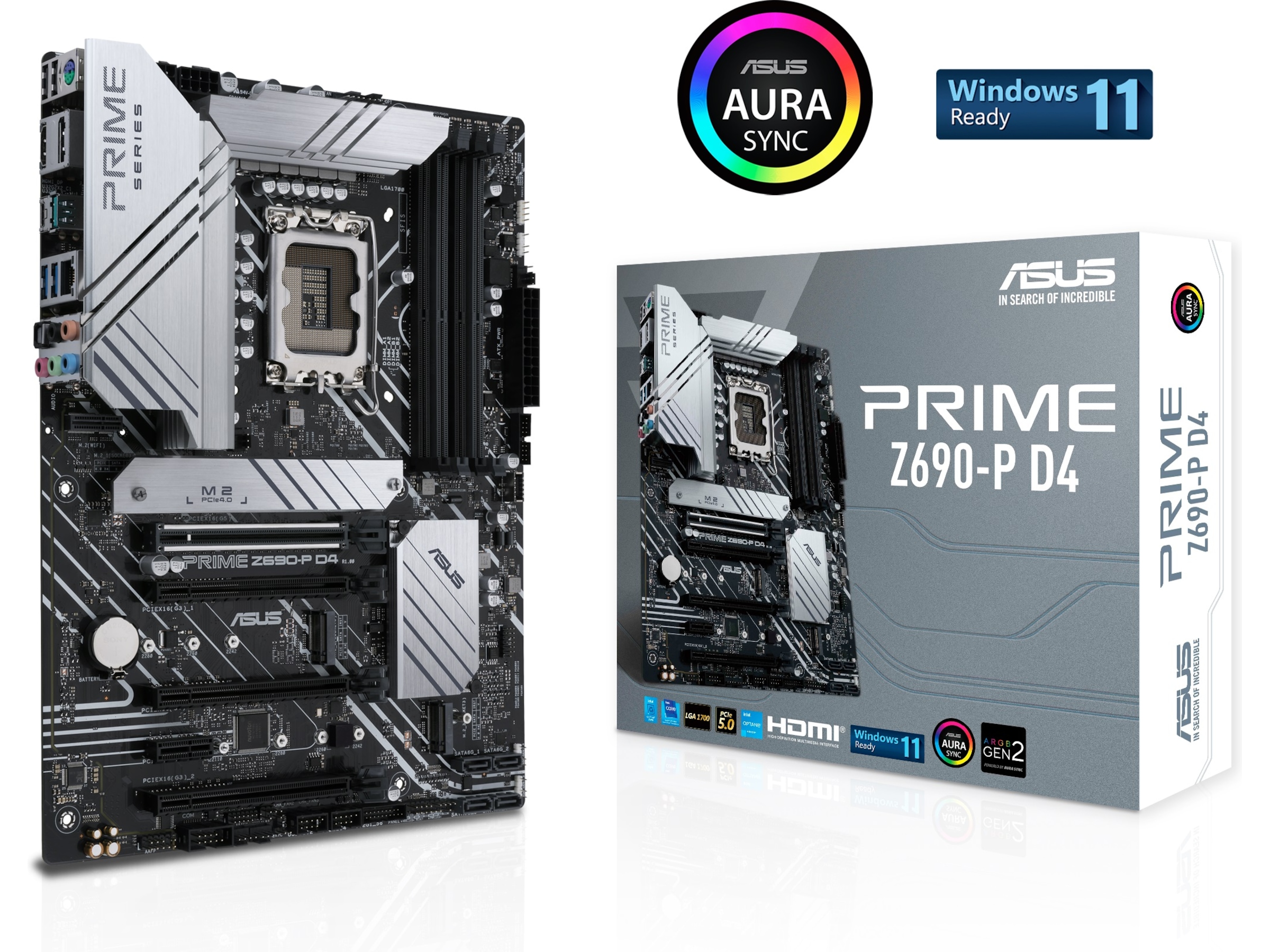

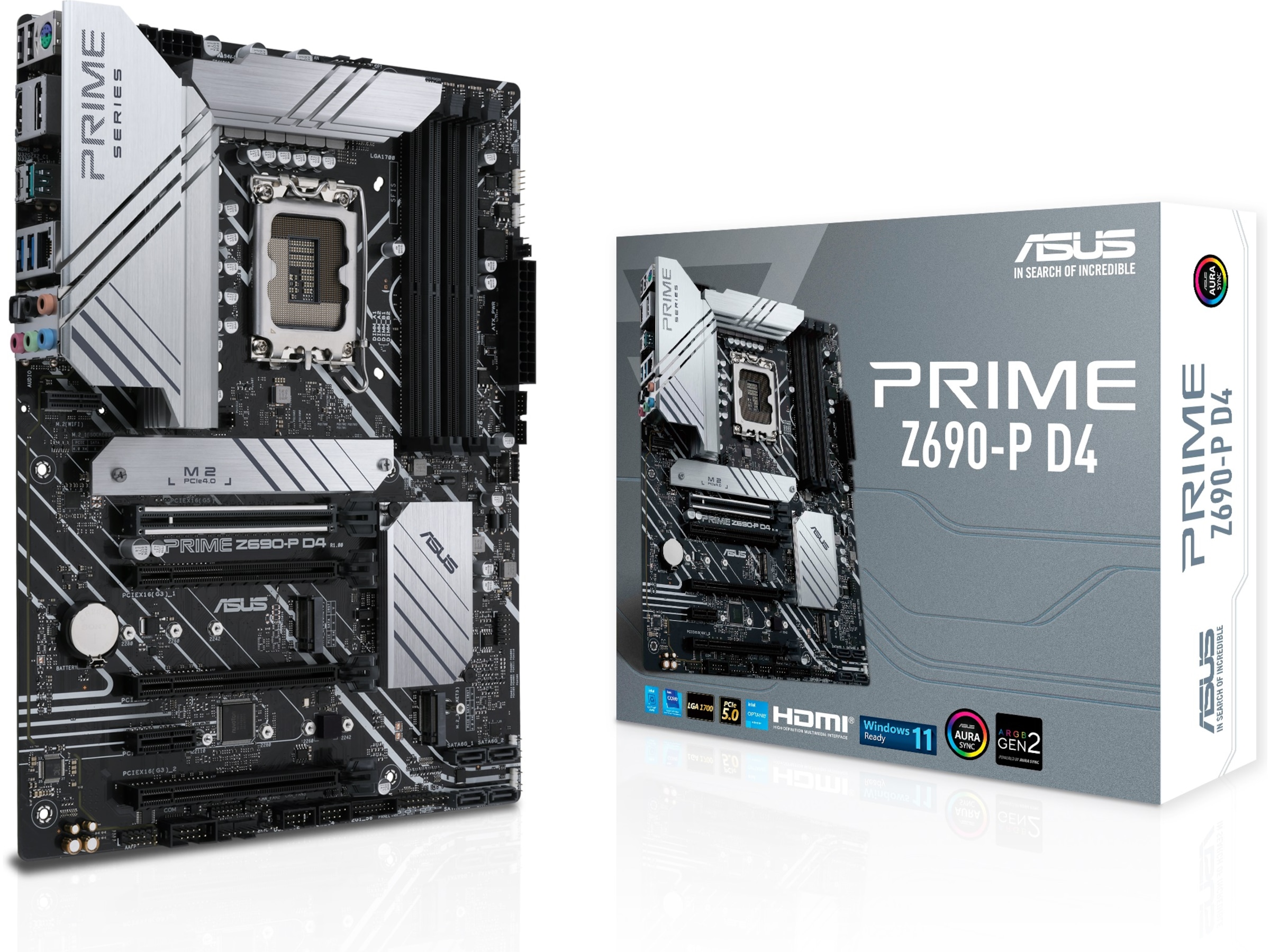

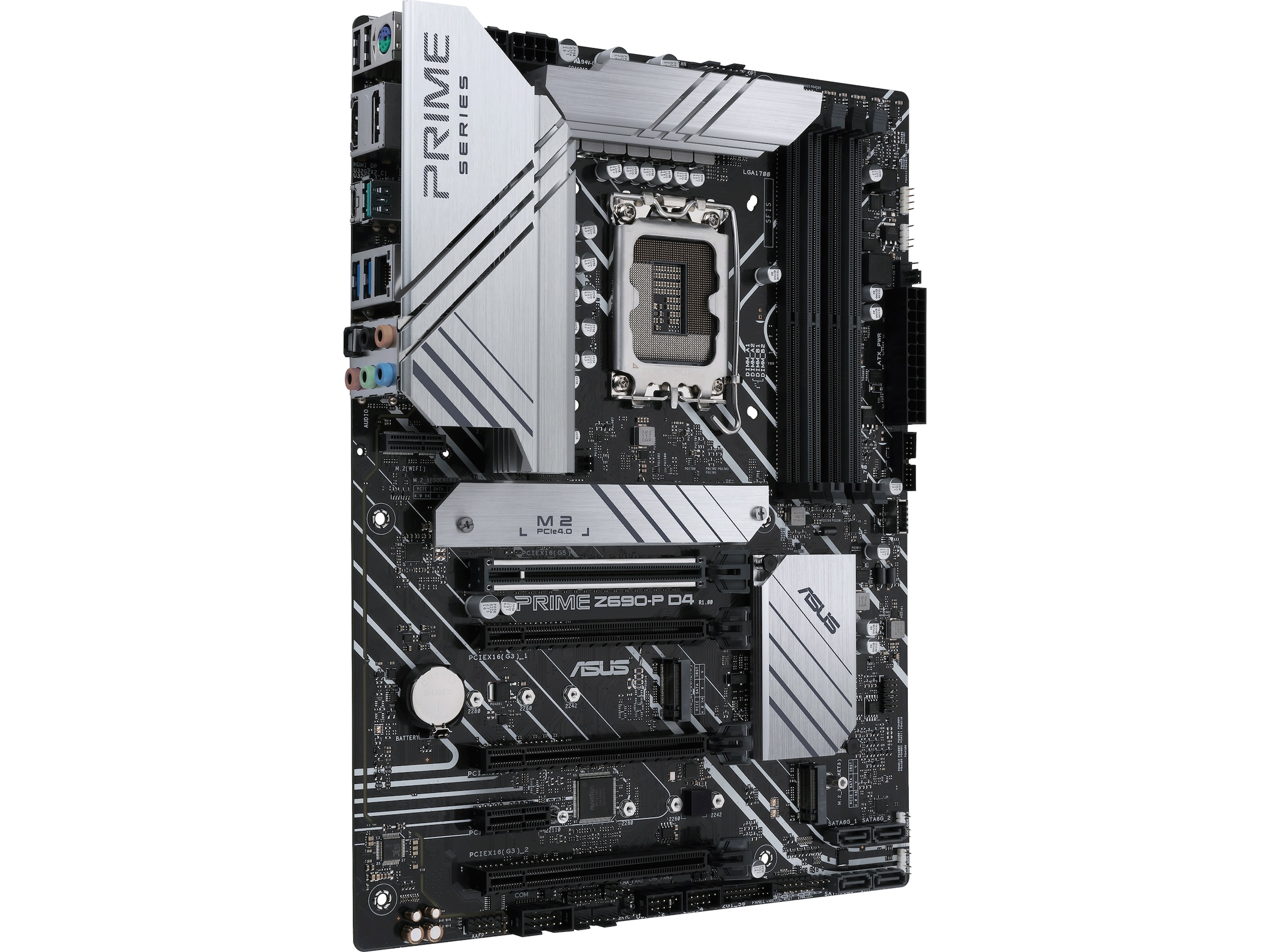

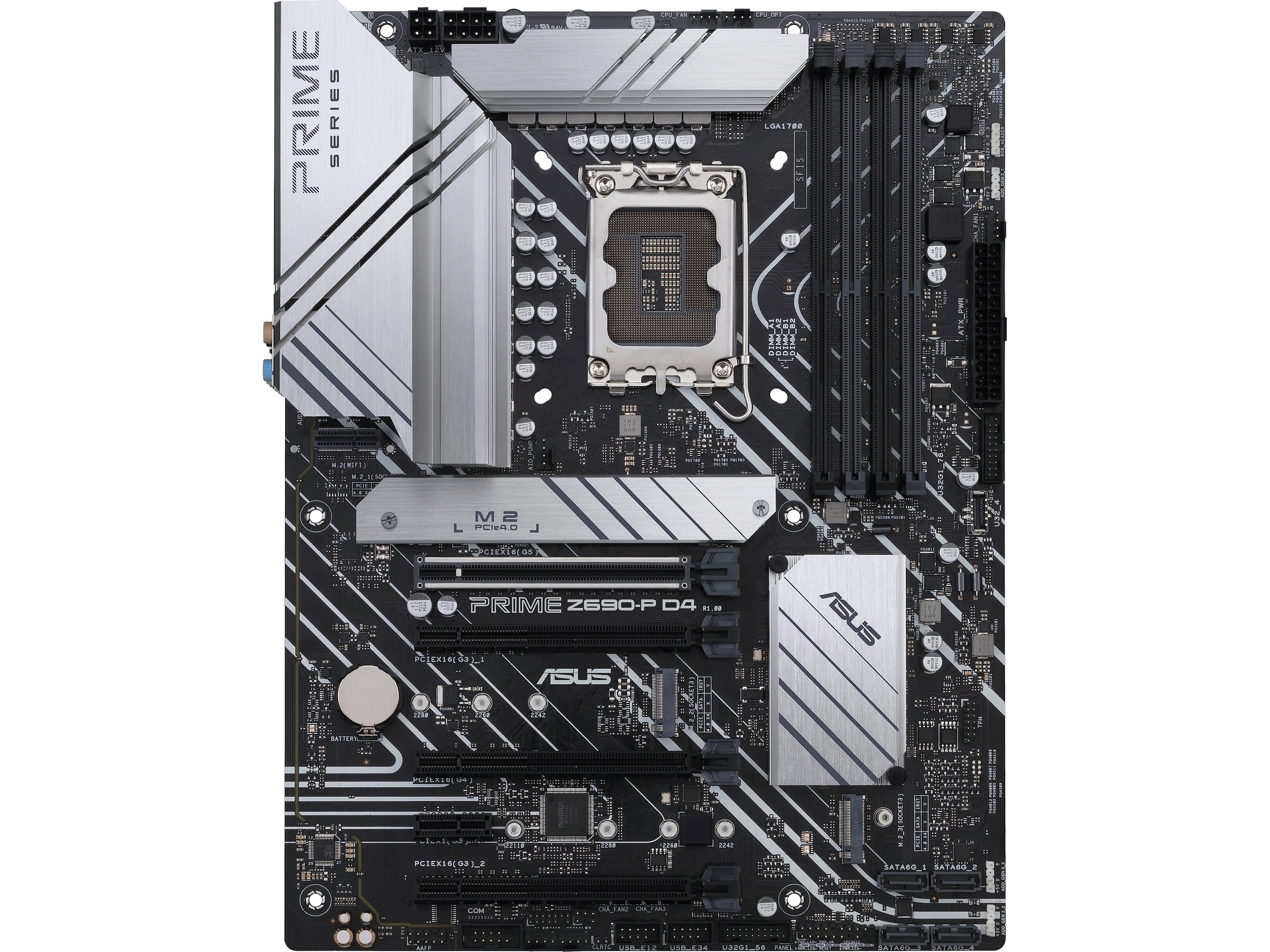

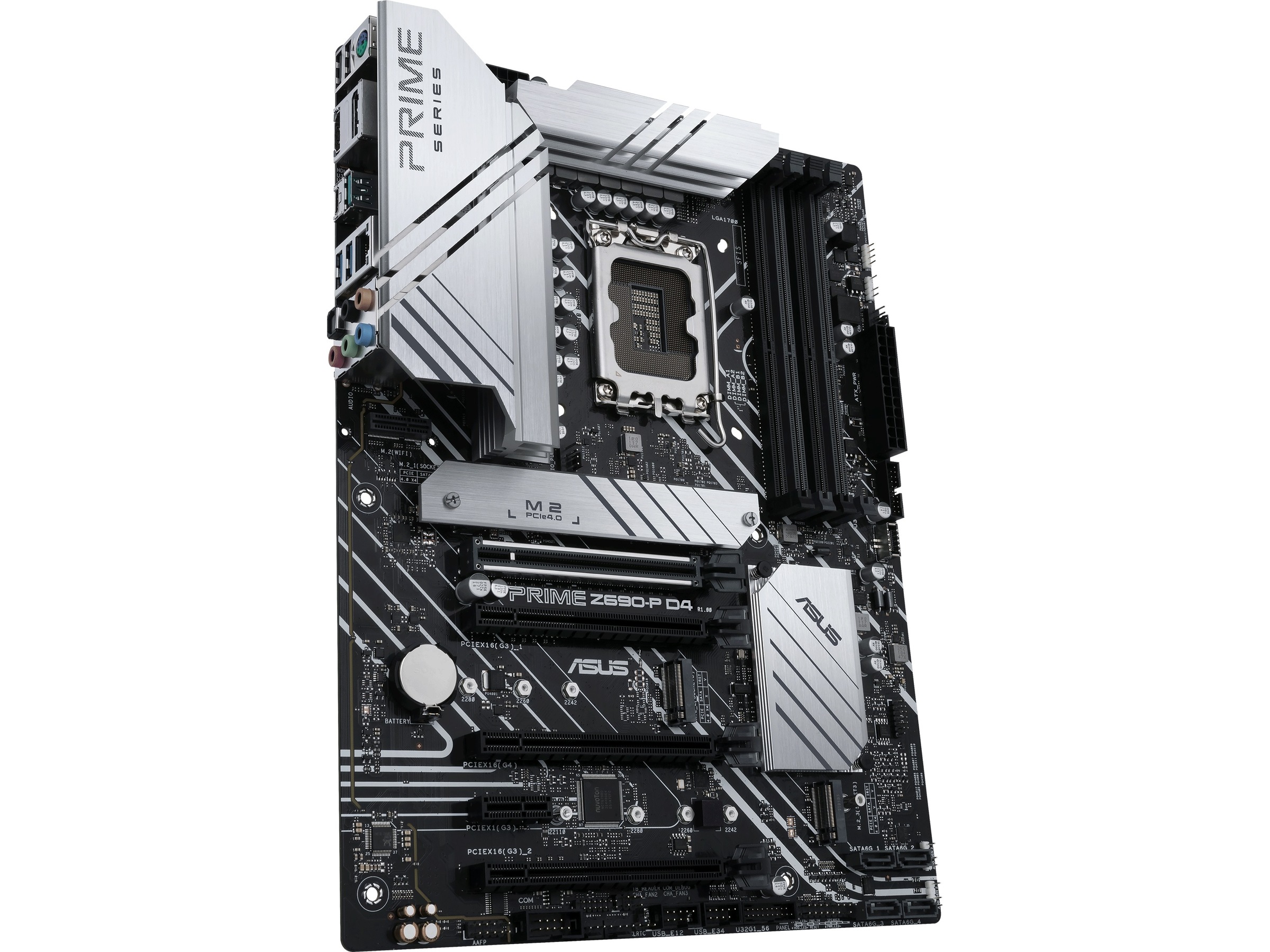

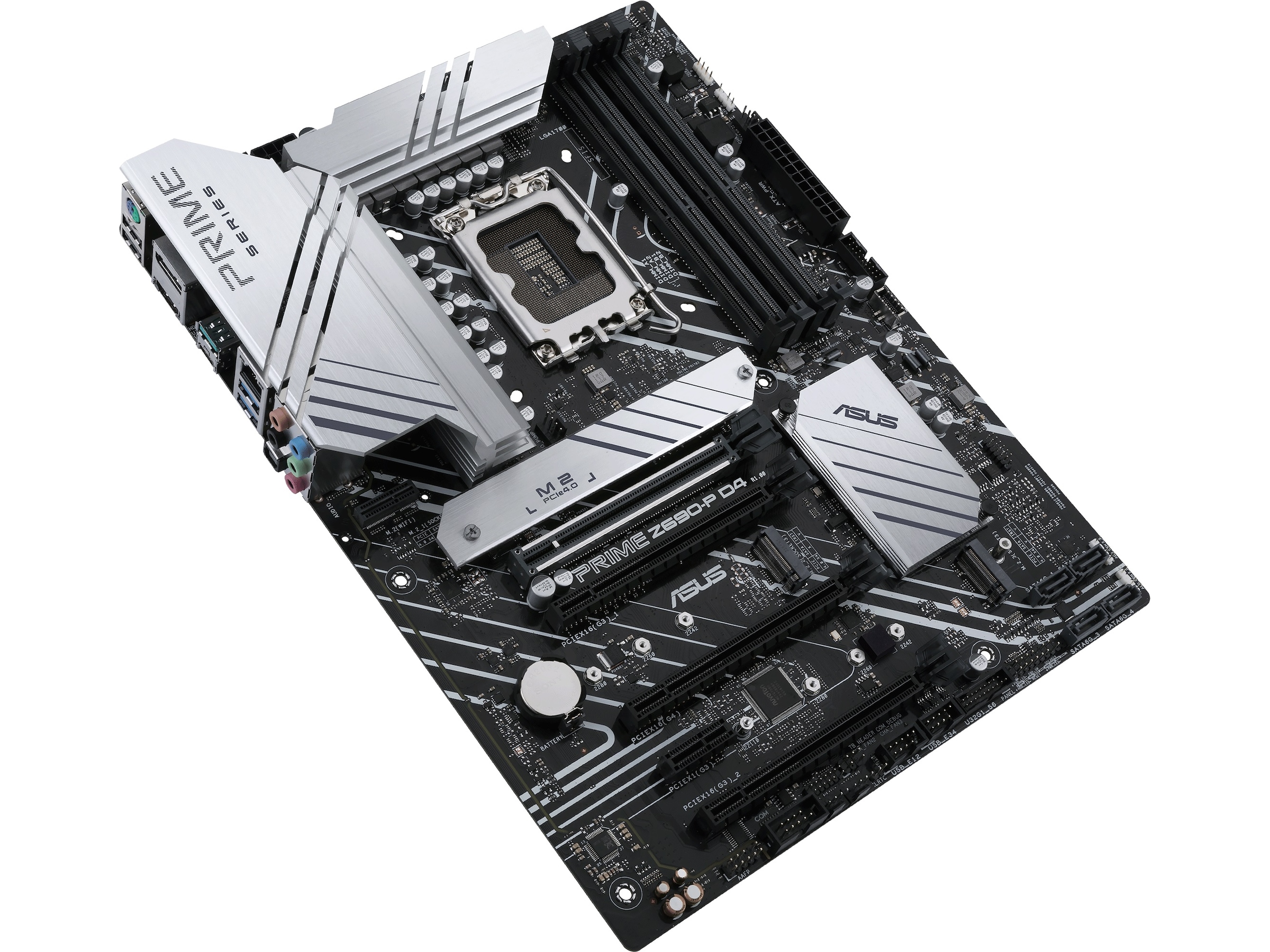

ASUS PRIME Z690-P D4, LGA1700 Motherboard

PRIME SERIES
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

• Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
• Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Generelt
Model PRIME Z690-P D4
Produktlinje ASUS
Producentens garanti (måneder) 36
EAN 4711081471554
Mainboard
Processor-socket LGA1700 sokkel
Chipsættype Intel Z690
RAM Slots 4 DIMM åbninger
Understøttet RAM (registreret eller buffered) Ikke bufferet
Model ATX
Understøttet RAM-teknologi DDR4 SDRAM
Kommentarer om kompatible processorer Understøtter 12. Generation Intel Core / Pentium Gold / Celeron
Understøttet RAM-integritetskon Ikke-ECC
Strømkontakter 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor
RAM-hastighed understøttet 4266 MHz (O.C.), 2800 MHz, 3600 MHz (O.C.), 2933 MHz, 3200 MHz, 4400 MHz (O.C.), 3866 MHz (O.C.), 2133 MHz, 4133 MHz (O.C.), 3400 MHz (O.C.), 3000 MHz, 3466 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.), 3733 MHz (O.C.), 4800 MHz (O.C.), 4000 MHz (O.C.), 2666 MHz, 5000 MHz (O.C.), 2400 MHz, 4600 MHz (O.C.), 3333 MHz (O.C.)
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
Sov/ Vågn Vågn på PME, Aktivering af LAN (wake on LAN = WOL)
BIOS-egenskaber ASUS EZ Flash 3, UEFI BIOS
Hardware egenskaber ASUS Stainless Steel Back I/O, ASUS ProCool, ASUS SafeSlot, 14+1 DrMOS strømstadier, ASUS 5X Protection III, LANGuard, Q-LED Core, CrashFree BIOS 3, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS Fan Xpert 4, Q-DIMM, ASUS EZ DIY, Armoury Crate, ASUS Q-Design, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Preboot eXecution Environment (PXE), M.2 kølelegeme, ASUS Overvoltage Protection, ASUS EPU (Energy Processing Unit), ASUS TurboV EVO, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, Q-Slot
Interfaces
Lagringsporte 4 x SATA-600 (RAID), 3 x M.2
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire portkonfiguration (aktiv) 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
RAID-egenskaber Intel Rapid Storage Technology
Lagring M.2 åbning, Serial ATA-600 (RAID)
USB/FireWire USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen1
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Overensstemmelsesstandarder High Definition Audio
Audio High Definition Audio (8 kanaler)
Type Lydkort
Netværk
Netværk 2.5 Gigabit Ethernet
Dataforbindelsesprotokol 2.5 Gigabit Ethernet
Kabeloplysninger
Medfølgende ledninger 2 x Seriel ATA kabel
Diverse
Produkttype Bundkort
Inkluderet tilbehør 1 x M.2 gummipakke, 2 x M.2 skruer, I/O- bagvæg
RAM
Egenskaber Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur
Udvidelsesåbninger
Ekspansionsåbninger 1 x CPU, 1 x M.2 socket (til Intel CNVi trådløst modul), 1 x PCIe 4.0 x16 (x4-modus), 4 x DIMM 288-pins, 1 x PCIe 3.0 x1, 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring)
Grænseflade (lagring) PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Interface leveret

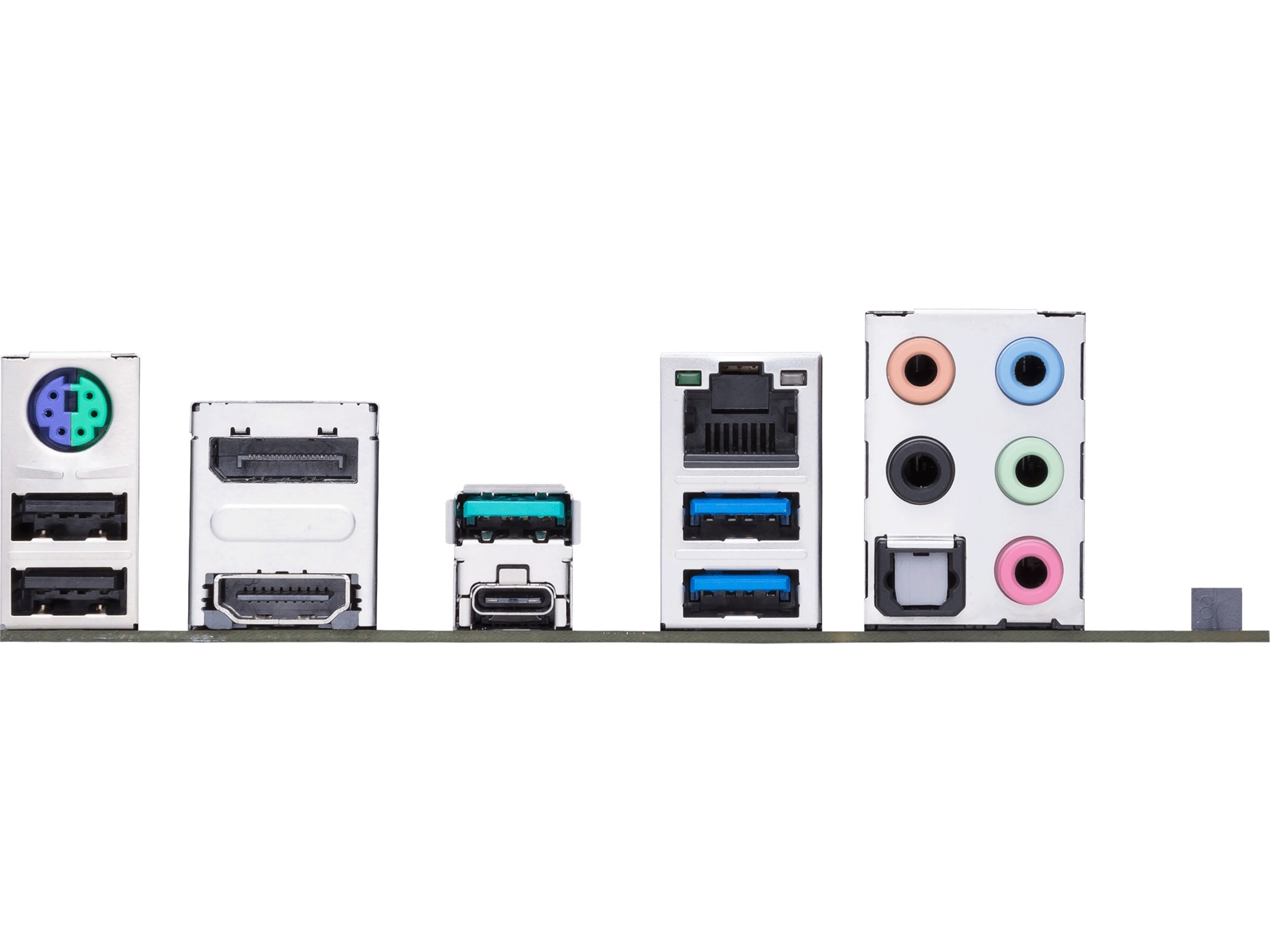

Interface 2 x USB 3.2 Gen 1, 1 x PS/2-tastatur/mus, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x TOSLINK, 1 x LAN (2.5Gigabit Ethernet), 1 x audio linje-ind - mini-jack, 1 x USB 3.2 Gen 2, 1 x DisplayPort, 1 x USB-C Gen2x2, 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack, 2 x USB 2.0, 1 x mikrofon - mini-jack
Interne interfaces
Interne interfaces 1 x SPI - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 1 x Thunderbolt - intern stik, 1 x USB-C Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x seriel - intern stik
Programmer
Software inkluderet Norton AntiVirus (Trial), ASUS CPU-Z, ASUS TurboV EVO Utility, ASUS AI Suite III, WinRAR, Drivers & Utilities

ASUS PRIME Z690-P D4 Bundkort

Of ASUS
Varenummer: 1198170 / Producentens varenr: 90MB18P0-M0EAY0
