Denne vare findes ikke længere i vores sortiment. Brug søgefunktionen øverst på siden.
Varenummer: 1198172 / Producentens varenr: 90MB18L0-M0EAY0

More pictures from

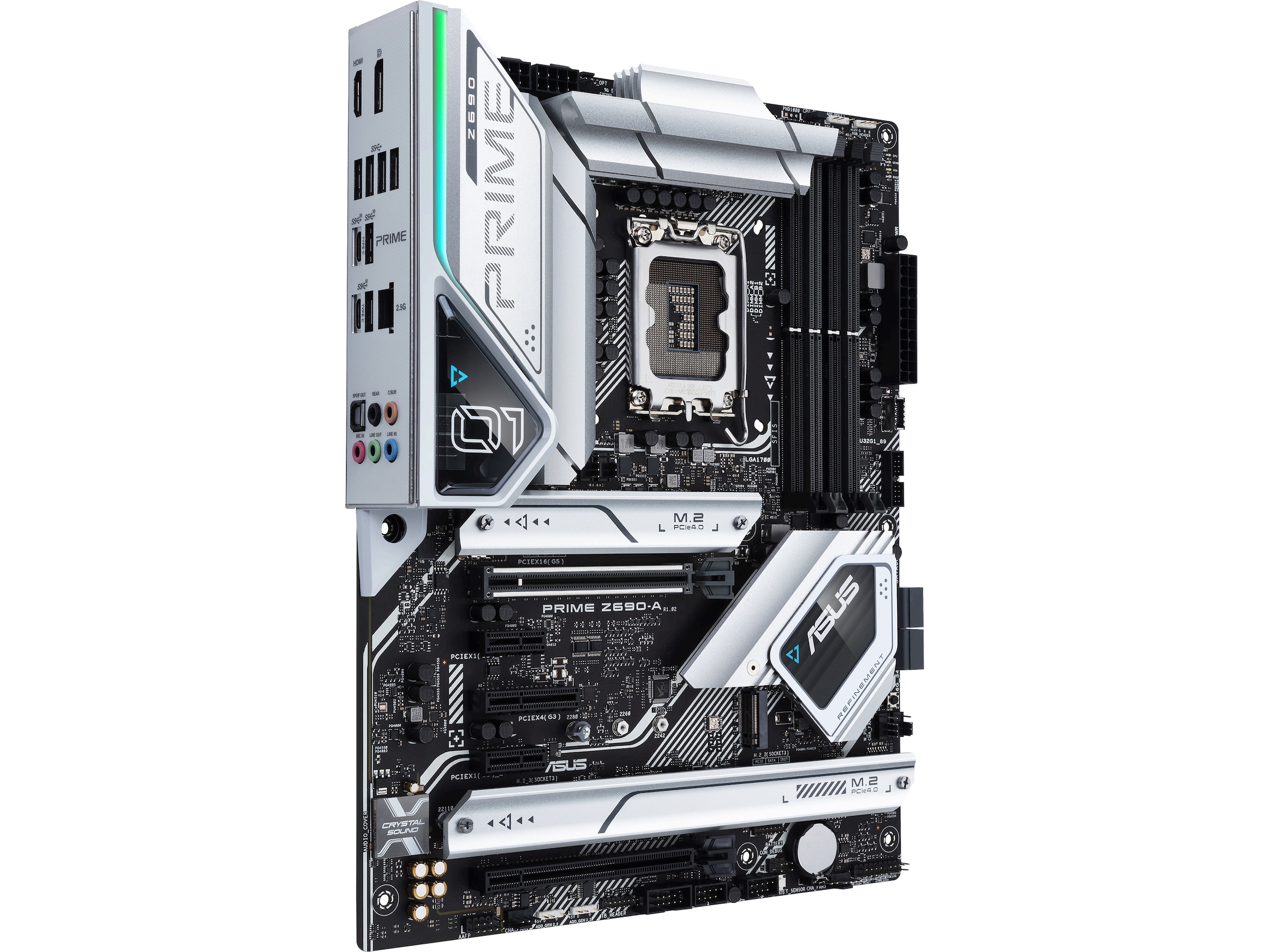

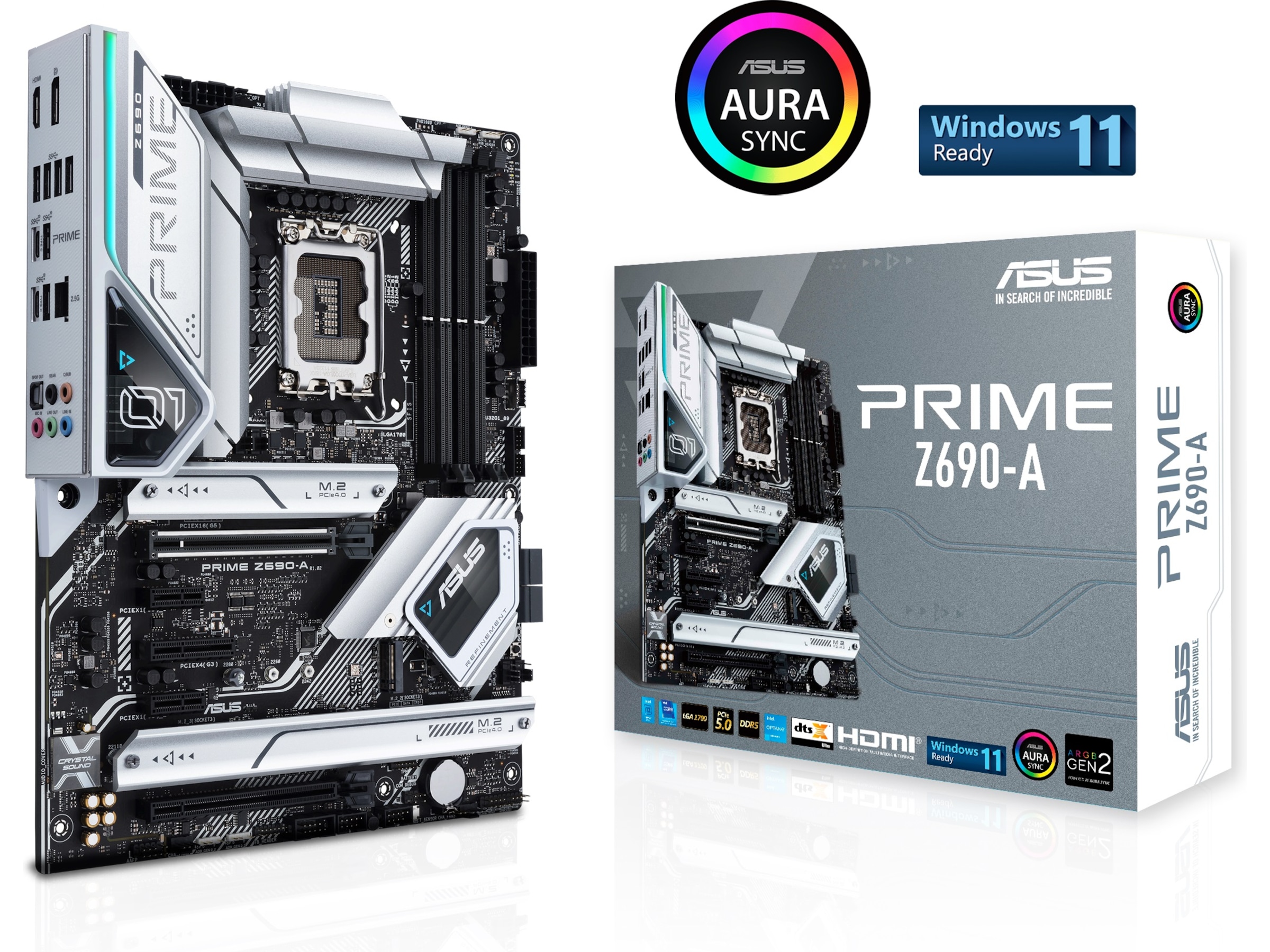

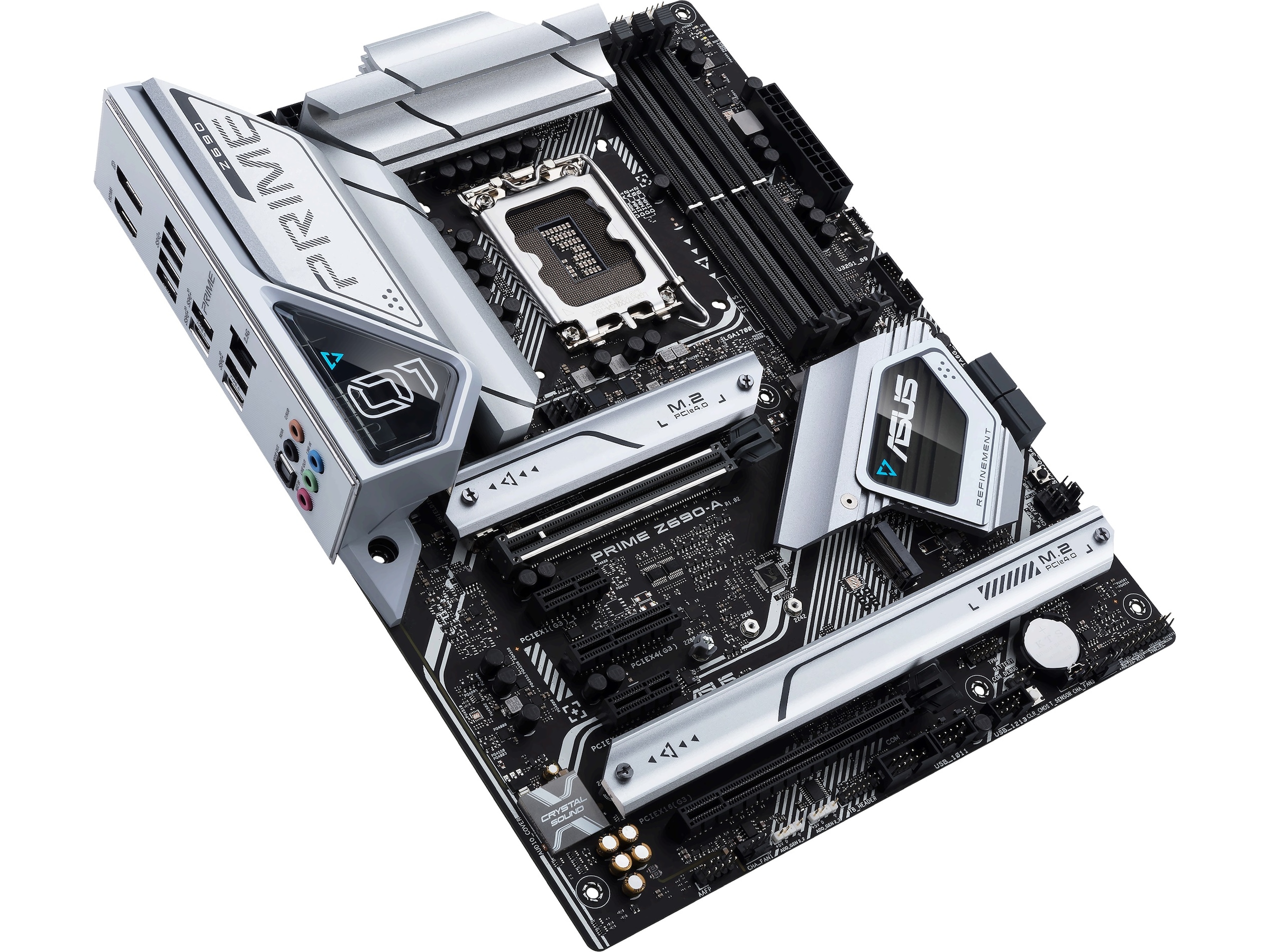

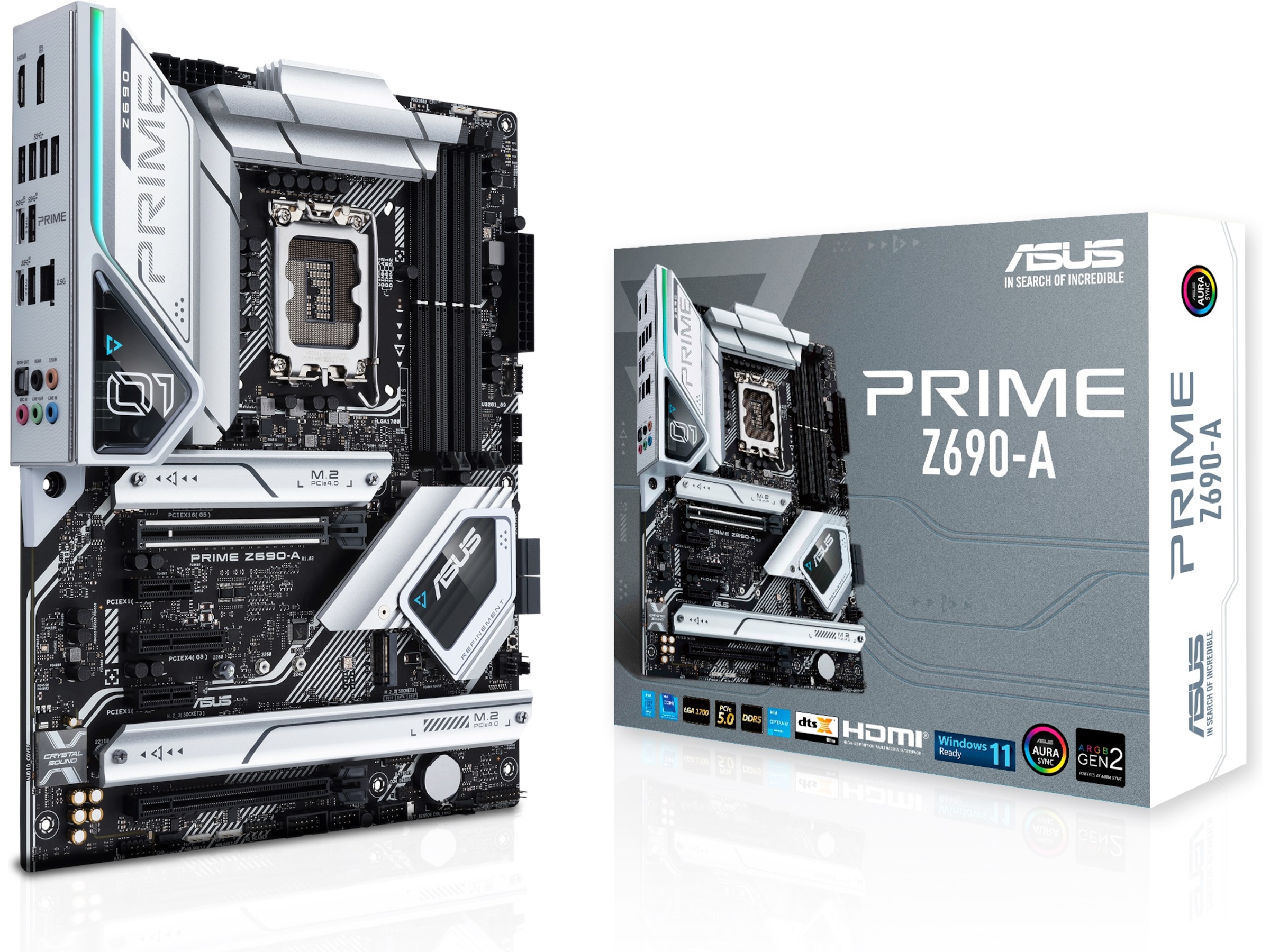

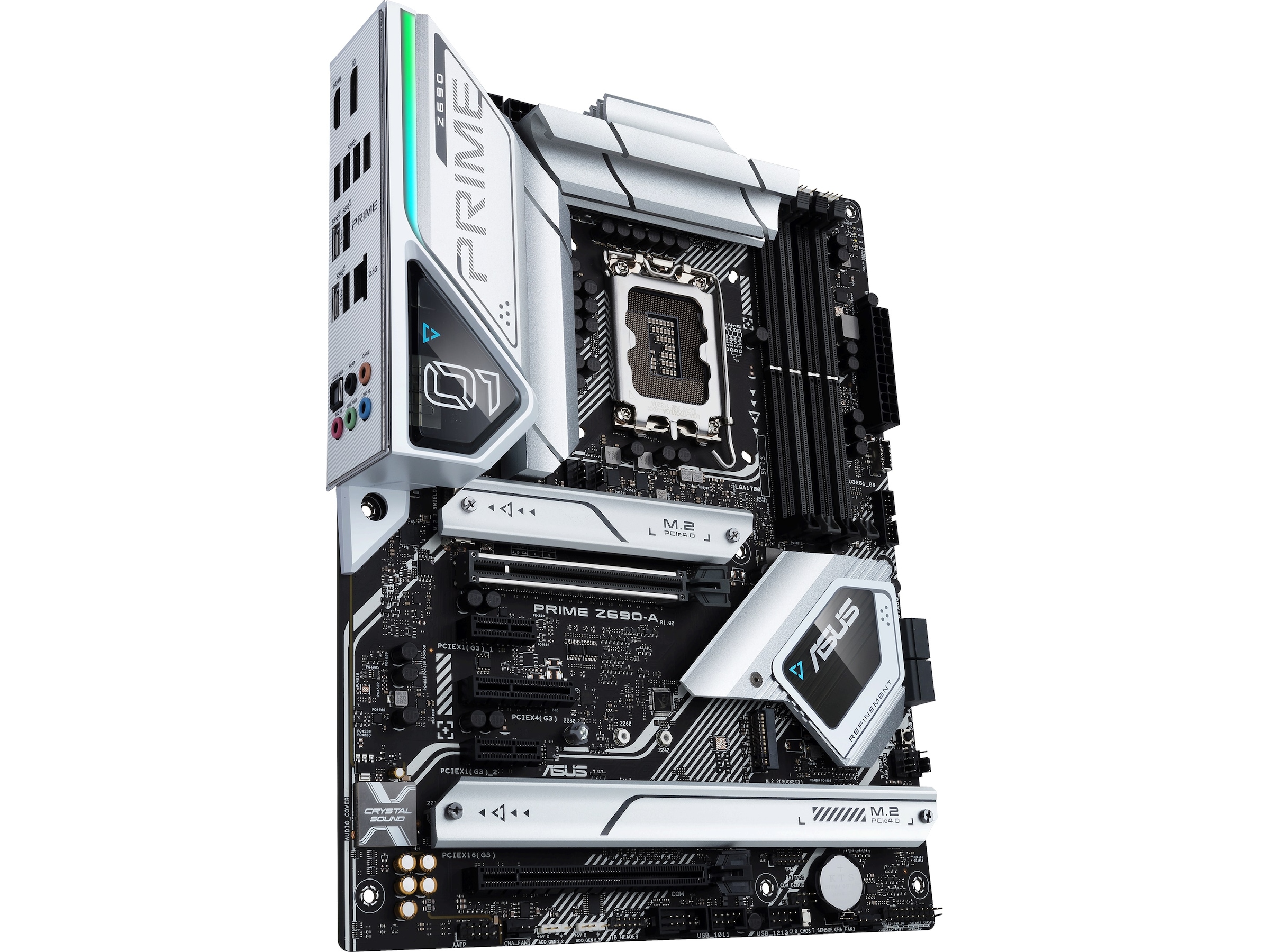

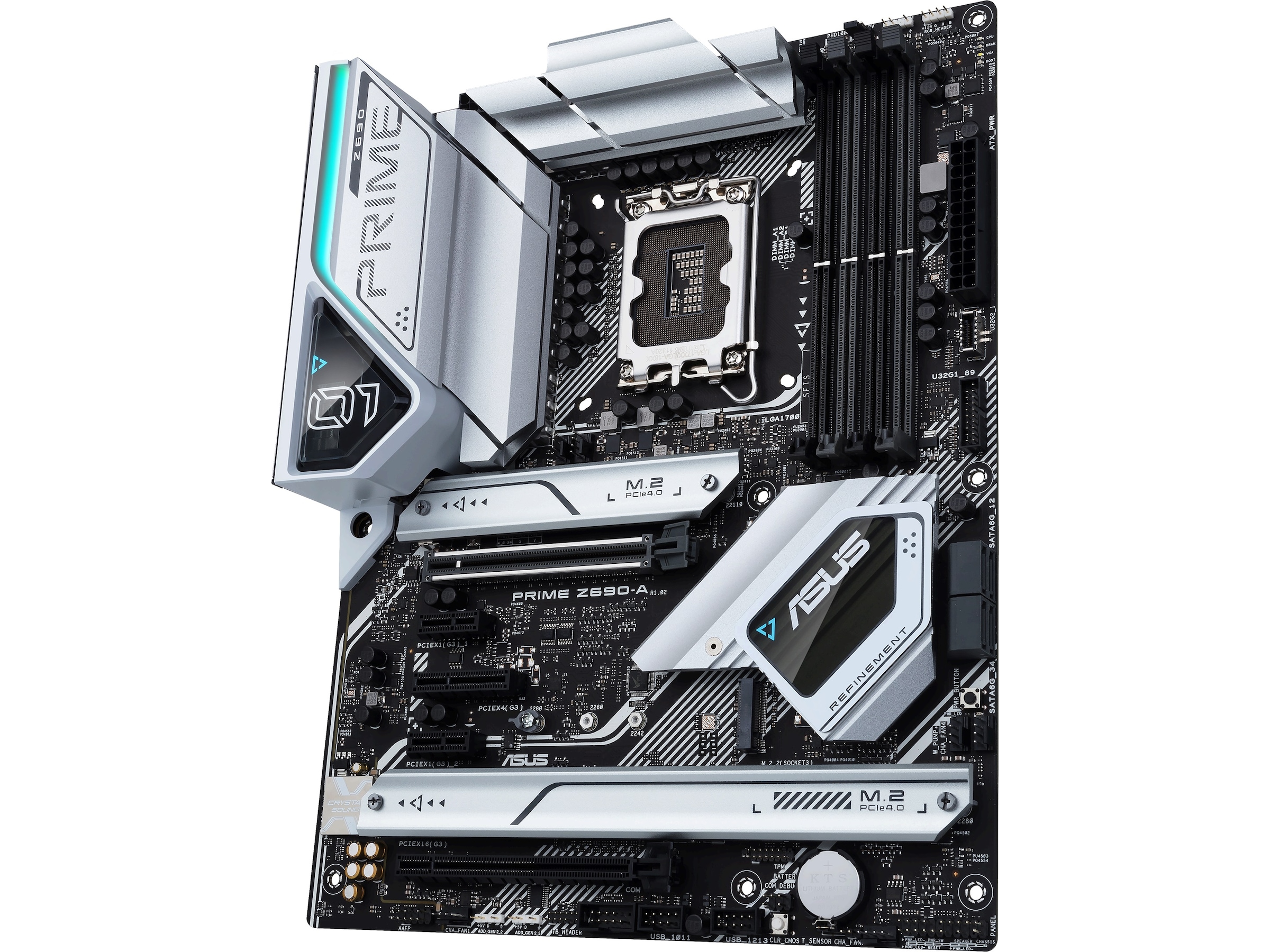

ASUS PRIME Z690-A, LGA1700 Motherboard

PRIME Z690-A
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

DDR5 Performance Enhancement
Prime Z690-A enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-A leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-A includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
• Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
• AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
• Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
• Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2
Generelt
Model PRIME Z690-A
Produktlinje ASUS
Producentens garanti (måneder) 36
EAN 4711081447320
Mainboard
Kommentarer om kompatible processorer Understøtter 12. Generation Intel Core / Pentium Gold / Celeron
Understøttet RAM-integritetskon Ikke-ECC
Model ATX
RAM Slots 4 DIMM åbninger
Understøttet RAM-teknologi DDR5 SDRAM
Processor-socket LGA1700 sokkel
Understøttet RAM (registreret eller buffered) Ikke bufferet
Chipsættype Intel Z690
RAM-hastighed understøttet 5600 MHz (O.C.), 5800 MHz (O.C.), 5200 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 5400 MHz (O.C.), 5000 MHz (O.C.)
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
Sov/ Vågn Vågn på PME, Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber Jack retasking, ESD Guards, Q-Slot, Clear CMOS Button, FlexKey-knap, Audio jack detektions teknologi, Anti-popfunktion, ASUS EZ DIY, ASUS Q-Connector, Preboot eXecution Environment (PXE), ASUS SafeSlot, ASUS TurboV EVO, LANGuard, Q-LED, ASUS ProCool, ASUS Aura Sync, CrashFree BIOS 3, ASUS Q-Design, Præmonteret I/O-skjold, ASUS DIGI+ VRM, Intel Optane Memory Ready, ASUS Enhanced DRAM Overcurrent Protection, Armoury Crate, Intel Turbo Boost Technology 2.0, ASUS Fan Xpert 4, ASUS 5X Protection III, M.2 Q-Latch, ASUS Stainless Steel Back I/O, Q-DIMM, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Max Technology 3.0, ASUS Overvoltage Protection, ASUS OptiMem II
BIOS-egenskaber UEFI BIOS, ASUS EZ Flash 3, MemTest86
Interfaces
Lagringsporte 4 x SATA-600 (RAID), 4 x M.2
RAID-egenskaber Intel Rapid Storage Technology
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire portkonfiguration (aktiv) 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1
Lagring M.2 åbning, Serial ATA-600 (RAID)
USB/FireWire USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Audio codec Realtek ALCS1220A
Type Lydkort
Audio High Definition Audio (8 kanaler)
Overensstemmelsesstandarder High Definition Audio, DTS:X Ultra
Netværk
Dataforbindelsesprotokol 2.5 Gigabit Ethernet
Netværk 2.5 Gigabit Ethernet
Kabeloplysninger
Medfølgende ledninger 2 x Seriel ATA kabel
Diverse
Overensstemmelsesstandarder DisplayPort 1.4
Produkttype Bundkort

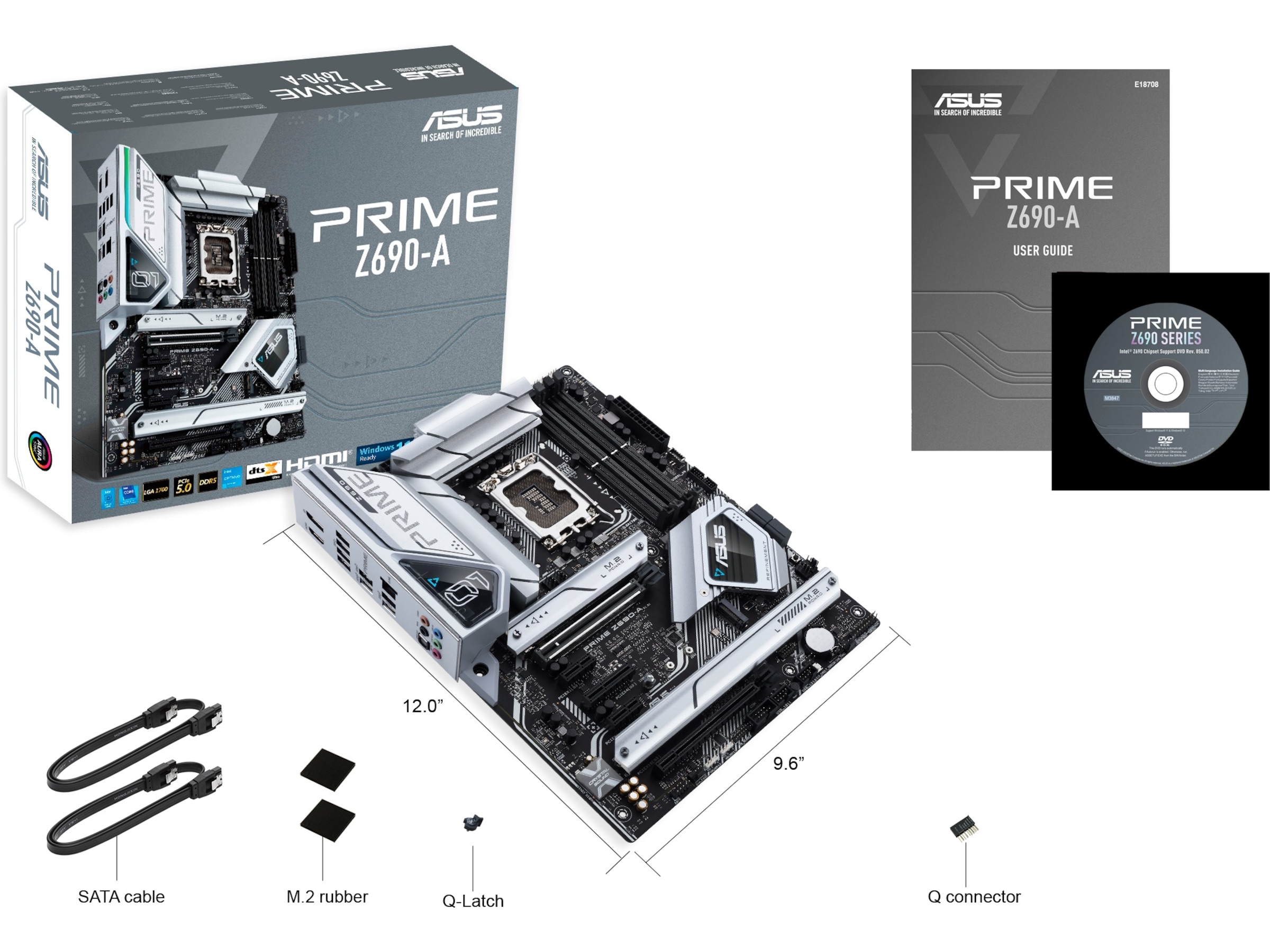

Inkluderet tilbehør M.2 Q-Latch, Q-Connector, 1 x M.2 gummipakke
RAM
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Udvidelsesåbninger
Ekspansionsåbninger 1 x PCIe 3.0 x16 (x4-modus), 1 x CPU, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x4, 4 x DIMM 288-pins, 1 x PCIe 5.0 x16
Grænseflade (lagring)
Grænseflade (lagring) PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface leveret

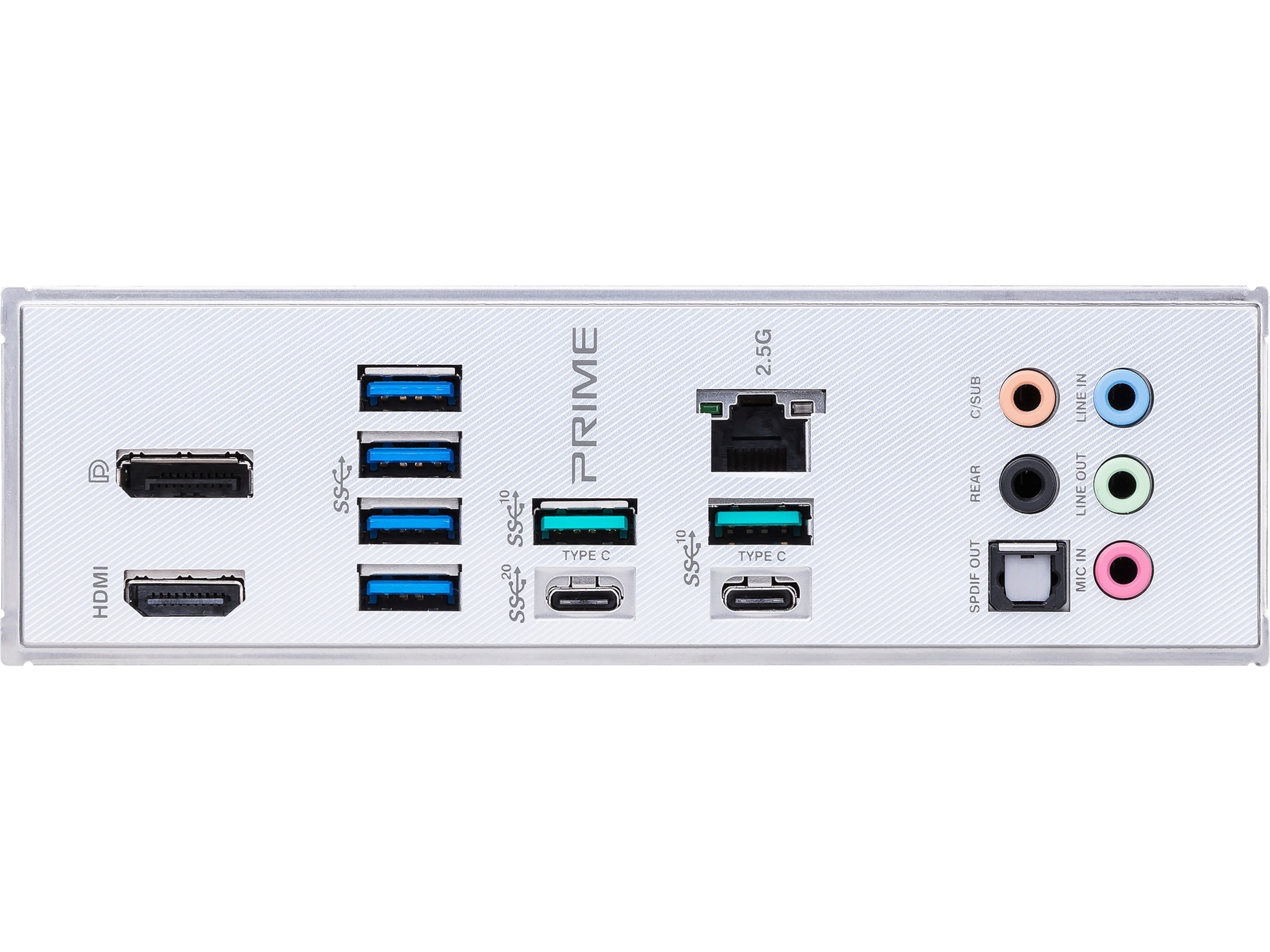

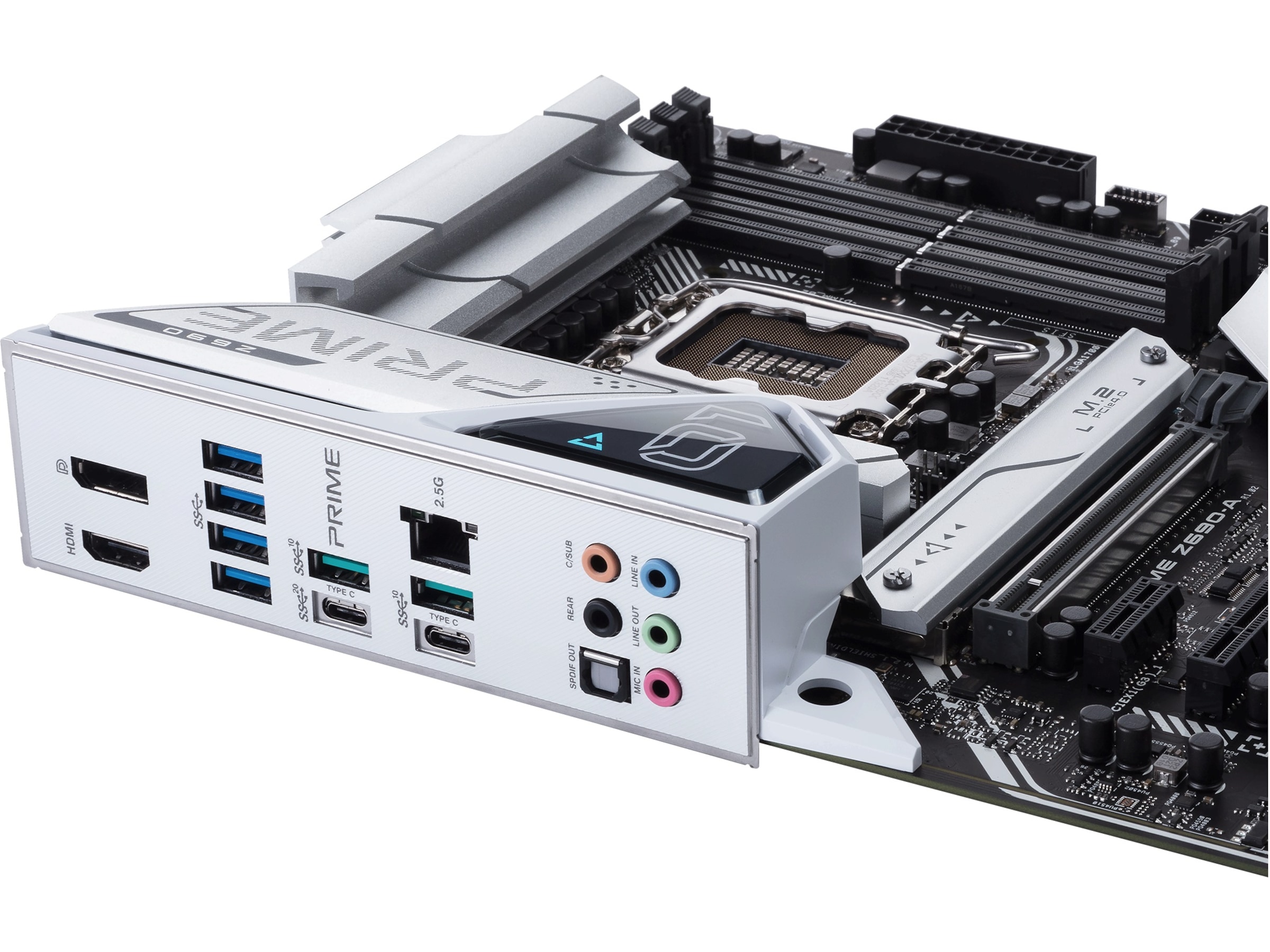

Interface 4 x USB 3.2 Gen 1, 1 x audio linje-ud (bagtil) - mini-jack, 1 x HDMI, 1 x audio linje-ind - mini-jack, 1 x DisplayPort, 1 x TOSLINK, 2 x USB 3.2 Gen 2, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x USB-C Gen2, 1 x USB-C Gen2x2, 1 x audio linje-ud - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - mini-jack
Interne interfaces
Interne interfaces 2 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 1 x seriel - intern stik, 4 x USB 2.0 - intern stik, 1 x Thunderbolt - intern stik, 1 x USB-C Gen2 - intern stik
Programmer
Software inkluderet WinRAR, ASUS AURA Creator, Norton AntiVirus (Trial), ASUS AI Suite III, ASUS Turbo App, Drivers & Utilities, ASUS CPU-Z

ASUS PRIME Z690-A Bundkort

Of ASUS
