ASUS PRIME Z690-A Bundkort

LGA 1700, ATX, DDR5, 1 x PCIe 5.0/4.0/3.0 x16, 4x m.2, 4xUSB 3.2,

Varenummer: 1198172 / Producentens varenr: PRIME Z690-A

More pictures from ASUS PRIME Z690-A Bundkort

2.273,-
Fri fragt
Ikke på lager. 4 stk. klar til levering. 1.jul.2022

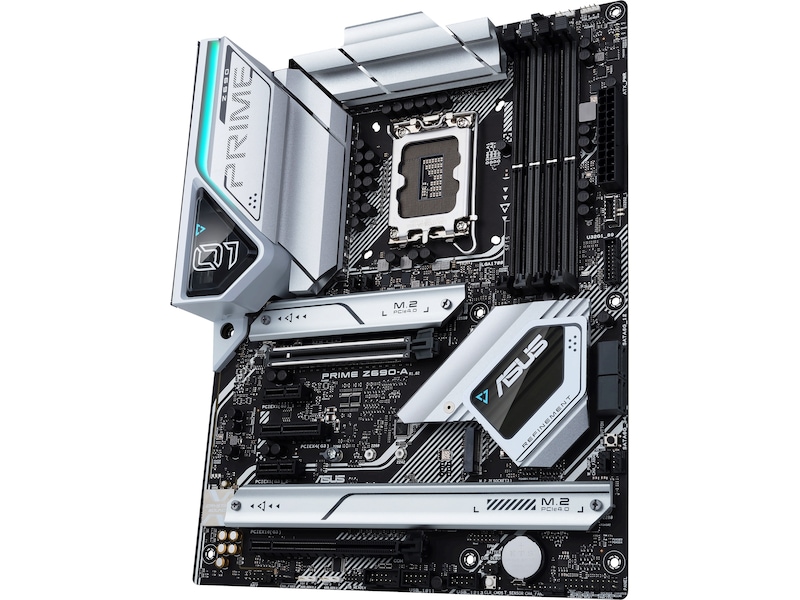

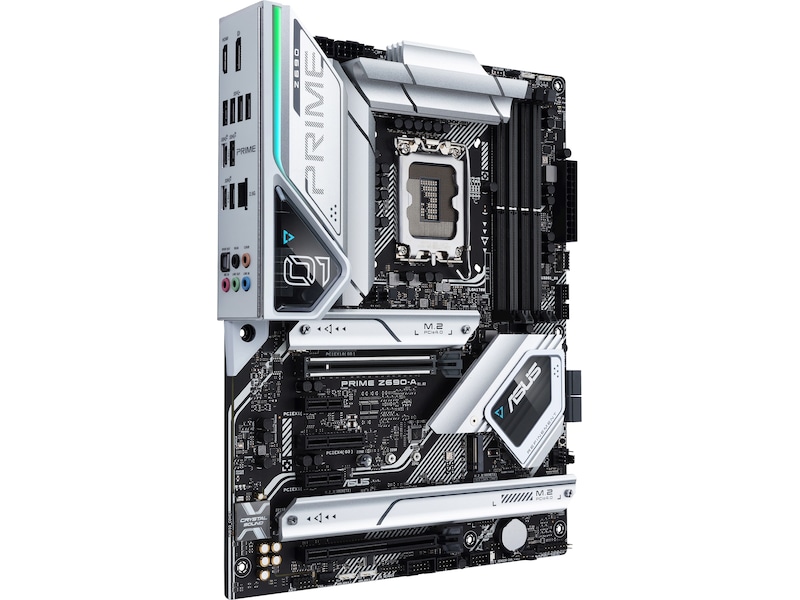

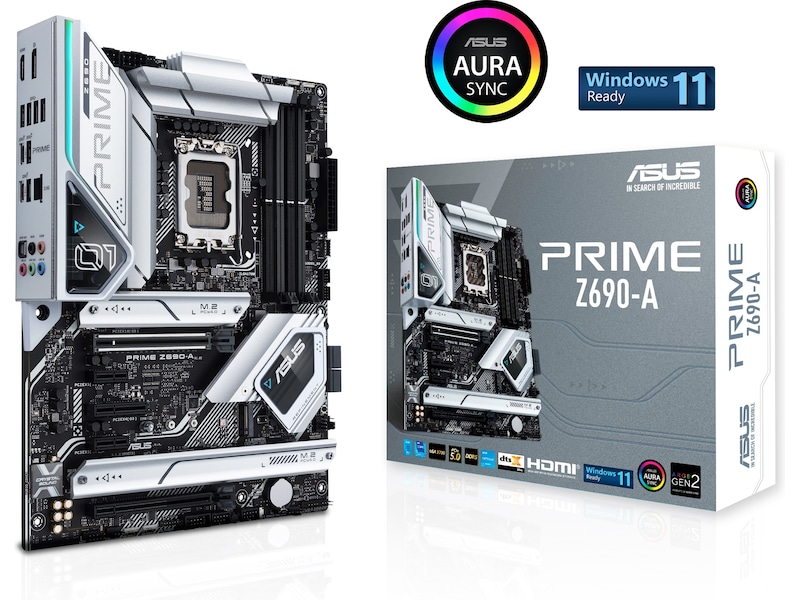

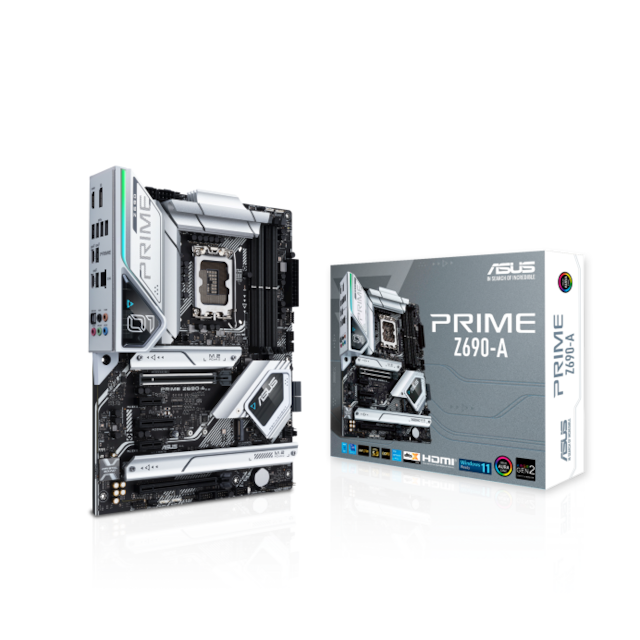

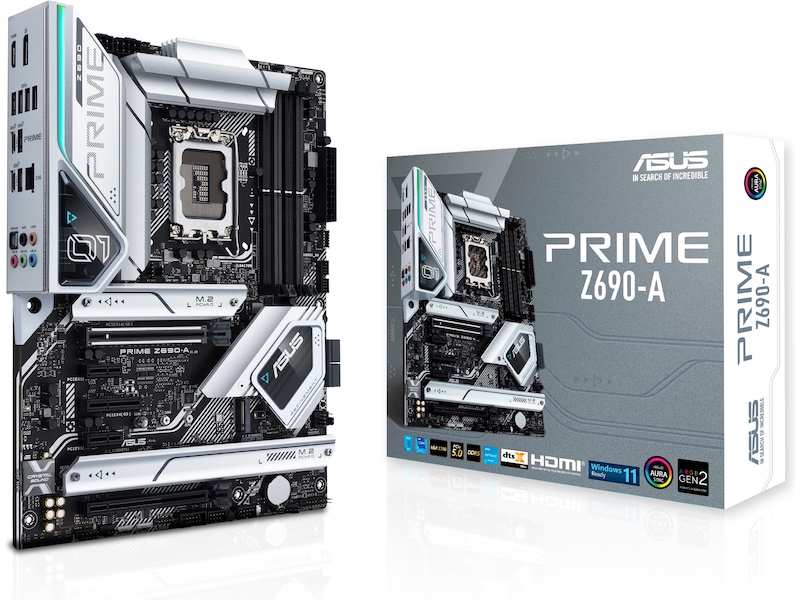

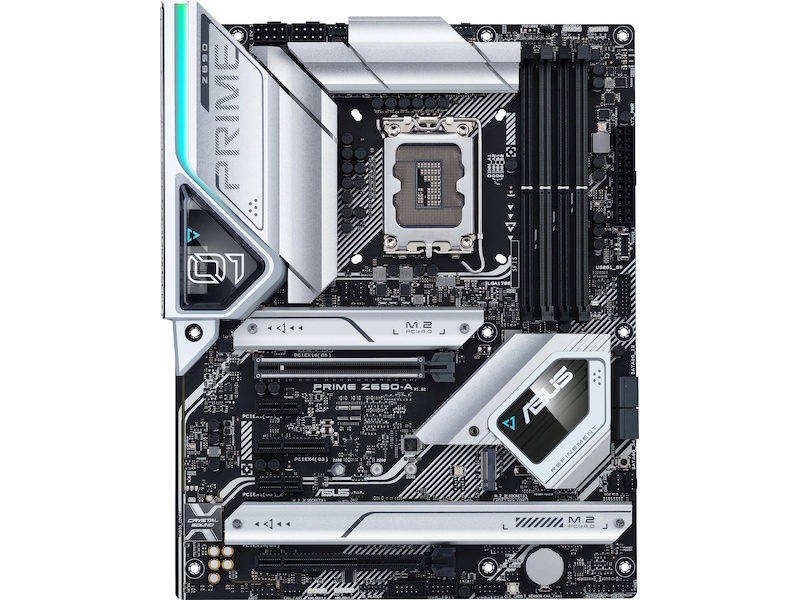

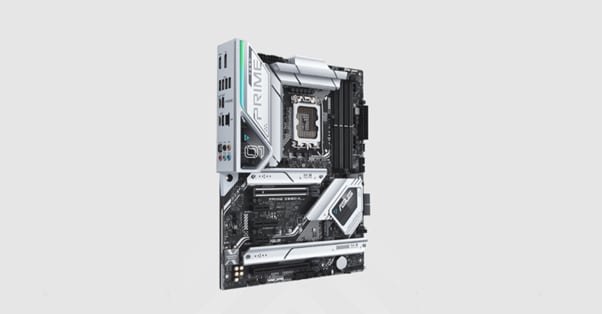

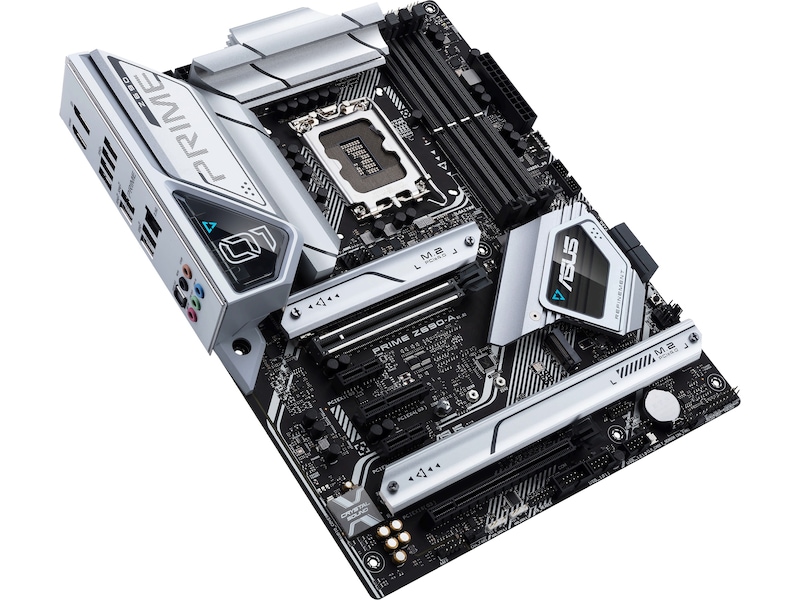

ASUS PRIME Z690-A, LGA1700 Motherboard


PRIME Z690-A
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-A provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime Z690-A offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

DDR5 Performance Enhancement
Prime Z690-A enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

  • A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
  • Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. Prime Z690-A leverages onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

For users new to memory overclocking, Prime Z690-A includes the exclusive ASUS Enhanced Memory Profile (AEMP) firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
• Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
• AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
• Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
• Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2

Generelt
Producentens garanti (måneder) 36
Produkttype Bundkort - ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
EAN 4711081447320
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALCS1220A
Overensstemmelsesstandarder High Definition Audio, DTS:X Ultra
LAN
Netværks interfaces 2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (x4-modus)
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaber Intel Rapid Storage Technology

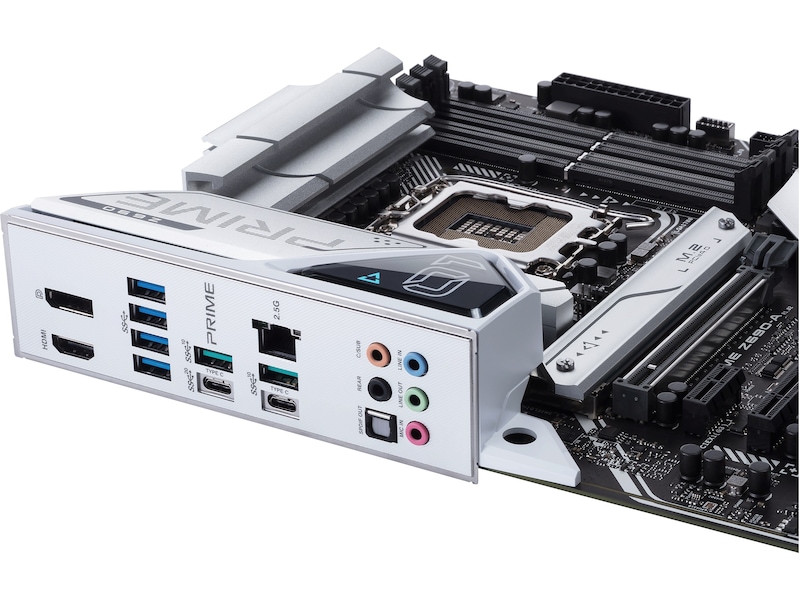

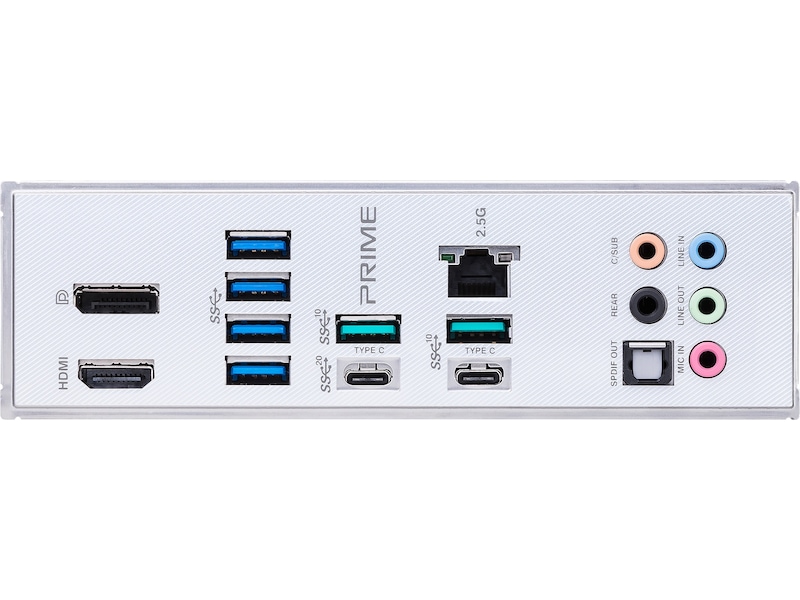

Interface 1 x DisplayPort
1 x HDMI
1 x USB-C Gen2x2
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x USB-C Gen2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
1 x audio linje-ind - mini-jack
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
1 x seriel - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, anti-popfunktion, LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS ProCool, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, FlexKey-knap, M.2 Q-Latch
Diverse

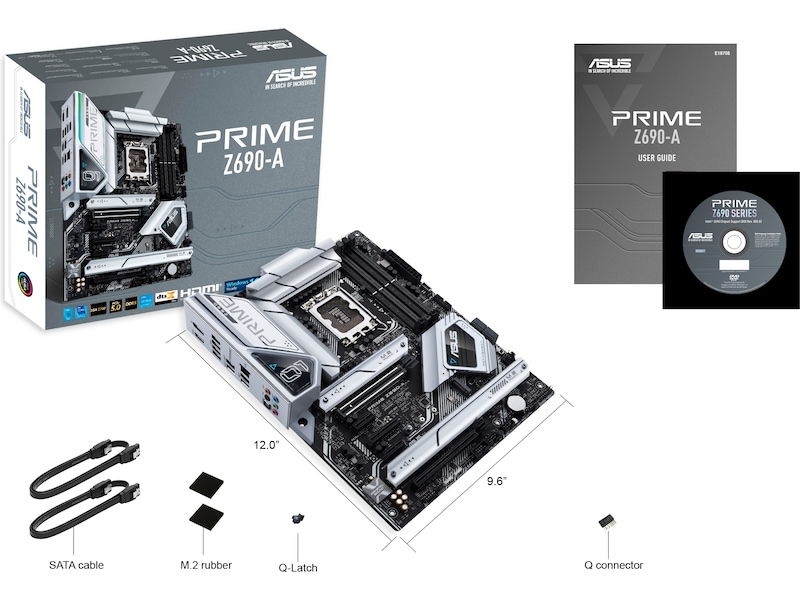

Udstyr inkluderet Q-Connector, 1 x M.2 gummipakke, M.2 Q-Latch
Medfølgende ledninger 2 x Seriel ATA kabel
Med software Drivers & Utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator
Overensstemmelsesstandarder DisplayPort 1.4
Bredde 30.5 cm
Dybde 24.4 cm
