LGA 1700, EATX, DDR5, 2 x PCIe 5.0 x16, 5x m.2, 9xUSB 3.2, WIFI 6E, Bluetooth

Varenummer: 1198175 / Producentens varenr: ROG MAXIMUS Z690 EXTREME

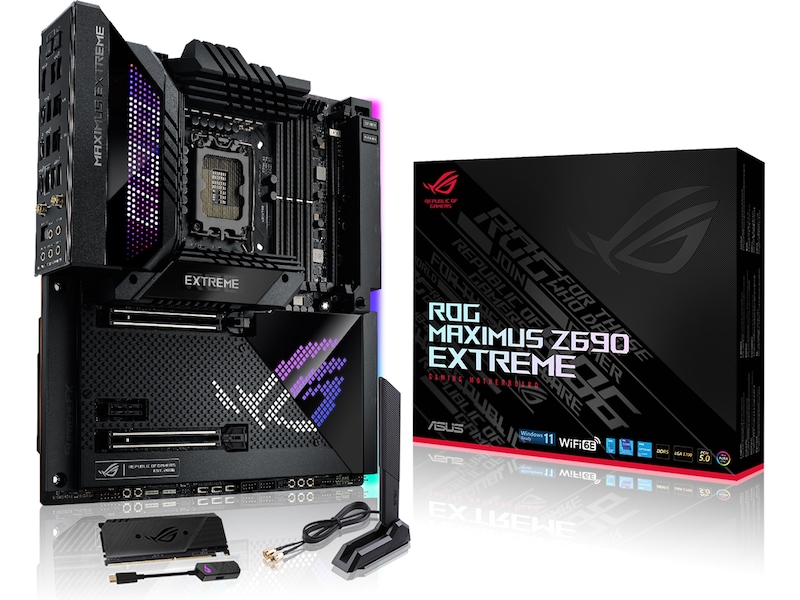

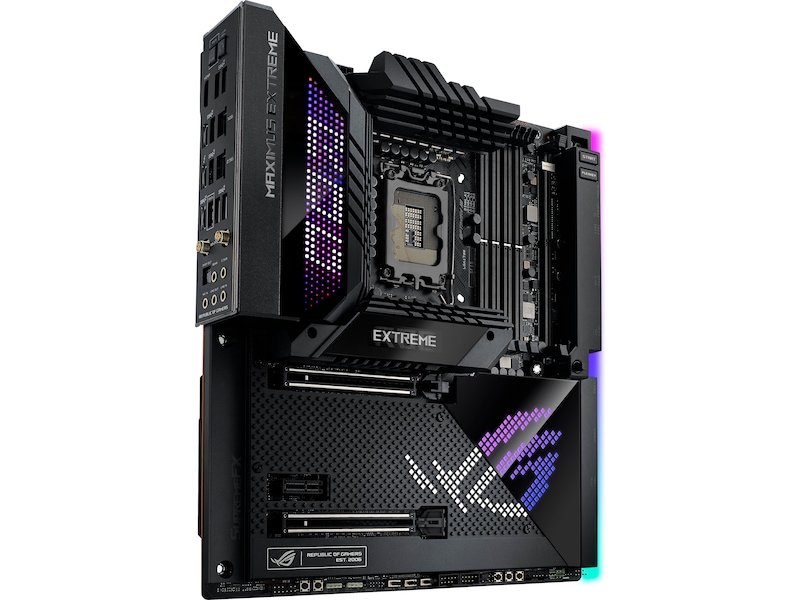

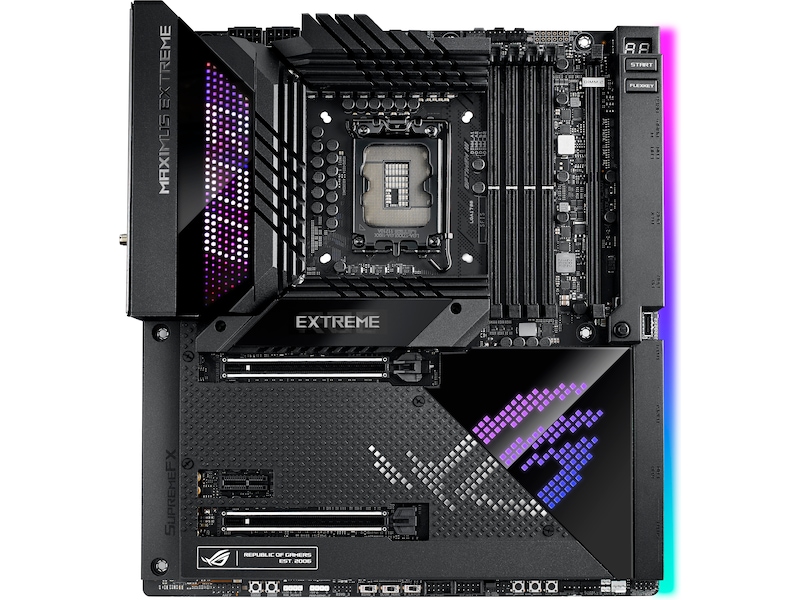

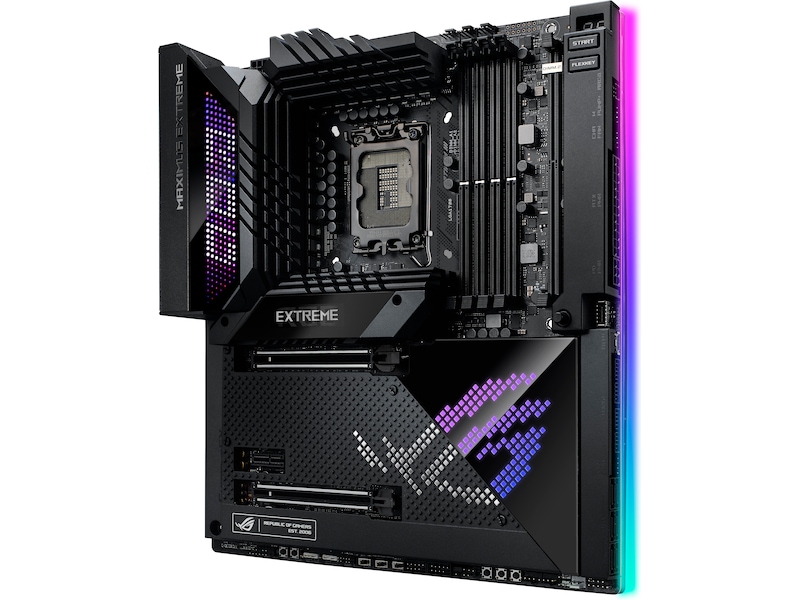

More pictures from ASUS ROG MAXIMUS Z690 EXTREME Bundkort

Fri fragt
5 stk. på lager
Recommended Toms Hardware Editors Choice

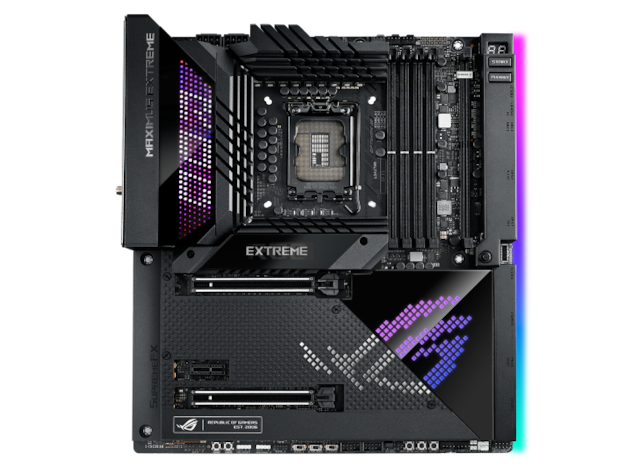

ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 motherboard

ROG Maximus Z690Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.

INTELLIGENT MOTHERBOARD - Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking, and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

PERFORMANCE - ROG Maximus Z690 Extreme is the kind of motherboard that uses stock clock speeds merely as a reference point. With its piles of teamed power stages working alongside high-grade capacitors and chokes, you get performance that can take high-powered processors like a 12th Gen Intel Alder Lake CPU and leave all competition in the dust.

COOLING - ROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.

CONNECTIVITY - ROG Maximus Z690 Extreme features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe® 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.

OPTIMIZATION - ROG Maximus Z690 Extreme features best-in-class automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.

PERSONALIZATION - In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.

• Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
• High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
• Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
• Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
• Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Producentens garanti (måneder) 36
Produkttype Bundkort - udvidet ATX
Chipsættype Intel Z690
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
EAN 4711081462743
Understøttet RAM
Maks. størrelse 128 GB
Teknologi DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Type HD Audio (8-kanaler)
Audio codec SupremeFX (ALC4082)
Overensstemmelsesstandarder High Definition Audio, DTS Sound Unbound
Netværks interfaces 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
4 x DIMM 288-pins
2 x PCIe 5.0 x16 (dual x8 mode; single kort: x16 mode)
1 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-egenskaber Intel Rapid Storage Technology
Interface 1 x Thunderbolt 4/USB4
1 x HDMI
7 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x audio linje-ind - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x LAN (10Gigabit Ethernet)
1 x USB-C Gen2x2
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces 4 x USB 2.0 - intern stik
1 x USB-C Gen 2x2 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x Thunderbolt 4 - intern stik
1 x audio - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 6-pins ATX12V stikforbindelse, 2 x 8-pins ATX12V stikforbindelser
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber BIOS FlashBack, UEFI BIOS, Dual BIOS, ASUS EZ Flash 3, MemTest86
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 kølelegeme, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ASUS OptiMem III, DIY Friendly Design, FlexKey-knap, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, ESS SABRE9018Q2C DAC/AMP, ReTry-knap, Start-knap, PCIe Slot Q-Release, CPU Socket-håndtagsbeskytter, Quick Charge 4+, ASUS 2" LiveDash OLED, Sikker boot-knap, AniMe Matrix LED display, 24+1 strømstadier
Udstyr inkluderet 1 x M.2 skrue, ROG-blæsermærkater, RGB (RGBW) LED strip-forlængerkabel, ROG VGA holder, ROG-takkekort, ROG DIMM.2 ekspansionskort med kølelegeme, skruetrækker, termisk pude til M.2 SSD, Q-Connector, ROG-nøglekæde, ASUS Wi-Fi bevægende antenne, 1 til 3 ARGB LED-opdelerkabel, ROG Fan Controller, ROG CLAVIS DAC, 1 til 2 ARGB LED-opdelerkabel, 2 x 1 til 4 blæseropdelerkabel, 3 i 1 termistor-kabelpakke, ROG True Voltician
Medfølgende ledninger 7 x Seriel ATA kabel
Med software Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 års licens), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 års 'licens), Sonic Suite Companion, MyAsus, ROG True Voltician
Bredde 30.5 cm
Dybde 27.7 cm
