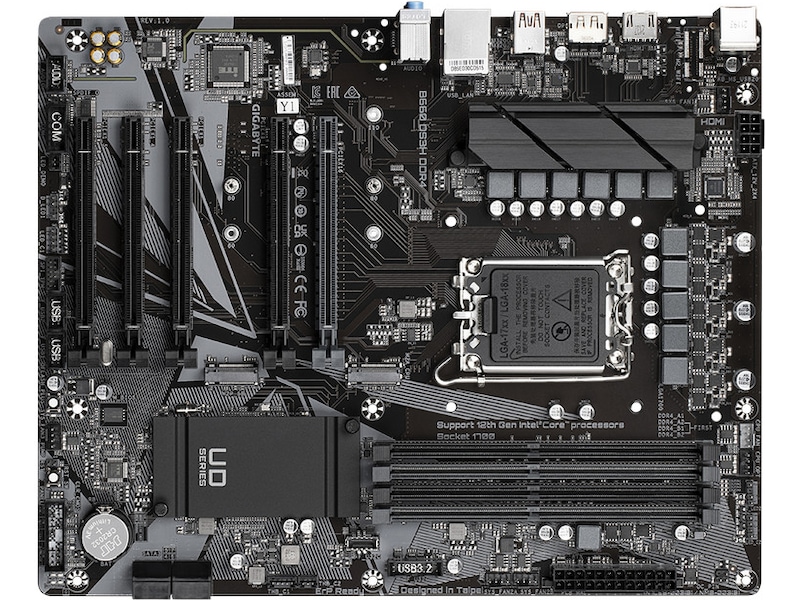

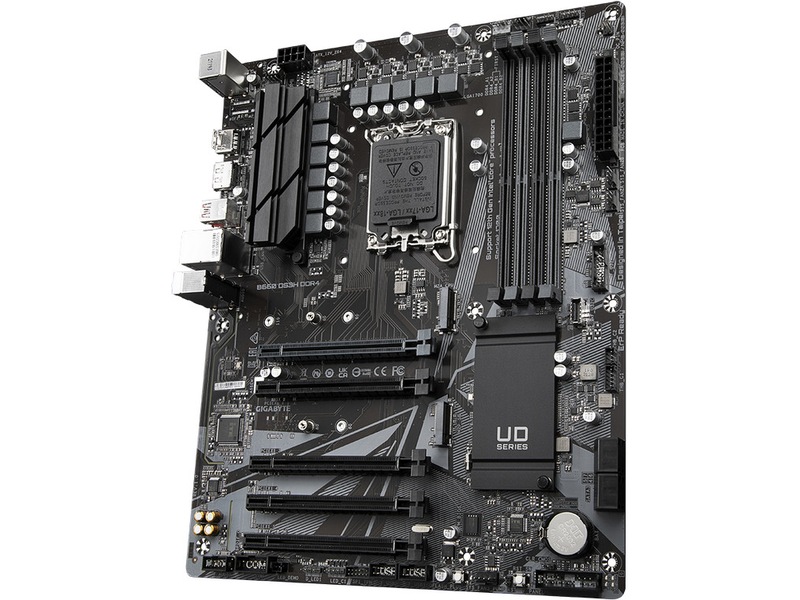

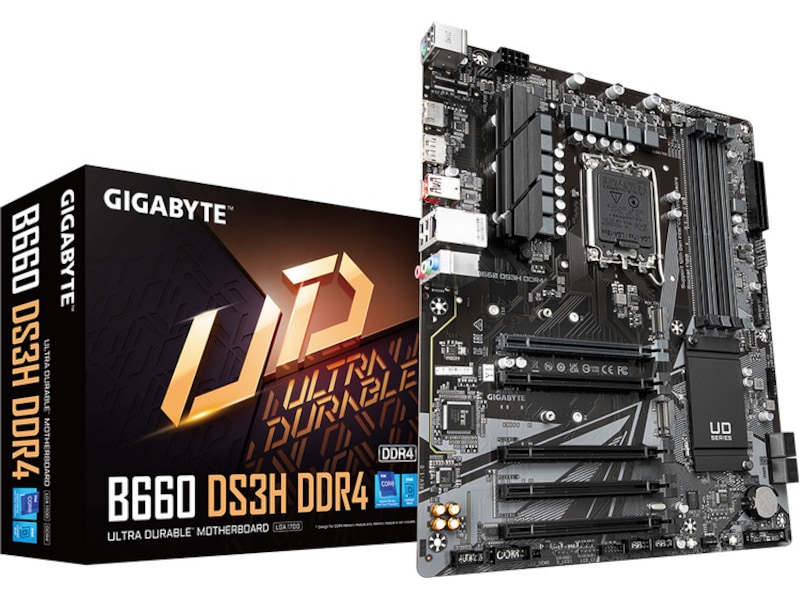

| Produktlinje | Gigabyte |
|---|---|
| Model | B660 DS3H DDR4 |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331834999 |
| Understøttet RAM-teknologi | DDR4 SDRAM |
|---|---|
| Model | ATX |
| Chipsættype | Intel B660 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Processor-socket | LGA1700 sokkel |
| Kommentarer om kompatible processorer | Understøtter 12. Generation Intel Core / Pentium Gold / Celeron |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 2133 MHz, 4933 MHz (O.C.), 3800 MHz (O.C.), 3333 MHz (O.C.), 4133 MHz (O.C.), 4000 MHz (O.C.), 4300 MHz (O.C.), 3466 MHz (O.C.), 2933 MHz, 4800 MHz (O.C.), 4500 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 2666 MHz, 2400 MHz, 5000 MHz (O.C.), 4400 MHz (O.C.), 5133 MHz (O.C.), 3300 MHz (O.C.), 3600 MHz (O.C.), 3000 MHz, 4600 MHz (O.C.), 3866 MHz (O.C.), 3666 MHz (O.C.), 3400 MHz (O.C.), 3733 MHz (O.C.), 4700 MHz (O.C.) |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | DMI 2.7 support, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support, WfM 2.0 understøttet |
| Hardwareovervågning | Systemspænding, CPU kernetemperatur, Blæserfejlvarsel, CPU kerne-spænding, Takometer til chassis-blæser, Chassis temperatur, Takometer til CPU-blæser, Beskyttelse mod CPU overophedning |
| Hardware egenskaber | 8+2+1 Phase Power Design, HDCP kompatibel, On/Off Charge, Intel Optane Memory Ready, Q-Flash, Game Boost, Solid Pin Power Connectors, GIGABYTE Smart Fan 6, Ultra Durable, Audio Noise Guard, Q-Flash Plus, RGB FUSION 2.0 |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 2.0 |
| USB/FireWire | USB-C Gen1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Netværk | Gigabit Ethernet |
|---|---|
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | Plug and Play, HDCP 2.3, DisplayPort 1.2 |
| Egenskaber | Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 4 x PCIe 3.0 x16 (x1 modus), 4 x DIMM 288-pins, 1 x PCIe 4.0 x16, 1 x CPU |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 2 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

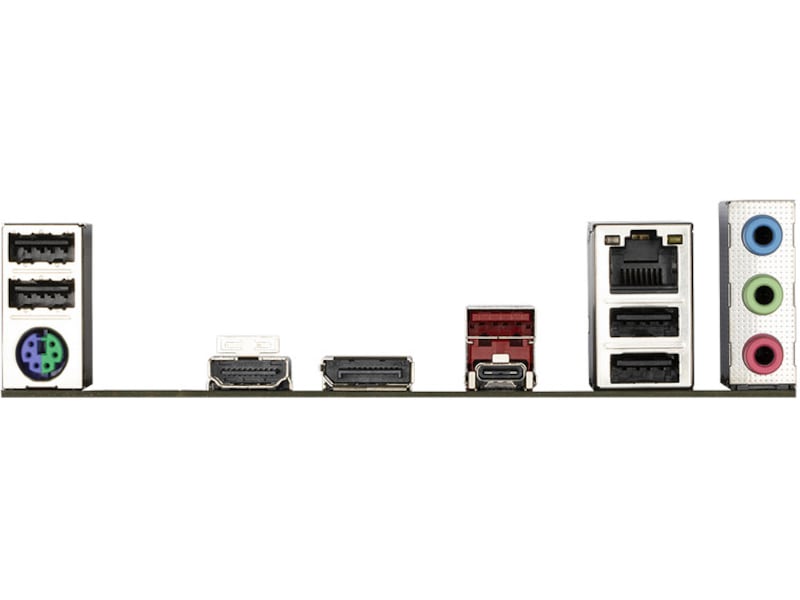

| Interface | 1 x audio linje-ind - mini-jack, 4 x USB 2.0, 1 x mikrofon - mini-jack, 1 x HDMI, 1 x USB 3.2 Gen 2, 1 x PS/2-tastatur/mus, 1 x DisplayPort, 1 x audio linje-ud - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x USB-C Gen2 |
|---|
| Interne interfaces | 1 x USB-C Gen 1 - intern stik, 1 x seriel - intern stik, 4 x USB 2.0 - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 1 x Thunderbolt - intern stik |
|---|
| Software inkluderet | GIGABYTE Smart Backup, EasyTune, Realtek Gaming LAN Bandwidth Control, GIGABYTE Fast Boot, @BIOS, Norton Internet Security, GIGABYTE App Center, Xpress Install |
|---|
