Denne vare findes ikke længere i vores sortiment. Brug søgefunktionen øverst på siden.
Varenummer: 1206892 / Producentens varenr: 4710483936517

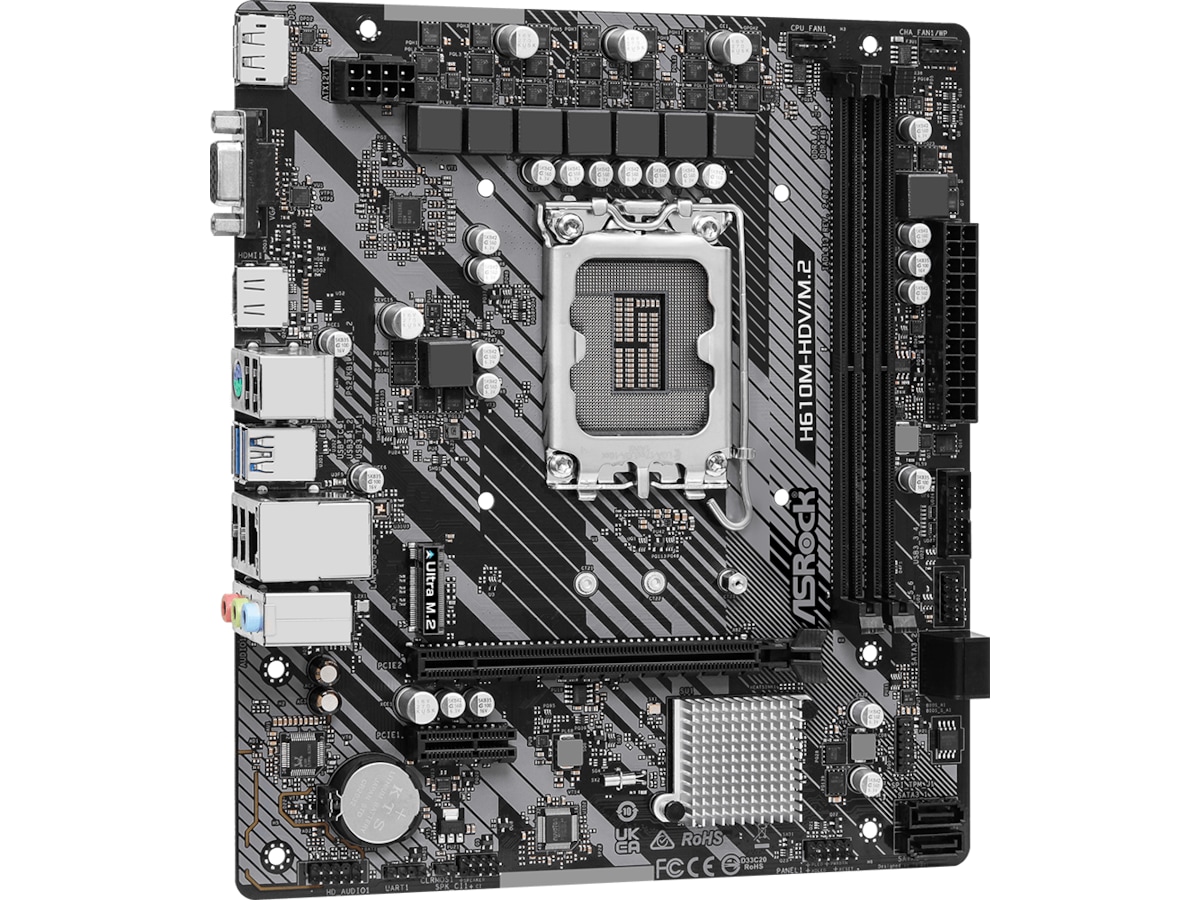

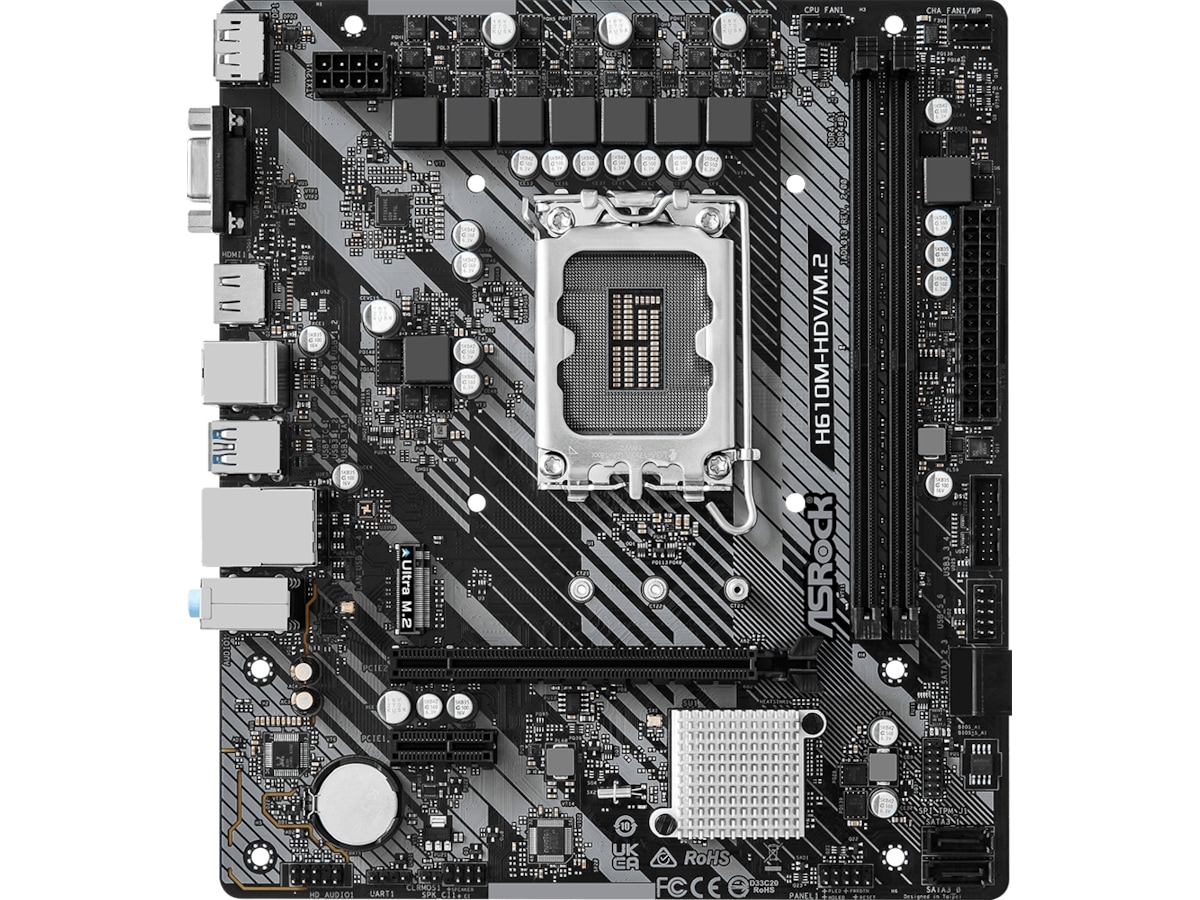

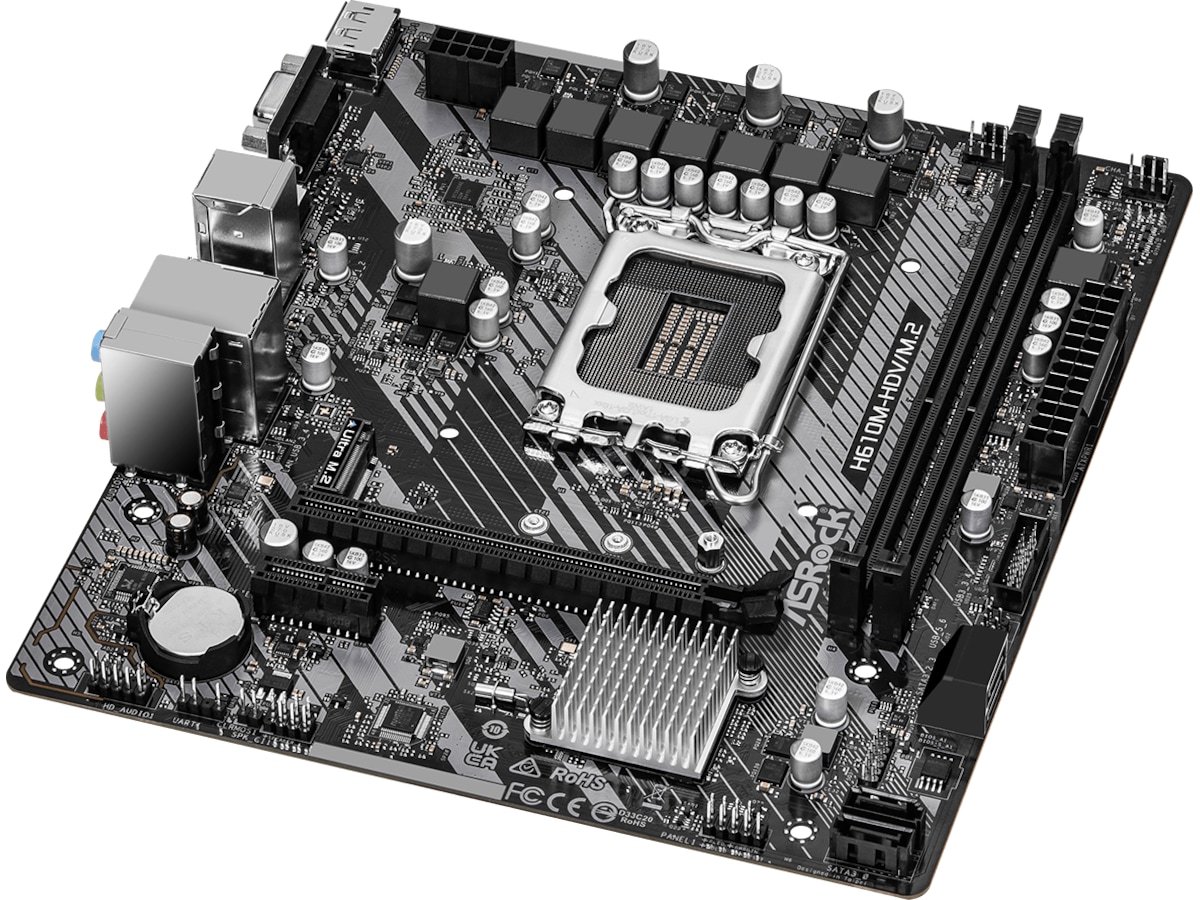

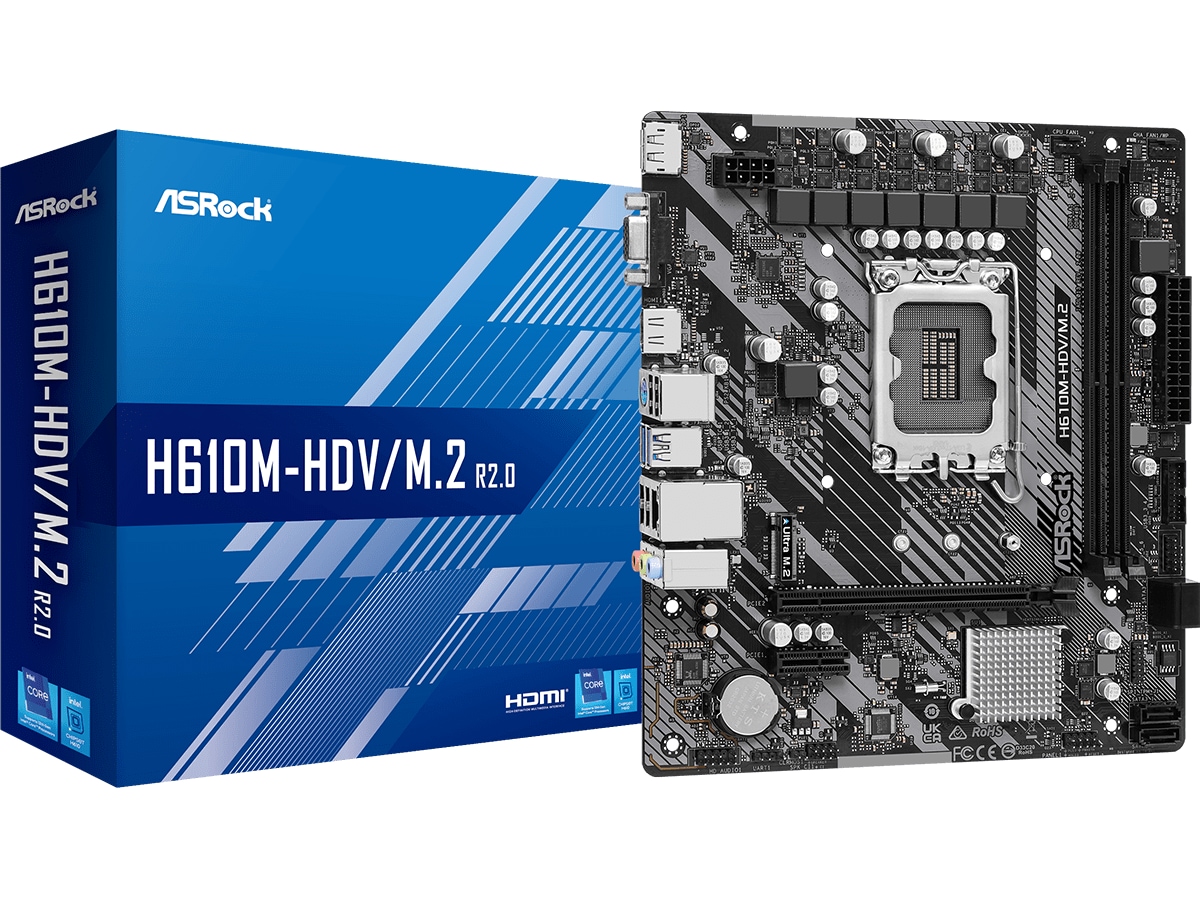

ASRock H610M-HDV/M.2 R2.0 Bundkort

More pictures from

ASRock LGA1700 H610M-HDV/M.2 Hovedkort

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Super Alloy Motherboard

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Generelt
Model H610M-HDV/M.2
Produktlinje ASRock
Producentens garanti (måneder) 24
EAN 4710483939860
Mainboard
Chipsættype Intel H610
Understøttet RAM-teknologi DDR4 SDRAM
Processor-socket LGA1700 sokkel
Kommentarer om kompatible processorer Understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron
Model Micro ATX
RAM-hastighed understøttet 3200 MHz
RAM Slots 2 DIMM slots
Understøttet RAM (registreret eller buffered) Ikke bufferet
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Understøttet RAM-integritetskon ECC (drift i ikke-ECC tilstand), Ikke-ECC
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardwareovervågning Blæserhastighedsdetektion, Blæserkontrol, Systemspænding, Takometer til CPU-blæser, Detektion af åben etui
BIOS-egenskaber ACPI 6,0 support, Flersproget BIOS, SMBIOS 2.7 support, UEFI BIOS
Hardware egenskaber Intel Turbo Boost Max Technology 3.0, ASRock APP Shop, ESD Protection, ASRock Live Update, ASRock Super Alloy, ASRock Instant Flash, 6+1+1 Phase Power Design, Premium Power Choke, ASRock My Favorites in UEFI, Preboot eXecution Environment (PXE), Sapphire Black PCB, ASRock Full Spike Protection, ASRock Full HD UEFI, Digi Power Design, Intel Hybrid Technology, High Density Glass Fabric PCB, ASRock EZ Mode, Energy Efficient Ethernet 802.3az
Interfaces
USB/FireWire USB 3.2 Gen 1
USB / FireWire portkonfiguration (samlekasser) 2 x USB 3.1 Gen 1 + 2 x USB 2.0
USB / FireWire portkonfiguration (aktiv) 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagringsporte 4 x SATA-600, 1 x Ultra M.2
Lagring Ultra M.2 socket, Serial ATA-600
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Overensstemmelsesstandarder High Definition Audio
Audio High Definition Audio (8 kanaler)
Type Lydkort
Audio codec Realtek ALC897
Netværk
Netværk Gigabit Ethernet
Netværk controller Realtek RTL8111HN
Dataforbindelsesprotokol Ethernet, Gigabit Ethernet, Fast Ethernet
Kabeloplysninger
Medfølgende ledninger 2 x Seriel ATA kabel
Diverse
Produkttype Bundkort
Overensstemmelsesstandarder FCC, EuP Ready, ErP Ready
Inkluderet tilbehør IO-skjold, 1 x M.2 skrue
RAM
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0
Udvidelsesåbninger
Ekspansionsåbninger 1 x PCIe 4.0 x16, 2 x DIMM 288-pins, 1 x Ultra M.2 (2242/2260/2280 M.2 Key M åbning), 1 x PCIe 3.0 x1, 1 x CPU
Grænseflade (lagring)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, PCIe 3.0 -stikforbindelser: 1 x Ultra M.2
Interface leveret

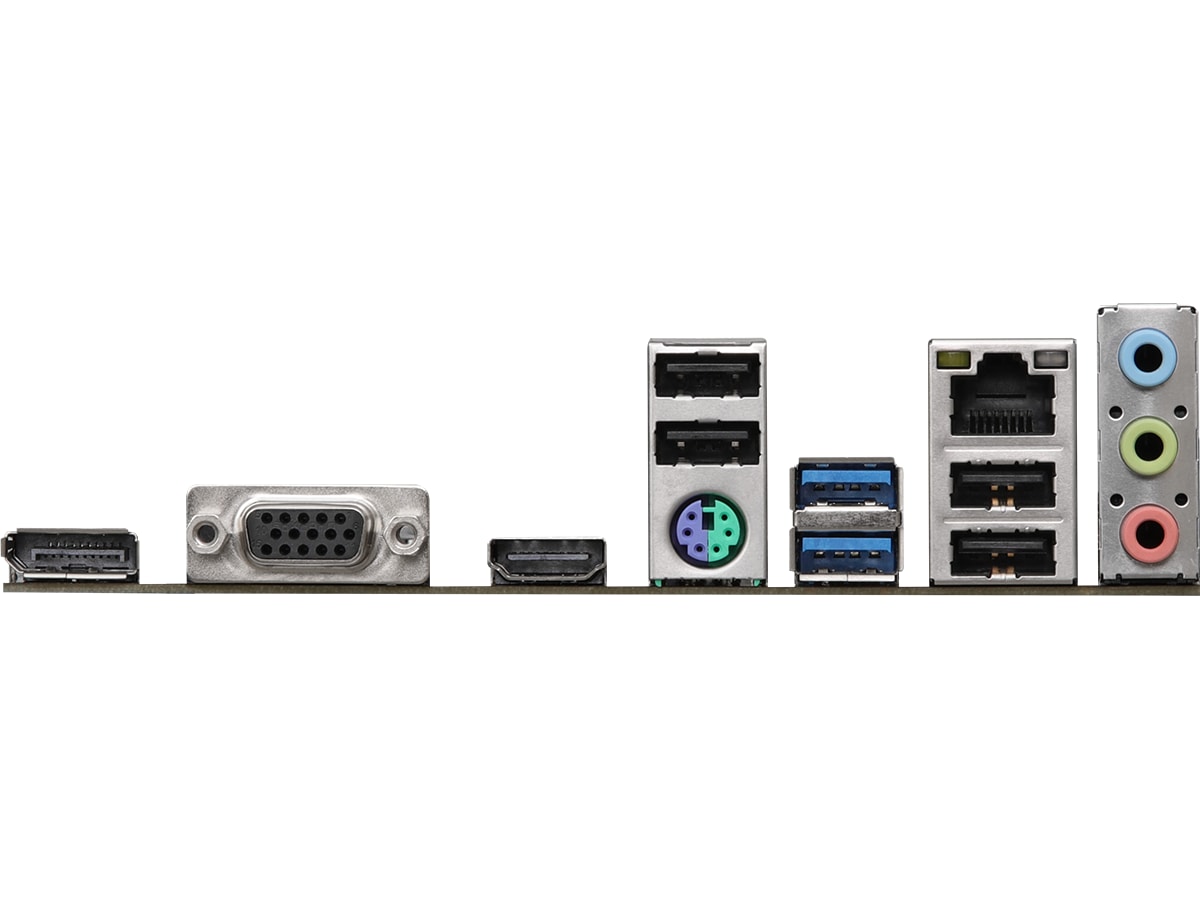

Interface 1 x HDMI, 1 x PS/2-tastatur/mus, 4 x USB 2.0, 1 x audio linje-ud - mini-jack, 1 x VGA, 1 x audio linje-ind - mini-jack, 1 x mikrofon - mini-jack, 1 x DisplayPort, 1 x LAN (Gigabit Ethernet), 2 x USB 3.2 Gen 1
Interne interfaces
Interne interfaces 1 x SPI - intern stik, 2 x USB 2.0 - intern stik, 1 x audio - intern stik, 2 x USB 3.2 Gen 1 - intern stik
Programmer
Software inkluderet ASRock XFast LAN, Antivirus (prøveversion), Drivers & Utilities, ASRock A-Tuning
