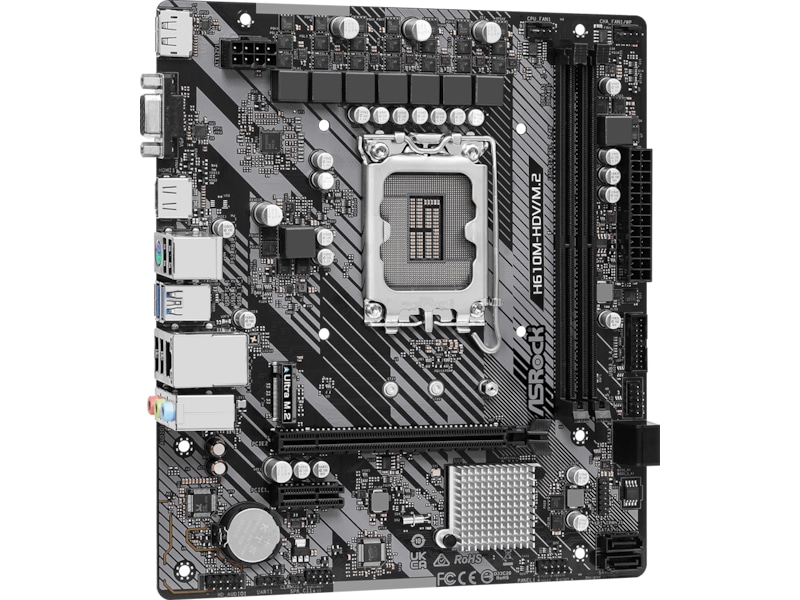

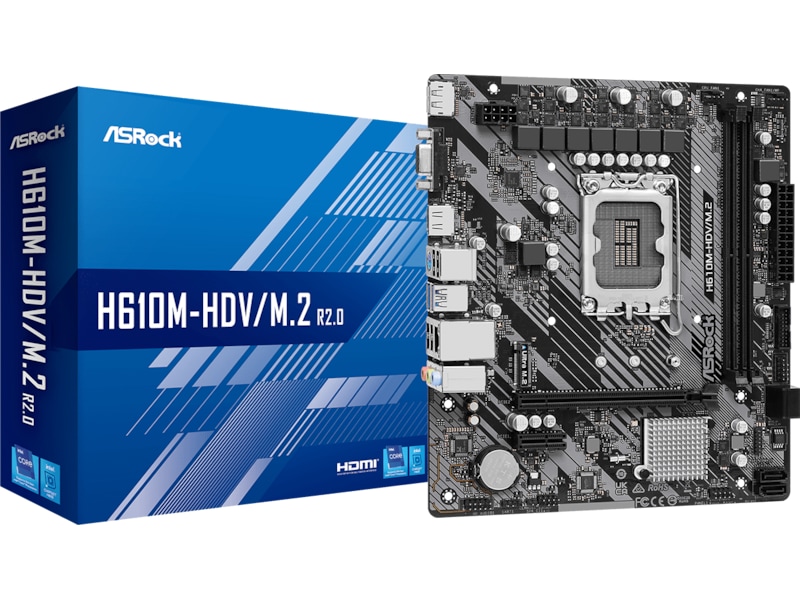

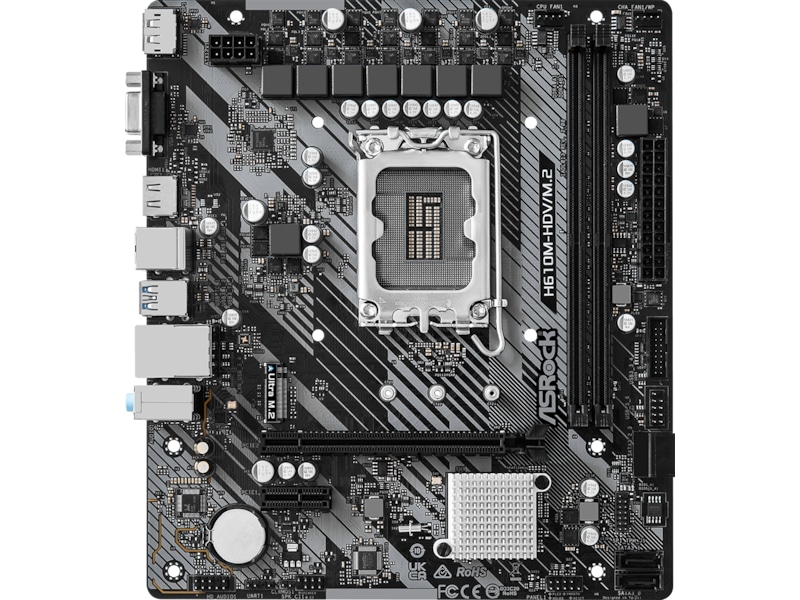

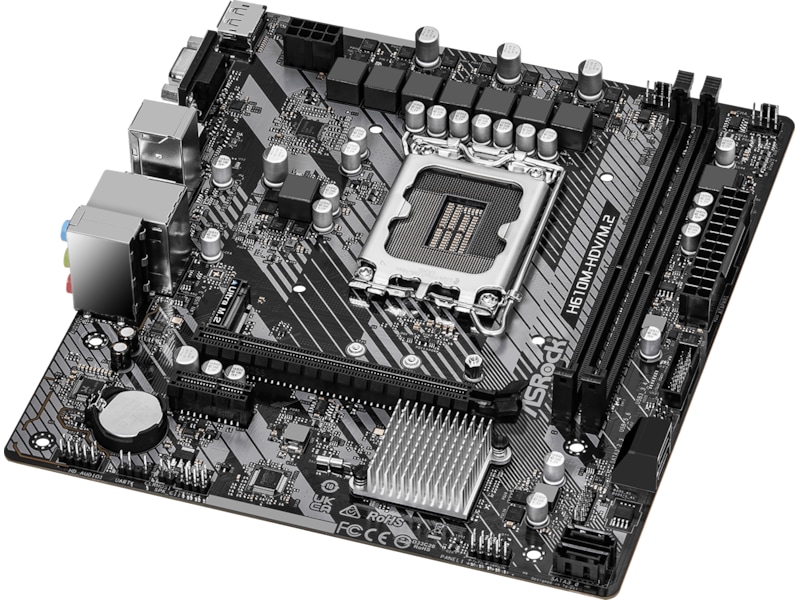

ASRock H610M-HDV/M.2 Bundkort

mATX, DDR4 (3200mhz max), PCie 4.0 x16

Varenummer: 1206892 / Producentens varenr: H610M-HDV/M.2

More pictures from ASRock H610M-HDV/M.2 Bundkort

799,-
+ fragt fra 59,-
38 stk. på lager (leveringstid 2-3 arbejdsdage)

ASRock LGA1700 H610M-HDV/M.2 Hovedkort

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Super Alloy Motherboard

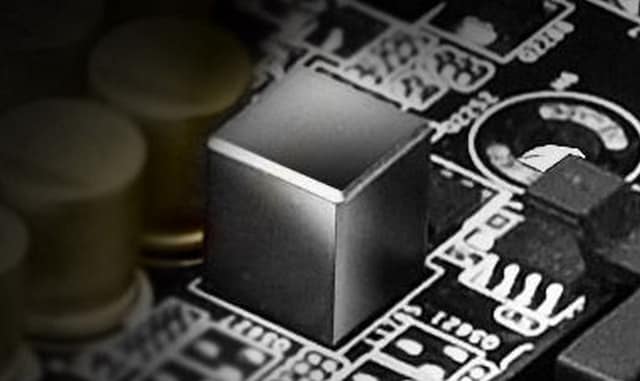

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

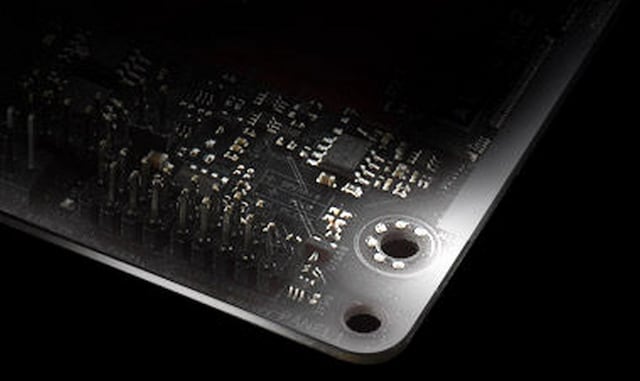

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

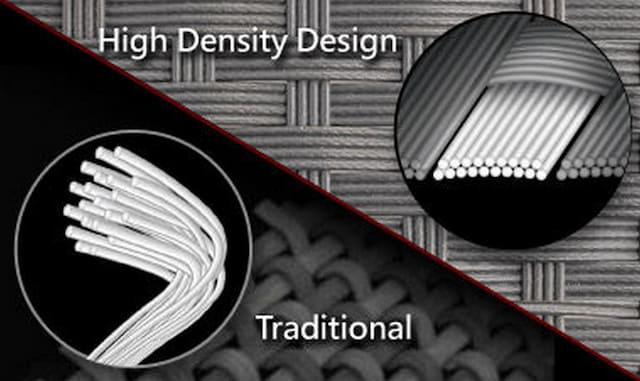

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Generelt
Producentens garanti (måneder) 24
Produkttype Bundkort - micro-ATX
Chipsættype Intel H610
Processor-socket LGA1700 sokkel
Max antal processorer 1
Kompatible processorer (understøtter 12. Generation Intel Core)
EAN 4710483936517
Understøttet RAM
Maks. størrelse 64 GB
Teknologi DDR4
Bus Clock 3200 MHz
Understøttet RAM-integritetskon Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0, understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type HD Audio (8-kanaler)
Audio codec Realtek ALC887/ALC897
Overensstemmelsesstandarder High Definition Audio
LAN
Netværk controller Intel I219V
Netværks interfaces Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger 1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (Key E)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2

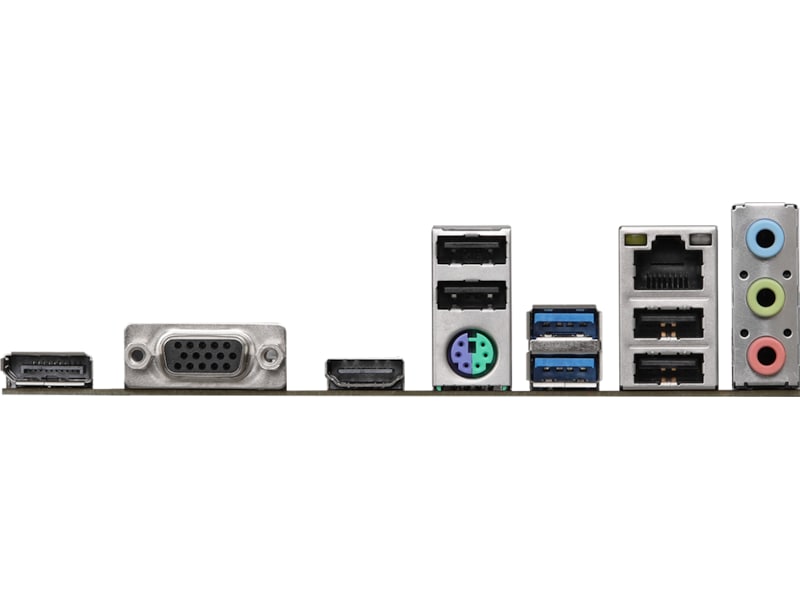

Interface 1 x PS/2-tastatur/mus
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
1 x DisplayPort
1 x LAN (Gigabit Ethernet)
Interne interfaces 1 x audio - intern stik
3 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x seriel - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6,0 support
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, takometer til blæser i strømforsyning
Sov/ Vågn Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber ASRock Instant Flash, HDCP kompatibel, 6 Phase Power Design, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology
Diverse
Udstyr inkluderet I/O- bagvæg, 2 x M.2 skruer
Medfølgende ledninger 2 x Seriel ATA kabel
Med software Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), ASRock XFast LAN
Overensstemmelsesstandarder FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Bredde 24.4 cm
Dybde 20.1 cm
