Noctua NH-D12L D-Type Premium CPU Køler

LGA1851/1700/1200/115x, AM4/AM5, 1700~2000 RPM, 84,5~ 102,1 m³/h, 18,8~22,6 dBA

Varenummer: 1213170 / Producentens varenr: NH-D12L

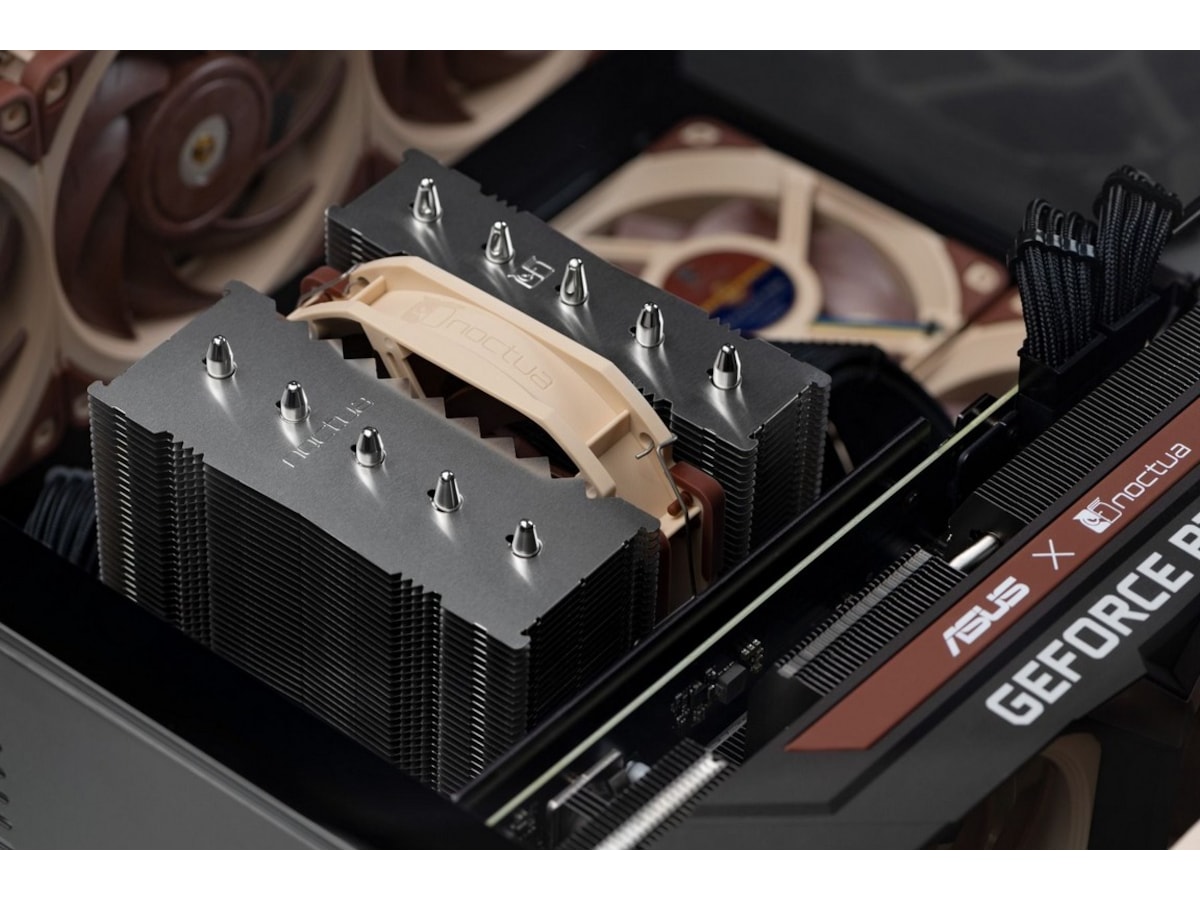

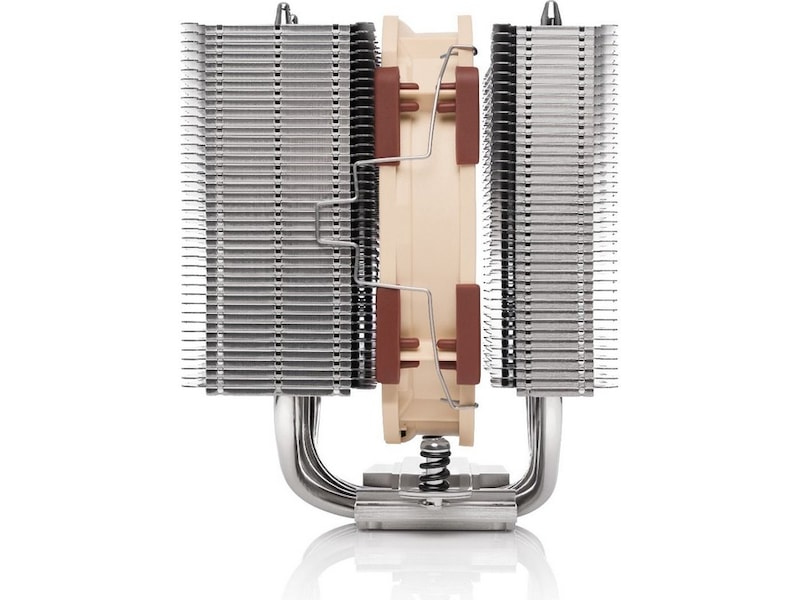

More pictures from Noctua NH-D12L D-Type Premium CPU Køler

829,-
23 stk på lager. (1-5 dages leveringstid)

NH-D12L D-Type Premium CPU Kjøler

Recommended

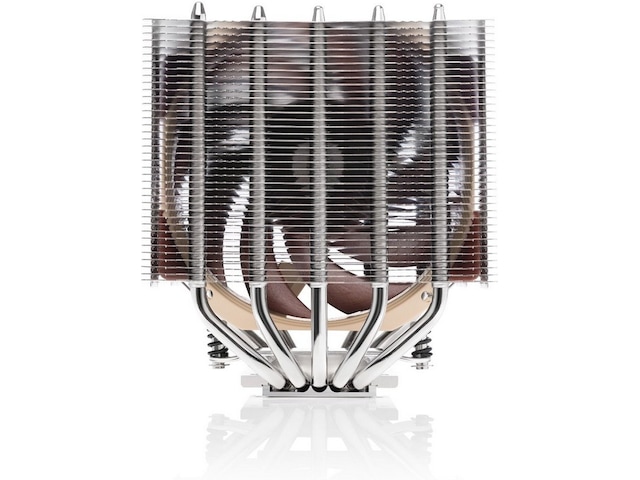

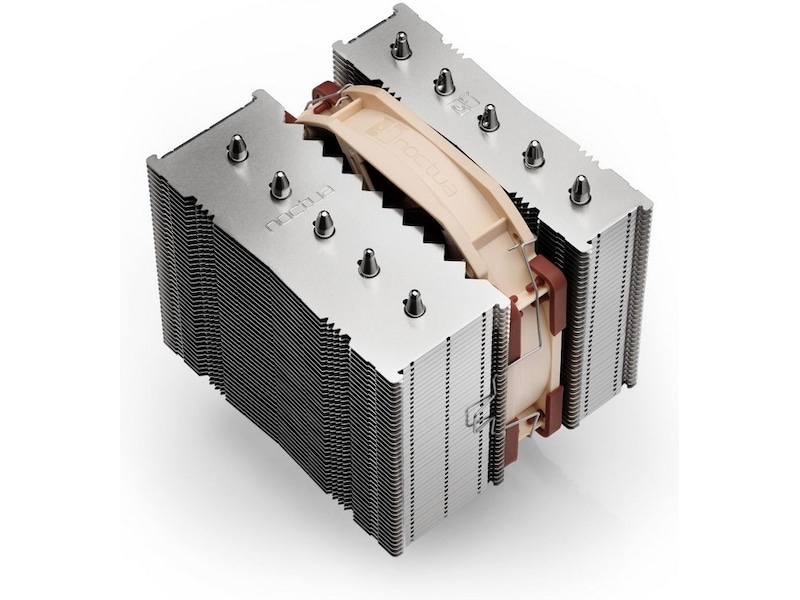

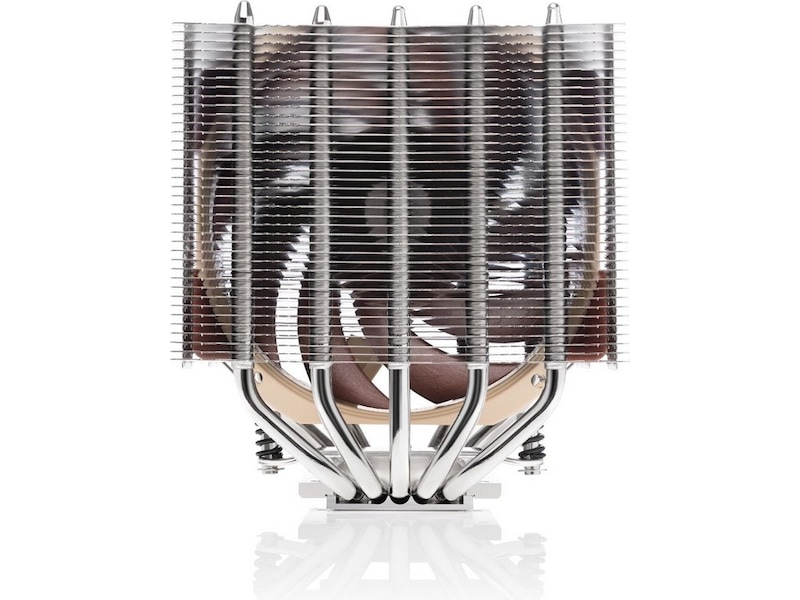

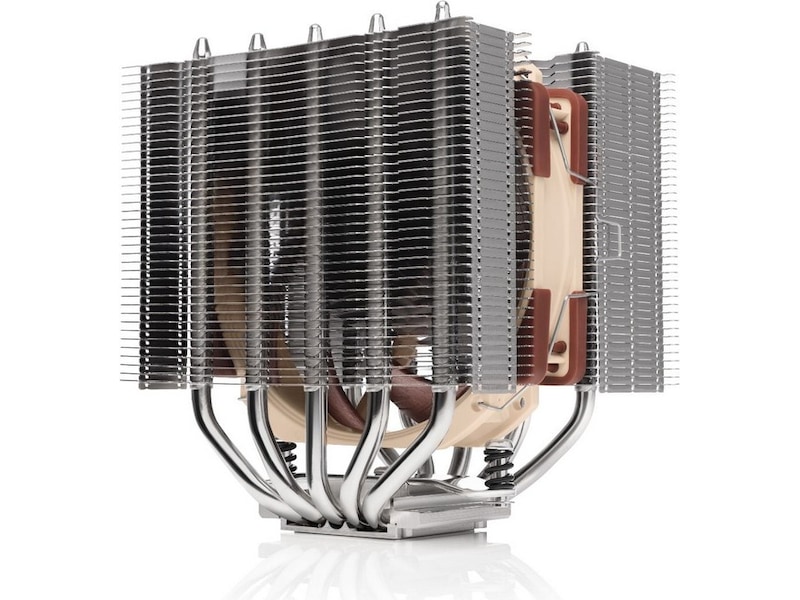

The NH-D12L is a low-height 120mm class CPU cooler that has been conceived to combine outstanding quiet cooling performance with superior case compatibility. At a height of only 145mm (13mm lower than Noctua’s regular 120mm models), it fits many 4U enclosures as well as narrower tower cases that have been previously limited to solutions with 92mm fans. At the same time, its five heatpipe dual-tower design and state-of-the-art NF-A12x25r 120mm fan allow it to achieve a level of efficiency that surpasses many full-height 120mm models. Thanks to its single-fan configuration and asymmetrical fin stacks, the NH-D12L provides 100% RAM compatibility on AMD AM4/AM5 and LGA1700/1200 by staying clear of the memory slots. Topped off with the renowned SecuFirm2™ mounting system, Noctua’s award-winning NT-H1 thermal compound and a 6-year manufacturer’s warranty, the NH-D12L is the perfect choice for applications that require serious cooling performance but cannot fit the larger NH-U12A.

145mm height for broader case compatibility

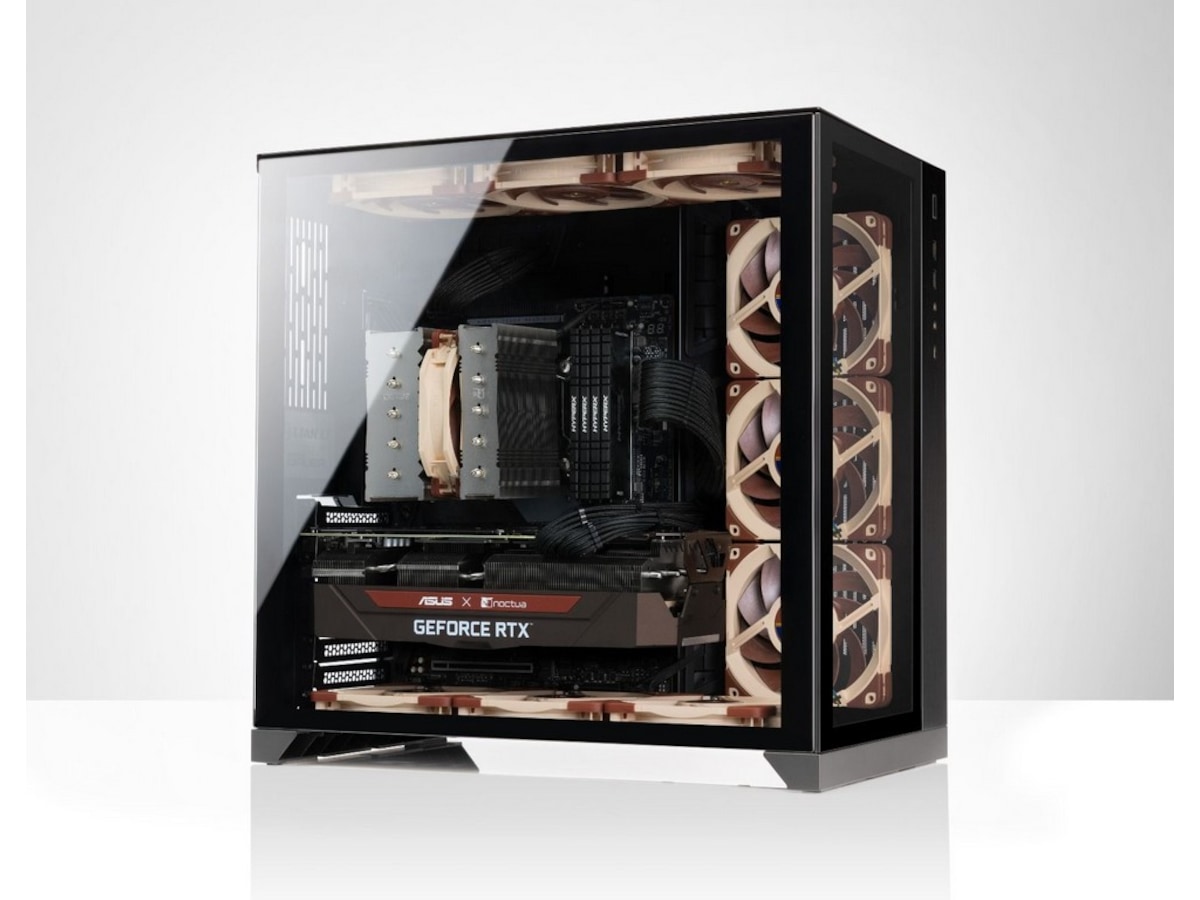

While Noctua’s regular 120mm CPU coolers stand 158mm tall, the NH-D12L measures only 145mm. This allows it to fit not only a wide range of 4U rackmount server cases and many tower-style enclosures that are not wide enough for 158mm units, but also some larger Small Form Factor (SFF) and Mini-ITX chassis.

Round-frame NF-A12x25r PWM fan

Introduced in 2018, Noctua’s NF-A12x25 is widely considered to be the best 120mm fan on the market. The round-frame variant used on the NH-D12L provides the same renowned quiet cooling performance yet makes it possible to reduce overall cooler height without risking compatibility issues with tall motherboard heatsinks or shrouds.

100% RAM compatibility on LGA1700/1200 and AM4/AM5

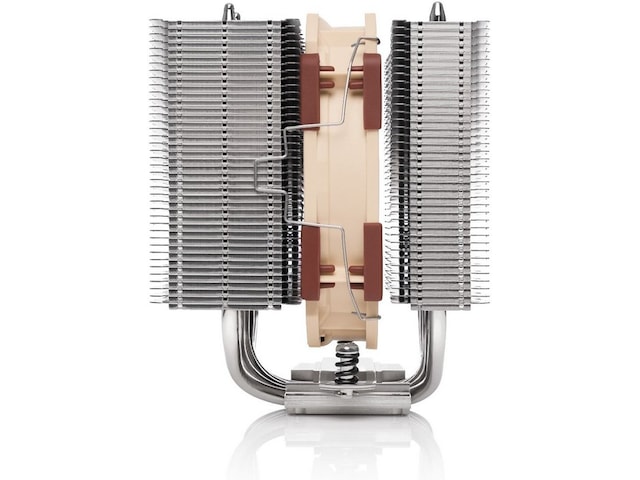

Due to its asymmetric design, the NH-D12L does not overhang the RAM slots on Intel LGA1700 (LGA17xx family)/LGA1200/LGA115x and AMD AM4/AM5 based motherboards, which ensures easy access to the modules and 100% compatibility with DIMMs that feature tall heat-spreaders or RGB lighting. On LGA2066, the rear fin stack will overhang the RAM slots on the left-hand side of the socket, so RAM modules must not exceed 45mm height.

PWM support and Low-Noise Adaptors

The NF-A12x25r 120mm fan supplied with the NH-D12L supports PWM for convenient automatic speed control through the motherboard: full performance under load, virtually silent at idle! In addition, the maximum fan speed can be reduced from 2000 to 1700rpm using the supplied Low-Noise Adaptor for even quieter operation.

Dual-fan options

The NH-D12L ships with a second pair of fan clips that can be used to install a second NF-A12x25r PWM fan either on the front or on the rear fin stack. However, it must be noted that the second fan will usually sit on top of either the RAM or I/O panel and thereby increase the total height beyond 145mm.

SecuFirm2™ multi-socket mounting system

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1700 (LGA17xx family), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4 and AM5, the SecuFirm2™ mounting included with the NH-D12L is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with past and future sockets

Thanks to Noctua’s SecuFirm™ ecosystem, the NH-D12L can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D12L a safe long-term investment.

NT-H1 thermal compound

Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered interface between heatpipes and fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D12L’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

Generelt
Model NH-D12L
Produktlinje Noctua
Produkttype Processor-køler
Producentens garanti (måneder) 12
Pakkeindhold NT-H1 højkvalitets termisk blanding, NF-A12x25r PWM premium blæser, Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, Noctua metaletui-skilt, Ventilatorklemmer til anden ventilator
Tilbehørskategori Tilbehør til desktopcomputer og server, Køling og blæser
EAN 9010018000337
Diverse
MTBF (forventet tid mellem fejl) 150,000 time(r)
Monteringspakke Inkluderet
Farvekategori Brun, Sølv
Varmeafleder & blæser
Luftstrøm 49.7-60.1 cfm
Materiale til varmeafleder Kobberbase og varmerør med aluminiumskølefinner
Heatsink-dimensioner 145 mm x 125 mm x 113 mm
Blæser diameter 120 mm
Rated Voltage 12 V
Blæser med kugleleje SSO2 leje
Strømforbrug 1.68 W
Lufttryk 1.65-2.34 mm
Støjniveau 18.8 - 22.6 dBA
Luftstrøm (metrisk) 84.5 - 102.1 m³/h
Omdrejningshastighed 450 - 2000 rpm
Blæser-højde 25 mm
Stik 4-pins blæser-stikforbindelse
Egenskaber Nikkelbelægning, Varmerør teknologi, Puls-bredde modulation (PWM) support, 5 kobbervarmerør, Dual-Tower design, Soldered joints
Kompatibel med LGA1150 Socket, LGA1200 Socket, LGA1155 Socket, LGA2011 Socket, LGA1700 Socket, LGA1156 Socket, LGA1151 Socket, LGA2066 Socket, Socket AM5, LGA2011-0 Socket, Socket AM4, LGA2011-3 (Square ILM) Socket
Mål og vægt
Højde 14.5 cm
Dybde 11.3 cm
Bredde 12.5 cm
Vægt 890 g
Mål & vægt (forsendelse)
Dybde ved forsendelse 17.7 cm
Vægt ved forsendelse 1.698 kg
Bredde ved forsendelse 18.4 cm
Højde ved forsendelse 23.6 cm
Service & Support
Type 6 års garanti
Detaljer om service & support
Service & Support Begrænset garanti: - 6 år
Noise & Performance detaljer
Noise & Performance detaljer 18.8 dBA / 49,7 cfm ved 1700 rpm, 22.6 dBA / 60,1 cfm ved 2000 opm
