Varenummer:
1219997
4711377012881

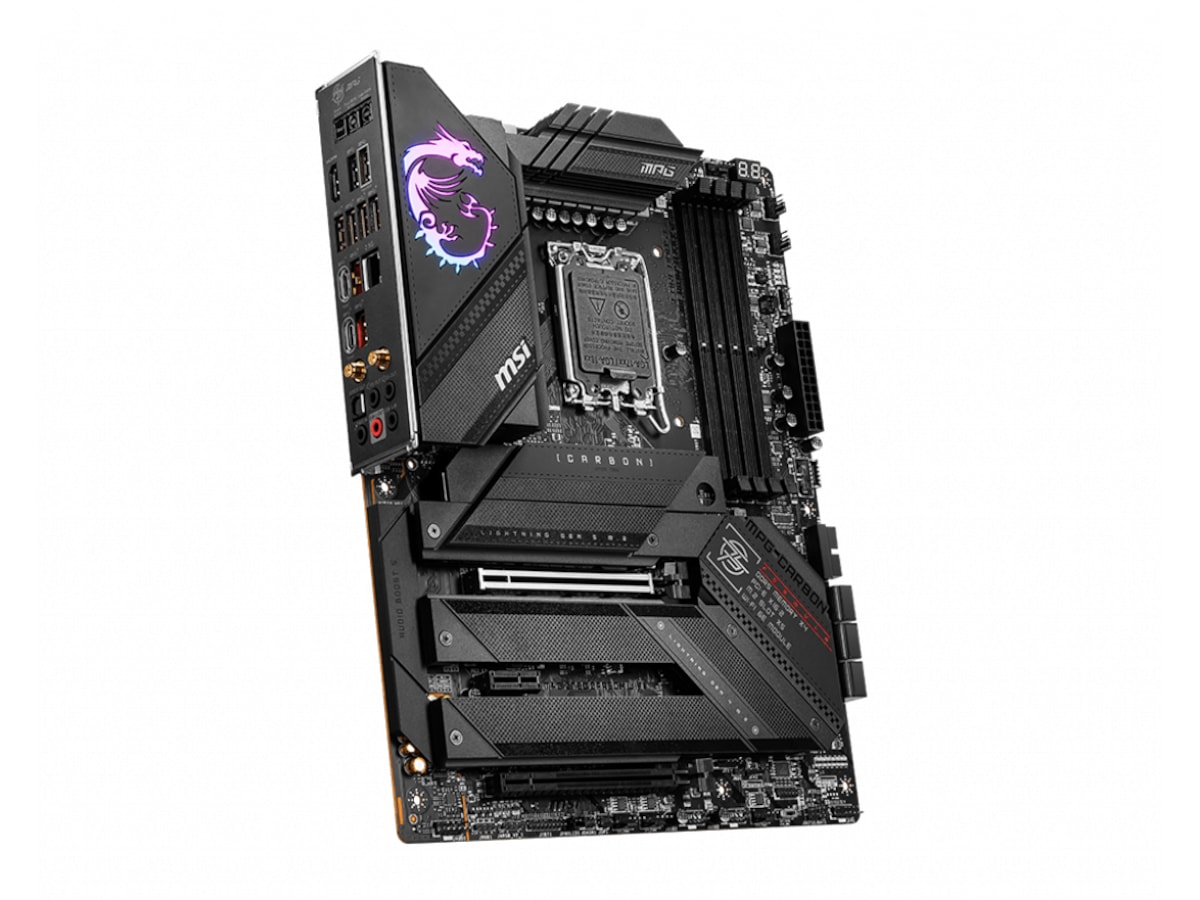

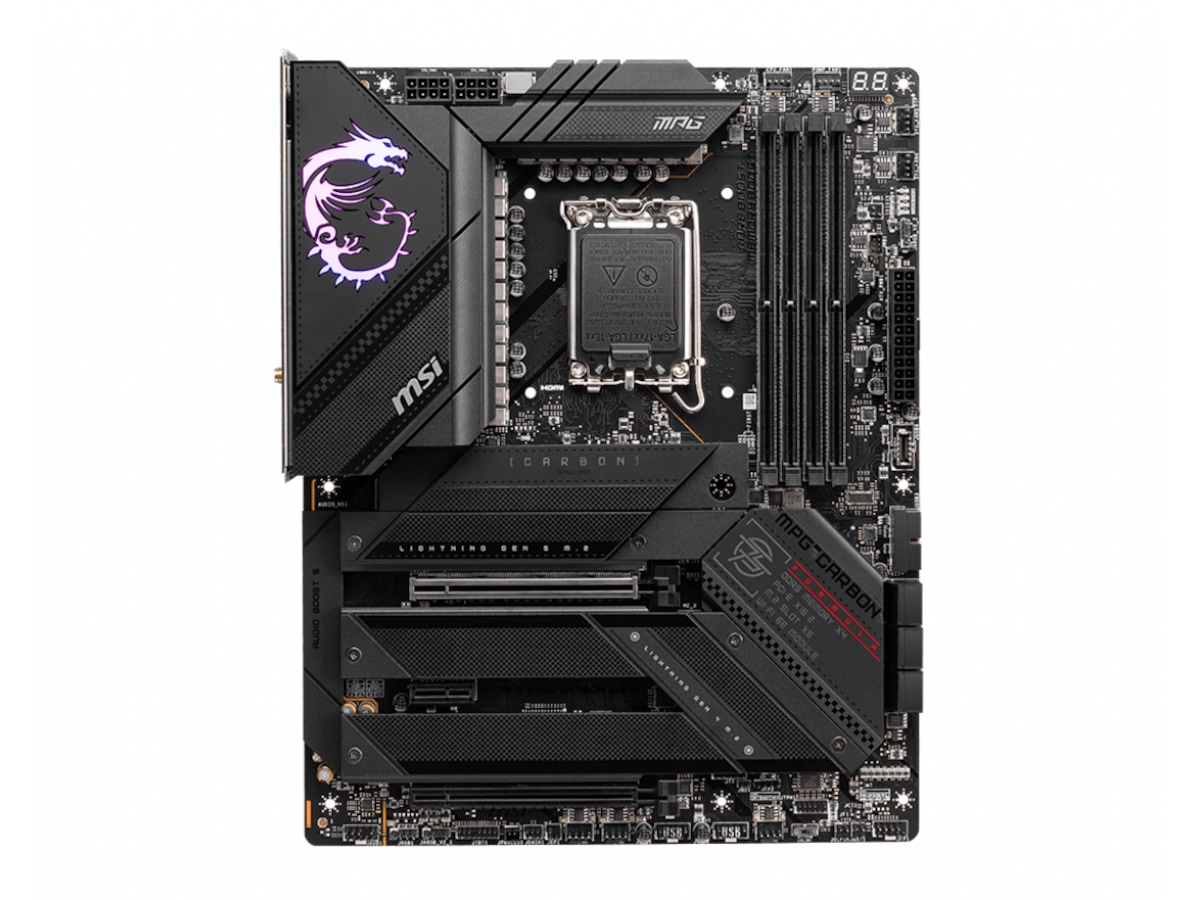

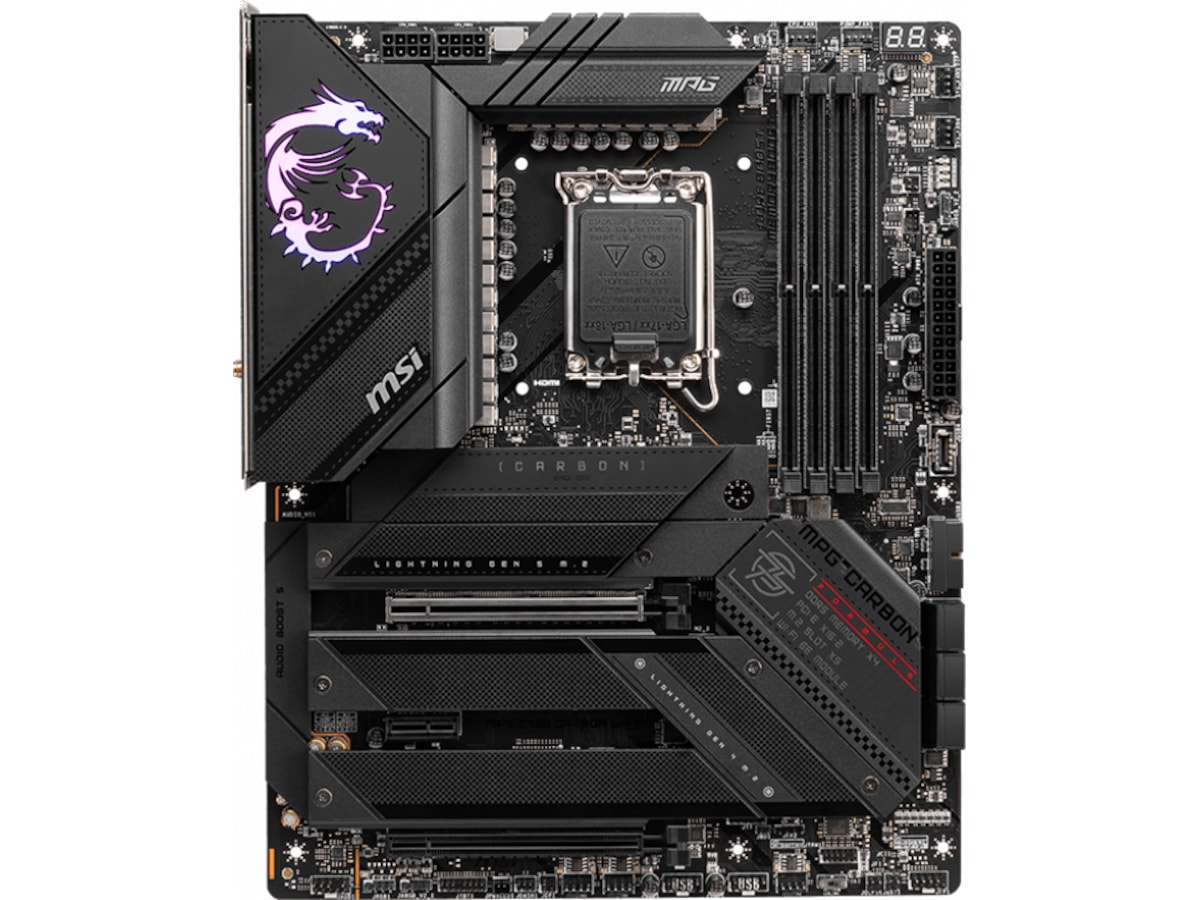

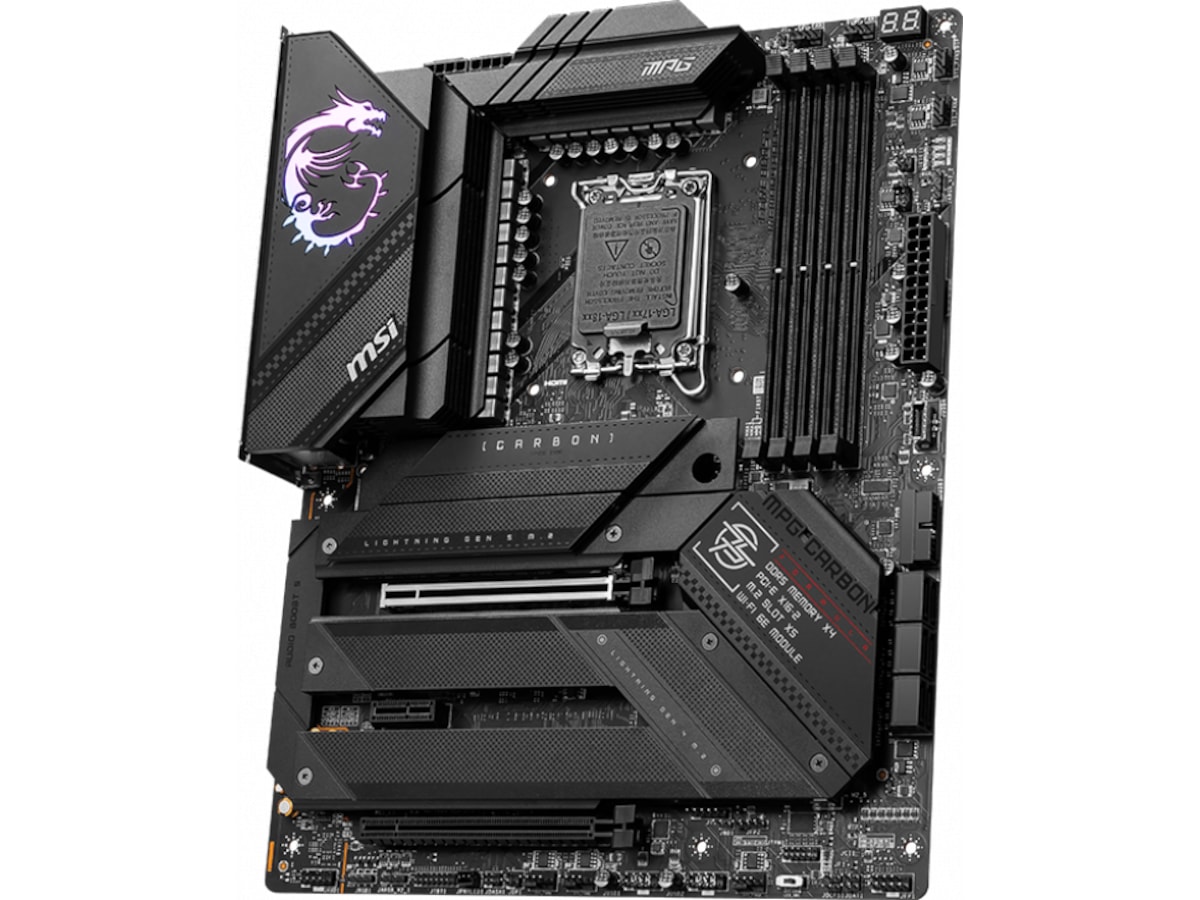

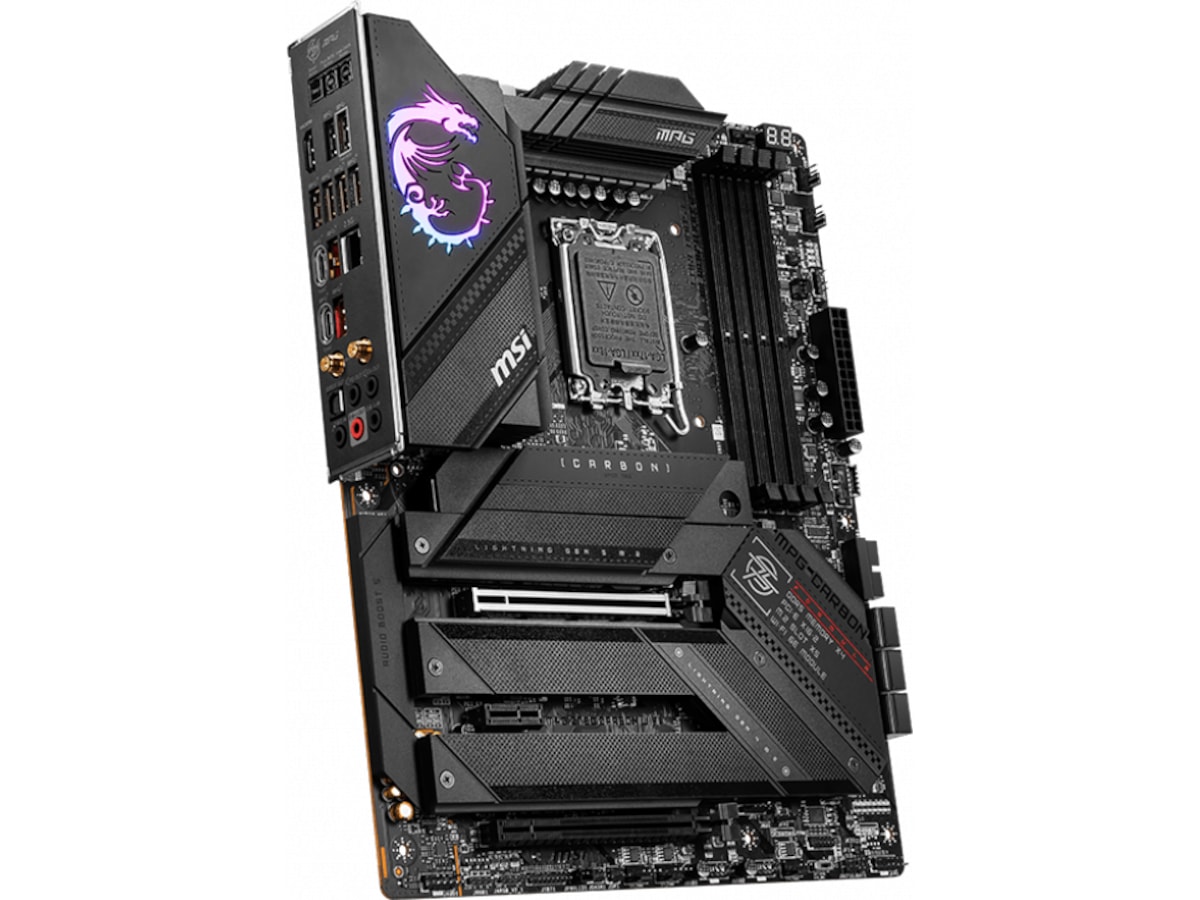

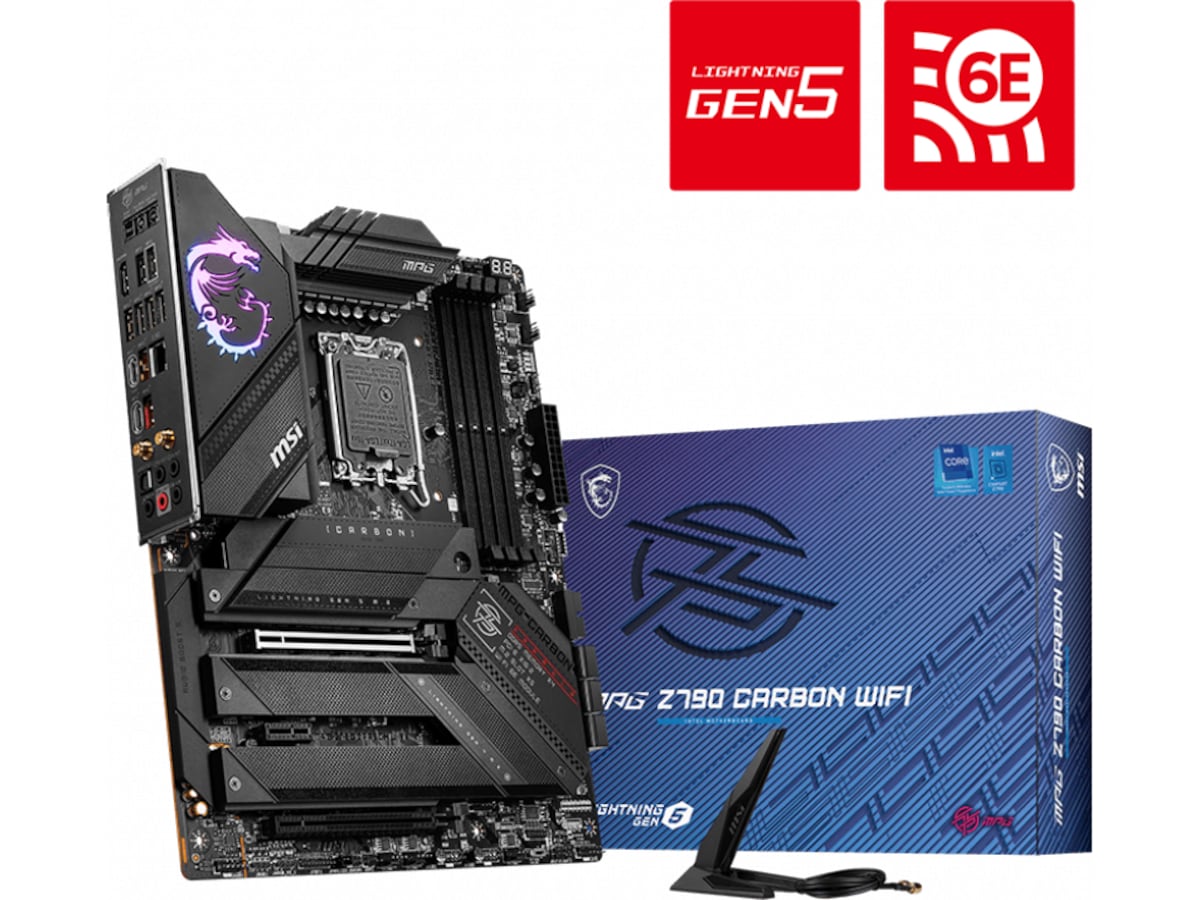

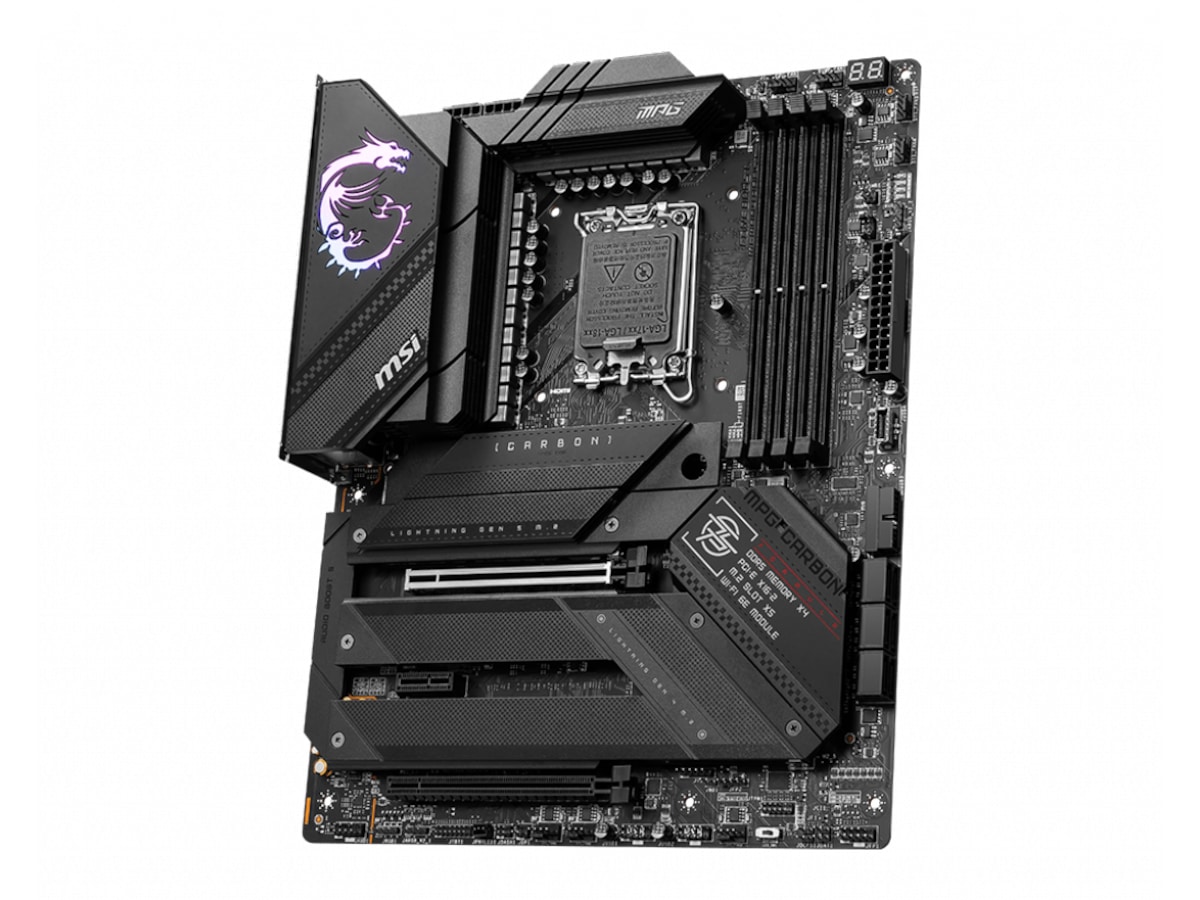

| Model | MPG Z790 Carbon WiFi |
|---|---|
| Produktlinje | MSI |
| Producentens garanti (måneder) | 36 |
| EAN | 4711377012881 |
| Model | ATX |
|---|---|
| Chipsættype | Intel Z790 |
| Processor-socket | LGA1700 sokkel |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Kommentarer om kompatible processorer | Understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| RAM-hastighed understøttet | 4800 MHz, 5600 MHz, 6000 MHz (O.C.), 5200 MHz, 5400 MHz, 7600 MHz (O.C.), 7400 MHz (O.C.), 6400 MHz (O.C.), 7200 MHz (O.C.), 6800 MHz (O.C.), 5000 MHz, 7000 MHz (O.C.), 5800 MHz (O.C.), 6200 MHz (O.C.), 6600 MHz (O.C.) |
| Strømkontakter | 2 x 8-pins ATX12V stikforbindelser, 24-pin hovedstrøm-konnektor |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| Lagringsporte | 6 x SATA-600 (RAID), 5 x M.2 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 |
| USB/FireWire | USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2, USB-C Gen 2x2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio codec | Realtek ALC4080 |
| Audio | High Definition Audio (8 kanaler) |
| Type | Lydkort |
| Bluetooth | Yes |
|---|---|
| Netværk | 802.11a/b/g/n/ac/ax, 2.5 Gigabit Ethernet, Bluetooth 5.3 |
| Dataforbindelsesprotokol | IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, 2.5 Gigabit Ethernet, IEEE 802.11n, Bluetooth 5.3, IEEE 802.11g, IEEE 802.11ac |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Software inkluderet | Drivers & Utilities |
|---|
| Produkttype | Bundkort |
|---|---|
| Inkluderet tilbehør | USB-drev, 4 x M.2 klemmer, JRGB-forlængerkabel (1 til 2), Wi-Fi-antenne, Kabelmærkat, JARGB-forlængerkabel |
| Overensstemmelsesstandarder | FCC Part 15 Class B, JIS C 0950, WEEE, FISMA, FIPS |
| Hardware egenskaber | EZ LED control, Debug LED, 2-Digit Debug Code LED, Præmonteret I/O-skjold, 19+1+1 Phase Power Design, MSI Steel Armor, Enlarged Chipset Heatsink, Water Pump Header, 2oz Copper PCB, 8 Layer PCB, MSI Audio Boost 5, MSI Memory Boost, Clear CMOS Button, Direct Touch Heat-pipe, Smart Button, M.2 Shield FROZR, MSI Mystic Light, 105A Smart Power Stage, Extended Heatsink Design, DIY Friendly Design, MSI Core Boost |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0 |
|---|
| Ekspansionsåbninger | 1 x PCIe 5.0 x16, 1 x M.2 socket (Key E), 1 x CPU, 4 x M.2 socket (2260/2280 M.2 Key M-åbning), 1 x PCIe 3.0 x1, 1 x M.2 socket (2260/2280/22110 M.2 Key M åbning), 4 x DIMM 288-pins, 1 x PCIe 4.0 x16 (x4-modus) |
|---|
| Grænseflade (lagring) | PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

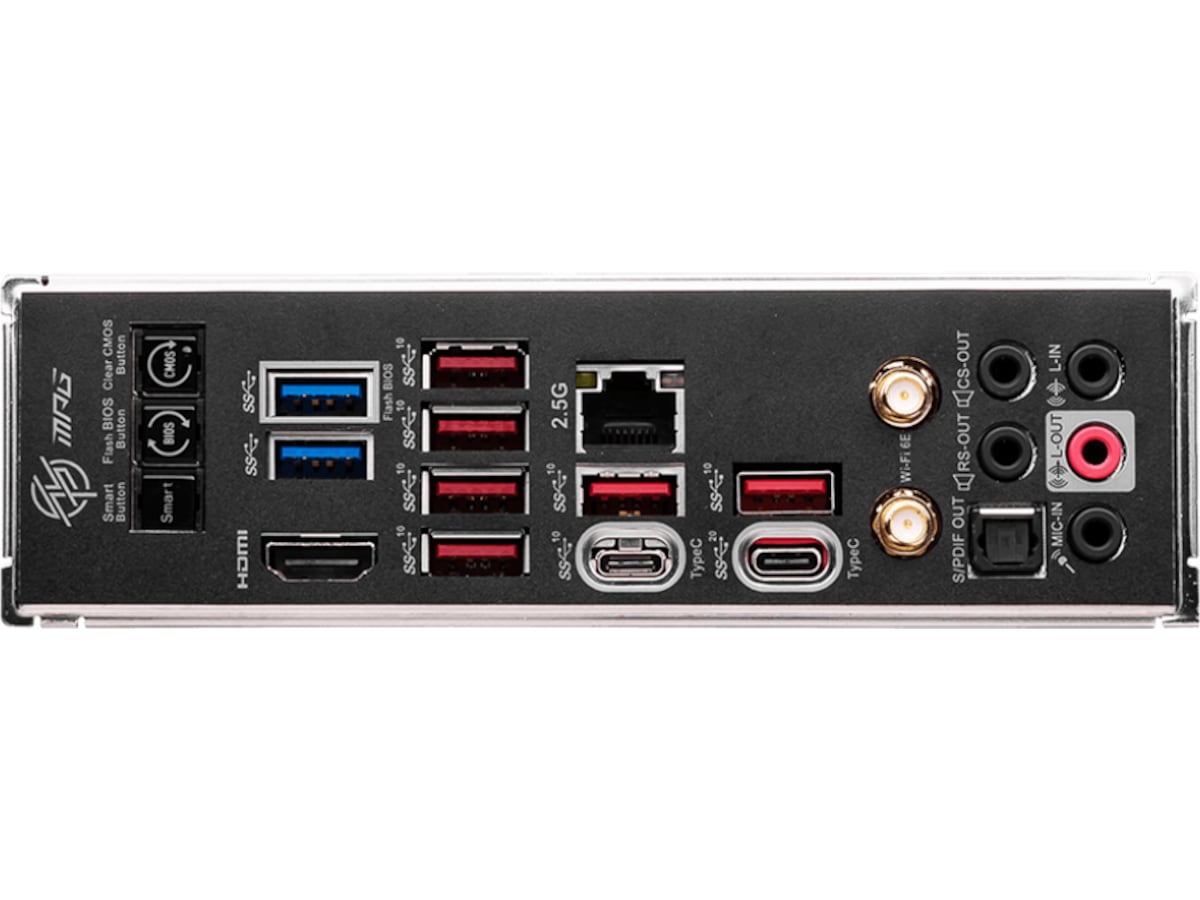

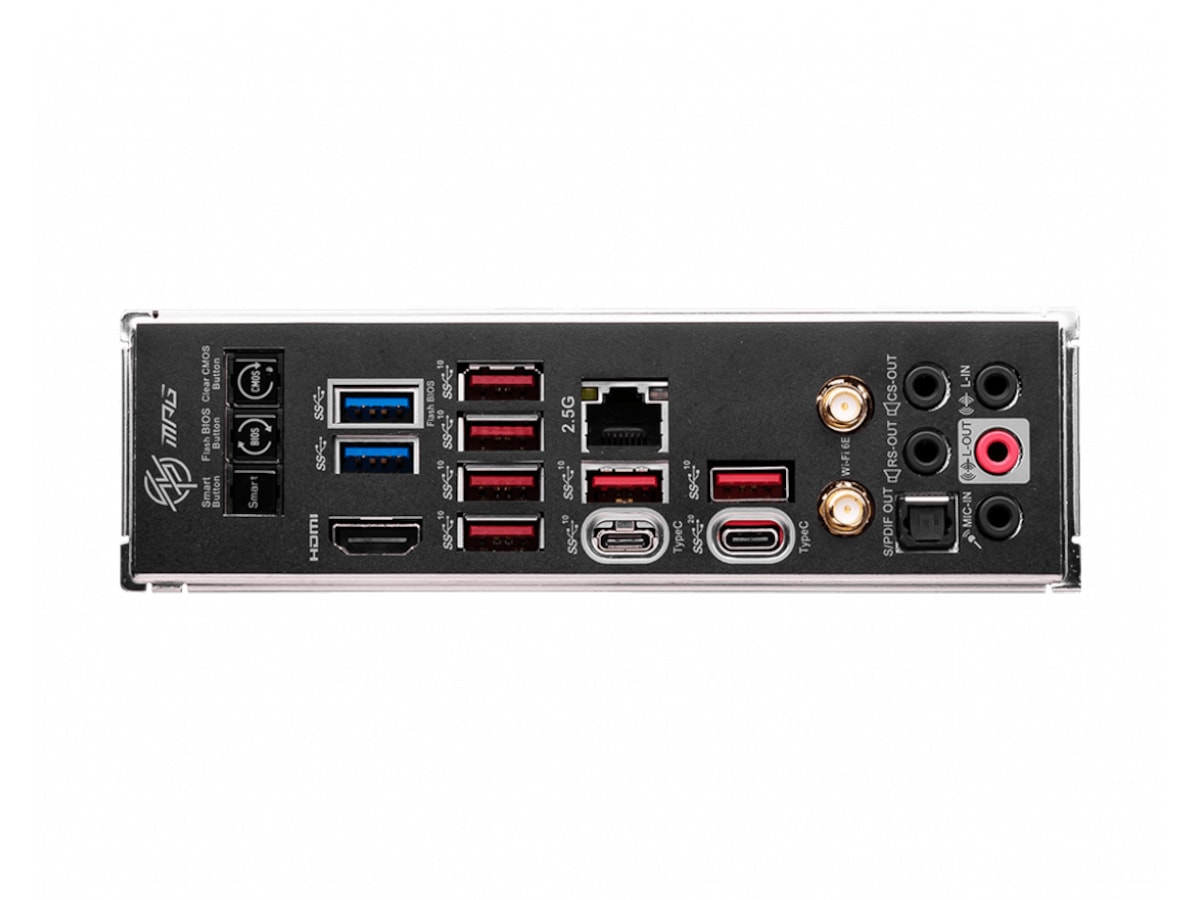

| Interface | 1 x USB-C 3.2 Gen2x2, 1 x audio linje-ud (bagtil) - mini-jack, 6 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x LAN (2.5Gigabit Ethernet), 1 x SPDIF-ud, 1 x audio linje-ind - mini-jack, 2 x antenne, 1 x audio linje-ud - mini-jack, 2 x USB 3.2 Gen 1, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x HDMI, 1 x mikrofon - mini-jack |
|---|
| Interne interfaces | 1 x Thunderbolt - intern stik, 1 x SPI - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 2.0 - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik |
|---|
