Varenummer: 1223277 / Producentens varenr: 90MB1C40-M0EAY0

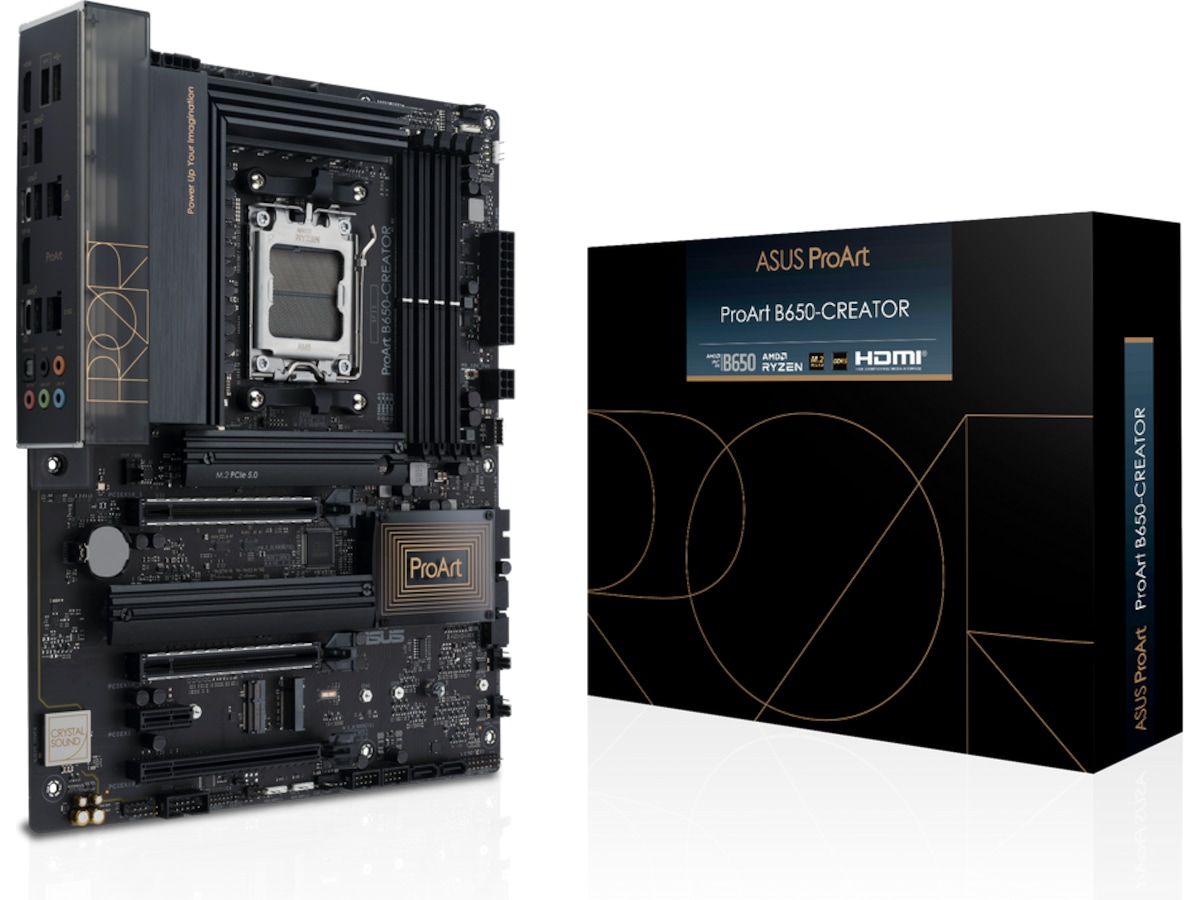

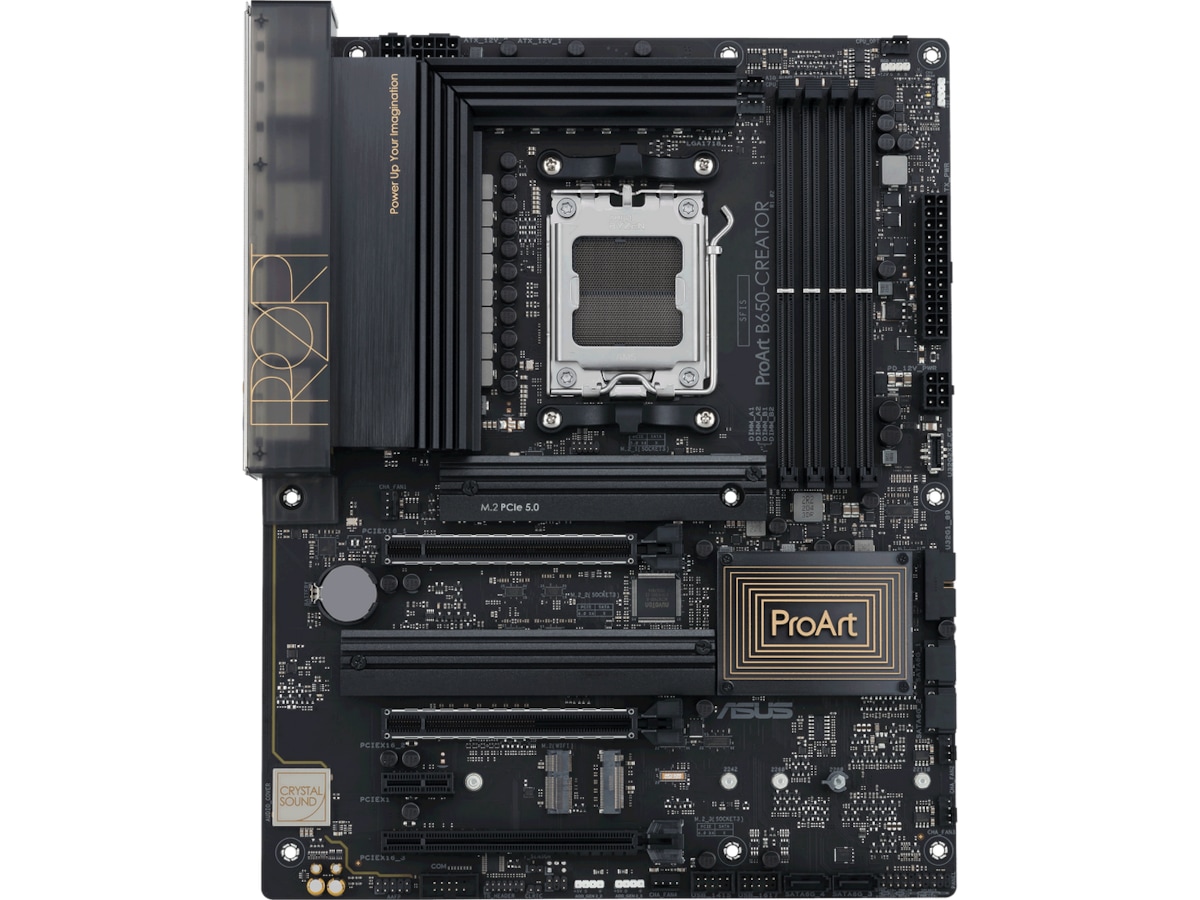

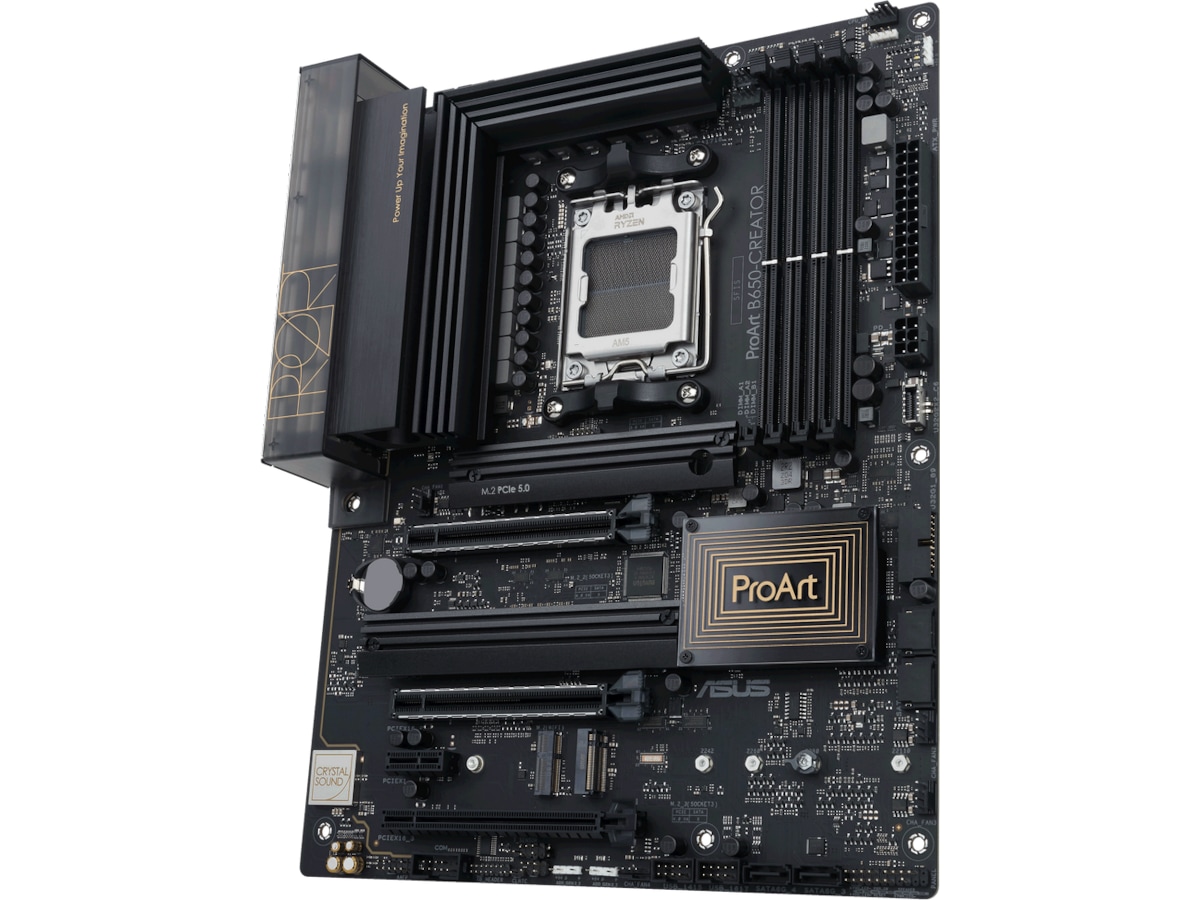

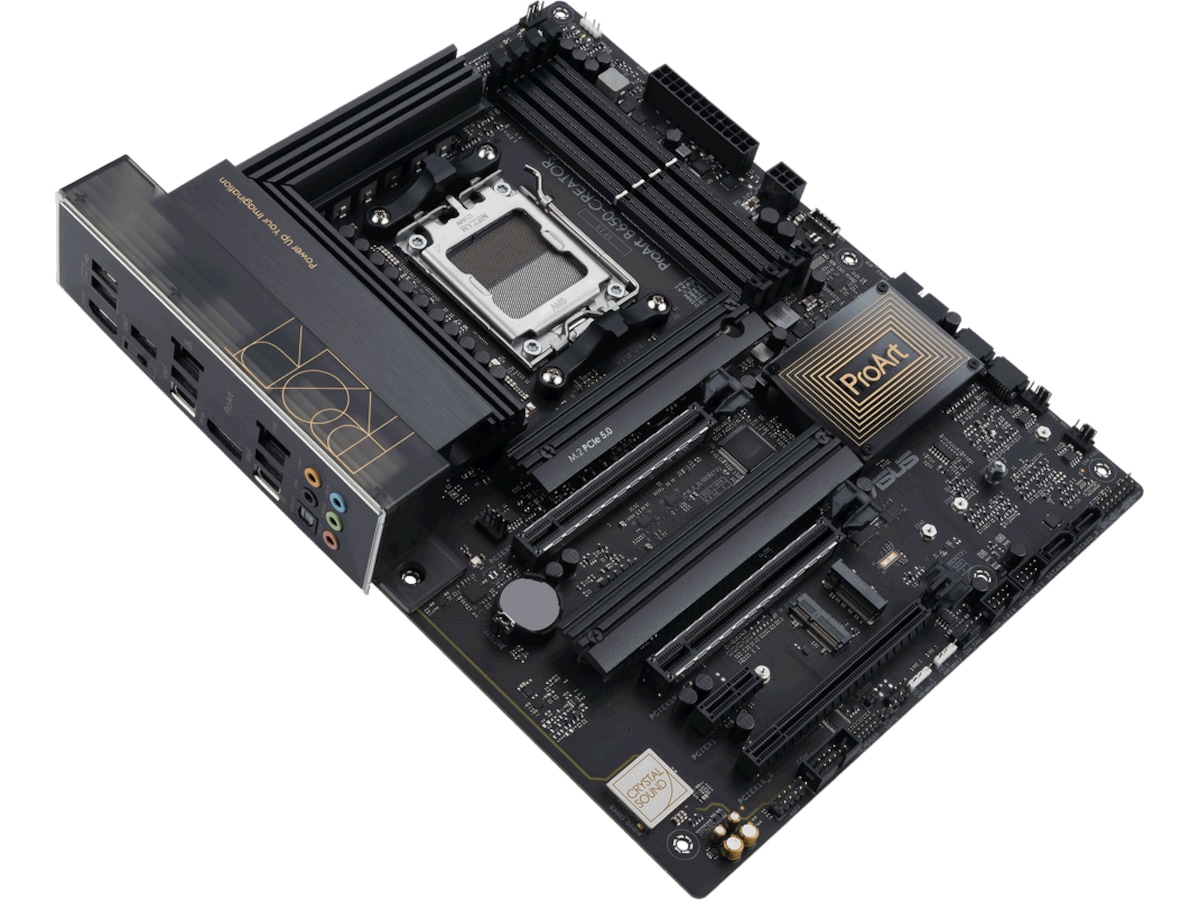

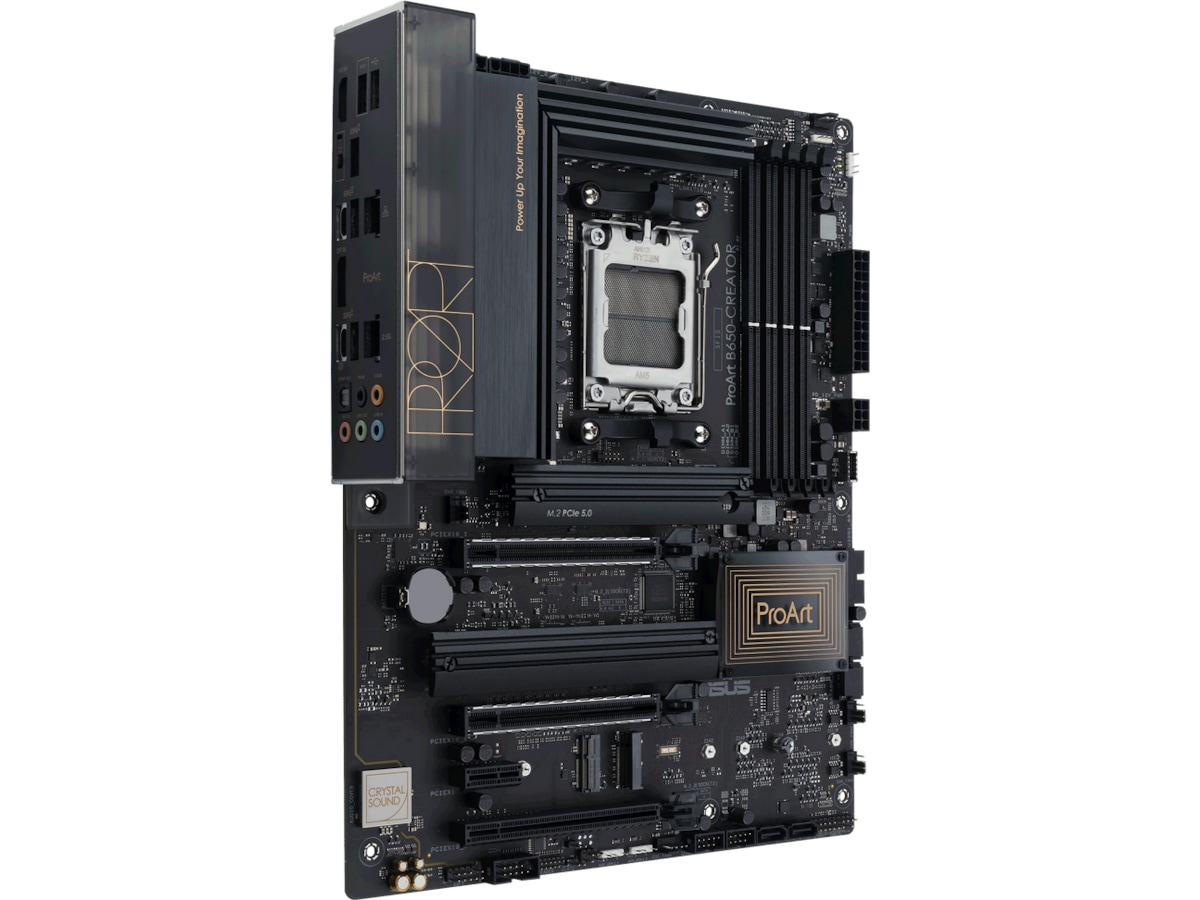

ASUS ProArt B650-Creator Bundkort

AM5, AMD B650, ATX, DDR5, 2 x PCIe 4.0 x16 slots, 3 x M.2 slots

More pictures from ASUS ProArt B650-Creator Bundkort

2.104,-
Bestillingsvare. Bestilles ved ordre. Leveringstid 2-3 uger.

ASUS ProArt B650-Creator

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.

USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® Support

ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

Multi-card support

The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.

Dual Ethernet

2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.

PCIe 5.0 M.2 Storage

The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

Generelt
Produktlinje ASUS
Model ProArt B650-CREATOR
Producentens garanti (måneder) 36
EAN 4711081988090
Mainboard
RAM Slots 4 DIMM åbninger
Chipsættype AMD B650
Understøttet RAM-teknologi DDR5 SDRAM
Kompatible processorer Ryzen
Kommentarer om kompatible processorer Understøtter Ryzen 7000 Series
Processor-socket Socket AM5
Model ATX
Understøttet RAM (registreret eller buffered) Ikke bufferet
Strømkontakter 4-pin ATX12V konnektor, 8-pin ATX12V-kontakt, 6-pins PCI Express strøm-stikforbindelse, 24-pin hovedstrøm-konnektor
RAM-hastighed understøttet 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5200 MHz, 5000 MHz, 6400 MHz (O.C.)
Understøttet RAM-integritetskon On-die ECC, Ikke-ECC, ECC
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber ASUS EZ Flash 3, UEFI BIOS
Sov/ Vågn Vågn på PME, Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber ASUS Aura Sync, Jack retasking, ASUS SafeDIMM, ASUS DIGI+ VRM, Q-LED, M.2 kølelegeme, BIOS FlashBack LED, Præmonteret I/O-skjold, ESD Guards, BIOS FlashBack-knap, ASUS SafeSlot, ASUS Q-Design, ASUS TurboV EVO, 60 A Power Stage, Preboot eXecution Environment (PXE), DIY Friendly Design, ASUS OptiMem II, M.2 Q-Latch, Overspændingsbeskyttelse, ASUS Q-Connector, Q-Slot, Audio jack detektions teknologi, Quick Charge 4+, ASUS ProCool, LANGuard, ASUS Enhanced Memory Profile (AEMP), ASUS EZ DIY, Q-DIMM, CrashFree BIOS 3, ASUS 5X Protection III, 12+2 Phase Power Design, ASUS Stainless Steel Back I/O, VRM kølelegemedesign
Interfaces
USB / FireWire portkonfiguration (aktiv) 2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 2.0
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2
RAID-egenskaber AMD RAID Xpert2 Technology
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagring M.2 åbning, Serial ATA-600 (RAID)
USB/FireWire USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Type Lydkort
Audio High Definition Audio (8 kanaler)
Overensstemmelsesstandarder High Definition Audio
Diverse
Produkttype Bundkort
Overensstemmelsesstandarder JATE, EU RoHS, FCC Part 15 Class B, VCCI Class B ITE, WEEE, DisplayPort 1.4, EU REACH

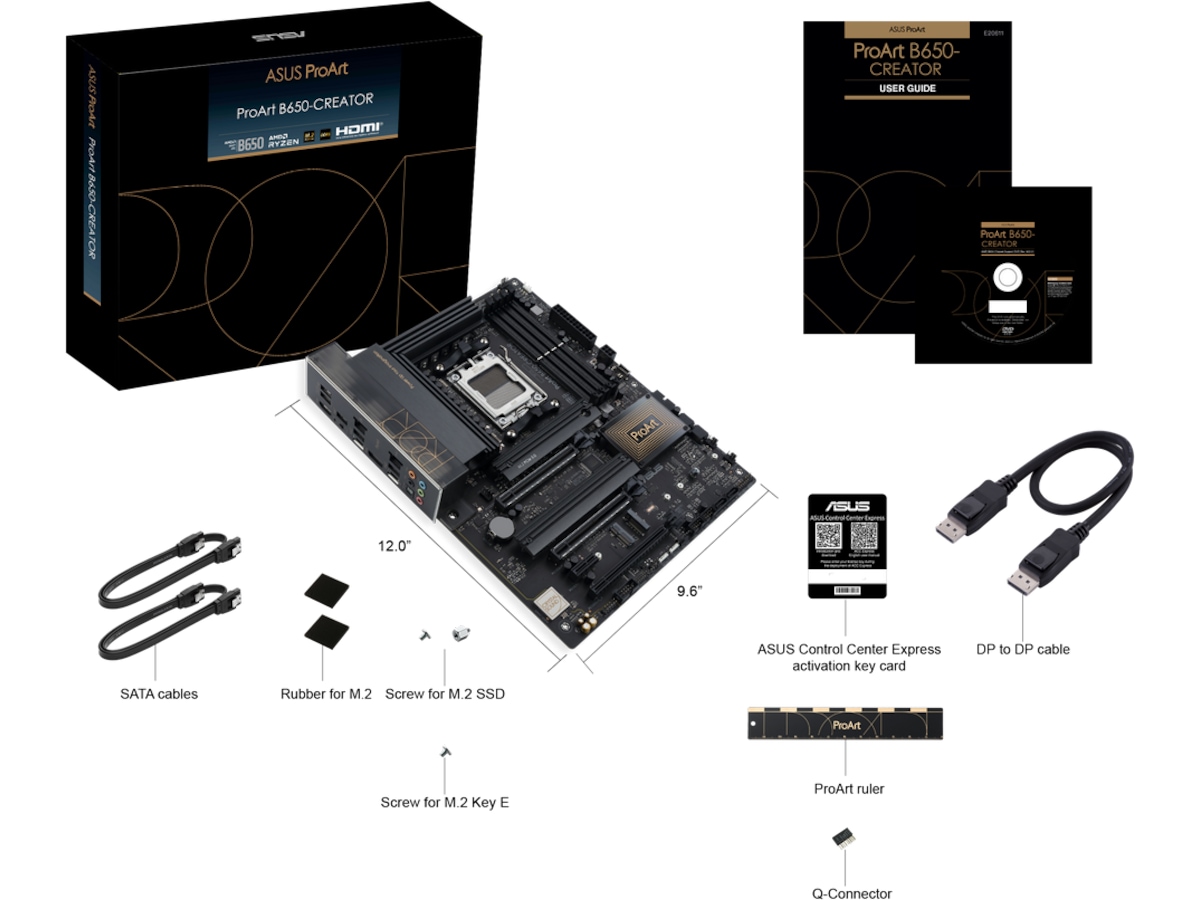

Inkluderet tilbehør Q-Connector, ACC Express Activation Key Card, 2 x M.2 skruepakke, 1 x M.2 gummipakke
RAM
Egenskaber Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Netværk
Dataforbindelsesprotokol Gigabit Ethernet, Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet
Netværk Gigabit Ethernet, 2.5 Gigabit Ethernet
Udvidelsesåbninger
Ekspansionsåbninger 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning), 1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 1 x M.2 socket (Key E), 4 x DIMM 288-pins, 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x4-modus), 2 x PCIe 4.0 x16 (dual x8 mode, single kort: x16 mode)
Grænseflade (lagring)
Grænseflade (lagring) SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interface leveret

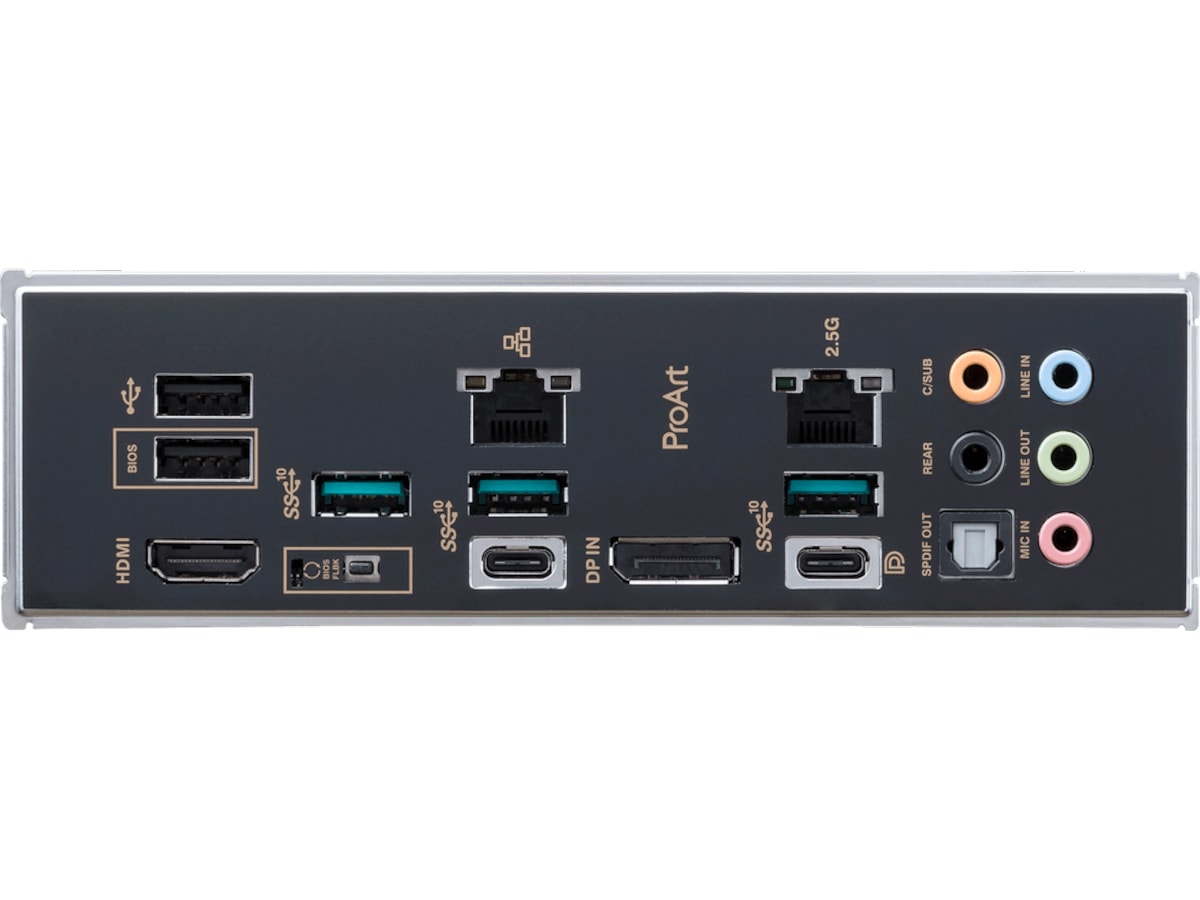

Interface 3 x USB 3.2 Gen 2, 1 x LAN (2.5Gigabit Ethernet), 2 x USB 2.0, 1 x SPDIF-ud, 1 x USB-C 3.2 Gen 2, 1 x audio linje-ind - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack, 1 x audio linje-ud - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x mikrofon - mini-jack, 1 x USB-C Gen2/DisplayPort, 1 x HDMI, 1 x DisplayPort-input, 1 x audio linje-ud (centrum/subwoofer) - mini-jack
Interne interfaces
Interne interfaces 1 x seriel - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 1 x Thunderbolt - intern stik, 1 x audio - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik
Kabeloplysninger
Medfølgende ledninger 1 x DisplayPort kabel, 2 x Seriel ATA kabel
Programmer
Software inkluderet Armoury Crate, ASUS AURA Creator, ASUS CPU-Z, ASUS AI Suite III, ASUS Fan Xpert 4, WinRAR, PC Cleaner, ASUS ProArt Creator Hub, Norton AntiVirus (Trial), CreationFirst, ASUS Control Center Express
