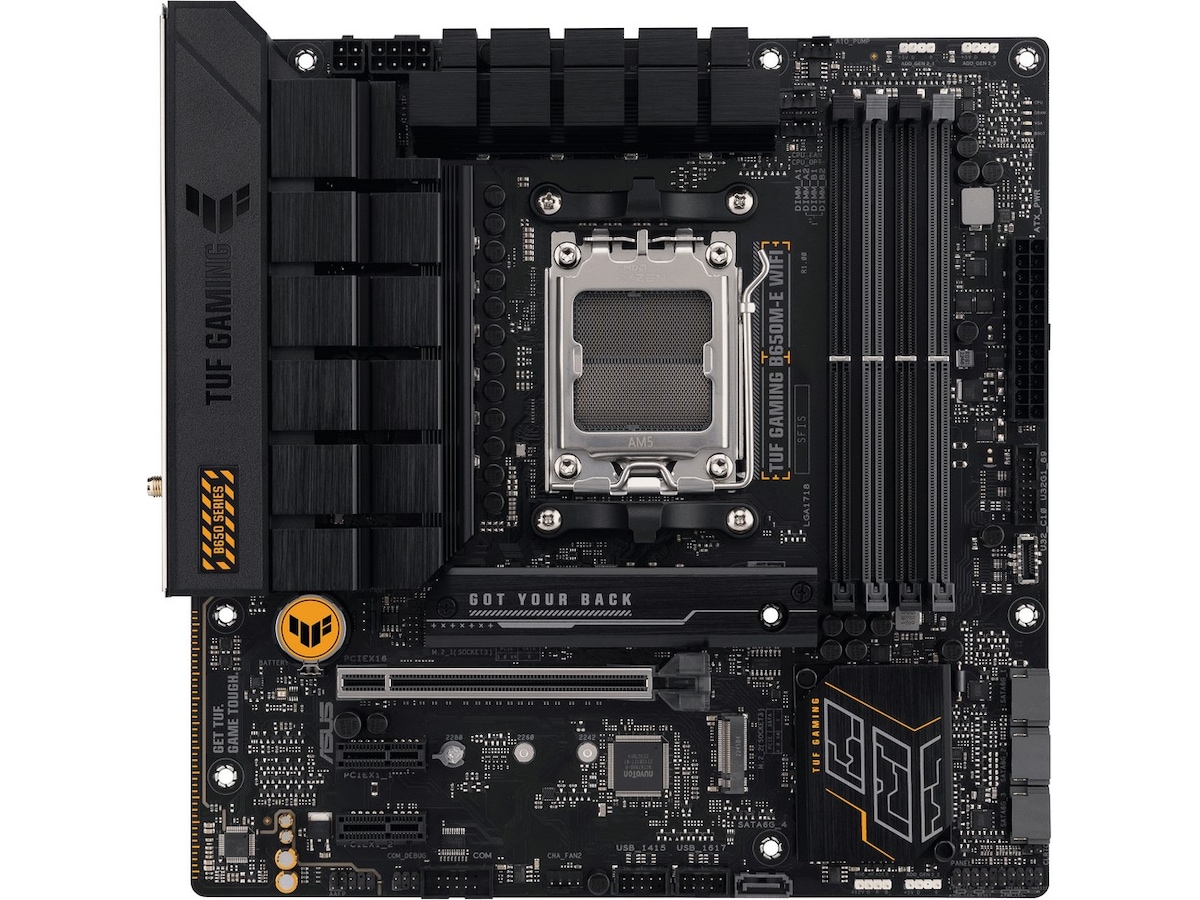

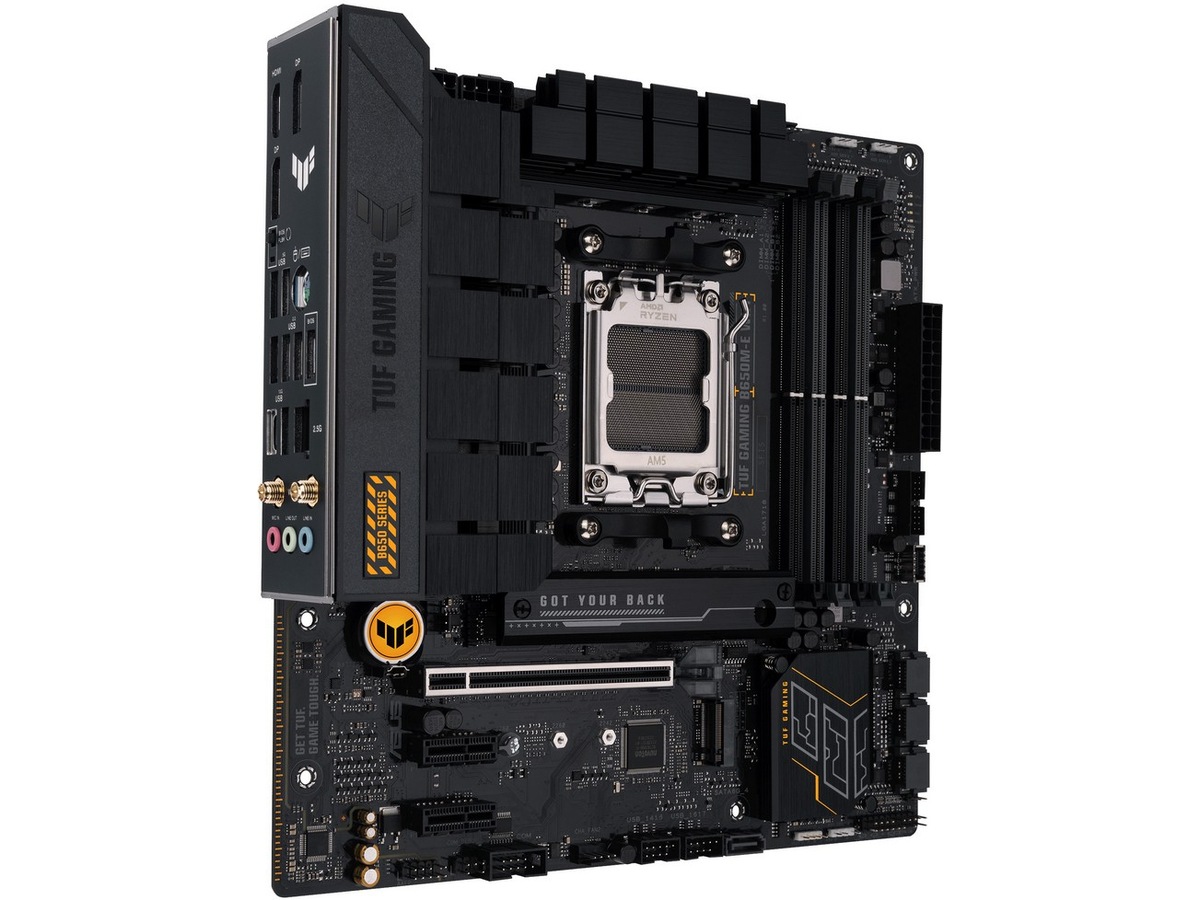

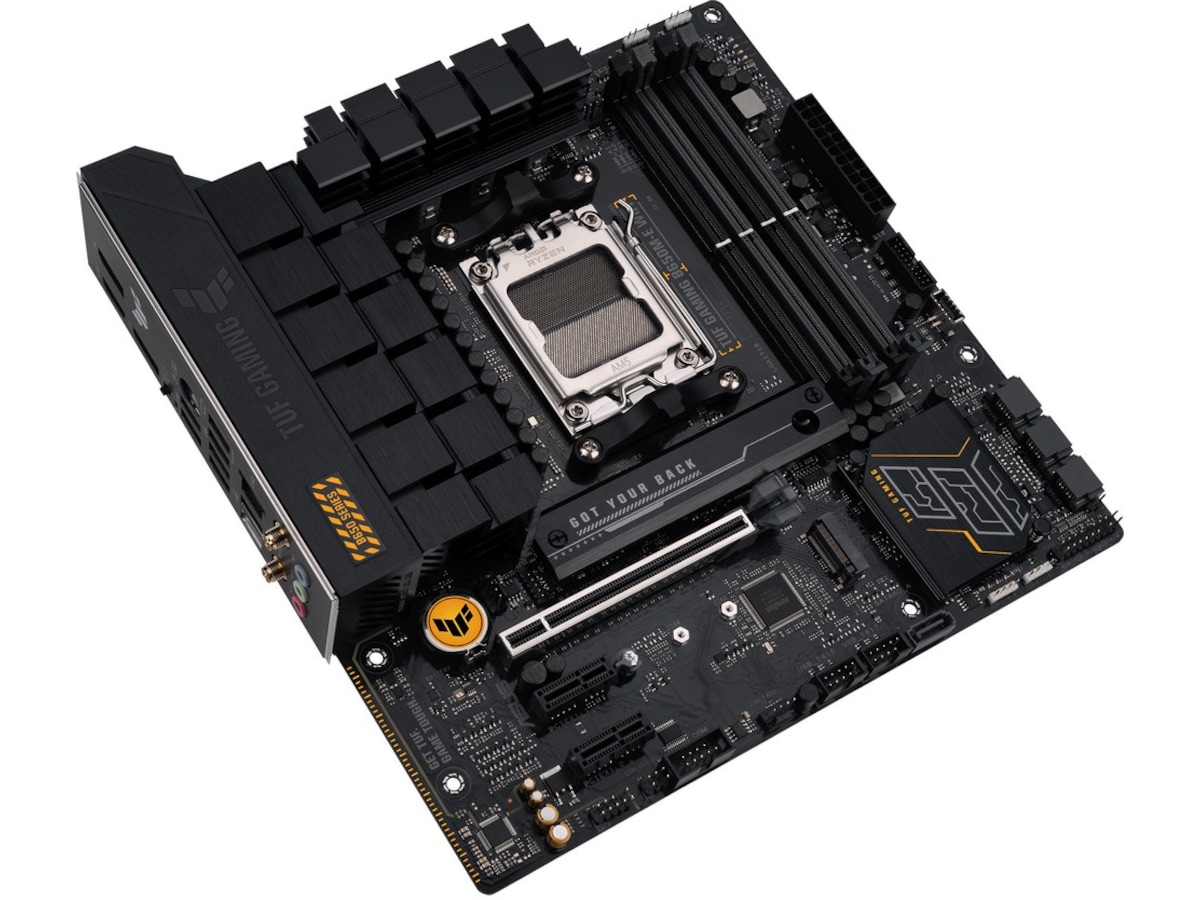

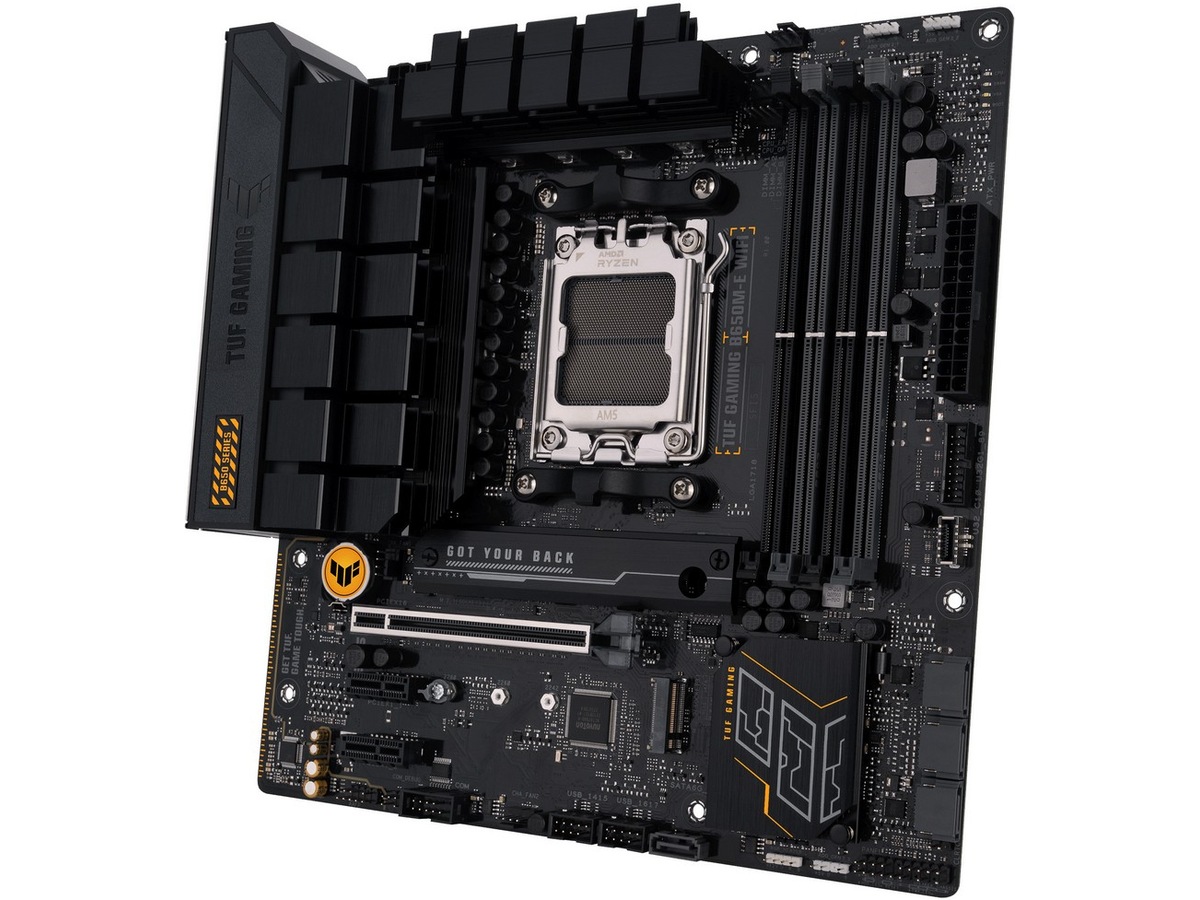

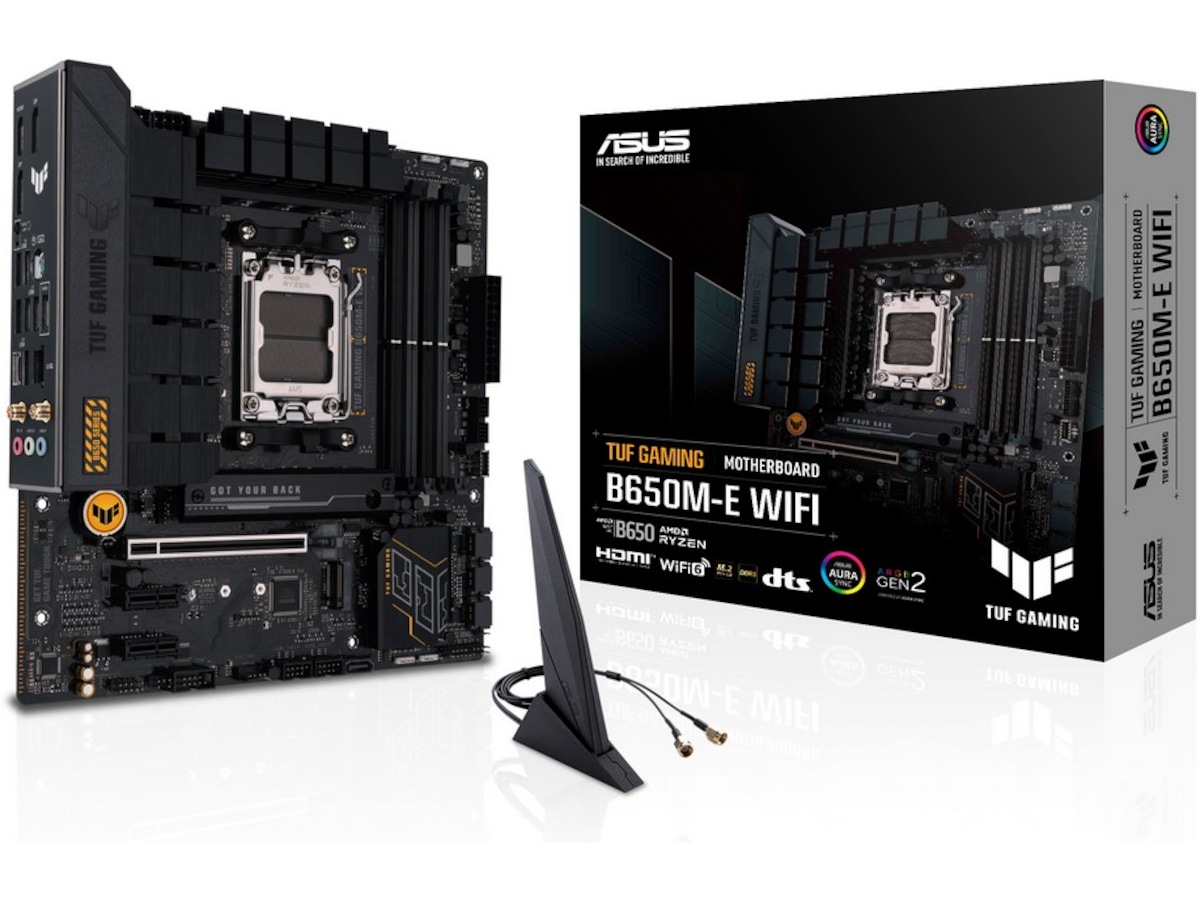

| Model | TUF GAMING B650M-E WIFI |
|---|---|
| Produktlinje | ASUS |
| Producentens garanti (måneder) | 36 |
| EAN | 4711387222041 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
|---|---|
| Kommentarer om kompatible processorer | Understøtter Ryzen 7000 Series |
| Chipsættype | AMD B650 |
| RAM Slots | 4 DIMM åbninger |
| Model | Micro ATX |
| Processor-socket | Socket AM5 |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Kompatible processorer | Ryzen |
| RAM-hastighed understøttet | 6400 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 6200 MHz (O.C.), 5800 MHz (O.C.), 5000 MHz, 7000 MHz (O.C.), 6000 MHz (O.C.), 7200 MHz (O.C.), 4800 MHz, 5200 MHz (O.C.), 5600 MHz (O.C.), 6600 MHz (O.C.), 5400 MHz (O.C.) |
| Understøttet RAM-integritetskon | ECC, Ikke-ECC, On-die ECC |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardware egenskaber | ASUS TurboV EVO, Audio jack detektions teknologi, Q-DIMM, CrashFree BIOS 3, ESD Guards, ASUS OptiMem II, 60 A Power Stage, ASUS Q-Design, Q-Slot, ASUS DIGI+ VRM, Jack retasking, ASUS ProCool, Water Pump Header, 8+2 Phase Power Design, ASUS SafeDIMM, M.2 Q-Latch, TUF LANGuard, TUF Components, ASUS Aura Sync, ASUS EZ DIY, Q-LED |
| BIOS-egenskaber | ASUS EZ Flash 3, UEFI BIOS |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| USB/FireWire | USB-C 3.2 Gen 1, USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Type | Lydkort |
| Bluetooth | Yes |
|---|---|
| Dataforbindelsesprotokol | 2.5 Gigabit Ethernet, IEEE 802.11ac, Fast Ethernet, 802.11ax, Gigabit Ethernet, IEEE 802.11n, IEEE 802.11a, Bluetooth 5.2, IEEE 802.11g, Ethernet, IEEE 802.11b |
| Netværk | Bluetooth 5.2, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Produkttype | Bundkort |
|---|---|

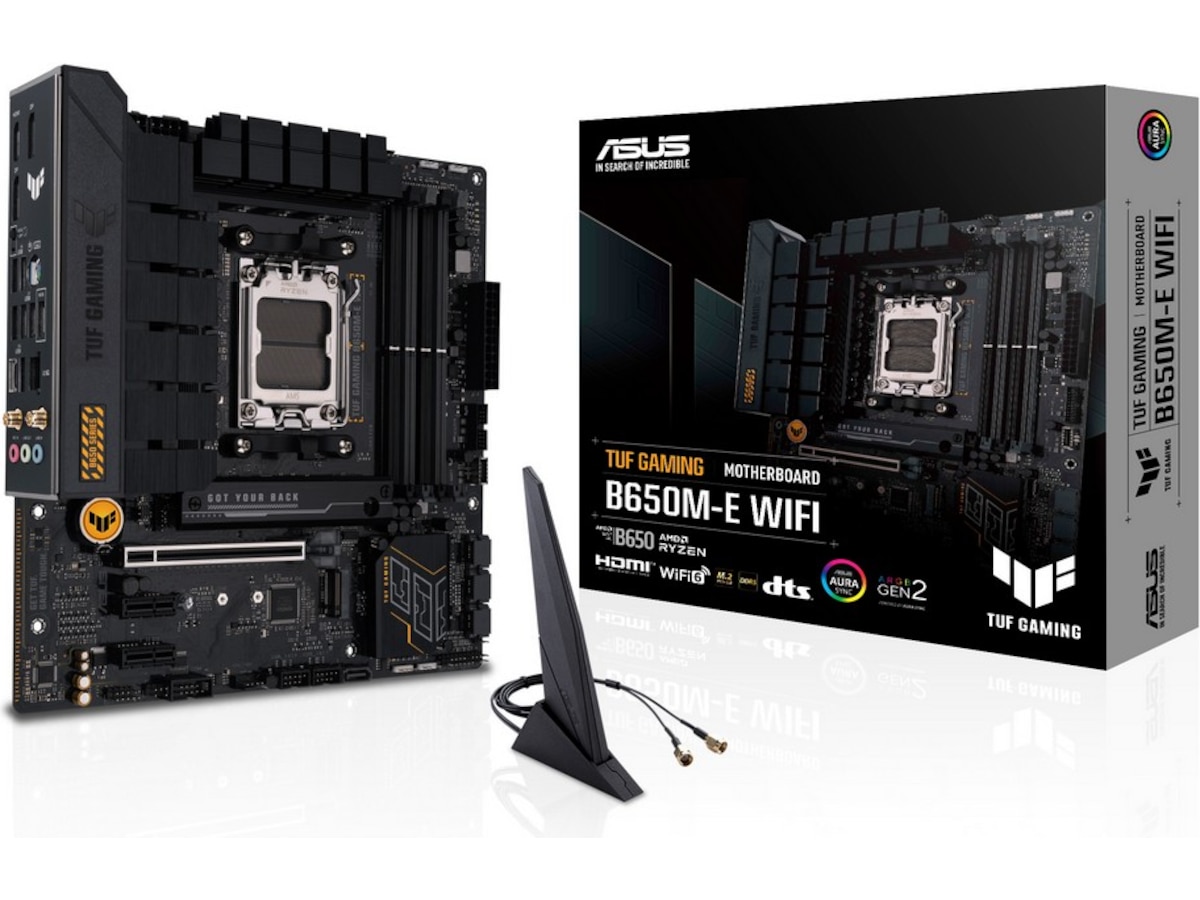

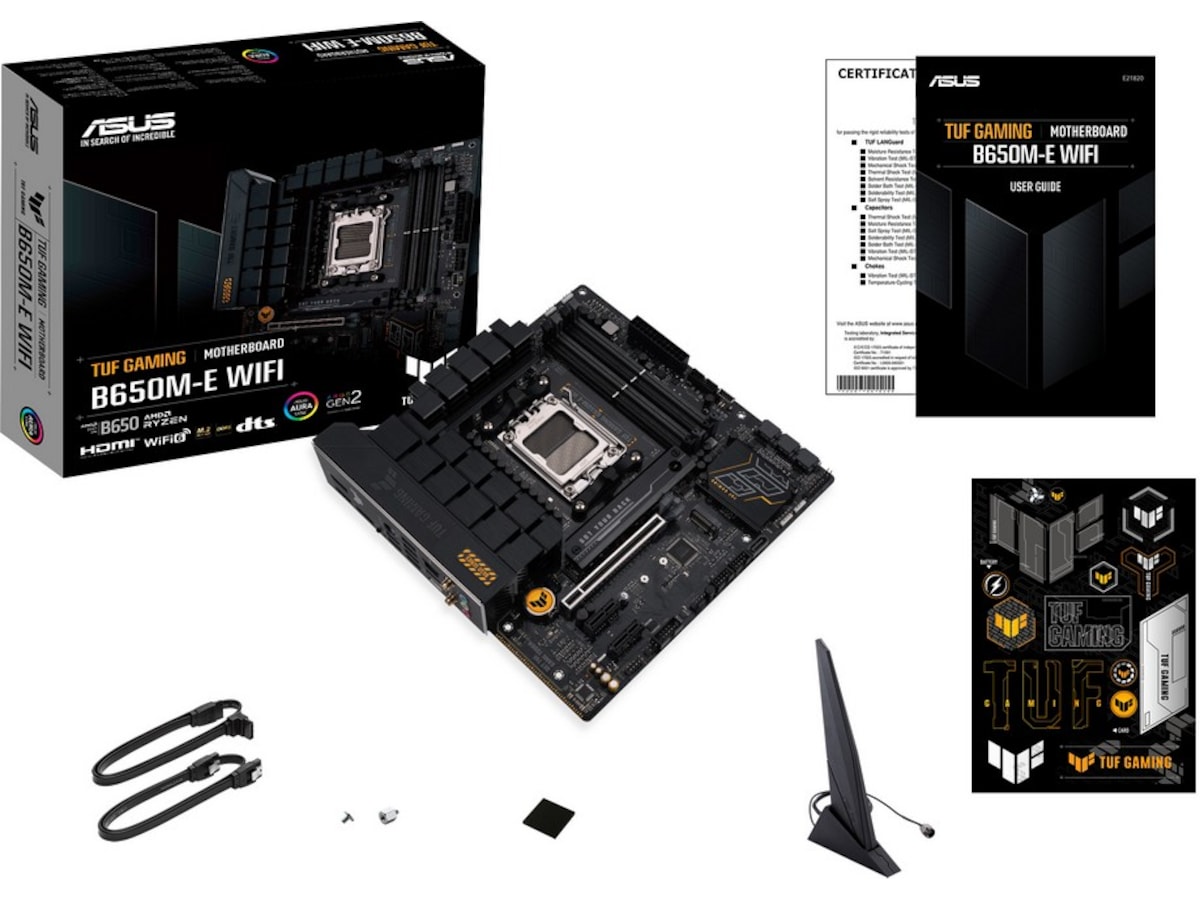

| Inkluderet tilbehør | M.2 skruepakke, 1 x M.2 gummipakke, ASUS Wi-Fi bevægende antenne |
| Egenskaber | AMD EXPO-teknologi, Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 2 x PCIe 4.0 x1, 4 x DIMM 288-pins, 1 x CPU, 1 x PCIe 4.0 x16 |
|---|
| Grænseflade (lagring) | PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
|---|

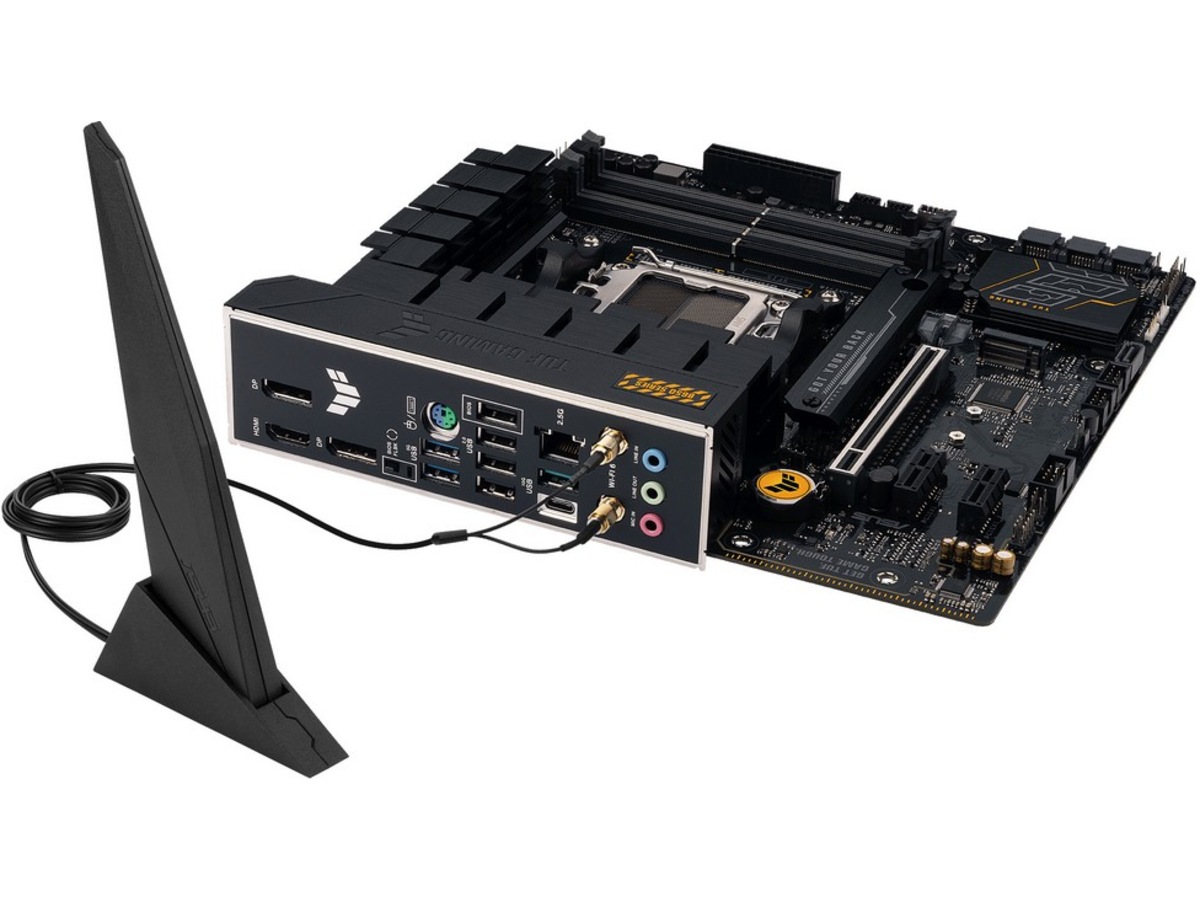

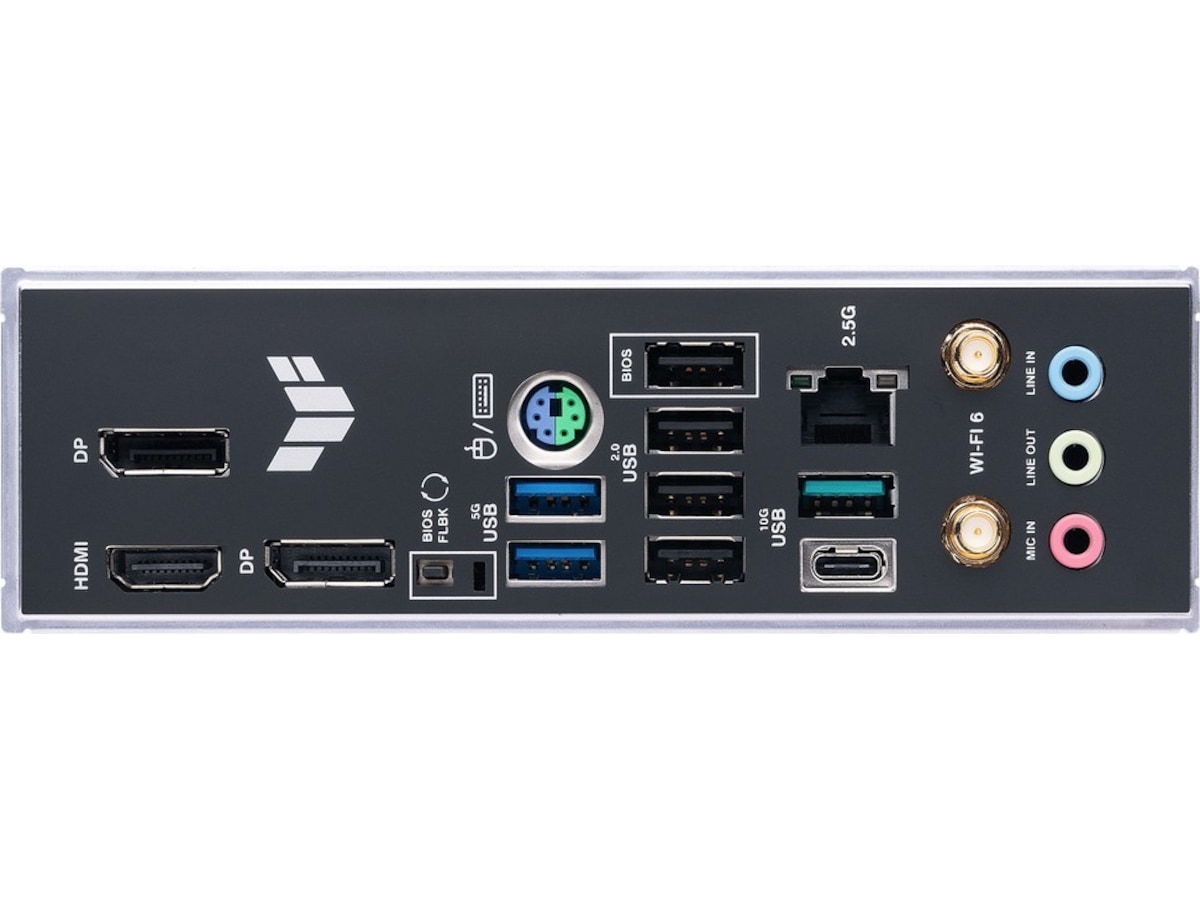

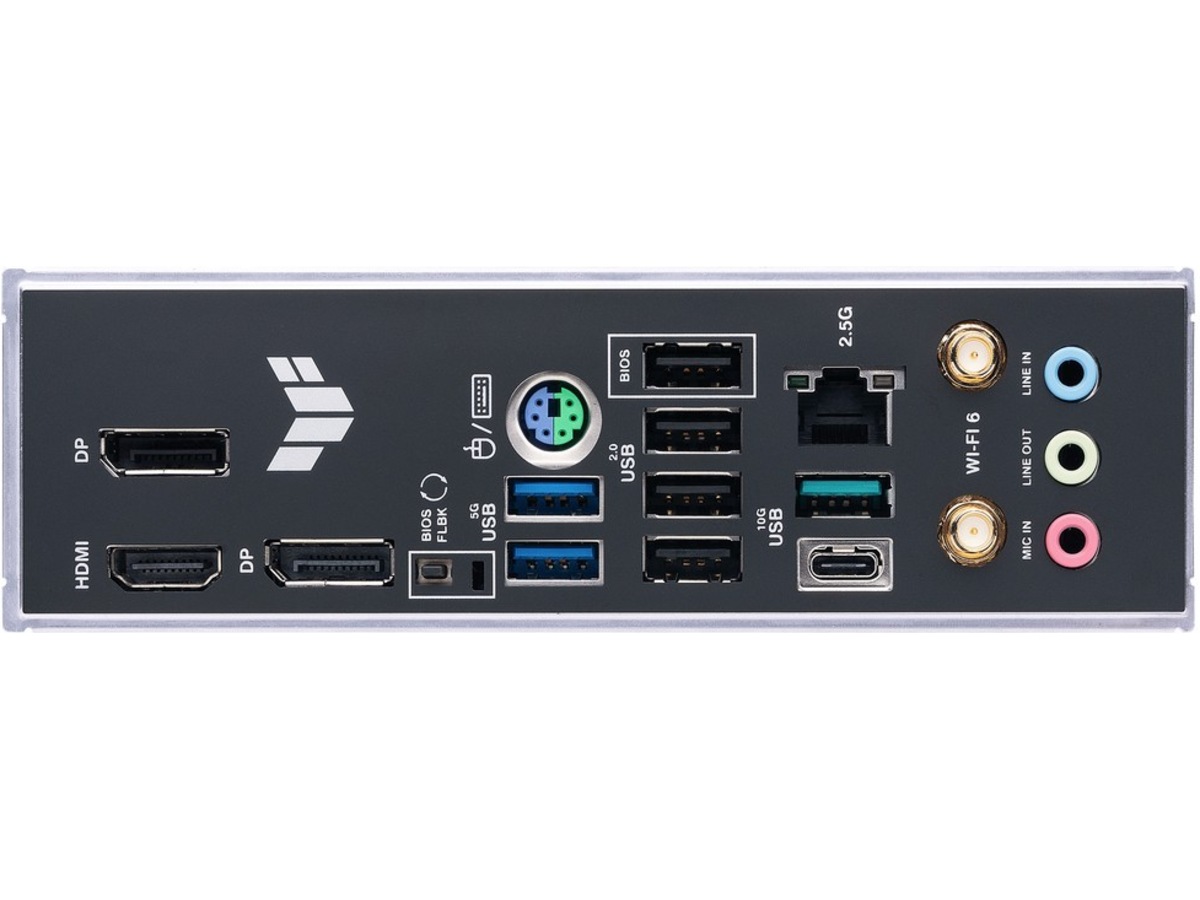

| Interface | 1 x audio linje-ud - mini-jack, 1 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 1 x audio linje-ind - mini-jack, 4 x USB 2.0, 1 x HDMI, 1 x USB-C 3.2 Gen 2, 2 x antenne, PS/2-tastatur/mus, 1 x LAN (2.5Gigabit Ethernet), 2 x DisplayPort, 1 x mikrofon - mini-jack |
|---|
| Interne interfaces | 1 x USB-C 3.2 Gen 1 - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x seriel - intern stik, 1 x Thunderbolt - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | PC Cleaner, Norton 360 for Gamers (60 dages prøvetid), ASUS Fan Xpert 2+, ASUS AI Suite III, MyAsus, Armoury Crate, WinRAR, ASUS AURA Creator, ASUS TUF GAMING CPU-Z |
|---|
