Varenummer: 1252758 / Producentens varenr: 11330-01-20G

Sapphire NITRO+ AMD Radeon RX 7800 XT

Video kort, PCI-Express 4.0, 16GB GDDR6

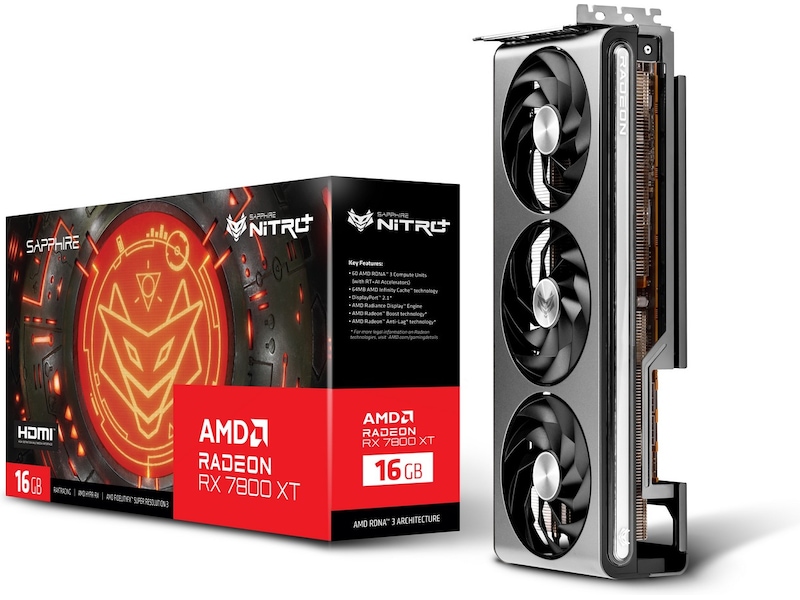

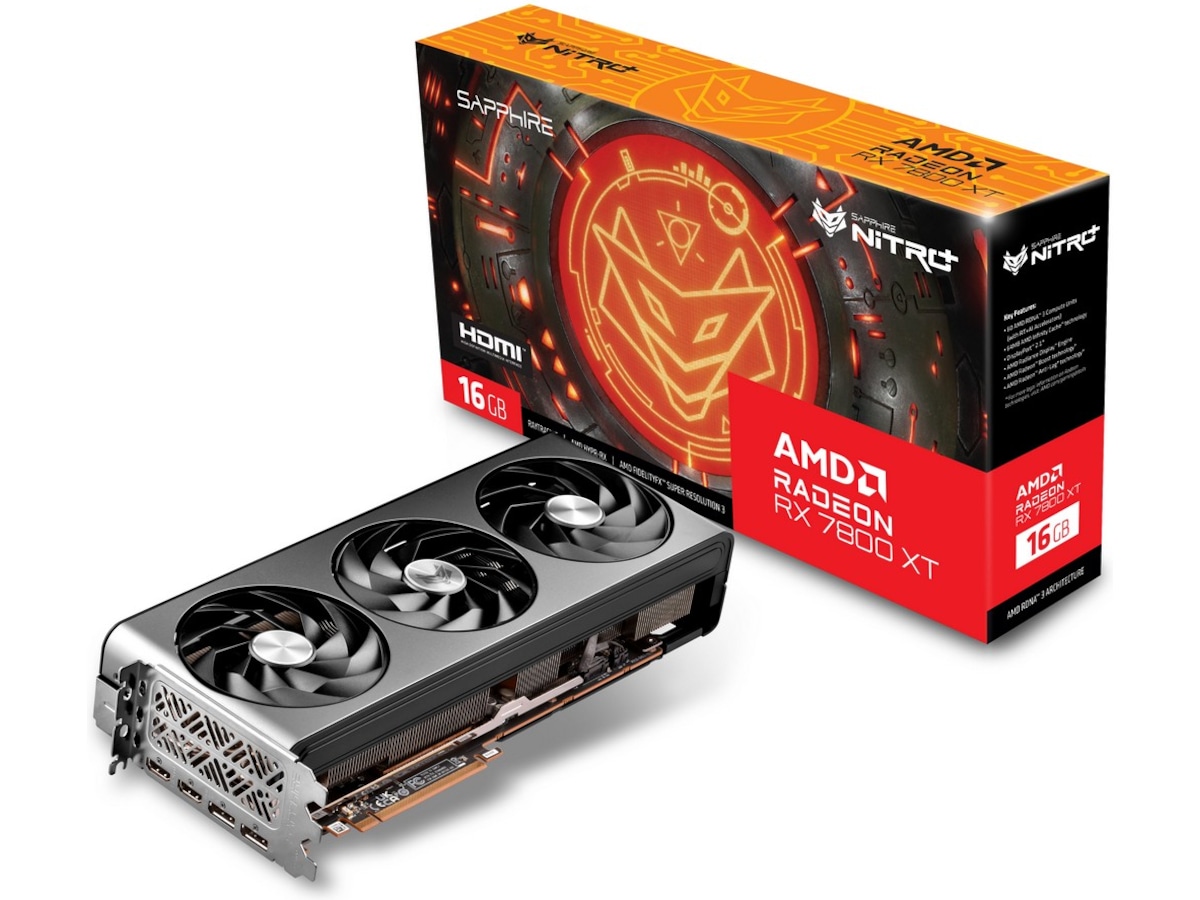

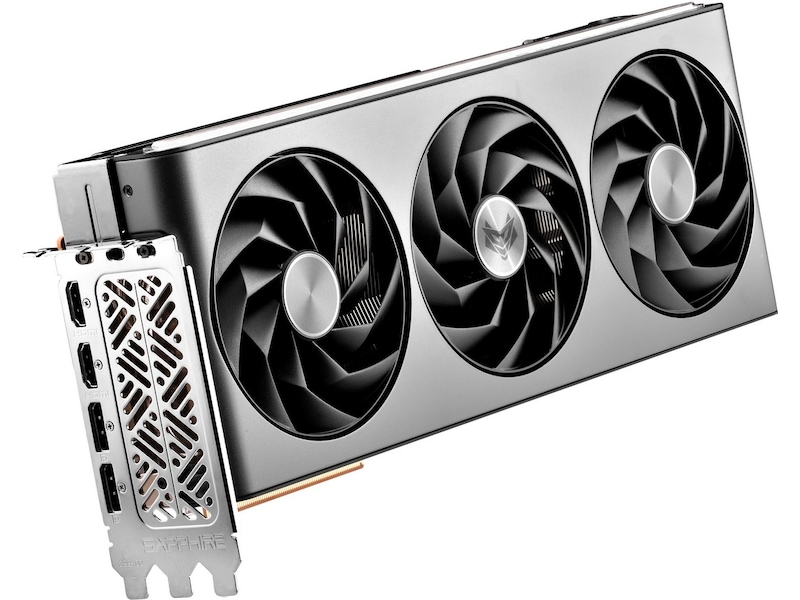

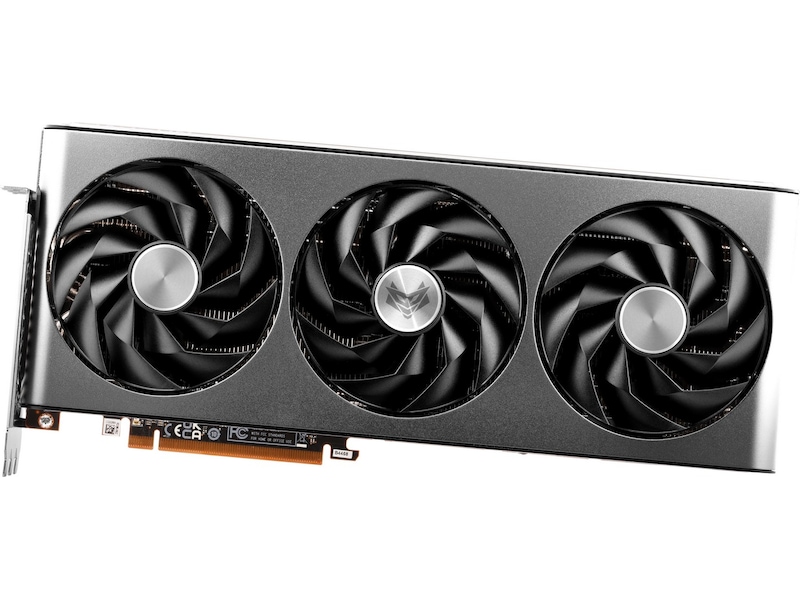

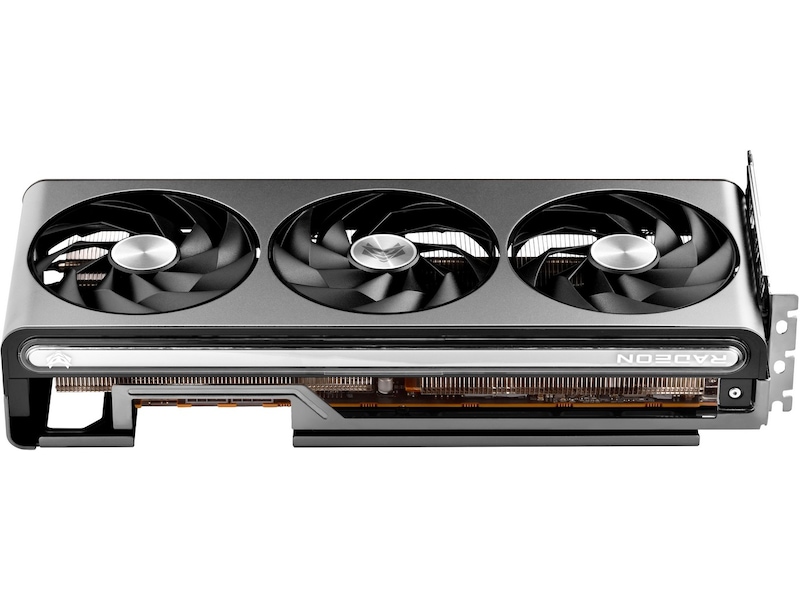

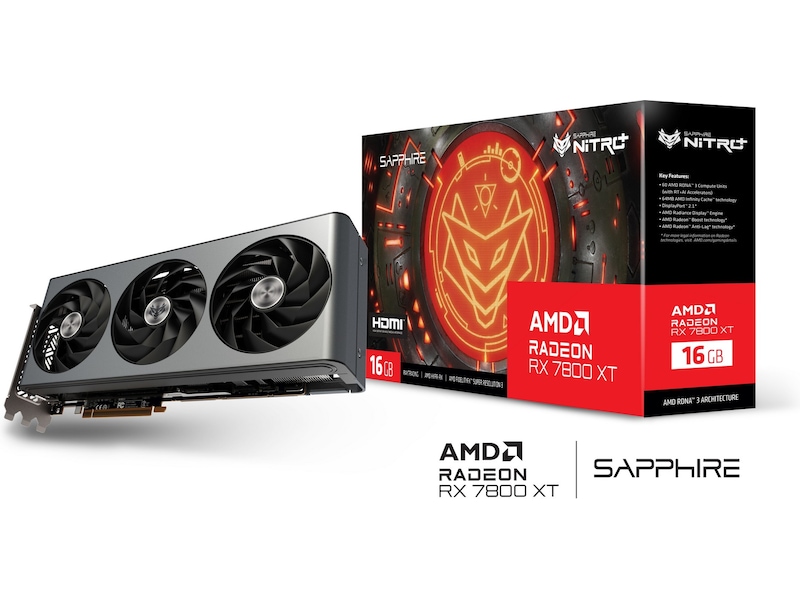

More pictures from Sapphire NITRO+ AMD Radeon RX 7800 XT

4.799,-
Tryghedsaftale fra 18,-/mnd.
Bestillingsvare. Bestilles ved ordre. Leveringstid 1-2 uger.

Sapphire PULSE AMD Radeon RX 7000 Series

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Generelt
Produktlinje Sapphire NITRO+
Model Radeon RX 7800 XT
Producentens garanti (måneder) 36
EAN 4895106294332
Videoudgang
Antal Stream processorer 3840
Boost clockhastighed 2565 MHz
Procesteknologi 5 nm
Maks. antal understøttede monitorer 4
Grafik-processor AMD Radeon RX 7800 XT
Grænsefladetype PCI Express 4.0 x16
Type Grafikkort
Maks. ekstern opløsning 7680 x 4320
Grafikprocessor producent AMD
API-understøttet Vulkan, DirectX 12 Ultimate
Video adapter egenskaber Precision Fan Control, FreeSync Technology, 60 Ray Accelerators, V-formet finnedesign, RDNA 3 Gaming Architecture, Dual ball Bearing Fans, AMD Noise Suppression, NITRO Glow, Assistiv-system blæserkontrol, Metalbagplade, AMD FidelityFX Super Resolution 2 (FSR), Sikringsbeskyttelse, Fan Check, Intelligent Fan Control (IFC), Triple Fan Design, TriXX Boost, TriXX Supported, Kompositvarmerør, Robust VRM Cooling, ARGB pin-samlestykke, AMD Link, ARGB-lysbarre, 64 MB cache, Fan Quick Connect, AMD Radiance Display Engine, Dual UEFI BIOS, AMD Privacy View, Radeon Super Resolution 2 (RSR), Premium Digital Power Design, Aluminiumslegeringsramme, High TG Copper PCB, Backplate with ARGB, Tri-X Cooling Technology, AMD Infinity Cache, Ledende polymer aluminium kondensatorer, Microsoft DirectStorage, 60 AMD RDNA 3 beregningsenheder, AMD Smart Technologies, WAVE-finnedesign, Angular Velocity Fan Blade, Blæserkøler med 3 pladser
Understøttet videosignal HDMI, DisplayPort
Udgangsporte (kompakt liste) 2 x HDMI, 2 x DisplayPort
Videohukommelse
Busbredde 256-bit
Hukommelseshastighed 19.5 Gbps
Installeret størrelse 16 GB
Teknologi GDDR6 SDRAM
Strømenhed
Strømforbrug ved drift 288 Watt
Systemkrav
Min. RAM-størrelse 8 GB
Påkrævet strømforsyning 700 W
Yderligere krav 2 x 8 pin PCI Express strømstikforbindelse
OS nødvendig Windows 10, Windows 11, Linux
Diverse
Farvekategori Grå
Overensstemmelsesstandarder DisplayPort 2.1
med videoadapter tilbehør ARGB-forlængerkabel, Grafikkortstøttebøjle
Mål og vægt
Højde 13.485 cm
Dybde 32 cm
Bredde 6.157 cm
Interfacedetaljer
Interfacedetaljer 2 x DisplayPort, 2 x HDMI
Programmer
Type Sapphire TriXX, AMD Radeon Software Adrenalin Edition
