Varenummer: 1252763 / Producentens varenr: 11335-02-20G

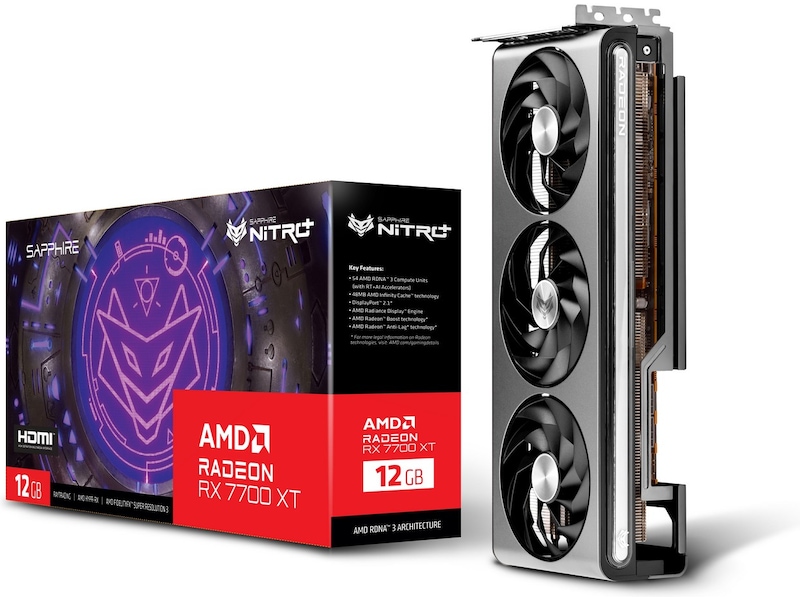

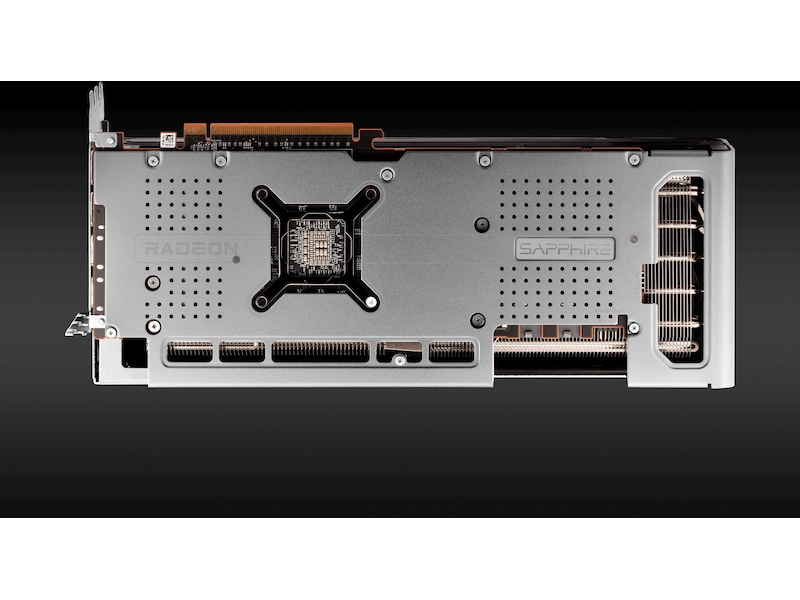

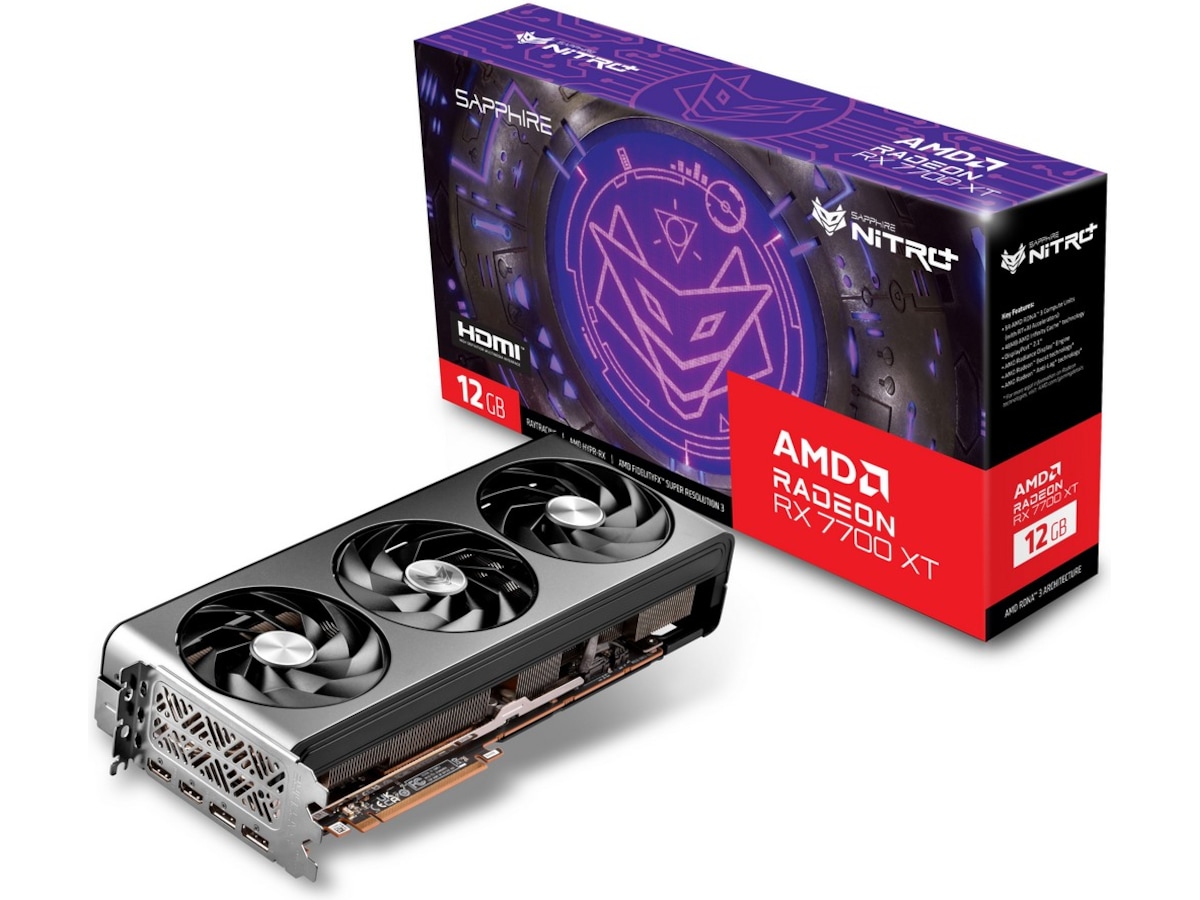

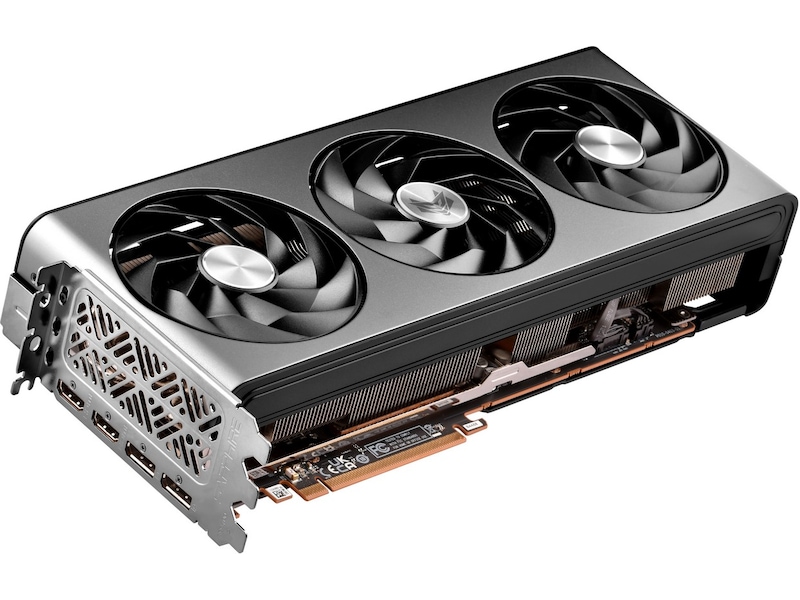

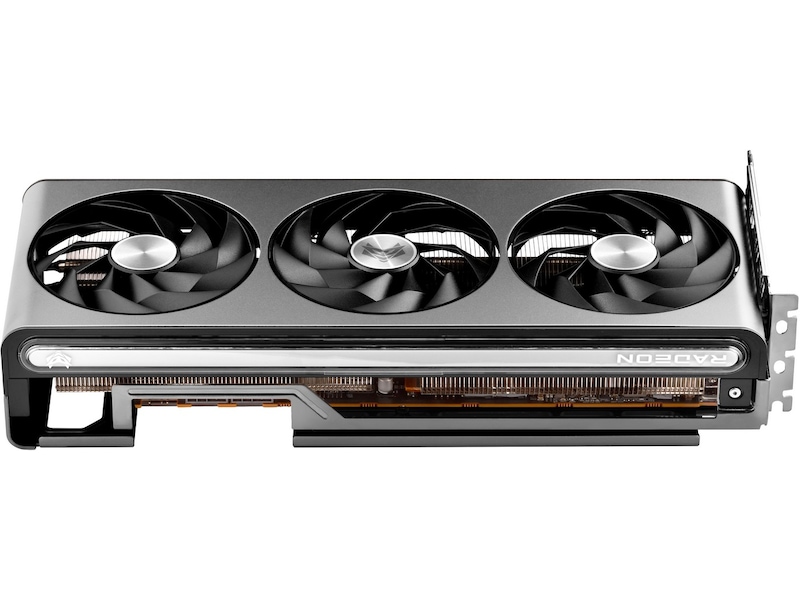

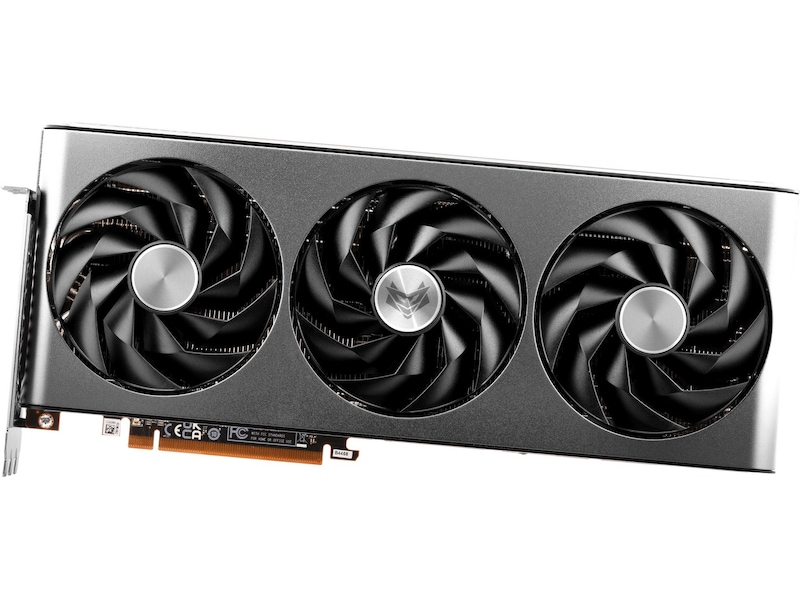

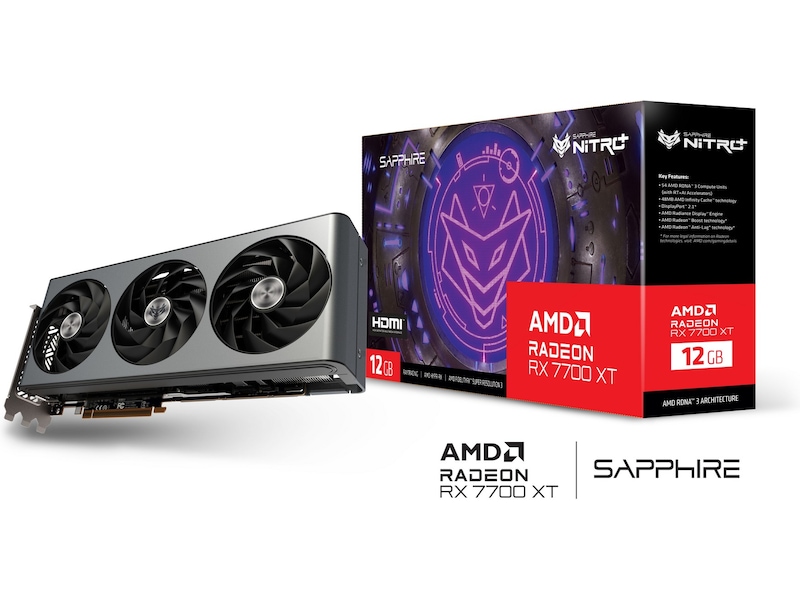

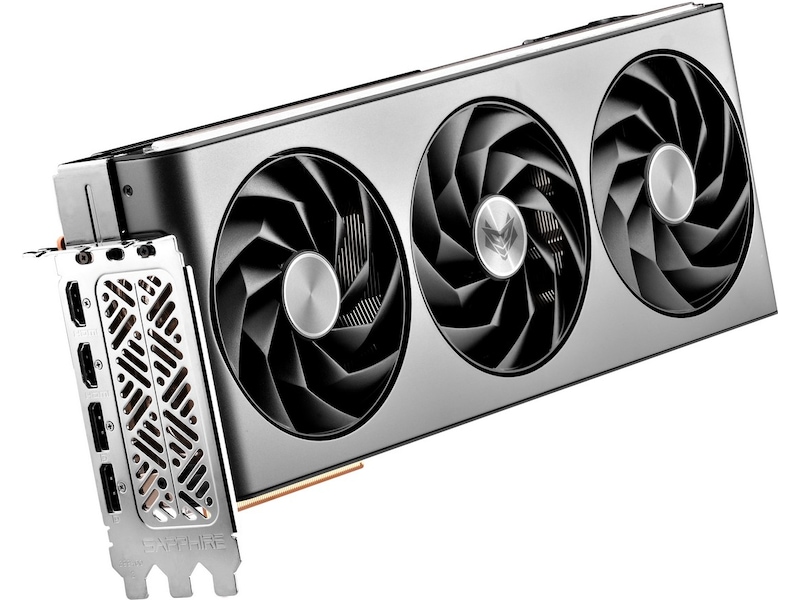

Sapphire NITRO+ AMD Radeon RX 7700 XT

Video kort, PCI-Express 4.0, 12GB GDDR6

More pictures from Sapphire NITRO+ AMD Radeon RX 7700 XT

3.693,-
Tryghedsaftale fra 11,-/mnd.
8 stk på lager. (2-6 hverdage leveringstid)

Sapphire PULSE AMD Radeon RX 7000 Series

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Generelt
Produktlinje Sapphire NITRO+
Model Radeon RX 7700 XT
Producentens garanti (måneder) 36
EAN 4895106294370
Videoudgang
Procesteknologi 5 nm
Maksimalt antal skærme 4
Grafik-processor AMD Radeon RX 7700 XT
Boost clockhastighed 2599 MHz
Antal Stream processorer 3456
Maks. ekstern opløsning 7680 x 4320
Grænsefladetype PCI Express 4.0 x16
Grafikprocessor producent AMD
Type Grafikkort
Video adapter egenskaber Fan Quick Connect, Assistiv-system blæserkontrol, Triple Fan Design, Microsoft DirectStorage, AMD Noise Suppression, AMD FidelityFX Super Resolution 2 (FSR), Premium Digital Power Design, Sikringsbeskyttelse, Dual UEFI BIOS, V-formet finnedesign, Blæserkøler med 3 pladser, AMD Infinity Cache, Kompositvarmerør, AMD Privacy View, FreeSync Technology, Sapphire Tri-X Cooling Technology, AMD Link, Angular Velocity Fan Blade, Precision Fan Control, Dual ball Bearing Fans, Intelligent Fan Control (IFC), WAVE-finnedesign, TriXX Supported, 54 AMD RDNA 3 beregningsenheder, NITRO Glow RGB LED, 48 MB cache, TriXX Boost, Aluminiumslegeringsramme, Radeon Super Resolution (RSR), High TG Copper PCB, Ledende polymer aluminium kondensatorer, Dedikeret VRM-køling, AMD Radiance Display Engine, Metalbagplade, AMD Smart Technologies, NITRO Fan Check
API-understøttet Vulkan, DirectX 12 Ultimate
Understøttet videosignal HDMI, DisplayPort
Udgangsporte (kompakt liste) 2 x HDMI, 2 x DisplayPort
Videohukommelse
Hukommelseshastighed 18 Gbps
Installeret størrelse 12 GB
Teknologi GDDR6 SDRAM
Busbredde 192-bit
Strømenhed
Strømforbrug ved drift 252 Watt
Systemkrav
Min. RAM-størrelse 8 GB
Påkrævet strømforsyning 700 W
Yderligere krav 2 x 8 pin PCI Express strømstikforbindelse
OS nødvendig Windows 10 (64-bit), Linux, Windows 11
Diverse
Farvekategori Sølv
Overensstemmelsesstandarder DisplayPort 2.1
med videoadapter tilbehør ARGB-forlængerkabel, Grafikkortstøttebøjle
Mål og vægt
Højde 13.485 cm
Bredde 6.157 cm
Dybde 32 cm
Interfacedetaljer
Interfacedetaljer 2 x HDMI, 2 x DisplayPort
Programmer
Type AMD Radeon Software Adrenalin Edition, Sapphire TriXX
