| Produktlinje | ASUS |
|---|---|
| Model | ROG STRIX Z790-F GAMING WIFI II |
| Producentens garanti (måneder) | 36 |
| EAN | 4711387356548 |
| Model | ATX |
|---|---|
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Processor-socket | LGA1700 sokkel |
| Kommentarer om kompatible processorer | Understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Chipsættype | Intel Z790 |
| RAM Slots | 4 DIMM åbninger |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| Understøttet RAM-integritetskon | On-die ECC, Ikke-ECC |
| RAM-hastighed understøttet | 5000 MHz, 6000 MHz (O.C.), 4800 MHz, 7600 MHz (O.C.), 6200 MHz (O.C.), 7400 MHz (O.C.), 5600 MHz, 6600 MHz (O.C.), 7000 MHz (O.C.), 6400 MHz (O.C.), 8000 MHz (O.C.), 5200 MHz, 5800 MHz (O.C.), 7200 MHz (O.C.), 6800 MHz (O.C.), 7800 MHz (O.C.), 5400 MHz |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | ASUS EZ Flash 3, UEFI BIOS, ASUS UEFI BIOS EZ Mode |
| Sov/ Vågn | Vågn på PME, Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber | CrashFree BIOS 3, Q-Slot, ASUS ProCool II, Clear CMOS Button, 16+1+2 Phase Power Design, M.2 kølelegemebagplade, PCIe Slot Q-Release, BIOS FlashBack LED, M.2 Q-Latch, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, M.2 kølelegeme, ASUS OptiMem II, BIOS FlashBack-knap, Preboot eXecution Environment (PXE), Q-Antenna, ASUS Q-Design, Q-DIMM, ASUS DIGI+ VRM, ASUS EZ DIY, LANGuard, Q-LED, ASUS Extreme Engine Digi+, Start-knap, ASUS TPU (TurboV Processing Unit), Præmonteret I/O-skjold, Lighting Control, 5K Black Metallic Capacitors, 6 Layer PCB, CPU Socket-håndtagsbeskytter, ASUS Enhanced Memory Profile (AEMP) II |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 |
|---|---|
| Lagringsporte | 4 x SATA-600 (RAID), 5 x M.2 |
| RAID-egenskaber | Intel Rapid Storage Technology |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB/FireWire | USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB-C 3.2 Gen2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio codec | SupremeFX (ALC4080) |
| Overensstemmelsesstandarder | High Definition Audio, DTS Sound Unbound |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
|---|---|
| Produkttype | Bundkort |
| Inkluderet tilbehør | STRIX-mærkater, Termisk pude til M.2 SSD, ROG-nøglekæde, 2 x M.2 gummipakke, ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 bagplade Q-Latch, M.2 bagplade-gummipakke, Kabelbånd |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Dataforbindelsesprotokol | IEEE 802.11g, Bluetooth 5.4, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11n, Ethernet, IEEE 802.11ac, IEEE 802.11b, Fast Ethernet, IEEE 802.11a |
|---|---|
| Netværk | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Ekspansionsåbninger | 4 x DIMM 288-pins, 1 x PCIe 5.0 x16, 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 2 x M.2 socket (2280 M.2 Key M-åbning), 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 (x4-modus), 1 x CPU, 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

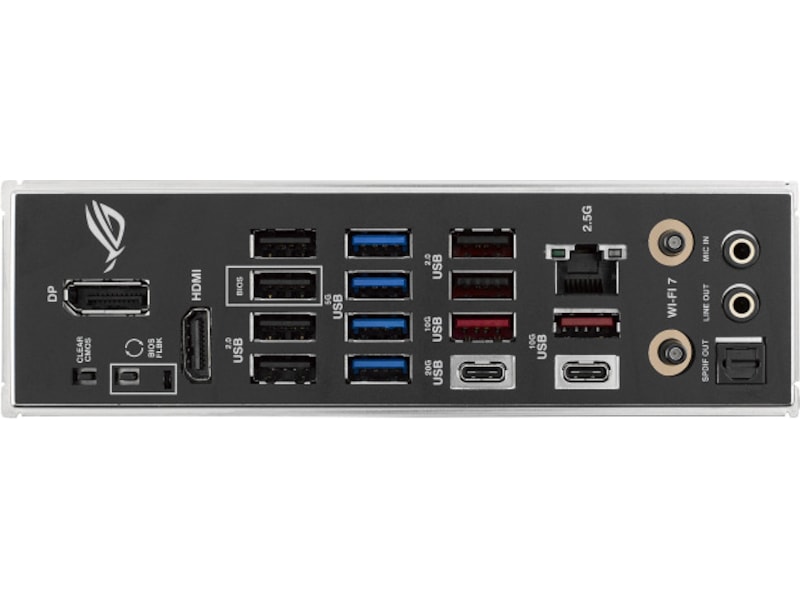

| Interface | 1 x HDMI, 2 x USB 3.2 Gen 2, 1 x audio linje-ud - mini-jack, 1 x USB-C 3.2 Gen2x2, 1 x DisplayPort, 1 x SPDIF-ud, 4 x USB 3.2 Gen 1, 2 x antenne, 1 x mikrofon - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 6 x USB 2.0, 1 x USB-C 3.2 Gen 2 |
|---|
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 1 x audio - intern stik, 1 x Thunderbolt 4 - intern stik |
|---|
| Software inkluderet | Sonic Studio Virtual Mixer, AIDA64 Extreme (60 dages prøvetid), ASUS Fan Xpert 4, Sonic Radar III, PC Cleaner, USB Wattage Watcher, ASUS AURA Creator, MemTest86, ASUS AI Suite III, Intel Unison, Armoury Crate, ROG GameFirst Utility, WinRAR (40 days trial), ASUS Turbo App, MyAsus, Norton 360 for Gamers (60 dages prøvetid), ROG CPU-Z, Adobe Creative Cloud (gratis prøve) |
|---|
