Varenummer: 1303162 / Producentens varenr: 911-7E07-014
Se alt fra MSI

More pictures from MSI PRO Z790-A MAX WIFI Bundkort

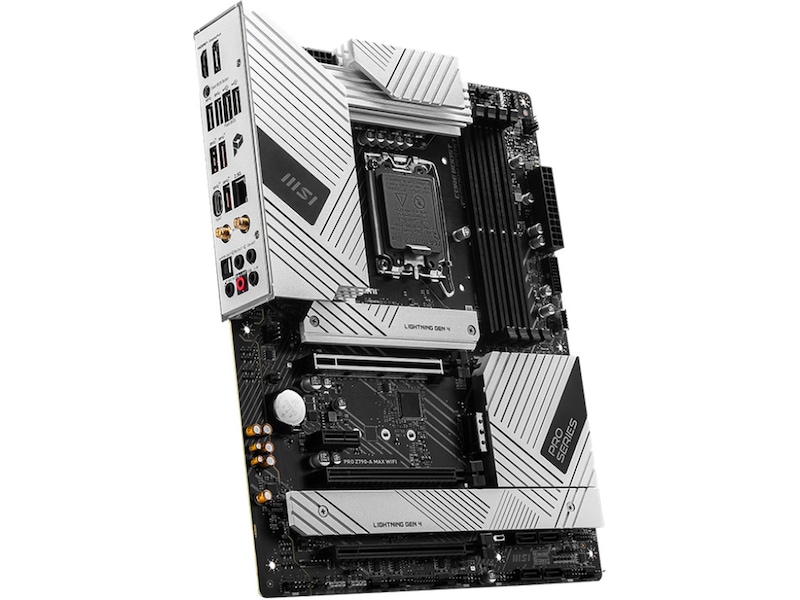

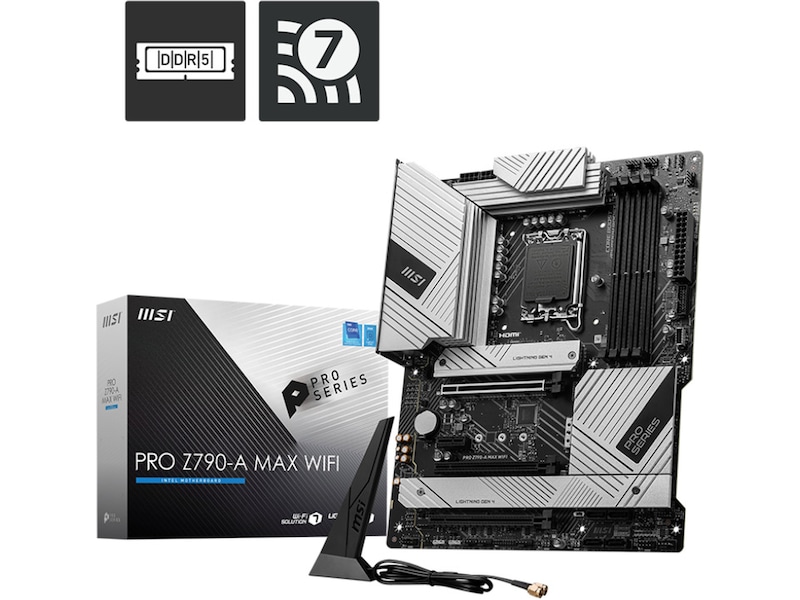

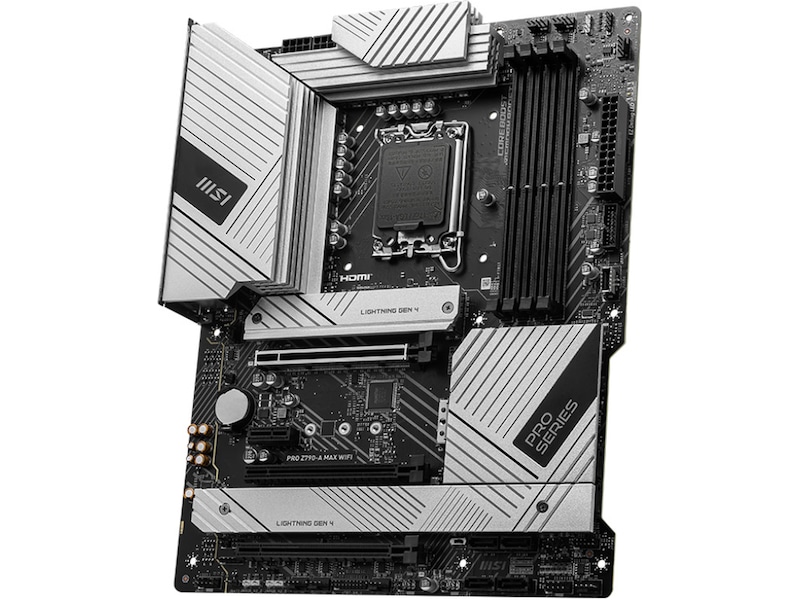

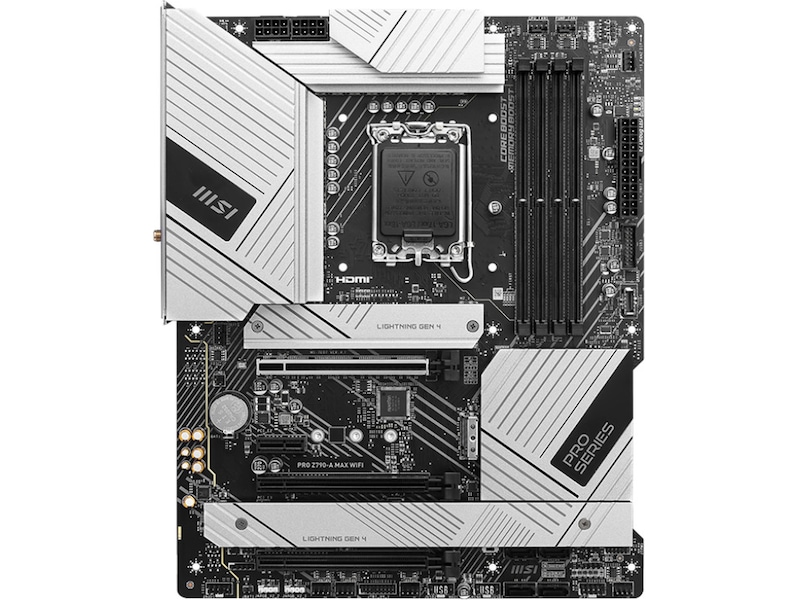

MSI PRO Z790-A MAX WIFI Bundkort

LGA 1700, ATX, DDR5, 3x PCI-E x16, 4x M.2

Of MSI
Se alt fra MSI
2.199,-
2 stk på lager. (2-6 hverdage leveringstid)

MSI PRO Z790-A MAX WIFI

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

16+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 16+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Generelt
Produktlinje MSI
Model PRO Z790-A MAX WIFI
Producentens garanti (måneder) 36
EAN 4711377139939
Mainboard
RAM Slots 4 DIMM åbninger
I/O Controller Nuvoton NCT6687
Processor-socket LGA1700 sokkel
Understøttet RAM-teknologi DDR5 SDRAM
Model ATX
Understøttet RAM (registreret eller buffered) Ikke bufferet
Understøttet RAM-integritetskon Ikke-ECC
Chipsættype Intel Z790
Kommentarer om kompatible processorer Understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron
Strømkontakter 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
RAM-hastighed understøttet 7800 MHz (O.C.), 6200 MHz (O.C.), 6800 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5200 MHz, 5000 MHz, 5400 MHz, 7600 MHz (O.C.), 6400 MHz (O.C.), 6000 MHz (O.C.), 7400 MHz (O.C.), 6600 MHz (O.C.), 7200 MHz (O.C.), 7000 MHz (O.C.), 4800 MHz
Mainboard funktioner
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber ACPI 6,4 support, MSI ClickBIOS 5, UEFI BIOS, SMBIOS 3,5 support, Flersproget BIOS
Hardware egenskaber MSI Steel Armor, Flash BIOS-knap, MSI Memory Boost, Extended Heatsink Design, Præmonteret I/O-skjold, MSI PCIe Steel Slot, Digital PWM, MSI Audio Boost 5, 2oz Copper PCB, 6 Layer PCB, Surface Mount Technology (SMT), M.2 Shield FROZR, 16+1+1 Phase Power Design, Water Pump Header, 80A Smart Power Stage, MSI Core Boost, DIY Friendly Design, Debug LED, MSI Mystic Light
Hardwareovervågning Blæserkontrol, Blæserhastighedsdetektion, Temperaturdetektion
Interfaces
USB / FireWire portkonfiguration (aktiv) 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Lagringsporte 6 x SATA-600 (RAID), 4 x M.2
USB / FireWire portkonfiguration (samlekasser) 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagring Serial ATA-600 (RAID), M.2 åbning
USB/FireWire USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2
Videoudgang
Type Grafik adapter (CPU påkrævet)
Lydudgang
Overensstemmelsesstandarder High Definition Audio
Audio codec Realtek ALC4080
Audio High Definition Audio (8 kanaler)
Type Lydkort
Kabeloplysninger
Medfølgende ledninger 2 x Seriel ATA kabel
Diverse
Overensstemmelsesstandarder DisplayPort 1.4
Produkttype Bundkort
Inkluderet tilbehør Standoff til M.2 sokkel, 1 x M.2 skrue, Wi-Fi-antenne, 2 x M.2 klemmer
RAM
Egenskaber Intel Extreme Memory Profiles (XMP) 3.0, Dobbelt kanal hukommelses arkitektur
Netværk
Dataforbindelsesprotokol Bluetooth 5.4, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b, 2.5 Gigabit Ethernet, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6)
Netværk Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Udvidelsesåbninger
Ekspansionsåbninger 1 x PCIe 3.0 x16 (x1 modus), 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning), 1 x PCIe 3.0 x1, 4 x DIMM 288-pins, 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 1 x PCIe 4.0 x16 (x4-modus), 1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (Key E)
Grænseflade (lagring)
Grænseflade (lagring) PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface leveret

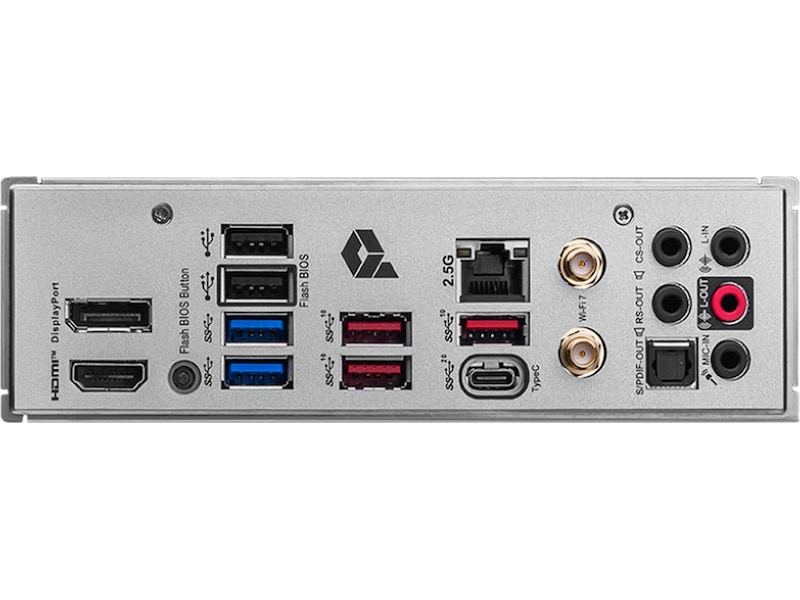

Interface 1 x audio linje-ud (bagtil) - mini-jack, 1 x mikrofon - mini-jack, 1 x USB-C 3.2 Gen2x2, 1 x DisplayPort, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 2 x USB 2.0, 2 x antenne, 1 x audio linje-ind - mini-jack, 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x SPDIF-ud, 3 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1
Interne interfaces
Interne interfaces 2 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 1 x SPI - intern stik, 1 x Thunderbolt - intern stik, 1 x USB-C 3.2 Gen 2 - intern stik
Programmer
Software inkluderet Adobe Creative Cloud (gratis prøve), MSI Center, Norton 360, MSI CPU-Z, Adobe Acrobat Reader, AIDA64 Extreme - MSI Edition
