| Model | Z790 Pro RS WiFi |
|---|---|
| Produktlinje | ASRock |
| Producentens garanti (måneder) | 36 |
| EAN | 4710483941504 |
| Kommentarer om kompatible processorer | Understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron |
|---|---|
| RAM-hastighed understøttet | 7200 MHz (O.C.) |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Chipsættype | Intel Z790 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Processor-socket | LGA1700 sokkel |
| Model | ATX |
| Strømkontakter | 2 x 8-pins ATX12V stikforbindelser, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber | UEFI BIOS |
|---|---|
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | ASRock Easy RAID Installer, Anti-tab M.2 kølelegemeskrue, Intel Hybrid Technology, ASRock Polychrome RGB, Intel Adaptive Boost Technology (ABT), Hi-Density Power Connectors, AMD CrossFire-teknologisupport, 6 Layer PCB, Præmonteret I/O-skjold, 14+1+1 Phase Power Design, ASRock Auto Driver Installer, ASRock Full HD UEFI, ASRock Steel Slots, Water Pump Header, ASRock EZ Mode, Dr.MOS MOSFET, Surface Mount Technology (SMT), ASRock Instant Flash, ASRock My Favorites in UEFI, ASRock 13,3" Side Panel Kit support, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), 2oz Copper PCB, ASRock POST Status Checker (PSC), DDR5 hukommelsesbeskyttelseskredsløb |
| Lagringsporte | 8 x SATA-600 (RAID), 4 x Hyper M.2 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagring | Serial ATA-600 (RAID), Hyper M.2 socket |
| USB/FireWire | USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio codec | Realtek ALC897 |
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Netværk controller | Dragon RTL8125BG |
|---|---|
| Netværk | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Dataforbindelsesprotokol | IEEE 802.11a, Gigabit Ethernet, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11n, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Fast Ethernet, Ethernet |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | FCC, ErP Ready, EuP Ready |
| Inkluderet tilbehør | 4 x M.2 skruer, Standoff til M.2 sokkel, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Egenskaber | Intel Extreme Memory Profiles (XMP) 3.0, Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 1 x PCIe 5.0 x16, 4 x DIMM 288-pins, 2 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 (x4-modus), 4 x M.2 socket (2260/2280 M.2 Key M-åbning), 1 x CPU |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 4 x M.2 - RAID 0 / RAID 1 / RAID 5 |
|---|

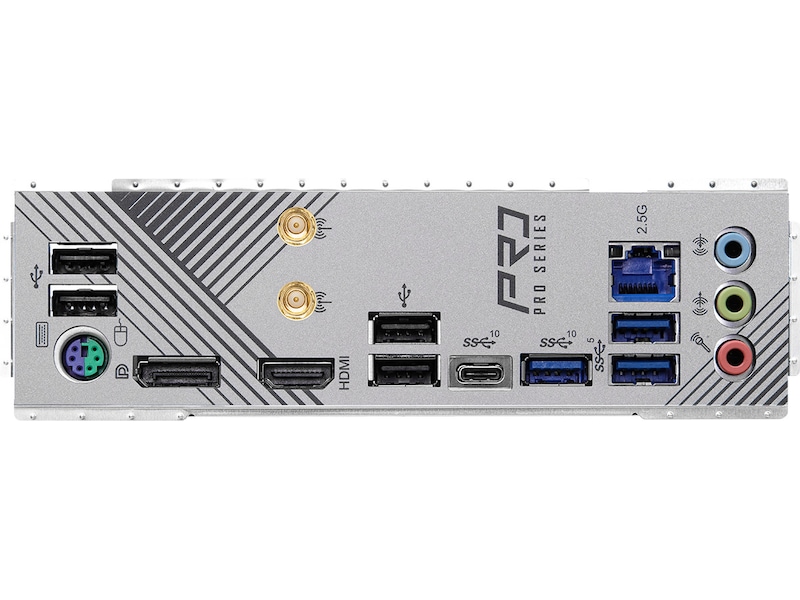

| Interface | 1 x PS/2-tastatur/mus, 2 x antenne, 1 x USB 3.2 Gen 2, 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x audio linje-ind - mini-jack, 2 x USB 3.2 Gen 1, 1 x USB-C 3.2 Gen 2, 1 x mikrofon - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 4 x USB 2.0, 1 x DisplayPort |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 1 x SPI - intern stik, 1 x Thunderbolt - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 1 x Embedded DisplayPort (eDP) - intern stik, 1 x højttaler - intern stik |
|---|
| Software inkluderet | ASRock Dragon 2.5G LAN Software, ASRock A-Tuning |
|---|
