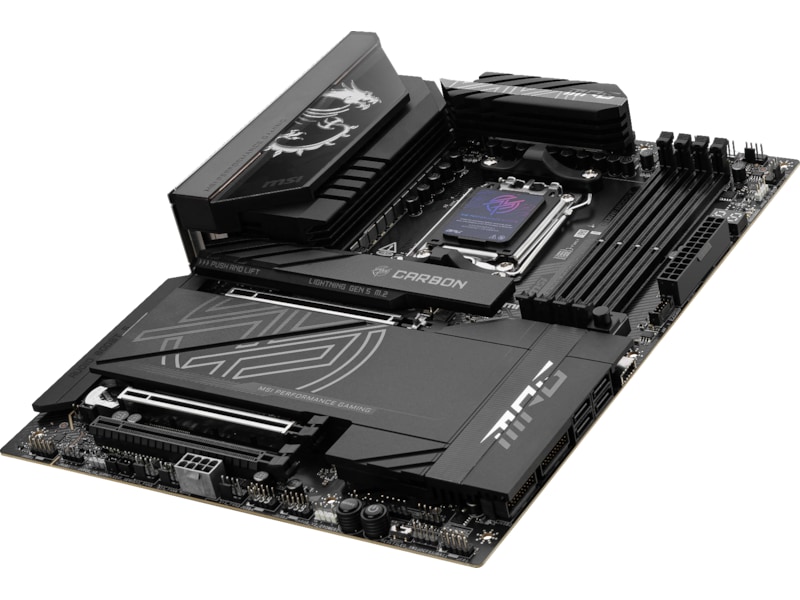

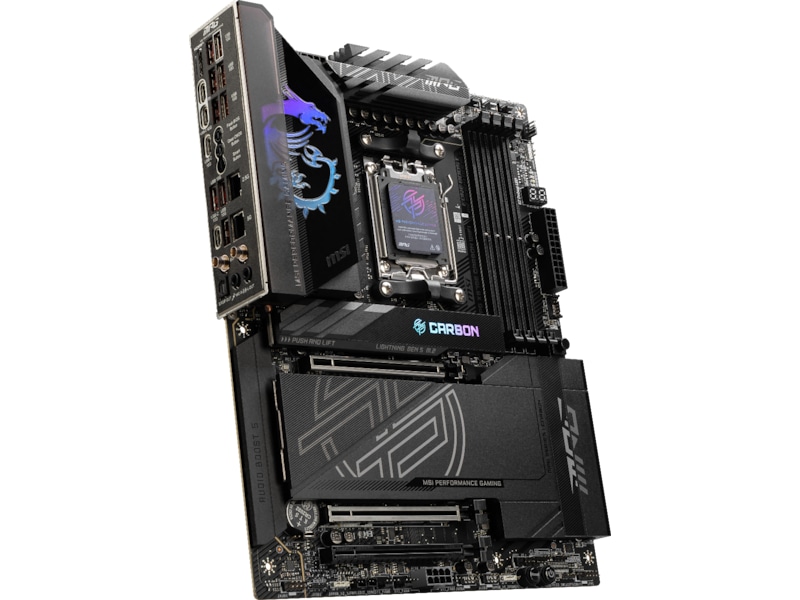

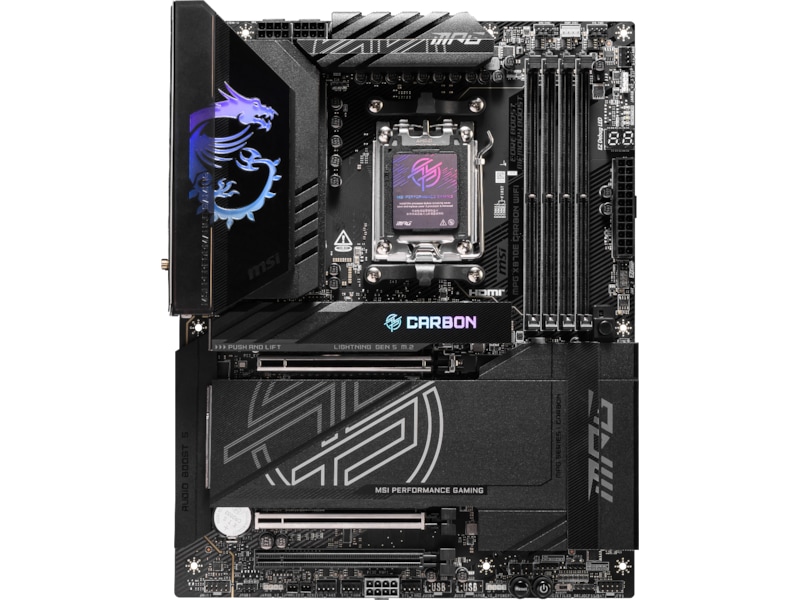

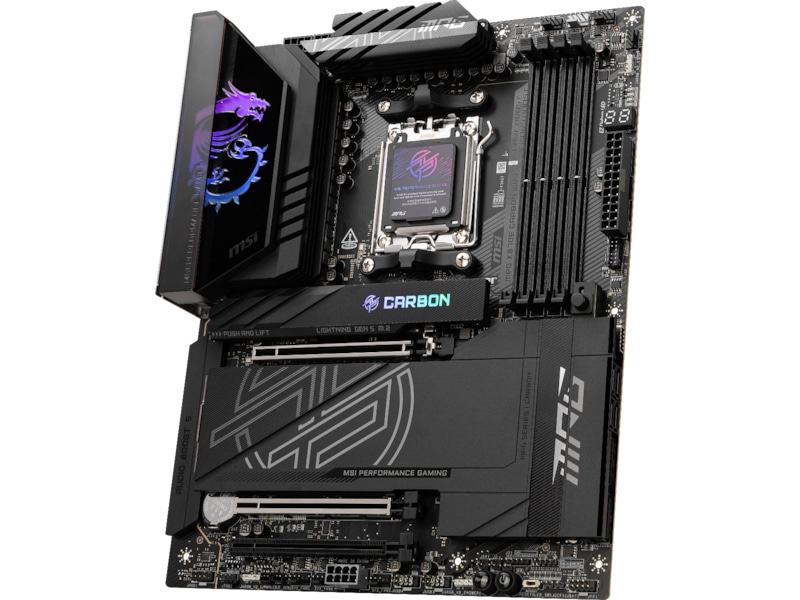

| Model | MPG X870E CARBON WIFI |
|---|---|
| Produktlinje | MSI |
| Producentens garanti (måneder) | 36 |
| EAN | 4711377253536 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
|---|---|
| I/O Controller | Nuvoton NCT6687-R |
| Kommentarer om kompatible processorer | Understøtter Ryzen 7000/8000/9000 Serien |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Chipsættype | AMD X870E |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| Processor-socket | Socket AM5 |
| Model | ATX |
| Strømkontakter | 8-pins PCI Express strøm-stikforbindelse, 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| RAM-hastighed understøttet | 3700 MHz (O.C.), 2700 MHz, 3600 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 3900 MHz (O.C.), 4100 Mhz (O.C), 2400 MHz, 3200 MHz (O.C.), 4000 MHz (O.C.), 2600 MHz, 4200 MHz (O.C.), 3800 MHz (O.C.), 3300 MHz (O.C.), 2500 MHz, 2800 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3100 MHz (O.C.) |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardware egenskaber | Lightning gen5-løsning, Enlarged Chipset Heatsink, MSI Audio Boost 5, EZ PCIe frigivelse, CUDIMM støtte, MSI Steel Armor II, MSI Memory Boost, 18+2+1 Phase Power Design, AMD Precision Boost Overdrive (PBO), MSI Mystic Light, 8 Layer PCB, MSI Core Boost, EZ M.2 Clip II, 2oz Copper PCB, Smart Button, Frozr AI Cooling, DIY Friendly Design, EZ LED control, MSI AI Engine, Extended Heatsink Design, Flash BIOS-knap, M.2 Shield FROZR, EZ Debug LED, Præmonteret I/O-skjold, Super Charger, EZ Conn-Design, Clear CMOS Button, MSI LAN Manager |
| BIOS-egenskaber | ACPI 6,5 support, MSI ClickBIOS, SMBIOS 3,7 support, UEFI BIOS |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 9 x USB 3.2 Gen 2 |
| Lagringsporte | 4 x SATA-600 (RAID), 4 x M.2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| USB/FireWire | USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Overensstemmelsesstandarder | High Definition Audio |
| Type | Lydkort |
| Audio codec | Realtek ALC4080 |
| Netværk controller | Realtek RTL8125 / Realtek RTL8126 |
|---|---|
| Dataforbindelsesprotokol | Ethernet, IEEE 802.11b, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11a, Gigabit Ethernet, IEEE 802.11ac, Fast Ethernet, Bluetooth 5.4, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), 5 Gigabit Ethernet, IEEE 802.11g |
| Netværk | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
|---|---|
| Produkttype | Bundkort |

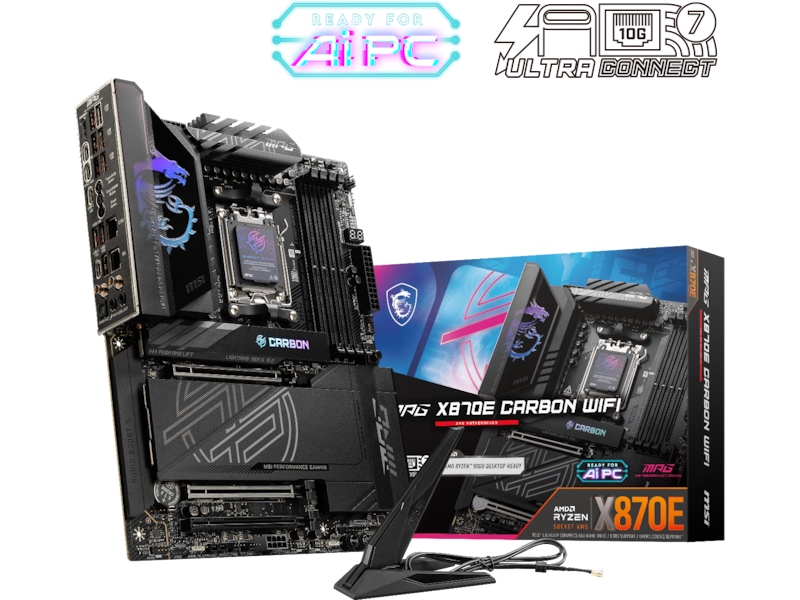

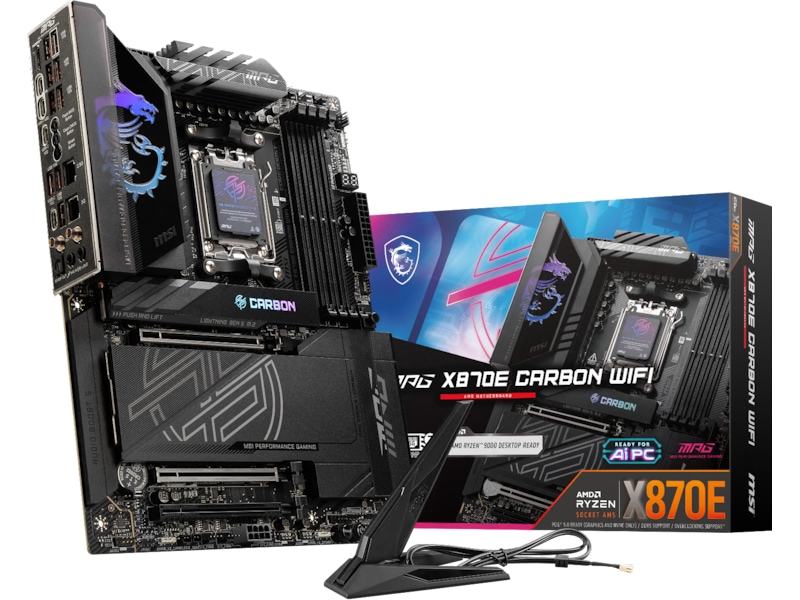

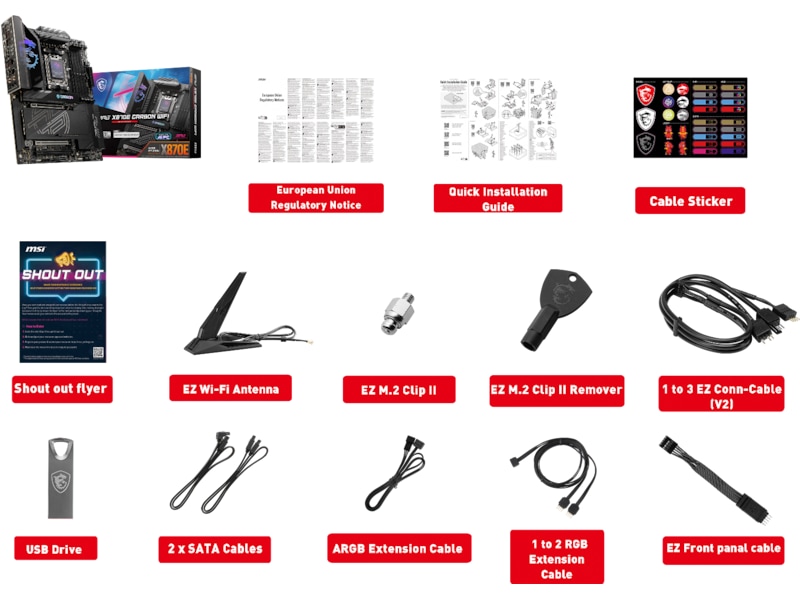

| Inkluderet tilbehør | 1 til 2 RGB LED-forlænger Y kabel, EZ M.2 klemme, EZ-frontpanelkabel, EZ M.2 clipfjerner, ARGB RGB-forlængerkabel, Kabelmærkat, 1 to 3 EZ Conn-Cable, USB-drev, Wi-Fi-antenne |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
|---|
| Ekspansionsåbninger | 1 x CPU, 1 x PCIe 5.0 x4, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x4, 3 x M.2 socket (2260/2280 M.2 Key M-åbning), 4 x DIMM 288-pins, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22.110 M.2 Key M-åbning) |
|---|
| Grænseflade (lagring) | PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

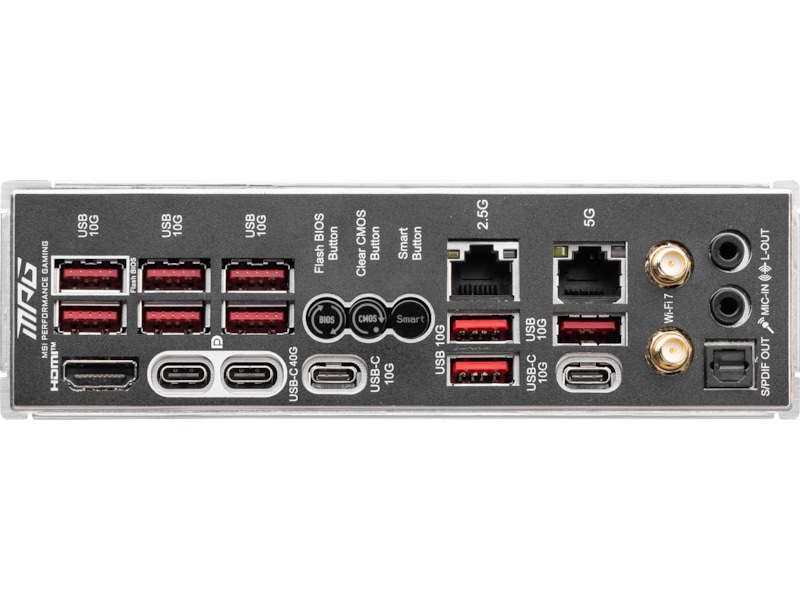

| Interface | 1 x mikrofon - mini-jack, 1 x audio linje-ud - mini-jack, 9 x USB 3.2 Gen 2, 2 x USB-C 3.2 Gen 2, 2 x antenne, 1 x SPDIF-ud, 1 x LAN (2.5Gigabit Ethernet), 2 x USB4, 1 x HDMI, 1 x LAN (5Gigabit Ethernet) |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 3.2 Gen 1 - intern stik |
|---|
| Software inkluderet | Voicemod, MSI App Player, AIDA64 Extreme - MSI Edition, Drivers & Utilities, MSI Center, Norton 360, Adobe Creative Cloud (gratis prøve), MSI CPU-Z |
|---|
