Produktoplysninger
Tekniske detaljer

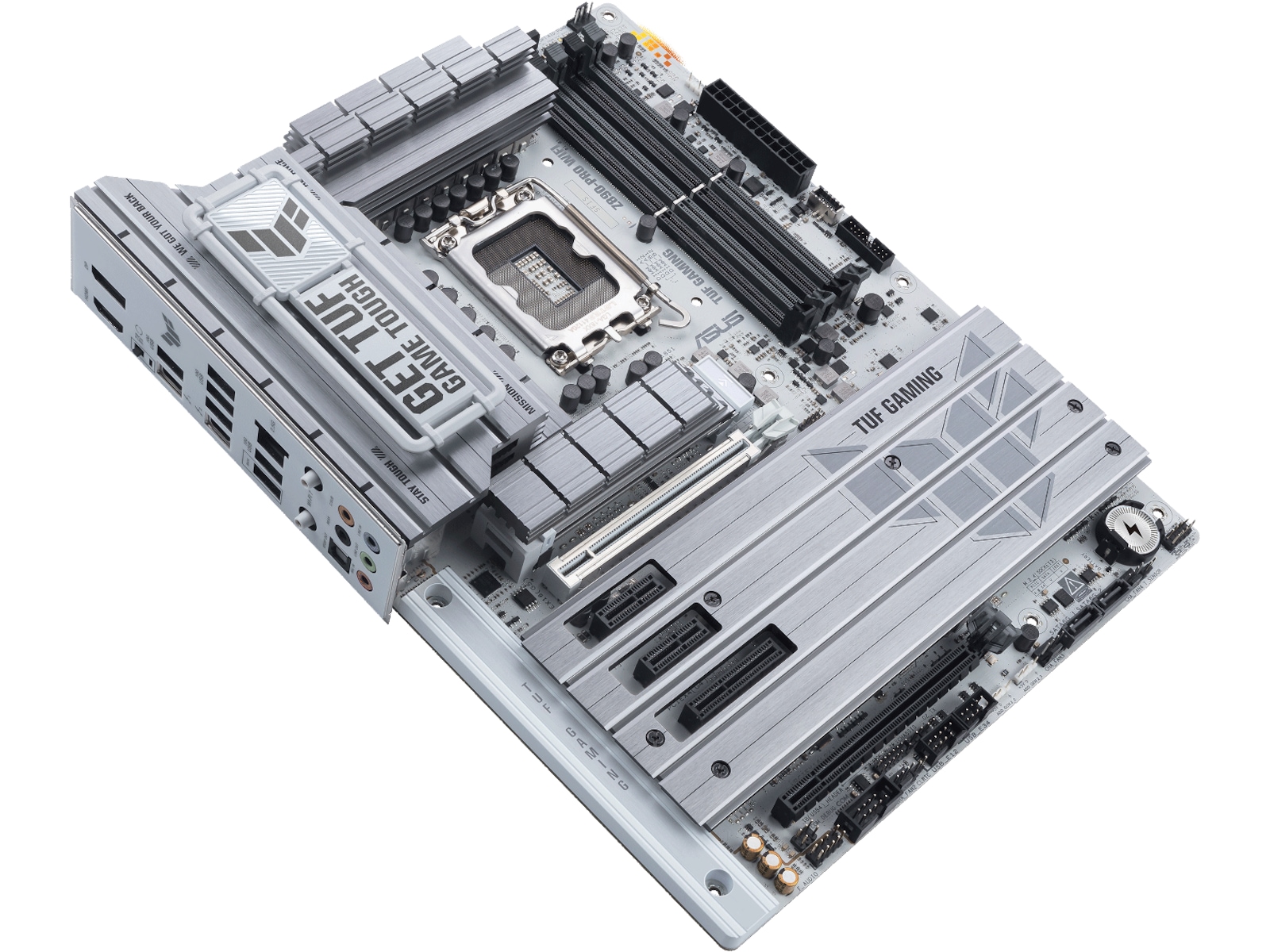

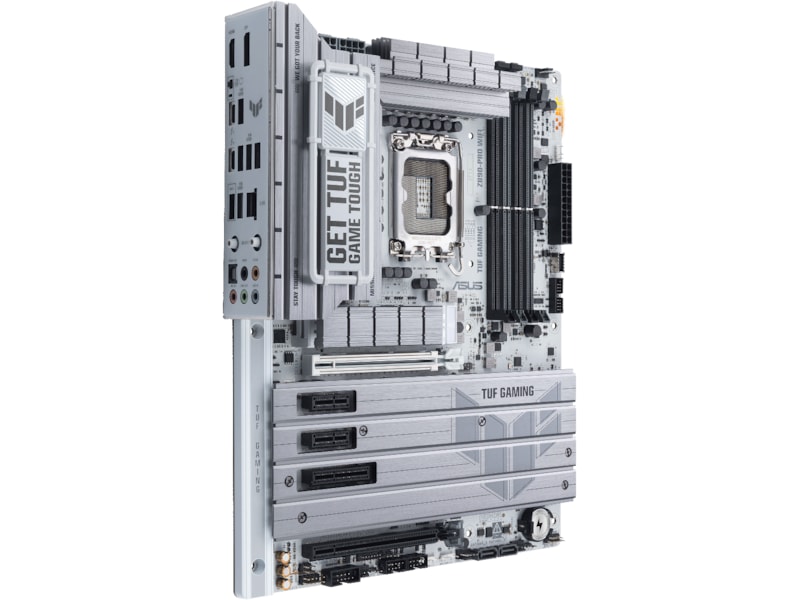

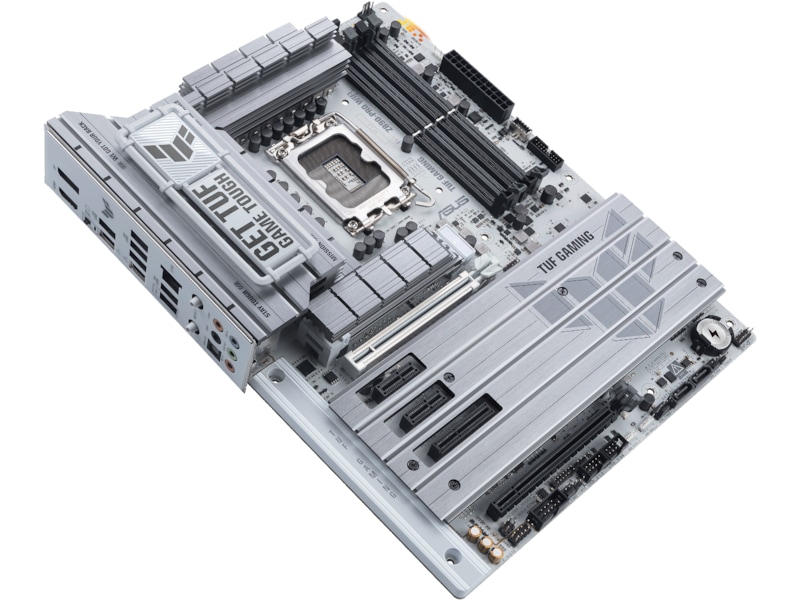

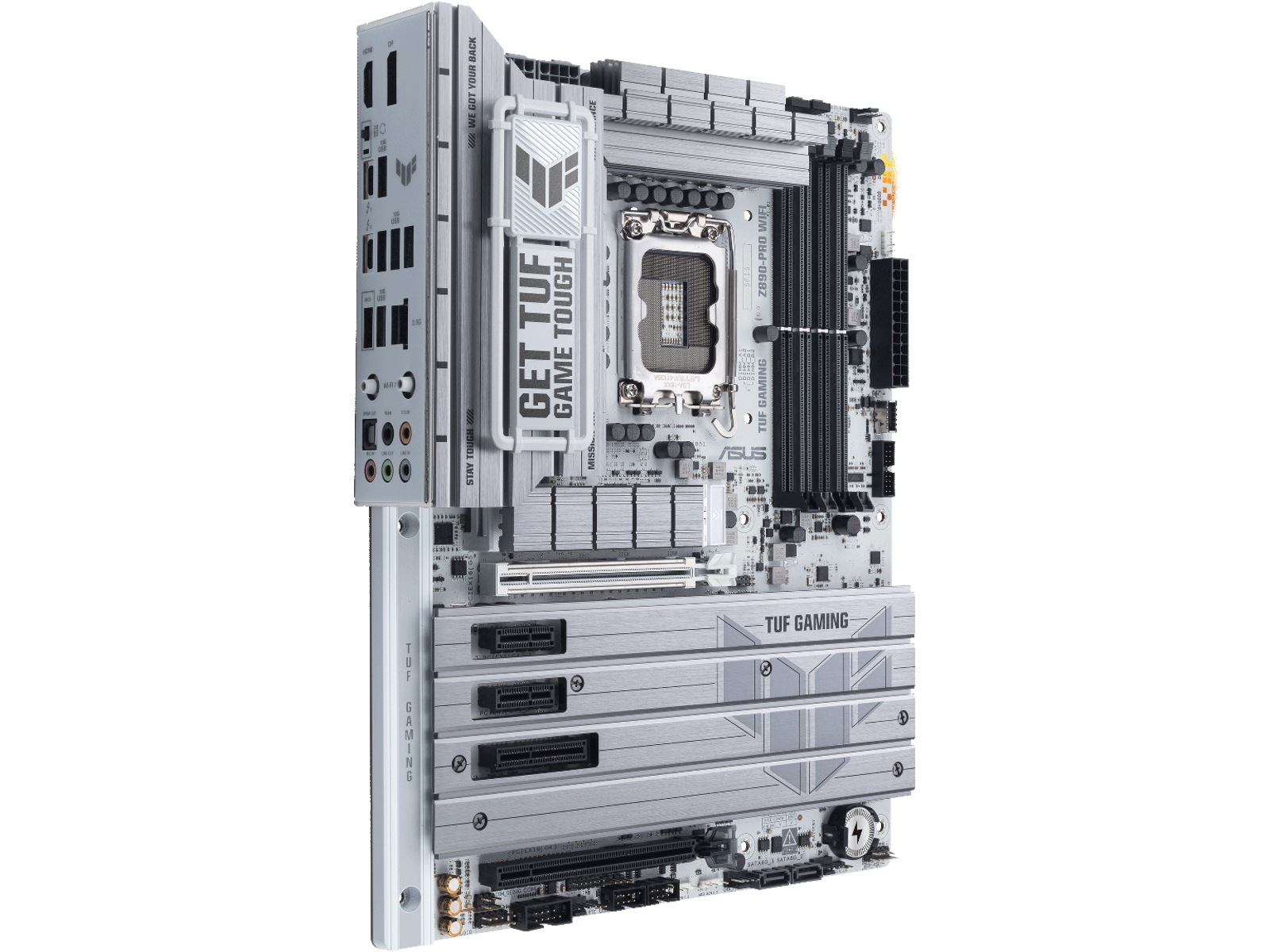

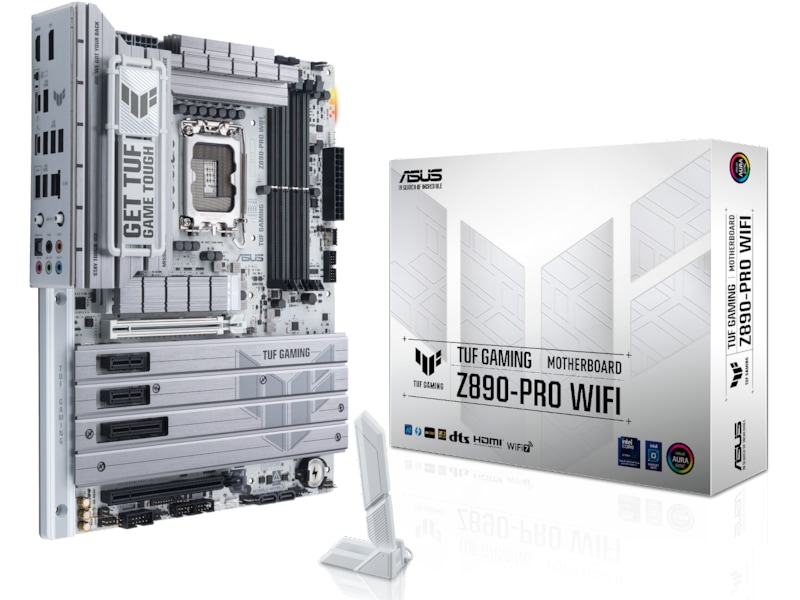

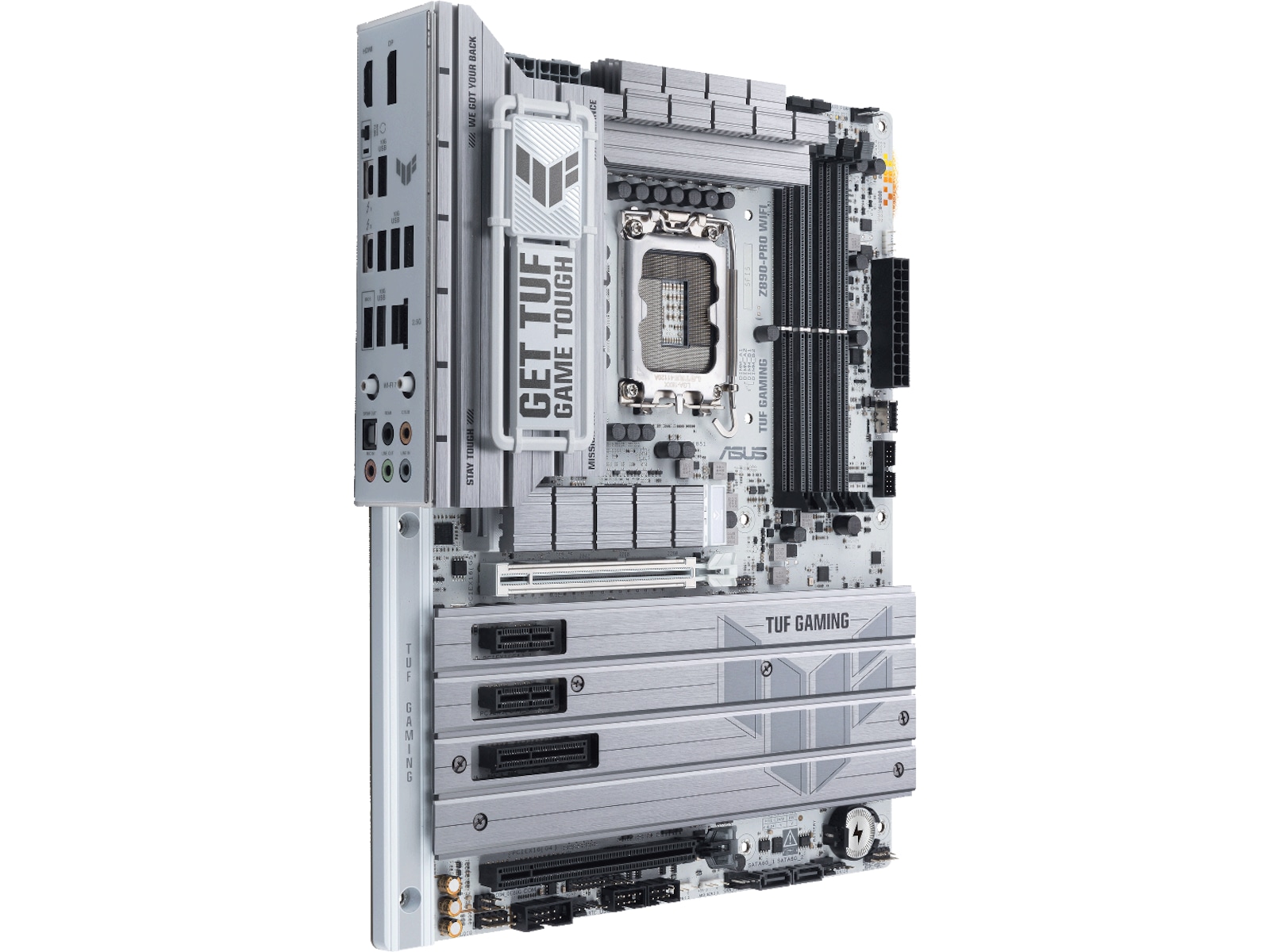

| Model | TUF GAMING Z890-PRO WIFI |
|---|---|
| Produktlinje | ASUS |
| Producentens garanti (måneder) | 24 |
| EAN | 4711387762639 |
| Chipsættype | Intel Z890 |
|---|---|
| Understøttet RAM-integritetskon | Ikke-ECC |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Model | ATX |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| Processor-socket | LGA1851 sokkel |
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
| Strømkontakter | 2 x 8-pins ATX12V stikforbindelser, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 4533 MHz (O.C.), 4000 MHz (O.C.), 4300 MHz (O.C.) |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | ASUS EZ Flash, UEFI BIOS, ASUS UEFI BIOS EZ Mode |
| Hardware egenskaber | M.2 Q-Slide, M.2 kølelegemebagplade, ASUS EZ DIY, ASUS Q-Design, ASUS Aura Sync, Præmonteret I/O-skjold, ASUS SafeSlot, VRM kølelegemedesign, DIY Friendly Design, CPU Socket-håndtagsbeskytter, 16+1+2+1 fase strømdesign, ESD Guards, ASUS TUF Protection, M.2 Q-Latch, ASUS SafeDIMM, Intel Turbo Boost Technology 2.0, BIOS FlashBack-knap, Q-Slot, CUDIMM støtte, AI Overclocking, Q-LED, NPU Boost, M.2 Q-Release, ASUS Stainless Steel Back I/O, ASUS Enhanced Memory Profile (AEMP) III, Intel Turbo Boost Max Technology 3.0, Q-Antenna, M.2 kølelegeme, Q-DIMM, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), BIOS FlashBack LED, ASUS Overvoltage Protection, Q-Release Slim, 8 Layer PCB, AI Networking II, TUF LANGuard, ASUS ProCool, CrashFree BIOS 3, Q-Dashboard |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL), Vågn på PME |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| Lagringsporte | 4 x SATA-600 (RAID), 4 x M.2 |
| USB / FireWire portkonfiguration (aktiv) | 2 x USB4 + 6 x USB 3.2 Gen 1 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB4, USB 3.2 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | Realtek ALC1220P |
| Medfølgende ledninger | 2 x SATA Express-kabel |
|---|
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |

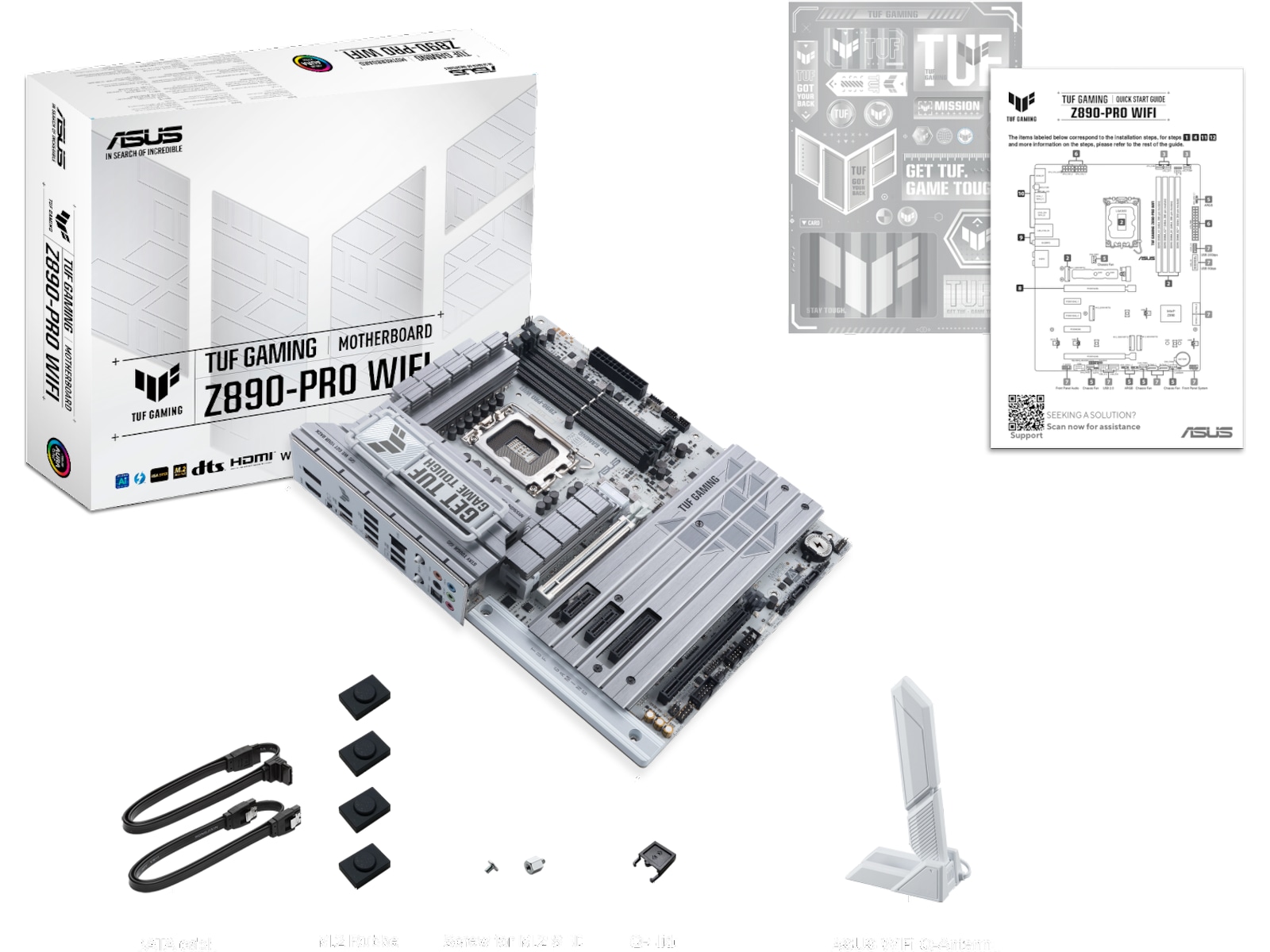

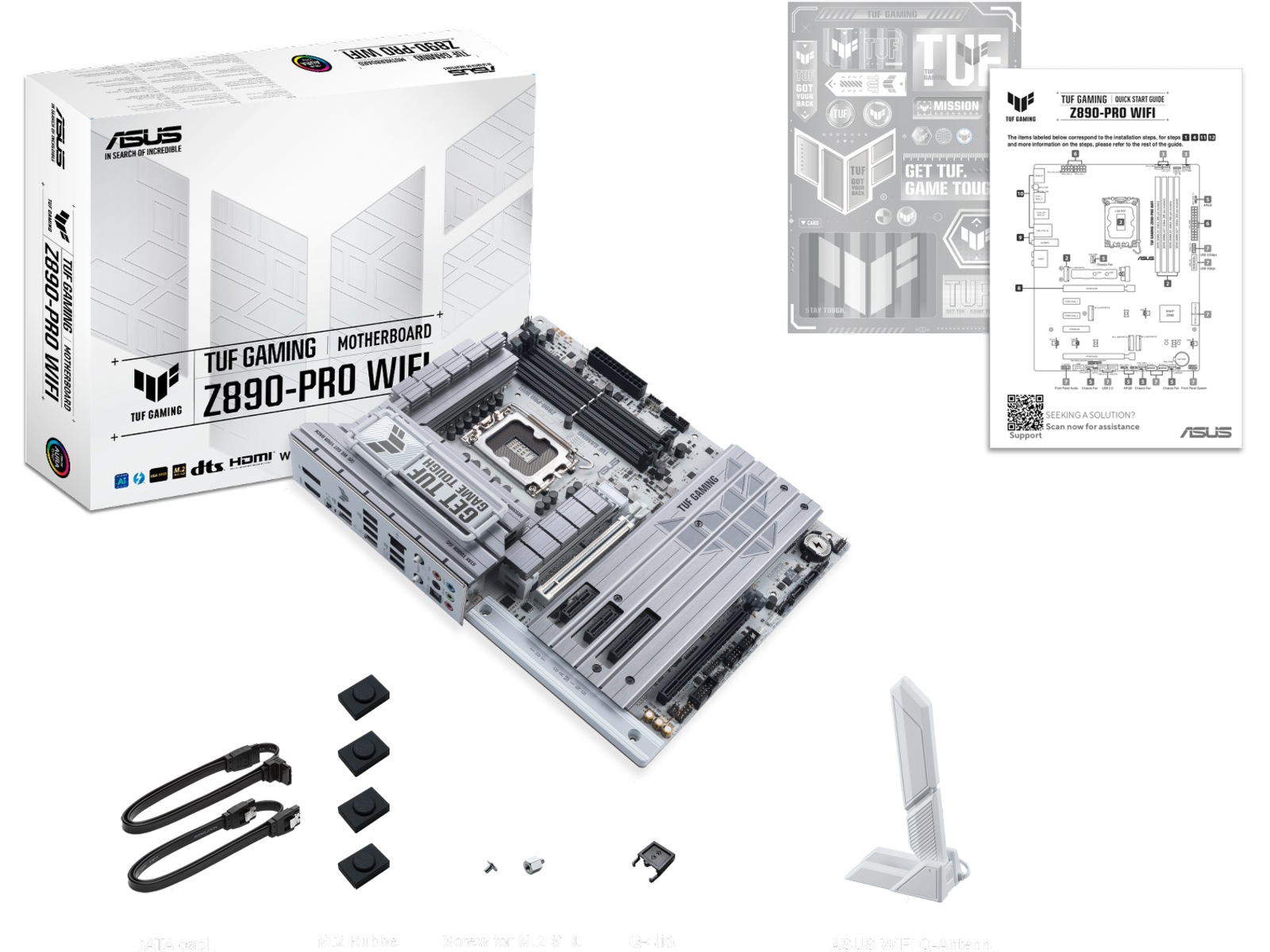

| Inkluderet tilbehør | 2 x M.2 gummipakke, TUF GAMING-mærkat, M.2 skruepakke, TUF GAMING aftageligt navneskilt, M.2 Q-Slide, ASUS Wi-Fi Q-antenna |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Dataforbindelsesprotokol | IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11ac, IEEE 802.11g, Gigabit Ethernet, IEEE 802.11n, IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, Fast Ethernet |
|---|---|
| Netværk | Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Ekspansionsåbninger | 1 x M.2 socket (2280/22.110 M.2 Key M-åbning), 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 2 x PCIe 4.0 x1, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280 M.2 Key M-åbning), 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus), 4 x DIMM 288-pins, 1 x PCIe 4.0 x4 |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

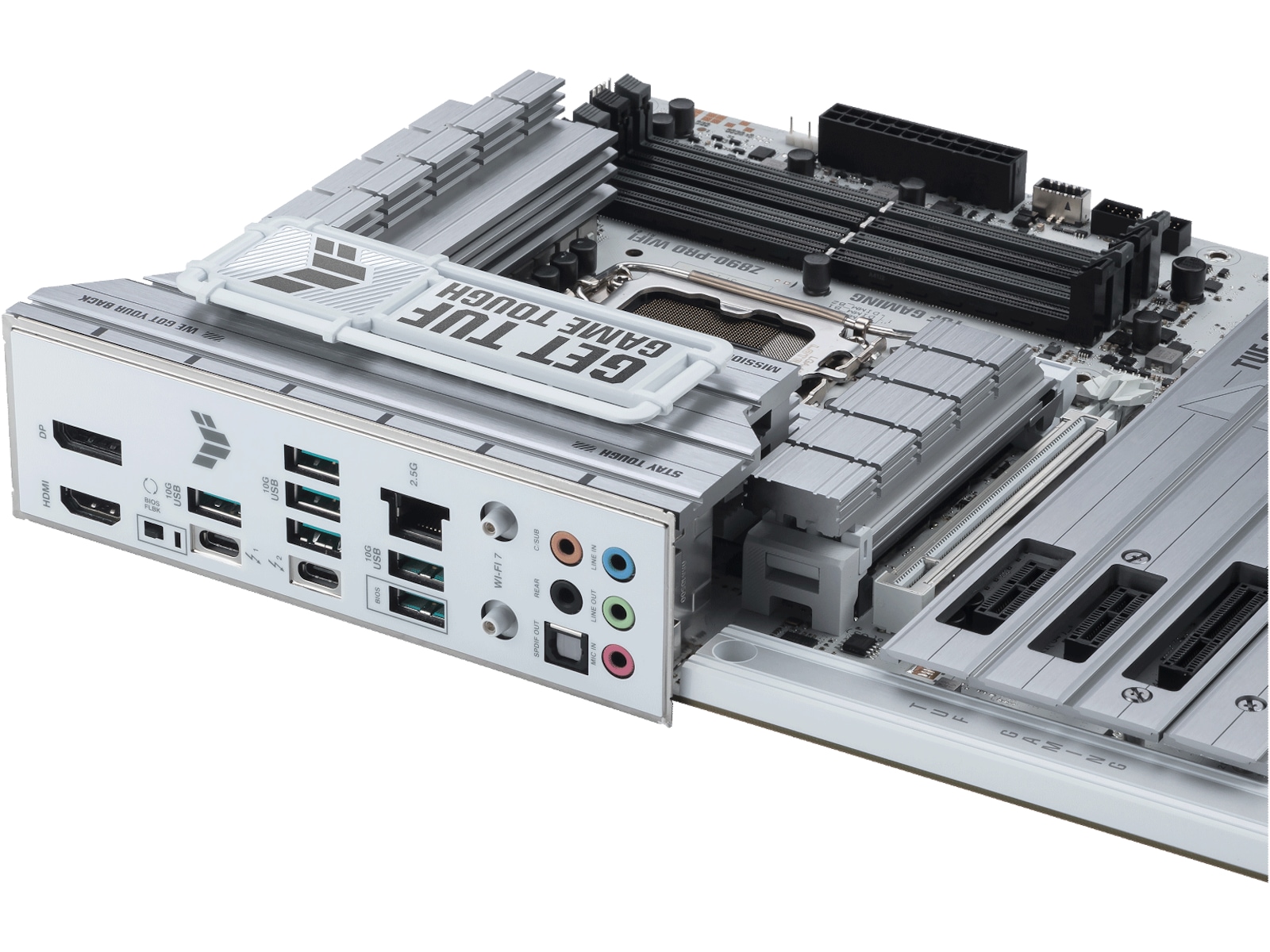

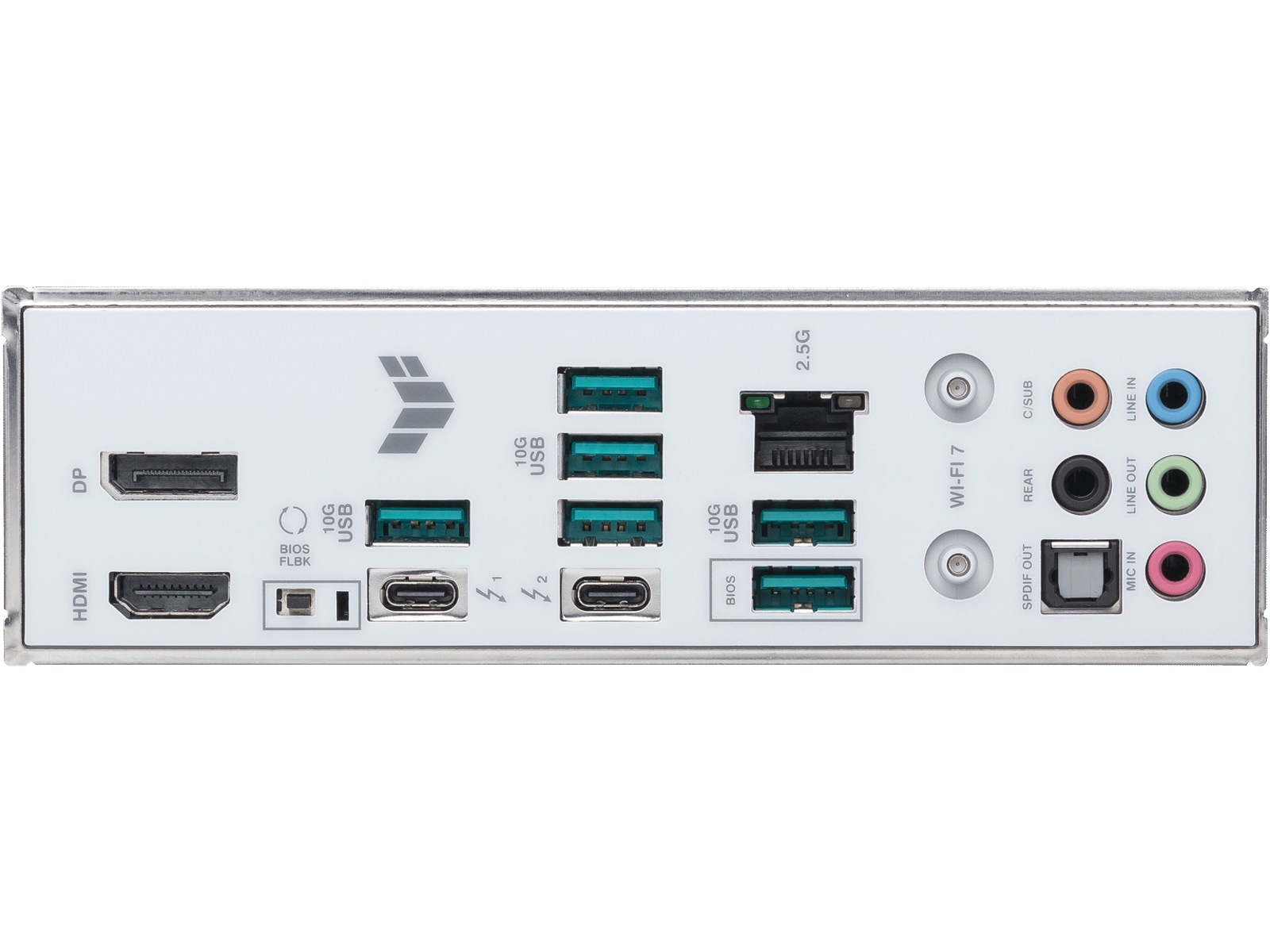

| Interface | 1 x audio linje-ud (bagtil) - mini-jack, 2 x antenne, 1 x audio linje-ud - mini-jack, 2 x Thunderbolt 4/DisplayPort/USB4, 1 x SPDIF-ud, 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - mini-jack, 1 x HDMI, 1 x DisplayPort, 1 x audio linje-ind - mini-jack, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 6 x USB 3.2 Gen 2 |
|---|
| Interne interfaces | 1 x Thunderbolt 4 - intern stik, 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 1 x seriel - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik |
|---|
| Software inkluderet | USB Wattage Watcher, ASUS TUF GAMING CPU-Z, Armoury Crate, TurboV Core, ASUS GlideX, Adobe Creative Cloud (gratis prøve), ASUS DriverHub, WinRAR (40 days trial), ASUS AI Advisor, ASUS Fan Xpert 4, ASUS AURA Creator, Norton 360 for Gamers (60 dages prøvetid), DTS Audio Processing |
|---|
Produktanmeldelser
Solid and impressive, exceeds expectation!
By
Jade S
05-12-2024
Solid, well built motherboard, colour looks premium! All the connections/components were easy to use and clicked with such lovely precision and booted everything quickly.. Cannot fault in anyway - such a joy to look at too! Read more
