Produktoplysninger
Tekniske detaljer
| Produktlinje | ASUS |
|---|---|

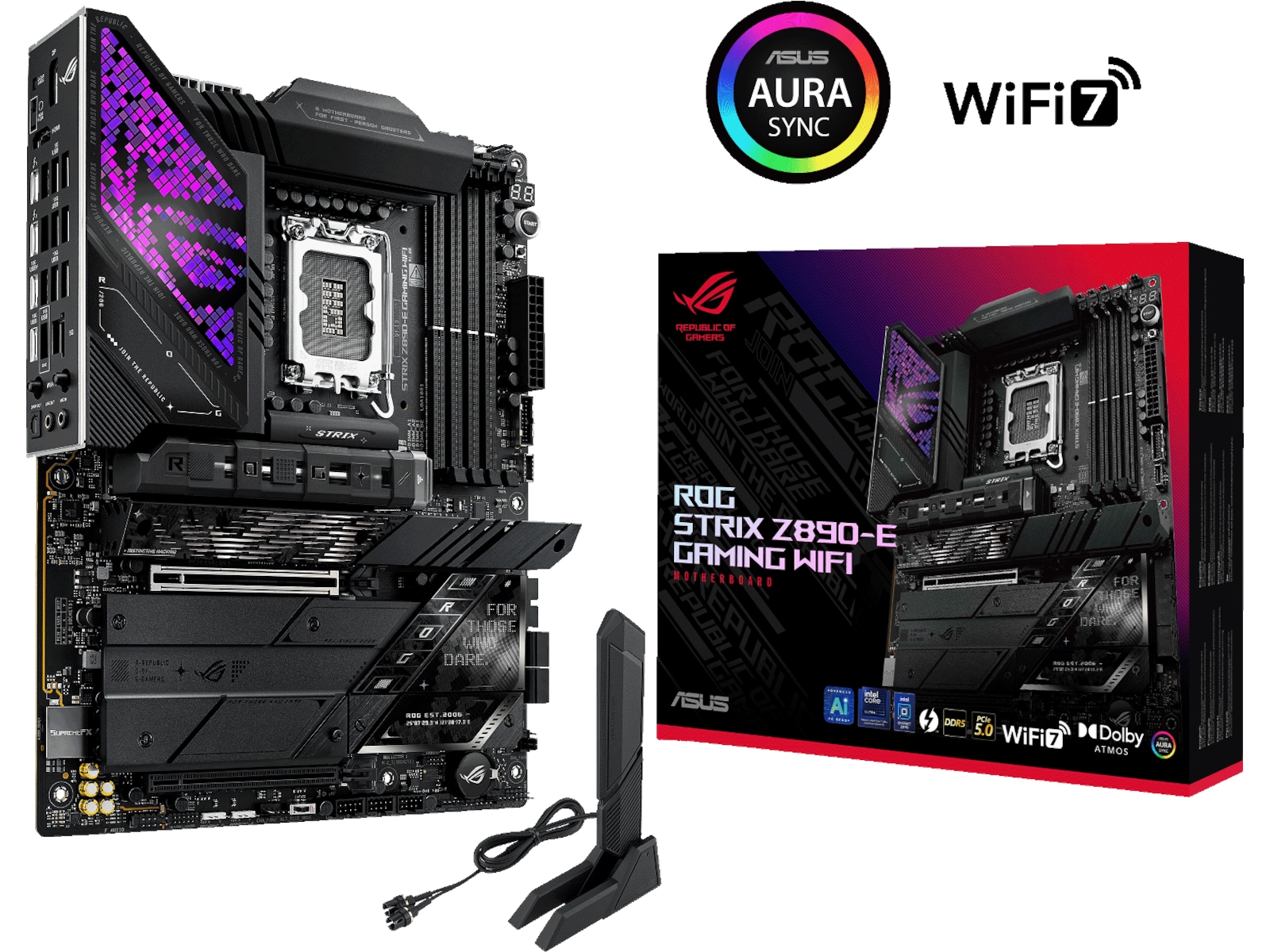

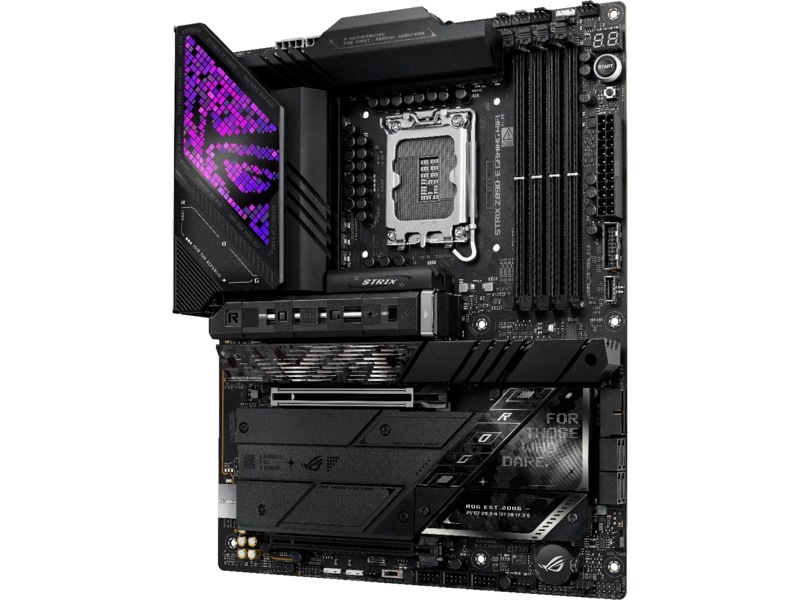

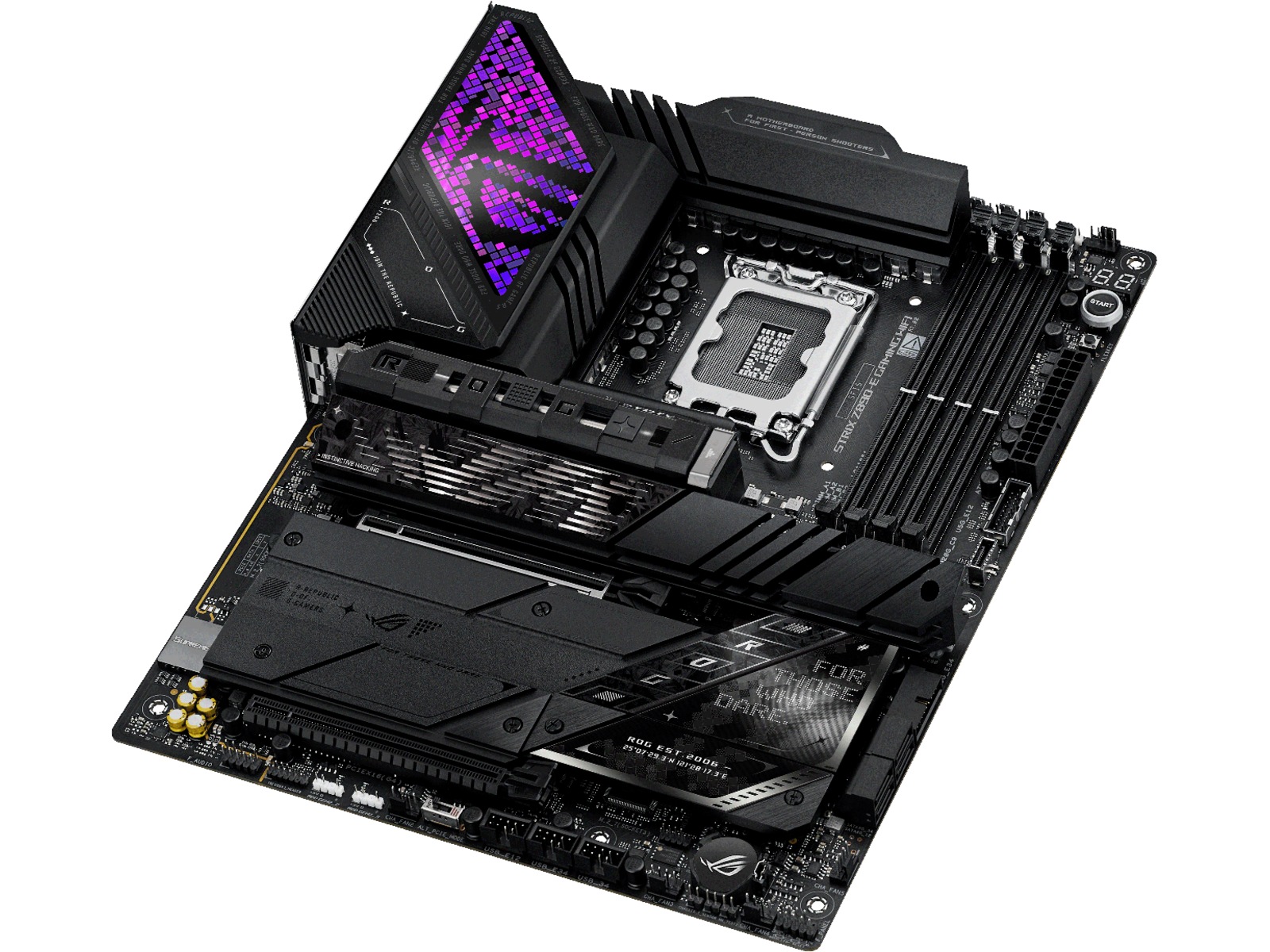

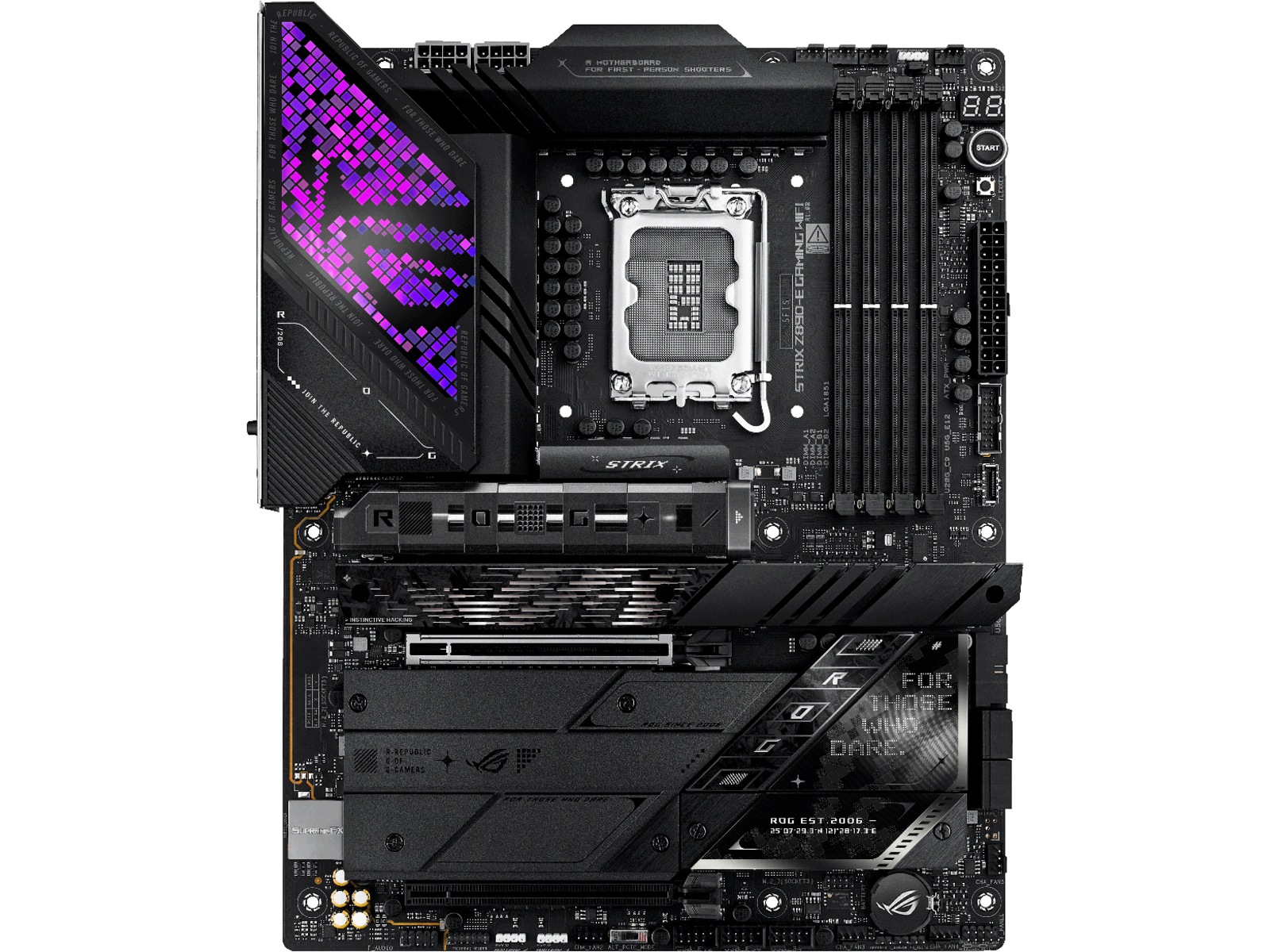

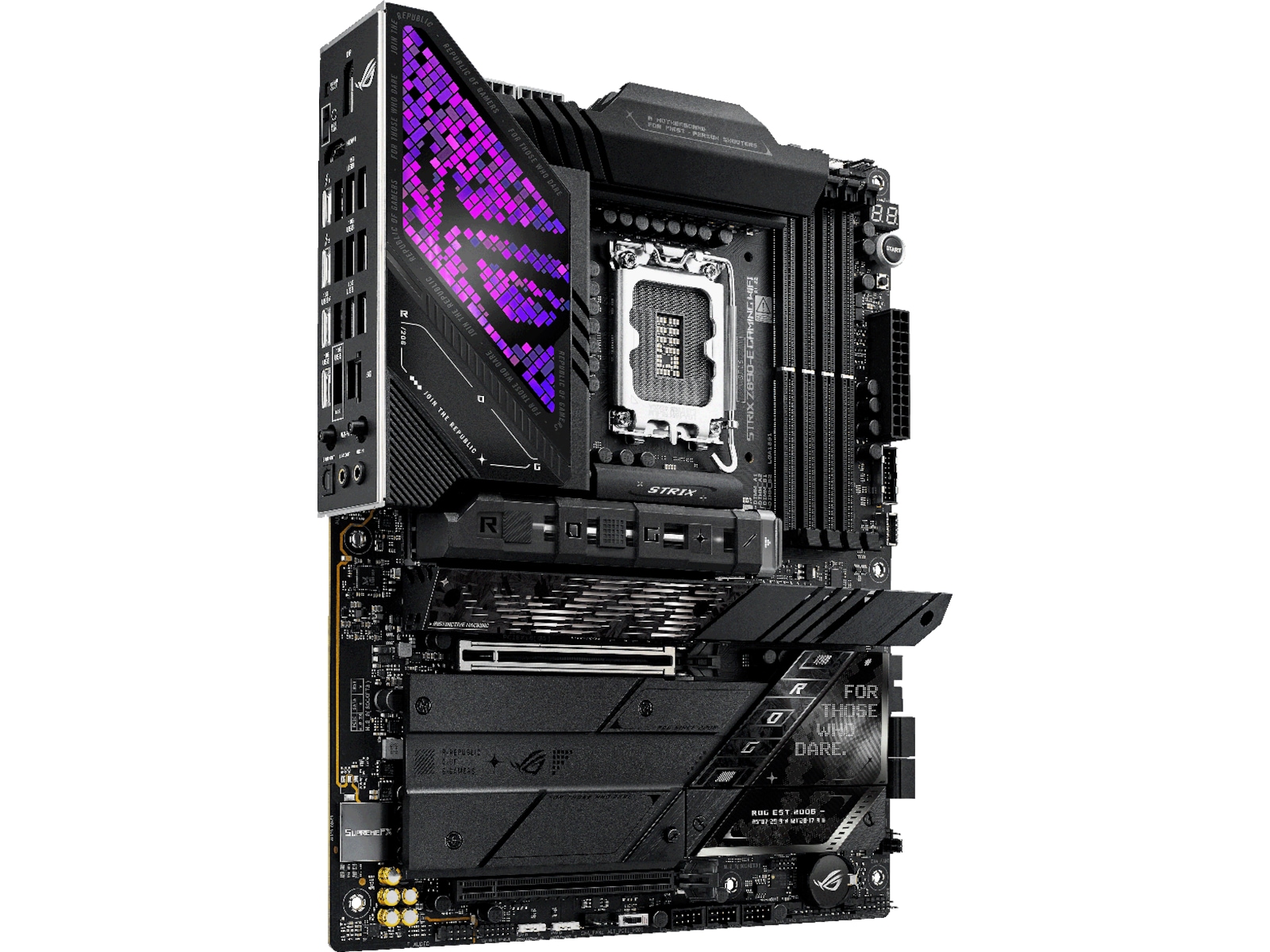

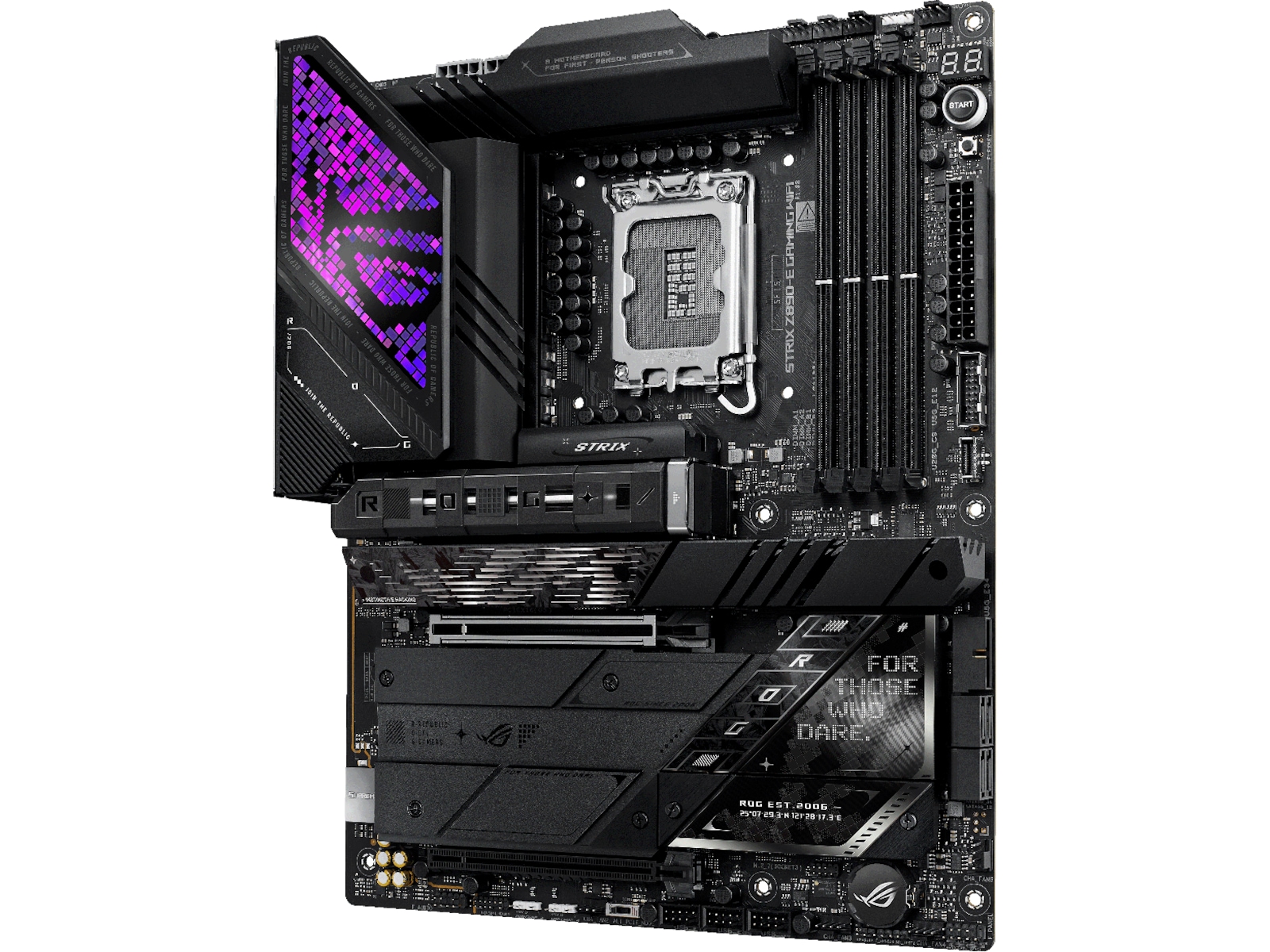

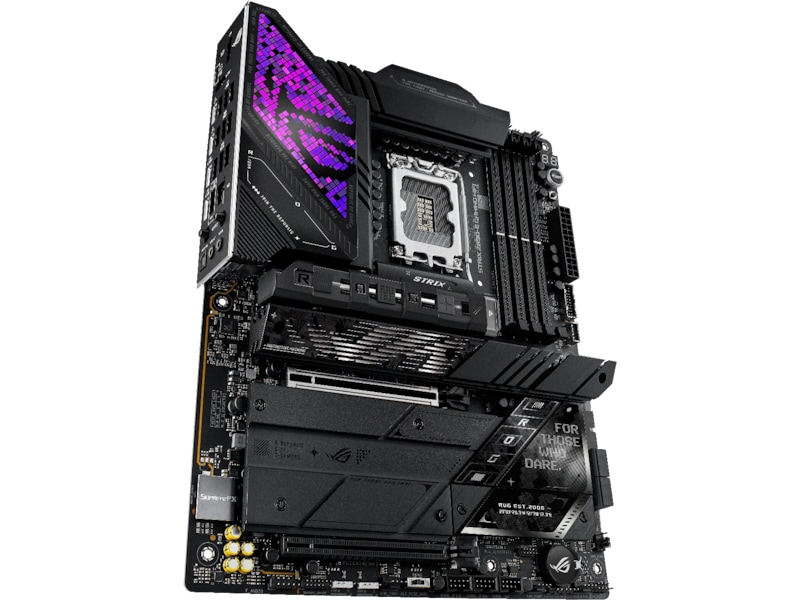

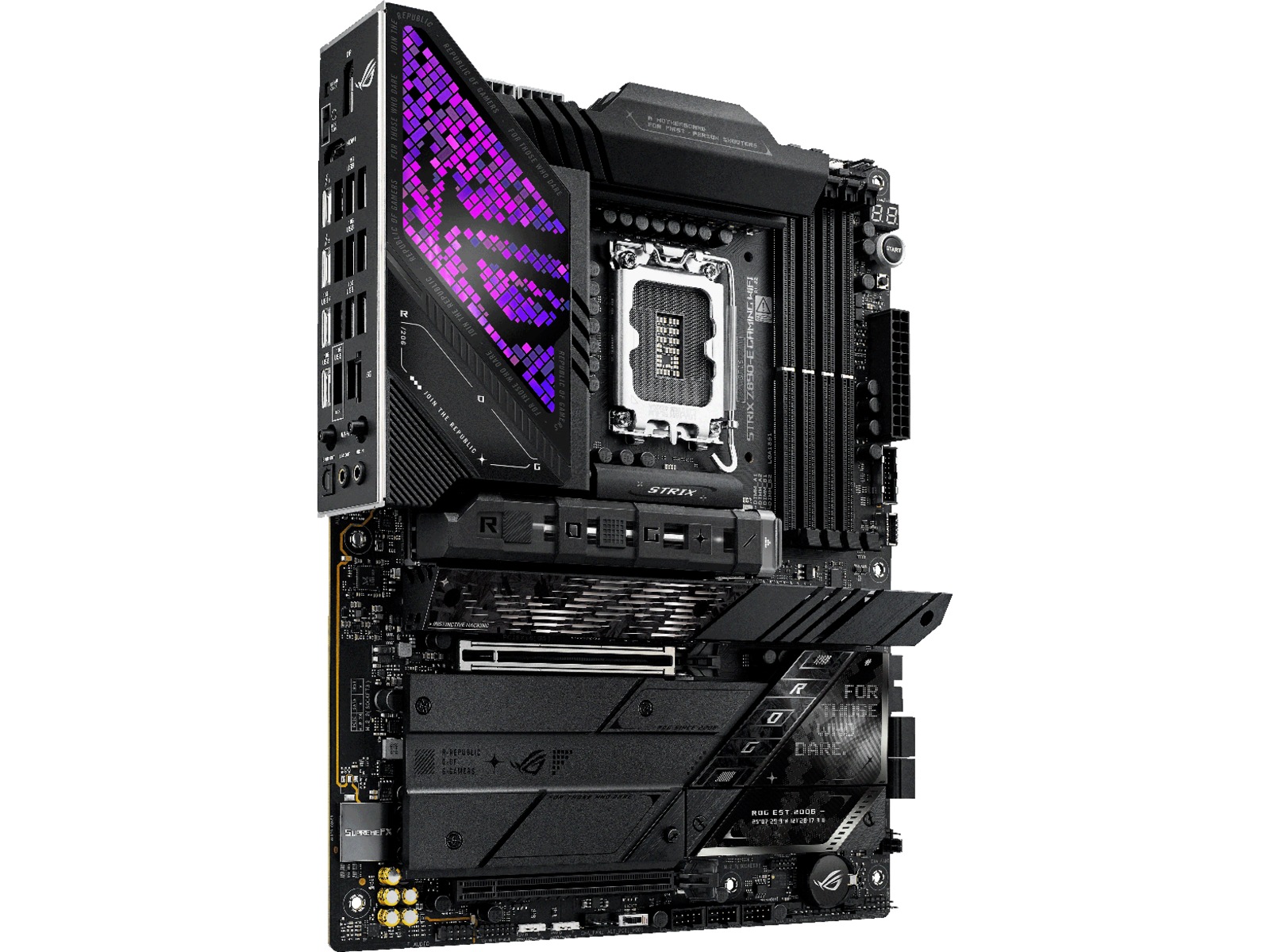

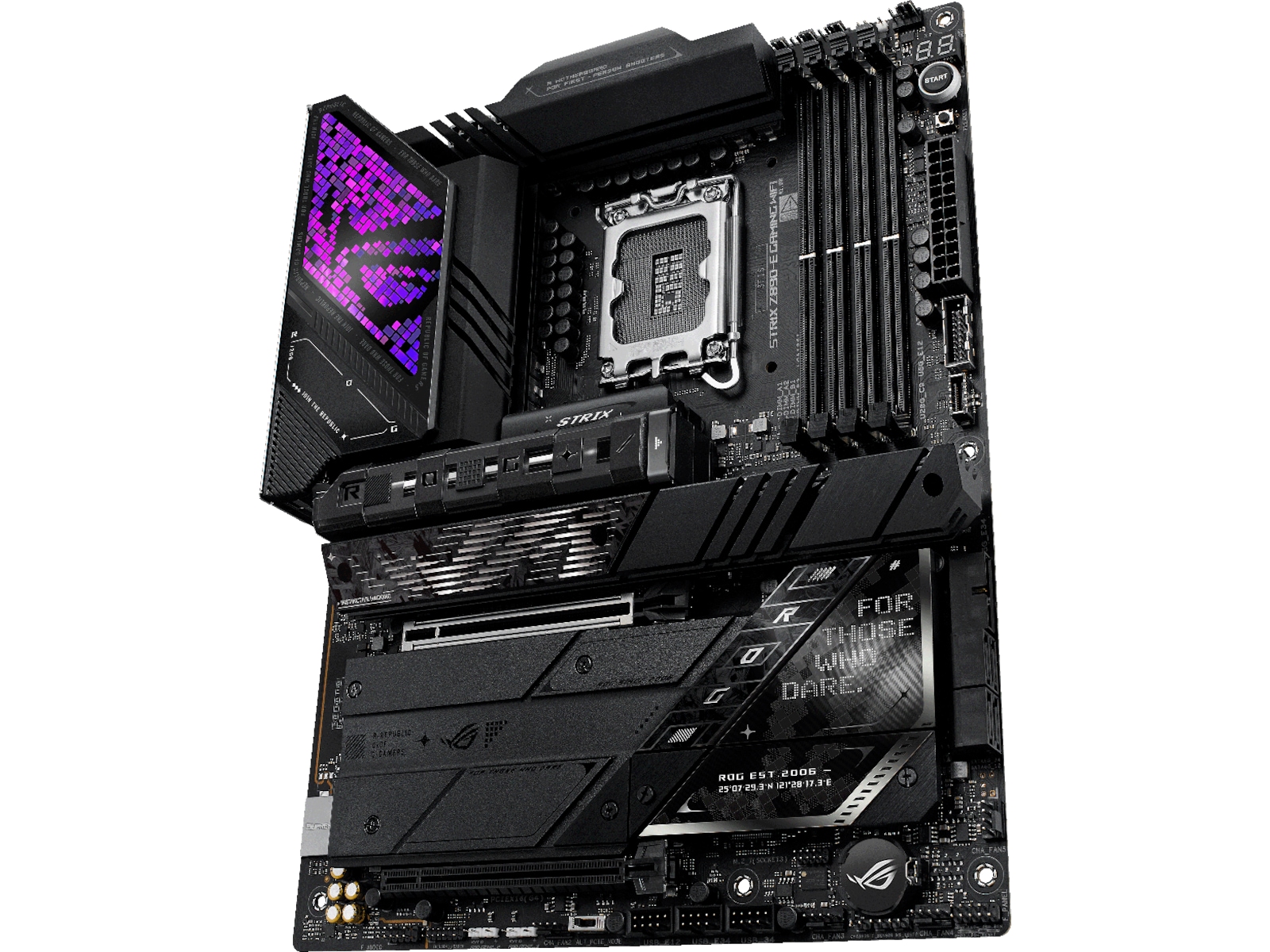

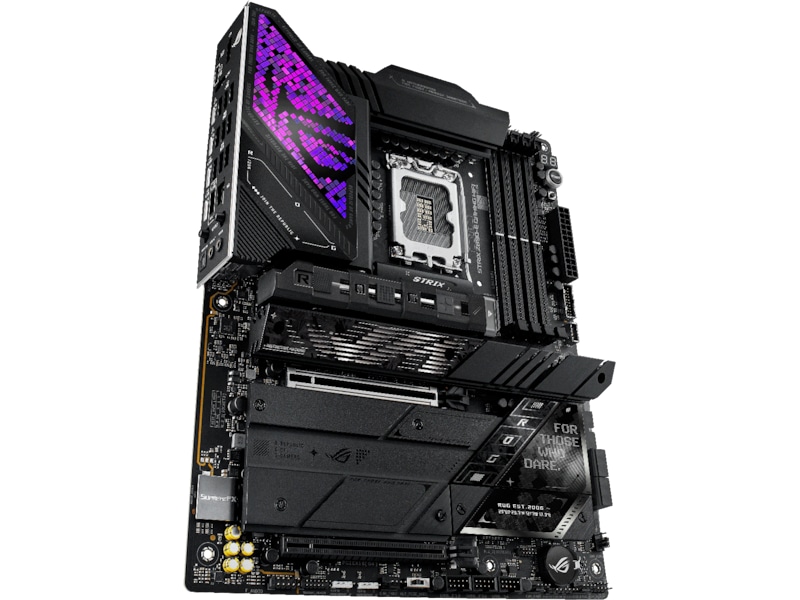

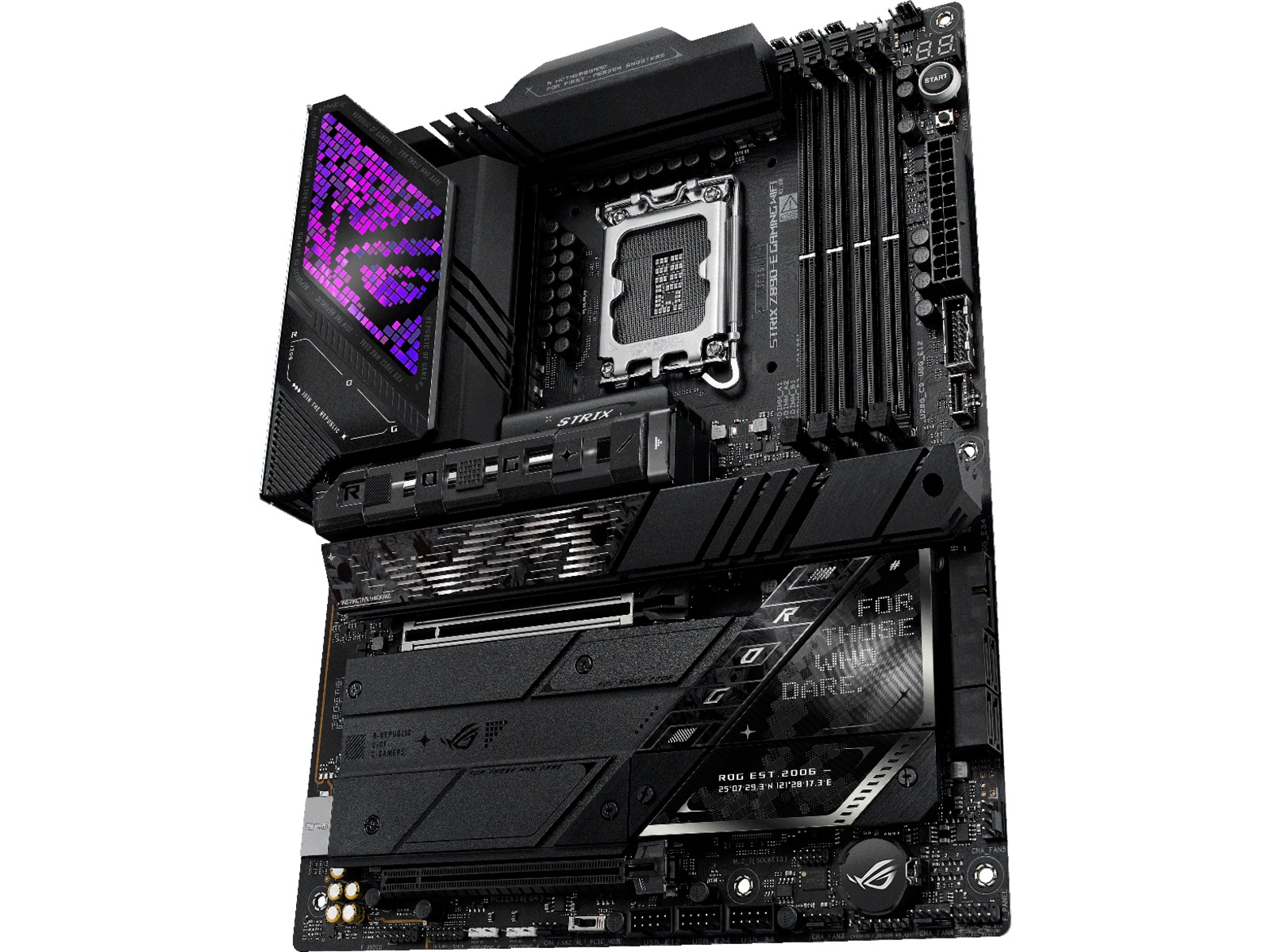

| Model | ROG STRIX Z890-E GAMING WIFI |
| Producentens garanti (måneder) | 24 |
| EAN | 4711387756133 |
| Understøttet RAM-teknologi | DDR5 SDRAM |
|---|---|
| Model | ATX |
| Processor-socket | LGA1851 sokkel |
| RAM Slots | 4 DIMM åbninger |
| Chipsættype | Intel Z890 |
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| RAM-hastighed understøttet | 4600 MHz (O.C.), 4400 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC, On-die ECC |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardware egenskaber | 8 Layer PCB, LANGuard, Q-LED, ASUS EZ DIY, Polymo Lighting, ASUS SafeSlot, Q-Dashboard, CrashFree BIOS 3, Q-Slot, M.2 Q-Slide, ASUS Aura Sync, BIOS FlashBack LED, DIY Friendly Design, ASUS SafeDIMM, BIOS FlashBack-knap, Clear CMOS Button, CUDIMM støtte, NPU Boost, Preboot eXecution Environment (PXE), Q-Code, ASUS Enhanced Memory Profile (AEMP) III, PCIe Slot Q-Release, Intel Turbo Boost Max Technology 3.0, ASUS Extreme Engine Digi+, VRM kølelegemedesign, 5K Black Metallic Capacitors, 18+1+2+2 fase magtdesign, Præmonteret I/O-skjold, AI Networking II, AI Overclocking, ASUS Q-Design, M.2 Q-Release, M.2 kølelegemebagplade, M.2 Q-Latch, M.2 kølelegeme, ASUS ProCool II, Q-Antenna, AI Cooling II, Intel Turbo Boost Technology 2.0 |
| Sov/ Vågn | Vågn på PME, Aktivering af LAN (wake on LAN = WOL) |
| BIOS-egenskaber | ASUS UEFI BIOS EZ Mode, ASUS EZ Flash, UEFI BIOS |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 |
| Lagringsporte | 4 x SATA-600 (RAID), 7 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | SupremeFX (ALC4080) |
| Overensstemmelsesstandarder | High Definition Audio, Dolby Atmos |
| Medfølgende ledninger | 2 x SATA Express-kabel |
|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
|---|---|
| Produkttype | Bundkort |
| Inkluderet tilbehør | 7 x M.2 gummier, ASUS Wi-Fi Q-antenna, ROG Strix klistermærke, 2 x M.2 Q-Slides, M.2 Q-Latch, ROG-nøglekæde, Termisk pude til M.2 SSD, Kabelbånd |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), NitroPath teknologi |
|---|
| Dataforbindelsesprotokol | Fast Ethernet, IEEE 802.11n, Gigabit Ethernet, Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6E), Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac |
|---|---|
| Netværk | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
| Ekspansionsåbninger | 1 x PCIe 4.0 x16 (x4-modus), 1 x PCIe 5.0 x16, 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 3 x M.2 socket (2280 M.2 åbning), 1 x CPU, 4 x DIMM 288-pins, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) |
|---|
| Grænseflade (lagring) | PCIe 5.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
|---|

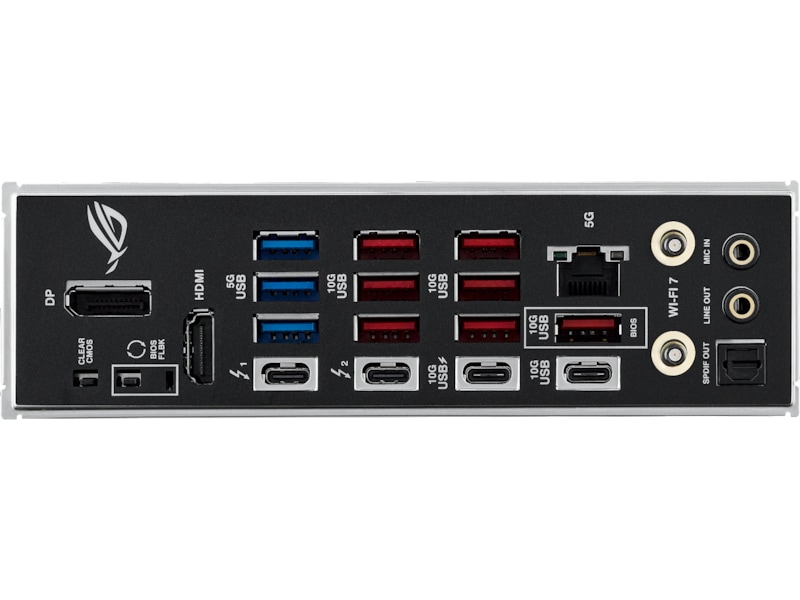

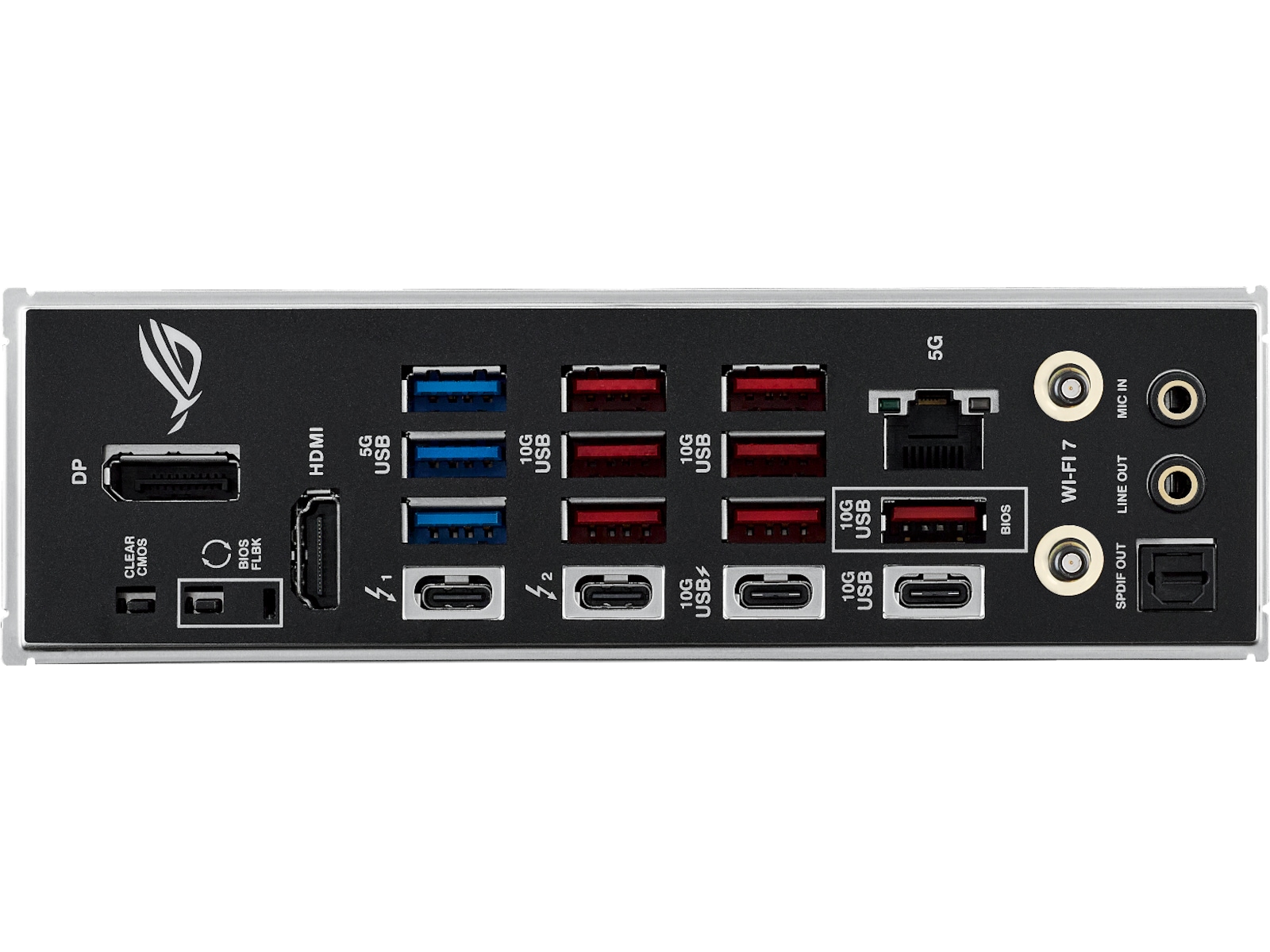

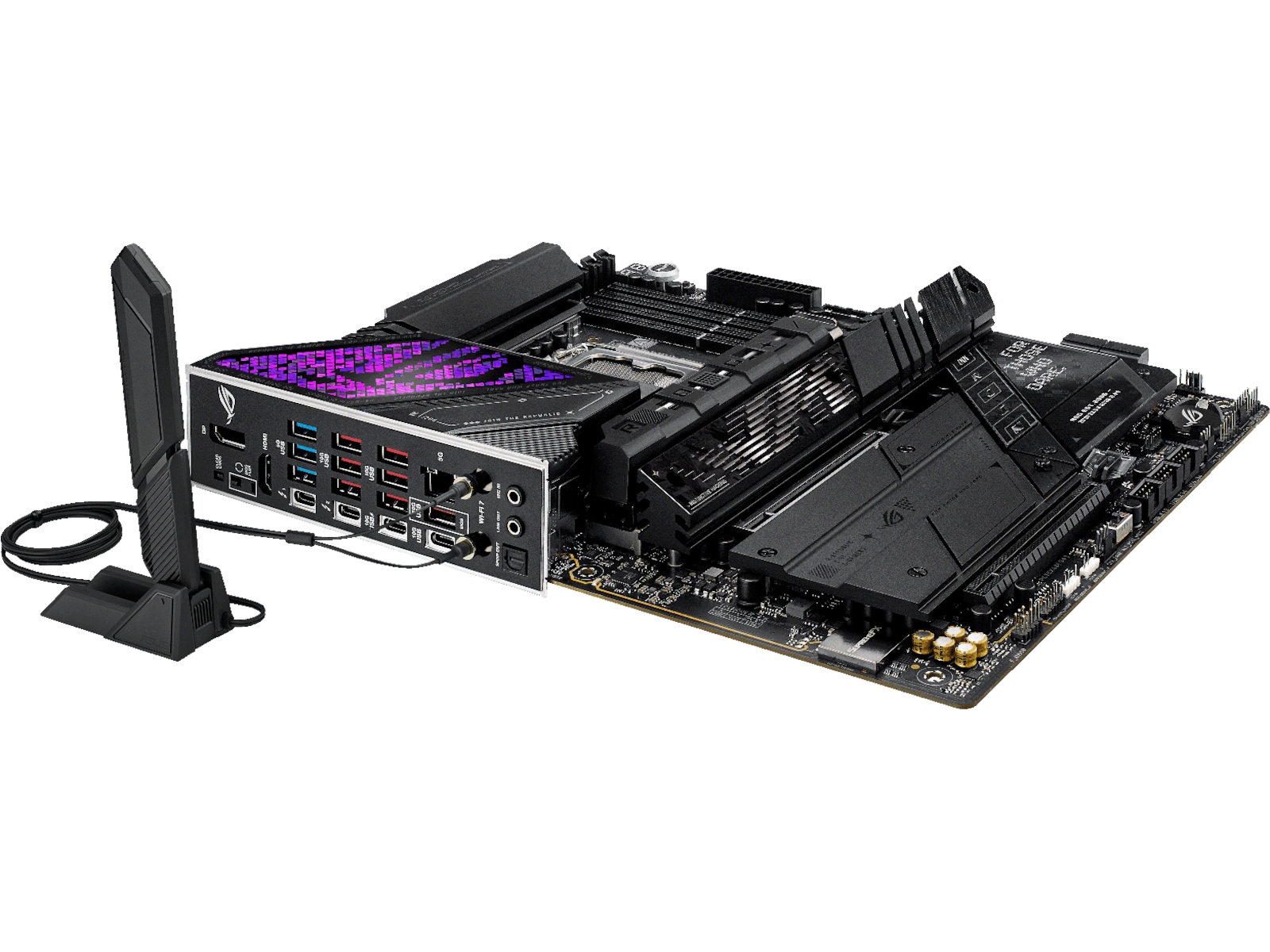

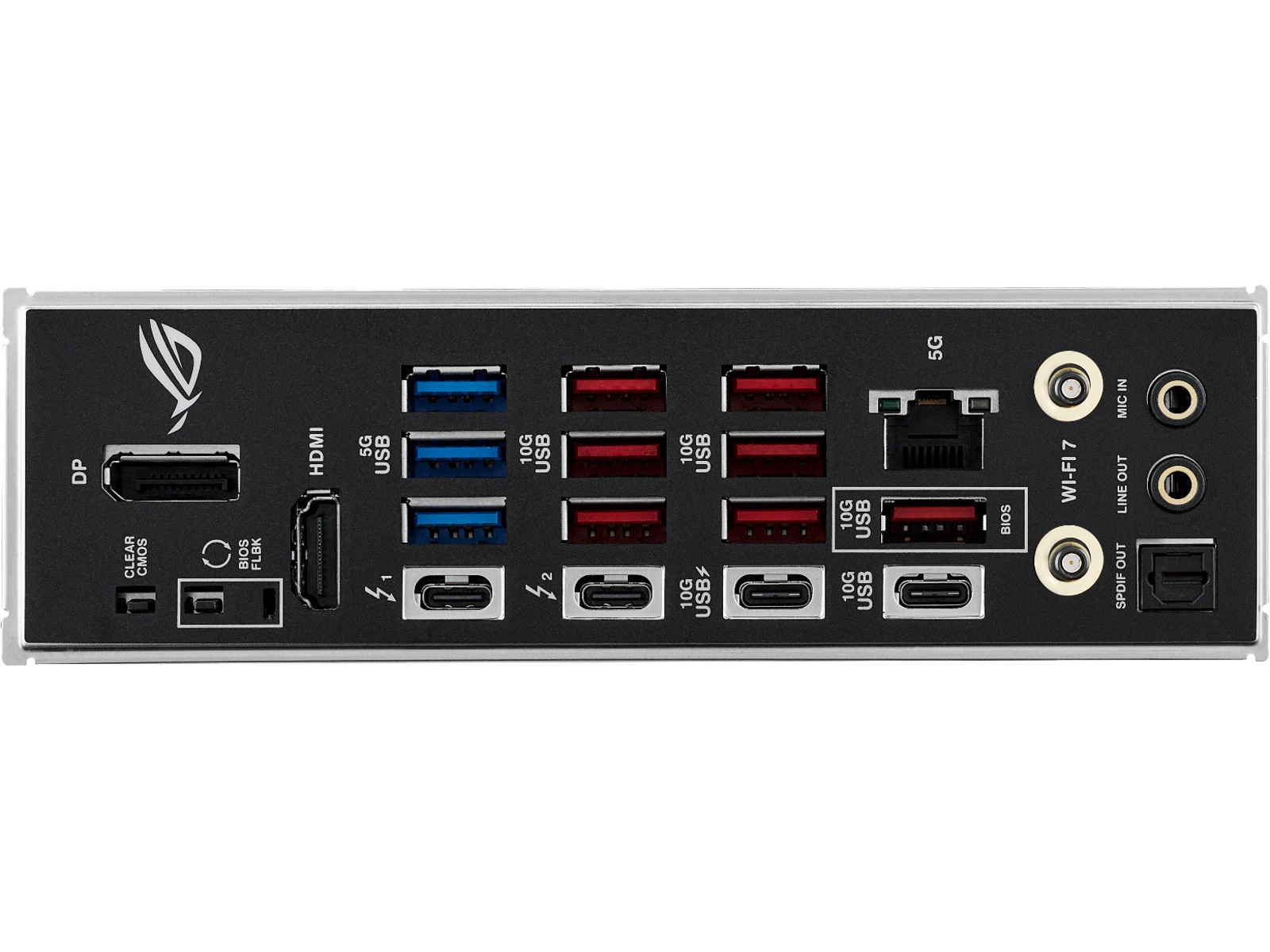

| Interface | 2 x Thunderbolt 4/DisplayPort/USB4, 2 x USB-C 3.2 Gen 2, 2 x antenne, 3 x USB 3.2 Gen 1, 1 x DisplayPort, 1 x audio linje-ud - mini-jack, 1 x LAN (5Gigabit Ethernet), 1 x SPDIF-ud, 1 x HDMI, 1 x mikrofon - mini-jack, 7 x USB 3.2 Gen 2 |
|---|
| Interne interfaces | 1 x Thunderbolt 4 - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 6 x USB 2.0 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik |
|---|
| Software inkluderet | ASUS GlideX, HWiNFO, TurboV Core, ASUS DriverHub, Armoury Crate, USB Wattage Watcher, ASUS AURA Creator, ROG CPU-Z, WinRAR (40 days trial), ASUS Fan Xpert 4, ROG GameFirst Utility, Adobe Creative Cloud (gratis prøve), Norton 360 for Gamers (60 dages prøvetid), AIDA64 Extreme (60 dages prøvetid) |
|---|
Produktanmeldelser
Great upgrade. Excellent Quality
By
RHD7
06-07-2025
Upgraded from Strix z370 e-gaming. The motherboard is of excellent quality as expected from Asus. I have an Intel core ultra 265K with G.Skill 6800 O.C memory and it is completely stable. The motherboard has tons of features and all the overclocking and tweaking options ever needed in the BIOS, improved aesthetics from my previous build. It has ample USB and M2 ports and I like that it has an HDMI and DisplayPort connection along with 2 thunderbolt 4s. With support for the latest technologies like DDR5, Wi-Fi 7, Thunderbolt™ 4 and an advanced cooling system, this board will give you maximum performance and stability. If you’re building your first p.c or upgrading an existing one, Strix Z890-E gaming will meet all your needs. Highly recommend this board for stability, features, reliability and aesthetics. Read more
Oprindeligt offentliggjort på https://www.asus.com
Synes du denne anmeldelse er nyttig?
Asus ROG Z890-E Dream
By
Samtation
01-07-2025
This motherboard demonstrates exceptional speed and efficiency, making it a highly desirable component. Based on my experience, this board is well-suited for single-PC streaming and 3D design applications. When paired with an Intel Ultra 7 processor, it represents a sound investment. While the AI overclocking feature presented some initial challenges, particularly with gaming and streaming performance, the overall efficiency surpasses that of my previous Z790 motherboard. Despite this minor issue, I highly recommend this motherboard. For those considering an Intel processor, the price-to-performance ratio makes it a worthwhile purchase. Please note that compatibility is limited to (Gen 2) Ultra processors; Gen 1 processors may not be supported. Read more
Oprindeligt offentliggjort på https://www.asus.com
Synes du denne anmeldelse er nyttig?
Awesome motherboard
By
Sean Gerlinger
01-07-2025
Awesome motherboard that I can count on. Running perfectly Read more
