Produktoplysninger
Tekniske detaljer
| Produktlinje | ASUS |
|---|---|

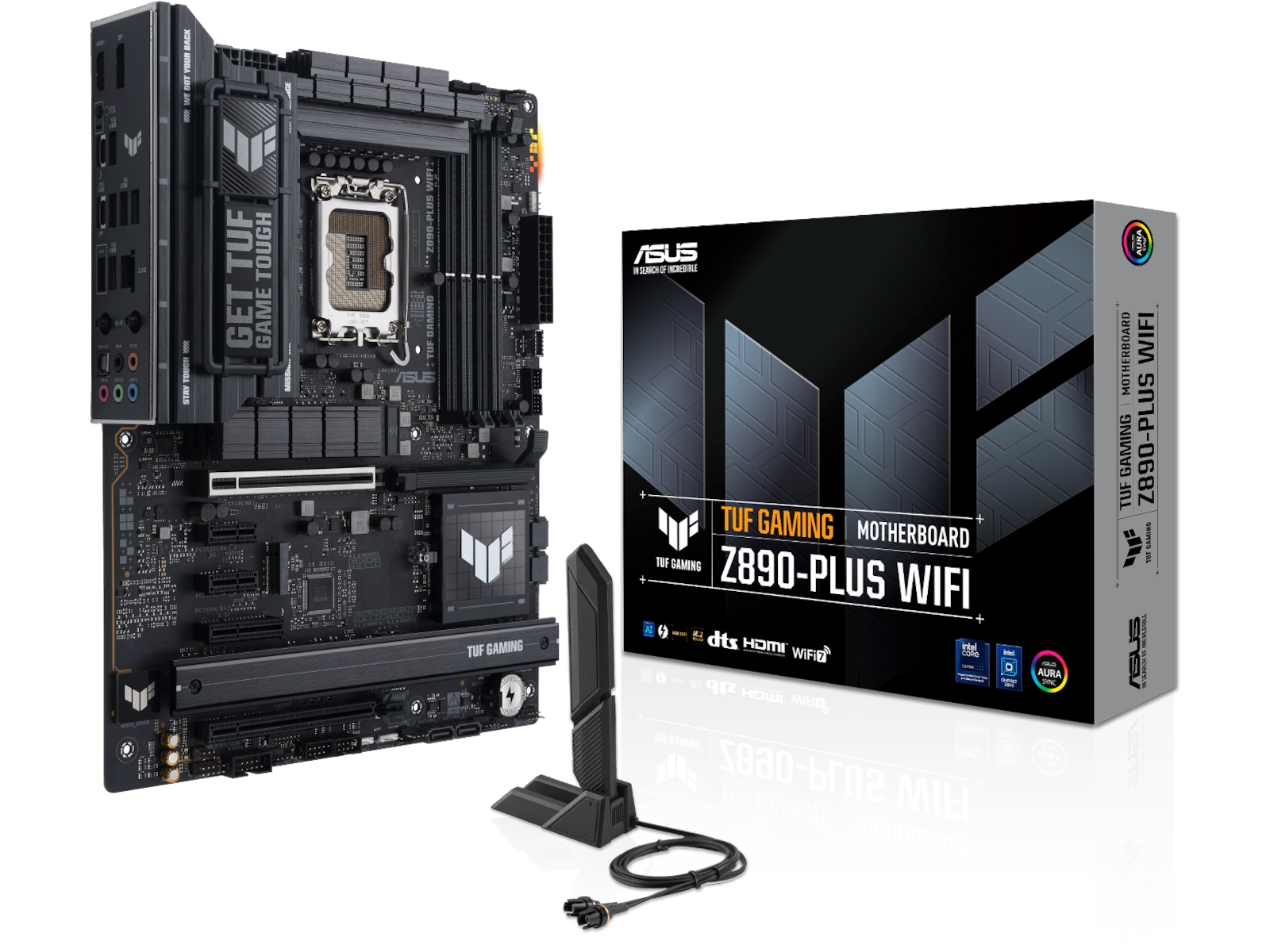

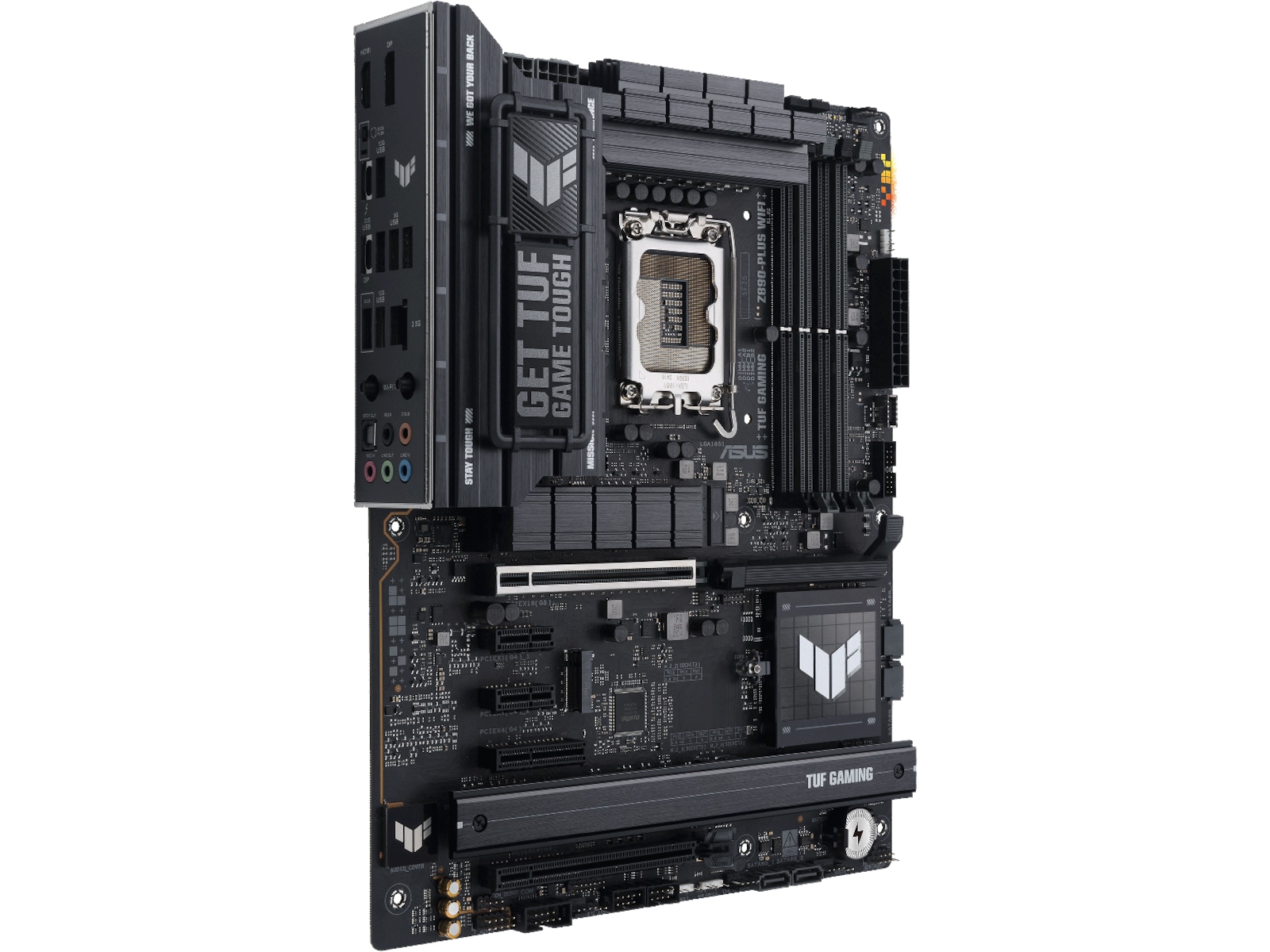

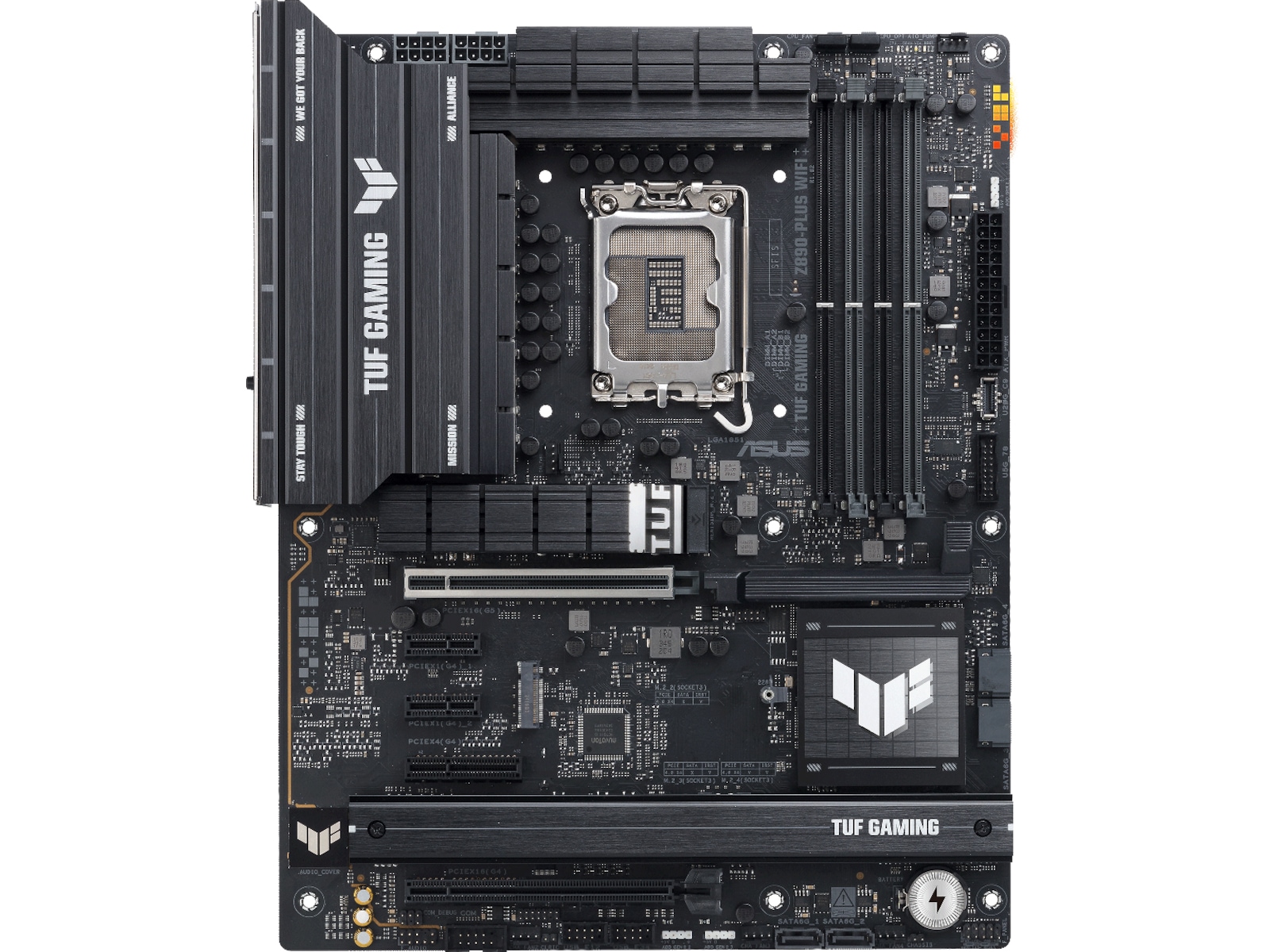

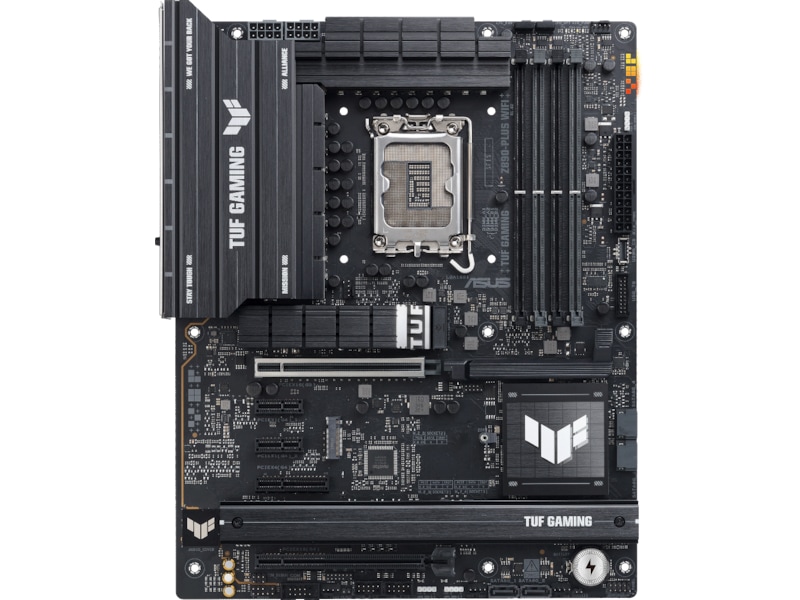

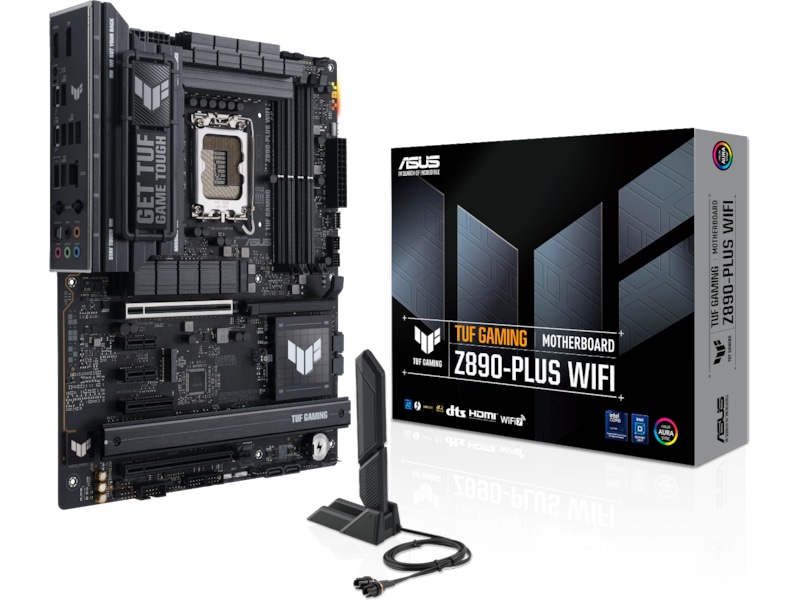

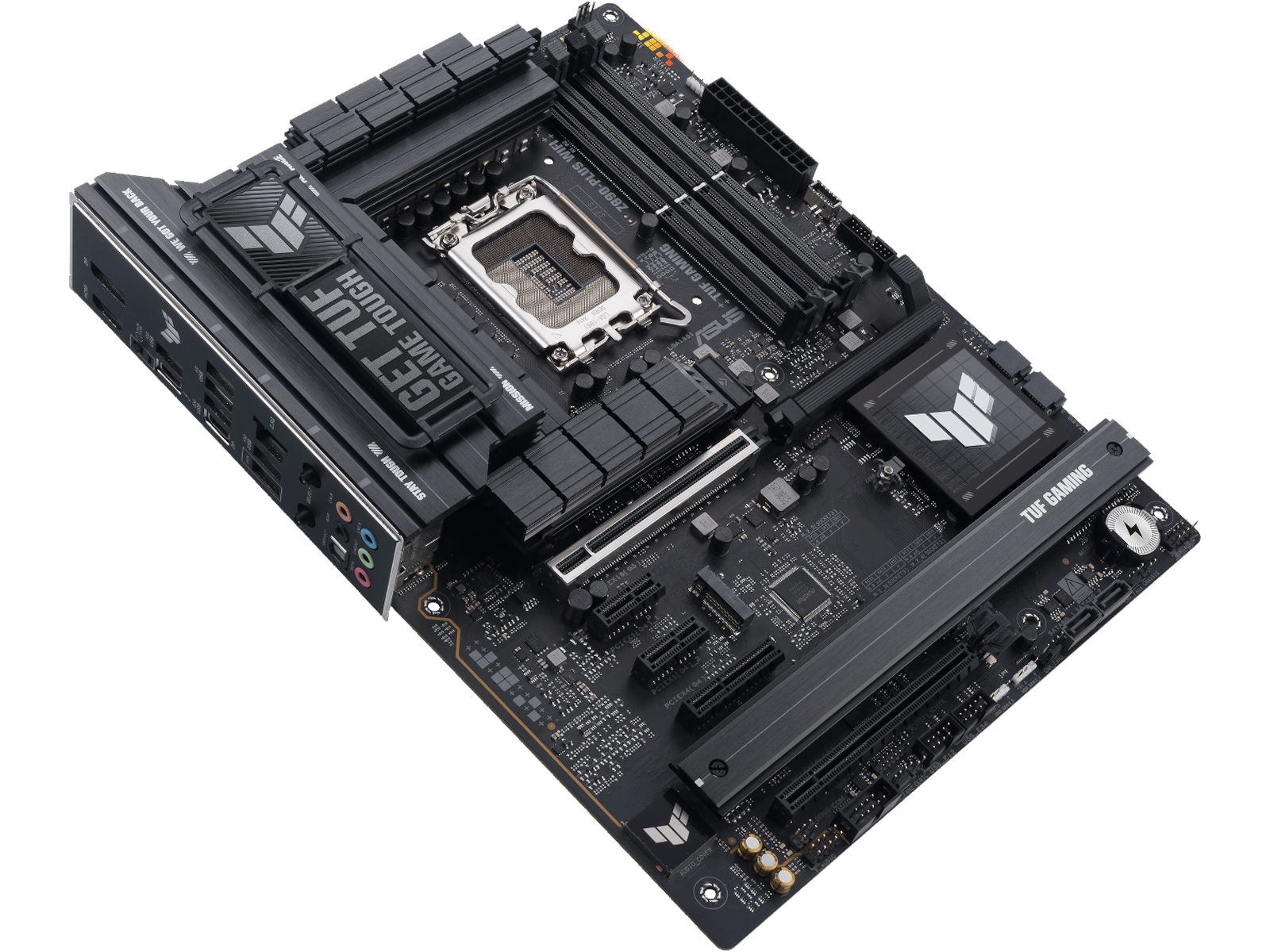

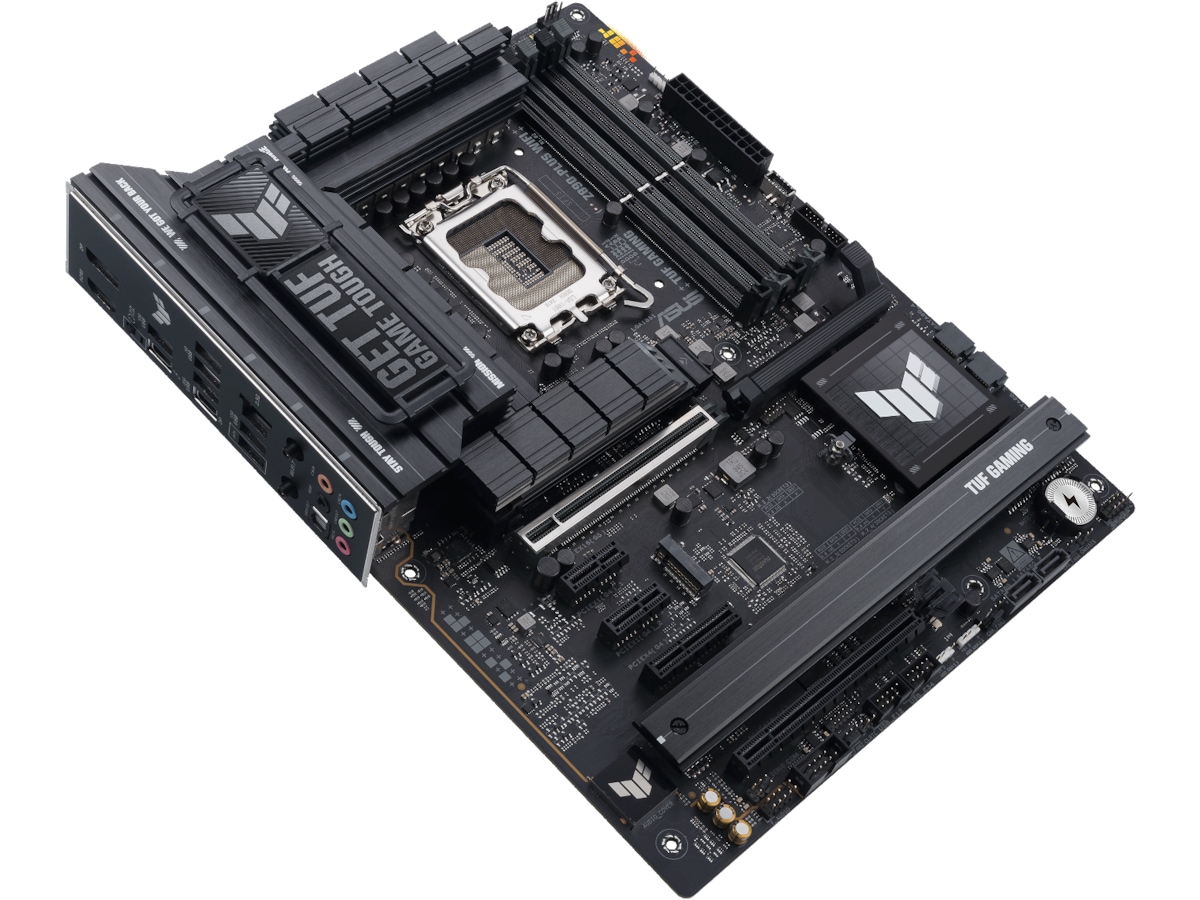

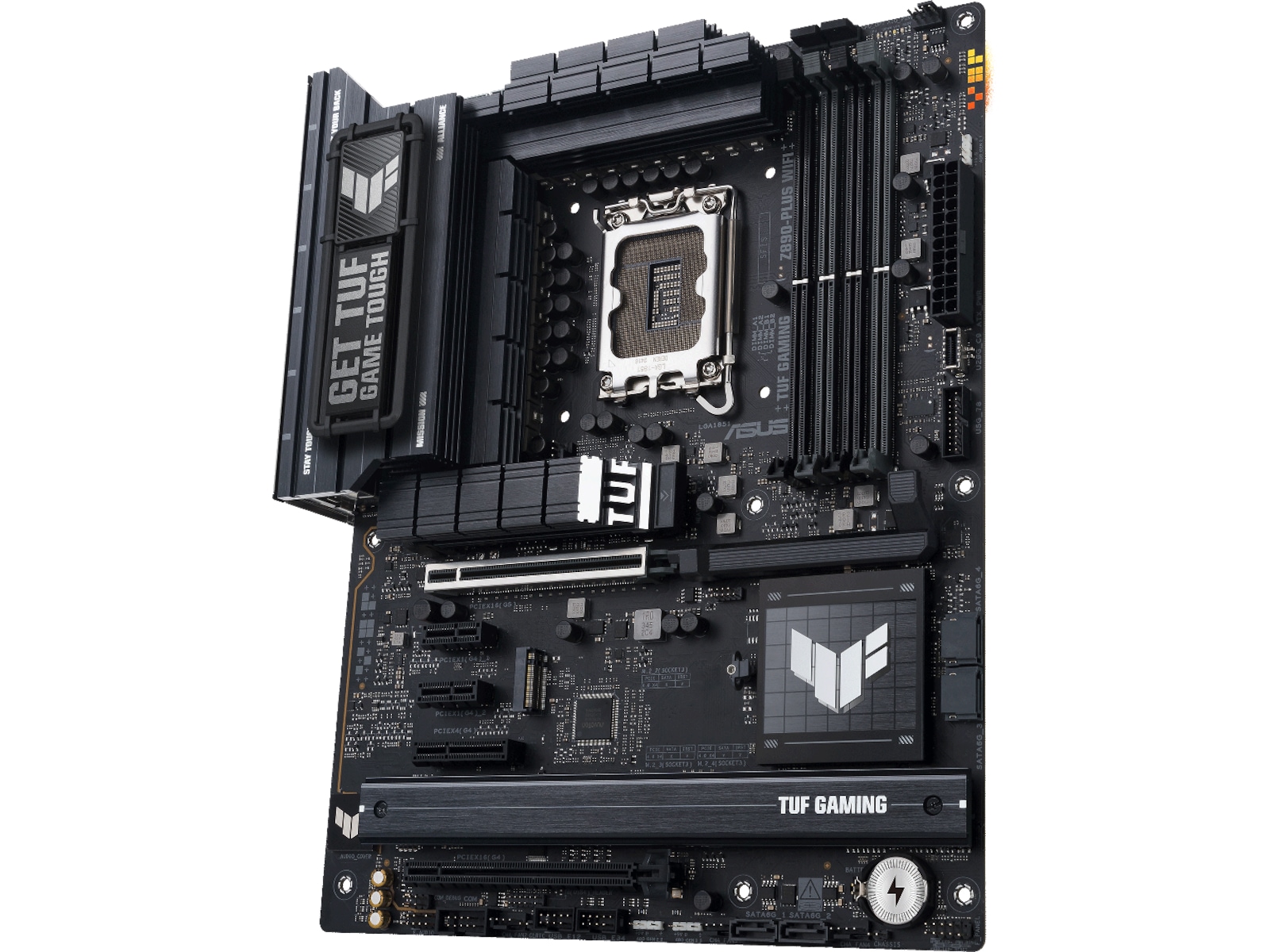

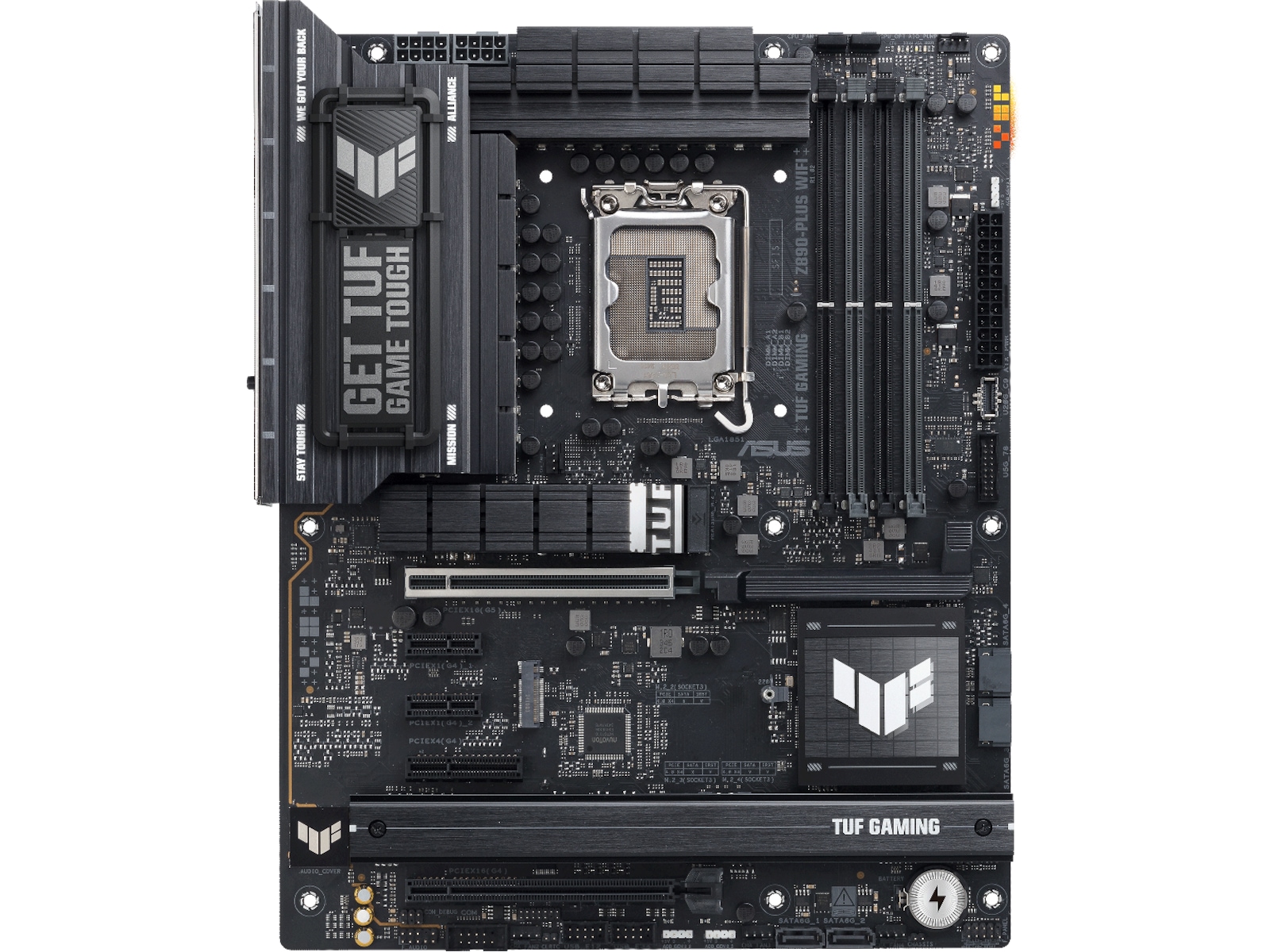

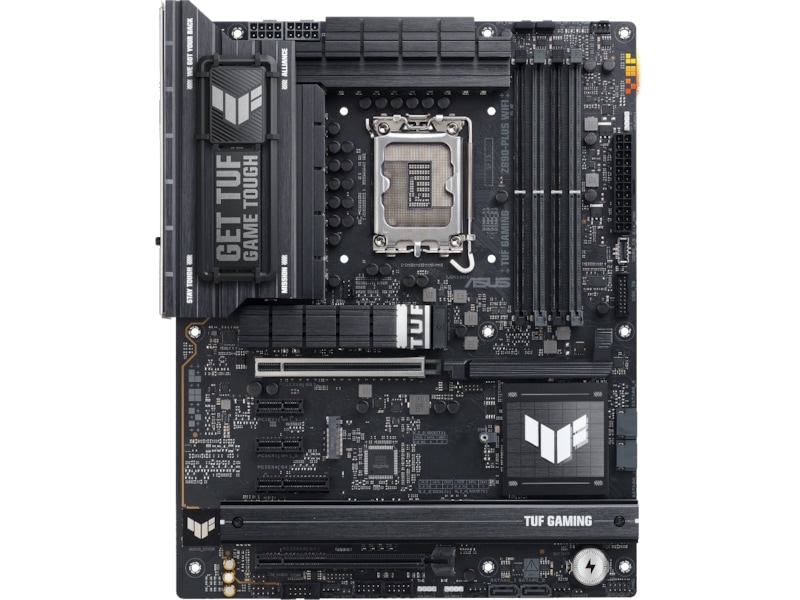

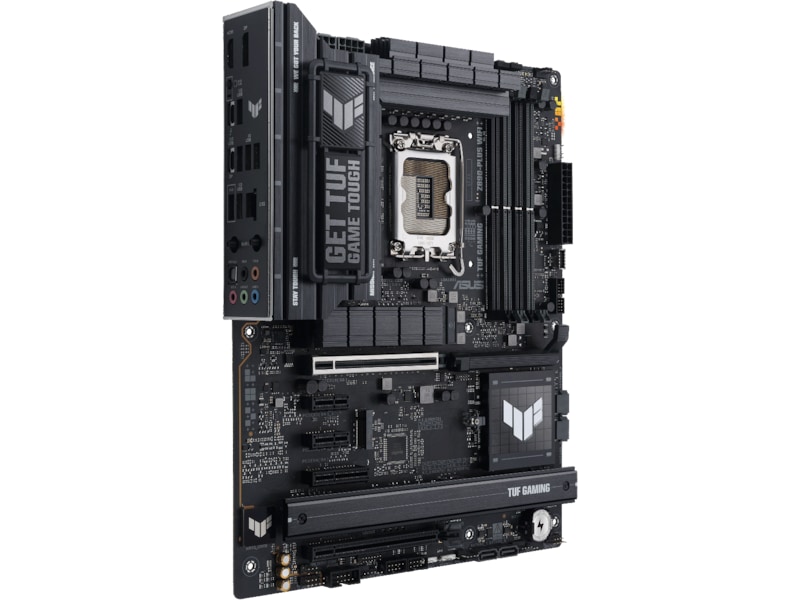

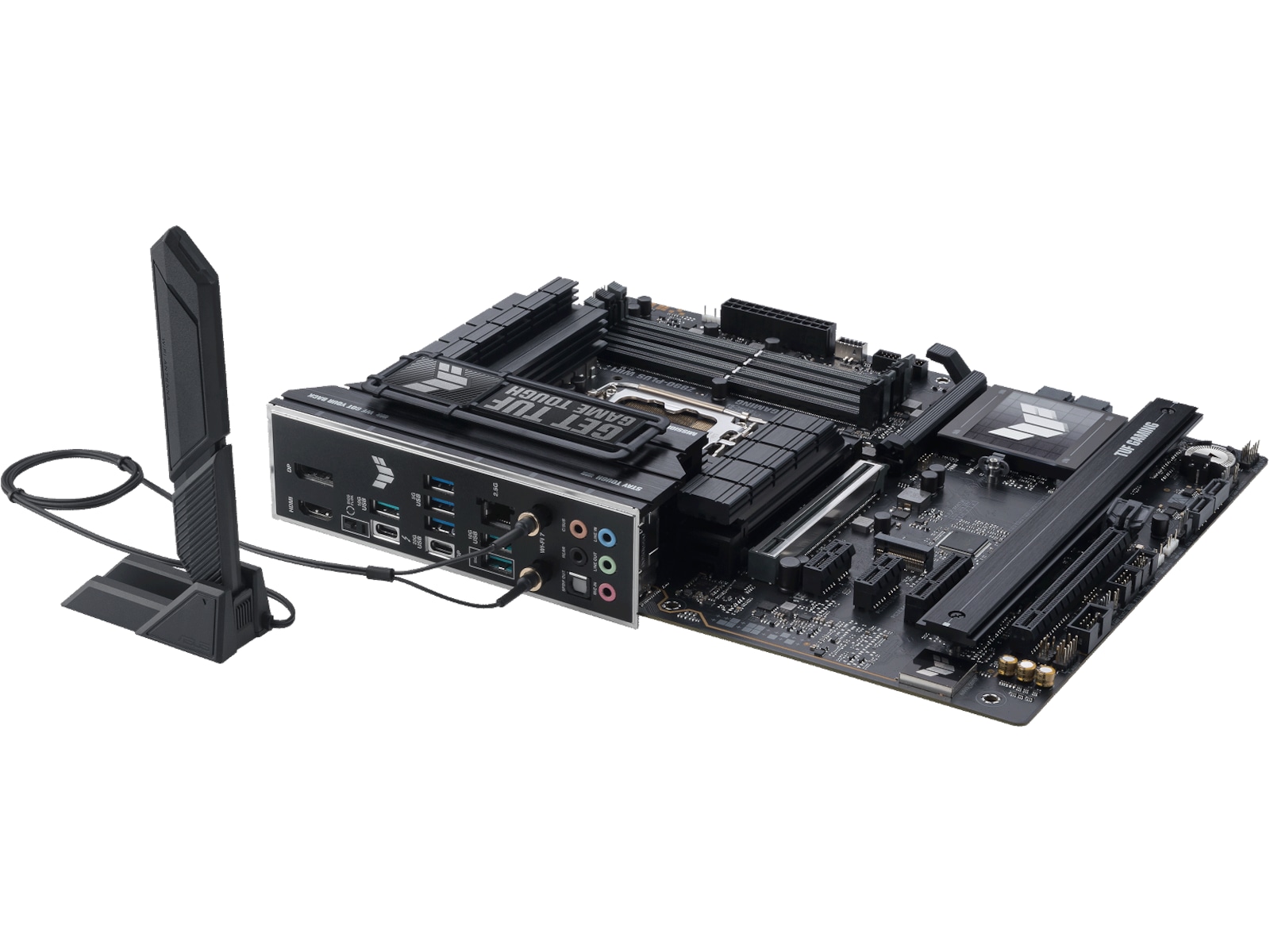

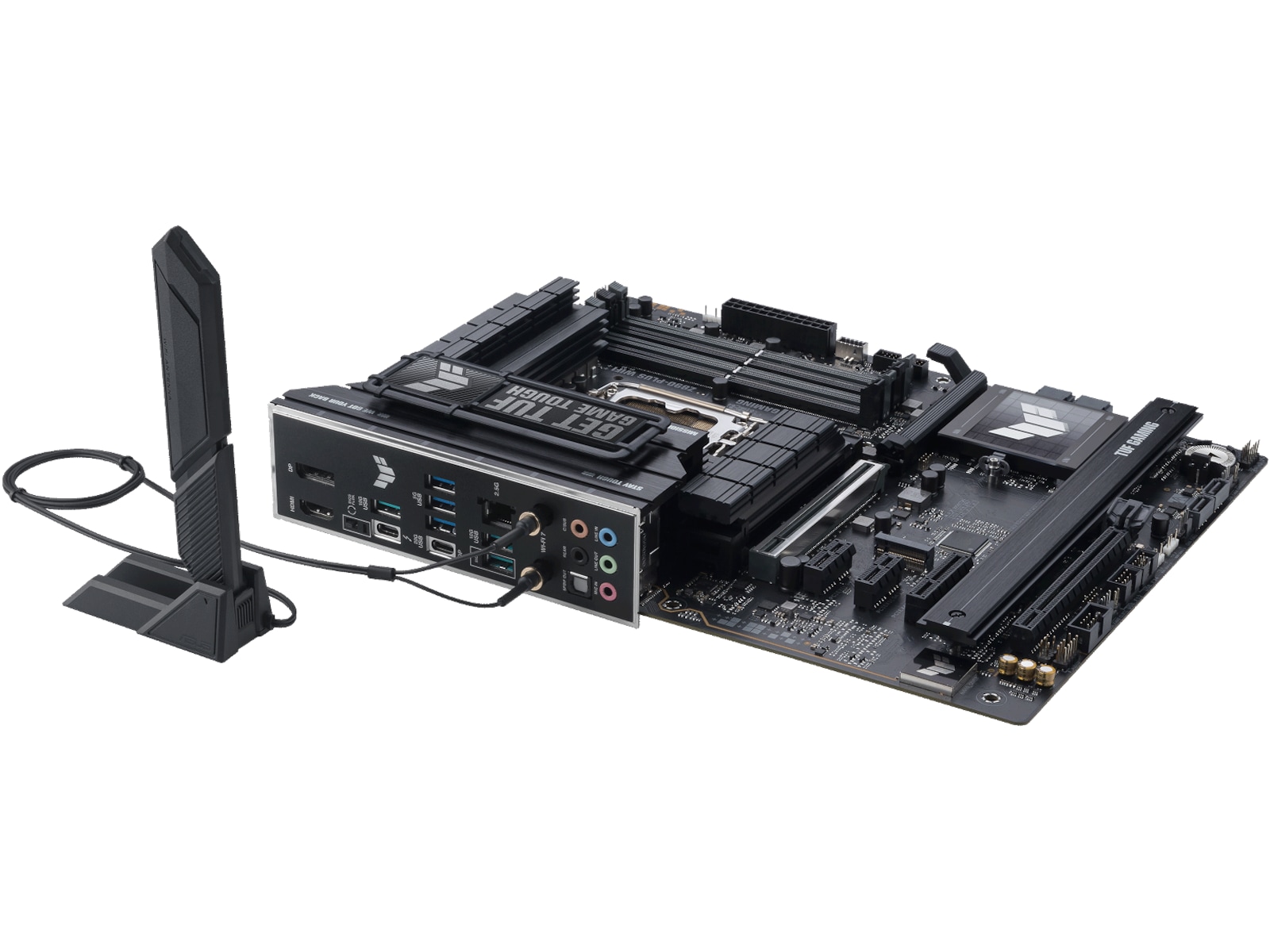

| Model | TUF GAMING Z890-PLUS WIFI |
| Producentens garanti (måneder) | 24 |
| EAN | 4711387763926 |
| RAM Slots | 4 DIMM åbninger |
|---|---|
| Processor-socket | LGA1851 sokkel |
| Model | ATX |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| RAM-hastighed understøttet | 4533 MHz (O.C.) |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Chipsættype | Intel Z890 |
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
| Understøttet RAM-integritetskon | Ikke-ECC, On-die ECC |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Sov/ Vågn | Vågn på PME, Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber | CUDIMM støtte, ASUS Aura Sync, 16+1+2+1 fase strømdesign, ASUS Overvoltage Protection, 8 Layer PCB, ASUS ProCool, Q-DIMM, ESD Guards, Q-Dashboard, M.2 Q-Latch, Intel Turbo Boost Technology 2.0, ASUS TUF Protection, ASUS EZ DIY, PCIe Slot Q-Release, ASUS DIGI+ VRM, ASUS SafeDIMM, ASUS Q-Design, M.2 kølelegeme, ASUS Stainless Steel Back I/O, AI Cooling II, Intel Turbo Boost Max Technology 3.0, AI Networking II, Q-Antenna, ASUS SafeSlot, CrashFree BIOS 3, TUF LANGuard, BIOS FlashBack-knap, Q-Slot, Præmonteret I/O-skjold, NPU Boost, Q-LED, M.2 Q-Slide, VRM kølelegemedesign, M.2 Q-Release, DIY Friendly Design, Chipset-kølelegeme, CPU Socket-håndtagsbeskytter, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) III, M.2 kølelegemebagplade |
| BIOS-egenskaber | ASUS UEFI BIOS EZ Mode, UEFI BIOS, ASUS EZ Flash |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 |
| Lagringsporte | 4 x SATA-600 (RAID), 4 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio codec | Realtek ALC1220P |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Type | Lydkort |
| Overensstemmelsesstandarder | High Definition Audio |
| Medfølgende ledninger | 2 x SATA Express-kabel |
|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
|---|---|
| Produkttype | Bundkort |

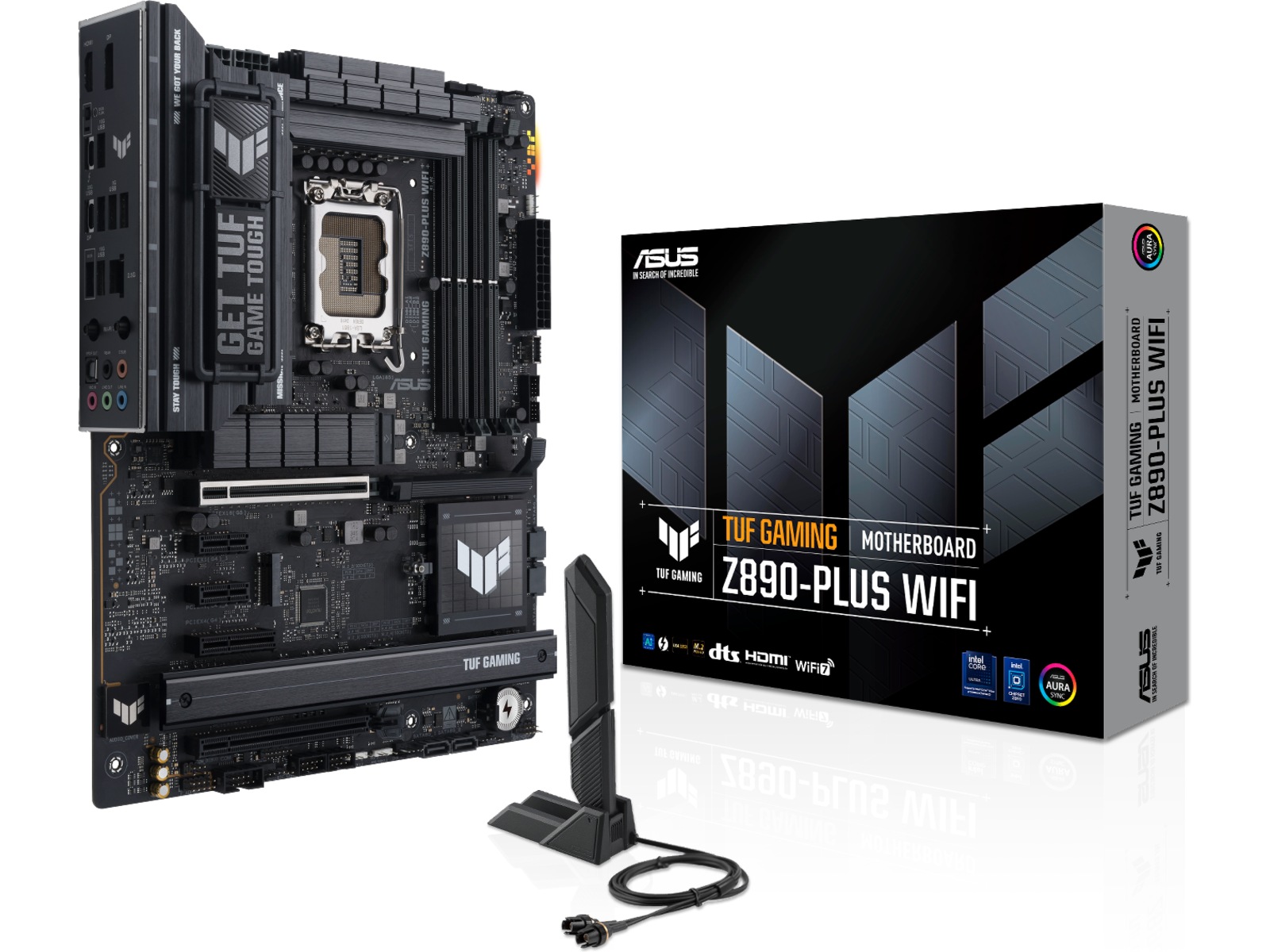

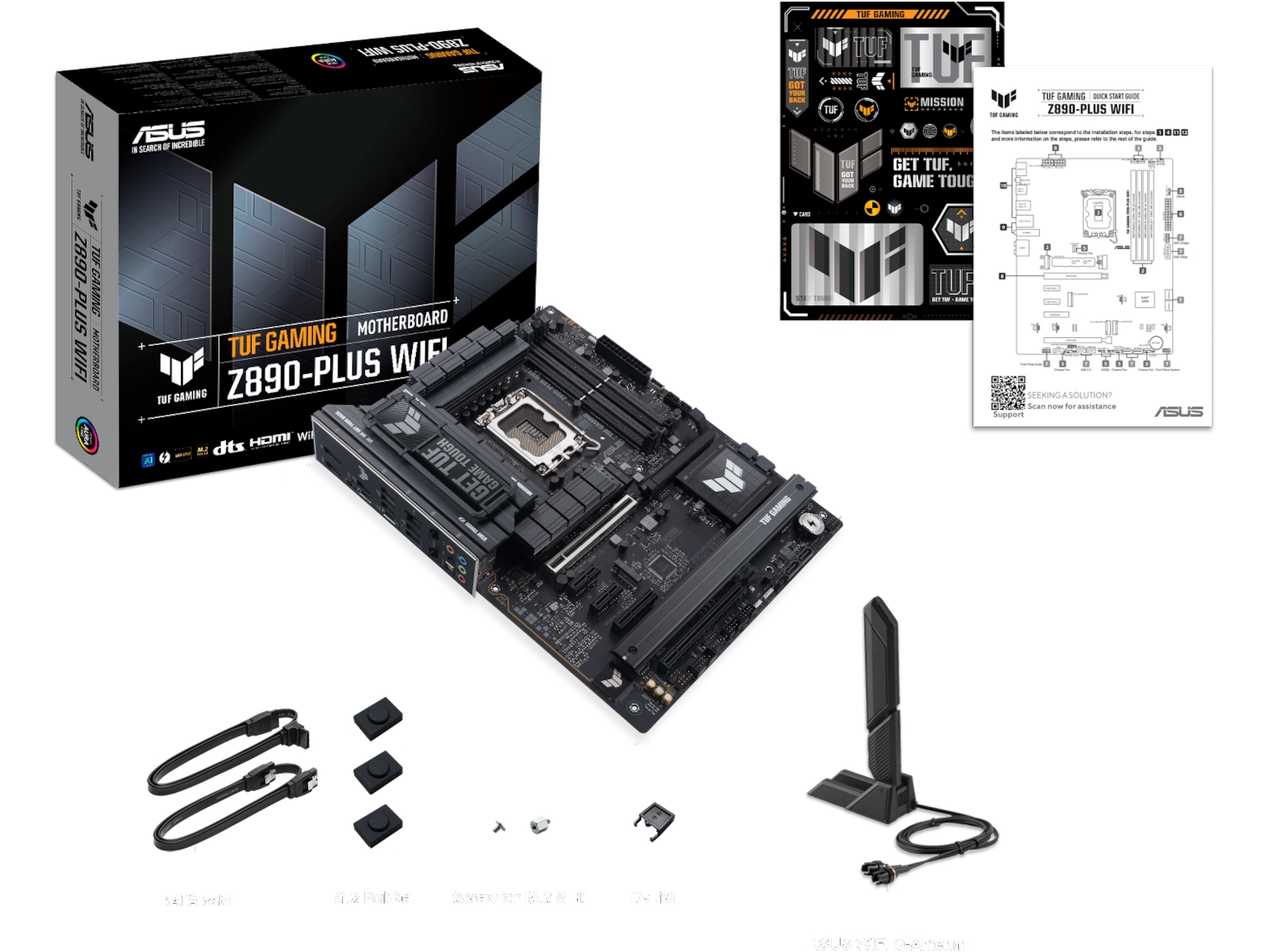

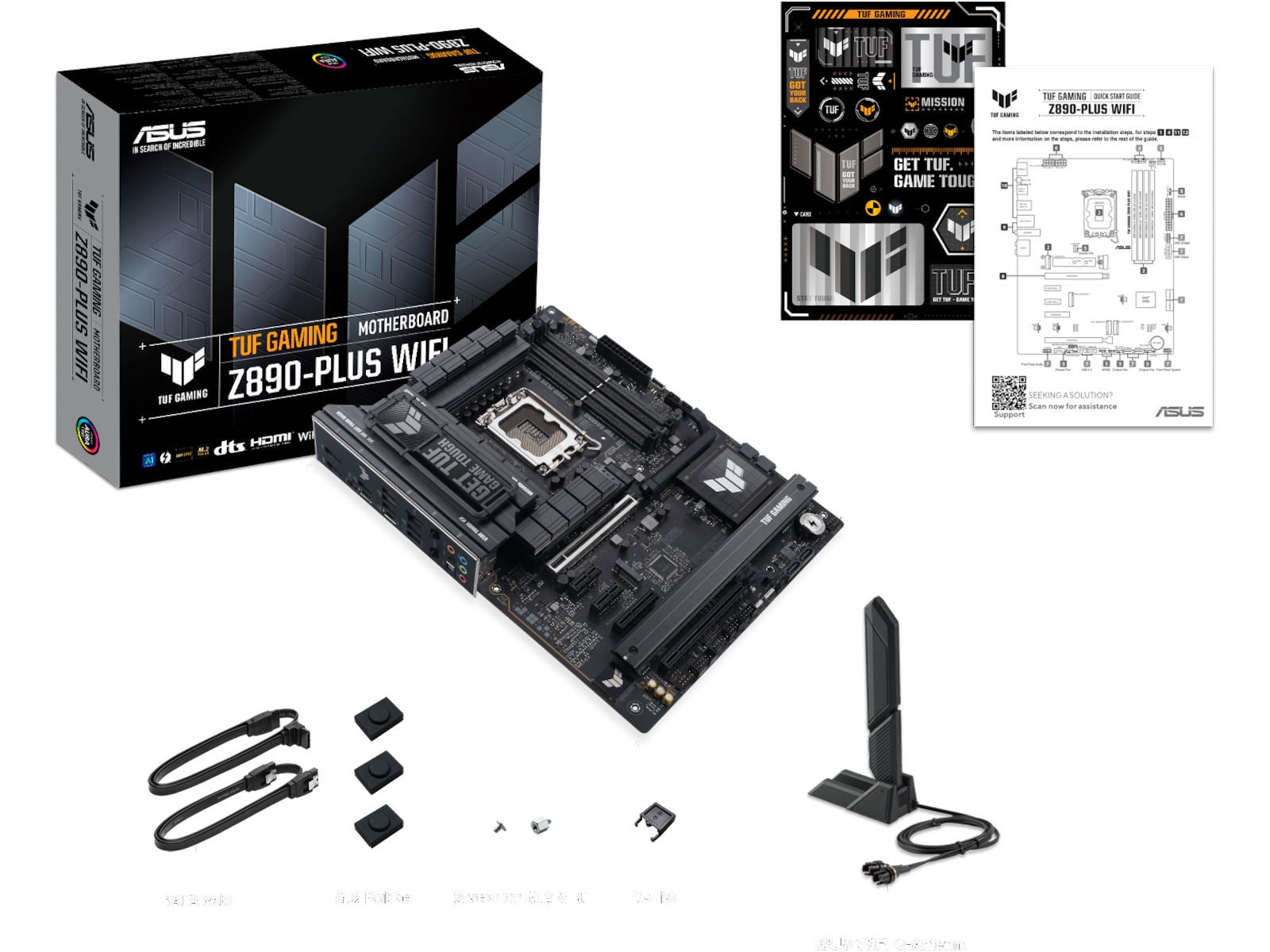

| Inkluderet tilbehør | 2 x M.2 gummipakke, M.2 Q-Slide, TUF GAMING aftageligt navneskilt, M.2 skruepakke, ASUS Wi-Fi Q-antenna, TUF GAMING-mærkat |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Dataforbindelsesprotokol | IEEE 802.11ac, Fast Ethernet, IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE 802.11a, Bluetooth 5.4, Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7), 2.5 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Netværk | Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet |
| Ekspansionsåbninger | 1 x M.2 socket (2280 M.2 Key M-åbning), 1 x PCIe 4.0 x16 (x4-modus), 1 x PCIe 5.0 x16, 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 2 x PCIe 4.0 x1, 1 x CPU, 1 x PCIe 4.0 x4, 1 x M.2 socket (2280/22.110 M.2 Key M-åbning), 4 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

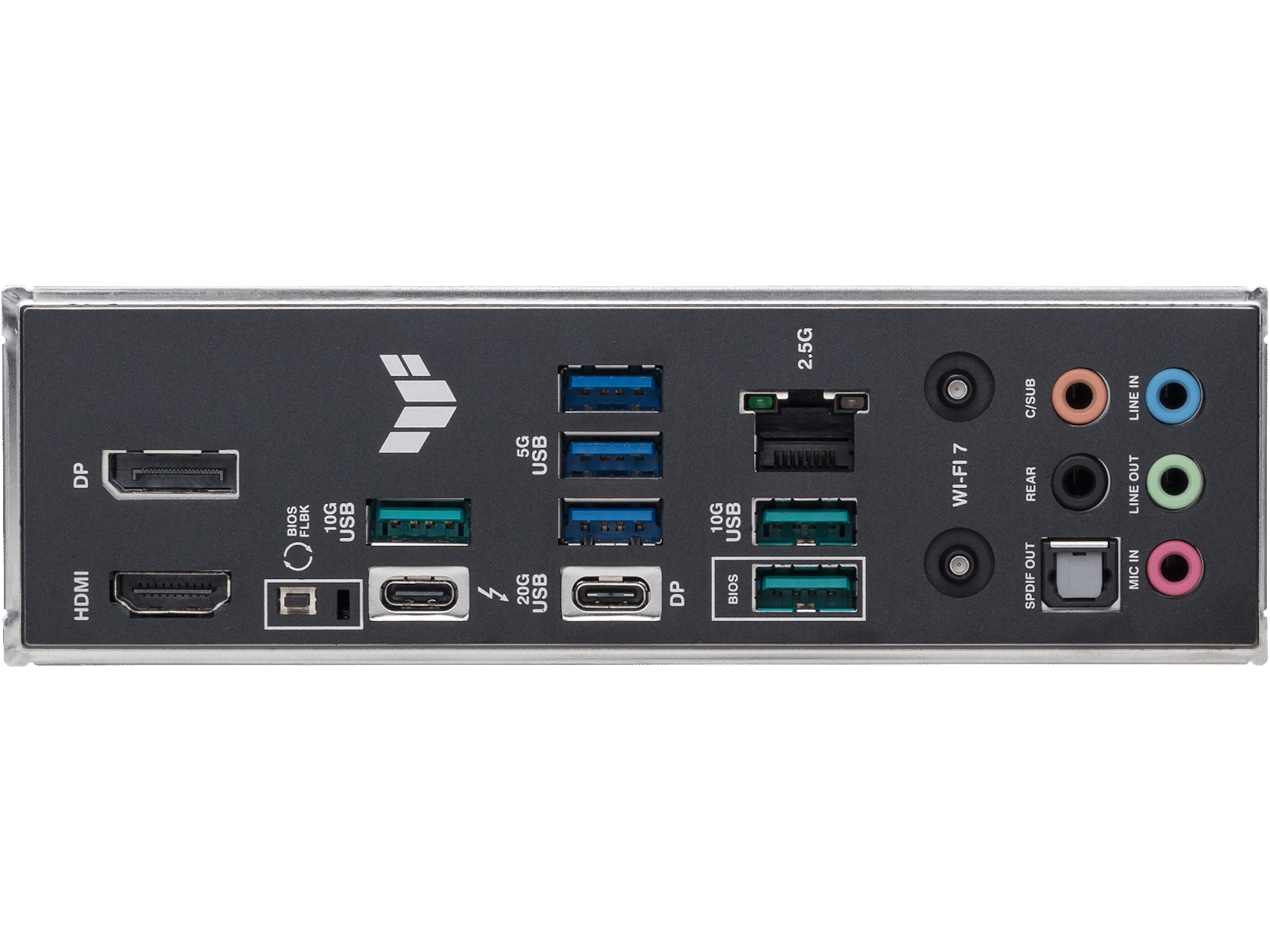

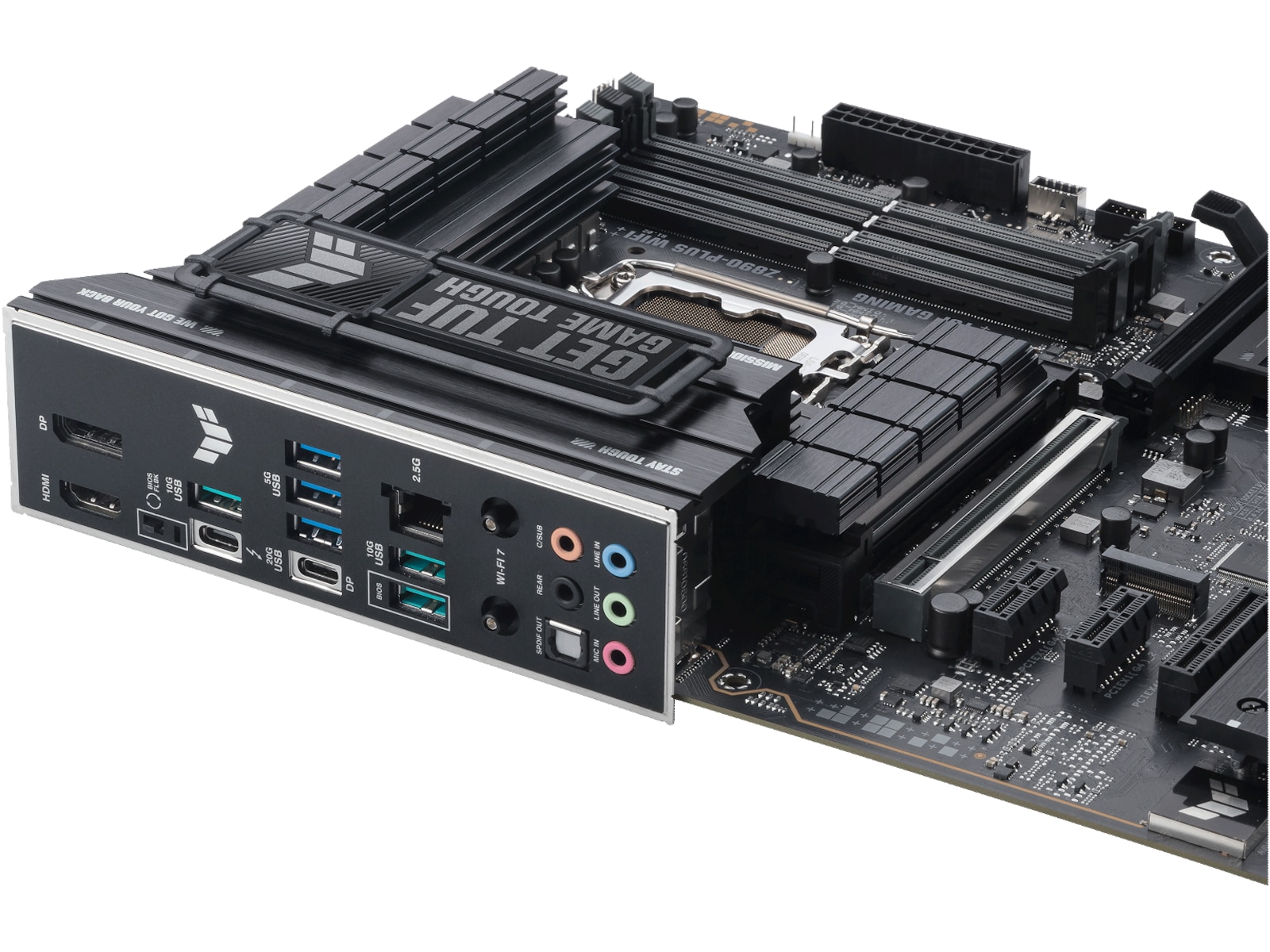

| Interface | 1 x LAN (2.5Gigabit Ethernet), 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 3 x USB 3.2 Gen 1, 3 x USB 3.2 Gen 2, 1 x DisplayPort, 1 x audio linje-ind - mini-jack, 1 x USB-C 3.2 Gen 2/DisplayPort, 1 x mikrofon - mini-jack, 1 x SPDIF-ud, 1 x audio linje-ud (bagtil) - mini-jack, 2 x Thunderbolt 4/DisplayPort/USB4, 2 x antenne, 1 x HDMI, 1 x audio linje-ud - mini-jack |
|---|
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik, 1 x seriel - intern stik, 1 x Thunderbolt 4 - intern stik, 1 x audio - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 2.0 - intern stik |
|---|
| Software inkluderet | Norton 360 for Gamers (60 dages prøvetid), ASUS Fan Xpert 4, Adobe Creative Cloud (gratis prøve), ASUS TUF GAMING CPU-Z, Armoury Crate, ASUS DriverHub, DTS Audio Processing, ASUS AURA Creator, ASUS AI Advisor, WinRAR (40 days trial), TurboV Core, ASUS GlideX |
|---|
Produktanmeldelser
Game Rig
By
Ritchie Rich
04-07-2025
Great board, a lot of drivers to install for the Intel components on it. Downside is the RGB control software, very hit and miss in operation, hoping it gets fix soon. Read more
Oprindeligt offentliggjort på https://www.asus.com
Synes du denne anmeldelse er nyttig?
Affordable OC tweaker
By
d50man
12-06-2025
Pretty good board with a great selection of connectivity and quality components. The only change I would like is the addition of the AI OC features from the strix line added to the TUF bios. Read more
Oprindeligt offentliggjort på https://www.asus.com
Synes du denne anmeldelse er nyttig?
Lackluster
By
Joehardhat
03-06-2025
Why put a pci slot right below the gpu slot, you know it can never be used. Why make all the m.2 slots quick release then make the heat sink screwed on? Needs a boot display not led. Most cases have two 3.0 usb, need two on board. Whats the point of the slide on plastic graphics? Read more
