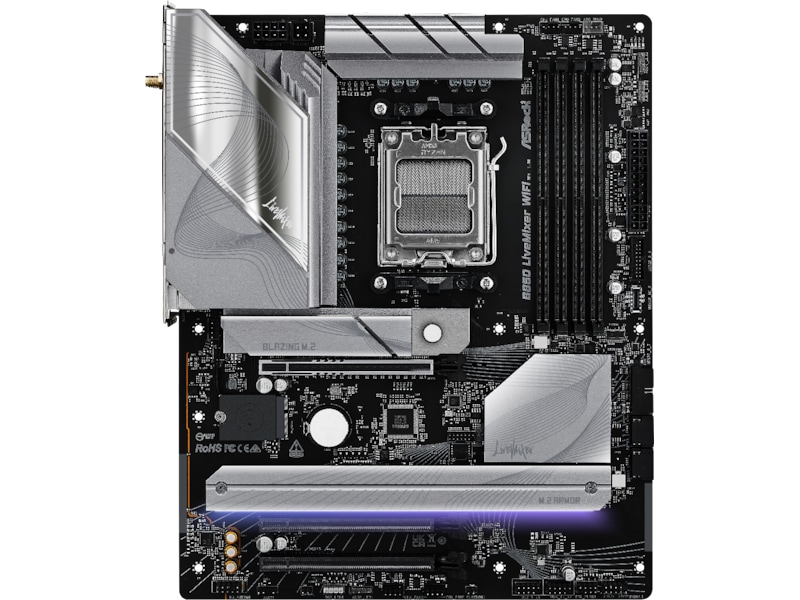

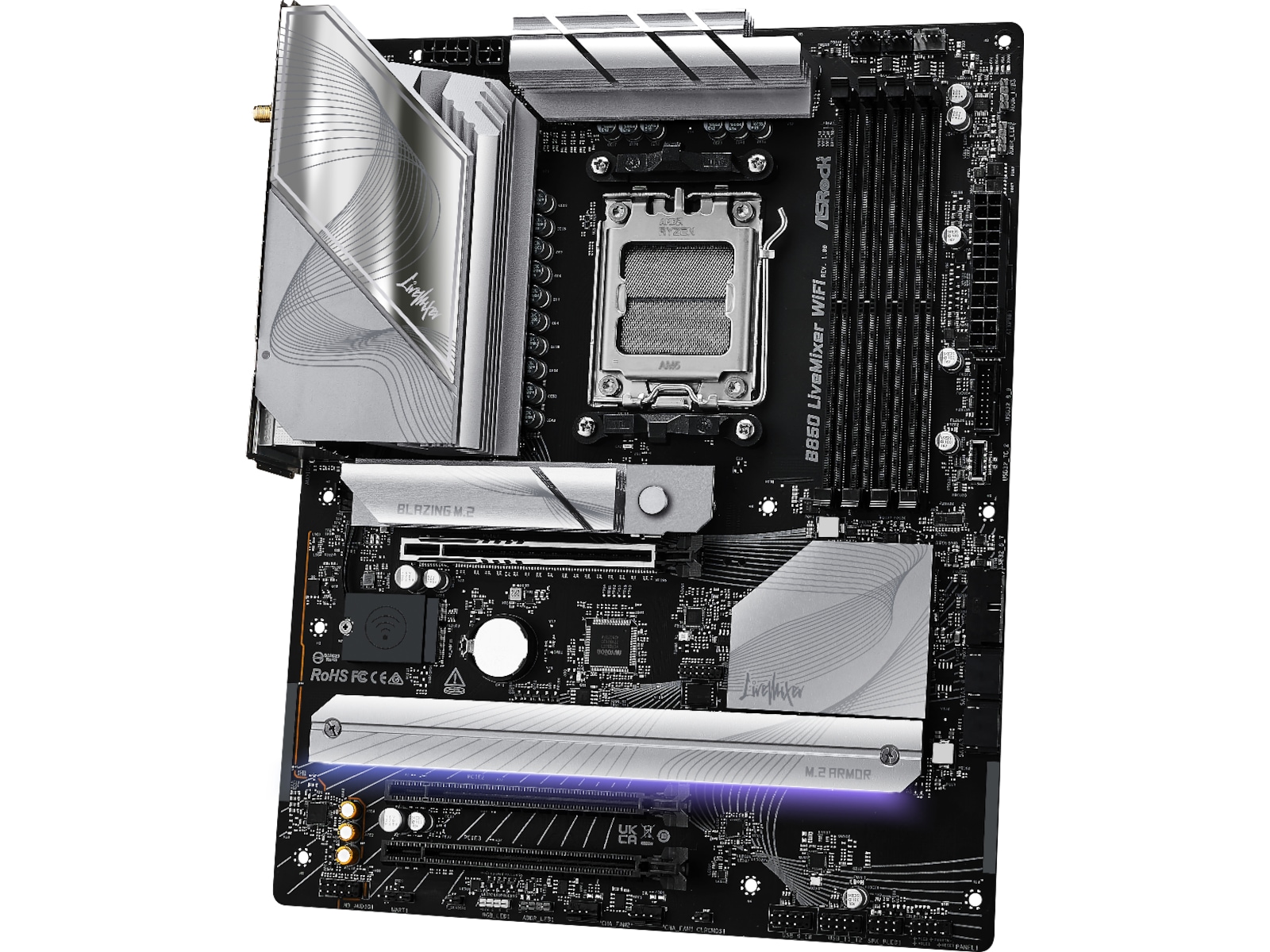

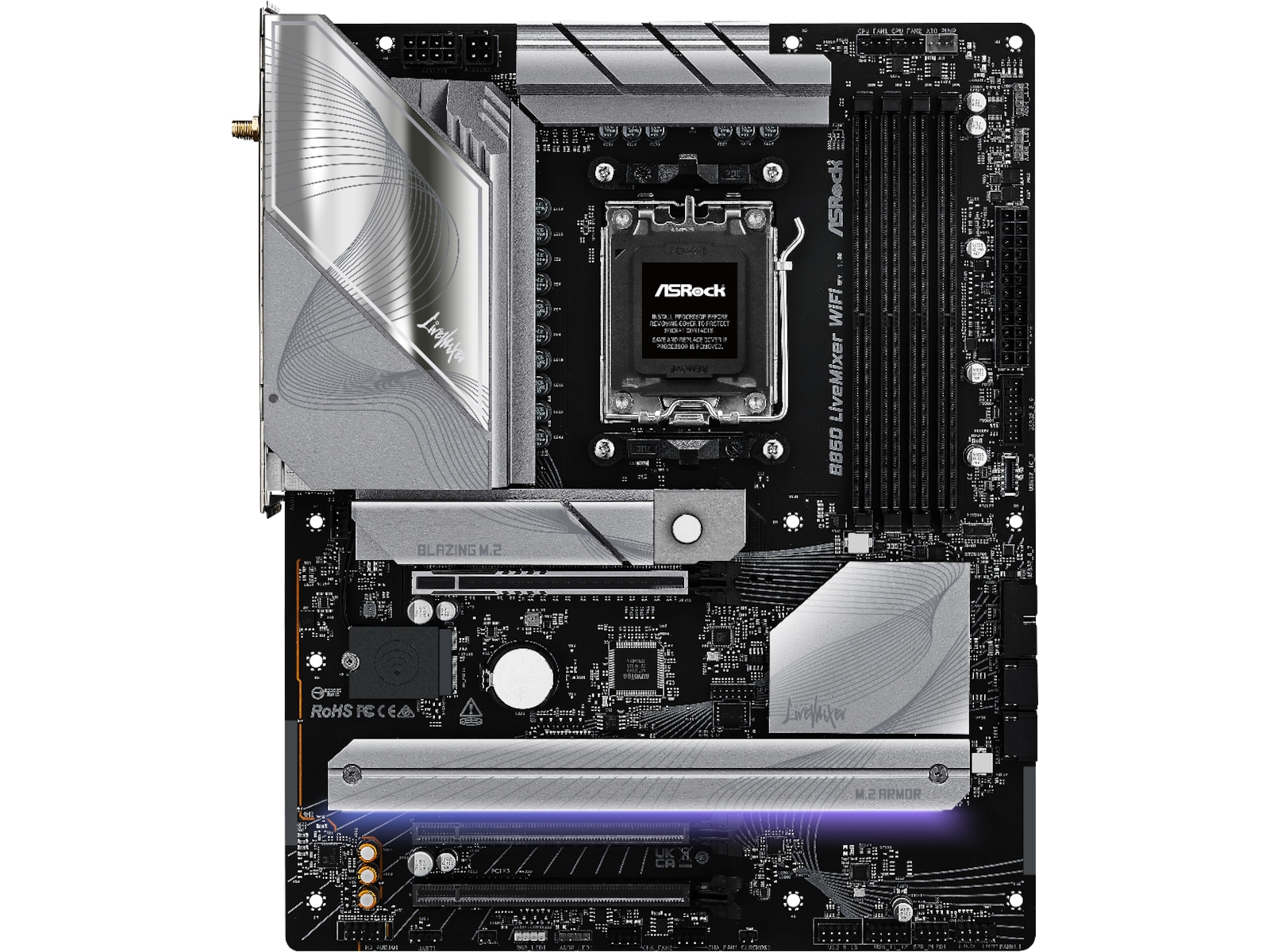

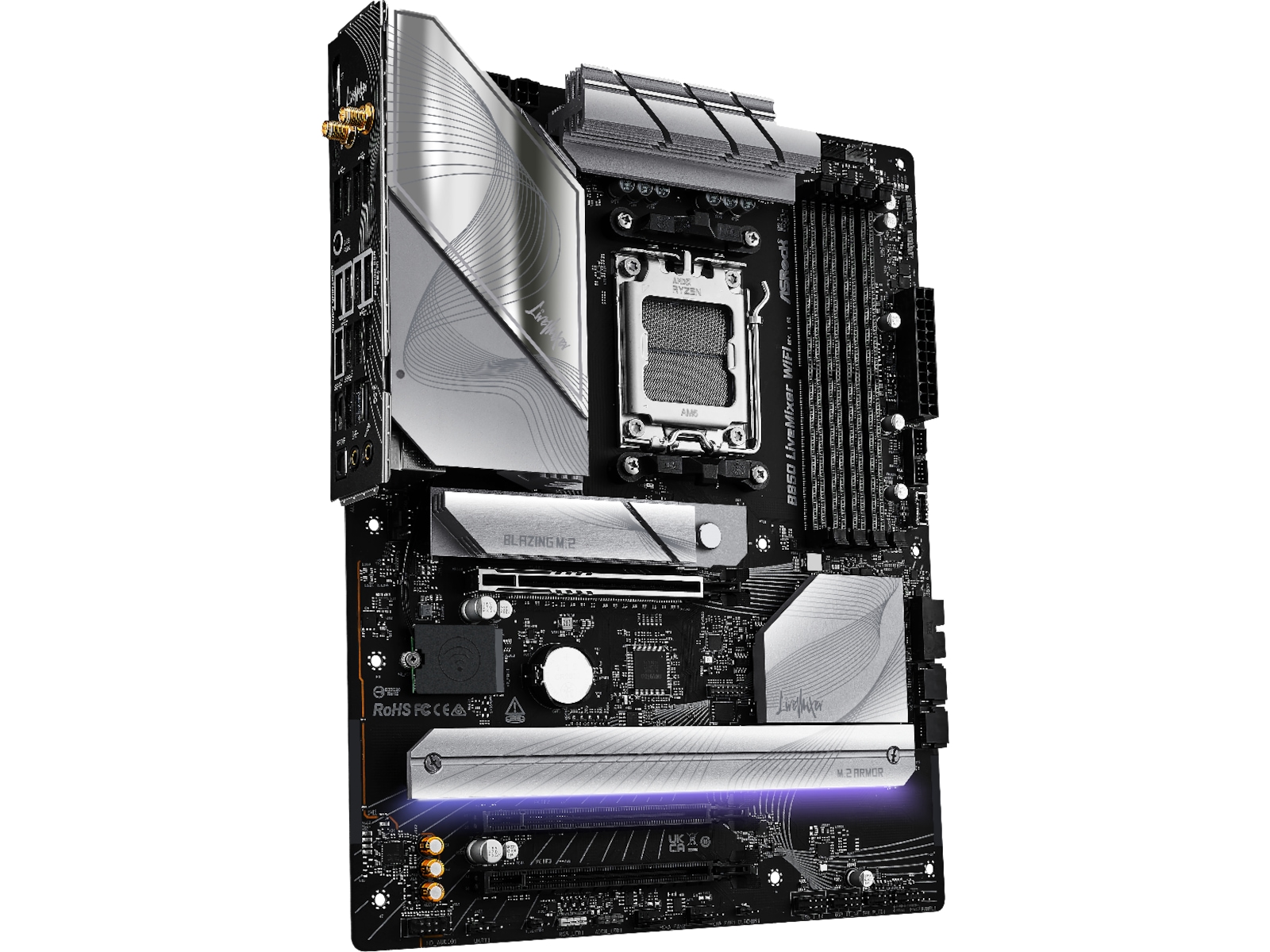

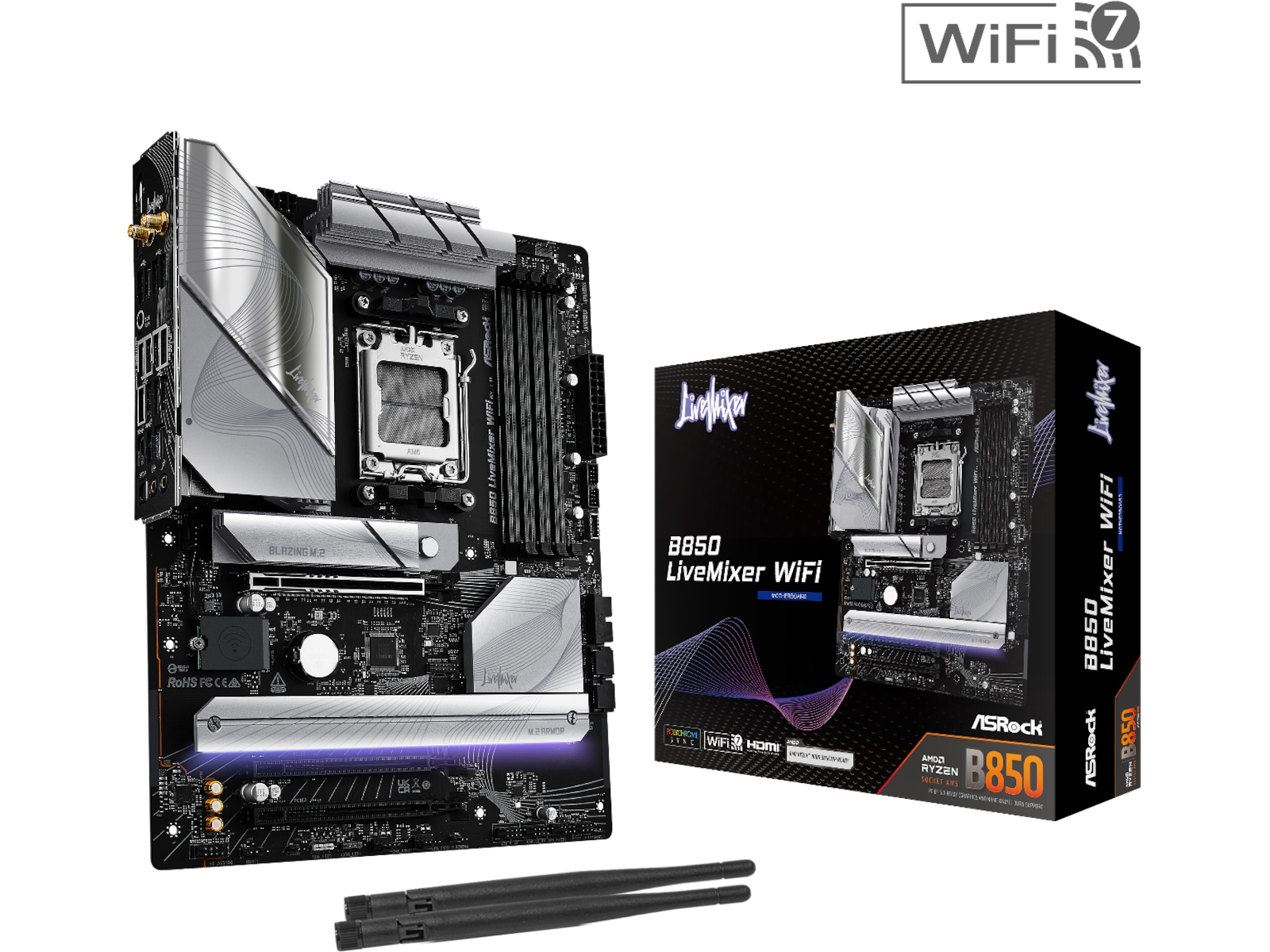

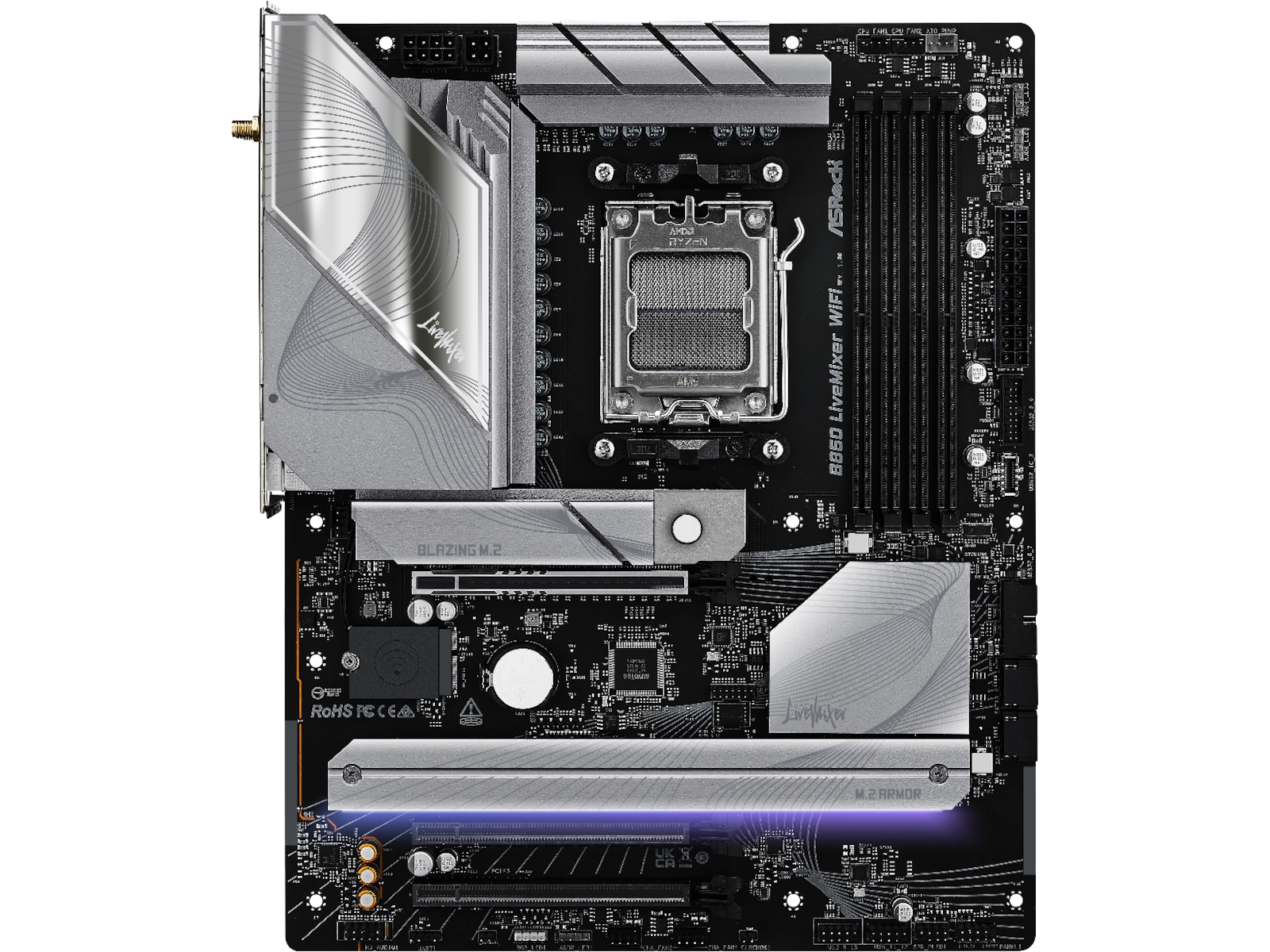

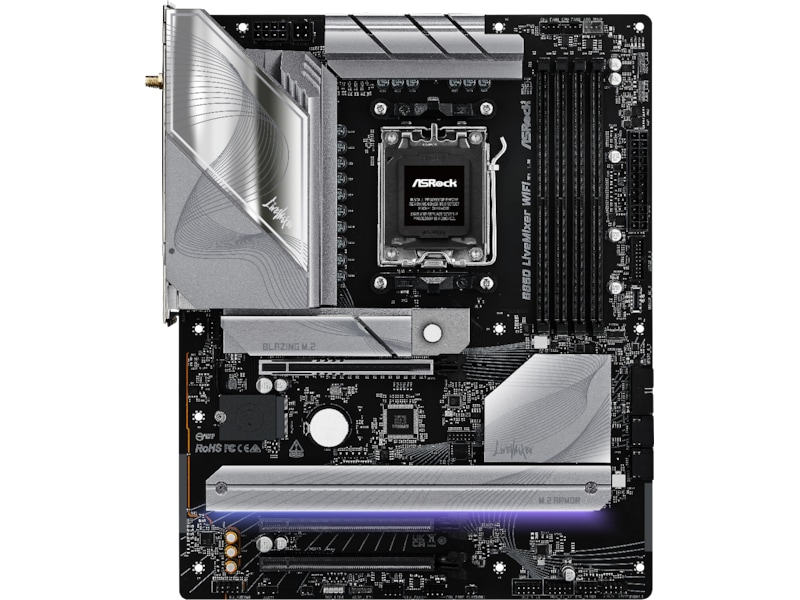

| Model | B850 LIVEMIXER WIFI |
|---|---|
| Produktlinje | ASRock |
| Producentens garanti (måneder) | 36 |
| EAN | 4711581490154 |
| Kommentarer om kompatible processorer | Understøtter Ryzen 7000/8000/9000 Serien |
|---|---|
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Chipsættype | AMD B850 |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Kompatible processorer | Ryzen |
| Model | ATX |
| Processor-socket | Socket AM5 |
| RAM Slots | 4 DIMM åbninger |
| RAM-hastighed understøttet | 8000 MHz (O.C.) |
| Understøttet RAM-integritetskon | ECC, Ikke-ECC |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor |
| BIOS-egenskaber | UEFI BIOS |
|---|---|
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | ASRock Polychrome RGB, DIY Friendly Design, 8 Layer PCB, ASRock Instant Flash, 14+2+1 Phase Power Design, Præmonteret I/O-skjold, Hi-Density Power Connectors, ASRock EZ Mode, ASRock Full HD UEFI, Aluminiumkølelegemedesign, ASRock Auto Driver Installer, Enlarged Heatsink Armor, ASRock FAN-Tastic Tuning, Dr.MOS MOSFET |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 8 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagringsporte | 2 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2 |
| USB/FireWire | USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 |
| Lagring | Serial ATA-600 (RAID), Hyper M.2 socket, Blazing M.2 socket |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Audio codec | Realtek ALC1220 |
| Type | Lydkort |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk controller | Dragon RTL8125BG |
|---|---|
| Netværk | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Dataforbindelsesprotokol | 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11n, IEEE 802.11a, Gigabit Ethernet, IEEE 802.11ac, IEEE 802.11b, Fast Ethernet, Ethernet |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | ErP Ready, FCC, EuP Ready |
| Egenskaber | AMD EXPO-teknologi, Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 1 x CPU, 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning), 4 x DIMM 288-pins, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4-modus), 2 x M.2 socket (2280 M.2 åbning), 1 x M.2 socket (Key E, til trådløs modul) |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - RAID 0 / RAID 1, PCIe 4.0 -stikforbindelser: 2 x Hyper M.2, PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 |
|---|

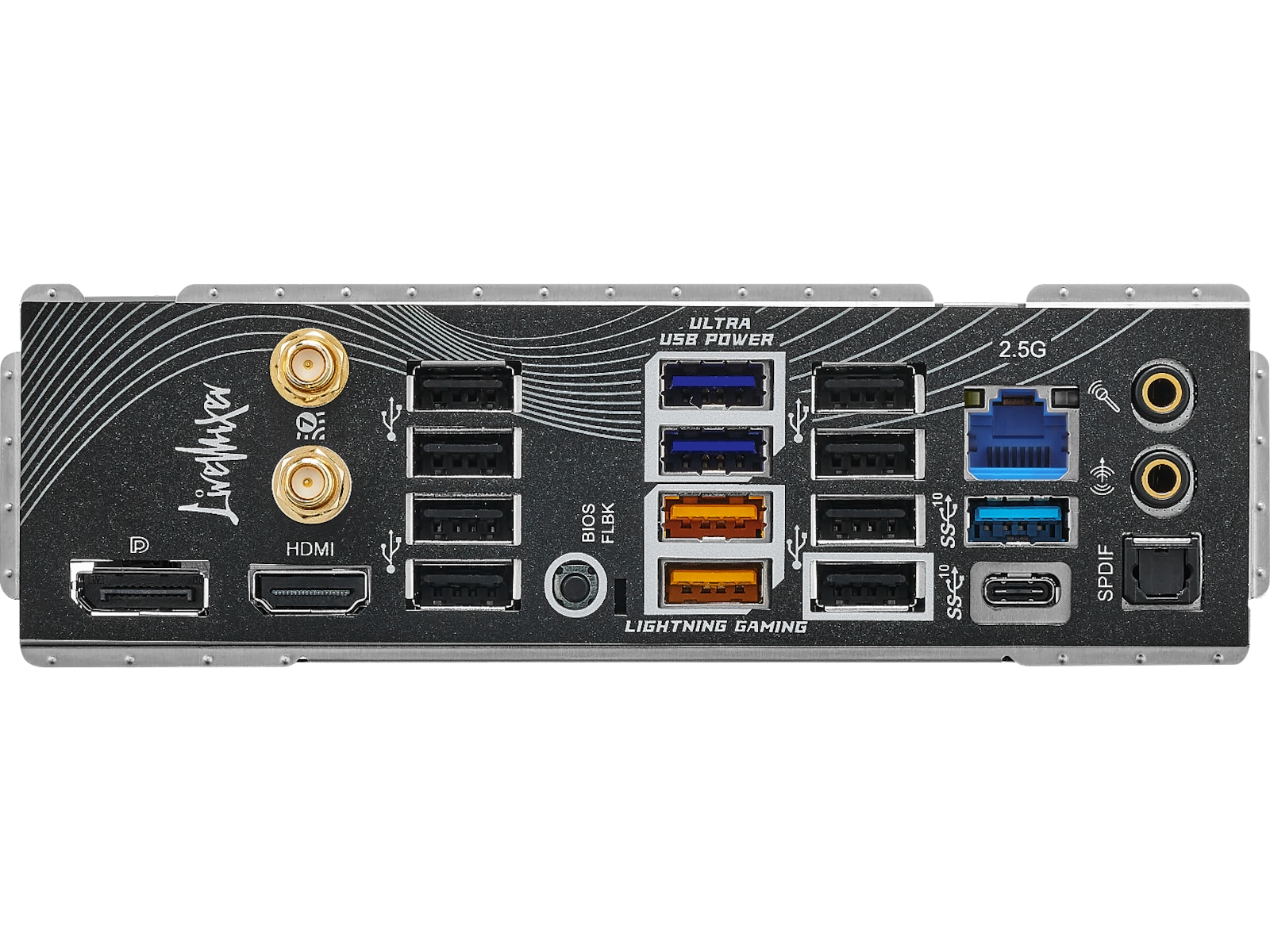

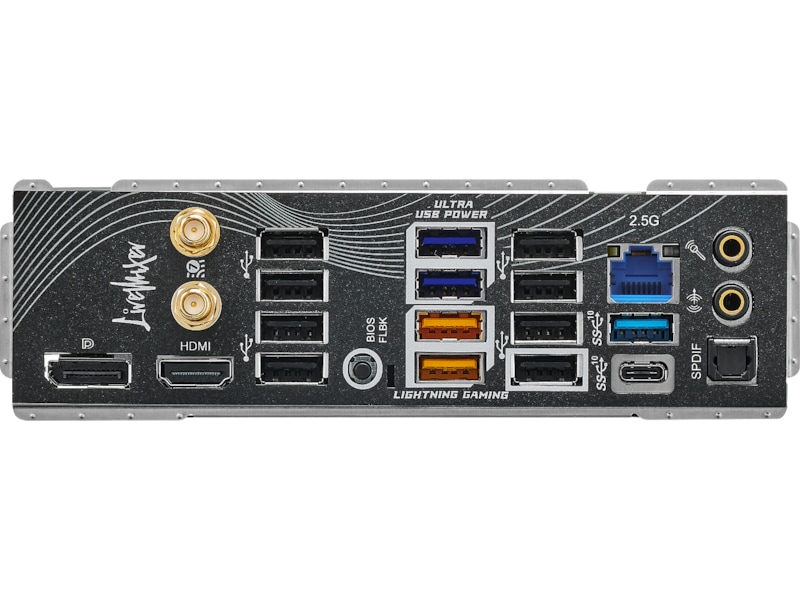

| Interface | 1 x audio linje-ud - mini-jack, 2 x antenne, 1 x LAN (2.5Gigabit Ethernet), 1 x SPDIF-ud, 4 x USB 3.2 Gen 1, 1 x HDMI, 8 x USB 2.0, 1 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x DisplayPort, 1 x mikrofon - mini-jack |
|---|
| Interne interfaces | 4 x USB 2.0 - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x SPI - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning |
|---|
